Welcome to your new DVD Receiver

Contents

Setting up 4
Main Unit 4
Hooking up the unit .5-6
Remote control 7
OSD Initial language settings - Optional 8
Initial Setting the Area Code - Optional 8
Adjusting the general settings 8-10
5.1 Speaker Setup 9
Enjoying a pre-programed sound field 10

Displaying Disc Information 11
Playing a disc or file 11-13
Viewing photo files 13
Listening to the radio 14
Using an USB device 15
Listening to music from your portable player or external
device 15
Recording to USB 16

Language Codes 17

Area Codes 17
Troubleshooting 18
Types of Playable Discs 19
Specifications 20

In NIGERIA

POWER: This unit operates on a mains supply of 200-240V, 50/60Hz.
WIRING: This unit is supplied with a BSI 1363 approved 13 amp mains plug, fused at 5 amp. When replacing the fuse always use a 5 amp BS 1362, BSI or ASTA approved type. Never use this plug with the fuse cover omitted. To obtain a replacement fuse cover contact your dealer. If the type of plug supplied is not suitable for the mains sockets in your home, then the plug should be removed and a suitable type fitted. Please refer to the wiring instructions below:
WARNING: A mains plug removed from the mains lead of this DVD player must be destroyed. A mains plug with bared wires is hazardous if inserted in a mains socket. Do not connect either wire to the earth pin, marked with the letter E or with the earth symbol coloured green or green and yellow. If any other plug is fitted, use a 5 amp fuse, either in the plug, or at the distribution board.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the wires in the mains lead of this DVD player may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

HT304SL-DH_BMRLLK_ENG_4527 4/20/09 3:27 PM Page 4

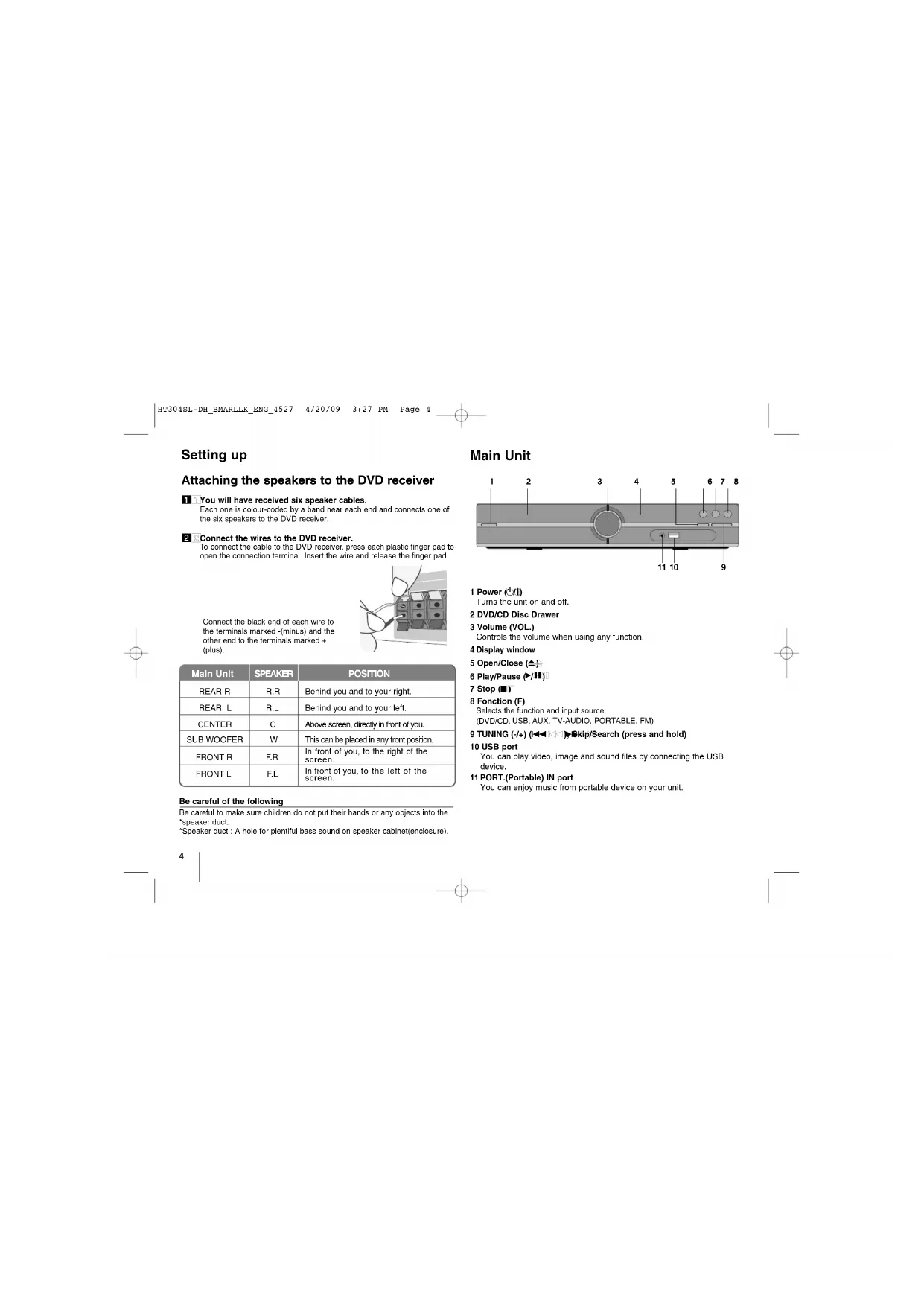

Setting up

Attaching the speakers to the DVD receiver

You will have received six speaker cables.
Each one is colour-coded by a band near each end and connects one of the six speakers to the DVD receiver.
2 Connect the wires to the DVD receiver.

To connect the cable to the DVD receiver, press each plastic finger pad to open the connection terminal. Insert the wire and release the finger pad.

Connect the black end of each wire to the terminals marked - (minus) and the other end to the terminals marked ^+ (plus).

Main Unit	SPEAKER	POSITION
REAR R	R.R	Behind you and to your right.
REAR L	R.L	Behind you and to your left.
CENTER	C	Above screen, directly in front of you.
SUB WOOFER	W	This can be placed in any front position.
FRONT R	F.R	In front of you, to the right of the screen.
FRONT L	F.L	In front of you, to the left of the screen.

Be careful of the following

Be careful to make sure children do not put their hands or any objects into the

*speaker duct.

*Speaker duct : A hole for plentiful bass sound on speaker cabinet(enclosure).

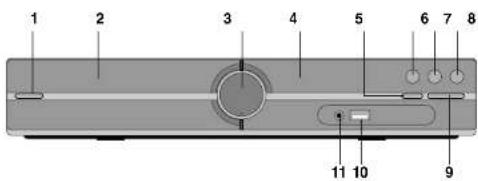

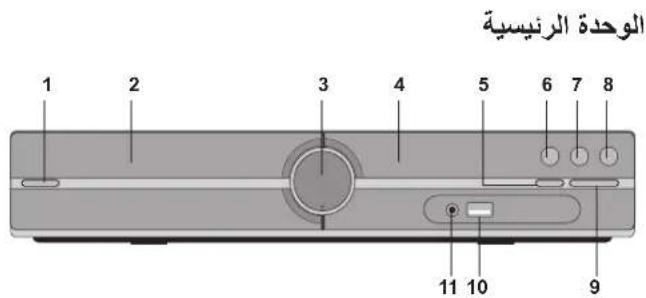

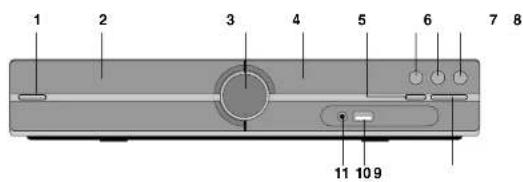

Main Unit

1 Power (1)

Turns the unit on and off.

2 DVD/CD Disc Painter

3 Volume (VOL.)

Controls the volume when using any function.

4 Display window

5 Open/Close (△)

6 Play/Pause (I)

7 Stop

8 Fonction (F)

Selects the function and input source.

(DVD/CD,USB,AUX,TV-AUDIO,PORTABLE,FM)

9 TUNING (- / + ) 1Skip/Search (press and hold)

10 USB port

You can play video, image and sound files by connecting the USB

device.

11PORT.(Portable) IN port

You can enjoy music from portable device on your unit.

HT3048L-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 5

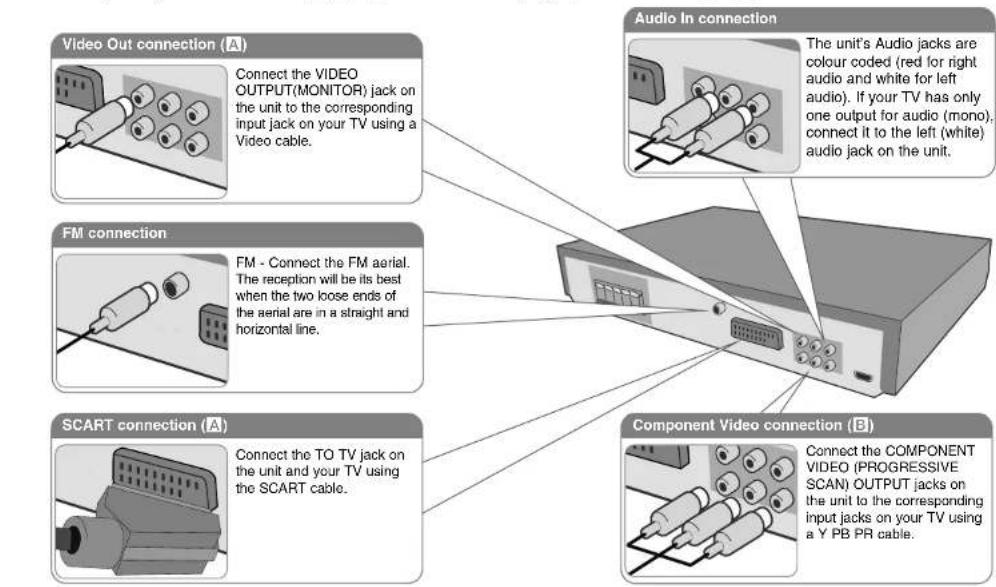

Hooking up the unit

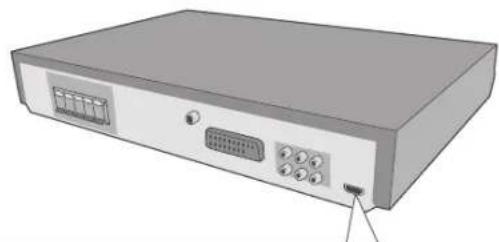

Connect jacks on the unit and your TV (DVD player or Digital Device etc.) using the cables. Check the jacks of your TV and choose the A B or C connection. Picture quality improves in order from A to C

Plug the power cord into the power source.

HT304SL-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 6

Hooking up the unit

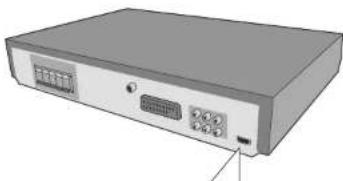

Resolution Setting

You can change the resolution for component video and HDMI output. Press RESOLUTION repeatedly to select the desired resolution - 480i (or 576i), 480p (or 576p), 720p, 1080i, 1080p
The resolution may not be selected depending on the connection or TV.
- Depending on your TV, some of the resolution settings may result in the picture disappearing or an abnormal picture appearing. In this case, press RESOLUTION repeatedly until the picture ro-appears.

You can set 1080p video resolution to enjoy Full HD picture quality. (Full HD up-scaling)

HDMI Out connection (C)

Connect the HDMI OUTPUT jack on the unit to the HDMI input jack on a HDMI compatible TV using a HDMI cable.

Enjoying audio from an external source and selecting the function

You can enjoy audio from an external source through your unit. And You can select the Junction.

Press Function repeatedly to select the desired input source and the function (DVD/CD, USB, AUX, TV-AUDIO, PORTABLE, FM).

Available resolution according to connection

Displayed resolution in display window and outputted resolution may differ according to connection type.

[HDMI OUT]: 1080p, 1080i, 720p and 480p (or 576p), 480i (or 576i)
[COMPONENTVIDEOOUT] : 480p (or 576p) and 480i (or 576i)

[SCART]：576i

Notes on HDMI Out connection

• If your TV does not accept your resolution setting, abnormal picture appears on the screen. ("TV do not support" will appear in screen).
  Please read owner's manual for TV, and then set the resolution that your TV can accept.
• Changing the resolution when the unit is connected with HDMI connector may result in malfunctions. To solve the problem, turn off the unit and then turn it on again.

• When you connect a HDMI or DVI compatible device make sure of the following :

• T ry switching off the HDMI/DVI device and this unit. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this unit.

• The connected device's video input is set correctly for this unit.

The connected device is compatible with 720X576(480i), 720X576p(480p), 1300V/3.0, 1300V/4.0, 1300V/6.0, 1300V/8.0

1280x720p, 1920x1080i or 1920x1080p video input.

The 1080p, 720p and 576p(480p) resolutions are the progressive scan applied resolution.

Not all HDCP-compatible DVI devices will work with this unit.
- The picture will not be displayed properly with non-HDCP device.

HT304SL- DH_BMARLLRK_ENG_4527

4/20/09

3:27PM

Page 7

Remote control

1

2

3

1

FUNCTION: Selects the function and input source.
(DVD/CD, USB, AUX, TV-AUDIO, PORTABLE, FM)
SLEEP: Sets the System to turn off automatically at a specified time. (Dimmer: Dims the LED (Light-emitting diode) of front panel by half in power-on status.)
POWER: Switches the unit ON or OFF.

OPEN/CLOSE: Opens and closes the disc Driver. TITLE: If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may not appear.

DISPLAY:Accesses On-Screen Display.

MENU:Accesses the menu on a DVD disc.

SETUP:Accesses or removes setup menu. PRESET ( ) : Selects programme of Radio TUN. ( + ) :Tunes in the desired radio static > > (up / down / left / right) :Used to na screen displays.

ENTER: Acknowledges menu selection.

2

RETURN (出^) : moves backwards in the menu or exits the setup menu.

REC () :USB Direct Recording

STOP (■): Stops playback or recording.

PLAY (一) ,MO./ST.:Starts playback. Selects Mono/ Stereo

PAUSE/STEP (II) : Pause playback.

SKIP(11/1):Go to next or previous chapter/ track/ file.

SCAN (一 / 一) :Searchbackward or forward.

Put the battery into the remote control

Make sure for the + (plus) and - (minus) on the battery to be matched on the remote control.

3

REPEAT/RANDOM: To select a play mode.

(Random, repeat)

MUTE : To mute the sound.

VOL (Volume) (+/-) : Adjusts speaker volume.

LGEQ: You can select a Natural or Local Specialization equalizer effect by using LG EO.

EQ (EQUALIZER effect) : You can choose sound impressions.

CLEAR: Removes a track number on the Program List.
SUBTITLE: During playback, press SUBTITLE repeatedly to select a desired subtitle language.

0-9 numerical buttons : Selects numbered options in a menu.

4

TV Control buttons: Controls the TV. (LG TV only)

Controlling the TV.

You can control the sound level, input source, and power switching of LG TVs as well. Hold POWER (TV) and press PR/CH (+/-) button repeatedly until the TV turns on or off.

PROG./MEMO.:Accesses or removes Program menu.

RESOLUTION: Sets the output resolution for HDMI

and COMPONENTVIDEOOUTjacks.

RDS: Radio Data System

PTY:Views the various displays of the RDS.

*This button is not available.

HT304SL-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 8

OSD Initial language settings - Optional

During the first use of this unit, the initial language setup menu appears on your TV screen. You must complete initial language selection before using the unit. English will be selected as the initial language.

	ON REMOTE
1 T urn the power on The language list appears POWER
2 S elect the language	A V < >
3 Press	ENTER
4 T o confirm press	< > and ENTER

Initial Setting the Area Code - Optional

When you use this unit for the first time, you have to set the Area Code as shown below.

	ON REMOTE
1 Display setup menu SETUP
2 S select LOCK menu on the first level	A V
3 Move to second levelThe activated Area Code appears on the second level.	>
4 Move to the third level	>
5 Enter a new password numerical buttons	(0-9) and ENTER
6 Recheck the entered new password numerical buttons	(0-9) and ENTER
7 Select a code for a geographic areaAfter select, Rating and Password will be activated. (page 17) ENTER	A V < and
8 To confirm what you pressMake sure to finish setting the Area Code before leaving the setup menu if you cannot set the rating and Password	ENTER

Adjusting the general settings

	ON REMOTE
1 Display setup menu SETUP
2 S elect a desired option on the first level	A V
3 Move to the second level	>
4 Select a desired option on the second level	A V
5 Move to the third level	>
6 Change the setting	A V, ENTER

Adjusting the general settings - more you can do

Adjusting the language settings

Menu Language - Select a language for the Setup menu and on-screen display.

Disc Audio/ Disc Subtitle/Disc Menu - Select a language for the Disc Audio/ Disc Subtitle/Disc Menu.

[Original]: Refers to the original language in which the disc was recorded.

[Other]: To select another language, press number buttons then ENTER to enter the corresponding 4-digit number according to the language code list in the reference chapter (see page 17). If you make a mistake before pressing ENTER, press CLEAR.

[Off] (for Disc Subtitle): Turn off Subtitle.

HT304SL-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 9

Adjusting the display settings

TV Aspect - Select which screen aspect to use based on the shape of your TV screen.

[4:3]: Select when a standard 4:3 TV is connected.

[16:9]: Select when a 16:9 wide TV is connected.

Display Mode - If you selected 4:3, you'll need to define how you would like wide screen programs and films to be displayed on your TV screen.

[Lelterbox]: This displays a wide screen picture with black bands at the top and bottom of the screen.

[Panscan]: This fills the entire 4:3 screen, cropping the picture as necessary.

TV Output Select - Select an option according to the TV connection type.

[RGB]: When your TV is connected with the SCART jack.

[PbPr] : When your TV is connected with the

COMPONENT/ PROGRESSIVE SCAN JACKS ON THE UNIT.

-If you change TV Output Select to RGB from YPbPr on the setup menu

especially when connecting the unit in the way of component video

connection, the screen turns black. In that case, connect the video cable to MONITOR in and select Xp80 on the other menu option.

MONTOR JACK AND SELECT YPbPr on the setup menu again.

Adjusting the audio settings

DRC (Dynamic Range Control) - Make the sound clear when the volume is turned down (Dolby Digital only). Set to [On] for this effect.

Vocal - Select [On] to mix karaoke channels into normal stereo.

This function is effective for multi-channel karaoke DVDs only.

HD AV Sync: Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it effectively 'waits' for the picture to arrive: this is called HD AV Sync. Use

A v (on the remote control) to scroll up and down through the delay amount, which you can set at anything between 0 and 300m sec.

5.1 Speaker Setup

	ON REMOTE
1 Open the settings menu SETUP
2 Select to the audio icon	\( \land \) \( \lor \)
3 Select right to enter the audio menu, then select 5.1 Speaker Setup	\( >\land \) \( \lor \) ENTER
4 Select the speaker you want to adjust	< >
Audio
Speaker From L Size Small Variables R Distance A (NUT) Tear Off +6 Select 2 Move 3 Return
5 Select a option and change the settings	\( \land \) \( \lor < > \)
6 Set the output level (volume) of a speaker from -5dB to +5dB. The speaker size setting are fixed, so you cannot change the setting.	< >
7 If you connect speakers to your unit, setting the Distance lets the speakers to know how far the sound has to travel to reach your set listening point. This allows the sound from each speaker to reach the listener at the same time.	< >
8 T est the signals of each speaker Adjust the volume to your taste according to these signals.	< >
9 Save your settings and exit the Setup menu RETURN

HT304SL-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 10

Adjusting the lock settings

To access the lock options, you must enter the 4-digit password. If you have not yet entered a password you are prompted to do so. Enter a 4-digit password then press ENTER. Enter it again then press ENTER to verify. If you make a mistake while entering number, press CLEAR then correct it. If you forget your password you can reset it. First, remove the disc in the unit. Press SETUP to display the Setup menu. Input '210499' and press ENTER. The password has now been cleared.

Rating - Select a rating level. The lower the level, the stricter the rating. Select [Unlock] to deactivate the rating.

Password - Sets or changes the password for lock settings. [New]: Enter a new 4-digit password using the numerical buttons then press ENTER. Enter the password again to confirm.

[Change]: Enter the new password twice after entering the current password. Area Code - Select a code for a geographic area as the playback rating level. This determines which area's standards are used to rate DVDs controlled by the parental lock. See the Area Codes on page 17.

Adjusting the others settings

DivX(R) VOD - We provide you with the DivX*VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX* VOD service.

For more information, visit www.divx.com/vod. Press ENTER when [DivX(R) VOD] is highlighted and you can view the registration code of the unit.

Enjoying a pre-programmed sound field

This system has a number of pre-set surround sound fields. You can select a desired sound mode by using EQ/ LG EQ. You can change the EQ/ LG EQ using <> arrow key while the EQ/ LG EQ information is displayed on. The displayed items for the Equalizer may be different depending on sound sources and effects. If you connected mic, equalizer is not available.

ON DISPLAY Description NATURAL You can enjoy comfortable and natural sound.

Local Regionally optimized sound effect. (DANGDUT/ ARABIC/ Specialization PERSIAN/ INDIA/ REGUETON/ MERENGUE/ SALSA/ equalizer SAMBA)

AUTO EQ Realizes the sound equalizer that is the most similar to the genre of which is included in the MP3 ID3 tag of song files.

POP This program lends an enthusiastic atmosphere to the CLASSIC sound, giving you the feeling you are at an actual rock JAZZ pop, jazz or classic concert. ROCK

MP3 OPT This function is optimized for compressible MP3 file. It improves the bass sound.
BASS Reinforce the treble, bass and surround sound

VIRTUAL You can enjoy more virtual surround sound.

PLI MOVIE Dolby Pro Logic II enables you to play stereo source on PLI MUSIC 5.1-channel.

NORMAL(OFF) You can enjoy the sound without equalizer effect.

HT304SL-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 11

Displaying Disc Information

	ON REMOTE
1 Press DISPLAY	DISPLAY
2 Select an item	A V
3 Adjust the Display menu settings	<>
4 To return the exit	DISPLAY

Displaying Disc Information - more you can do

You can select an item by pressing and change or select the setting by pressing < >

Current title (or track file)
number/total number of titles (or tracks/files) Current chapter number/total number of chap
Elapsed playing time
Selected audio language or channel
Selected subtitle
Selected angle/ total number of angles
Selected sound mode

Symbol Used in this Manual

All discs and file listed below MP3 ALL

DVD and finalized DVD±R/RW W DVD s

DivX files

Audio CDs

Playing a Disc or file

	ON REMOTE
1 Insert a disc on unit	▲ OPEN/CLOSE
2 Select a DVD/CD FUNCTION
3 Adjust the menu settings or Select a file from the menu	\( \land \) V < > \( \land \) V
4 S tart the Disc playing	▶ PLAY
5 T o stop the Disc playing	■ STOP

Playing a Disc or file - more you can do

Playing a DVD that has a menu DVD

Most DVDs now have menus which load first before the film begins to play. You can navigate these menus using < > to highlight an option.

Press PLAY (▶) to select.

Skipping to the next/ previous chapter/ track/ file ALL

Press SKIP (▶) to move to the next chapter/ track/ file. Press SKIP (▶) to return to the beginning of the current chapter/ track/ file. Press SKIP (▶) twice briefly to step back to the previous chapter/ track/ file. Pausing playback

Press PAUSE/STEP(II) to pause playback. Press PLAY (▶) to continue playback.

Frame-by-Frame playback DvXG

Press PAUSE/STEP (II) repeatedly to play title Frame-by-Frame.

Playing repeatedly or randomly

Press REPEAT/RANDOM repeatedly, and the current title, chapter or track will be played back repeatedly or randomly. To return to normal playback, press REPEAT/RANDOM repeatedly.

• Random play mode: only music files.

HT304SL-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 12

Fast forward or fast reverse ALL

Press SCAN (or) to play fast forward or fast reverse during playback. You can change the playback speed by pressing SCAN (or) repeatedly. Press PLAY (to) to continue play at normal speed.

Selecting a subtitle language

During playback, press SUBTITLE (□) repeatedly to select a desired subtitle language.

Slow down the playing speed

While playback is paused, press SCAN (← or >) to slow down forward or reverse playback. You can change the various playback speed by pressing SCAN (← or >) repeatedly. Press PLAY (→) to continue play at normal speed. The DivX file cannot be slow down reverse playback.

1.5 times faster playback DVD

Press PLAY when a DVD is already playing to watch and listen to a DVD 1.5 times faster than normal playback speed. x1.5* will appear in the screen. Press PLAY again to return to normal playback speed.

Viewing the Title menu DVD

Press TITLE to display the disc's title menu, if available.

Starting play from selected time

Searches for the starting point of entered time code. Press DISPLAY then select clock icon. Enter a time then press ENTER. For example, to find a scene at 1 hour, 10 minutes, and 20 seconds, enter "11020" by using numerical buttons and press ENTER. If you enter the wrong number, press CLEAR to enter again.

Last Scene Memory DVD

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off (Stand-by mode) the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

When playing a disc or USB Flash Drive containing with DivX, MP3/ WMA and JPEG files together, you can select menu of files which you would like to play by pressing MENU If "This file has non-supported type on the player" pops up, select an appropriate file by pressing MENU.

Viewing the DVD MENU DVD

Press MENU to display the disc menu, if available.

Changing the character set to display DivX\* subtitle correctly DivX

If the subtitle does not display properly during playback, press and hold SUBTITLE for about 3 seconds then press < or SUBTITLE to select another language code until the subtitle is displayed properly and then press ENTER.

DivX file requirement DivX

DlvX disc compatiblity with this player is limited as follows :
- A valuable resolution: within 720x576 (W x H) pixels. The file name of the Drix substrate should be entered
- The file name of the DivX submodule should be entered within 45 characters. - If there is impossible code to express in the DivX file, it may be displayed as " _ " mark on the display.
Frame rate : less than 30 fps
- If the video and audio structure of recorded files is not interleaved, either video or audio is outputted.
Playable DivX file: ".avi", .mpg", .mpeg", .divx"
- Playable Subtitle format: SubRip ('.srt/.txt), SAMI ('.smi), SubStation Alpha ('.ssa, ''). MicroDVD ('.subt', '.txt'). SubViewer 2.0 ('.subt', '*.txt')
- Playable Codec format: "DIVX3.xx", "DIVX4.xx", "DIVX5.xx", "MP4V3", "SIVX".
- Playable Audio format: "AC3", "PCM", "MP3", "WMA".
Sampling frequency : within 32 - 48 kHz (MP3), within 32 - 48kHz (WMA)
Bit rate: within 32 - 320kb/s (MP3), 40 - 192kb/s (WMA)
For Discs formatted in Live file system, you can not it on this player.
- If the name of movie file is different from that of the subtitle file, playback of a Dixx file, subtitle may not be display.
- If you play a DivX file differ from DivX spec, it may not operate normally.
Fall asleep while listening to your player

Press SLEEP one or more times to select delay time between 10 and 180 minutes, after the player will turn off. To check the remaining time, press SLEEP. To cancel the sleep function, press SLEEP repeatedly until "SLEEP 10^ appears, and then press SLEEP once again while "SLEEP 10^ is displayed.

DIMMER

Press SLEEP once. The LED (Light-emitting diode) of front panel is turned off and the display window will be darken by half. To cancel it, press SLEEP repeatedly until dim off.

HT304SL-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 13

Creating your own program ACD MP3 WMA

You can play the contents of a disc in the order you want by arranging the order of the musica on the disc. To add a music(s) on the program list, press

PROG/MEMO, to enter the program edit mode ( mark appears on the menu) Select a desired music on the [List] by using the then press ENTER to add the music to the program list. Select music from the program list then press

ENTER to start programmed playback. To clear a music from the program list, select the music you want to clear by using the A V then press CLEAR in program edit mode. To clear all music from the program list, select [Clear All] then press ENTER in program edit mode. The program is cleared when the disc is removed or the unit is turned off.

Displaying file information (ID3 TAG) MP3

While playing an MP3 file containing file information, you can display the information by pressing DISPLAY repeatedly.

MP3/WMA music file requirement

MP3/WMA disc compatiblity with this player is limited as follows :
Sampling frequency : within 32 - 48 kHz (MP3), within 32 - 48kHz (WMA)
- Bit rate: within 32 - 320kb/s (MP3), 40 - 192kb/s (WMA)
- Support Version : v2, v7, v8, v9
Maximum files:Under 999
File extensions: .mp3/.wma
CD-ROM file format: ISO9660/ JOLIE
- W e recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.

Screen Saver

The screen saver appears when you leave the unit in Stop mode for about five minutes.

System Select - Optional

You must select the appropriate system mode for your TV system. If "NO DISC" appears in the display window, press and hold PAUSE/STEP (II) for more than five seconds to be able to select a system. (PAL NTSC)

VOCAL FADER

You can enjoy the function as karaoke, by reducing singer vocal of music in the various source. (MP3/ WMA/ CD) Press the VOCAL FADER, and "FADE ON" will appear in display window.
To cancel it, press VOCAL FADER again.
- This function is available to use only when a microphone is connected - The quality of the VOCAL FADER may be different depending on the recording conditions of music files.
- It is not available on the MONO source.

Viewing photo files

	ON REMOTE
1 Insert a disc on unit	▲ OPEN/CLOSE
2 Select a DVD/CD	FUNCTION
3 Select a photo file	▲ V
4 Display the selected file in full screen	▶ PLAY
5 To return to the menu	■ STOP

Viewing photo files - more you can do

Viewing photo files as a slide show

Use A < > to highlight (▶) icon then press PLAY (▶) to start slide Show. You can change slide show speed using <> when (▶) is highlighted.

Depending on the size and resolution of JPEG files, it may take longer for slider show to be set.

Skipping to the next/ previous photo

Press SKIP (or or) or <> to view the previous' next photo.

Rotating a photo

Use V to rotate the photo in full screen counterclockwise or clockwise while viewing a photo in full screen.

Pausing a slide show

Press PAUSE/STEP (II) to pause a slide show. Press PLAY (▶) or

PAUSE/STEP (II) to continue the slide show.

Listening to music during slide show

You can listen to music during slide show, if the disc contains music and photo files together. Use A V < > to highlight (F) icon then press PLAY (▶) to start slide show. This function is available only in disc.

Photo file requirement

JPEG disc compatibility with this player is limited as follows :
Max pixel in width: 2760 x 2048 pixel
Maximum files : Under 999.
Some discs may not operate due to a different recording format or the
condition of disc
File extensions:".jpg
- CD-ROM file format: ISO9660/ JOLIET

HT304SL-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 14

Listening to the radio
Be sure that FM aerial is connected.

	ON REMOTE
1 T urn the power on POWER
2 Select FM FUNCTION
3 S select a radio station TUN.-/+
4 T o 'save' a radio station A preset number will show in the display.	PROG.MEMO.
5 Select the preset number Up to 50 radio stations can be saved.	PRESET ∧ V
6 T o confirm press	PROG.MEMO.
7 T o select a 'saved' station input the preset number	PRESET ∧ V

Seeing information about a radio station

The FM tuner is supplied with the RDS (Radio Data System) facility. This shows information about the radio station being listened to. Press RDS repeatedly to cycle through the various data types: :

PS (Programme Service Name) The name of the channel will appear in the display

PTY (Programme Type Recognition)

The programme type (e.g. Jazz or News) will appear in the display.

RT (Radio Text)

A text message contains special information from the broadcast station.

This text may scroll across the display.

CT (Time controlled by the channel)

This shows the time and date as broadcast by the station.

Listening to the radio - more you can do

Looking for radio stations automatically

Press and hold TUN.-/TUN.+ for more than a second. The tuner will scan automatically and stop when it finds a radio station.

Deleting all the saved stations

Press and hold PROG/MEMO, for two seconds. ERASE ALL will flash up on the DVD receiver display. Press PROG/MEMO, to erase all saved radio stations.

Improving poor FM reception

Press PLAY () (MO/ST.) on the remote control. This will change the tune from stereo to mono and usually improve the reception.

HT304SL-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 15

Using an USB device

You can enjoy media files saved on an USB device by connecting the USB device to the USB port of the unit. If you want to operate other function, see the CD playback section.

ON REMOTE

1 Connect the USB device to the USB port of the unit. -
2 S select the USB function FUNCTION
3 Select a file you want to play	A V
4 Start your media playing	PLAY
5 T o stop, press	STOP
6 Before disconnecting the portable USB device, change to any other function. FUNCTION

Compatible USB Devices

• MP3 Player : Flash type MP3 player.
• USB Flash Drive : Devices that support USB2.0 or USB1.1.
  The USB function may not be available depending on device.

USB device requirement

• Devices which require additional program installation when you have connected it to a computer, are not supported.

Look out for the follows

• Do not extract the USB device while in operation.
  For a large capacity USB, it may take longer than a few minute to be searched. I, o prevent data loss, bark up all data.
• If you use a USB extension cable or USB hub, the USB device is not recognized.
• Using NTFS file system is not supported. (Only FAT(16/32) file system is supported.)
  This unit is not supported when the total number of files is 1000 or more.
• External HDD, Card readers, Locked devices, or hard type usb devices are not supported.
• USB port of the unit cannot be connected to PC. The unit can not be used as a storage device.

Listening to music from your portable player or external device

The unit can be used to play the music from many types of portable player or external device.

	ON REMOTE
1 Connect the portable player to the PORT. IN(PORTABLE IN) connector of the unit. PORT. IN (PORTABLE IN) Or Connect the external device to the AUX connector of the unit. > If your TV has only one output for audio(MONO). connect it to the left(white) audio jack on the unit. Main unit VCR, TV, ...
2 T urn the power on	POWER
3 Select the PORTABLE or AUX function	FUNCTION
4 T urn the portable external device and start it playing	-

HT304SL-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 16

Recording to USB
ON REMOTE

1 Connect the USB device to the unit -
2 S elect a mode in which you want to record FUNCTION(ex. CD/ TUNER...)
Play back a sound source firstIf you want to record desired music file inDisc to USB, record after playing back the file.
3 S tart the recording	REC
4 T o stop recording, press	STOP

Recording to USB - more you can do

Recording Music file in disc source to USB

One track recording

If the USB recording is started during playback of the CD, the one track/ file would be recording into the USB.

All tracks recording
If the recording button is pressed at the CD stop, all tracks/ files would be recording.
The files in the sub- folders are not recorded during all track recording.
- If you want to all tracks recording during playback, press stop twice, check the ■on the screen.

Program list recording

USB records after creating your own program if you want to record the track you want (AUDIO CD Only).

When you are recording, look out for the following

• Y ou can check the recording percentage rate for the USB record on the screen during the recording. (AUDIO, MP3/ WMA CD only)
• During recording MP3/ WMA, there is no sound.
• When you stop recording during playback, the file that has been recorded at that time will be stored.(AUDIO CD Only)
• Do not remove the USB device or turn off the unit during USB recording. If not, an incomplete file may be made and not deleted on PC.
• If USB recording does not work, the message like "NO USB", "ERROR", "USB FULL" or "NO REC" is displayed on the display window.
• Multi card reader device or External HDD can not be used for USB recording
  A file is recircarded by 129Mbte when you record for a long term. When you stop recording during playback, the file will not be stored.
• In the state CD-G, DTS disc USB record is not operated.
• Y ou may not record more than 999files.
  The numbering of the recording file is entered from the lowest number.

So if you delete some of the recording files, the next recording file could be the lowest number among them.

It'll be stored as follows.

AUDIO CD	MP3/ WMA	The other sources (Tuner, AUX, Portable, etc)
CD_REC TRK_001 TRK_002 :	FILE_REC -001_ABC(File name) -002_DEP(File name) :	EXT_REC AUDIO_001 AUDIO_002 :

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense. This equipment should not be used for such purposes.

Be responsible

Respect copyrights

HT304SL-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 17

Language Codes

Language Code	Language Code	Language Code	Language Code	Language Code	Language Code	Language Code
Afri	6665	Croatian	7282	Hausa	7265	Lingai	7678	Quechu	8186	Tajik	8471
Afrikaans	6670	Czech	6783	Hebrew	7387	Lithuanian	7684	Fhaisto-Romance	8277	Tamil	8465
Albanian	8381	Danish	6865	Hindi	7273	Maenochondi	7775	Rumanian	8279	Telugu	8469
Amhacan	6677	Dutch	7876	Hungarian	7265	Malagasy	7771	Russian	8285	Thai	8472
Arabic	6582	English	6978	Icelandic	7383	Malay	7783	Samoan	8377	Tonga	8479
Armenian	7289	Esperanto	6979	Indonesian	7378	Malayalam	7776	Sanskrit	8365	Turkish	8482
Assamese	6683	Estonian	6984	Interlingua	7365	Maon	7773	Scott's Gaelic 7108		Turkmen	8475
Aymara	6588	Faroeese	7079	Irish	7165	Marathi	7782	Serbian	8382	Twi	8487
Azerbaijan	6590	Fiji	7074	Italian	7384	Moldavian	7779	Seroc-Croatian	8372	Ukrainian	8575
Bashkir	6665	Finnish	7073	Japanese	7465	Mongolian	7778	Shona	8378	Urdu	8582
Basque	6985	French	7082	Kennada	7578	Nauru 7865		Sindhi	8368	Uzbek	8590
Bangali Bangla	6678	Finnian	7089	Kashmiri	7583	Nepali	7809	Singhalase	8373	Vietnamese	8673
Bhutani	6890	Galician	7176	Kazakh	7575	Norwegian	7879	Slovak	8375	Volapuk	8679
Bihari	6672	Georgian	7565	Kirghiz	7589	Oriya	7982	Slovenian	8376	Welsh	8789
Breton	6682	German	6869	Korean	7579	Panjabi	8065	Spanish	8383	Wolof	8779
Bulgarian	6671	Greek	6976	Kurdish	7585	Pashto, Pushhto 8083		Sudanese	8385	Xhosa	8872
Burmese	7789	Greenlandic	7576	Laotlian	7679	Persian	7065	Swahili	8387	Yiddian	7473
Byelorussian	6669	Guarani	7178	Latin	7665	Polish	8076	Swedish	8386	Yoruba	8979
Chinese	9072	Gujarati	7185	Lafvian, Lotlish 7866		Portuguese	8084	Tagalog	8476	Zulu	9085

Area Codes

Choose a area code from this list.
Area Code		Area Code		Area Code		Area Code		Area Code		Area Code
Afghanistan	AF	Costa Rica CR		Greenland	GL	Maldives	MV	Paraguay	PY	Sri Lanka
Argentina	AR	Croatia	HR	Hong Kong HK		Mexico	MX	Philippines	PH	Sweden
Australia	AU	Czech Republic CZ		Hungary	HU	Monaco	MC	Poland	PL	Switzerland
Austria	AT	Denmark	DK	India	IN	Mongolia	MN	Portugal	PT	Taiwan
Belgium	BE	Ecuador	EC	Indonesia	ID	Morocco	MA	Romania	HO	Thailand
Bhutan	BT	Egypt	EG	Israel	IL	Nepal	NP	Hussein Federation	IU	Turkey
Bolivia	BO	El Salvador SV		Italy	IT	Netherlands	NL	Saudi Arabia SA		Uganda
Brazil	BR	Ethiopia	ET	Jamaica	JM	Netherlands Antilles	AN	Senegal	SN	Ukraine
Cambodia	KH	Fiji	FJ	Japan	JP	New Zealand	NZ	Singapore	SG	United States
Canada	CA	Finland	FI	Kenya	KE	Nigeria	NG	Slovak Republic	SK	Uruguay
Chile	CL	France	FR	Kuwait	KW	Norway	NO	Slovenia	SI	Uzbekistan
China	CN	Germany	DE	Libya	LY	Oman	OM	South Africa	ZA	Vietnam
Colombia	CO	Great Britain GB		Luxembourg	LU	Pakistan	PK	South Korea	KH	Zimbabwe
Congo	CG	Greece	GR	Malaysia	MY	Panama	PA	Spain	ES

Troubleshooting

PROBLEM	CAUSE	CORRECTION
No power	The power cord is disconnected.	Plug the power cord into the wall outlet securely.
No picture	The TV is not set to receive the DVD signal.	Select the appropriate video input mode on the TV so the picture from the DVD Receiver appears on the TV screen.
	The video cables are not connected securely.	Connect the video cables securely to both the TV and DVD Receiver.
There is little or no sound	Equipment connected via the audio cable is not set to receive DVD signal output.	Select the correct input mode of the audio receiver so you can hear the sound from the DVD receiver.
	The audio cables are not connected to the speakers or receiver securely.	Connect the audio cables into the connection terminals correctly.
	The audio cables are damaged.	Replace with a new audio cable.
The DVD picture quality is poor	The disc is dirty.	Clean the disc using a soft cloth with outward strokes.
A DVD/CD will not play	No disc is inserted.	Insert a disc
	An unplayable disc is inserted.	Insert a playable disc (check the disc type, colour system and regional code).
	The disc is inserted upside down.	Place the disc with the label or printed side facing upwards.
	The menu is open on screen.	Press SETUP to close the menu screen.
	There is a parental lock which prevents the playback of DVDs with a certain rating.	Enter your password or change the rating level.
Humming noise heard while a DVD or CD is playing	The disc is dirty.	Clean the disc using a soft cloth with outward strokes.
	The DVD receiver is located too close to the TV, causing feedback.	Move DVD receiver and audio components further away from your TV.
Radio stations can't be tuned in properly	The antenna is positioned or connected poorly.	Check the antenna connection and adjust its position.
		Attach an external aerial if necessary.
	The signal strength of the radio station is too weak.	Tune to the station manually.
	No stations have been preset or preset stations have been cleared (when tuning by scanning preset channels).	Preset some radio stations, see page 14 for details.
The remote control doesn't work well / at all	The remote is not pointed directly at the DVD receiver.	Point the remote directly at the unit.
	The remote is too far from the DVD receiver.	Use the remote within 23 foot (7m) of the DVD receiver.
	There is an obstacle in the path between the remote control and the unit.	Remove the obstacle.
	The battery in the remote control are flat.	Replace the batteries with new ones.

Types of Playable Discs

Type	Logo
DVD-VIDEO : Disks such as movies that can be purchased or rented.	DVD VIDEO
DVD-R : Video mode and finalized only	DVD
DVD-RW : Video mode and finalized only DVD VR format that have been finalized can not be played in this unit	DVD VR
DVD+R : Video mode only Supports the double layer disc also	RW 2000
DVD+RW : Video mode only	RW DVD+RW
Audio CD : Music CDs or CD-R/ CD-RW in music CD format that can be purchased.	AUDIO CD DVD+RW DVD+R or CD-RW CD-R cannot be played on this unit due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software.
This unit plays DVD±R/ RW and CD-R/ RW that contains audio titles, DivxX, MP3, WMA or JPEG files. Some DVD±RW/ DVD±R or CD-RW/ CD-R cannot be played on this unit due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software.

"Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby

Laboratories.

Manufactured under License from Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI licensing LLC.

About the Symbol Display

" may appear on your TV display during operation and indicates that the function explained in this owner's manual is not available on that specific DVD video disc.

Regional Codes

This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labeled same as the rear of the unit or "ALL".
- Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit's regional code or the disc cannot play.
- If you try to play a DVD with a different regional code from your player, the message "Check Regional Code" appears on the TV screen.

Copyrights

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLYCompatible WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525 AND 625 UNIT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER. You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewltable discs. When setting the option to Live File System, you cannot use it on LG players. (Mastered/ Live File System : Disc format system for Windows Vista)

HT304SL-DH_BMARLLK_ENG_4527 4/20/09 3:27 PM Page 20

Specifications of main unit

Power supply Refer to main label.

Power consumption Refer to main label.

Net Weight 2.5 kg

External dimensions (W x H x D) 360 x 62 x 305 mm

Operating conditions Temperatu

Operation status: Horizontal

Operating humidity 5% to 85%

Laser

Semiconductor

wavelength 650 nm

Tuner FM

FM Tuning Range 87.5-108.0 MHz

FM Intermediate Frequency 128 kHz

Amplifier

Stereo mode 45 W + 45 W (4Ω at 1 kHz, THD 10%)

Surround mode Front 45 W + 45 W (THD 10 %)

Center

Surround ^ 生 45 W + 45 W (48 at 1 kHz THD 10%)

Subwoofer

75 W (8Ω at 30 Hz THD 10%)

Specifications of speakers

Speakers (HT304SU)

	Front/Rear Speaker	Center speaker	Passive Subwoofer
Type Impedance Rated Input Power Max. Input Power 90 W 90 Not Dimensions (W x H x D) Net Weight	1 Way 1 Speaker 4 Ω 45 W 45 W 75 W W 150 W 117x114x114mm 0.53 kg	1 Way 1 Speaker 4 Ω 117x114x114 mm 0.53 kg	1Way1Speaker 8 Ω 181x312x256 mm 3.4 kg
Speakers (HT304SL)
	Front/Rear Speaker	Center speaker	Passive Subwoofer
Type Impedance Rated Input Power Max. Input Power 90 W 90 Not Dimensions (W x H x D) Net Weight	1 Way 1 Speaker 4 Ω 45 W 45 W 75 W W 150 W 117x114x114mm 0.53 kg	1 Way 1 Speakers 4 Ω 117x114x114 mm 0.53 kg	1Way1Speaker 8 Ω 156x325x320 mm 3.5 kg
Speakers (HT304SQ)
	Front/Rear Speaker	Center speaker	Passive Subwoofer
Type Impedance Rated Input Power Max. Input Power 90 W 90 Not Dimensions (W x H x D) Net Weight	1 Way 1 Speaker 4 Ω 45 W 45 W 75 W W 150 W 99x114x86 mm 0.35 kg	1 Way 1 Speaker 4 Ω 99x114x86 mm 0.35 kg	1Way1Speaker 8 Ω 156x325x320 mm 3.5 kg

Designs and specifications are subject to change without prior notice.

HT304SL-DH_BMARLLK_POR_4527 4/20/09 3:13 PM Page 1

Life's Good

PORTUGUES

Modelo: HT304SU (HT304SU-DH, SH34SU-S/W)

HT304SL (HT304SL-DH, SH34SL-S/W)

HT304SQ (HT304SQ-DH, SH34SQ-S/W)

Full HD up-scaling) (1080p)

(14 a pagina 6)

Entrada Portail

(l à páginé 15)

cumpre as directives EMERGY STADYS de eficiencys anemiete

m = 311

DOLBY Digital PROLOGIC 1

Veluwazoom 15, 1327 AE Almere, The Netherlands

(Tel: [phone])

Fixar as colunas ao receptor de DVD

Apresentar as Informacoes do Disco

mation and plan of life after death

Laser Laser semiconductor,

Modo estereo 45 W + 45 W (4Ω a 1 kHz, THD 10%)

Mode Surround Frente 45 W + 45 W (THD 10%)

Central* 45 W

Surround

Subwoofer

45W+45W(4Ωa1kHz,THD10%)

-45W(THD10%)

45 W + 45 W (4Ω a 1 kHz, THD 10%)

75 W (8Ω a 30 Hz, THD 10%)

HT304SQ (HT304SQ-DH, SH34SQ-S/W)

directives d ENERGY:

Dispositif Principal

5 Ouvrir/Femer (A)
6 Line/Pause (▶/II)

8 Fonction (F)

HT304SQ (HT304SQ-DH, SH34SQ-S/W))

USB

(16

Portable In

(15)

(1080p)ADSDHD

(6a

DOLBY

DIGITALLOGIC II

FULLHD UP-SCALING

HOMI

Eg g LGG EERGY STAR ENERGY

EENERGY STAR

P/NO:MFL61944527

jglsl jglal aaiy 10000000000000000000000000000000000000000000

S OBC = S COD + S_ BOC

y jil 1

aannn 1

a

aaiy aay ay yaaay aay aay aay aay aay aay aay aay

a 1

E 1

1

LG Electronics Service Europe B.V.

Veluwezoom 15, 1327 AE Almere, The Netherlands

(Tel: [phone])

a

yai jia 1jai jy (jaii a jai) iaiai dai y jay kai jai jai jai jai

gaiy jaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

A

1

DVD j

#

4
4
5-6
7
8.
8.
8-10
9 15.1
10

11.

11-13 S ADB = S COD + S_ BDO
13
14
15. (USB)
15. 15
16 "USB"

17 2
17 1
18.
19 1
20

12

DVD jg

1

DvD 2

(1/1)

1

DVD/CD 2

(VOL.) 3

A

4

(△) 1/2

（II）

（）7

(F)

jaiy jao jaiy jai

(FM, PORTABLE, TV-AUDIO, AUX, USB, DVD/CD)

（）（+/-）

USB 10

USB

J:di (Jpa),di11

Lg 56i j)480j(576p j)480p,720p,1080j,1080p:HDMI OUT (576p j)480p,720p,1080i:(j,jjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjjj

(576i j) 480i (j) VIDEO OUT

576i: [SCART]

HDMI Out

a 1

(a) (e (e e e) "TV do not support"

y

HDMI

5 5

DVI 1HDMI

30HDMIDVHDMIDV

saae

y jie yjie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie

720X480p (576p) 720X480i (576i)

1920X1080p 1920X1080i 1280X720p

480p(576p),720p,1080p

HDCP DVI

HDCP 1

gssalil 1

四边形 AOBC 为正方形

HDMI j 480p (576i) 480i- j 480j

1080p 1080i720p (576p j)

Jy

j 1

RESOLUTION

(1)

(1aH) (HD) 1080

(C)HDMI Out

HDMI OUTPUT 1000000000000000000000000000000000000000000000000000000000

aegbgy

aal jlll jlll jll l 1

.(FM, PORTABLE, TV-AUDIO, AUX, USB, DVD/CD)

y

PROG./MEMO.
HDMI RESOLUTION .COMPONENTVIDEOOUT RDS RDS PTY

3

JL:（）FUNCTION (FM, PORTABLE, TV-AUDIO, AUX, USB, DVD/CD)
SLEEP (A

4001 4001

DVD (1) TITLE
a 1
Ae (a) DISPLAY

.DVDJU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:JU:

POWER FUNCTION FM 2

TUN.-/+

PROG./MEMO.

PRESET ∧ V

PROG./MEMO.

PRESET ∧ V

aaii

y

TUN/TUN

y 1

abgall

PROG./MEMO.

DVD J (J) ERASE ALL

PROG./MEMO.

FM 1

MO./ST.)PLAY(

Jusn Jusn Jusn Jusn Jusn Jusn Jusn Jusn Jusn Jusn Jusn Jusn Jusn Jusn Jusn

gai gai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

j j j 0

Jusaa "jssally" Jusaaal jusaaal Jus9

6.2.9.14 (Jgaaal Jz)

PORT.IN (PORTABLE IN)

1

a

"AUX"

（）

a

POWER

2

FUNCTION

(AUX) "g" 3

4

A

(USB)

jai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

"USB"

FUNCTION	2 (....../pseudow/psi) ...
REC	3
STOP	4

4a d ic y la j -"USB"

"USB"

g 1

.USB

jusll jss

i 1

i j 1

A 15

a

（）

ailll jga

8471	8185	7678	7265	7282	6565
8465	8277	7684	7387	6783	6570
8469	8279	7775	7273	6865	8381
8472	8285	7771	7285	7876	6577
8479	8377	7783	7383	6978	6582
8482	8365	7776	7378	6979	7289
8475	8368	7773	7365	6984	6583
8487	8382	7782	7165	7079	6588
8575	8372	7779	7384	7074	6590
8582	8378	7778	7465	7073	6665
8590	8368	7865	7578	7082	6985
8673	8373	7869	7583	7089	6678
8679	8375	7879	7575	7176	6890
8789	8376	7982	7589	7565	6672
8779	8363	8065	7579	6869	6682
8872	8385	8083	7585	6976	6671
7473	8387	7065	7679	7576	7789
8979	8386	8076	7665	7178	6669
9085	8476	8084	7686	7185	9072

abian1 jga

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a aaa

a 625 525 525 625 625 625 625 625 625 625 625

LG claln gai jai (gai) [Mastered] 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Jaaai aal al jai 1
