USER MANUAL LRE6325SW LG

Please read this owner's manual thoroughly before operating and keep it handy for reference at all times.

LRE6327ST

LRE6325ST

LRE6325SB

LRE6325SW

TABLE OF CONTENTS

3 IMPORTANT SAFETY INSTRUCTIONS

11 OvERvIEw

11 Range overview
12 Control panel overview

13 FEATURES

13 Settings
13Clock
14 Timer on/off
14 Rapid preheat
14 Convection auto conversion
15 Thermostat
15 Language
15 Preheating alarm light
15 Beeper volume
15Fahrenheit of Celsius
16 Start time
17 Cook time
17 Oven light
17 Lockout

18 USING THE COOKTOP

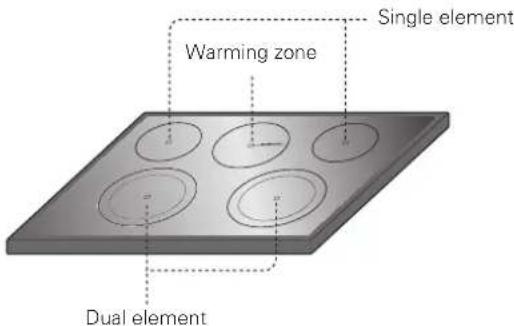

18 Cooking areas
18 Using the cooktop elements
20 Using the proper cookware

21 USING THE OvEN

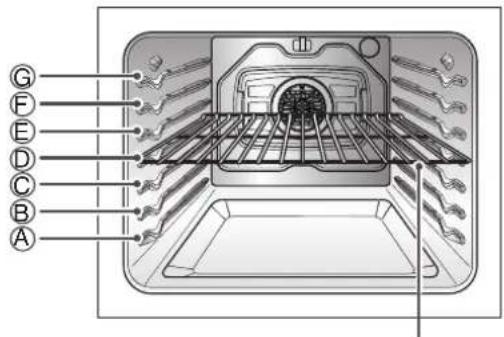

21 Removing and replacing the oven racks
22 Bake
22 Convection bake
23 Convection roast
24 Broil
24 Speed broil
24 Recommended broiling guide
27 Kids meal

28 Warm
28 Proof
28 Favorites
29 Sabbath mode

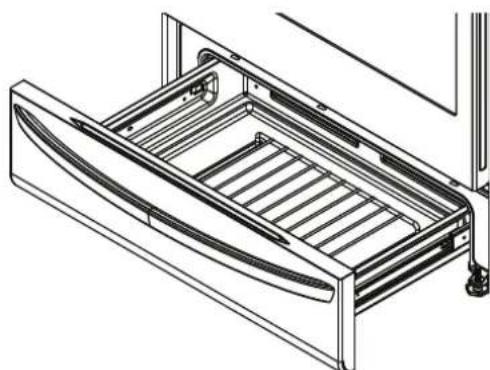

29 wARMING dRAwER

29 Operating the warming drawer

31 CARE AND CLEANING

31 Cleaning the glass/ceramic cooktop.
32 Self clean
35 Cleaning the exterior

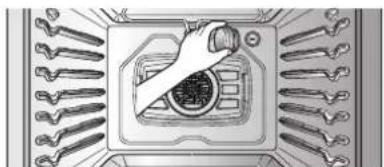

35 Changing the oven light

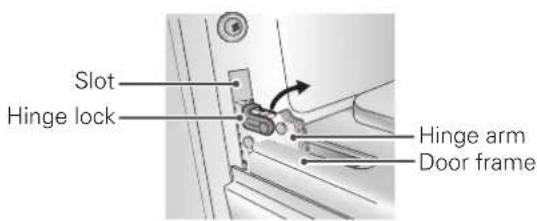

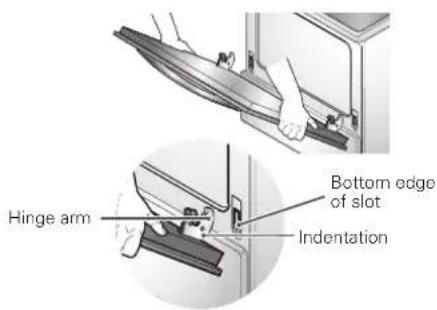

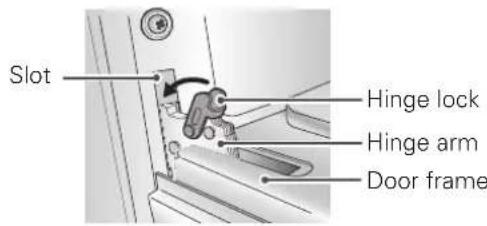

36 Removing and replacing the oven door and warming drawer

38 FAqs

39 TROUBLESHOOTING

43 WARRANTY

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the range. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

Download this owner's manual at: http://www.lg.com.

This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage and/or serious bodily harm or death. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION. These words mean:

WARNiNg

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUtiON

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

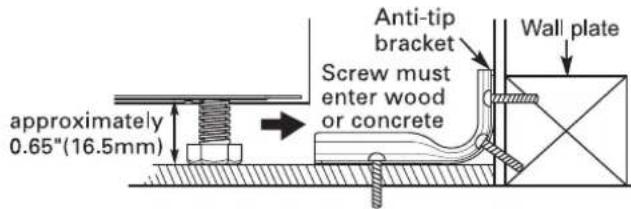

ANTI-TIP SAFETY PRECAUTIONS

WARNiNg

• It is possible for a child or adult to tip the range and be killed.

• Verify that the anti-tip device has been properly installed and engaged to the floor or wall and engaged to the leveling leg of the range.

• Ensure the anti-tip device is reengaged when the range moved.

• To check that the anti-tip bracket is properly installed: Grasp the top rear edge of the range back guard and carefully attempt to tilt it forward. Verify that the anti-tip devices are engaged.

• Do not operate the range without the anti-tip device in place and engaged.

• Failure to follow these instructions can result in death or serious burns to children or adults.

• To check that the anti-tip brackets are properly installed, remove any items on the cooktop. Grasp the top rear edge of the range back guard and carefully attempt to tilt it forward. Verify that the anti-tip devices are engaged.
• Remove the warming or storage drawers and visually inspect that the rear leveling legs are fully inserted into the anti-tip brackets.
• Be certain that your appliance is properly installed and grounded by a qualified technician.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be performed by a qualified technician.
• Always disconnect power from the appliance before servicing.

SAFETY PRECAUTIONS

DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN. Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces, such as oven vent openings and surfaces near these openings, oven doors, and windows of oven doors, also get hot and may cause burns if not cooled.

• Use care when opening the oven door. Let hot air or steam escape from the oven before removing or replacing food in the oven.
• DO NOT heat unopened food containers. Pressure in the containers may cause them burst which may result in injury.
• Be certain that all packing materials are removed from the appliance before operating. Keep plastic, clothes, and paper away from parts of the appliance that may become hot.
• DO NOT force the door open. This can damage the automatic door locking system. Use care when opening the oven door after the self cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or steam to escape. The oven may still be VERY HOT.

• DO NOT use harsh etching, abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface. Scratches may cause the glass to shatter.

• Be careful when removing and lifting the door.

DO NOT lift the door by the handle. The door is very heavy.
DO NOT use the oven for drying clothes. Only use the oven for its intended purpose.
DO NOT use utensils for removing refuse (ash, food etc.)
Refer to the installation manual for proper anti-tip bracket installation.
- Never remove the oven legs. The range will not be secured to the anti-tip brackets if the legs are removed.

CAUION

• DO NOT line the oven walls, racks, bottom, or any other part of the oven with aluminum foil or any other material. Doing so will disrupt heat distribution, produce poor baking results and cause permanent damage to the oven interior (alumini num foil will melt to the interior surface of the oven).

• Never attempt to dry a pet in the oven.

• Do not leave metal objects, such as cans, around the burner.

WARNiNg

• DO NOT step or sit on the oven door. Install the anti-tip brackets packed with range.

• The range could be tipped and injury might result from spilled hot liquid, food, or the range itself.

• If the range is pulled away from the wall for cleaning, service, or any other reason, ensure that the anti-tip brackets are properly re-engage when the range is pushed back against the wall.

NEVER use your appliance for warming or heating the room.
- Keep children and pets away from the oven.

• DO NOT use water on grease fires. Should an oven fire occur, leave the oven door closed and turn the oven off. If the fire continues, throw baking soda on the fire or use a fire extinguisher.
• Only use dry pot holders. Moist or damp pot holders on hot surfaces may result in burns from steam. Do not let the pot holder touch hot heating elements. Do not use a towel or other bulky cloth to remove food.
• Do not store items in or on the range. Flammable materials should not be stored in or near the range.

• Wear proper apparel. Loose-fitting or hanging garments should never be worn while using the range.

• Never pour COLD WATER over a hot oven for cleaning.

• Do not use the range if it is damaged.

• Do not operate the oven without the charcoal heater mesh.

• Do not allow anyone to climb, stand or hang on the door, storage drawer or cooktop. They could damage the range and even tip it over, causing severe personal injury.

ELECTRICAL SAFETY

• Protective Liners. Do not use aluminum foil or any other material to line the oven bottoms. Improper installation of these liners may result in a risk of electric shock or fire.
• Do Not allow aluminum foil or the temperature probe to contact heating elements.
• Before replacing your oven light bulb, switch off the electrical power to the oven at the main fuse or circuit breaker panel. Failure to do so can result in severe personal injury, death, or electrical shock.

WARNiNg

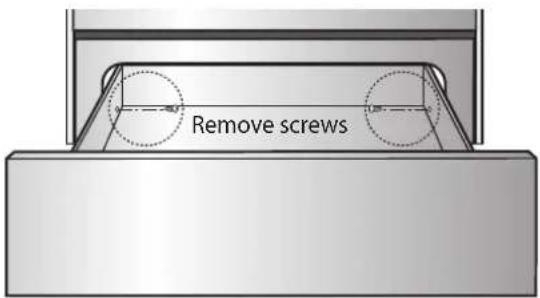

• Turn the POWER OFF before removing the warming oven drawer.
• Failure to do so can result in severe personal injury, death, or electrical shock.

PAN PLACEMENT

• Do not place food or cookware on the bottom of the oven cavity. Doing so will cause permanent damage to the oven bottom finish.
• Never place plastic, paper, canned foods or combustible material in the oven.
• When cooking food in the warming drawer, always use a baking sheet or pan with 4 raised sides. This will prevent food from sliding off.

DEEP FAT FRYERS

• Use extreme caution when moving or disposing of hot grease.
  Always heat fat slowly, and watch as it heats.

• If frying combinations of oils and fats, stir together before heating.

• Use a deep fat thermometer, if possible, to prevent overheating fat beyond the smoking point.
• Use the least possible amount of fat for effective shallow or deep-fat frying. Filling the pan with too much fat can cause spillovers when food is added.

SAFETY dURING USE

• Do not touch the oven racks while they are hot.
• If the rack must be moved while the oven is hot, do not let the potholder contact the hot heating element in oven.
• Always use pot holders or oven mitts when removing food from the oven or the center warming element. Cookware will be hot.
• Always use an oven mitt to remove the temperature probe after cooking.
• Use caution with the TIMED BAKE or DELAYED TIMED BAKE features. Use the automatic timer when cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil, such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is complete. Eating spoiled food can result in sickness from food poisoning.

• Should an oven fire occur, leave the oven door closed and turn the oven off. If the fire continues, throw baking soda on the fire or use a fire extinguisher.

• Should an oven fire occur, DO NOT put water or flour on the fire. Flour may be explosive and water can cause a grease fire to spread and cause personal injury.

• DO NOT use the broiler pan without the grid. DO NOT cover the grid with aluminum foil.
• Do not use plastic to cover food. Use foil or oven resistant lids only.
• If the oven is heavily soiled with oil, self clean the oven before using the oven again. It could cause a risk of fire.
• Wipe up heavy soil on the oven bottom of the oven before using the Self Clean function.
• Use proper pan sizes. For smaller pots and pans, use the smaller heating elements. For larger pots and pans, use the larger heating elements. Select utensils that have flat bottoms large enough to cover the heating elements. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing.
• Never leave surface units unattended at high heat settings. Boil overs cause smoking and greasy spillovers that may ignite.
• Glazed cooking utensils. Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for a range-top service without breaking due to the sudden change in temperature.
• Utensil handles should be turned inward and not extend over adjacent surface units. To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

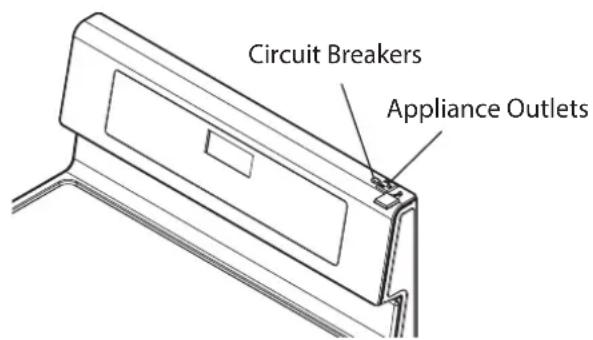

APPLIANCE OUTLET AND CIRCUIT BREAKERS

The 120V appliance outlets located on the control console may be used to run portable appliances placed on countertops beside the range. The outlets operate independently and are not aected by range control settings.

NOTE

• Do not place portable appliances on the cooktop. Damage to the portable appliance could result if the cooktop is hot.
• If the appliane outlet does not work, test your small portable appliance on a different outlet.

The circuit breakers for the appliance outlets on your range are located on top of the control console. They are rated for 15 amps, that may trip if the appliance plugged into it exceeds 15 amps. To reset the circuit breaker, press the switch located on the control console.

CHILD SAFETY

WARNiNg

• Keep children away from the oven.

• Accessible parts may become hot when the grill is in use.

• During normal operation (self-clean cycle, bake, etc.) DO NOT touch the hot surface between the bottom of the oven door and the top of the drawer on the front of the oven. Doing so is a burn hazard and will cause injury.

• Never let a child hang on the oven door.

• Do not allow children crawl into the oven.

CAUfION

DO NOT leave small children unattended near the oven.

• During the self clean cycle, the outside of the oven can become very hot to the touch.
• NEVER leave children alone or unsupervised near the appliance when it is in use or is still hot. Children should never be allowed to sit or stand on any part of the appliance as they could be injured or burned.
• NEVER store items of interest to children in cabinets above the range. Children climbing on the range or on the oven door to reach items could be seriously injured.
• Let hot utensils cool in a safe place, out of reach of small children.
  Children should not be allowed to play with controls or other parts of the appliance.

GLASS/CERAMIC COOKING SURFACES

Stand to the side of the range when opening the oven door. The hot air and steam that escape can cause burns to hands, face and eyes.

WARNiNg

DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS.

• Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. This includes the cooktop and the area above the oven door.

• Do not cook on a broken cooktop. If the cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.

• Clean cooktop with Caution. Do not use sponges or cloth to wipe spills on a hot cooking area. Use a proper metal scraper.

DO NOT use the glass cooktop surface as a cutting board.

• DO NOT place or store items that can melt or catch fire on the glass cooktop, even when it is not being used.

Always turn the surface units on after placing cookware.

• DO NOT store heavy items above the cooktop surface that could fall and damage it.

• DO NOT place aluminum foil or plastic items such as salt and pepper shakers, spoon holders, or plastic wrappings or any other material on the range when it is in use.

Make sure you turned on the correct surface unit.

• NEVER cook directly on the glass. Always use cookware.

• Always place the pan in the center of the surface unit you are cooking on. NEV-ER leave surface units unattended at high heat setting. Proper contact of utensil to burner will also improve efficiency.

• Boil overs cause smoking and greasy spillovers that may catch on fire.

Always turn the surface units off before removing cookware.

DO NOT use plastic wrap to cover food.

-Plastic may melt onto the surface and be very difficult to remove.

DO NOT touch surface units until it has cooled down.

• The surface elements may still be hot and burns may occur if the glass surface is touched before it has cooled down sufficiently.

• Immediately clean the spills on cooking area to prevent a tough cleaning chore later.

• If cabinet storage is provided directly above cooking surface, limit it to items that are infrequently used and can be safely stored in an area subjected to heat. Temperatures may be unsafe for items such as volatile liquids, cleaners or aerosol sprays.

• When warming foods do not use containers that seal. Allow venting for heated air to escape.

• Some cleaners can produce dangerous fumes if applied to a hot surface.

DO NOT use a steel-wool pad.

-It will scratch the surface.

DO NOT use scrub pads or abrasive cleaning pads.

-They may damage your glass cooktop surface.

Cookware with rough or bottoms can mark or scratch the cooktop surface.

• Do not slide anything metal or glass across the cooktop.
• Do not use cookware with dirt or dirt built-up on the bottom.

SAFETY WHEN CLEANING

CAUfION

• Open window or turn on a ventilation fan or hood before self cleaning.

• Do Not Use Oven Cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

• Before self cleaning the oven. Remove broiler pan, all oven racks, meat probe and any other utensils from the oven cavity.

• Never keep pet birds in the kitchen. The health of birds is extremely sensitive to the fumes released during an oven self clean cycle. Fumes may be harmful or fatal to birds. Move birds to well-ventilated room.

• Clean in the self clean cycle only parts listed in this manual. Before self clean the oven, remove the broiler pan and any utensils of foods from the oven.

• It is normal for the cooktop of the range to become hot during a self clean cycle. Therefore, touching the cooktop during a clean cycle should be avoided.

• Important Instruction. In the event the self clean error code F is displayed, and three long beeps sound, the oven is malfunctioning in the self clean mode. Switch off the electrical power to the main fuse or breaker and have serviced by a qualified technician.

• Make sure oven lights are cool before cleaning.

• Never pour water on the oven. Doing so may cause oven malfunction.

COOK MEAT AND POULTRY THOROUGHLY

To protect against food borne illnesses, cook meat and poultry thoroughly. The USDA has indicated the following as safe minimum internal temperatures for consumption:

Ground beef, veal, pork, or lamb: 160^
Poultry: 165^
Beef, veal, pork, or lamb: 145^ F
Fish/seafood: 145^

OvERvIew

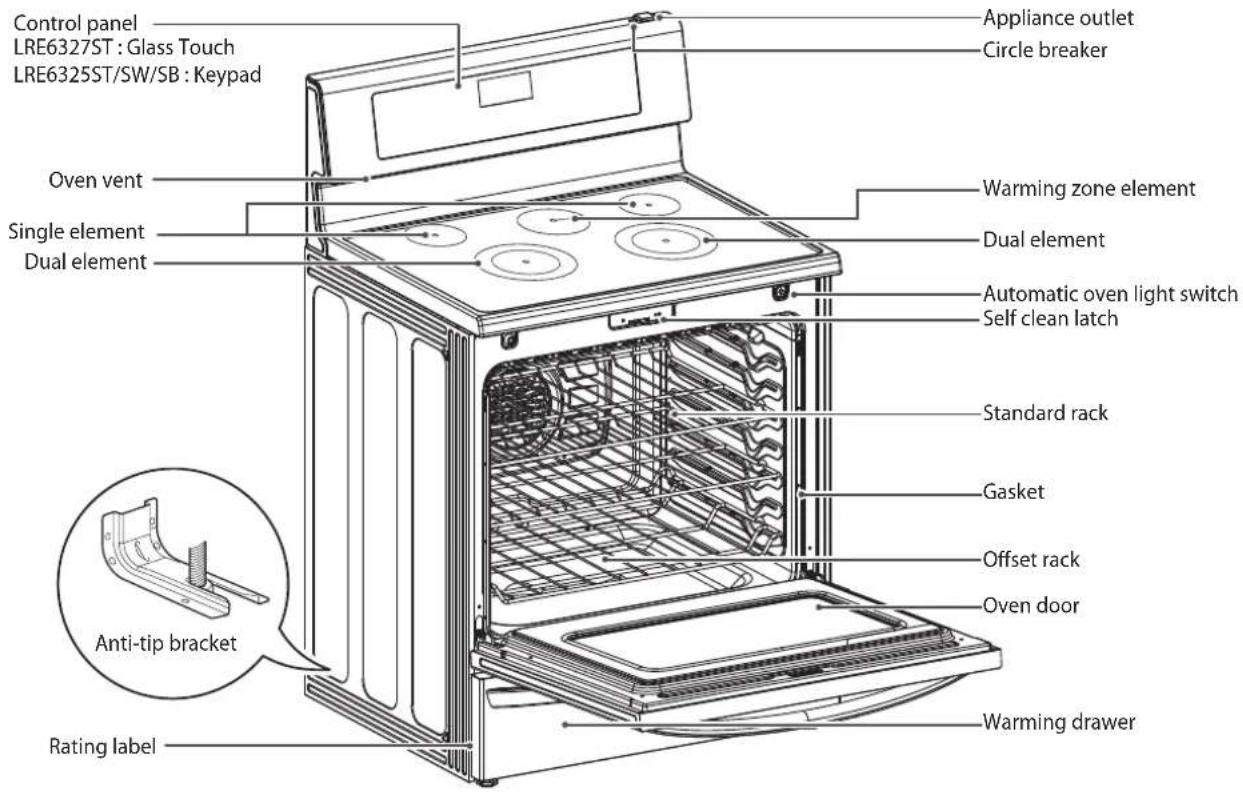

RANGE OvERview

Accessories for installation
Template

Anti-tip (1ea) Screws (6ea) Anchors (6ea)

Accessories for cooking Accessories for maintenance
Standard rack (2ea)

Offset rack (1ea)Drawer rack

Cooktop Cleaner

Cooktop Cleaning pad

Owner's manual Installation manual

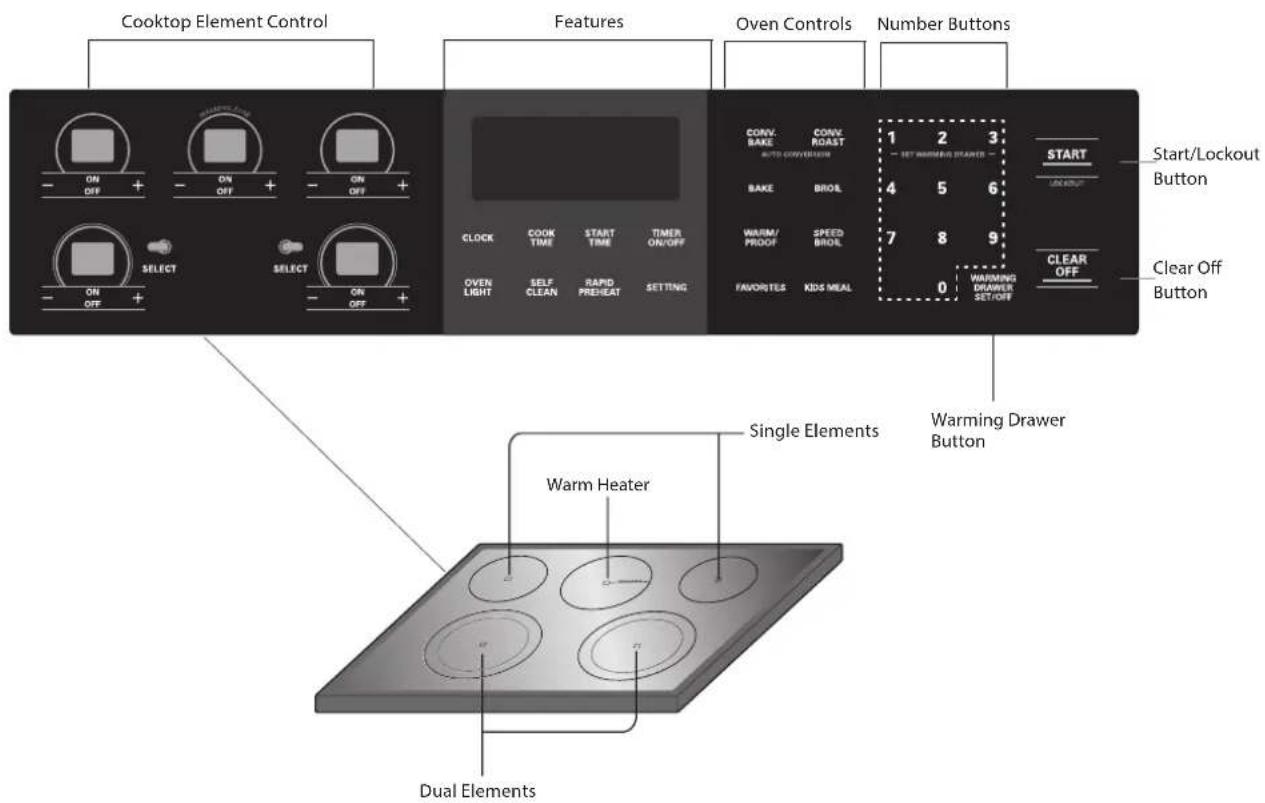

CONTROL PANEL OVERVIEW

NOE

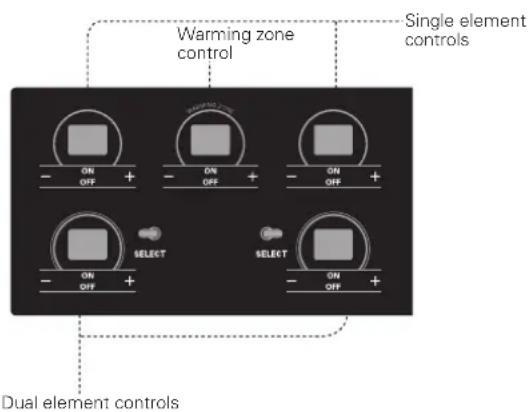

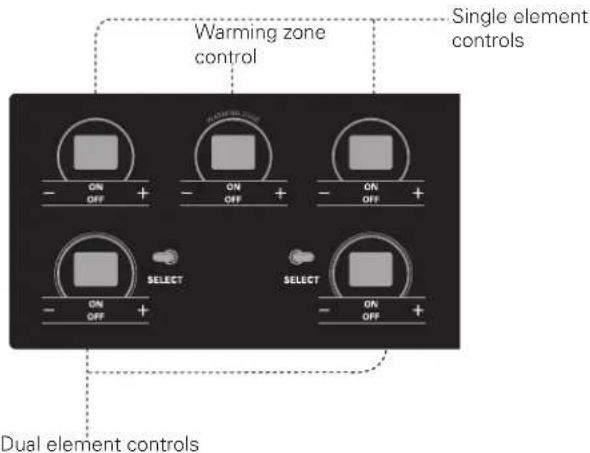

Cooktop Element Controls are set up in the same order as the corresponding elements.

HS (Hot Surface) Indicator

The HS indicator will appear in the display once the element is turned off or during the self clean cycle. The HS indicator will stay on until the surface has cooled to approximately 150^ / 66^ or when the self clean cycle ends.

PF (Power Failure) / Flashing Time

Depending on the model of your range, the display will either show "PF" or a flashing clock. This means that the product has just been plugged in, or that it has experienced a power interruption. To clear the "PF" message, press the "On/Off" key on the cooktop controls and the "Clear/Off" key on the oven controls. If your oven displays a flashing clock, then press the "Clock" key and reset the time, or press any key to stop flashing.

FEATURES

SETTINGS

Use the SETTING button to set Convection Auto Conversion, Thermostat, Language, Preheating Alarm Light, Beeper Volume and to switch temperature scale between Fahrenheit and Celsius.

CLOCK

The clock must be set to the correct time of the day in order for the automatic oven timing functions to work properly.

1. Press CLOCK.
2. Press the number buttons to enter the time. For example, to set the clock for 10:30, press numbers: 1, 0, 3 and 0.
3. Press START.

NOfE

The time of the day cannot be changed during a Timed Baking or Self Clean cycle.
- To check the time of the day when the display is showing other information, simply press the CLOCK button.
- If no buttons are pressed within 25 seconds of pressing the CLOCK button, the display will revert to its original setting.
- If the display time is blinking, you may have experienced a power failure. Reset the time.

Setting the hour mode on the clock

(12 or 24 hour.)

Your control is set to use a 12-hour clock. If you would prefer to have a 24-hour time clock, follow the steps below.

1. Press and hold the CLOCK button for three seconds.
2. Press the 1 button for 12-hour or the 2 button for 24-hour.
3. Press the START button to accept.

Minimum & Maximum default settings

All of the features listed have a minimum and a maximum time or temperature setting that may be entered into the control. An entry acceptance beep will sound each time a control key is pressed.

An entry error tone (two short tones) will sound if the entry of the temperature or time is below the minimum or above the maximum setting for the feature.

FEATURE	MIN. TEMP.	/TIME	MAX. TEMP. / TIME	Default
CLOCK	12 Hr. 1:00	Hr. / Min. 12:59 Hr. / Min.
	24 Hr. 0:00	Hr. / Min. 23:59 Hr. / Min.
TIMER	12 Hr. 0:01	Min. 11:59 Hr. / Min.
	24 Hr. 0:01	Min. 11:59 Hr. / Min
COOK TIME	12 Hr. 0:01	Min. 11:59 Hr. / Min
	24 Hr. 0:01	Min. 11:59 Hr. / Min
CONVECTION BAKE		300°F / 150°C 550°F / 285°C 12 Hr.
CONVECTION ROAST		300°F / 150°C 550°F / 285°C 12 Hr.
BROIL		Lo - 400°F	Hi - 550°F	3 Hr.
BAKE		170°F / 75°C	550°F / 285°C	12 Hr.
PROOF				12 Hr.
WARM			170°F/75°C, 3 hours
SELF CLEAN		3 Hr.	5 Hr.	4 Hr.

TIMER ON/OFF

The TIMER ON/OFF serves as an extra timer in the kitchen that will sound when the set time has run out. It does not start or stop cooking.

The TIMER ON/OFF feature can be used during any of the oven control functions.

Setting the Timer

1. To set hours and minutes: Press the TIMER ON/OFF button once.
   To set minutes and seconds: Press the TIMER ON/OFF button twice.
2. Use the number buttons to set the timer. For example, to set the timer for five minutes: Press the TIMER ON/OFF button once and then press the 5 button.
3. Press Timer or START button to start the timer. The time will count down and the time will show in the display.

NOTE

If TIMER ON/OFF or START button is not pressed, the timer will return to the time of day.

1. When the set time has run out, End will appear in the display. The indicator tones will sound every 15 seconds until TIMER ON/OFF is pressed.

To Cancel the Timer

1. Press the TIMER ON/OFF button once. The display will return to the time of day.

NOTE:

If the remaining time is not shown in the display, recall the remaining time by pressing the TIMER ON/OFF button.

RAPID PREHEAT

The Rapid Preheat feature can preheat your oven up to 20% faster than the normal preheat function.

Setting Rapid Preheat

1. Press the cook function button (ex. the BAKE button).
2. Using the number buttons, enter the cook time.
3. Press the START button
4. Press the RAPID PREHEAT button.

CONVECTION AUTO CONVERSION

When cooking using convection cycle (Conv. bake and roast), the oven temperature is automatically reduced by 25^ . The display will show the changed temperature. This feature is called "AUTO CONVERSION". Your range comes with this feature "ENABLED".

To DISABLE the auto conversion feature, follow below.

1. Press the SETTING button one time. "AUTO" will appear in the display.
2. Press the 1 button to ENABLE or press the 2 button to DISABLE.
3. Press the START button to accept the change.

THERMOSTAT

You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it before changing the temperature settings. If after familiarizing yourself with the new oven, and you still think that it is too hot or too cold, you can adjust the thermostat yourself.

Setting the thermostat

1. Press the SETTING button twice. "AdJU" will appear in the display.
2. Using the number buttons, enter the amount of degrees that you wish to adjust the oven.
3. Press the SETTING button repeatedly to toggle between plus (+) or minus (-) to adjust the temperature either up or down.
4. Press the START button to accept the change.

NOE

• This adjustment will not affect the broiling or Self Clean temperatures. The adjustment will be retained in memory after a power failure. The oven temperature can be increased (+) or decreased (-) as much as 35^ or 19^ .
• Once the temperature is increased or decreased, the display will show the adjusted temperature until it readjusts.

LANGUAGE

The default language of the display is English. It can be changed to Spanish or French

1. Press the SETTING button three times. "Lng" will appear in the display.
   Press the 1 button for English, 2 button for Spanish, or the 3 button for French.
2. Press the START button to accept the change.

PREHEATING ALARM LIGHT

When the oven reaches its set-temperature, the preheating alarm light will flash until the oven door is opened. You can activate or deactivate the preheating alarm light.

1. Press the SETTING button four times. "PrE" will appear in the display.
2. Press the 1 button for ON or press the 2 button for OFF.
3. Press the START button to accept the change.

BEEPervOLUME

1. Press the SETTING button five times.
2. "Beep" will appear in the display. Press the 1 button for LOUD, 2 button for NORMAL, 3 button for LOW, and press the 4 button for MUTE.
3. Press the START button to accept the change.

The oven temperature settings can either be set to Fahrenheit or Celsius. The oven defaults to Fahrenheit unless changed by the user.

1. Press the SETTING button six times. "UNIT" will appear in the display.
2. Press the 1 button for F (Fahrenheit) or the 2 button for C (Celsius).
3. Press the START button to accept the change.

OvEN LIGHT

The interior oven light automatically turns ON when the door is opened. The oven light may also be manually turned ON or OFF by pressing the OVEN LIGHT button.

NOTE:

The oven light cannot be turned on if the Self Clean function is active.

LOCKOUT

The Lockout feature automatically locks the oven door and prevents most oven and cooktop controls from being turned on. It does not disable the clock, timer or the interior oven light.

1. Press and hold the START button for three seconds.
2. The lock melody will sound, OVEN LOCKOUT will appear in the display and DOOR LOCKED will flicker in the display.
3. Once the oven door is locked, the DOOR LOCKED indicator will stop flickering and remain on along with the lock icon
4. To deactivate the Lockout feature, press and hold the START button for three seconds. The unlock melody will sound and UNLOCKING will appear in the display until the controls are unlocked.

START TIME (Delayed timed COOK)

The automatic timer of the DELAYED TIMED COOK function will turn the oven ON and OFF at the time you select. This feature can only be used with the: BAKE, CONVECTION BAKE and CONVECTION ROAST modes.

To set the oven for Delayed Start (example, to BAKE at 300^ and start operating the bake mode at 4:30):

Make sure that the clock is set for the correct time of day.

1. Press the BAKE button. 350^ will appear in the display.
2. Use the oven buttons to set the temperature: Press 3,0 and 0.
3. Press the START TIME button.
4. Set the start time: Press 4, 3 and 0 for 4:30.
5. Press the START button. A short beep will sound and the oven will begin baking.

NOTE

To cancel the DELAYED TIMED COOK function, press the CLEAR OFF button at any time.
- To change the cooking time, repeat steps 3-4 and press the START button.
- If your oven clock is set as a 12 hour clock, you can delay the cook time for 12 hours. If your oven clock is set as a 24 hour clock, you can delay the cook time for 24 hours.

The oven will continue to cook for the set amount of time and then turn off automatically. When the cooking time has elapsed:

• END and the time of day will show in the display.

• The cook end indicator tone will sound every 60 seconds until the CLEAR OFF button is pressed.

• When WARM is set, the warming function is activated after cooking for the set time.

CAUTION

• Use the automatic timer when cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil, such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.
• Eating spoiled food can result in sickness from food poisoning.

COOK TIME (TIMED COOK)

The TIMED COOK feature allows you to set the oven to cook for a specific length of time. This feature can only be used with the BAKE, CONVECTION BAKE, CONVECTION ROAST and FAVORITE modes.

Setting the TIMED COOK function (example, BAKE at 300^ F for 30 minutes):

Make sure that the clock is set to the correct time of day.

1. Press the BAKE button. 350^ will appear in the display.
2. Use the number buttons to set the temperature. Press 3, 0 and 0.
3. Press the COOK TIME button. TIMED will flash. BAKE, 0:00 and 300^ will appear in the display.
4. Set the baking time: Press 3 and 0 (for 30 minutes). The baking time can be set for any amount of time between 1 minute and 11 hours and 59 minutes.
5. Press the START button. The display will show the cooking time countdown.

NOTE:

To set the WARM function to engage at the end of the timed cook cycle, repeat steps 1-4 and then press the WARM button. WARM will appear in the display. (Refer to the "WARM" section on the previous page.

The oven will continue to cook for the set amount of time and then turn off automatically. When the cooking time has elapsed:

END and the time of day will show in the display.
The cook end indicator tone will sound every 60 seconds until the CLEAR OFF button is pressed.
- When WARM is set, the warming function is activated after cooking for the set time.

To change the cook time while operating the oven (example, to change the cook time from 30 minutes to 1 hour and 30 minutes):

1. Press the COOK TIME button.
2. Press the number keys to change the baking time: 1, 3, 0.
3. Press the START button to accept the change.

USING THE COOKTOP

COOKING AREAS

The cooking areas on your range are identified by permanent circles on the glass cooktop surface. For the most efficient cooking, fit the pan size to the element size.

Pans should not extend more than 1/2 to 1-inch beyond the cooking area.

When a control is turned on, a glow can be seen through the glass cooktop surface. The element will cycle on and off to maintain the preset heat setting, even on Hi.

Hot surface indicator

HS (Hot Surface) will appear in the display once the element is turned off or during the self clean cycle. The HS indicator will stay on until the surface has cooled to approximately 150^ (66^) or when the self clean cycle ends.

CAUfION

It is normal for the surface elements to cycle on and off during cooking, even on higher settings. This will happen more frequently if cooking on a lower temperature setting.

Using the cooktop elements

To turn on a SINGLE element (left and right rear elements):

1. Press the ON/OFF button that controls the element that you would like to use (refer to the below cooktop element control image).
2. Press the + button once to adjust the element temperature to Hi, or the - button once to adjust the element temperature to Lo.
3. Use the - / + buttons to adjust the element temperature settings. The element temperature settings are adjustable at all times.
4. To turn off the element after cooking, press the ON/OFF button once.

NOT

Hi is the highest temperature available.
- Lo is the lowest temperature available.
- Press and hold the + or - buttons to quickly scroll through the temperature settings.

CAUfiON

NEVER leave food on the cooktop unattended. Spillovers can cause smoke. Greasy spillovers may catch on fire.
- The oven surface element may appear to have cooled after it has been turned OFF. The element may still be hot and burn may occur if this element is touched before it has cooled sufficiently.

To turn on a DUAL element (left and right front elements):

The front two elements on the cooktop are dual elements. You are able to adjust the dual elements according to the pot/pan size that you are using.

1. Press the ON/OFF button that controls the element that you would like to use (refer to the below cooktop element control image).
2. Press the SELECT button to select either the inner (smaller) or outer (larger) element function. The dual elements default to the inner element function. The light bars above the SELECT button indicate whether the element is adjusted for the inner or outer element function. One bar will display for the inner element and two bars will display for outer element.
3. Press the + button once to adjust the element temperature to Hi, or the - button once to adjust the element temperature to Lo.
4. Use the - / + buttons to adjust the element temperature settings. The element temperature settings are adjustable at all times.
5. To turn off the element after cooking, press the ON/OFF button once.

NOTE

Hi is the highest temperature available.
- Lo is the lowest temperature available.
- Press and hold the or - buttons to quickly scroll through the temperature settings.

To turn on the Warming Zone (center element):

Use the Warming Zone to keep food warm after it has already been cooked. The warming zone is not meant for cooking food. Attempting to cook uncooked or cold food on the warming zone could result in a food borne illness.

1. Press the warming zone ON/OFF button. The warming zone indicator light will flash.
2. Press the + button once to adjust the temperature to Hi, or the - button once to adjust the temperature to Lo. Power level sequence is from -Lo, 2, 3, 4, Hi or from +Hi 4,3,2,Lo.
3. Use the - / + buttons to adjust the temperature settings. The temperature settings are adjustable at all times.
4. To turn off the warming zone, press the ON/OFF button once.

CAUtiON

Only use cookware and dishes that are safe for oven and cooktop use.
Always use oven mitts when removing food from the cooktop and oven.
- Do not place sealed containers on the cooktop.
DO NOT use plastic wrap to cover food while on the cooktop. Plastic may melt onto the surface and be very difficult to clean.
- When using the warming zone, food should be kept in its container and covered with a lid or aluminum foil to maintain food quality.
DO NOT leave food on the warming zone for more than two hours.

Recommended surface cooking settings

Element Temp. Recommended Use
Single or Dual	8.5-Hi · Bring liquid to a boil · Start cooking
	5.5-8.0 · Hold a rapid boil, frying, deep fat fry · Quickly brown or sear food
	3.5-5.0 · Maintain a slow boil · Fry or saute foods · Cook soups, sauces and gravies
	2.2-3.0 · Stew or steam food · Simmer
	LO-2.0 · Keep food warm · Melt chocolate or butter

Element Temp. Recommended Use
Warming Zone	Hi
	2-4
	Lo

Home canning tips

Be sure that the canner is centered over the surface unit and flat on the bottom.

• The base must not be more than 1 inch larger than the element. Use of water bath canners with rippled bottoms may extend the time required to bring the water to a boil and cooktops may be damaged.
• Some canners are designed with smaller bases for use on smooth top surfaces.
• Use the high heat setting only until the water comes to a boil or pressure is reached in the canner.
• Reduce to the lowest heat setting that maintains the boil, or pressure. If the heat is not turned down, the cooktop may be damaged.

USING THE PROPER COOKWARE

Using the proper cookware can prevent many problems, such as food taking longer to cook or achieving inconsistent results. Proper pans will reduce cooking times and cook food more evenly. Stainless steel is recommended.

Check pans for flat bottoms by using a straight edge or ruler

1. Place a ruler across the bottom of the pan.
2. Hold it up to the light.
3. No light should be visible under the ruler.

NOTE

• Do not use a small pan on a large element. Not only does this waste energy, but it can also result in spillovers burning onto the cooking area.
• Only use flat bottomed cookware. Do not use cookware that is oversized or uneven such as round bottom woks, rippled bottom cookware, or oversized canners and griddles.
• Do not use foil or foil-type containers. Foil may melt onto the glass. Do not use the cooktop if metal has melted on it. Call an authorized Servicer.

Recommended cookware	Do not use
Flat bottom and straight sides.	Curved, grooved, or warped pan bottoms. Pans with uneven bottoms do not cook efficiently and sometimes may not boil liquid.
Heavy-gauge pans.	Very thin-gauge metal or glass pans.
Pan sizes that match the amount of food to be prepared and the size of the surface element.	Pans that are smaller or larger than the element.
Weight of handle does not tilt pan. Pan is well balanced.	Cookware with loose or broken handles. Heavy handles that tilt the pan.
Tight-fitting lids. Loose-fitting lids.
Flat bottom woks.	Woks with a ring-stand bottom.

USING THE OVEN

• When using an oven thermometer in the oven cavity, the temperature may differ from the actual set oven temperature.
  It is normal for the convection fan to run while preheating during a regular bake cycle.
• The convection fan motor may run periodically during a regular bake cycle.

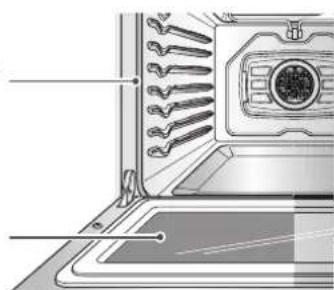

REMOVING AND REPLACING THE OVEN RACKS

CAUfiON

• Replace oven racks before turning the oven on to prevent burns.
  DO NOT cover the racks with aluminum foil, or any other material, or place anything on the bottom of the oven. Doing so will result in poor baking and may damage the oven bottom.
  Only arrange oven racks when the oven is cool.

Removing the racks:

1. While wearing oven mitts, grasp the oven rack.
2. Pull the rack straight out until it stops.
3. Lift up the front of the rack.
4. Pull out the rack.

Replacing the racks:

1. While wearing oven mitts, place the end of the rack on the support.
2. Tilt the front end of the rack up.
3. Push the rack in.
4. Check that the rack is properly in place.

Rack and Pan Placement

Rack

If cooking on two racks, place the oven racks in positions B and D. If cooking on three racks, place them in positions B, D, and F (offset rack). Place the cookware as shown in the Multiple rack baking/Single rack baking images below.

If baking with more than one pan, place the pans so that each one has at least 1^ to 112^ of air space around them.

Standard Rack (Position B)

Standard Rack (Position D)

Multiple rack baking
Standard Rack Single rack baking

Oven vent

• Areas near the vent may become hot during operation and may cause burns.
• Do not block the vent opening.
• Avoid placing plastics near the vent as heat may distort or melt the plastic.
  It is normal for steam to be visible when cooking foods with high moisture.

OVEN CONTROLS

BAKE

BAKE is used to prepare foods such as pastries, breads, casseroles. The oven can be programmed to bake at any temperature from 170^ (77^) to 550^ (288^) . The default temperature is 350^ (177^) .

Setting the BAKE function (example, 375^ ):

1. Press the BAKE button.
2. Set the oven temperature using the number buttons: Press 3, 7 and 5.
3. Press the START button. The oven will start to preheat.

As the oven preheats, the temperature is displayed and rises in 5 degree increments. Once the oven reaches the set temperature, a tone will sound and the oven light will blink on and off.

1. When cooking is complete, press the CLEAR OFF button.
2. Remove food from the oven.

NOTE:

It is normal for the convection fan to operate periodically throughout a normal bake cycle. This is to ensure even baking results.

Baking Tips

• Follow the recipe or convection food directions for baking temperature, time and rack position.
• Baking time and temperature will vary depending on the ingredients, size, and shaped of the baking pan used.
• If baking with more than one pan, place the pans so that each one has at least 1^ to 1 1/2^ of air space around them.
• Check for food doneness at the minimum recipe time.
• Use metal bakeware (with or without a nonstick finish), heatproof glass-ceramic, ceramic or other bakware recommended for oven use.
• Dark metal pans or nonstick coatings will cook food faster with more browning. Insulated bakeware will slightly lengthen the cooking time for most foods.

CONVECTION BAKE

The convection system uses a fan to circulate the heat evenly within the oven. Improved heat distribution allows for even cooking and excellent results while cooking with single or multiple racks.

Setting the CONVECTION BAKE function (example, 375^ ):

1. Press the CONV. BAKE button. The display will flash 350^ .
2. Set the oven temperature using the number buttons: Press 3, 7 and 5.
3. Press the START button. The display will show CONV. BAKE and the oven temperature starting at 100^

As the oven preheats, the display will show increasing temperatures in 5 degree increments. Once the oven reaches the set adjusted temperature, a tone will sound and the oven light will flash on and off. The display will show the auto converted oven temperature 350^ , CONV. BAKE and the fan icon.

1. When cooking has finished or to cancel, press the CLEAR OFF button.

NOTE

The oven fan will run while convection baking. The fan will stop when the door is open, but the heat will not turn off. In some cases, the fan may shut off during a convection bake cycle.

Convection Bake with 3 racks:

To bake with three racks during Convection Bake, use rack positions B, D (standard rack) and F (offset rack):

1. Press the CONV. BAKE button twice. "3 Racks" will appear in the display.
2. Set the oven temperature using the number buttons.
3. Press the START button.

Tips for Convection Baking

• Cookies and biscuits should be baked on pans with no sides or very low sides to allow heated air to circulate around the food. Food baked on pans with a dark finish will cook faster.
• When using Convection Bake with a single rack, place oven rack in position D. If cooking on two racks, place the oven racks in positions B and D. If cooking on three

racks, place in positions B, D (standard rack) and F (offset rack).

• Multiple oven rack cooking may slightly increase cook times for some foods.
• Cakes, cookies and muffins will have better results when using multiple racks.

CONVECTION ROAST

The CONVECTION ROAST feature is designed to give optimum roasting performance. CONVECTION ROAST combines cooking with the convection fan to roast meats and poultry. The heated air circulates around the food from all sides, sealing in juices and flavors. Foods are crispy brown on the outside while staying moist on the inside. Convection roasting is especially good for large tender cuts of meat, uncovered.

Setting the CONVECTION ROAST function (example, 375^ ):

1. Press the CONV. ROAST button. The display will flash 350^ .
2. Set the oven temperature using the number buttons: Press 3,7 and 5.
3. Press the START button. The display will show CONV. ROAST and the oven temperature starting at 100^ .

As the oven preheats, the display will show increasing temperatures in 5 degree increments. Once the oven reaches the set adjusted temperature, a tone will sound and the oven light will flash on and off. The display will show the auto converted oven temperature 350^ , CONV. ROAST and the fan icon.

1. When cooking has finished or to cancel, press the CLEAR OFF button.

NOTE:

The oven fan will run while convection roasting. The fan will stop when the door is open, but the heat will not turn off. In some cases, the fan may shut off during a convection roast cycle.

Warming Printer Rack Instructions

When preparing meats for convection roasting, use the broiler pan, grid and warming drawer rack. The broiler pan will catch grease spills and the grid will help prevent grease splatters. The warming drawer rack will allow the heat to circulate around the meat.

1. Place oven rack on bottom or next to the bottom rack position.
2. Place the grid in the broiler pan.
3. Place the warming drawer rack on the grid. Make sure that the warming drawer rack is securely seated on the grid in the broiler pan.
4. Place the broiler pan on the oven rack.

Warming drawer rack

Grid (sold separately)

Broiler Pan (sold separately)

CAUtiON

DO NOT use the warming drawer rack when broiling. This will help prevent food from coming in contact with the broil element and grease from splattering.
DO NOT use the broiler pan without the grid.
DO NOT cover the grid with aluminum foil.
- Position food (fat side up) on the warming drawer rack.

BROIL

The Broil function uses intense heat from the upper heating element to cook food. BROIL works best for tender cuts of meats, fish, and thinly cut vegetables.

Some models may feature a hybrid broiler consisting of an inner broiler that utilizes a carbon heating element which provides instantaneous heat, and a traditional outer broiling element. During normal broiler operation, it is normal for either element to cycle off intermittently.

This range is designed for open door broiling. The door has a broil stop position.

CAUfION

DO NOT use a broiler pan without a grid. Oil can cause a grease fire.
DO NOT cover the grid and broiler pan with aluminum foil. Doing so will cause a fire.
Always use a broiler pan and grid for excess fat and grease drainage. This will help to reduce splatter, smoke, and flare-ups.

SPEED BROIL

The Speed Broil setting is designed to reduce the amount of time it takes to broil foods. By utilizing the inner broil element, which provides heat instantaneously, there is no need for preheating. Speed Broil should only be used for small amounts of food that can be easily concentrated to the center of the broiler pan.

NOTE:

• When operating Speed Broil, the offset rack should be used.
• All food should be placed in the center of the broiler pan when utilizing Speed Broil.

To set the oven to BROIL / SPEEDEd BOIL

1. Open the oven door to the broil stop position (about 10 degrees from the closed position).
2. Press the BROIL or SPEED BOIL button once for Hi or twice for Lo.
3. Press the START button. The oven will begin to heat.
4. If using Broil, it is best to let the oven preheat for approximately three minutes before cooking food. If using Speed Broil, no preheat is necessary.
5. When cooking is complete, or to cancel at any time, press the CLEAR OFF button.

Smoking

Due to the intense heat associated with broiling, it is normal to experience smoke during the cooking process. This smoke is a natural byproduct of searing and should not cause you to worry. If you are experiencing more smoke than you are comfortable with, use the following tips to reduce the amount of smoke in your oven.

1. Always use a broiler pan. Do not use sautee pans or regular baking sheets for safety reasons.
2. NEVER use a broiler pan that is not thoroughly cleaned and at room temperature at the beginning of cooking.
3. ALWAYS run your cooktop ventilation system or vent hood during broiling.
4. Keep the interior of your oven as clean as possible. Left over debris from prior meals can burn or catch fire.
5. Avoid fatty marinades and sugary glazes. Both of these will increase the amount of smoke you experience. If you would like to use a glaze, apply it at the very end of cooking.
6. If you are experiencing significant smoke with any food item, consider:

Lower the broiler to the LO setting.
- Lower the rack position to cook the food further away from the broiler.
- Use the HI broil setting to achieve the level of searing you desire, and then either switch to the LO broil setting, or switch to the BAKE function.

1. As a rule, fattier cuts of meat and fish will produce more smoke than leaner items.
2. Adhere to the recommended broil settings and cooking guidelines in the chart on the following page whenever possible.

RECOMMENdEd BROILING GUIdE

The size, weight, thickness, starting temperature, and your preference of doneness will affect broiling times. The following guide is based on meats at refrigerator temperature.

NOTE

Always use a broiler pan when broiling on the HI setting or Speed Broil.

*offset rack

Broiling chart

Item	Cut	Size/Thickness	Doneness	Broiler Setting	Rack Position	Time (min)
						Side 1	Side 2
Beef Tendon	oin/Filet 1"		Medium Rare	Hi	G	5:00	3:00
			Medium	Hi	G	5:00	4:00
			Medium Well	Hi	G	6:00	4:00
			Well Done	Hi	G*	6:00	5:00
		1 1/2"	Medium Rare	Hi	G	6:00	4:00
			Medium	Hi	G	7:00	4:00
			Medium Well	Hi	G*	7:00	5:00
			Well Done	Hi	G*	7:00	6:00
		2"	Medium Rare	Hi	G	7:00	5:00
			Medium	Hi	G	8:00	6:00
			Medium Well	Hi	G*	8:00	10:00
			Well Done	Hi	F	10:00	12:00
	NY Strip Steak/Strip Ioin	3/4" - 1"	Medium Rare	Hi	G	5:00	3:00
			Medium	Hi	G	5:00	4:00
			Medium Well	Hi	G	6:00	4:00
			Well Done	Hi	G*	6:00	5:00
		1 1/2"	Medium Rare	Hi		6:00	5:00
			Medium	Hi	G	7:00	6:00
			Medium Well	Hi	G*	8:00	10:00
			Well Done	Hi	G*	8:00	12:00
	Ribeye/Delmonico	3/4" - 1"	Medium Rare	Hi	G	5:00	3:00
			Medium	Hi	G	5:00	4:00
			Medium Well	Hi	G	6:00	4:00
			Well Done	Hi	G*	6:00	5:00
		1 1/2"	Medium Rare	Hi	G	6:00	5:00
			Medium	Hi	G	7:00	6:00
			Medium Well	Hi	G*	8:00	10:00
			Well Done	Hi	G*	8:00	12:00
	Bone-In Steaks	3/4" - 1"	Medium Rare	Hi	G	5:00	4:00
			Medium	Hi	G	6:00	5:00
			Medium Well	Hi	G*	7:00	6:00
			Well Done	Hi	G*	8:00	7:00
		1 1/2"	Medium Rare	Hi	G	8:00	8:00
			Medium	Hi	G*	10:00	8:00
			Medium Well	Hi	F	10:00	12:00
			Well Done	Hi	F	10:00	15:00

*Speed broil should only be used for small amounts of food that can be easily concentrated to the center of the broiler pan.
Speed broil works faster than the regular broil mode, so cook time should be reduced by approximately 20 25% .

HSHITON

Broiling chart
* offset rack

Item	Cut	Size/Thickness	Doneness	Broiler Setting	Rack Position	Time (min)
						Side 1	Side 2
Beef Skirt Steak	Streak 1/2"-3/4"		Medium Rare	Hi	G	4:00	3:00
			Medium	Hi	G	5:00	3:00
			Medium Well	Hi	G	5:00	4:00
			Well Done	Hi	G	6:00	4:00
	Flank Steak	1"	Medium Rare	Hi	G	7:00	5:00
			Medium Hi G 8:00	6:00
			Medium Well	Hi	G*	8:00	8:00
			Well Done	Hi	F	10:00	10:00
		1 1/2"	Medium Rate	Hi	G	7:00	5:00
			Medium	Hi	G*	8:00	6:00
			Medium Well	Hi	G*	8:00	8:00
			Well Done	Hi	F	10:00	10:00
	Hamburgers	3/4" thick	Medium Rare	Hi	G	5:00	3:00
			Medium	Hi	G	5:00	4:00
			Medium Well	Hi	G*	6:00	4:00
			Well Done	Hi	G*	6:00	5:00
Lamb	Bone-in Chops	6 - 8 oz., 2 bone	Medium	Hi	G*	7:00	6:00
Seafood	Salmon portion/steak, skin-on	3/4" - 1"	Broiler	Hi	G	6:00	4:00
		1 1/2"	Broiler	Hi	G	8:00	4:00
	Salmon portion/steak, skin-off	3/4" - 1"	Broiler	Hi	G	6:00	4:00
		1 1/2"	Broiler	Hi	G*	6:00	6:00
	Halibut portion, skin-off	3/4" - 1"	Broiler	Hi	G	6:00	5:00
		1 1/2"	Broiler	Hi	G*	7:00	6:00
	Shrimp, skin on	<10/lbs.	Broiler	Hi	G	4:00	3:00
		10-20/lbs.	Broiler	Hi	G	3:00	3:00
		21-30/lbs.	Broiler	Hi	G	3:00	2:00
	Shrimp, skin off	<10/lbs.	Broiler	Hi	G	4:00	2:00
		10-20/lbs.	Broiler	Hi	G	3:00	2:00
		21-30/lbs.	Broiler	Hi	G	3:00	1:00
	Lobster tail	1/3"	Broiler	Hi	G*	6:00
Pork Pork Chop	Chop 1"		Broiler	Hi	G	6:00	5:00
	Pork Tenderloin	12-16 oz., 1.5"	Broiler	Hi	G*	9:00	8:00
	Sausage	1/4", 1.5"	Broiler	Hi	G*	6:00	4:00
	Ham slices	1/2" thick	Broiler	Hi	G	5:00	4:00
Chicken	Breast, boneless, skinless	1/2" - 3/4"	Broiler	Hi	F	6:00	4:00
Vegetable	Asparagus spears	1/2" Thick	Broiler	Hi	G*	4:00	3:00
	Summer squash, zucchini	1/2" strips	Broiler	Hi	G*	7:00
Bakery	Toast	4 pieces	Broiler	Hi	G	0:45	0:30
	English muffin 2 split		Broiler Pan	Hi	G	1:30

*Speed broil should only be used for small amounts of food that can be easily concentrated to the center of the broiler pan. Speed broil works faster than the regular broil mode, so cook time should be reduced by approximately 20~25%.

Broiling Tips

Beef

• Steaks and chops should always be allowed to rest for five minutes before cutting into them and eating. This allows the heat to distribute evenly through the food and creates a more tender and juicy result.
• Consider removing thick pieces of meat from the refrigerator 30 minutes prior to cooking. This will help them cook more quickly and evenly, and will produce less smoke when broiling. Please note that cooking times will likely be shorter than the times indicated in the Broiling Chart.
• For bone-in steaks or chops that have been "Frenched" (all meat removed from around the bone), wrap the exposed sections of bone in foil to reduce burning.

Seafood

• When broiling skin-on fish, always use the Medium broil setting and always broil the skin side last.
• Seafood is best consumed immediately after cooking. Allowing seafood to rest after cooking can cause the food to dry out.
  It is a good idea to rub a thin coating of oil on the surface of the broiling pan before cooking to reduce sticking, especially with fish and seafood. You can also use a light coating of non-stick pan spray.

Vegetables

• Toss your vegetables lightly in oil before cooking to improve browning.

KIDS MEAL

This function is specially designed to cook popular kids foods such as regular crust pizza, rising crust pizza, fresh pizza, chicken nuggets, french fries, and hamburger patties.

When using this function, there is no need to preheat the oven prior to cooking.

Setting the KIDS MEAL function:

1. Press the KIDS MEAL button.
2. FROZEN PIZZA, REGULAR CRUST will appear in the display. Press the START button if cooking frozen regular crust pizza.
3. Press the KIDS MEAL button continuously to scroll through the different settings on the display. Select from: FROZEN PIZZA, RISING, FRESH PIZZA, CHICKEN NUGGETS, FRENCH FRIES and HAMBURGER PATTIES.
4. When the display shows the food that you would like to prepare, press the START button.
5. Press the CLEAR OFF button once the food is done cooking or to cancel.

Kids Meal Chart

Food	Recommended quantity	Shelf position	Recommended time (minutes)
Frozen pizza, Regular crust	12" D 14-20
Frozen pizza, Rising crust	12" D 18-22
Fresh pizza 12" D	15-18
Chicken nuggets	1-4 servings (3.5oz per 1 serving)	F 14-18
French fries 1-4 servings (3.5oz per 1 serving)		F 12-18
Hamburger patties	4-12 patties, 1/2" thick	F 10-14

• This chart is for reference only.

wARM

This function will maintain an oven temperature of 170^ . The WARM function will keep cooked food warm for serving up to 3 hours after cooking has finished. The Warm function may be used without any other cooking operations or can be used after cooking has finished using TIMED BAKE or DELAYED TIMED BAKE.

Setting the wARM function:

1. Press the WARM/PROOF button.
2. Press START.
3. Press the CLEAR OFF button at any time to cancel.

To set the wARM function after timed cooking:

1. Select the cooking function.
2. Enter the oven temperature using the number buttons.
3. Press the COOK TIME button and enter the cooktime using the number buttons.
4. Press the WARM/PROOF button.
5. Press the START button.
6. When cooking is finished, press the CLEAR OFF button to cancel the WARM function.

NOTE

The WARM function is intended to keep food warm. Do not use it to cool food down.

PROOF

Setting the PROOF function:

This feature maintains a warm oven for rising yeast leavened products before baking.

1. Use rack B or C for proofing.
2. Press the WARM/PROOF button twice. PrF will appear in the display.
3. Press the START button.
4. Press the CLEAR OFF button when proofing is finished.

NOTE:

• To avoid lowering the oven temperature and lengthening proofing time, do not open the oven door unnecessarily. Check bread products early to avoid overproofing.
• Do not use the proofing mode for warming food or keeping food hot. The proofing oven temperature is not hot enough to keep foods at safe temperatures. Use the WARM feature to keep food warm. Proofing will not operate when the oven is above 125^ F.HOT will show in the display.

FAVORITES

The FAVORITES function is used to record and recall your favorite recipe settings. You can store and recall up to three different settings.

Setting the FAvORITES function:

1. Press the FAVORITES button once for Bread, twice for Meat, and three times for Chicken. The default temperature will appear and COOK will flash in the display.

Category	Press the Favorite button	Default Temp. (may be changed and recalled)	Cook mode
Bread Press	FAVORITE once.	375°F Bake
Meat Press	FAVORITE twice.	325°F Convection Roast
Chicken Press	FAVORITE three times.	350°F Convection Roast

1. Press the number buttons to change the default temperature.
2. Press the START button. The preheat indicator tones will sound 3 times when the oven reaches the programmed temperature.

NOTE:

Only the oven temperature can be modified and stored. The category name and cook mode will stay the same.

SABBATH MODE

Sabbath mode is typically used on the Jewish Sabbath and Holidays. When the SABBATH mode is activated, the oven does not turn off until the SABBATH mode is deactivated. In SABBATH mode, all function buttons, except for the CLEAR OFF is inactive. Sb will appear in both the cooktop and oven displays.

NOE

If the oven light is turned ON and the SABBATH mode is active, the oven light will remain ON until the SABBATH mode is turned OFF. If the oven light needs to be OFF, be sure to turn the oven light OFF before activating the SABBATH mode. SABBATH mode can only be used while baking (BAKE mode).

Setting the SABBATH mode

1. Press the BAKE button.
2. Press the number buttons to enter the bake temperature.
3. Press the START button.
4. Press and hold the SETTING button for three seconds. SB and will appear in the display when the Sabbath mode is activated.
5. To cancel the Sabbath mode, press and hold the SETTING button for three seconds. To cancel the Bake function, press the CLEAR OFF button at any time.

Changing the temperature while in SABBATH mode

1. Press the BAKE button. (No tones will sound and the display will not change.)
2. Set the temperature using the number buttons.
3. Press the START button.

NOtE

There is a 15 second delay before the oven will recognize the temperature change.

WARMING DRAWER

Warming drawer rack in position

OPERATING THE WARMING DRAWER

The warming drawer keeps hot cooked foods at serving temperature.

All food placed in the warming drawer should be covered with a lid or aluminum foil to maintain quality. Do not use plastic wrap to cover food. Plastic may melt onto the drawer and be very difficult to clean. Use only utensils and cookware recommended for oven use in the WarmingDrawer.

Setting the Warming Printer control

1. Press the WARMING DRAWER SET/OFF button (near the number buttons). The indicator light will flash. (If no further buttons are pressed within 25 seconds, the display will clear.)
2. Use the number buttons to set the power level. 1 for LOW, 2 for MEDIUM, and 3 for HIGH.
3. When the food is ready, or to cancel, press the WARMING DRAWER SET/OFF button.

NOtE

The Warming Printer will shut off automatically after three hours.
It is not recommended to heat cold food in the WarmingDrawer.

Warming Printer food/power level recommendations

Setting Type of Food
Low	• Rolls (Soft) • Empty dinner plates
Medium	• Gravies • Casseroles • Eggs • Vegetables • Biscuits • Rolls (hard) • Pastries • Roasts (Beef, Pork, Lamb)
High	• Bacon • Hamburger patties • Poultry • Pork chops • Pizza • Fried Foods

Different types of food may be placed in the warming drawer at the same time. For best results, do not leave food in the warming drawer for more than one hour. Do not leave smaller quantities or heat-sensitive food, such as eggs, in the warming drawer more than 30 minutes. The maximum operating time is three hours.

CAUfION

• Do not use the warming drawer for storage of racks, broiler pans, insert pans, plates, or utensils. The warming drawer contains a heating element which may damage any items not specifically designed to be used with it and should only be used to store cookware specifically supplied by LG with your range.
• Do not put food or foil directly on the surface or base of the warming drawer. This may result in damage to your drawer and may spoil your food.
• Do not place plastic wrap in the warming drawer or use it to cover food being heated in the warming drawer. Plastic may melt onto the drawer or surrounding areas and is very difficult to remove. Use only aluminum foil or cookware that is capable of withstanding baking temperature to heat or cover your food.
• Do not use the warming drawer to heat water or any other liquids. Spilled liquids may cause an electrical short or result in severe personal injury, electric shock or death.
• Never place plastics, paper, canned foods or other combustible material into the warming drawer. These items pose a severe risk of fire, damage and injury.
• In the unlikely event that an item falls behind the warming drawer, always turn the power off and wait for the warming drawer to cool before retrieving the item. Never attempt to retrieve any items that fall behind the warming drawer without first turning the power off and ensuring the warming drawer cavity has cooled off. Failure to do so may result in severe personal injury, electric shock or death.

CARE AND CLEANING

CLEANING THE GLASS/CERAMIC COOKTOP

CAUfION

DO NOT use scrub pads or abrasive cleaning pads. They may damage your cooktop surface.
- For your safety, wear an oven mitt or potholder while cleaning the hot cooking surface.

Use Ceramic Cooktop Cleaner on the glass cooktop. Other creams my not be as effective or may scratch, damage or stain the cooktop surface.

To maintain and protect the surface of the glass cooktop, follow these steps:

1. Before using the cooktop for the first time, clean it with a ceramic cooktop cleaner. This helps protect the top and makes cleanup easier.
2. Daily use of ceramic cooktop cleaner will help keep the cooktop looking new.
3. Shake the cleaning cream well. Apply a few drops of cleaner directly to the cooktop.
4. Use a paper towel to clean the entire cooktop surface.
5. Rinse with clear water and use a dry cloth or paper towel to remove all cleaning residue.

NOTE:

DO NOT heat the cooktop until it has been cleaned thoroughly.

Burned-on Residue

1. While the cooktop is still hot, remove any burnt-on deposits or spilled food from the glass/ceramic cooking surface with a suitable metal razor scraper (similar to scraping paint off of a windowpane - it will not damage the decorated cooking surface). Hold the scraper at an approximate 30^ angle to the cooktop.

NOTE:

• Do not use a dull or nicked blade.

• To prevent burns, please wear an oven mitt or pot-holder while using the metal scraper.

• When the cooking surface has cooled down, apply a few dabs (about the size of a dime) of an approved cleaner in each burner area and work the cleaning cream over the cooktop surface with a damp paper towel.

NOTE

Approved cleaners:

Weiman CookTop Cleaning Cream
(www.weiman.com)
- Cerama Bryte (www.ceramabryte.com)
Golden Ventures Cerama Bryte
Easy-Off 3 in 1 Glass Top Cleaner Spray (www.easyoff.us).

1. Clean with clear water and wipe the cooktop surface with a clean, dry paper towel.

IMPORTANT:

If any sugar or food containing sugar (preserves, ketchup, tomato sauce, jellies, fudge, candy, syrups, chocolate, etc.), plastic or foil melts on the cooktop, remove the molten material IMMEDIATELY with a metal razor scraper (it will not damage the decorated cooking surface) while the cooking surface is still hot to avoid the risk of damage to the glass-ceramic surface. For your safety, please wear an oven mitt or potholder while cleaning the hot cooking surface.

Metal Marks and Scratches

1. Be careful not to slide pots and pans across the cooktop. Doing so will leave metal markings on the cooktop surface. To help remove these marks, use a ceramic cooktop cleaner with a cleaning pad for ceramic cooktops.
2. If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave black discoloration on the cooktop. This should be removed immediately before heating again or the discoloration may be permanent.

CAUfiON

Cookware with rough or uneven bottoms can mark or scratch the cooktop surface.

• Do not slide metal or glass across the cooktop surface.
• Do not use cookware with any dirt build up on bottom.

Cooktop Seal

To clean the cooktop seal around the edges of the glass, lay a wet cloth on it for a few minutes, then wipe clean with nonabrasive cleaners.

SELF CLEAN

The self clean cycle uses extremely hot temperatures to clean the oven cavity. While running the Self Clean cycle, you may notice smoking or an odor. This is normal; especially if the oven is heavily soiled.

During Self Clean, the kitchen should be well ventilated to minimize the odors from cleaning.

CAUfION

DO NOT leave small children unattended near the appliance. During the Self Clean cycle, the outside of the range can become very hot to touch.
- If you have pet birds, move them to another well-ventilated room. The health of some birds is extremely sensitive to the fumes given off during the Self Clean cycle of any range.
- DO NOT line the oven walls, racks, bottom or any other part of the range with aluminum foil or any other material. Doing so will destroy heat distribution, produce poor baking results and cause permanent damage to the oven interior (aluminum foil will melt to the interior surface of the oven).
- DO NOT force the door open. This can damage the automatic door locking system. Use care when opening the oven door after the Self Clean cycle. Stand to the side of the oven when opening the door to allow hot air or steam to escape. The oven may still be VERY HOT.

Before starting Self Clean:

• Remove the oven racks, broiler pan, broiler grid, all cookware, aluminum foil or any other material from the oven.
• The kitchen should be well ventilated to minimize the odors from cleaning.
• Wipe any heavy spillovers on the bottom of the oven.
  Make sure that the oven light bulb cover is in place and the oven light is off.
• The oven light cannot be turned on during a self clean cycle. The oven light cannot be turned on until the oven temperature has cooled below 500^ (260^) after a self clean cycle is complete.

During the self clean cycle, the cooktop elements and warming drawer cannot be used.

NOTE:

• Remove oven racks and accessories before starting the self clean cycle.
• If oven racks are left in the oven cavity during the self clean cycle, they will discolor and become difficult to slide in and out.
• Clean the frame of the oven and door with hot soapy water. Rinse well.
• Do not clean the gasket. The fiberglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, replace it.
• Wipe up any heavy spillovers on the oven bottom.
  Make sure that the oven light bulb cover is in place and the oven light is off.

Setting Self Clean

The Self-Clean function has cycle times of 3, 4, or 5 hours.

Self Clean Soil Guide

Soil Level Cycle Setting
Lightly soiled oven cavity 3 Hour	Self Clean
Moderately Soiled Oven Cavity 4	Hour Self Clean
Heavily Soiled Oven Cavity 5 Hour	Self Clean

1. Remove all racks and accessories from the oven.
2. Press the SELF CLEAN button. The oven defaults to the recommended four hour self clean for a moderately soiled oven. Press twice for a five hour self clean or three times for a three hour self clean.
3. Press START.
4. Once the Self Clean is set, the oven door will lock automatically and the lock icon will display. You will not be able to open the oven door until the oven is cooled. The lock will release automatically when the oven has cooled.

CAUfION

DO NOT force the oven door open when the lock icon is displayed. The oven door will remained locked until the oven temperature has cooled. Forcing the door open will damage the door.

Setting Self Clean with a delayed start

1. Remove all racks and accessories from the oven.
2. Press the SELF CLEAN button. The oven defaults to the recommended four hour self clean for a moderately soiled oven. Press twice for a five hour self clean or three times for a three hour self clean.
3. Press the START TIME button.
4. Use the number buttons to enter the time of day you would like the Self Clean to start.
5. Press the START button.

NOTE

It may become necessary to cancel or interrupt a self clean cycle due to excessive smoke or fire in the oven. To cancel the Self Clean function, press the CLEAR OFF button.

during Self Clean

• The self clean cycle uses extremely hot temperatures to clean the oven cavity. While running the Self Clean cycle, you may notice smoking or an odor. This is normal; especially if the oven is heavily soiled.
• As the oven heats, you may hear sounds of metal parts expanding and contracting. This is normal and will not damage the oven.
• Do not force the oven door open when LOCKED is displayed. The oven door will remained locked until the oven temperature has cooled. Forcing the door open will damage the door.

NOTE:

• The Self Clean cycle cannot be started if the Lock-out feature is active.
• Once the Self Clean cycle is set, the oven door will lock automatically. You will not be able to open the oven door until the oven is cooled. The lock will release automatically.
• Once the door has been locked, the LOCKED indicator light will stop flashing and remain on. Allow about 15 seconds for the oven door lock to activate.
• If the clock is set for a 12 hour display (default) the Delayed Self Clean can never be set to start more than 12 hours in advance.

After the Self Clean cycle

• The oven door will remain locked until oven temperature has cooled.
• You may notice some white ash in the oven. Wipe it off with a damp cloth or a soap-filled steel wool pad after the oven cools. If the oven is not clean after one clean cycle, repeat the cycle.
• If oven racks were left in the oven and do not slide smoothly after a clean cycle, wipe racks and rack supports with a small amount of vegetable oil to make them glide easier.
• Fine lines may appear in the porcelain because it went through heating and cooling. This is normal and will not affect performance.

CLEANING THE EXTERIOR

Painted and Decorative Trim

For general cleaning, use a cloth with hot soapy water. For more difficult soils and built-up grease, apply a liquid detergent directly onto the soil. Leave it on for 30 to 60 minutes. Rinse with a damp cloth and dry. Do not use abrasive leaners.

Stainless Steel Surfaces (on some models)

To avoid scratches, do not use a steel wool pads.

1. Place a small amount of stainless steel appliance cleaner or polish on a damp cloth or paper towel.
2. Clean a small area, rubbing with the grain of the stainless steel if applicable.
3. Dry and buff with a clean, dry paper towel or soft cloth.
4. Repeat as necessary.

Oven door

• Use soapy water to thoroughly clean the oven door. Rinse well. DO NOT immerse the door in water.
• You may use a glass cleaner on the outside glass of the oven door. DO NOT spray water or glass cleaner on the door vents.
  DO NOT use oven cleaners, cleaning powders, or harsh abrasive cleaning materials on the outside of the oven door.
  DO NOT clean the oven door gasket. The oven door gasket is made of a woven material that is essential for a good seal. Care should be taken not to rub, damage, or remove this gasket.

CAUfION

Do not use harsh cleaners or harsh abrasive cleaning materials on the outside of the oven door. Doing so can cause damage.

Do not hand clean oven door gasket

Remove any debris from door

Broiler Pan and Grid

• Do not store a soiled broiler pan or grid anywhere in the range.
• Do not clean the broiler pan or grid in a self cleaning mode.
• Remove the grid from the pan. Carefully pour out the grease from the pan into a proper container.
• Wash and rinse the broiler pan and grid in hot water with a soap-filled or plastic scouring pad.
• If food has burned on, sprinkle the grid with cleaner while hot and cover with wet paper towels or a dishcloth. Soaking the pan will remove burned-on foods.
• Both the broiler pan and grid may be cleaned with a commercial oven cleaner or in the dishwasher.

The oven light is a standard 40-watt appliance bulb. It will turn on when the oven door is open. When the oven door is closed, press the OVEN LIGHT button to turn it on or off.

1. Unplug the range or disconnect power.
2. Turn the glass bulb cover in the back of the oven counterclockwise to remove.
3. Turn the bulb counterclockwise to remove from socket.
4. Insert the new bulb and turn it clockwise.
5. Insert the glass bulb cover and turn it clockwise.
6. Plug in the range or reconnect the power.

WARNING

Make sure that the oven and bulb are cool.
- Disconnect the electrical power to the range at the main fuse or circuit breaker panel. Failure to do so can result in severe personal injury, death, or electrical shock.

REMOVING AND REPLACING THE OVEN DOOR AND WARMING DRAWER

CAUtiON

The door is very heavy. Be careful when removing and lifting the door.
DO NOT lift the door by the handle.
DO NOT hit the glass with pots, pans, or any other object.
- Scratching, hitting, jarring or stressing the glass may weaken its structure, causing an increased risk of breakage at a later time.

Removing the oven door

1. Fully open the door. Pull the hinge locks down toward the door frame, to the unlocked position. A tool, such as a small flat-blade screwdriver, may be required.

Push hinge locks down to unlock

1. Firmly grasp both sides of the door at the top. Close the door to the removal position (approximately five degrees) which is halfway between the broil stop position and fully closed.

About 5^

1. Lift the door up and out until the hinge arm is clear off of the slot. Put the door on the floor.

Replacing the oven door

1. Firmly grasp both sides of the door at the top.

1. With the door at the same angle as the removal position, seat the indentation of the hinge arm into the bottom edge of the hinge slot. The notch in the hinge arm must be fully seated into the bottom of the slot.

Push hinge locks up to lock

1. Fully open the door. If the door will not fully open, the indentation is not seated correctly in the bottom edge of the slot.
2. Push the hinge locks down against the front frame of the oven cavity to the locked position. Close the oven door.

Removing the Warming Printer

WARNiNg

Disconnect the electrical power to the range at the main fuse or circuit breaker panel. Failure to do so can result in severe personal injury, death, or electrical shock.

Most cleaning can be done with the drawer in place; however, the drawer may be removed if further cleaning is needed. Use warm water to thoroughly clean.

1. Fully open the drawer.
2. Remove the two screws.

1. Locate the glide lever on each side of the drawer. Push down on the left glide lever and pull up on the right glide lever.

Push down with finger

Pull up with finger

1. Pull the warming drawer away from the range.

Replacing the Warming Printer

FAqs

What types of cookware are recommended to use with my cook top?

• The pans must have a flat bottom and straight sides.
  Only use heavy- gauge pans.

• The pan size must match the amount of food to be prepared and the size of the surface element.

• Use tight fitting lids.
  Only use flat bottom woks.

Why does "HS" appear on the cooktop display?

HS (Hot Surface) will appear in the display once the element is turned off or during the self clean cycle. The HS indicator will stay on until the surface has cooled to approximately 150^ (66^) or when the self clean cycle ends.

What does "PF" in the display mean?

"PF" means there has been a power interruption in your home. Press Clear/off Key and the "On/Off" key on the cook-top controls to clear this code. It may also require you to reset the time for the display.

Is it normal to hear a clicking noise coming from the back of my oven when I am using it?

Yes, this is normal. The controller has relays that open and close during baking.

During convection cooking the fan stops when I open the door. Is that normal?

Yes, this is normal. When the door is opened, the convection fan will stop until the door is closed.

Can I use aluminum foil to catch drippings in my oven cavity?

No. If aluminum foil is placed on the bottom of the oven cavity, it will burn and you will not be able to remove it. The heater for the oven is below the oven cavity and provides direct heat to the bottom of the cavity. If you already have burnt foil on the bottom, do not worry, as it will not hinder the performance.

Can I use aluminum foil on the racks?

It is not recommend to place aluminum foil inside the oven cavity. Using foil on the racks will restrict air flow which could result in poor cooking results.

Can I leave my racks in the oven when running a Self Clean cycle?

No. Although it will not damage the racks, it will discolor them and may make them hard to slide in and out during use. Remove all items from the oven before starting a Self Clean cycle.

What should I do if my racks are sticky and have become hard to slide in and out?

Over time, the racks may become hard to slide in and out. Apply a small amount of olive oil to the ends of the racks. This will work as a lubricant for easier gliding.

What should I do for hard to remove stains on my cooktop?

The cooktop should be cleaned after every use to prevent permanent staining. When cooking high sugar based food, such as tomato sauce, is it recommended to clean the stain while the cooktop is still warm. Use a safety mitt when cleaning to prevent burns. Refer to the CARE AND CLEANING section of this owner's manual for further instruction.

Should I broil with the door opened or closed?

Your electric range is designed for open door broiling. The door has a broil stop position. The broil stop position is about 10 degrees from the closed position.

Why aren't the function buttons working?

Make sure that the range is not in Lockout mode. The lock symbol will show in the display if Lockout is activated. To deactivate Lockout, press and hold the START button for three seconds. The unlock melody will sound and UNLOCKING will appear in the display until the controls are unlocked.

Why is the time flashing?

This means that the product has just been plugged in, or that it has experienced a power interruption. To clear the flashing time, press any key and reset the clock if needed.

BEFORE REQUESTING SERVICE

Problem Possible Causes / Solutions
Range is not level.	Poor installation. Place an oven rack in the center of the oven. Place a level on the oven rack. Adjust leveling legs at the base of the range until the oven rack is level.Floor is not level. Make sure that the floor is strong and stable enough to adequately support the range. If floor is sagging or sloping, contact a carpenter to correct the situation.Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are square and have sufficient room for range clearance.
Oven control is beeping and displaying an F code error.	Electronic control has detected the fault condition. Press CLEAR OFF to clear the display and stop beeping. Reprogram oven. If fault recurs, record fault number. Press CLEAR OFF and contact a Service agent.CODE Description CODE Description
	F-1 Opened Sensor F-6 Oven hot
	F-2	Shorted Sensor	F-9 No heating
	F-3 Key Short Error F-10 Door Lock Fail
Surface units will not maintain a rolling boil or cooking is not fast enough.	Improper cookware is being used. Use pans that are flat and match the diameter of the surface unit selected.In some areas, the power (voltage) may be low. Cover pan with a lid until desired heat is obtained.
Surface units do not work properly.	A fuse in your home may be blown or the circuit breaker tripped. Replace the fuse or reset the circuit breaker.Cooktop controls are improperly set. Check to see that the correct control is set for the surface unit you are using.
Surface unit stops glowing when changed to a lower setting.	This is normal. The unit is still on and hot.
Areas of discoloration on the cooktop.	Food spillovers not cleaned before next use. See the Care and Cleaning section.Hot surface on a model with a light-colored cooktop. This is normal. The surface may appear discolored when it is hot. This is temporary and will disappear as the glass cools.
Frequent cycling on and off of surface units.	This is normal. The element will cycle on and off to maintain the heat setting.

Problem Possible Causes / Solutions
Oven will not work.	Plug is not completely inserted in the electrical outlet. Make sure that the electrical plug is plugged into a live, properly grounded outlet.A fuse in your home may be blown or the circuit breaker tripped. Replace the fuse or reset the circuit breaker.Oven controls improperly set. See the "Using the oven" section.Oven is too hot. Allow the oven to cool.
Oven light does not work.	Replace or tighten bulb. See the "Oven light" section.
Oven smokes excessively dur ing broiling.	Control not set properly. Refer to the "Using the oven" section.Meat is too close to the broil element. Reposition the rack to provide proper clearance between the meat and the element.Meat is not properly prepared. Remove excess fat from meat. Cut remaining fatty edges to prevent curling.Broiler pan is upside down and the grease is not draining. Always place the grid on the broiler pan with ribs up and slots down to allow grease to drip into the pan.Grease has built up on oven surfaces. Regular cleaning is necessary when broiling frequently.Old grease or food spatters cause excessive smoking. Clean the interior of the oven.
Food does not bake or roast properly.	Oven controls improperly set. See the "Using the oven" section.Rack position is incorrect or the rack is not level. Refer to the "Rack and Pan Placement" section.Incorrect cookware or cookware of improper size being used. Refer to the "Using the proper cookware" section.
Food does not broil properly.	Improper rack position being used. Refer to the "Removing and replacing oven racks" section.Cookware not suited for broiling.
Food does not broil properly.	Aluminum foil used on the broiling pan and grid has not been fitted properly and slit as recommended.In some areas the power voltage may be low. Preheat the broil element for 5-7 minutes.Refer to the Broiling Guide.
Oven temperature too hot or too cold.	·Oven Sensor needs to be adjusted. Refer to the "Using the oven" section.
Scratches or abrasions on cooktop surface.	·Coarse particles such as salt or sand between cooktop and utensils can cause scratches. ·Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time. ·Cleaning materials not recommended for ceramic-glass cooktop have been used. Refer to the "Care and Cleaning" section. ·Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.
Metal marks.	·Scraping of metal utensils on cooktop surface. Do not slide metal utensils on cooktop surface. Use a ceramic-glass cooktop cleaning creme to remove the marks. ·Refer to the "Care and Cleaning" section.
Brown streaks or specks.	·Boilovers are cooked onto surface. Use a blade scraper to remove soil. Refer to the "Care and Cleaning" section.
Areas of discoloration with metallic sheen.	·Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning creme. Use cookware with clean, dry bottoms.
Oven will not self clean.	·The oven temperature is too high to set a self clean operation. Allow the range to cool and reset the controls. ·Oven controls improperly set. Refer to the "Care and Cleaning" section. ·A self clean cycle cannot be started if the lockout feature is activated.
"Crackling" or "popping" sound.	·This is the sound of the metal heating and cooling during both the cooking and Self Clean functions. This is normal.
Fan noise.	·A convection fan may automatically turn on and off. This is normal.
Convection fan stops.	·Convection fan stops during a convection bake cycle. This is normal and is done to allow for more even heating during the cycle. This is not a failure of the range and should be considered normal operation.
Excessive smoking during a self clean cycle.	·Excessive soil. Press the CLEAR OFF button. Open the windows to rid the room of smoke. Wait until the self clean mode is cancelled. Wipe up the excess soil and reset.
Oven door will not open after a self clean cycle.	·Oven is too hot. Allow the oven to cool.
Oven not clean after a self clean cycle.	·Oven controls not properly set. See the Self Clean section. ·Oven was heavily soiled. Clean up heavy spillovers before starting the self clean cycle. Heavily soiled ovens may need to self clean again or for a longer period of time.
CLEAN and door flash in the display.	·The self clean cycle has been selected but the door is not closed. Close the oven door.

Problem Possible Causes / Solutions

LOCKED appears in the display. • The oven door is locked because the temperature inside the oven is too hot. Press the CLEAR OFF button. Allow the oven to cool

Burning or oily odor emitting from the vent. • This is normal in a new oven and will lessen in time. To speed the process, set a self clean cycle for a minimum of 3 hours. Refer to the "self clean" section.

Oven racks are difficult to slide. • The shiny, silver-colored racks were cleaned in a self clean cycle. Apply a small amount of vegetable oil to a paper towel and wipe the edges of the oven racks with the paper towel.

Oven door remains locked after the self clean cycle. • Oven interior is still hot. Allow about one hour for the oven to cool after the completion of a self clean cycle. The door can be opened when the LOCK indicator disappears from the display. • The control lock is activated.

Moisture collects on oven window or steam comes from oven vent. • This is normal when cooking foods high in moisture. • Excessive moisture was used when cleaning the window.

LG ELECTRONICS CANAdA, INC. LG ELECTRIC OvEN LIMITED wARRANTY - CANAdA

WARRANTY: Should your LG Electric Oven ("Product") fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid only to the original retail purchaser of the product and applies only to a product distributed in Canada by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to products located and used within Canada.

WARRANTY PERIOD: (Note: If the original date of purchase cannot be varied, the warranty will begin sixty (60) days from the date of manufacture).

Parts and Labor (internal/functional parts only) Glass Cook top Radiant Surface units

One (1) year from the date of original retail purchase One (1) year from the date of original retail purchase

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90)days, whichever is greater.
• Replacement products and parts may be new or remanufactured.
• LG Authorized Service Center warranties their repair work for thirty (30)days.

LG CANADA'S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTYES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE.

This warranty gives you specic legal rights. You may have other rights which may vary from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where it conicts with provincial law without aecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or correction of wiring, or correction of unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the product in a corrosive atmosphere or contrary to the instructions outlined in the product owner's manual.
5. Damage to the product caused by accidents, pests and vermin, lightning, wind, re, oods, or acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the product. Improper repair includes use of parts not approved or specied by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its intended purpose, or resulting from any water leakage due to improper installation.
8. Damage or product failure caused by incorrect electrical current, voltage, commercial or industrial use, or use of accessories, components, or cleaning products that are not approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the nish of your product, unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.
10. Damage or missing items to any display, open box, discounted, or refurbished product.
11. Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, liters, or any consumable parts.
14. Repairs when your product is used in other than normal and usual household use (including, without limitation, commercial use, in oces or recreational facilities) or contrary to the instructions outlined in the product owner's manual.
15. Costs associated with removal of the product from your home for repairs.
16. The removal and reinstallation of the product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including the product owner's and installation manuals.
17. Accessories to the product such as door bins, drawers, handles, shelves, etc. Also excluded are parts besides those that were originally included with the product.

All costs associated with the above excluded circumstances shall be borne by the consumer.:

For complete warranty details and customer assistance, please call or visit our website:	Write your warranty information below:
Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the menu, or visit our website at http://www/lg.ca	Product Registration Information: Model: Serial Number: Date of Purchase:

MEMO

MANUEL DU PROPRIÉTAIRE

TEMPS DE DEMARRAGE (CUISSON

minute différé)

Grille standard (Position D)

Register your product Online!

www.lg.com

Printed in Mexico
