USER MANUAL CS EH8N2LES CANDY

METTERE LA MACCHINA IN PAUSA

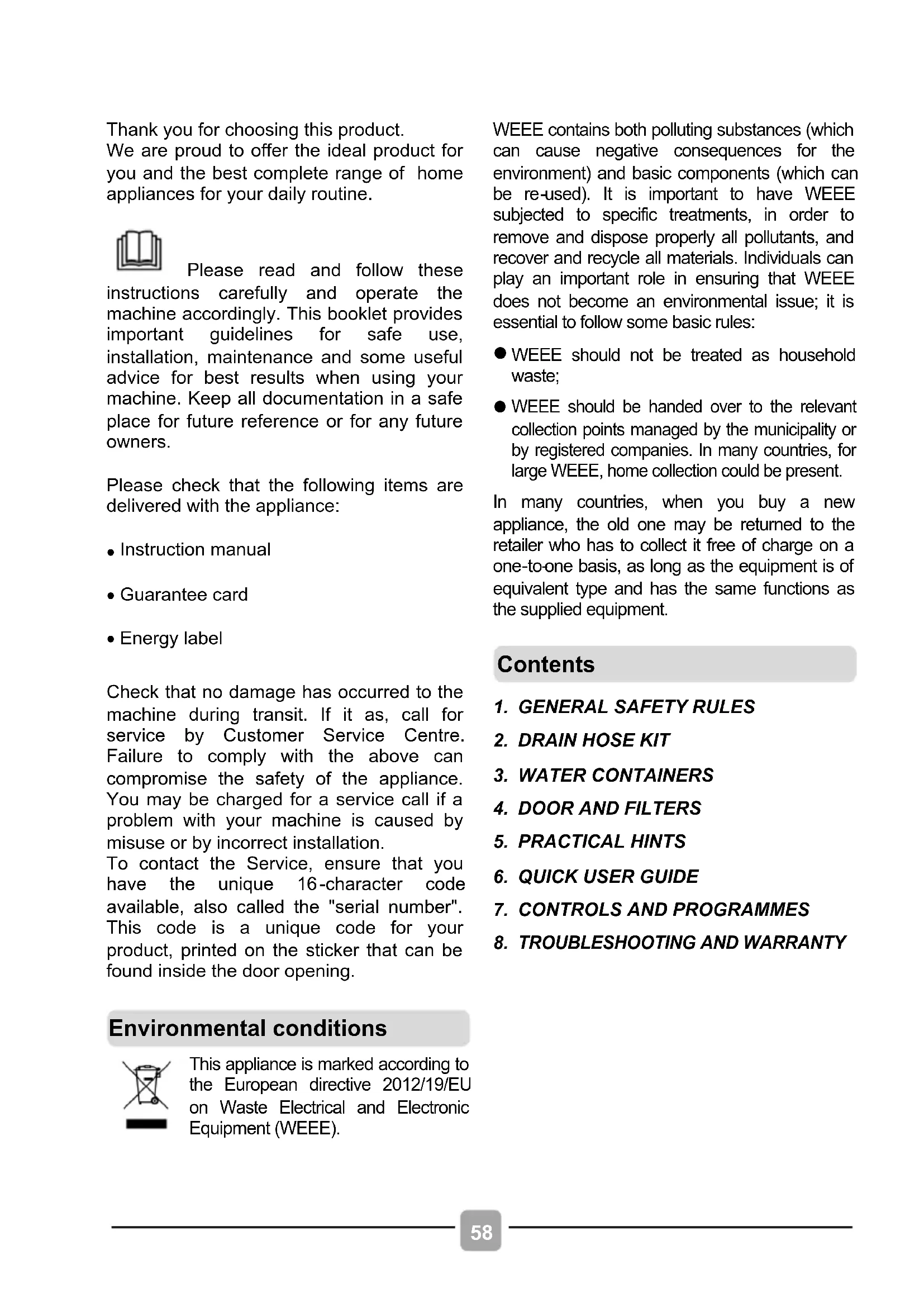

Thank you for choosing this product. We are proud to offer the ideal product for you and the best complete range of home appliances for your daily routine.

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine. Keep all documentation in a safe place for future reference or for any future owners.

Please check that the following items are delivered with the appliance:

Check that no damage has occurred to the machine during transit. If it as, call for service by Customer Service Centre. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse or by incorrect installation.

To contact the Service, ensure that you have the unique 16

character code available, also called the "serial number". This code is a unique code for your product, printed on the sticker that can be found inside the door opening.

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re

used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one -to- one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

TROUBLESHOOTING AND WARRANTY

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

Environmental conditions Contents59

RULES This appliance is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, offices and other working environments; - Farm houses; - By clients in hotels, motels and other residential type environments; - Bed and breakfast type environments. A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer’s warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children should be supervised to ensure that they do not play with the appliance. Children of less than 3 years should be kept away unless continuously supervised.

This machine is solely for domestic use, i.e. to dry household textiles and garments.

Ensure that the instructions for installation and use are fully understood before operating the appliance. Do not touch the appliance when hands or feet are damp or wet. Do not lean on the door when loading the machine or use the door to lift or move the machine.

Do not continue to use this machine if it appears to be faulty.

isuse of a tumble dryer may create a fire hazard.60 The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

Lint and fluff must not be allowed to collect on the floor around the outside of the machine.

Always remove the plug before cleaning the appliance. The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

WARNING During transport ensure that the dryer is in an upright position, if it's necessary you can only flip in the side shown.

If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor.

ever stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. WARNING Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C. WARNING

o not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.61

Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between 5-35°C. Please note that operating in cold condition (between +2 and +5°C) might simply some water condensation and water drops on floor. In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the configuration of your appliance: - Stacking kit "standard size": for washing machine with minimum depth of 44 cm; - Stacking kit "slim size": for washing machine with minimum depth of 40 cm. - Universal stacking kit with sliding: for washing machine with minimum depth of 47 cm. The stacking kit shall be obtainable from service. The instructions for installation and any fixing attachments, are provided with the stacking kit. NEVER install the dryer up near curtains. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such way that a full opening of the tumble dryer door is restricted.

For your safety, the appliance must be correctly installed. If there is any doubt about installation, call Service for advice. Once the machine is in place the feet should be adjusted to ensure that the machine is level.

The technical details (supply voltage and power input) are indicated on the product rating plate. Electrical connections and safety instructions Installation62 Make sure that the electrical system is earthed, complies with all applicable law and that the (electricity) socket is compatible with the plug of the appliance. Otherwise, seek qualified professional assistance.

Do not use adapters, multiple connectors and/or extensions. The plug should be accessible for disconnection after the appliance has been installed. Do not plug the machine in and switch it on at the mains until the installation is completed. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

Install the rear of the appliance close to a wall or vertical surface.

There should be a gap of at least 12 mm between the machine and any obstrubtions. The inlet and outlet air should be kept clear of obstruction. Make sure carpets or rugs do not obstruct the base or any of the ventilation openings.

Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet. Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. Check regularly that the air flowing around the dryer is not restricted, avoiding accumulation of dust and lint. Ventilation WARNING The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit

that is regularly switched on and off by a utility.63

Check frequently the fluff filter after use, and clean, if necessary.

Always refer to the laundry care labels for directions on suitability for drying.

Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. Do not dry unwashed items in the tumble dryer. Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.

Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres. Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Remove all objects from pockets such as lighters and matches. Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine. Maximum load drying weight: see control panel.

To consult the product technical specification please refer to the manufacturer website.

WARNING Do not tumble dry fabrics treated with dry cleaning fluids. WARNING Foam rubber materials can

under certain circumstances,

when heated become ignited

by spontaneous combustion.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer. The Laundry64

The appliance contains R290, an eco-sustainable refrigerating gas that is flammable. Keep open flames and sources of ignition away from the appliance.

Check there is no visible damage on the appliance. Do not use the appliance if it is damaged. Should there be any kind of problem, please contact your specialised retailer or one of our customer support centres.

WARNING Ensure that the openings on the appliance and the openings of the compartment the appliance is fitted in (for built-in models) are clear of obstructions. WARNING Do not damage the refrigerating circuit.

Any repairs or interventions on the appliance must be carried out only by an authorised assistance service.

Disposing of the device incorrectly could cause fires or poisoning.

Dispose of the device correctly and do not damage the pipes used for the circulation of the refrigerating fluid.65

Included in some models only. If not supplied, it can be purchased separately. The kit consists of: 1 hose and 1 bung. In order to avoid to empty the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe. Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.

1. The water drainage system is located at the back of the machine on the lower right side (figure 2).

2. Disconnect the hose (A) from the fitting

(B) by pulling it upwards (figure 3).

3. Close the extracted tube with the cap

(C) supplied with the kit (figure 4).

4. Connect the hose into the fitting (B)

making sure it is inserted securely (figures 5-6).

Once the machine is in place, check to ensure that the new hose does not kink when pushing the tumble dryer into position.

Fitting the drain hose The hose must be connected to a drain system with a maximum height of 85 cm compared to the base of the dryer (figure 1). WARNING Switch off and remove the tumble dryer plug from the electricity supply before carrying out any work.66

The water removed from the laundry during the drying cycle is collected in a container. When the container is full, an indicator light, or on some models a message on the display, will advise you that it MUST be emptied (however, we recommend to empty it after each drying cycle).

1. Gently pull out the water container

holding the handle (A). When it is full the water container will weigh about 6 kg.

2. Tilt the water container to empty the

water out through the spout (B). When empty, replace the water container back as shown; (C) first insert the base of the container into position as shown (1) then gentle push the top into position (2).

3. Press the programme start button to

1. Gently pull the top of the kickplate so

that it unclips from the dryer. The bottom section can then be unhinged allowing the kickplate to be completely removed (A)

2. Pull firmly on the handgrip and slide the

water container out of the dryer (B). Support the container with both hands (C). When full, the water container will weigh about 4 kg.

3. Open the lid located on the top of the

container and empty the water at the end of each drying cycle and before starting the next one (D).

4. Refit the lid and slide the water container

back into position (D). PUSH FIRMLY INTO PLACE.

5. Refit the kickplate by engaging the

hinges at the top and 'snapping' the lower clips into place.

HOSE KIT If you have the option of drainage near to the dryer you can use the discharge kit to provide a permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container. To remove the container tank in door drawer * Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.67

Pull on handle to open the door. To restart the appliance, close the door and press the programme start button.

Lint filters and sponge filter cleaning indicator light The indicator light illuminates in fixed mode to signal the need of cleaning the lint filters and in blinking mode to signal the need of cleaning the sponge filter

If the laundry is not drying check that the filters are not clogged.

After removing lint and fluff from the filters, if you clean filters under water, remember to dry them. WARNING When cleaning the filters, the lint and fluff should be thrown in the garbage bin and not washed through the drain in order to avoid spreading microplastics in the used water system. WARNING Do not use the tumble dryer without the filters. In order to have the maximum effectiveness of the machine, checking the cleanliness of all filters before each drying cycle is essential.

Clogged filters could increase the drying time and cause damages and expensive cleaning operation. Filters

WARNING (For models with water collection tray) you open the door mid cycle, before the cool- down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle. WARNING When the tumble dryer is in use the drum and door may be VERY HOT. Door68

1. Extract the two filters A and B in

sequence pulling them upwards, as shown in the figure.

2. Open the filters.

3. Gently remove lint from both filters using

your fingertips or a soft brush or with a cloth.

4. Close both filters by repositioning them

inside the door, making sure they are positioned correctly in place.

WARNING Clean the lint filters before every cycle.

WARNING Before reinserting the filters, make sure there is no lint residue inside the compartment; if not, remove it with a vacuum cleaner. To clean the lint filters69

1. Remove the kickplate.

2. Turn the handle anti-clockwise and pull

out the front cover.

3. Gently remove the sponge filter frame.

4. Gently remove the sponge from the

5. Clean the sponge by removing any dust

or fluff. It is possible to use a vacuum cleaner. Refit the sponge carefully on the frame.

6. Refit the sponge filter frame ensuring that

it is in the correct position.

7. Refit the front cover ensuring it is in the

right position. Turn the handle clockwise to lock the front cover.

8. Refit the kickplate.

WARNING Clean the sponge filter every six months or when the filters cleaning indicator light blinks.

WARNING Do not touch the fins behind the sponge filter frame with hands in order to avoid injury.

Before using the tumble dryer for the first time: Please read this instruction book thoroughly. Remove all items packed inside drum. Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Ensure that there are no foreign objects inside the drum and, if found, remove them.

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item. Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings.

Loading the machine to the maximum capacity indicated in the programme table for the respective programmes will contribute to energy SAVING. Only put into the tumble dryer laundry which has been thoroughly wrung or spin- dried. The drier the laundry the shorter the drying time thus saving electricity. ALWAYS Check that the filters are clean before every drying cycle. NEVER Put dripping wet items into the tumble dryer, this may damage the appliance.

By care symbols These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying. By amount and thickness Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear). By type of fabric Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

WARNING Do not overload the drum, large items when wet exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

Sort the load as follows Energy saving During the last 15 minutes the load is always tumbled in cool air. WARNING Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion). Do not tumble dry Clothes preparation Before each use71

Clean the lint filters after every drying cycle. In models equipped with a water collection tray, the tray should be emptied after every drying cycle. After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it. Wipe the outside of the machine and the door with a soft cloth. DO NOT use abrasive pads or cleaning agents. To prevent the door sticking or the buildup of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING For electrical data refer to the rating label on the front of the dryer cabinet (with the door open). WARNING Always switch off and remove the plug from the electricity supply before cleaning this appliance.

WARNING The drum, door and load may be very hot. Cleaning the dryer72

1. Open the door and load the drum with

laundry. Ensure that garments do not hinder closure of the door.

2. Gently close the door pushing it slowly

until you hear the door 'click' shut.

3. Select the desired drying programme by

turning the programme knob or, in some models, by pressing the specific button (check the programme table for specific details).

4. Press the programme start button. The

dryer will start automatically.

5. If the door is opened during the

programme to check the laundry, it is necessary to press programme start to recommence drying after the door has been closed.

6. When the cycle is nearing completion

the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.

7. Following the completion of the cycle

the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Power input / Power current fuse amp/ Supply voltage: see rating plate. Maximum load: see energy label. Energy class: see energy label.

PROGRAMME SELECTOR with OFF position

Technical data Do not open the door during the automatic programmes in order to obtain a proper drying.73

Rotating the programme selector in both directions it's possible to select the desired drying programme. To cancel the selections or switch off the appliance rotate the programme selector on OFF (remember to unplug the appliance).

Press the START/PAUSE button to start the programme set with the programme knob (the corresponding indicator light will light up). Moreover, if you want to modify the chosen programme, press the desired options buttons and then press START/ PAUSE button to start the cycle.

After switching on the appliance, wait a few seconds for the programme to start running. PROGRAMME DURATION When a programme is selected the appliance calculates the time to the end of the selected programme based upon a standard loading but, during the cycle, the appliance corrects the time to the humidity level of the load. PROGRAMME END The "END" indicator light will light up at the end of the programme, it is now possible to open the door. At the end of the cycle, turn off the appliance by turning the programme selector to the OFF position.

Press the START/PAUSE button (the corresponding indicator light will flash, showing that the machine is paused). Press the START/PAUSE button again to re-start the programme from the point it had been paused at.

CANCELLING THE SET PROGRAMME

To cancel the programme, turn the programme selector to the OFF position. If there is a break in the power supply whilst the machine is operating, when the power is restored, by pressing the START/PAUSE button, the machine will restart from the beginning of the phase it was in when the power was lost.

Appliance start time can be set with this button, delaying the start by 3, 6 or 9 hours. DELAY START button The programme selector must ALWAYS be put in the OFF position at the end of the drying cycle before a new one can be selected. Only the options compatible with the set programme can be selected. Close the porthole BEFORE pressing the START/PAUSE button. START/PAUSE button PROGRAMME SELECTOR with OFF position WARNING Don’t touch the buttons while inserting the plug because the machines calibrates the systems during the first seconds: touching the buttons , the machine couldn’t work property. In this case, remove the plug and repeat the operation.74 Proceed as follows to set a delayed start: - Select a programme. - Press the DELAY START button (each time the button is pressed the start will be delayed by 3, 6 or 9 hours respectively and the corresponding time indicator light will light up). - Press START/PAUSE button to commence the delay start operation (the indicator light associated with the selected delay start time will blink). At the end of the required time delay the programme will start. It is possible to cancel the DELAY START by turning the programme selector to OFF.

To set a timed drying, press this button until the corresponding indicator light to the desired duration will light on. It's possible transform a cycle from automatic to timed, up to 3 minutes after the start of the cycle. After this selection to reset the automatic drying functioning is necessary to switch off the dryer. In case of incompatibility, all indicator lights flash quickly for 3 times.

This button allows to set the desired dryness level editable option up to 3 minutes after the starting of the cycle:

Ready to Iron: it leaves the garments slightly wet to facilitate ironing.

Dry Hanger: to get garment ready to be hang.

Dry wardrobe: for laundry that can be directly stored.

Extra-dry: to get completely dry garments, ideal for full load.

This appliances is equipped with Drying Manager function. On automatic cycles, each level of intermediate drying, prior to the reaching the selected one, is indicated by flashing the light indicator corresponding to the degree of drying reached. In case of incompatibility, all indicator lights flash quickly for 3 times.

It lights up when the START/PAUSE button has been pressed.

The indicator lights are illuminated to show the duration selected by the relevant button.

The indicator lights display the degrees of dryness that can be selected by the relevant button.

Each time the DELAY START button is pressed the indicator lights show how many hours of delay you chosen (3, 6 or 9 hours) and the countdown until the end of it.

indicator lights START PAUSE indicator light DRYING SELECTION button TIME CYCLE SELECTION button Opening of the porthole with delayed start set, after re- closing the porthole, press START/PAUSE again to resume the counting.75

When a programme is running, the indicator lights will light in sequence to indicate the current phase:

DRYING CYCLE It lights up when the drying cycle is running

COOLING It lights up when the cycle is in the cooling phase

END CYCLE It lights up when the cycle is done

The indicator light illuminates in fixed mode to signal the need of cleaning the lint filters and in blinking mode to signal the need of cleaning the sponge filter.

This appliance is equipped with Smart Touch technology that allows you to interact, via the App, with smartphones based on Android operating system and equipped with compatible NFC (Near Field Communication) function.

Download on your smartphone the Candy simply-Fi App.

Turn the knob to the Smart Touch position to enable the sensor on the dashboard. Open the App, create the user profile and register the appliance following the instructions on the phone display or the "Quick Guide" attached on the machine. NEXT TIME – Regular usage Every time you want to manage the machine through the App, first you have to enable the Smart Touch mode by turning the knob to the Smart Touch indicator. Make sure you have unlocked your phone (from stand-by mode) and you have activated the NFC function; following the steps mentioned earlier. If you want to start a cycle, load the laundry and close the door. Select the desired function in the App (e.g.: starting a programme). Follow the instructions on the phone display, KEEPING IT ON the Smart Touch logo on the machine dashboard, when requested to do so by the App.

Depending on the smartphone model and its Android OS version, the process of the NFC activation may be different. Refer to the smartphone manual for more details. Get all the details of the Smart Touch functions, browsing the App in DEMO mode. The Candy simply-Fi App is available for devices running both Android and iOS, both for tablets and for smartphones. However, you can interact with the machine and take advantage of the potential offered by Smart Touch only with Android smartphones equipped with NFC technology, according to following functional scheme: Android smartphone with compatible NFC technology Interaction with the machine + contents Android smartphone without NFC technology Contents only Android Tablet Contents only Apple iPhone Contents only Apple iPad Contents only SMART TOUCH77

The ECO programme is suitable to dry wet cotton laundry and is the most efficient in terms of energy consumption for drying these fabrics. Maximum Drying Weight ECO Max. capacity declared SYNTHETICS or DELICATES Max. 4 kg

WARNING Only for 10/11 kg capacity Tumble Dryer supplied with drain hose kit: connect the drain hose for recovering the condenser water (according to instruction in the dedicated chapter). WARNING The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

WARNING Clean the sponge filter every six months or when the filters cleaning indicator light blinks. WARNING Clean the lint filters before every cycle. Information for Test Laboratory Drying Guide The management and the control of the machine via App is only possible "by proximity": it is therefore not possible to perform remote operations (e.g.: from another room ; outside of the house). The replacement of some components of the smartphone (e.g. back cover, battery, etc...) with non- original ones, could result in the NFC antenna removal, preventing the full use of the App. Thick cases or metallic stickers on your smartphone could affect or prevent the transmission of data between machine and telephone. If necessary, remove them. If you do not know the position of your NFC antenna, slightly move the smartphone in a circular motion over the Smart Touch logo until the App confirms the connection. In order for the data transfer to be successful, it is essential TO KEEP THE SMARTPHONE

a message on the device will inform about the correct outcome of the operation and advise you when it is possible to move the smartphone away. Place your smartphone so that the NFC antenna on its back matches the position of the Smart Touch logo on the appliance (as illustrated below).78

2,5 20' Customizable setting that interacts with the App on your smartphone and to download the cycles (see the dedicated section). The factory sets the default programme ECO.

• The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature. ** 7/8/9/10/11 kg depending on model (see control panel).

To dry different types of fabrics and colors, the tumble dryer has specific programs to meet every need of drying (see table of programmes).

Customizable setting of the knob that you have to select when you would like to transfer a command from the App to the machine and to download/start a cycle (see the dedicated section and the user manual of the App for more info). In the Smart Touch option the factory sets as a default the ECO cycle.

A comfortable solution to dry laundry of mixed fabrics minimizing folds, delivering the perfect humidity to iron in the easier way. Before drying it's better to shake off the linens.

The ECO programme (Dry Hanger) is suitable to dry wet cotton laundry and is used to assess the compliance with the EU Ecodesign legislation (environmentally friendly products design). This programme is the most efficient in terms of energy consumption for drying wet cotton laundry.

The right cycle to dry cottons, sponges and towels.

To dry all together different kind of fabrics as cotton, linen, mix, synthetics.

To dry synthetic fabrics that need an accurate and specific treatment.

This specifics cycle has been conceived to dry shirts minimizing tangles and folds thanks specific movements of the drum. It’s recommended to take out the linens immediately after drying cycle.

A delicate and specific cycle to dry dark and coloured cotton or synthetics garments.

BABY This cycle is perfect for baby clothes, when an high hygiene level is expected.

Dedicated to dry uniformly fabrics

like jeans or denim. It's recommended flip over the garments before drying.

Dedicated to technical garments for sport and fitness, drying gently with special care to avoid shrinking and deterioration of elastic fibers.

Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers).

is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end

of the cycle, clothes are ready to be worn, but

if they are heavier, edges can be a bit wet: it

is suggested to dry them naturally. It is recommended to unload clothes at the very end of the cycle.

Attention: felting process of wool is irreversible; please dry exclusively with symbol "ok tumble" on the garment label. This programme is not indicated for acrylic clothes.

Perfect to dry quickly up to 1 kg load. It's recommended to spin at high speed before drying.

The wool drying cycle of this machine has been tested and approved by "The Woolmark Company" for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issued by the manufacturer of this machine. M1530. The Woolmark symbol is a Certification mark in many countries.

Description of programmes80 RELAX This is a warm cycle that in only 12 minutes helps to relax folds and creases.

REFRESH The perfect cycle to remove the smells from the linens smoothing creases.81

If you believe the machine is not working correctly, consult the quick guide provided below which includes some practical tips on how to fix the most common problems.

Error shown Possible causes and practical solutions E3 (with display) 3 flashes of the LEDs (without display) Water container full. Empty the water container. If, after emptying the water container, the error should occur again upon restarting the cycle, contact an Authorised Customer Service Centre directly. E7 (with display) 7 flashes of the LEDs (without display) Filters clogged. Clean the lint filters and the sponge filter. Any other code Turn off and unplug the machine, wait a minute. Turn on the machine and restart a program. If the error occurs again contact an Authorised Customer Service Centre directly.

Models with a display: the error is shown by a number preceded by the letter "E" (example: E3 = Error 3). Models without display: an error is shown by a sequence of flashes of every LED. The error code is shown by the number of flashes followed by a pause of 5 seconds (example: three flashes - pause 5 seconds - three flashes - repeating = Error 3). Error code format82

Defects you can remedy yourself Before calling Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Service, they may be able to assist you over the telephone. Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal. Drying time is too long/clothes are not dry enough… Have you selected the correct drying time/programme? Were the clothes too wet? Were the clothes thoroughly wrung or spindried? Do the lint filters need cleaning? Does the sponge filter need cleaning? Is the dryer overloaded? The dryer does not operate… Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp. Is the plug properly connected to the mains supply? Is there a power failure? Has the fuse blown? Is the door fully closed? Is the dryer switched on, both at the mains supply and at the machine? Has the drying time or the programme been selected? Has the machine been switched on again after opening the door?

Has the machine stopped working because the water container is full and must be emptied? The dryer is noisy… Switch off the dryer and contact Service for advice.

The filters cleaning indicator light is on…

Do the lint filters or the sponge filter need cleaning? The water container indicator light is on

Does the water container need emptying?

• In some models, this will be indicated with a message appearing on the display.

Should there still be a problem with your dryer after completing all the recommended checks, please call Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine: Is found to be in working order. Has not been installed in accordance with the installation instructions. Has been used incorrectly.

Customer Service What might be the cause of...83

Except for the list of spare parts available on our website, under no circumstances should you repair or attempt to repair the appliance yourself or have the appliance repaired by inexperienced and / or unqualified persons. Repairs carried out by inexperienced and / or unqualified persons can cause injury or serious malfunction of the equipment and damage to property. It is advisable to contact our Authorized Technical Assistance Centres.

We recommend that you always use original spare parts, which can be obtained from our customer service for a period of at least 10 years from the moment the appliance is put into circulation within the European Economic Area.

From 1 March 2021, energy and environmental information relating to the energy labelling of household appliances and the specifications for their eco

design are visible in Europe in the product database (EPREL) at the following link https://eprel.ec.europa.eu/

It will be asked to enter the model identifier that can be found on the rating label applied to the appliance (door area).

Alternatively, you can directly access to the model information through the QR code located on the energy label.

mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

The manufacturer declines all responsibility for any printing errors in the booklet included with this product. Moreover, it also reserves the right to make any changes deemed useful to its products without changing their essential characteristics.

Warranty The product is guaranteed under the terms and conditions stated on the certificate included with the product. The certificate has to be stored so as to be shown to the Authorized Customer Service Centre in case of need. You can also check the warranty conditions on our web site. To obtain assistance, please fill in the form on- line or contact us at the number indicated on the support page of our web site. Our service contacts (telephone numbers and web addresses) detailed by country are available on the warranty certificate included with the product. WARNING The manufacturer cannot be held responsible for any damage to things and people and / or for safety issues resulting from repairs not carried out by an Authorized Technical Assistance Centre or by a service provider authorised by the manufacturer in accordance with company guidelines relating to the repair and maintenance of its products. Any damage caused to the product by unauthorized personnel during a repair attempt will not be covered by the conventional warranty.84
