USER MANUAL Avante Pro BI9625 TEFAL

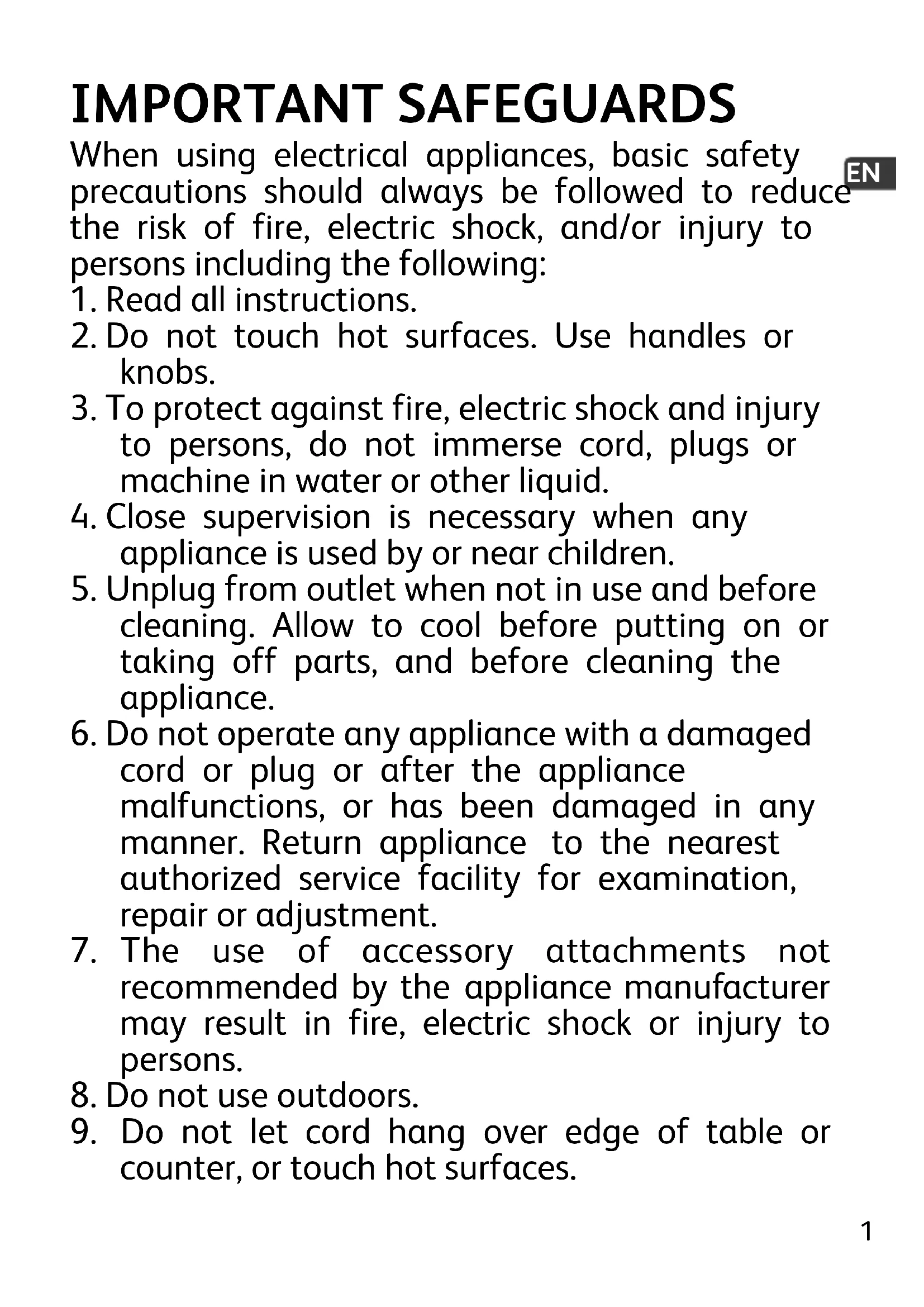

Kettles www.t-fal.com1 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

1. Read all instructions.

3. To protect against fire, electric shock and injury

to persons, do not immerse cord, plugs or machine in water or other liquid.

4. Close supervision is necessary when any

appliance is used by or near children.

5. Unplug from outlet when not in use and before

cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged

cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not

recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or

counter, or touch hot surfaces. EN10.Do not place on or near a hot gas or electric burner, or in a heated oven. 11.Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to the "off" position, then remove plug from wall outlet. 12.Do not use appliance for other than intended use. Only use the kettle to heat water. Never heat other liquids in the kettle. 13.Your kettle should only be used with its lid locked, with the base and the anti-scale filter supplied. Never touch the filter or the lid when the water is boiling. Never open the lid when the water is boiling. 14.Scalding may occur if the lid is removed during the brewing cycles.

SAVE THESE INSTRUCTIONS

CAUTION This machine is intended for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized T-fal Service Center. Visit our website at www.t-falsusa.com in the USA or www.t-fal.ca in Canada or contact your respective country's Consumer Service department for the service center nearest to you, or contact your respective country’s Consumer Service department. To reduce the risk of fire or electric shock, do not attempt to disassemble the machine. Repair should be done by an authorized T-fal Service Center only.

SHORT CORD INSTRUCTIONS

A. A short power cord or a detachable power cord is provided to reduce the risks of becoming entangled in or tripping over a longer cord accidentally. 2B. Longer detachable power cords or extension cords are available and may be used if care is exercised in their use. C. If a long detachable power cord or an extension cord is used:

1) the marked electrical rating of the detachable power cord or extension cord

should be at least as great as the electrical rating of the appliance.

2) If the appliance is of the grounded type, the extension cord should be a

grounding type 3-wire cord.

3) the longer cord should be arranged so that it will not drape over the counter

where it can be pulled on by children or tripped over accidentally. The appliance may have a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in anyway. SAFETY INSTRUCTIONS Only plug the kettle into a grounded power outlet. Check that the voltage on the rating plate of the appliance corresponds to that of your electrical installation. Keep the kettle and its power cord away from any source of heat, from any wet or slippery surface and away from sharp angles. Never use the appliance in a bathroom or close to a water source. Never use the kettle when your hands or feet are wet. Place the kettle and its power cord well to the back of the work surface. Always unplug the power cord immediately if you observe any anomaly during operation. Never pull on the power cord to remove it from the wall outlet. Always remain vigilant when the appliance is on, and in particular be careful of the steam coming out of the spout which is very hot. Also be careful as the body of the stainless steel kettle becomes very hot during operation. Only touch the handle of the kettle. Never leave your hand or the power cord on the hot parts of the appliance. Never leave the kettle connected to its base during filling, pouring, cleaning or moving. Always use the filter during heating cycles. Never move the kettle when it is in operation. Protect the appliance from dampness and freezing. The warranty covers manufacturing defects and residential use only. Any breakage or damage resulting from a failure to comply with these instructions for use is not covered by the warranty. Any supply connection error will void the warranty. The warranty does not cover kettles that fail to operate or operate badly due to a failure to perform descaling operations.

ENNever use scouring pads for cleaning purposes. To remove the anti-scale filter, remove the kettle from its base and allow it to cool down. Never remove the filter when the appliance is filled with hot water. Never use any de-scaling method other than the one recommended. All appliances are subject to strict quality control procedures. These include actual usage tests on randomly selected appliances, which would explain any traces of use. This appliance is not designed to be used by children or people without knowledge or experience with the product, unless they are supervised or given prior instruction concerning use of the appliance by a person responsible for their safety. Keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance. Never heat the kettle when it is empty. Never fill the kettle past the maximum water level mark, nor below the minimum water level mark. If the kettle is too full, some water may spray out. Your appliance is designed for residential use only. T-fal reserves the right to modify the characteristics or components at any time in the interests of the consumer.

1. Remove all of the various packaging, stickers or accessories from both the inside and outside

2. Adjust the length of the cord by winding it under the base. Wedge the cord into the notch.

(fig 1) 1 To open the lid, according to the model

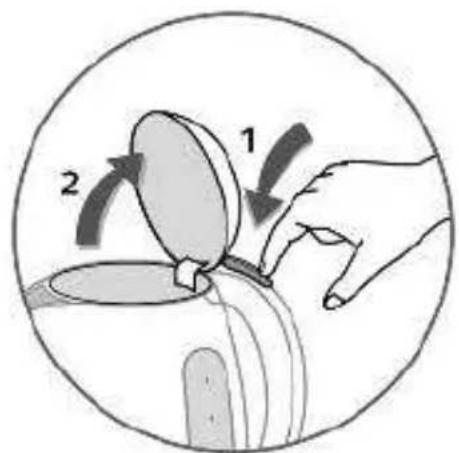

• Hinged lid: press if necessary on the locking system and pull backwards. (fig 2)

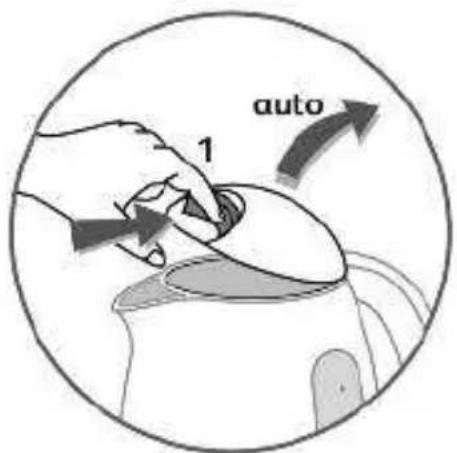

• Assisted opening lid: press on the locking system and the lid lifts automatically (fig 3)

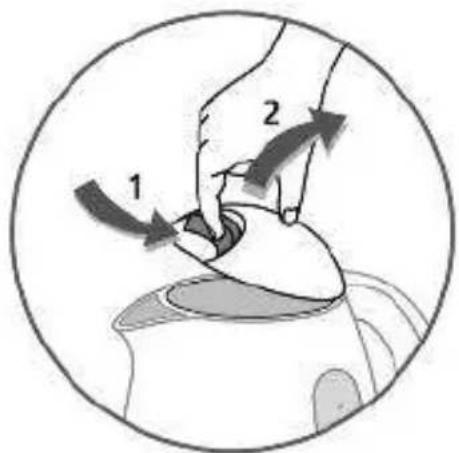

• Automatic opening lid: press the button at the top of the handle. (fig 4)

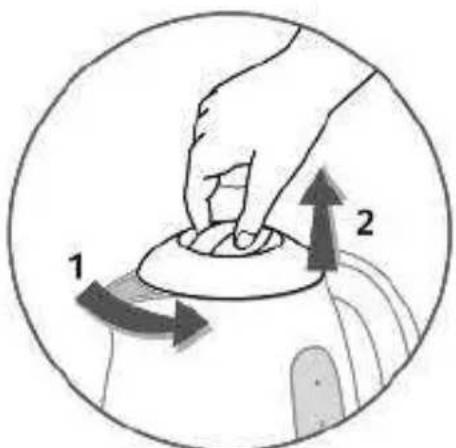

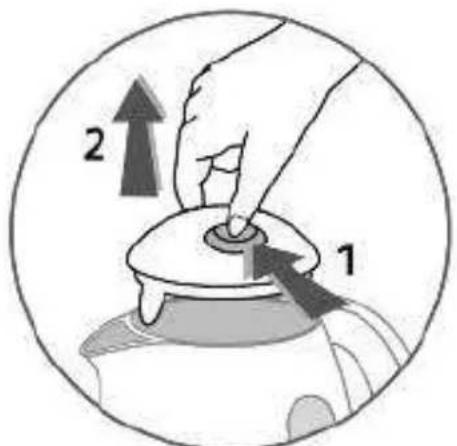

• Removable lid : do not use your kettle without its lid. In case the lid is lost or broken, please contact your after-sales service center (fig 5.2).

• Throw away the water from the first two/three uses as it may contain dust. Rinse the kettle and the filter separately.

2 Place the base on a flat, stable, heat-resistant surface away from water splashes and any sources of heat.

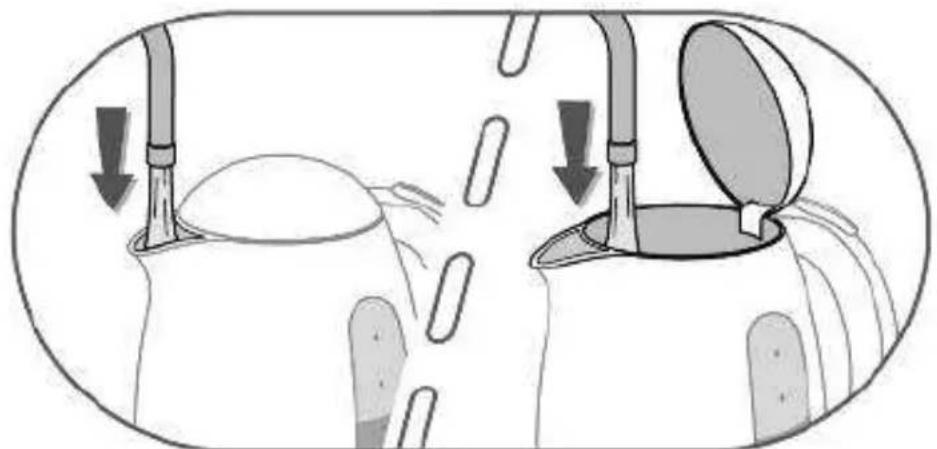

• Your kettle must only be used with the base that matches it and its own anti-scale filter. 3 Fill the kettle with the desired amount of water. (fig 6)

• You can fill it through the spout, which ensures better maintenance of the filter. As a minimum, cover the element (or the bottom of the kettle) with water.

• Never fill the kettle when it is on its base.

• Do not fill it above the maximum level, or below the minimum level. If the kettle is too full, boiling water may spill out.

• Do not use without water.

• Check that the lid is closed properly before use.

• The kettle must always be used with its own anti-scale filter. 4 Position the kettle on its base. Plug it into the wall out- let 5 For kettles that feature a temperature switch, select the temperature according to your needs

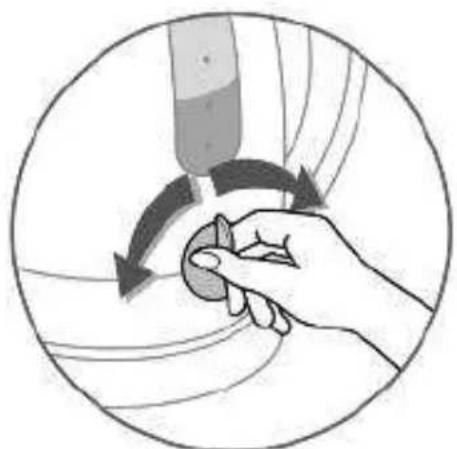

• Right position for boiling water or left position for the ideal temperature for drinking immediately. (fig 7) 6 To start the kettle

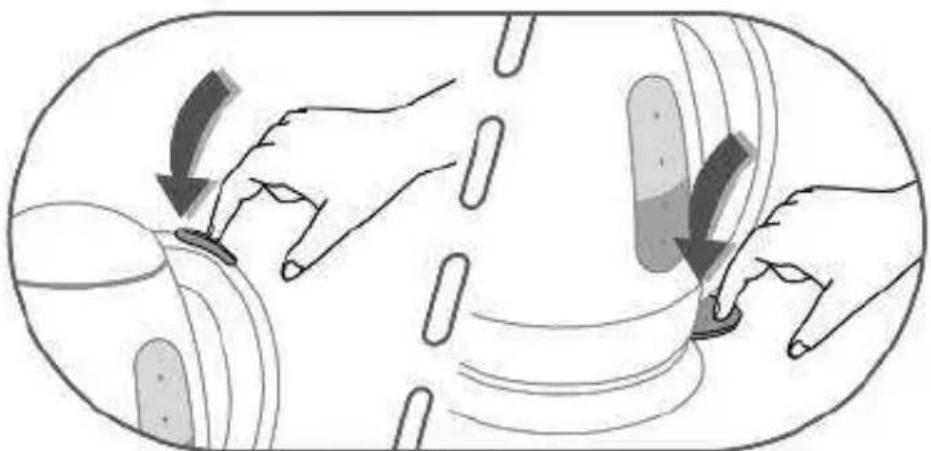

• Press the on/off button positioned on the top or the bottom of the handle according to the model. (fig 8) 7 For kettles that feature a temperature switch

• If you move quickly from left position to right position after heating the water, the kettle has to reset itself. If you think that this is taking a long time, you can add cold water to speed up the start of heating. 8 The kettle will switch off automatically

• As soon as the water reaches boiling point or the chosen temperature. You can stop it ma- nually, before removing it from its base to pour the water. Depending on the model, the in- dicator light will go out when the water reaches boiling point. Make sure that the on/off button is in the off position after boiling and that the kettle has switched off before removing it from its base. Do not leave water in the kettle after use as this quickens the formation of scale.6 Cleaning your kettle

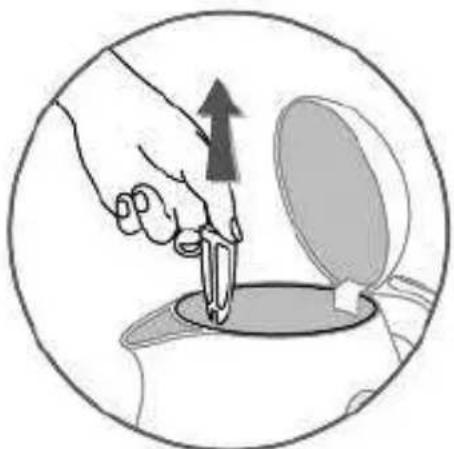

• Let it cool down and clean it with a damp sponge. Never immerse the kettle, its base, the cord or the electric plug in water: the electrical connections or the switch must not come into contact with water. Do not use scouring pads. Cleaning the filter (according to the model) (fig 9)

• The removable filter consists of a mesh to retain the particles of scale and prevent them falling into your cup when pouring. This filter neither treats nor removes the hardness of the water. It thus conserves all the qualities of the water. With very hard water, the filter can clog very quickly (10 to 15 uses). It is important to clean it regularly. If it is wet, put it under a running tap, if dry, then brush it gently. Sometimes the scale will not detach itself; it will then need descaling. To remove the anti-scale filter, lift the kettle off its base and allow to cool. Never remove the filter when the appliance is full of hot water. To de-scale your kettle:

• using white vinegar: - fill the kettle with 1/2 liter of vinegar, - leave to stand for 1 hour without heating.

• using a de-scaler specifically for plastic kettles: follow the manufacturer’s instructions. To de-scale your filter (according to model):

• Soak the filter in white vinegar.

CLEANING AND MAINTENANCE

• De-scale regularly, preferably at least once a month or more frequently if your water is very hard.

• Empty your kettle and rinse 5 or 6 times. Repeat if necessary.

• Never use a de-scaling method other than that recommended.7

• The kettle does not work or stops before coming to the boil - Check that your kettle is properly connected. - The kettle has been switched on without water or an accumulation of scale has caused the overheat cut-out to operate: allow the kettle to cool and fill it with water. Descale first if scale has accumulated. Switch it on: the kettle should start working again after about 15 minutes.

• The water tastes of plastic: Generally, this happens when the kettle is new, discard the water from the first few boilings. If the problem persists, fill the kettle to maximum and add two teaspoons of bicarbonate of soda. Bring to the boil and discard the water. Rinse out the kettle. IF YOUR KETTLE HAS BEEN DROPPED, IF IT LEAKS OR IF THERE IS VISIBLE DAMAGE TO THE POWER CORD, THE PLUG OR THE BASE OF THE KETTLE Return your kettle to your T-Fal After-Sales Service Center, only they are authorized to carry out repairs. See the warranty conditions and list of centres in the booklet supplied with your kettle. The type and serial number are shown on the bottom of your kettle. This warranty covers ma- nufacturing defects and domestic use only. Any breakage or damage resulting from failure to comply with the instructions for use is not covered by the warranty. Do not use the kettle. No attempt must be made to dismantle the kettle or its safety devices. If the supply cord is damaged, it must be replaced by the manufacturer, its after-sales service center or a similarly qualified person, in order to avoid any danger.

• For a child, a burn or scald, even if slight, can sometimes be serious.

• As they grow up, teach your children to beware of hot liquids to be found in the kitchen. Po- sition the kettle and its supply cord well to the rear of the work surface, out of the reach of children.

• If an accident does occur, run cold water over the scald immediately and call a doctor if ne- cessary.

IN THE EVENT OF PROBLEMS

• T-Fal reserves the right to modify the characteristics or components of its kettles at any time in the interests of the consumer.

PREVENTION OF DOMESTIC ACCIDENTS

• In order to avoid any accident: do not carry your child or baby at the same time as drin- king or carrying a hot drink.10
