Flashback CR3051A - Speaker Crosley - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Crosley
Model	Flashback CR3051A
Power Supply	DC 5V 1A via USB-C port
Built-in Battery	Rechargeable lithium-ion, 500 mAh
Battery Life	Up to 16 hours (at 50% volume, lights off)
Charging Time	Approximately 1.5 hours
Bluetooth Version	5.3
Bluetooth Range	Approximately 10 meters (without obstacles)
Main Functions	Wireless music streaming, hands-free calls, dual mode (pairing two speakers), LED light effects (4 modes)
Multifunction Button	Power on/off, Bluetooth pairing, light control, dual mode activation
LED Indicator	Red when charging, blue flashing in pairing mode
Approximate Dimensions	10 x 10 x 10 cm
Approximate Weight	0.5 kg
Package Contents	Speaker, USB-C cable, strap
Care and Cleaning	Clean with a soft, dry cloth. Avoid abrasive products.
Safety	Do not expose to water or moisture. Unplug during thunderstorms. Use only recommended adapter.
Certifications	FCC Part 15, European Directive 2014/53/EU

Frequently Asked Questions - Flashback CR3051A Crosley

How do I turn the speaker on and off?

Press and hold the multifunction button for about 3 seconds to turn the device on or off.

How do I pair the speaker with my phone?

Turn on the speaker (the blue light flashes). Enable Bluetooth on your phone, search for 'CROSLEY CR3051A' and select it. A confirmation sound will play.

How do I change the LED light effects?

Double-click the multifunction button quickly to cycle through the light modes (4 effects available).

How do I use dual mode (two speakers)?

Turn on both speakers. On one of them, triple-click the multifunction button quickly. A beep confirms pairing. Then connect your phone to Bluetooth; one speaker will be the master.

How do I disconnect dual mode?

Triple-click the multifunction button on one of the speakers connected in dual mode. A beep confirms disconnection.

How do I charge the speaker?

Plug the provided USB-C cable into the charging port of the device and connect it to a USB 5V/1A adapter or a computer. The light turns red during charging and goes off when the battery is full.

What is the battery life?

Up to 16 hours at 50% volume and LED lights off. Charging time is approximately 1.5 hours.

What should I do if the speaker doesn't turn on?

Check that the battery is charged. Plug it in with the USB-C cable and wait a few minutes. If the problem persists, contact customer service.

How do I control the volume?

Volume can only be controlled from your connected device (phone, tablet, etc.). Make sure your device's volume is high enough.

Is there an auto-off function?

Yes, if no Bluetooth device is connected, the speaker will automatically turn off after 15 minutes to save battery.

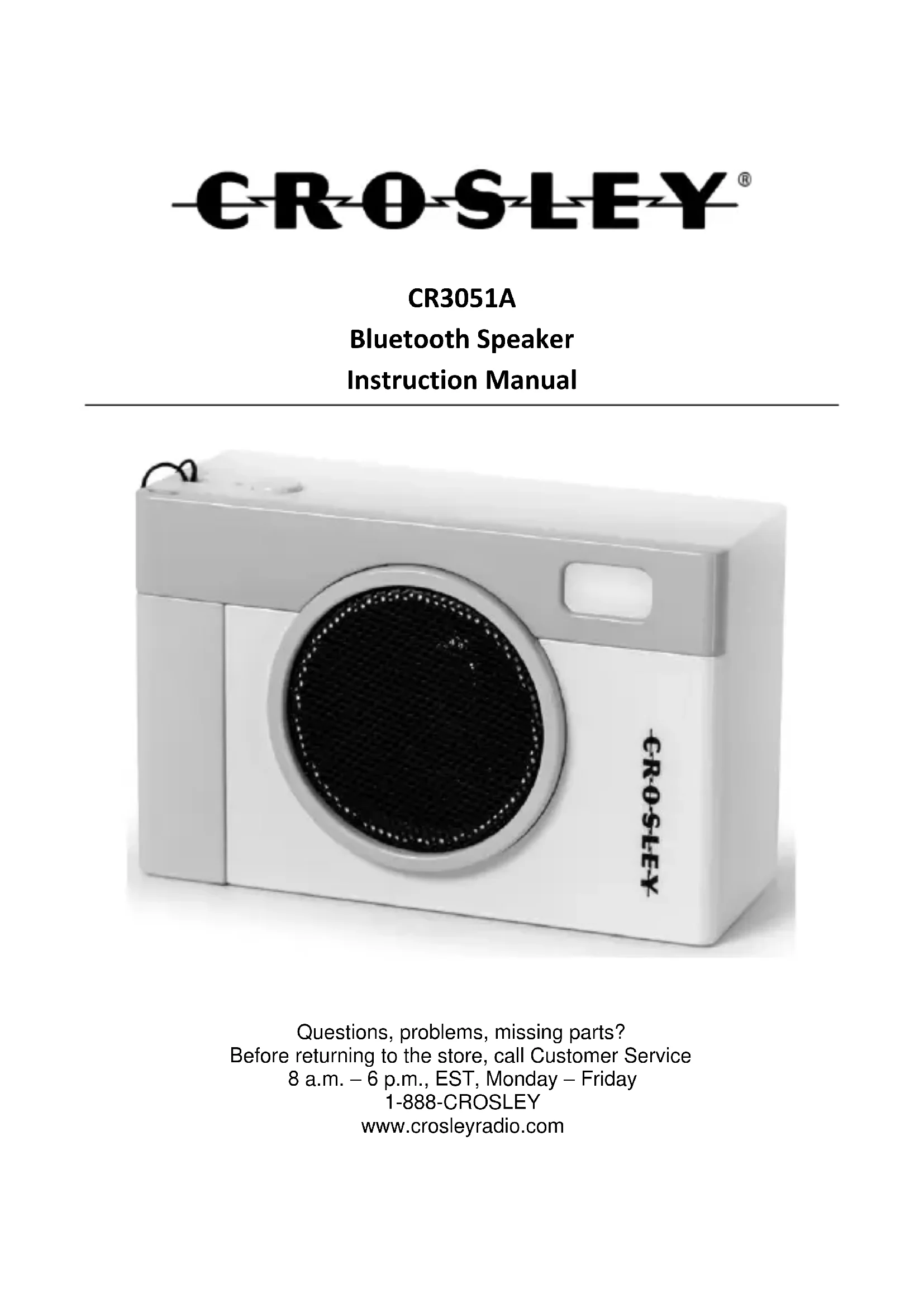

USER MANUAL Flashback CR3051A Crosley

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. - 6 p.m., EST, Monday - Friday

1-888-CROSLEY

www.crosleyradio.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Speaker
  USB-C Cable
• Strap

Please contact Crosby Customer Service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power Source DC Output 5V 1A

Power consumption 3W

Speaker 3Ω 3W

Playing Time Up to 16 hours (50% volume and lights off)

Charging Time 1.5 hours

Battery Capacity 500 mA/h

Bluetooth Version 5.3

Note:

• Design and specifications are subject to change without notice.
• Use protective pads, such as felt, cork, or non-reactive mat, under equipment with "rubber" cushioning feet. Some chemical compounds used in the feet of electronics equipment may leave permanent stains or marks on your surfaces. Surfaces such as but not limited to solid wood, wood veneer, and painted wood.

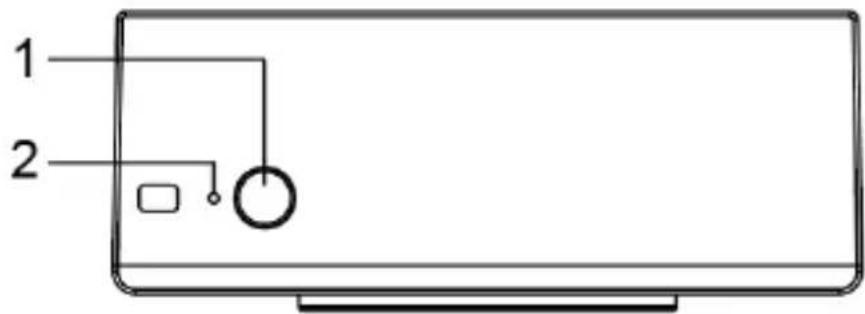

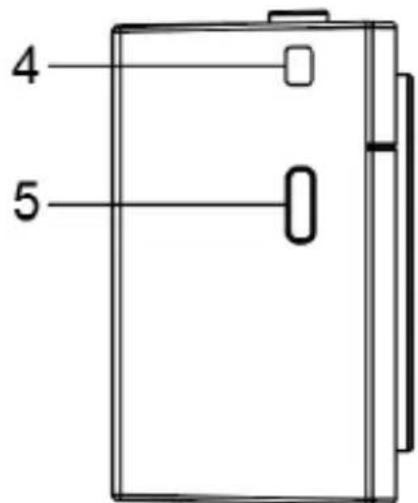

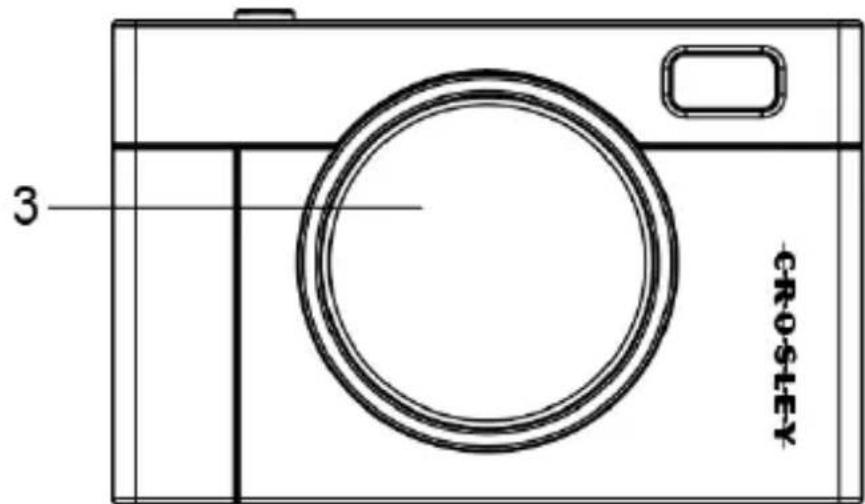

Product Description

1. Multifunction Button
2. LED Indicator

1. Speaker

1. Hanging Hole
2. USB-C Charging Port

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Connect the USB-C Cable to the Charging Port of the unit.
3. To turn the unit on and off, long-press the Multifunction button.

Charging/Power Source

1. This unit has a built in rechargeable battery.
2. Connect to a PC, Laptop or 5V USB adaptor with the provided USB-C cable.
3. The LED Indicator will be red when charging and will go off when fully charged.

Bluetooth Operation

1. Long press the Multifunction button to turn on the unit. The LED indicator will start flashing blue.
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR3051A" and pair.
3. Once your device is successfully paired with the unit you will hear a short confirmation sound from the unit.
4. Play and stream music from your device to the unit.

Note: Bluetooth version - 5.3

The volume can only be controlled by your third party device.

Twin Connected Mode

To Connect

1. Turn on both sets of speakers by long pressing the Multifunction button.
2. Quickly triple-click the Multifunction button on one of the speakers.
3. You will hear a confirmation notification showing they are paired.
4. Connect your Bluetooth.
5. There will be a confirmation notification from one speaker showing they are paired with your Bluetooth device.

Note: This speaker will be the Primary and the other will be secondary. The primary speaker indicator LED will flash blue.

To Disconnect

To disconnect the speakers from the Twin Connected Mode, triple-click the Multifunction button quickly on one of the twins-connected speakers. You will hear a confirmation notification showing they are disconnected.

Other Operation

Standby Function

If not connected to Bluetooth, the unit will automatically shut down after fifteen minutes.

LED Lights

Quickly double-click the multifunction button to change the LED lights, there are a total of 4 effects.

Troubleshooting

There is no power

• No power at the power outlet.
• The battery needs to be charged.

There is no sound

• Make sure the volume on your third party device is turned up.

FCC Statements

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20~cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s).

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Modern Marketing Concepts Inc. dba Crosby Brands, declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://crosleybrands.com/euDoC

CROSLEY

CR3051A

Altavoz Bluetooth

Consommation electrode 3 W

Haut-parleur 3Ω, 3W

Temps de lecture
