CR3080A - Speaker Crosley - Free user manual and instructions

Product type	Portable Bluetooth speaker
Brand	Crosley
Model	CR3080A
Bluetooth version	5.3
Battery life	Up to 15 hours (at 50% volume and lights off)
Charging time	Approximately 1 hour
Power supply	5V DC, 1A via USB-C
Power consumption	3 W
Speaker	3Ω, 3W
Battery capacity	500 mAh
Number of units	2 speakers (stereo pair)
Functions	Dual mode, play/pause, volume control, next/previous track
LED indicator	Red while charging, turns off when charged
Charging port	USB-C
Maintenance	Use protective pads under the rubber feet to prevent stains
Safety	Do not use near water, do not open, unplug during thunderstorms
Included accessories	2 speakers, USB-C cable
Auto sleep	After 20 minutes without Bluetooth connection
RF safety distance	At least 20 cm between the device and the body

Frequently Asked Questions - CR3080A Crosley

How to turn on the Crosley CR3080A speaker?

Press and hold the power button on the device to turn it on or off. An LED indicator blinks to confirm.

How to connect the speaker via Bluetooth?

Turn on the speaker, enable Bluetooth on your device, search for "CROSLEY CR3080A" and select it. A confirmation sound is heard once connected.

How to use dual mode (stereo pair)?

Turn on both speakers, then double-click quickly on the power button of one of them. A beep confirms they are paired. Then connect your Bluetooth device to one of the speakers.

How to charge the speaker?

Plug the provided USB-C cable into the charging port of the device and to a power adapter or computer (5V). The LED indicator is red while charging and turns off when fully charged.

What is the battery life?

The battery life can reach up to 15 hours at 50% volume and lights off. The battery recharges in about 1 hour.

What to do if the speaker does not turn on?

Check that the battery is charged by plugging the device into a power source. If the problem persists, try another outlet or contact Crosley customer service.

How to clean the speaker?

Use a soft, dry cloth to clean the exterior. Avoid water and chemicals. Protect wooden surfaces by using protective pads under the rubber feet.

Is the speaker waterproof?

No, do not use the product near water. Avoid any exposure to liquids to prevent the risk of electric shock or damage.

How to pause the music?

Press the power button briefly to pause or resume playback. A long press turns the device on/off.

What to do if the sound is low or missing?

Increase the volume on your source device (smartphone, computer) and check that the speaker volume is set correctly. Make sure the Bluetooth connection is active.

USER MANUAL CR3080A Crosley

Exterior view of a modern cylindrical speaker with textured surface and a strap (no visible text or symbols)

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. – 6 p.m., EST, Monday – Friday

1-888-CROSLEY

www.crosleyradio.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Speaker X 2
• USB-C Cable X 2

Please contact Crosley Customer Service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power Source DC Output 5V 1A

Power consumption 15W

Speaker 4Ω 5W

Playing Time Up to 13-14 hours (50% volume)

Charging Time 4-5 hours

Battery Capacity 1500 mA/h

Bluetooth Version 5.3

Note:

• Design and specifications are subject to change without notice.
• Use protective pads, such as felt, cork, or non-reactive mat, under equipment with “rubber” cushioning feet. Some chemical compounds used in the feet of electronics equipment may leave permanent stains or marks on your surfaces. Surfaces such as but not limited to solid wood, wood veneer, and painted wood.

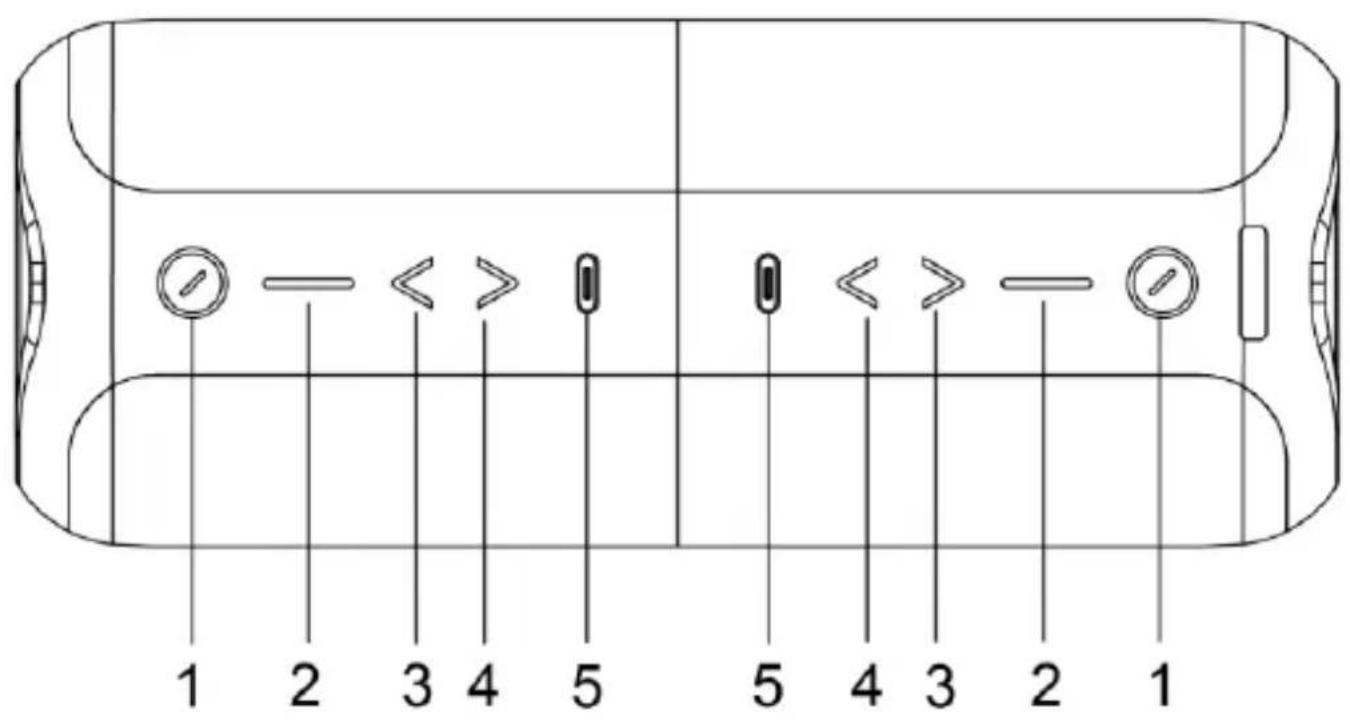

Product Description

1. Power/Play/Pause Button
2. LED Indicator
3. Volume Down/Backward Skip Button
4. Volume Up/Forward Skip Button
5. USB-C Charging Port

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Connect the USB-C Cable to the Charging Port of the unit.
3. To turn the units on and off, long-press the power buttons.

Charging/Power Source

1. This unit has a built in rechargeable battery.
2. Connect to a PC, Laptop or 5V USB adaptor with the provided USB-C cable.
3. The LED Indicator will be red when charging and will go off when fully charged.

Bluetooth Operation

1. Long press the Power buttons to turn on the units. The LED indicator will start flashing.
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR3080A" and pair.
3. Once your device is successfully paired with the unit you will hear a short confirmation sound from the unit.
4. Play and stream music from your device to the unit.
5. To forward skip, long press the Forward Skip Button in and release.
6. To backward skip, long press the Backward Skip Button in and release.
7. To pause the playback, short press the Pause button.

Note: Bluetooth version - 5.3

Twin Connected Mode

To Connect

1. Turn on both sets of speakers by long pressing the Power button.
2. Quickly double-click the Power button on one of the speakers.
3. You will hear a confirmation notification showing they are paired.
4. Connect your Bluetooth.
5. There will be a confirmation notification from one speaker showing they are paired with your Bluetooth device.
   Note: Adjusting the volume and powering the unit off will affect both units.

To Disconnect

To disconnect the speakers from the Twin Connected Mode, double-click the Power Button quickly on one of the twins-connected speakers. You will hear a confirmation notification showing they are disconnected.

Other Operation

Standby Function

If not connected to Bluetooth, the unit will automatically shut down after fifteen minutes.

Troubleshooting

There is no power

• No power at the power outlet.
• The battery needs to be charged.

There is no sound

- Make sure the volume on your third party device is turned up.

FCC Statements

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.

The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s).

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Modern Marketing Concepts Inc. dba Crosley Brands, declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://crosleybrands.com/euDoC

CROSLLEY®

CR3080A

Altavoz Bluetooth

Exterior view of a modern cylindrical speaker with textured surface and a small attached strap (no text or symbols visible)

Exterior view of a modern cylindrical speaker with textured surface and a handle (no text or symbols visible)

http://crosleybrands.com/euDoC
