Montero CR3112A - Loudspeaker Crosley - Free user manual and instructions

Brand	Crosley
Model	Montero CR3112A
Product type	Portable Bluetooth speaker
Power supply	DC 5V, 2.1A (via USB-C)
Built-in battery	Rechargeable lithium-ion, 6000 mAh
Battery life	Up to 15 hours
Power consumption	19 W
Speakers	1 woofer 4Ω 15W + 1 tweeter 6Ω 15W
Bluetooth	Version 5.0
Audio inputs	3.5 mm auxiliary input, USB port (USB drive)
Charging ports	USB-C input (power), USB output (device charging, 3V)
Playback modes	Bluetooth, AUX, USB
USB audio formats	MP3, WMA, WAV, FLAC, APE
LED indicators	Function (color) and battery (4 levels)
Additional functions	Portable charger for other devices (3V output)
Safety	Polarized plug, do not expose to water, disconnect during thunderstorms
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Spare parts	USB-C cable and auxiliary cable included. Contact customer service for missing parts.
Repairability	Do not attempt to repair yourself. Consult a qualified professional.
General information	Design and specifications subject to change without notice.

Frequently Asked Questions - Montero CR3112A Crosley

How to charge the Montero CR3112A speaker?

Use the provided USB-C cable. Plug the small end into the power input of the speaker and the other end into a USB 5V 2.1A charging block (not included) or a computer. The battery LED indicators show the charge level: 4 LEDs = 100%, 3 = 75-100%, 2 = 50-75%, 1 = 25-50%, none = less than 25%.

How to connect the speaker via Bluetooth?

Press the Mode button several times until Bluetooth mode is selected (blue indicator). Turn on Bluetooth on your device, search for "CROSLEY CR3112A" and pair. A confirmation sound will play and the indicator will remain blue.

How to use the auxiliary input?

Press the Mode button to switch to AUX mode (red indicator). Connect a 3.5 mm auxiliary cable between your audio device and the AUX IN jack of the speaker. Playback starts automatically.

How to play music from a USB drive?

Press the Mode button to select USB mode (purple indicator). Insert your USB drive into the USB port. Use the Previous/Next buttons to change tracks and Play/Pause to control playback. Supported formats: MP3, WMA, WAV, FLAC, APE.

What is the battery life?

The battery life is approximately 15 hours of continuous playback. Full charging time is about 4-5 hours with a 5V 2.1A charger.

The speaker does not turn on, what should I do?

Check that the battery is charged. If it is discharged, plug in the power and wait a few minutes before turning on again. Also make sure the power button is held down for 2-3 seconds.

No sound comes from the speaker, what should I check?

Check that the volume is high enough (+/- buttons). Make sure the mode is correct (Bluetooth, AUX, or USB) and that the source device is playing and at an audible volume. If in Bluetooth mode, check that the pairing is active.

Can I use the speaker to charge my phone?

Yes, the speaker has a charging output port (marked "Output 3V LD"). Connect your device with a suitable cable (not included) to charge it. The output is limited to 3V, so charging may be slow.

How to clean the speaker?

Use a soft, dry cloth to clean the surface. Do not use abrasive products or solvents. Avoid water entering the openings.

What to do in case of malfunction?

First consult the troubleshooting guide. If the problem persists, contact Crosley customer service at 1-888-CROSLEY (United States) or refer to www.crosleyradio.com. Do not attempt to repair yourself, as this will void the warranty.

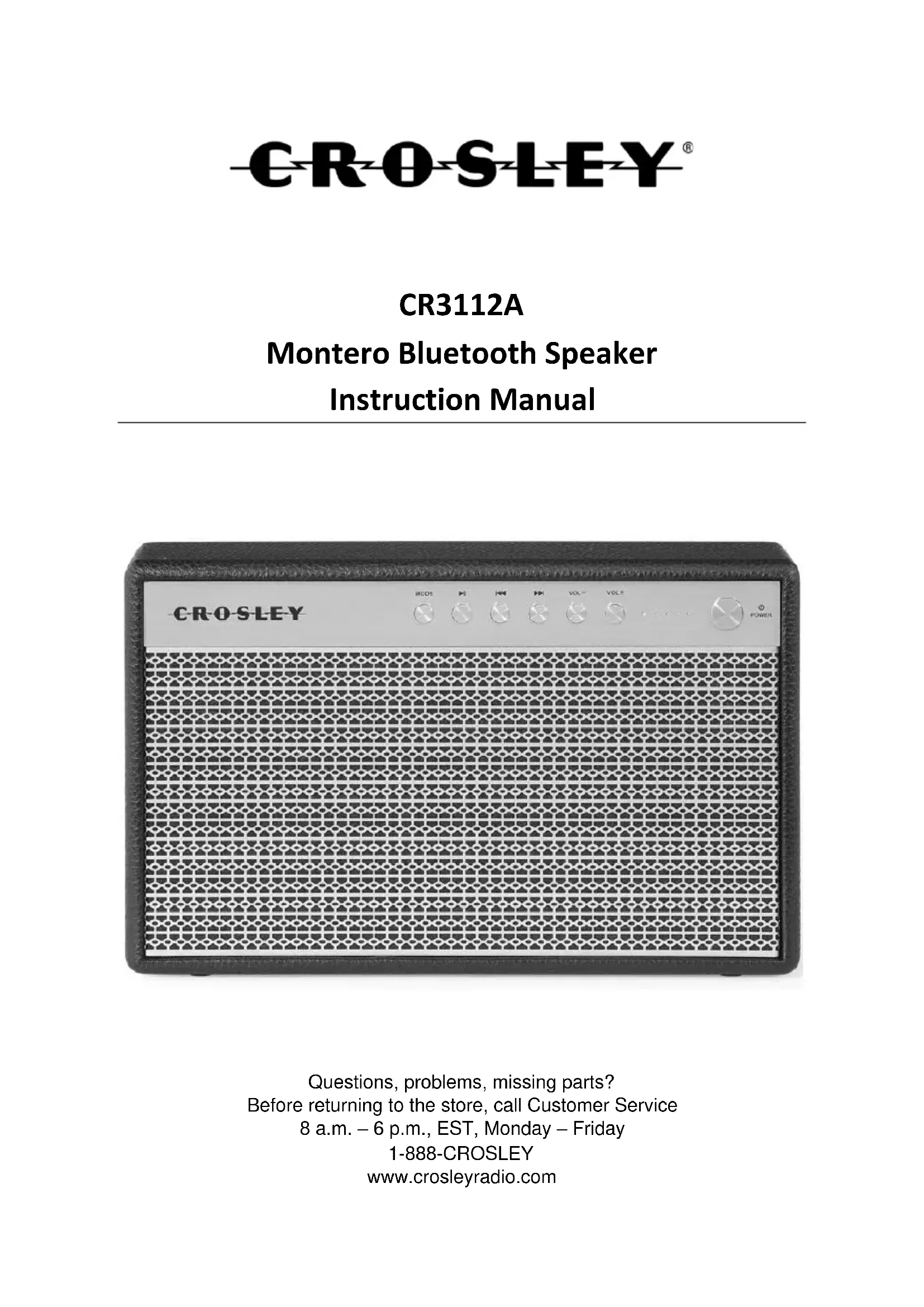

USER MANUAL Montero CR3112A Crosley

Black Crosley portable audio amplifier with hexagonal grid pattern and control buttons (no visible text or symbols on body)

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. – 6 p.m., EST, Monday – Friday

1-888-CROSLEY

www.crosleyradio.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Speaker
• USB-C Cable
• 3.5mm aux in cable

Please contact Crosley Customer Service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power DC Output 5V 2.1 A

Power consumption 19W

Speaker Woofer 4 Ω 15W

Speaker Tweeter 6 Ω 15W

Playing Time Up to 15 hours

Battery Capacity 6000 mA/h

Bluetooth Version 5.0

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

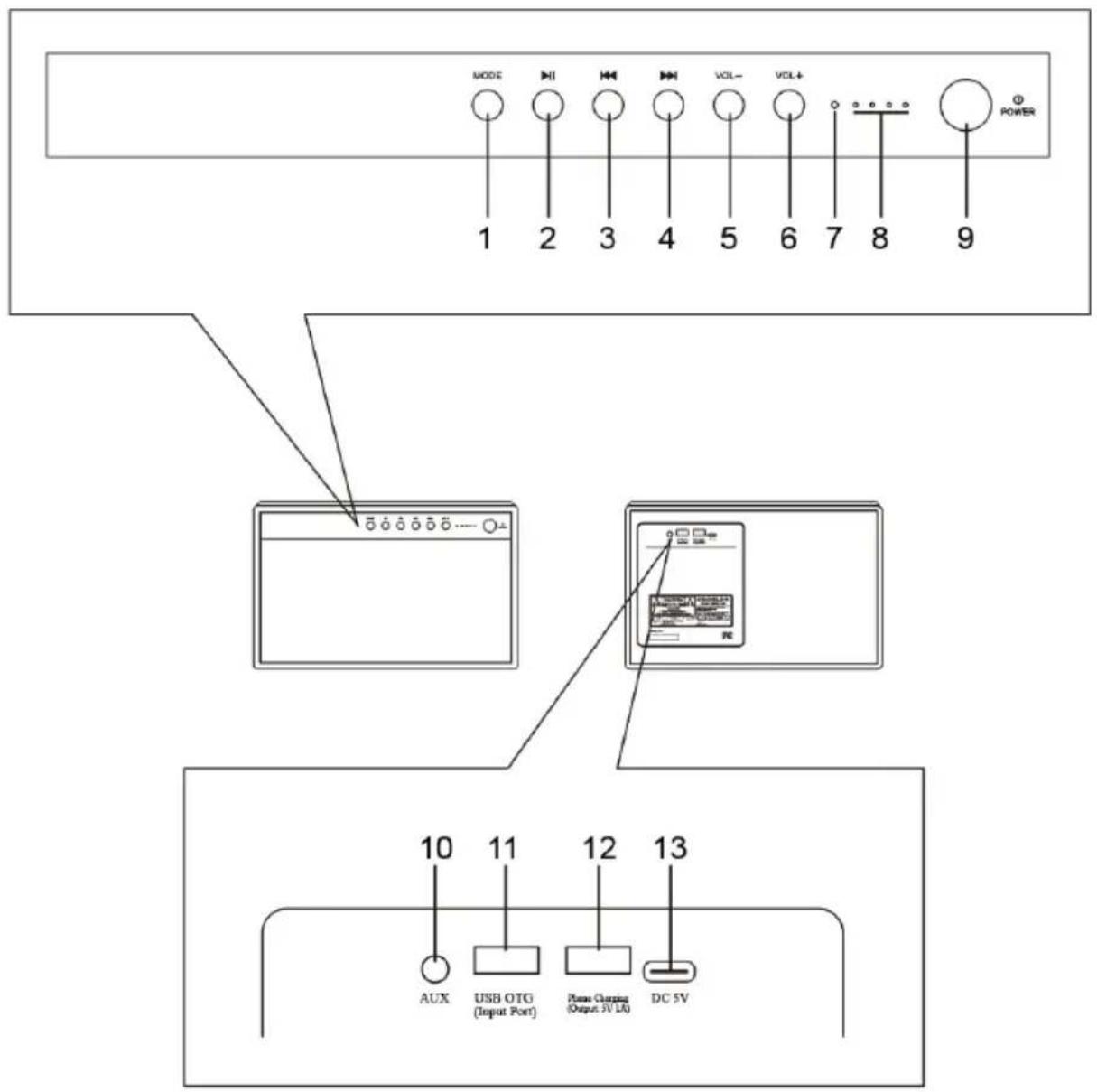

Product Description

1. Mode Button
2. Play/Pause Button
3. Backward Skip Button
4. Forward Skip Button
5. Volume Down Button
6. Volume Up Button

7. Function Indicator

8. Battery Indicator

9. Power Button
10. Aux In Jack
11. USB Port
12. Charging Jack
13. Power Jack

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Plug the small end of USB-C Cable into the Power Jack.
3. Plug the bigger end of USB-C Cable into either a computer's USB jack, or a USB wall charging block (DC output 5V, 2.1A, not included) for power.
4. Fully charge the battery before the first use.

Turning the unit on and off.

Long press the Power button to turn the unit on and off.

Charging the Speaker

1. This unit has a built-in rechargeable battery.
2. Connect to a PC, Laptop or 5V,2.1A USB charging block with the provided USB cable.
3. There are four battery indicators and when the unit is fully charged all four will be illuminated.

LED State	● ● ● ●	● ● ● □	● ● ○ ○	● ○ ○ ○	●○ ○ ○
State introduction	Quantity of electric charge 100%	Quantity of electric charge between 75% ~100%	Quantity of electric charge between 50% ~75%	Quantity of electric charge between 25% ~50%	Quantity of electric charge below 25%
● Light on ○ light off ● flashing

Bluetooth Operation

1. Press the Mode Button repeatedly to select the Bluetooth mode, you will hear an activation sound from the unit.
   Note: The Function Indicator will be blue.
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR3112A" and pair.
3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit, and the function indicator will be blue.
4. Play and stream music from your device to the unit.
5. During playback, press the Play/Pause Button to suspend and resume song.
6. During playback, press the Backward Skip Button or the Forward Skip Button for the previous or next song.
   Note: Bluetooth version - *5.0*

Aux Input Connection

You can connect an audio device to this unit and play your music through its speakers. To do this, turn on the unit, press the Mode Button to Aux-In Mode (Red), connect a 3.5 mm auxiliary cable between your audio device to the Aux In Jack of this unit and start playing the music.

USB Playback

1. Press the Mode Button repeatedly to select the USB (purple).
2. Insert a USB device into the USB port.
3. To skip to the next or previous track, press the Forward Skip or Backward Skip button correspondingly.
4. During the playback, press the Play/Pause button to pause. Press it again to resume playback.
   Note: This unit can play 5 formats: MP3, WMA, WAV, FLAC and APE.

Device Charging

Charge devices by plugging one end of the charging cord into the Montero Speaker's charging jack and the other end into your device.

Troubleshooting

There is no power

- The battery needs to be charged.

There is no sound

• Make sure the volume is turned up.
• Make sure the volume on your third party device is turned up.

FCC Statements

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause undesired operation.

CROSLEY®

CR3112A

Altavoz Bluetooth Montero
