USER MANUAL HWQ600F SAMSUNG

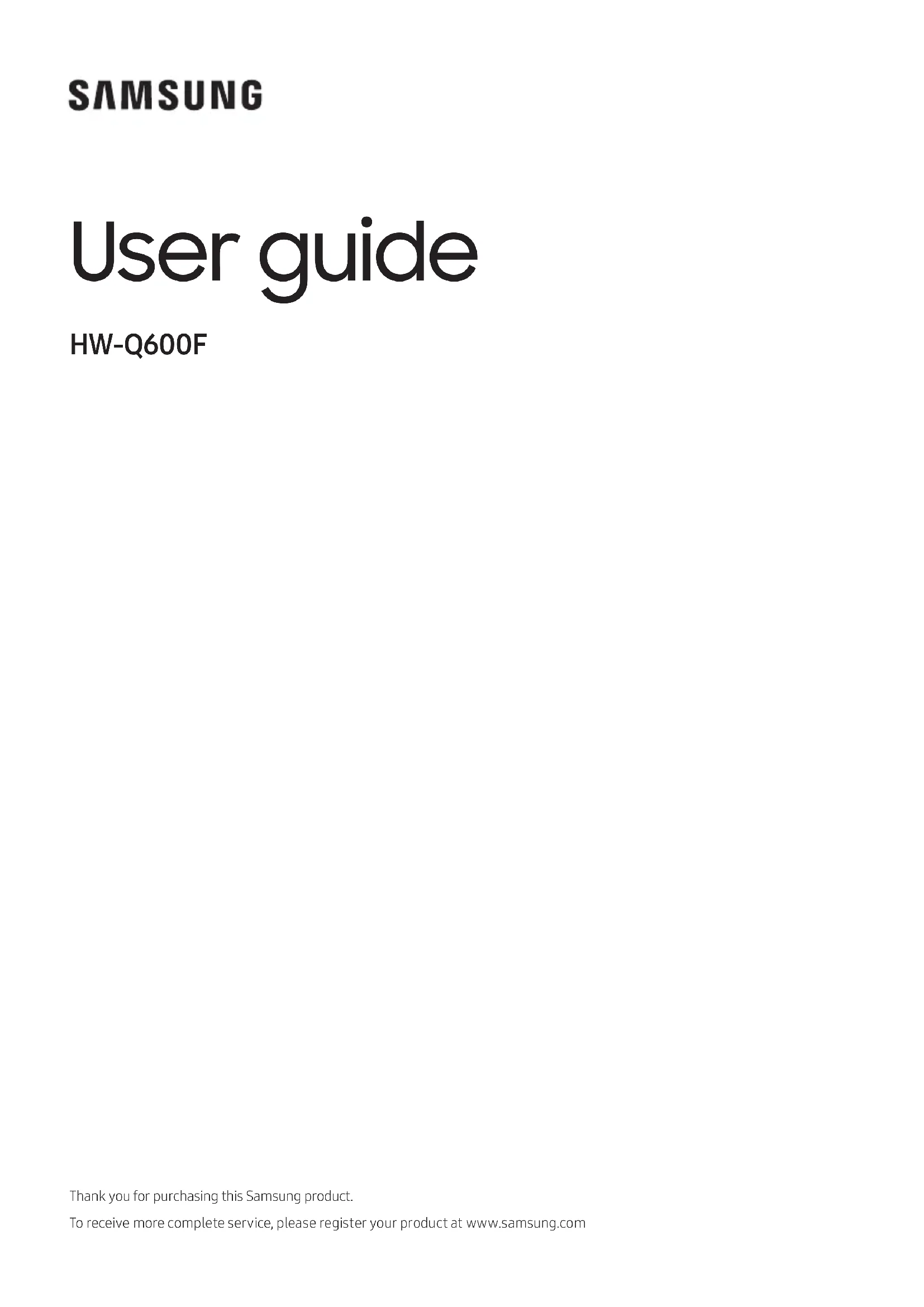

User guide Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com HW-Q600FEnglish - 2 SAFETY INFORMATION SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL. Refer to the table below for an explanation of symbols which may be on your Samsung product. CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN.This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.This symbol indicates that this product has included important literature concerning operation and maintenance.Class II product : This symbol indicates that it does not require a safety connection to electrical earth (ground).If this symbol is not present on a product with a power cord, the product MUST have a reliable connection to protective earth (ground).AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.Caution, Consult instructions for use : This symbol instructs the user to consult the user manual for further safety related information. WARNING

• To reduce the risk of re or electric shock, do not expose this appliance to rain or moisture.

• Do not use liquid fumigators containing chemicals, such as mosquito repellent or air freshener, around the product. If steam comes in contact with the product surface or enters the product, it may cause stains or malfunction. CAUTION

• TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

• Do not expose this apparatus to dripping or splashing. Do not put objects lled with liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.English - 3 PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power requirements listed on the identication sticker located on the bottom of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on ampliers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to overheating and cause the unit to malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or equipment creating strong magnetic or electric elds. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours or until the unit has reached room temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or re. Do not short circuit, disassemble, or overheat the battery. CAUTION : Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.English - 4 CONTENTS 01 Checking the Components 6 02 Product Overview 7 Front Panel / Top Panel of the Soundbar ------------------------- 7 Bottom Panel of the Soundbar ------------------------- 8 03 Using the Remote Control 9 Inserting Batteries before using the Remote Control (AAA batteries X 2) ------------------------- 9 How to Use the Remote Control

Setting the (Sound Control)

Using the Hidden Buttons (Buttons with more than one function)

Output specications for the different sound effect modes

Connecting the Soundbar to the Subwoofer

Connecting the Samsung Wireless Rear Kit to your Soundbar

05 Using a wired connection to the TV 20 Method 1. Connecting a TV using an HDMI Cable

Method 2. Connecting using an Optical Cable

06 Using a wireless connection to the TV 24 Connecting a TV via Bluetooth

Method 2. Connecting using an Optical Cable

08 Connecting a USB Storage Device 28 09 Connecting a Mobile Device 29 Connecting via Bluetooth

11 Placing the Soundbar on a TV stand 36 12 Software Update 37 How to check the Firmware version

If “UPGR” is not displayed

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

• To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care.

• The appearance of the accessories may differ slightly from the illustrations above.

• Design and specications are subject to change without prior notice.English - 7 02 PRODUCT OVERVIEW Front Panel / Top Panel of the Soundbar Top Panel

(Power) Button Turns the power on and off.

• Auto Power Down Function The unit turns off automatically in the following situations: – In TV ARC or TV eARC / HDMI / BT / USB / D.IN Mode : If there is no audio signal for 18 minutes.

• When adjusted, the volume level appears on the Soundbar’s front display.

• To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the (Source) button for more than 5 seconds.

• When you plug in the Power cord, the power button will begin working in 4 to 6 seconds.

• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

• If you want to enjoy sound only from the Soundbar, you must turn off the TV’s speakers in the Audio Setup menu of your TV. Refer to the owner’s manual supplied with your TV.English - 8 Bottom Panel of the Soundbar POWERDIGITAL AUDIO IN(OPTICAL) HDMI HDMI TO TV (eARC/ARC)USB (5V 0.5A)POWER USB (5V 0.5A)

DIGITAL AUDIO IN (OPTICAL) Connect to the digital (optical) output of an external device.

HDMI Inputs digital video and audio signals simultaneously using an HDMI cable. Connect to the HDMI output of an external device.

HDMI TO TV (eARC/ARC) Connect to the HDMI (eARC) port on a TV.

USB (5V 0.5A) Connect a USB device here to play music les stored on the USB device through the Soundbar.

• Do not connect this unit or other components to an AC outlet until all connections between components are complete.English - 9

03 USING THE REMOTE CONTROL

Inserting Batteries before using the Remote Control (AAA batteries X 2) Slide the back cover in the direction of the arrow until it is completely removed. Insert 2 AAA batteries (1.5V) so that their orientation is correct. Slide the back cover back into position. How to Use the Remote Control SOUND MODE WOOFERTONE CONTROL CH LEVEL

SOUNDMODEWOOFERTONE CONTROL CH LEVEL Power Turns the Soundbar on and off.

SOUNDMODEWOOFERTONE CONTROL CH LEVEL Source Press to select a source connected to the Soundbar.

SOUNDMODEWOOFERTONE CONTROL CH LEVEL Mute Press the (Mute) button to mute the sound. Press it again to unmute the sound.

SOUND MODE WOOFER TONE CONTROL CH LEVEL CH LEVEL By pressing the button, you can adjust the volume of each speaker.

• Press the button to select CENTER LEVEL or TOP LEVEL and then adjust the volume between -6~+6 by using the Up/Down buttons.

• If the Rear Speakers (sold separately) are connected, the setting REAR LEVEL is supported. To adjust the volume of the REAR LEVEL between -6 to +6, use the Up/ Down buttons.

VOL WOOFER SOUNDMODEPAIR Up/Down/ Left/Right Press the indicated areas to select Up/Down/Left/Right. Press Up/Down/Left/Right on the button to select or set functions.

• Repeat To use the Repeat function in “USB” mode, press the Up button.

• Music Skip Press the Right button to select the next music le. Press the Left button to select the previous music le.

• ID SET Press and hold the Up button for 5 seconds to complete ID SET (when connecting to a wireless subwoofer or wireless rear speakers).

• Press and hold the (Sound Control) button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2kHz, 2.5kHz, 5kHz, and 10kHz are selectable using the Left/Right buttons and each can be adjusted to a setting between -6 to +6 using the Up/Down buttons. (Make sure the Sound mode is set to “STANDARD”.)

• If the Rear Speakers (sold separately) are connected, the setting SOUND GROUPING, PRIVATE REAR SOUND are supported.

• Refer to “Setting the (Sound Control)” on page 12.

SOUND MODE WOOFER TONE CONTROL CH LEVEL Bluetooth PAIR Switch the Soundbar to Bluetooth pairing mode. Press the PAIR button and wait for the “BT PAIRING” screen to connect to a new Bluetooth device.English - 11

Play / Pause VOL WOOFER SOUNDMODEPAIR Press the p button to pause a music le temporarily. When you press the button again, the music le will resume playing.

SOUND MODE WOOFER TONE CONTROL CH LEVEL SOUND MODE By pressing the button, you can select the desired sound mode. SURROUND SOUND GAME PRO ADAPTIVE SOUND DTS VIRTUAL:X STANDARD – SURROUND SOUND Provides a wider sound eld than standard. – GAME PRO Provides stereoscopic sound to immerse you in the action while gaming. – ADAPTIVE SOUND Analyzes the content in real time and automatically provides an optimal sound eld based on the characteristics of the content.

Immersive 3D sound from any content. – STANDARD Outputs the original sound.

• DRC (Dynamic Range Control) Lets you apply dynamic range control to Dolby Digital and DTS Digital tracks. Press and hold the SOUND MODE button for more than 5seconds while the Soundbar is powered off to turn DRC (Dynamic Range Control) on or off. With the DRC turned on, loud sound is reduced. (The sound may be distorted.)

• Bluetooth Power This feature automatically turns the Soundbar on when it receives a connection request from a previously connected TV or Bluetooth device. The setting is On by default. – Press and hold the SOUND MODE button for more than 5 seconds while the soundbar is powered on to turn off the Bluetooth Power function.

SOUND MODE WOOFER TONE CONTROL CH LEVEL TONE CONTROL By pressing the button, you can adjust the volume of the treble or bass sound.

• Press the button to select TREBLE or BASS and then adjust the volume between -6~+6 by using the Up/Down buttons. Setting the (Sound Control)

• VOICE ENHANCE ON/OFF : This mode is makes it easier to hear spoken dialog in movies and TV.

• NIGHT MODE ON/OFF : This mode is optimized for nighttime viewing with the settings adjusted to bring the volume down but keep the dialog clear.

• SYNC : If the video on the TV and audio from the Soundbar are not synchronized, press the (Sound Control) button to select SYNC and then set the audio delay between 0~300 milliseconds by using the Up/Down buttons. (Not available in “USB” or “BT” mode.)

• SOUND GROUPING ON/OFF: The Soundbar main unit and the Surround Speakers play the entire sound instead of surround sound, making it ideal for large groups of people listening to music in a large space. – This menu is initially activated when the Surround Speakers are connected, and then the menu remains activated regardless of the connection of the Surround Speakers. – If you enable this mode, there are no differences in sounds between the Sound modes. – Sound does not come out from all speaker units of the Soundbar main unit and the Surround speakers, but only from certain predetermined units, which varies by model.

• PRIVATE REAR SOUND ON/OFF : This mode sets the sound to come out from the Surround Speakers only, allowing you to listen without being disturbed by others. – If you enable this mode, sound does not come out from the Soundbar main unit and the subwoofer. Sound only comes out from the front channel of the Surround Speakers. – If you enable this mode, there are no differences in sounds between the Sound modes. – The function turns off when the power turns off or the Surround Speakers connection is lost. – The menu is activated only when the Surround Speakers are connected. – This mode is automatically turned off and becomes unavailable when the Q-Symphony function turns on.

• The Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the vendor you purchased the Soundbar from.

• When the input source is Dolby Atmos®, the Subwoofer-only setup provides 3.1.2 channel audio, while the Subwoofer & Wireless Rear Speaker Kit setup provides 5.1.2 channel audio.

• The Rear Speakers will not produce sounds for 2 channel output while STANDARD mode is in use. To enable sound for the Rear Speakers, change the effect mode to SURROUND SOUND.English - 15 Adjusting the Soundbar volume with a TV remote control Adjust the Soundbar volume using the TV’s remote control.

• This function can be used with IR remote controls only. Bluetooth remote controls (remote controls that require pairing) are not supported.

• Set the TV speaker to External Speaker to use this function.

2. Push up and hold the WOOFER button for 5 seconds.

Connecting Electrical Power Use the power components to connect the Subwoofer and Soundbar to an electrical outlet in the following order:

1. Connect power cord End A to Subwoofer and End B to wall socket.

2. Connect power cord End A to Soundbar and End B to wall socket.

See the illustrations below.

• For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit) Rear of SubwooferWall socketPower cord

Connecting Electrical PowerPower cordWall socketEnglish - 17 Connecting the Soundbar to the Subwoofer When the subwoofer is connected, you can enjoy rich bass sound. Automatic connection between the Subwoofer and the Soundbar When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the subwoofer is automatically connected to the Soundbar.

• When auto pairing is complete, the blue indicators at the rear of the subwoofer turn on. LED Indicator Lights on the Rear of Subwoofer LED Status Description Resolution Blue

Successfully connected (normal operation)

Blinking Recovering the connection Check if the power cable attached to the main Soundbar unit is connected properly or wait about 5 minutes. If blinking persists, try manually connecting the subwoofer. See page 18. Red

Standby (with the Soundbar main unit turned off) Check if the power cable attached to the main Soundbar unit is connected properly. Connection failed Connect again. See the instructions for manual connection on page 18. Red and blue Blinking Malfunction See the contact information for the Samsung Service Centre in this manual.English - 18 Manually connecting the Subwoofer if automatic connection fails Before performing the manual connection procedure below:

• Check whether the power cables for the Soundbar and subwoofer are connected properly.

• Make sure that the Soundbar is turned on.

1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds when only the red right is

solid or blue light blinking slowly.

• The red indicator on the rear of the subwoofer turns off and the blue indicator blinks. Blinking blue fast Rear of Subwoofer 5 Sec Rear of Subwoofer

2. First, press any button on the remote control except the Power button to turn on the display, and

then press the Up button on the remote control for at least 5 seconds.

• The ID SET message appears on the display of the Soundbar for a moment, and then it disappears.

• The Soundbar will automatically power on when ID SET is complete. SOUNDMODE PAIR 5 Sec ID SET SAMSUNG logo is on the top

3. Check if the LINK LED is solid blue (connection complete).

Blue is On The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Wireless Subwoofer.English - 19 NOTES

• Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete.

• Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

• If the main unit is powered off, the wireless subwoofer will go into stand-by mode and the STANDBY LED on the rear of the sub-woofer will turn red after blinking blue several times.

• If you use a device that uses the same frequency (Morocco, Tunisia, Egypt : 5.2GHz, Other Countries : 5.8GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.

• The maximum transmission distance of the main unit’s wireless signal is about 10 m, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all because the wireless signal cannot penetrate metal. PRECAUTIONS

• Wireless receiving antennas are built into the wireless subwoofer. Keep the unit away from water and moisture.

• For optimal listening performance, make sure that the area around the wireless subwoofer and the Wireless Rear Speakers (sold separately) are clear of any obstacles. Connecting the Samsung Wireless Rear Kit to your Soundbar Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-9250S sold separately) to your Soundbar. For detailed information on connections, see the Samsung Wireless Rear Speaker Kit manual.English - 20 05 USING A WIRED CONNECTION TO THE TV Hear TV sound from your Soundbar through wired or wireless connections.
• When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV’s remote control. – This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable. – This function also allows you to use the TV menu to adjust the sound eld and various settings as well as the volume and mute. Method 1. Connecting a TV using an HDMI Cable Connecting the TV that supports HDMI ARC/eARC (Audio Return Channel/ Enhanced Audio Return Channel) CAUTION
• When both the HDMI cable and optical cable are connected, the HDMI signal is received rst.
• To connect the HDMI cable between the TV and Soundbar, be sure to connect the terminals marked ARC or eARC. Otherwise, the TV sound may not be output. • The recommended cable is High Speed HDMI Cable with Ethernet.
• When connecting a TV that supports the eARC function, “TV eARC” appears on the display and the sound is heard. • Dolby Atmos® is supported in the ARC/eARC function.Bottom of the SoundbarHDMI IN(eARC) USB (5V 0.5A) HDMI TO TV (eARC/ARC) Connect to the HDMI TO TV (eARC/ARC) port of the Soundbar main unit.Top of the Soundbar TV ARC

Connect to the HDMI IN (ARC) or (eARC) port of your TV.HDMI CableEnglish - 21

1. With the Soundbar and TV turned on, connect the HDMI cable as shown in the gure.

2. “TV ARC” or “TV eARC” appears in the display window of the Soundbar main unit and the Soundbar

• “TV eARC” is displayed when the eARC function in the TV setting is On.

• To connect with eARC, the eARC function in the TV menu should be set to On. Refer to the TV user manual for details on setting. (e.g. Samsung TV : Home ( ) → Menu → Settings ( ) → All Settings ( ) → Sound → Expert Settings → HDMI-eARC Mode (Auto))

• If TV sound is inaudible, press the (Source) button on the remote control or on the top of the Soundbar to switch to “TV ARC” or “TV eARC” mode. The screen display “TV ARC” or “TV eARC”, and TV sound is played.

• If “TV ARC” or “TV eARC” does not appear in the display window of the Soundbar main unit, conrm that the HDMI cable is connected to the correct port.

• Use the volume buttons on the TV’s remote control to change the volume on the Soundbar. NOTES

• When you connect the TV that supports the HDMI ARC/eARC (Audio Return Channel/Enhanced Audio Return Channel) to the Soundbar with an HDMI cable, you can transmit the digital video and audio data without connecting a separate optical cable.

• We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one with a diameter that is less than 14 mm.

• This function is not available if the HDMI cable does not support ARC or eARC.

• ARC and eARC differ in bandwidth. eARC that is enhanced version of the audio return channel has signicantly higher bandwidth than ARC. Higher bandwidth increases the amount of data that can be transmitted. So, with the eARC channel, you can enjoy the sound through formats such as Dolby Atmos®.

• When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may use different words for Dolby Digital and PCM depending on the TV manufacturer.)English - 22 Method 2. Connecting using an Optical Cable Pre-connection Checklist

• When both the HDMI cable and optical cable are connected, the HDMI signal is received rst.

• When you use an optical cable and the terminals have covers, be sure to remove the covers.

• When using an optical cable, it must be set to “D.IN” mode. OPTICAL OUTDIGITAL AUDIO IN(OPTICAL)

(eARC/ARC) Bottom of the Soundbar Optical Cable (not supplied) D.IN

1. Connect the DIGITAL AUDIO IN (OPTICAL) port on the Soundbar to the OPTICAL OUT port of the

TV with a digital Optical Cable (not supplied).

2. Press the (Source) button on the top panel or remote control, and then select the “D.IN” mode.English - 23

Using the Q-Symphony Function

• When the Soundbar connects to a Samsung TV that supports the Q-Symphony function, you can play the sound simultaneously through the Soundbar and the TV. If you use the Q-Symphony function, the surround sound played on the TV allows you to enjoy a richer, more three-dimensional surround sound effect.

• When the Soundbar is connected, “Q-Symphony” menu appears on the TV. Settings ( ) → All Settings ( ) → Sound → Sound Output

Optical Cable (not supplied) HDMI Cable TV ARC

• It can operate according to the Codec supported by TV.

• This function is supported only when the HDMI Cable or Optical Cable (not supplied) is connected.

• The message displayed may differ with the TV model.

• This function is available in some Samsung TVs and some Soundbar models.

• Ensure that your TV and Soundbar are connected to the same wireless router/frequency.English - 24 06 USING A WIRELESS CONNECTION TO THE TV Connecting a TV via Bluetooth When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

• Only one TV can be connected at a time. SOUND MODE PAIR

1. Press the PAIR button on the remote control to enter the “BT PAIRING” mode.

(OR) a. Press the (Source) button on the top panel and then select “BT”. “BT” changes to “BT PAIRING” in a few seconds automatically or changes to “BT READY” if there is a connect record. b. When “BT READY” appears, press and hold the (Source) button on the top panel of the Soundbar for more than 5 seconds to display “BT PAIRING”.

2. Select Bluetooth mode on the TV. (For more information, see the TV’s manual.)

3. Select “[AV] Q-Series Soundbar” from the list on TV’s screen.

An available Soundbar is indicated with “Needs Pairing” or “Paired” on the TV’s Bluetooth device list. To connect the TV to the Soundbar, select the message, and then establish a connection.

• When the TV is connected, [TV Name] → “BT” appears on the Soundbar’s front display.

4. You can now hear TV sound from the Soundbar.

If the device fails to connect

• If a previously connected Soundbar listing (e.g. “[AV] Q-Series Soundbar”) appears in the list, delete it.

• Then repeat steps 1 through 3. NOTE

• After you have connected the Soundbar to your TV the rst time, use the “BT READY” mode to reconnect.English - 25 Disconnecting the Soundbar from the TV Press the (Source) button on the top panel or on the remote control and switch to any mode but “BT”.

• Disconnecting takes time because the TV must receive a response from the Soundbar. (The time required may differ, depending on the TV model.)

• To cancel the automatic Bluetooth connection between the Soundbar and TV, press the Left button on the remote control for 5 seconds with the Soundbar in “BT READY” status. (Toggle On → Off) What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.

• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the PAIR button on the remote control or press and hold the (Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in “BT” mode.) NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.

• The Soundbar automatically turns off after 18 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances: – If there is a strong electrical eld around the Soundbar. – If several Bluetooth devices are simultaneously paired with the Soundbar. – If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.English - 26

07 CONNECTING AN EXTERNAL DEVICE

Connect to an external device via a wired connection or Bluetooth connection to play the external device’s sound through the Soundbar. Method 1. Connecting using an HDMI Cable (Capable of Dolby Atmos® decoding and playback) Pre-connection Checklist

• If the Audio Output options include Secondary Audio, make sure Secondary Audio is set to Off.
• Make sure that the content supports Dolby Atmos®. USB (5V 0.5A)

1. Connect an HDMI cable from the HDMI port on the bottom of the Soundbar to the HDMI OUT port

on your digital device.

2. Connect an HDMI cable from the HDMI TO TV (eARC/ARC) port on the bottom of the Soundbar to

the HDMI IN (eARC) port on your TV.

3. Press the (Source) button on the top panel or on the remote control, and then select “HDMI”.

4. “HDMI” mode is displayed on the Soundbar display panel and sound plays.English - 27

• When you use Dolby Atmos®: If the input source is Dolby Atmos®, refer to for the different sound effect modes” on page 13.

• When Dolby Atmos® is activated, “DOLBY ATMOS” appears in the front display.

• ConguringDolbyAtmos®onyourBDplayerorotherdevice. Open the audio output options on the settings menu of your BD player or other device and make sure that “No Encoding” is selected for Bitstream. For example, on a Samsung BD Player, go to

• HDMI Pass-Through is that the Soundbar plays the audio from the source through its own speakers and sends the unaltered video signal to a TV via the second HDMI cable. SupportedUHDSignalsSpecication(3840x2160p) Frame rate (fps) Color depth RGB4:4:4 YCbCr4:4:4 YCbCr4:2:2 YCbCr4:2:0 < 608 bit 10 bit - - 12 bit - - 8 bit - - - -10 bit - - - -

Method 2. Connecting using an Optical Cable OPTICAL OUTDIGITAL AUDIO IN(OPTICAL)

(eARC/ARC) Optical Cable (not supplied)Bottom of the Soundbar BD / DVD player / Set-top box / Game console

D.IN Top of the Soundbar

1. Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT port of the Source

Device using a digital optical cable (not supplied).

2. Select “D.IN” mode by pressing the (Source) button on the top panel or on the remote control.English - 28

08 CONNECTING A USB STORAGE DEVICE

You can play music les located on USB storage devices through the Soundbar. USB port POWERDIGITAL AUDIO IN(OPTICAL) HDMI HDMI TO TV (eARC/ARC)USB (5V 0.5A)POWERUSB (5V 0.5A)

1. Connect the USB device to the USB port on the bottom of the product.

2. Press the (Source) button on the top panel or on the remote control, and then select “USB”.

3. “USB” appears in the display screen.

4. Play music les from the USB storage device through the Soundbar.

• The Soundbar automatically turns off (Auto Power Down) if no USB device has been connected for more than 18 minutes. File Format Type Compatibility list Extension Codec Sampling Rate Bit Rate *.mp3 MPEG1 Layer2 32kHz ~ 48kHz 32kbps ~ 320kbps MPEG1 Layer3 32kHz ~ 48kHz 32kbps ~ 320kbps MPEG2 Layer3 16kHz ~ 24kHz 8kbps ~ 160kbps MPEG2.5 Layer3 8kHz ~ 12kHz 8kbps ~ 160kbps *.ogg Vorbis 32kHz ~ 48kHz 45kbps ~ 500kbps *.aac AAC-LC (MPEG2,/MPEG4) 32kHz ~ 48kHz 32kbps ~ 320kbps *.wav LPCM 32kHz ~ 192kHz 1,024kbps ~ 9,216kbps *.ac FLAC 32kHz ~ 192kHz 162kbps ~ 8,100kbps *.aiff AIFF 32kHz ~ 192kHz 1,024kbps ~ 9,216kbps

• If there are too many folders (about 200) and les (about 2000) stored on the USB device, it may take the Soundbar some time to access and play les.

• Supported USB le system : FAT16, FAT32, NTFSEnglish - 29

Connecting via Bluetooth When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling. • The connection is limited to one TV or two Bluetooth devices at the same time. SOUND MODE PAIR

BT PAIRING Bluetooth device The initial connection

1. Press the PAIR button on the remote control to enter the “BT PAIRING” mode.

(OR) a. Press the (Source) button on the top panel and then select “BT”. “BT” changes to “BT PAIRING” in a few seconds automatically or changes to “BT READY” if there is a connect record. b. When “BT READY” appears, press and hold the (Source) button on the top panel of the Soundbar for more than 5 seconds to display “BT PAIRING”.

2. On your device, select “[AV] Q-Series Soundbar” from the list that appears.

• When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → “BT” appears in the front display.3. Play music les from the device connected via Bluetooth through the Soundbar. If the device fails to connect

• If a previously connected Soundbar listing (e.g. “[AV] Q-Series Soundbar”) appears in the list, delete it.
• Then repeat steps 1 and 2. NOTE

• After you have connected the Soundbar to your mobile device the rst time, use the “BT READY” mode to reconnect.English - 30 What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.

• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the PAIR button on the remote control or press and hold the (Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in “BT” mode.) NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 m.

• The Soundbar automatically turns off after 18 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances: – If there is a strong electrical eld around the Soundbar. – If several Bluetooth devices are simultaneously paired with the Soundbar. – If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

• The Soundbar supports SBC data (44.1kHz, 48kHz).

• Connect only to a Bluetooth device that supports the A2DP (AV) function.

• Once you have paired the Soundbar to a Bluetooth device, selecting “[AV] Q-Series Soundbar” from the device’s scanned devices list will automatically change the Soundbar to “BT” mode. – Available only if the Soundbar is listed among the Bluetooth device’s paired devices. (The Bluetooth device and the Soundbar must have been previously paired at least once.)

• The Soundbar will appear in the Bluetooth device’s searched devices list only when the Soundbar is displaying “BT PAIRING”. Bluetooth Power On (SOUND MODE) If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth Power On function is on and the Soundbar is turned off, the Soundbar turns on automatically.

1. Press and hold the SOUND MODE button for more than 5 seconds on the remote while the

Soundbar is turned on.

2. “ON-BLUETOOTH POWER” appears on the Soundbar’s display.English - 31

Disconnecting the Bluetooth device from a Soundbar You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device’s user manual.

• The Soundbar will be disconnected.

• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display “BT DISCONNECTED” on the front display. Disconnecting the Soundbar from the Bluetooth device Press the (Source) button on the top panel or on the remote control, and then change to any mode except “BT”.

• Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)

• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display “BT DISCONNECTED” on the front display. NOTES

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 m.

• The Soundbar automatically turns off after 18 minutes in the Ready state. More About Bluetooth Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, if: – A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar. – It is subject to electrical variation from obstacles caused by a wall, corner, or ofce partition. – It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

• Pair the Soundbar with the Bluetooth device while they are close together.

• The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.

• In poor reception areas, the Bluetooth connection may not work properly.

• The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.

• This wireless device may cause electric interference during its operation.English - 32 Bluetooth Multi connection The Soundbar can be connected to 2 Bluetooth devices at the same time. Bluetooth device A Bluetooth device B

1. Connect the Soundbar to up to two Bluetooth devices. (See page 29)

2. Play music from one of the connected Bluetooth devices while two devices are connected.

3. If music is played from the Bluetooth device “B” while playing from the device “A”, the music is

started playing on the device “B” and automatically being stopped/paused playback on the device “A”.

4. In versions prior to AVRCP V1.4, the switching time of the device playing music may be delayed.

Bluetooth Multi Pairing How to pair multiple devices to the Soundbar

1. Turn on the Soundbar.

2. Only in “BT” mode, press and hold the (Source) button on the top of the Soundbar for more

than 5 seconds for the Soundbar to go into “BT PAIRING” mode, then on the Bluetooth device side, switch Bluetooth on, and select the Soundbar from the list of available devices, the Soundbar will automatically connect to the Bluetooth device.

3. A 2nd Bluetooth device can be paired and connected to the Soundbar using the same method.

If you attempt to connect a 3rd device, a connected device that is not playing audio will lose its Bluetooth connection, but will still be paired with the Soundbar.

4. Using the same method, you can pair up to 8 Bluetooth devices, but only the last 2 will stay

connected to the Soundbar at the same time. NOTES

• Only 1 Samsung TV, or 2 Bluetooth devices can be connected to the Soundbar at one time.

• The Soundbar will be disconnected from Bluetooth devices when it receives a connection request from a Samsung TV.

• The default of Soundbar is “ON-BT MULTI CONNECTION”, but for restoration to non-multi connection mode from another mode, press and hold the PAIR button on the remote control for more than 5 seconds in standby mode, until “OFF-BT MULTI CONNECTION” appears in the display.English - 33 Using Tap Sound Tap the Soundbar with your mobile device to play audio from the mobile device through the Soundbar.

• This function may not be supported, depending on the mobile device.

• This function is only compatible with Samsung mobile devices with Android 8.1 or later. Mobile device Top of the Soundbar TAP

1. Turn on the Tap Sound function on your mobile device.

• For details on how to turn on the function, refer to “Enable the Tap Sound function” below.

2. Tap the Soundbar with the mobile device. Select “Start now” in the displayed message window.

A connection is established between the mobile device and Soundbar via Bluetooth.

3. Play audio from the mobile device through the Soundbar.

• This function connects a mobile device to the Soundbar via Bluetooth by detecting vibration that occurs when the device touches the Soundbar.

• Make sure the mobile device does not tap a sharp corner of the Soundbar. The Soundbar or mobile device may become scratched or damaged.

• It is recommended that the mobile device be covered with a case. Lightly tap the wide area in the upper portion of the Soundbar, without using excessive force.

• To use this function, update the SmartThings app to the latest version. The function may not be supported, depending on the app version. Enable the Tap Sound function Use the SmartThings app to turn on the Tap View, Tap Sound function.

1. On the mobile device, run the SmartThings app.

2. Select ( → ) in the SmartThings app screen displayed on the mobile device.

3. Set “Tap View, Tap Sound” to On to allow the function to work when a mobile device moves close to

• When the mobile device is in power-saving mode, the Tap Sound function does not work.

• The Tap Sound function may not work if there are devices near the Soundbar that cause radio interference such as electric devices. Make sure devices that may cause radio interference are placed at a sufcient distance away from the Soundbar.English - 34 10 INSTALLING THE WALL MOUNT Installation Precautions

• Install on a vertical wall only.

• Do not install in a place with high temperature or humidity.

• Verify whether the wall is strong enough to support the product’s weight. If not, reinforce the wall or choose another installation point.

• Purchase and use the xing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, x the support screws into wall studs.

• Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on. – Diameter: M5 – Length: 35 mm or longer recommended.

• Connect cables from the unit to external devices before you install the Soundbar on the wall.

• Make sure the unit is turned off and unplugged from the power source before you install it. Otherwise, it may cause an electric shock. Wallmount Components Wall Mount Guide x 2 (M4 x L10) x 2 Holder-Screw Screw x 2 Bracket-Wall Mount

1. Place the Wall Mount Guide against the wall

• The Wall Mount Guide must be level.

• If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV. 5 cm or moreEnglish - 35

2. Align the Wall Mount Guide’s Centre Line

with the centre of your TV (if you are mounting the Soundbar below your TV), and then x the Wall Mount Guide to the wall using tape.

• If you are not mounting below a TV, place the Centre Line in the centre of the installation area. Centre Line

3. Push a pen tip or sharpened pencil tip

through the centre of the A-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.

4. Using an appropriately sized drill bit, drill a

hole in the wall at each marking.

• If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors into the holes before you insert the support screws. If you use anchors, make sure the holes you drill are large enough for the anchors you use.

5. Push a screw (not supplied) through each

Holder-Screw, and then screw each screw rmly into a support screw hole. (Not supplied)

6. Install the 2 Bracket-Wall Mounts in the

correct orientation on the bottom of the Soundbar using 2 Screws.

• When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar. Rear of Soundbar Right end of SoundbarEnglish - 36

7. Install the Soundbar with the attached

Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

8. Slide the Soundbar down as shown below so

that the Bracket-Wall Mounts rest securely on the Holder-Screws.

• Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that the Bracket-Wall Mounts rest securely on the Holder-Screws. 11 PLACING THE

TV STAND Place the Soundbar on a TV stand. 3cm or more As illustrated in the image, align the centre of the Soundbar with the centre of the TV, carefully place the Soundbar onto the TV stand. For optimal sound quality, position the Soundbar at least 3 cm away from the TV front. NOTE

(eARC/ARC) If an update is offered, you can update the rmware by connecting a USB device with the rmware update stored on it to the USB port on your Soundbar. For more information about how to download update les, go to the Samsung website at www.samsung.com

Support. Then, select the product type or enter the model number of your Soundbar, select the Software & Apps option, and then Downloads. Note that the option names can vary. How to check the Firmware version

1. Turn off the Soundbar.

2. Press and hold the (Sound Control)

button for about 5 seconds on the remote control.

3. Each version appears in the following order

• R2 VERSION DISPLAY – No connect rear R2--- – Connected rear R2xxx Update Procedure Important: The update function erases all user settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating the rmware resets the subwoofer connection too.

1. Connect a USB thumb drive to the USB port

on your computer. Important: Make sure there are no music les on the USB thumb drive. This may cause the rmware update to fail.

select Enter Model Number and enter the model of your Soundbar. Select manuals and downloads and download the latest software le.

3. Save the downloaded software to a USB

stick and select “Extract Here” to unzip the folder.

4. Turn off the Soundbar and connect the USB

stick containing the software update to the USB port.

5. Turn on the Soundbar and change the source

to “USB” mode. Within 3 minutes, “UPGR” is displayed and the update begins. When the update is complete, the Soundbar turns off and then turns on automatically.

6. Press the (Volume) button on the top

panel for 5 seconds. “INIT” appears on the display and then the Soundbar turns off. The update is complete.

• This product has a DUAL BOOT function. If the rmware fails to update, you can update the rmware again.

7. Restore your settings on the Soundbar.English - 38

If “UPGR” is not displayed

1. Turn off the Soundbar, disconnect and then

reconnect the USB storage device that contains the update les to the Soundbar’s USB port.

2. Disconnect the Soundbar’s power cord,

reconnect it, and then turn on the Soundbar. NOTES

• The rmware update may not work properly if audio les supported by the Soundbar are stored in the USB storage device.

• Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the rmware update.

• After the update is completed, the user setup in the Soundbar maybe will be initialized. So we recommend you write down your settings so that you can easily reset them after the update. Note that updating rmware resets the subwoofer connection too. If the connection to the subwoofer is not re-established automatically after the update, refer to page 17. If the software update fails, check if the USB stick is defective.

• Mac OS users should use MS-DOS (FAT) as the USB format.

• Updating via USB may not be available, depending on the USB storage device manufacturer.English - 39 13 TROUBLESHOOTING Before seeking assistance, check the following. Soundbar does not turn on. ; Check whether the power cord of the Soundbar is correctly inserted into the outlet. Soundbar works erratically. ; After removing the power cord, insert it again. ; Power the external device off/on and try again. ; If there is no signal, the Soundbar automatically turns off after a certain period of time. Turn on the power. (See page 7.) If the remote control does not work. ; Point the remote directly at the Soundbar. ; Replace the batteries with new ones. Soundbar does not output any sound. ; The volume of the Soundbar is too low or muted. Adjust the volume. ; When any external device (STB, Bluetooth device, mobile device, etc.) is connected, adjust the volume of the external device. ; For sound output of the TV, select Soundbar. (Samsung TV: Home ( ) → Menu → Settings ( ) → All Settings ( )

• Sound → Sound Output → Select Soundbar) ; The cable connection to the Soundbar may be loose. Remove the cable and connect again. ; Remove the power cord completely, reconnect, and turn the power on. ; Reset the product and try again. (See page 37.) Subwoofer does not output any sound. ; Check whether the LED indicator on the rear of the Subwoofer is on in blue. Reconnect the Soundbar and Subwoofer if the indicator is blinking in blue or turned red. (See page 18.) ; You may experience an issue if there is an obstacle between the Soundbar and Subwoofer. Move devices to an area away from obstacles. ; Other devices sending radio frequency signals in proximity may interrupt the connection. Keep your speaker away from such devices. ; Remove and reconnect the power plug. The Subwoofer volume is too low. ; The original volume of the content you are playing may be low. Try adjusting the Subwoofer level. (See page 11.) ; Bring the Subwoofer speaker closer to you. Soundbar does not appear on the Bluetooth device list of the TV. ; Disconnect the power cord of the Soundbar completely and reconnect, and then try searching again. (See page 24.) ; Connect the TV and Soundbar with an optical cable, and select the “D.IN” mode by pressing the (Source) button on the top of the Soundbar. See if the audio output works normally, and try searching again. (See page 24.)English - 40 If the TV is not connected via HDMI TO TV (eARC/ARC). ; Check whether the HDMI cable is correctly connected to the eARC terminal. (See page 20.) ; Connection may not be possible due to the connected external device (set-top box, game machine, etc.). Directly connect the Soundbar. ; HDMI-CEC may not be activated on the TV. Turn on the CEC on the TV menu. (Samsung TV: Home ( ) → Menu → Settings ( ) → All Settings ( ) → Connection → External Device Manager → Anynet+ (HDMI-CEC) ON) ; To connect with eARC, the eARC function in the TV menu should be set to On. (Samsung TV: Home ( ) → Menu → Settings ( ) → All Settings ( ) → Sound

• Expert Settings → HDMI-eARC Mode (Auto)) There is no sound in when connecting to the TV in HDMI TO TV (eARC/ARC) mode. ; Your device is unable to play the input signal. Change the TV’s audio output to PCM or AUTO. (For a Samsung TV: Home ( ) → Menu → Settings ( ) → All Settings ( ) → Sound

• Expert Settings → Digital Output Audio Format) Soundbar does not connect via Bluetooth. ; When connecting a new device, switch to “BT PAIRING” for connection. (Press the PAIR button on the remote control, or press and hold the (Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in “BT” mode.) ; If the Soundbar is connected to another device, disconnect that device rst to switch the device. ; Reconnect it after removing the Bluetooth speaker list on the device to connect. (Samsung TV: Home ( ) → Menu → Settings ( ) → All Settings ( ) → Sound

• Sound Output → Bluetooth Speaker List) ; The automatic TV connection may be disabled. While the Soundbar is in “BT READY”, press and hold the Left button on the Soundbar remote control for 5 seconds to select ON-TV CONNECT. If you see OFF-TV CONNECT, press and hold Left button again for 5 seconds to switch the selection. ; Remove and reconnect the power plug, then try again. ; Reset the product and try again. (See page 37.) Sound drops out when connected via Bluetooth. ; If your device that is connected via Bluetooth moves too far away from the Soundbar, it may cause the sound to drop out. Move the device closer to the Soundbar. ; If a part of your body is in contact with the Bluetooth transceiver or the product is installed on metal furniture, sound may drop out. Check the installation environment and conditions for use.English - 41 Bluetooth multi connection does not work. ; When the TV is connected to the soundbar, Bluetooth multi connection may not operate. Disconnect the Soundbar from the TV and try again. ; Check whether the Bluetooth Multi connection setting is turned on. (Refer to the “Soundbar does not connect via Bluetooth.” section.) ; Disconnect the device currently playing, pair with the device that you want to connect, and reconnect the previous device. ; If the sound is inaudible even after connecting properly, refer to the “Sound drops out when connected via Bluetooth.” section. Soundbar does not turn on automatically with the TV. ; When you turn off the Soundbar while watching TV, power synchronization with the TV is disabled. First turn off the TV. 14 LICENCE Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Condential unpublished works. Copyright © 2012-2024 Dolby Laboratories. All rights reserved. FOR DTS PATENTS, SEE HTTP://XPERI.COM/

OTHER COUNTRIES. © DTS, INC. AND ITS

AFFILIATES. ALL RIGHTS RESERVED. The terms HDMI, HDMI High-Denition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.English - 42 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners. Open Source License Notice Open Source used in this product can be found on the following webpage (http://opensource.samsung.com). 15 IMPORTANT NOTES ABOUT SERVICE Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.English - 43

• Samsung Electronics Co., Ltd reserves the right to change the specications without notice.

• Weight and dimensions are approximate.Français - 2

OTHER COUNTRIES. © DTS, INC. AND ITS

OTHER COUNTRIES. © DTS, INC. AND ITS

VOL WOOFER SOUNDMODEPAIR

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby

Copyright © 2012-2024 Dolby Laboratories. All rights reserved.

Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.42 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

• 2025 Samsung Electronics Co., Ltd. All rights reserved. Contact Samsung world wide If you have any questions or comments relating to Samsung products, please contact the Samsung customer care Centre. Country/ Region Samsung Service Centre Web Site EGYPT 08000-7267864
