| Product type | Bluetooth car kit hands-free |
| Brand | SilverCrest |
| Model | SFA 4.1 E1 |
| Bluetooth version | 4.1 |
| Supported profiles | HSP (Headset Profile), HFP (Handsfree Profile) |
| Frequency band | 2 402 - 2 480 MHz |
| Bluetooth transmission power | max. 3,0 mW |
| Dimensions (L × H × D) | 150 × 63 × 20 mm |
| Weight (with battery and clip) | approx. 100 g |
| Battery type | Integrated lithium-ion |
| Charging time | approx. 3 hours |
| Talk time | up to 6.5 hours |
| Standby time | up to 650 hours |
| Power supply voltage | 5 V (via cigarette lighter charger) |
| Storage temperature | -20°C to +60°C |
| Attachment | Magnetic clip for sun visor |
| Number of connectable devices | Up to 2 in active communication, up to 8 registered |
| Microphone | With mute function |
| Key functions | Incoming/outgoing call, redial, voice command, volume adjustment |
| Care and cleaning | Dry cloth; do not use solvents; avoid liquid penetration |
| Safety | Do not expose to heat, water; do not open; follow driving instructions |
| Repairability | Repairs by qualified personnel; replaceable fuse T2AL250V |
| Warranty | 3 years from date of purchase |
| General information | Compliant with RED 2014/53/EU and RoHS 2011/65/EU directives |
Frequently Asked Questions - SFA 4.1 E1 SILVERCREST
User questions about SFA 4.1 E1 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Bluetooth hands-free car kit in PDF format for free! Find your manual SFA 4.1 E1 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SFA 4.1 E1 by SILVERCREST.
USER MANUAL SFA 4.1 E1 SILVERCREST
图 10-2
Operating instructions and safety instructions
- Safety instructions 9
- Copyright 12
8.Before initial use. 12 - Initial use 12
9.1 Charging the lithium ion battery 12
9.2 Switching the hands-free kit on/off 13
9.3 Establishing connection with compatible mobile phones 13
9.4 Making calls 16
9.5 Accepting / rejecting calls 16
SilverCrest SFA 4.1 E1
9.6 Volume setting 16
9.7 Muting microphone 17
9.8 End calls 17
9.9 Redalling 17
9.10 Calling via voice dialling 17
9.11 Mounting on the sun visor 18
9.12 LED indicators 19
9.13 Storing the device when not in use 20
9.14Restore factory settings 20
10. Maintenance/cleaning 21
10.1 Maintenance 21
10.2 Cleaning 21
11. Troubleshooting 21
12. Environmental and waste disposal information 23
13. Marks of conformity 24
14. Notes on guarantee and service 24

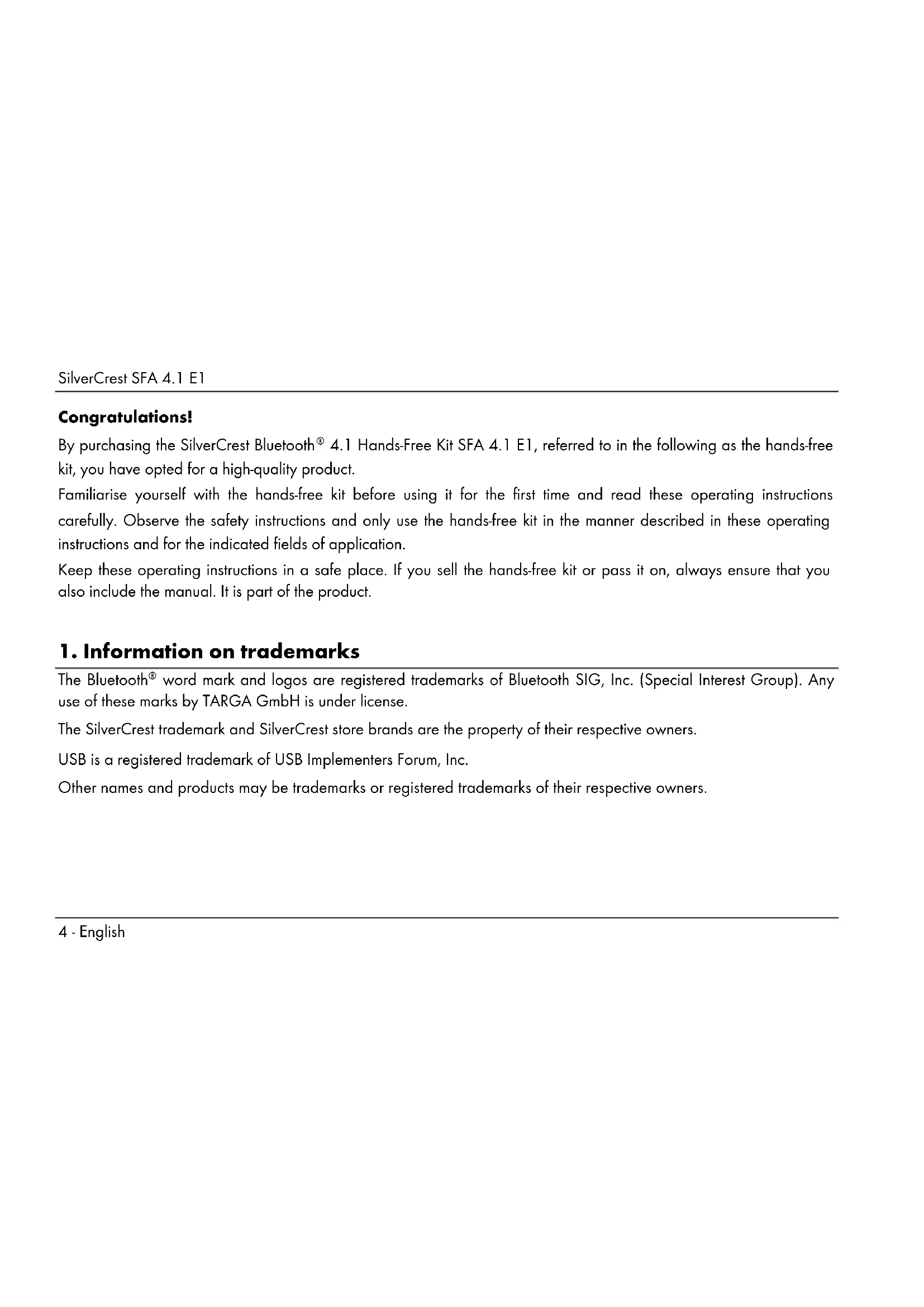

Congratulations!
By purchasing the SilverCrest Bluetooth® 4.1 Hands-Free Kit SFA 4.1 E1, referred to in the following as the hands-free kit, you have opted for a high-quality product.
Familiarise yourself with the hands-free kit before using it for the first time and read these operating instructions carefully. Observe the safety instructions and only use the hands-free kit in the manner described in these operating instructions and for the indicated fields of application.
Keep these operating instructions in a safe place. If you sell the hands-free kit or pass it on, always ensure that you also include the manual. It is part of the product.
1. Information on trademarks
The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc. (Special Interest Group). Any use of these marks by TARGA GmbH is under license.
The SilverCrest trademark and SilverCrest store brands are the property of their respective owners.
USB is a registered trademark of USB Implementers Forum, Inc.
Other names and products may be trademarks or registered trademarks of their respective owners.
2. Intended use
This hands-free kit is an electronic communication device. It enables you to make calls on your mobile phone while driving without having to hold the phone in your hand. This hands-free kit is not intended for business or commercial use. Use the hands-free kit solely for private purposes; any other use is deemed improper. This hands-free kit meets all relevant standards and directives specified in the EU Declaration of Conformity. Compliance with these standards is no longer guaranteed if a change is made to the hands-free kit without the authorisation of the manufacturer. The manufacturer shall not be liable for any damages or faults arising as a result.
Please observe the national regulations and/or laws of the country in which the device is used.

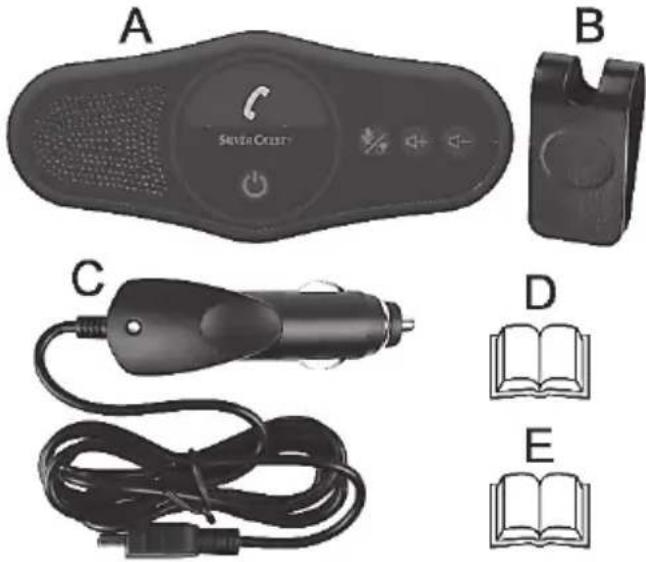

3. Package contents
Unpack the device and all accessories. Remove all packaging materials and check all of the parts for completeness and signs of damage. If any parts are missing or damaged, please contact the manufacturer.
| A | SilverCrest Bluetooth 4.1 Hands-Free Kit SFA 4.1 E1 |
| B | Mounting clip |
| C | Car charger adapter SDC8512 |
| D | These instructions (picture symbol) |
| E | Quick start guide (symbolic representation) |
4. Controls
These instructions contain a cover that can be unfolded. The inside of the cover provides a schematic of the hands-free kit and a number legend. The numbers identify the following parts/functions:
1 Speaker
2 Phone button (accept / end call)
3 Mute button (mute microphone) / redial
4 + button (volume up)
5 - button (volume down)
6 Microphone
7 Micro-USB charging port
8 Standby button (switch on/off, establish connection)
9 Magnet (for mounting clip)
5. Technical data
5.1 SilverCrest SFA 4.1 E1 Hands-Free Kit
Operating voltage: 5V
Nominal current consumption: 425 mA
Battery:
3.7V/800mAh/2.96Wh
Bluetooth® specification: V4.1 + EDR
Profile support: 'Headset Profile' (HSP), 'Hands-free Profile' (HFP)
Bluetooth® transmitting capacity: max. 3.0 mW
Bluetooth® frequency band: 2,402 - 2,480 GHz, 2.4G ISM band
Bluetooth® range: approx. 10 metres
Charging time: about three hours
Talk time: up to 6.5 hours
Standby time: up to 650 hours
Dimensions (W× H× D) : about 150× 63× 20mm
Weight including battery and mounting clip: about 100g
Operating environment: 0^ to +45^ , max. 85% relative humidity
Storage temperature:
-20°C to +60°C
5.2 Car charger adapter SDC8512
Fuse:
T2AL250V
Input voltage: 12-24V
Output voltage:
Input current:
Output current:
max. 370mA
The specifications and design are subject to change without notice.
6. Safety instructions
Before using the hands-free kit for the first time, read the following instructions carefully and observe all warnings, even if you are familiar with using electronic devices. Keep these operating instructions in a safe place for future reference.
Warnings and Symbols used and what they mean
DANGER! This icon, together with the word "Danger", indicates an impending dangerous situation that, if not prevented, can lead to serious injuries or even death.
WARNING! This icon, with the word "Warning", indicates important information for the safe operation of the device and user safety.
CAUTION! This icon, with the word 'Caution', indicates important information for protection against damage to property.
This icon indicates that further information on the topic is available.
DC voltage
DANGER! This hands-free kit can be used by children aged eight and over, as well as by people with reduced physical, sensory or mental abilities or who lack experience and knowledge, providing they are supervised or have been instructed in the safe use of the hands-free kit and understand the resulting dangers. Children must not
play with the hands-free kit. Cleaning and user maintenance must not be carried out by children unless they are supervised.
Therefore, also keep the packaging film away from children. There is a risk of suffocation!
WARNING! If you notice any smoke, unusual noises or smells, disconnect the hands-free kit from the power supply immediately. In such cases, the hands-free kit should not be used until it has been inspected by authorised service personnel. Do not inhale smoke possibly caused by a burning device. If you have inhaled smoke, consult a physician. Inhaling smoke can be harmful to your health.
WARNING! In order to avoid hazards, the hands-free kit and its accessories must not become damaged. If the hands-free kit is damaged, it must not be used.
WARNING! Ensure no open flames (such as burning candles) are placed on or near the hands-free kit. There is a risk of fire!
WARNING! Please note that permissible operating and storage conditions may be exceeded or not achieved inside a car. The device may be damaged.
WARNING! The hands-free kit must not be exposed to direct heat sources (for example, heaters), direct sunlight or artificial light. Also avoid contact with splashing and dripping water as well as aggressive liquids. Do not use the hands-free kit near water. In particular, the hands-free kit should never be immersed in water and do not place any objects filled with liquids, for example vases or drinks, on the hands-free kit. Also ensure that the hands-free kit is not exposed to excessive shocks and vibrations. Furthermore, no foreign bodies should penetrate into the device. This could damage the hands-free kit.
WARNING! Road safety is paramount. The current road situation should always take priority over operation of the hands-free kit. Position the hands-free kit in your vehicle so that it does not hinder driving, ideally on the sun visor. The hands-free kit should never be mounted in an airbag deployment zone.
CAUTION! Please note that radio-transmitted data may be heard by unauthorised third parties.
WARNING! The hands-free kit must not be thrown into a fire, as the integrated battery may explode. There is a risk of explosion.
WARNING! All repair work should only be carried out by qualified specialists.
Car charger adapter
CAUTION! Always handle the car charger adapter by the plug and do not pull on the connecting cable.
CAUTION! Do not place any items of furniture or other heavy objects on the connecting cable. Make sure the cable is not bent.
WARNING! The connecting cable should be placed so as not to prevent operation of the vehicle. The connecting cable should not be placed in an airbag deployment zone as serious injuries could result if the airbag inflates.
WARNING! Do not use an adapter plug or extension cable and do not perform any procedures on the connecting cable yourself. If the connecting cable is damaged, it must be replaced by the manufacturer, their service department or by a similarly qualified person in order to prevent any hazards. Remove the car charger adapter from the in-car socket.
7. Copyright
All contents of these instructions are subject to copyright law, and are provided to the user solely as a source of information. Any form of copying or reproduction of data and information without the express written permission of the author is prohibited. This also concerns commercial use of the content and data. The text and illustrations correspond to the technical standards at the time of printing. Subject to alterations.
8. Before initial use
Check the hands-free kit and accessories for signs of damage. If the hands-free kit is damaged, it must not be used.
WARNING! Familiarise yourself with the basic functions of the hands-free kit before installing it in your vehicle to prevent distraction while driving. This could result in a serious accident.
9. Initial use
Buttons 3, 4, 5 and 8 are illuminated and provide visual feedback depending on the function used. This may occur in conjunction with a beep or series of beeps.
9.1 Charging the lithium ion battery
Charge the lithium ion battery fully before its first use. Insert the USB plug of the car charger adapter provided into the USB charging socket (7) of the hands-free kit. Then insert the car charger adapter into an appropriate in-car socket.
The LED of the car charger adapter lights up green. The standby button (8) lights up green while charging. A full charge cycle takes approximately 3 hours. The standby button (8) will go out when charging is complete. Disconnect the car charger adapter from the in-car socket and the hands-free kit.
CAUTION! Charge the battery only when the engine is running to save your vehicle's battery.
The battery can also be charged on a PC or using an external mains adapter. A connecting cable with appropriate micro-USB plug is required for this.
9.2 Switching the hands-free kit on/off
Press the standby button (8) for about three seconds until you hear a series of beeps and buttons 3, 4, 5 and 8 flash briefly several times. The hands-free kit is now ready for use. If a connected device is in range, buttons 3, 4, 5 and 8 will flash blue briefly once about every ten seconds. If no connected device is in range, the device goes into search/pairing mode.
To switch the hands-free kit off, hold down the standby button (8) for about two seconds. A beep sounds, button 3 flashes orange briefly several times and then goes out completely.
9.3 Establishing connection with compatible mobile phones
Pairing/Connecting
Only on first use and following a reset to factory settings, the hands-free kit will start directly in pairing mode after holding down the standby button (8) for about three seconds. The mute button (3) will flash alternately orange and blue.
If pairing has already taken place, hold the standby button (8) down for about eight seconds when the hands-free kit is switched off. After about three seconds, buttons 3, 4, 5 and 8 will flash blue and you will hear a series of beeps. After about five more seconds, you will hear a beep and the mute button (3) will flash alternately orange and blue. The hands-free kit is now in pairing mode. Activate the Bluetooth® function of your mobile phone and let it search for Bluetooth® devices nearby. To do so, refer to your mobile phone manual. From the list of devices detected, select device 'SFA 4.1 E1'.
Enter '0000' if you are asked for a PIN during the pairing process.
The name of the hands-free kit 'SFA 4.1 E1' will now appear in the list of devices connected to your mobile phone. A beep indicates that pairing was successful. The hands-free kit is now in standby mode and buttons 3, 4, 5 and 8 flash blue briefly once at regular intervals of about ten seconds. The device goes into search/pairing mode as soon as the connection is severed.
If the connection to the smartphone is interrupted, the hands-free kit goes into search/pairing mode for about one minute. A beep is emitted after the end of this time. After approximately 20 more seconds, buttons 3, 4, 5 and 8 flash blue four times and the hands-free kit automatically switches to energy saving mode. The hands-free kit is fitted with a shock sensor. As soon as the hands-free kit detects a shock, for example when closing the car door, it switches automatically from energy saving mode back to standby mode (BT connection is reactivated).
You can pair or connect other devices to the hands-free kit in a similar manner. The pairing begins for each device with the hands-free kit switched off as described above.
Once you have connected a device to the hands-free kit, switch the hands-free kit off and then on again. The pairing process is now complete.
The hands-free kit then has several 'known' devices. This status is a prerequisite for an active connection between the hands-free kit and other devices. A maximum of 8 devices can be stored as 'known devices'. As soon as a ninth device is added, the oldest device is removed.
The number of devices that can establish an active connection with the hands-free kit is limited to two. The second device must be connected within 10 minutes of the first device. A connection can then be re-established automatically with the second device when the hands-free kit is switched off and on again. If one or two of the known devices enter the vicinity of the hands-free kit within approx. 10 minutes, a connection to these devices will be established automatically. You may need to confirm the connection on your mobile phone. If a third known device enters the vicinity of the hands-free kit, the connection with this device will be blocked as long as there are two active connections or until one of the two devices goes out of range. If one of the two actively connected devices disconnects, pairing is possible for the third (waiting) device once the hands-free kit is restarted.
The pairing process can take up to 30 seconds depending on the mobile phone you are using.
If two devices are connected to the hands-free kit, different ring tones will be used for incoming calls. A call to a second paired phone will be signalled by the hands-free kit if you are on another call.
9.4 Making calls
To make a call, select the phone number on your mobile phone in the normal way. Buttons 3, 4, 5 and 8 rapidly flash blue while a connection is being established. Once the phone connection is established, buttons 3, 4, 5 and 8 flash blue once followed by a long pause.
9.5 Accepting / rejecting calls
The hand-free kit rings for an incoming call. Buttons 3, 4, 5 and 8 flash blue in rapid succession while the connection is being established. You can accept the call by briefly pressing the phone button (2). Once the phone connection is established, buttons 3, 4, 5 and 8 flash blue once followed by a long pause.
To reject the call, hold down the phone button (2) for about two seconds until you hear a beep.
If two of a user's phones are connected to the hands-free kit at the same time and a call is already in progress via the hands-free kit, a call on the second phone is handled as follows: If the second call is accepted using the hands-free kit, the first call is interrupted and ended at that moment.
9.6 Volume setting
You can increase the volume as needed during a call using the + button (4). A beep sounds if the maximum volume is reached. You can also reduce the volume using the - button (5). A beep sounds if the minimum volume is reached.
9.7 Muting microphone
You can use the mute button (3) to temporarily switch off the microphone (6) during a call so that the other person can no longer hear you. In this case, press the mute button (3) for about three seconds until a confirmation tone sounds and the mute button (3) flashes orange once. The microphone is now muted. When muted, 2 beeps sound at regular intervals to remind you of the muting. If you want to end the muting, press the mute button (3) again for about three seconds. The mute button (3) flashes orange once and a beep sounds. You are now back in normal talk mode in which the other person can hear you.
9.8 End calls
To end a call, briefly press the phone button (2) once.
9.9 Redialling
You can redial the last number that was called via the hands-free kit. In this case, press the mute button (3) twice in rapid succession in standby mode.
9.10 Calling via voice dialling
The hands-free kit allows you to make calls via voice dialling if your mobile phone supports this function and it is enabled. To establish a connection via voice dialling, briefly press the standby button (8) of the hands-free kit once in standby mode and then clearly say the name of the desired contact. For more detailed information on the voice dialling function of your mobile phone, please refer to the instructions for your mobile phone.
9.11 Mounting on the sun visor
You can mount the hands-free kit on the sun visor of your vehicle using the mounting clip (B) supplied. To do so, first attach the mounting clip to the sun visor. There is a magnetic attachment (9) on the back of the hands-free kit. Place the hands-free kit on the mounted mounting clip so that the magnet engages in the recess of the mounting clip. Make sure the magnet lies flat in the recess of the mounting clip. The hands-free kit will then be mounted securely.
WARNING! The hands-free kit must be mounted so as not to adversely affect visibility.
9.12 LED indicators
Refer to the table below for the meaning of the different LED indicators:
| Indicator | Meaning |
| Buttons 3, 4, 5 and 8 each flash blue briefly three times twice in succession. | Power-on procedure |
| Button 3 alternates between flashing blue and orange Pairing | |
| Buttons 3, 4, 5 and 8 flash four times Energy saving mode active | |
| Buttons 3, 4, 5 and 8 flash blue once every ten seconds Standby mode (Bluetooth®connection established) | |
| Button 3, 4, 5 and 8 flash blue once every 10 seconds for a longer period | Active call |
| Buttons 3, 4, 5 and 8 rapidly flash blue (a ringtone also sounds for an incoming call) | Incoming or outgoing call |
| Button 3 flashes orange once (two beeps sound at regular intervals) | Muting of the microphone is active |
| The standby button lights up green continuously Charging | |
| Button 3 flashes orange five times Power-off procedure | |
| Button 3 flashes orange five times every five minutes Battery charge level is low |
9.13 Storing the device when not in use
If the device is not going to be used for a long period of time, you should recharge the battery on a regular basis. This helps maintain battery performance. Keep the device in a dry, clean and cool place.
9.14 Restore factory settings
You can restore the hands-free kit to its factory settings. Doing so will delete the list of connected devices in the hands-free kit.
Proceed as follows:
- With the hands-free kit switched on, hold down the standby button (8) and the - button (5) simultaneously for about five seconds until two beeps sound.
- Press the standby button (8) to switch the hands-free kit off and complete the procedure.
The next time you switch on the hands-free kit, it starts directly in pairing mode and the mute button (3) alternates between flashing blue and orange.
10. Maintenance/cleaning
10.1 Maintenance
DANGER! Repair work is required if the hands-free kit has been damaged, for example if the device housing is damaged, liquids or objects have got inside the device, or if the device has been exposed to rain or moisture. Repairs are also required if the device does not work properly or has been dropped. Never open the housing of the hands-free kit. Furthermore, opening the hands-free kit could damage it and void your guarantee.
10.2 Cleaning
WARNING! Disconnect the hands-free kit from the power supply before cleaning in order to avoid hazards. Use a dry cloth for cleaning and never use solvents or cleaning agents that react with plastics. Ensure that no liquids enter the housing. If the hands-free kit is heavily soiled, use a very slightly moistened cloth.
11. Troubleshooting
All the functions described depend on the range of functions available on the mobile phone you are using. Not all functions may be supported.
The hands-free kit doesn't seem to be working
-
Check whether the lithium ion battery is charged. Charge the battery if necessary.
-
Check whether the hands-free kit is switched on and connected to your mobile phone.
The lithium-ion battery won't charge
- Check whether the car charger adapter is plugged into your in-car socket correctly.
- Check whether the USB plug of the car charger adapter is plugged into the USB charging port (7) of the hands-free kit correctly.
- Turn on the ignition, as some vehicles will only power the in-car socket when the ignition is on.
- Check whether the LED of the car charger adapter lights up green. If this is not the case, the fuse may be defective.

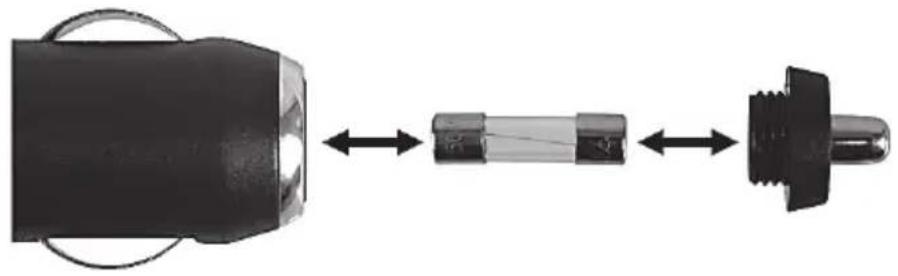

- Check whether the car charger adapter fuse is defective and replace it if necessary. To do so, turn the contact seal of the car charger adapter in an anti-clockwise direction. Replace the defective fuse with a new fuse of the same type (see technical data) and fasten the contact seal by turning it in a clockwise direction.
12. Environmental and waste disposal information
The product bears a symbol of a crossed-through waste bin. It is therefore subject to European Directive 2012/19/EU. Electrical and electronic equipment must not be put in the household waste, but must be disposed of via designated public disposal centres. Further information can be obtained from your local authority or the shop where you purchased the product.
The built-in battery cannot be removed for disposal.
Make sure that the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device is collected by your local waste management company and disposed of in an environmentally-friendly manner.
Please pay attention to the labels on packaging materials when you separate waste; these are marked with abbreviations (a) and numbers (b) that mean the following:
1-7: Plastics/20-22: Paper and cardboard/80-98: Composite materials.
13. Marks of conformity
This hands-free kit conforms to the fundamental requirements and other relevant regulations of the RE Directive 2014/53/EU and the RoHS Directive 2011/65/EU.
You can download the full EU declaration of conformity at the following link:
www.targa.de/downloads/conformity/311608.pdf
14. Notes on guarantee and service
Warranty of TARGA GmbH
This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.
Your statutory rights towards the seller are not affected or restricted by this warranty.
Service
Phone: 0800 404 7657
E-Mail: targa@lidl.co.uk
Phone: 1890 930 034
E-Mail: targa@lidl.ie
Phone: 800 62230
E-Mail: targa@lidl.com.mt
Phone: 8009 4409
E-Mail: targa@lidl.com.cy
Manufacturer
TARGA GmbH
Coesterweg 45
DE-59494 Soest
GERMANY
Table des matieres
Portee Bluetooth®: env. 10 metres
"Headset profile" (HSP), "Handsfree profile" (HFP)
Bluetooth®-zendvermogen:
max. 3,0 mW
Bluetooth®-frequentieband: 2.402 - 2.480 GHz, 2.4 G ISM-band
Bluetooth®-bereik:
