USER MANUAL GAWU24MBBH Gladiator

PANELS INSTALLATION SAFETY You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING PARTSPartsGearTrack Channels GearWall PanelsMasonry / Poured ConcreteBare Wood StudsDrywall Over Wood Studs ½”(1.3 cm),

” (1.6 cm), ¾” (1.9 cm)#8 x 1¹⁄ ”(3.08 cm)*#8 x 2” (5.08 cm) (included)*

PANELS INSTALLATION INSTRUCTIONS Parts and Tools ■ Remove all parts and fasteners from their packaging, and dispose of/recycle all packaging materials. ■ Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

• Use an all-weather at-head type deck screw.** Use a at-head type masonry screw.3 TOOLS Tools GearTrack

” (1.6 cm), ¾” (1.9 cm) Level Tape Measure Cordless Drill 1/8” (3 mm) Drill Bit for Pre-drilling holes Stud Finder Ac Finder Square Pencil Jigsaw Circular Saw Chalk Line Line Level Hammer Drill Caulk Gun Chalk Line With Plumb Bob

”(3.9 mm) Masonry Drill Bit IMPORTANT: Compare screw length to electrical wire locations. Be sure the screw will not pierce electrical wiring. NOTE: Maximum weight limit is 75 lbs per linear ft (30.48 cm) for GearTrack

Panels ■ Screw thread engagement into the wooden stud should be 1” (2.54 cm) minimum. For drywall of a thickness not listed in the chart above, see graphic below. GearWall

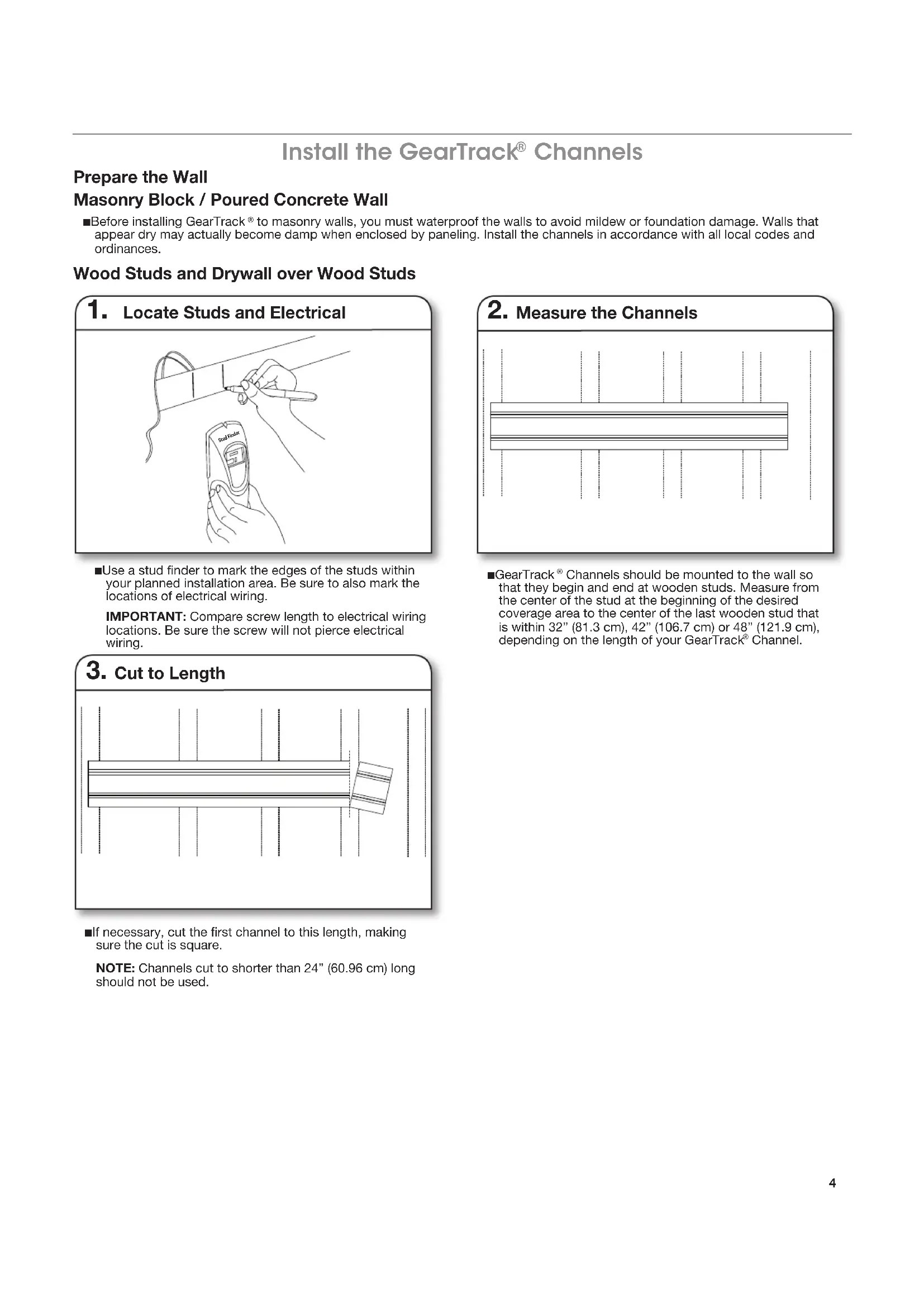

Channels Prepare the Wall Masonry Block / Poured Concrete Wall ■ Before installing GearTrack to masonry walls, you must waterproof the walls to avoid mildew or foundation damage. Walls that appear dry may actually become damp when enclosed by paneling. Install the channels in accordance with all local codes and ordinances. Wood Studs and Drywall over Wood Studs ■ Use a stud nder to mark the edges of the studs within your planned installation area. Be sure to also mark the locations of electrical wiring.IMPORTANT: Compare screw length to electrical wiring locations. Be sure the screw will not pierce electrical wiring. Stud Finder

1. Locate Studs and Electrical

■ GearTrack Channels should be mounted to the wall so that they begin and end at wooden studs. Measure from the center of the stud at the beginning of the desired coverage area to the center of the last wooden stud that is within 32” (81.3 cm), 42” (106.7 cm) or 48” (121.9 cm), depending on the length of your GearTrack Channel.

2. Measure the Channels

■ If necessary, cut the rst channel to this length, making sure the cut is square.NOTE: Channels cut to shorter than 24” (60.96 cm) long should not be used.

Mounting the Channels ■ Holding the channel up in the desired location, drive a screw through the top slot groove and into the center of the stud nearest to the middle of the channel until it is ush with the surface.

1. Drive First Screw

■ Check that the GearTrack

Channel is level, and then drive a second screw through the bottom slot groove and into the center of the same stud as in the previous step.

2. Level the Channel

■ If splitting occurs, you may nd it necessary to predrill and countersink the screw holes near channel ends with a

(3 mm) drill bit. ■ Make sure all screws are installed and ush with the channel. ■ Drive a screw in every slot at every stud location. ■ Repeat this process for the next desired application area.

6. Repeat for Additional Channels

Channels on masonry block or poured concrete, you may put construction adhesive on the GearTrack

Channel before attaching it to the wall for extra hold.

NOTE: If channels are to be used to support accessory hooks and/or small item bins, they may be spaced in any way desired. If channels are being used to support Gladiator

Wall GearBoxes, they must be installed 18” (46 cm) apart. ■ From the front, snap the end cap onto each end of the run of GearTrack

Channel. 18" (46 cm)

8. Install Ends Caps (sold seperately)7

Panels ■ Snap a level chalk line at a convenient height on the wall(s). Measure from the chalk line to the ceiling and determine the lowest point of the ceiling along the wall. ■ Starting from the lowest point of the ceiling, measure down to the oor. Round the measurement down to the nearest foot and mark. Snap a level chalk line ¹⁄4” (6.3 mm) below the mark. Repeat step for remaining walls. NOTE: For partial wall installation, simply snap a level chalk line at the desired height of the bottom of the wall.

Plan your Installation ■ Install the rst stud at the starting edge of the desired coverage area to act as a guide. Drill a hole through the stud and into the wall surface. Follow masonry screw manufacturer’s instructions for proper installation. For best results use a hammer drill and masonry bit. NOTE: For extra hold, you may choose to put construction adhesive on the stud before attaching it to the wall. ■ Secure the stud to the wall by placing ¹⁄4” (6.3 mm) x 2³⁄4” (6.9 cm) masonry screws every 18” (45.72 cm).

Prepare the Wall Masonry Block / Poured Concrete Wall ■ Before you can install the panels on poured concrete or masonry block walls, you must install 2" (5.08 cm) x 4" (10.16 cm) wooden studs to the wall with the 4" (10.16 cm) side against the wall. The wooden studs must be installed over the entire area to be covered by the GearWall

panels. This provides a level surface on which to mount the panels.

A. Masonry screws B. Wooden stud8 Wood Studs and Drywall over Wood Studs ■ Use a stud nder to mark the edges of the studs within your planned installation area. Be sure to also mark the locations of electrical wiring. IMPORTANT: Compare screw length to electrical wiring locations. Be sure the screw will not pierce electrical wiring.

1. Locate Studs and Electrical

■ Use this stud as your guide. Measure 16” (40.64 cm) from the corner and snap a vertical chalk line using a chalk line with a plumb bob. Snap a chalk line every 16” (40.64 cm) from this point. ■ Align the center of the stud with the chalk line. Attach the remaining studs to the wall as you did in steps 1-2.

3. Measure Location of Remaining Studs

4. Mount Remaining Studs

16’’(40.64 cm) 16’’(40.64 cm) Stud Finder9 ■ Panels are installed with the interlock tongue up and the groove down. ■ Cut the rst panel to this length, making sure the cut is square. Be sure to also cut around any windows, doors, and outlets. NOTE: Panels shorter than 24” (60.96 cm) long should not be used. ■ Holding the panel up in the desired location, drive a screw through the top slot groove and into the stud nearest to the middle of the channel until it is ush with the surface. ■ Measure from the starting edge of the desired coverage area to the center of the last wooden stud that is within 4 ft (1.22 m). Take note of interference with any windows, doors, and outlets. ■ Place the panel above the horizontal chalk line applied in the “Prepare the Wall” section. Align the panel with both the starting edge and the horizontal chalk line. NOTE: If installing an optional trim kit, be sure to apply the trim at this time if mounting against an interior corner (see “Trim Options” for details). ■ Check that the panel is level, and then drive a second screw through the bottom slot groove and into the same stud as in the previous step. BUBBLE LEVEL

5. Drive First Screw

2. Measure the Panel

Mount the Panels10 ■ If splitting occurs, you may nd it necessary to predrill and countersink the screw holes near channel ends. ■ Repeat steps 1-4 with additional panels until you reach the opposite edge of the desired coverage area. NOTE: If installing an optional trim kit, be sure to apply the trim around any windows, doors, and outlets you encounter along the way, as well as to the nal piece of the row if mounting against an interior corner (see “Trim Options” for details). ■ Drive a screw in every slot at every stud location. ■ Repeat step 5, installing each following row of wall panels until the wall is nished. If the wall is wider than the 4 ft (1.22 m) panel, you will need to stagger the vertical panel joints in each row with the seams at the wooden studs, as shown. NOTE: The nal row of panels can be rip cut lengthwise to t the required height.

10. Repeat Until Desired Coverage11

Trim Options ■ You may choose to apply trim to any exposed corners or edges. Below are some recommended congurations: NOTE: The current trim options do not apply to masonry block or poured concrete wall installation. ■ Trim may also be applied around windows, doors, and outlets. Be sure to notch the trim as shown to ensure a snug t:

BASKETS Parts Maximum Weight Limit Claw Hook, Dual Hook, Big Hook, Utility Hook 50 lbs (22.7 kg) Horizontal Bike Hook 25 lbs (11.3 kg) for each hook and 50 lbs (22.7 kg) for the pair Deep Hook, Wide Hook, Vertical Bike Hook 30 lbs (13.6) Tool Hook, Cradle Hook, Twin Hook, S Hook, Scoop Hook 25 lbs (11.3 kg) Fishing Pole Hook 10 lbs (4.5 kg) for each hook and 20 lbs (9.1 kg) for the pair J & L Hook, Loop Hook 5 lbs (2.2 kg) Storage Bin Holder 25 lbs (11.3 kg) for each hook and 50 lbs (22.7 kg) for the pair 24” (60.96 cm) Mesh Basket 35 lbs (15.9 kg) 18” (45.7 cm) Wire Basket 35 lbs (15.9 kg) Caddy Bag 25 lbs (11.3 kg) Small Item Bin 10 lbs (4.5 kg) IMPORTANT : Intended to be installed on Gladiator

channels. NOTE : Be sure the Gladiator

channel is installed with mounting screws in every slot and at every stud location with a maximum of 24” (60.96 cm) horizontally between screws. Big Hook Vertical Bike Hook S Hook L Hook Utility Hook Tool Hook Scoop Hook Mesh Basket Deep Hook Twin Hook J Hook Wire Basket Hooks Installation to GearTrack

Panels13 Install the Claw Hook Advanced Bike Storage v3.0 IMPORTANT : ■ The Gladiator Claw™ Advanced Bike Storage v3.0 hook holds either wheel of a bike.

1. Determine where you want to hang the bike. Engage the

storage hook mounting bracket into the wall slots by lifting up, pushing toward the wall and lowering the bracket rims into the slots.

2. Inspect the bike storage hook from the side to make sure the

mounting bracket rims are fully engaged in the slots.

3. Turn the lever lock counterclockwise to lock the storage hook

channel. Make sure the lever lock is in the fully locked position, as shown.

4. Press the plunger until the hook arms are in the open position.

5. Lift the bike up and press the bike tire against the plunger. The

hook arms will close around the wheel. Make sure both arms are completely closed around the wheel.

6. Remove the bike by lifting the bike up and pressing the tire

against the plunger. The hook arms will open to release the bike wheel. Install the Fishing Pole Hook ■ Designed to be used as a pair, the set of four shing pole holders will support two shing poles mounted either vertically or horizontally, as shown.

1. Install the shing pole holders into the slots in the GearWall

channel so that distance between the holders is one half the length of the shing pole. NOTE : Engage the bracket rims into the slots by lifting up, pushing toward the wall and lowering the rims into the slots.

2. Inspect the bracket from the side to ensure the rims are fully

engaged in the slots as shown.

3. Set the shing pole into the holders.

channel C. Hook arm D. Plunger14 Install the Horizontal Bike Hook ■ When not in use, bike hook may be rotated to the side so it lies at against the bracket.

1. Engage the bracket rims on the horizontal bike hook into the

slots in the GearWall

channel by lifting up, pushing toward the wall and lowering the rims into the slots.

2. Inspect the bracket from the side to ensure the rims are fully

engaged in the slots as shown. Install the Storage Bin Holder ■ Designed to be used as a pair, the bin holders will support one storage bin up to a maximum 18 gallon size.

1. Measure the length of the storage bin 4” (10.2 cm) to

5” (12.7 cm) from the bottom.

2. Install the storage bin holders into the slots in the GearWall

channel so that distance between the top of the holders is the same as the length of the storage bin. NOTE : Engage the bracket rims into the slots by lifting up, pushing toward the wall and lowering the rims into the slots.

3. Inspect the bracket from the side to ensure the rims are fully

engaged in the slots as shown.

4. Set the storage bin into the bin holders so that the bottom

and sides are supported by the storage bin holders. Horizontal Bike Hook Storage Bin Holder WARRANTY For warranty information: In U.S.A. call 1-866-342-4089 or visit our website at www.GladiatorGW.com In Canada call 1-800-807-6777 or visit our website at www.gladiatorgarageworks.ca There are many benets for registering the product. Find out more and register the product online at www.gladiatorgarageworks.com.15 NOTES16 SÛRETÉ DES INSTALLATIONS DES PROFILÉS GEARTRACK
