USER MANUAL V6031S TAURUS

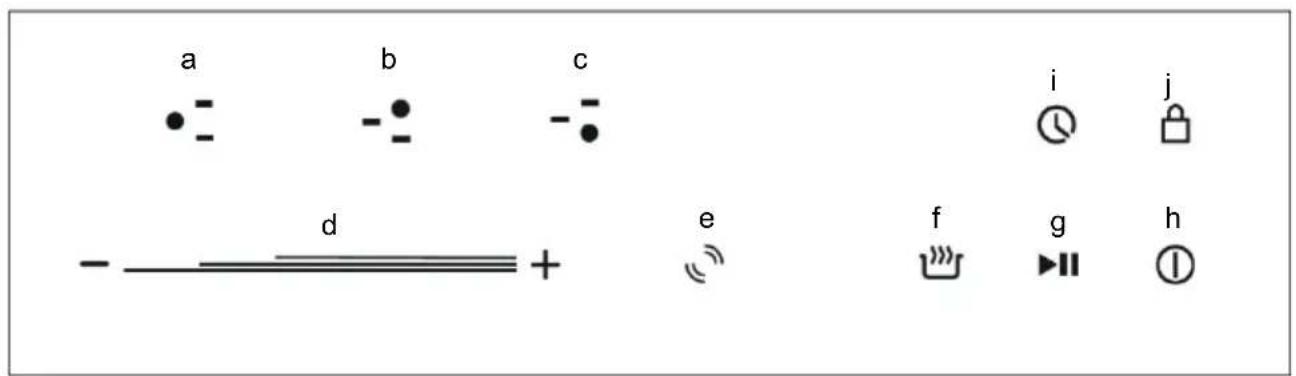

Downloaded by: pd-oliana on 07-03-2023 11:23 CETV6031S A. Double cooking area 1600W – 2700W B. Cooking area 1200W C. Cooking area 1800W D. Vitro ceramic Glass Surface E. Control Panel Control panel: a. Double cooking area selection control 1600W – 2700W b. Cooking area selection control 1200W c. Cooking area selection control 1800W d. Power and timer sliding control. e. Flexible area control. f. “Keep Warm” mode selection control g. “Stop&Go” selection control h. On/Off control

i. Timer selection control

j. Child lock selection control

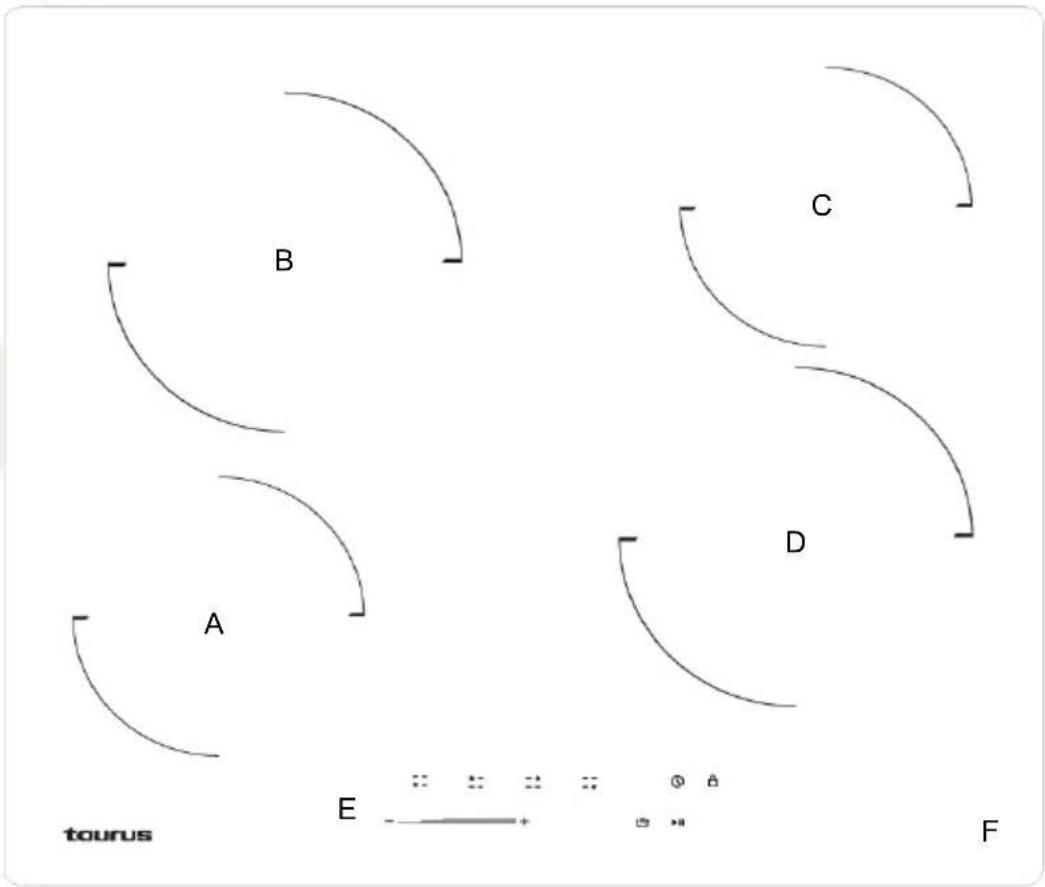

Downloaded by: pd-oliana on 07-03-2023 11:23 CETV6041S A. Cooking area 1200W B. Cooking area 1800W C. Cooking area 1200W D. Cooking area 1800W E. Control Panel F. Vitro ceramic Glass Surface a. Cooking area selection control 1200W b. Cooking area selection control 1800W c. Cooking area selection control 1200W d. Cooking area selection control 1800W e. Power and timer sliding control. f. “Keep Warm” mode selection control g. “Stop&Go” selection control h. Timer selection control

i. Child lock selection control

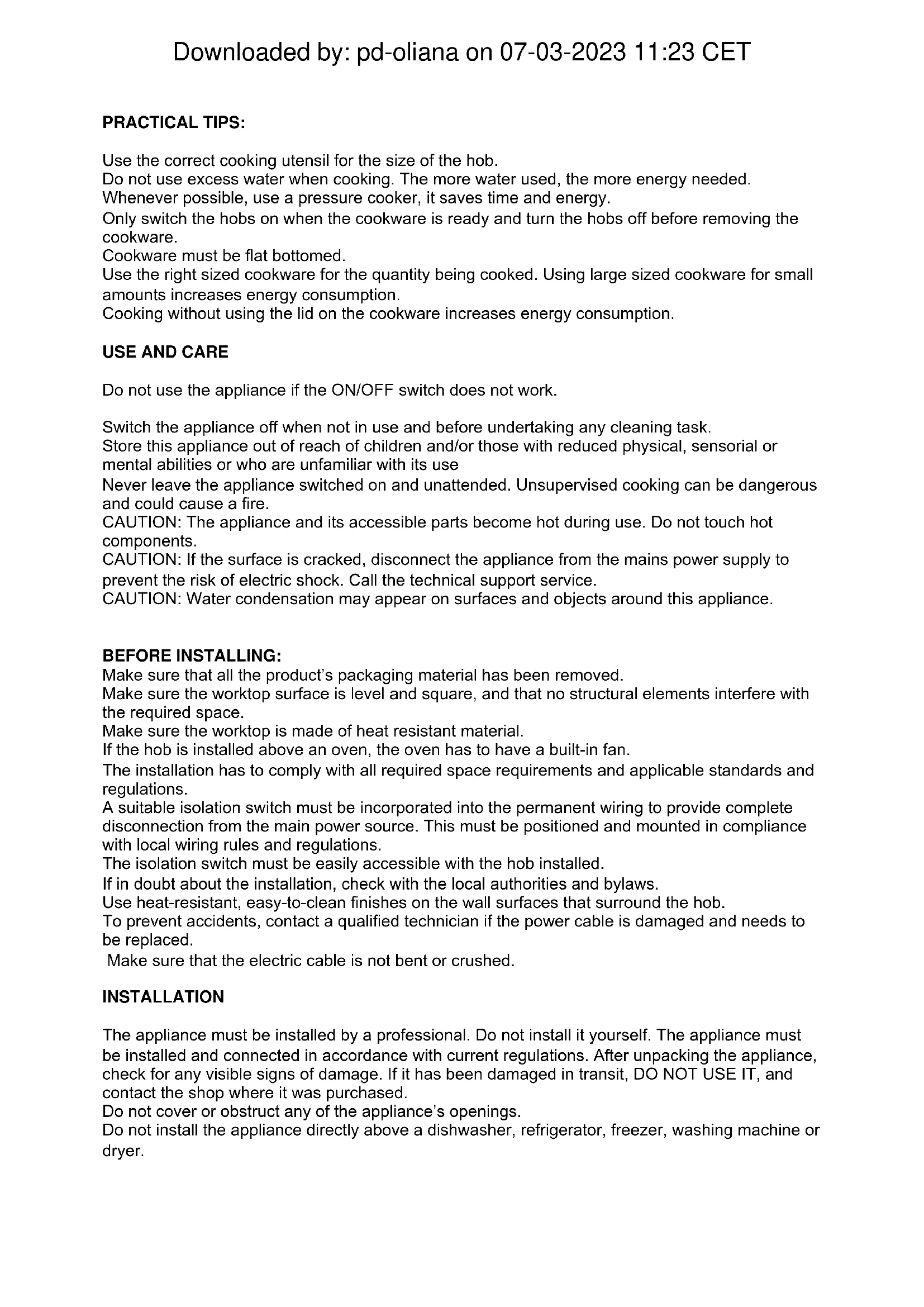

Downloaded by: pd-oliana on 07-03-2023 11:23 CETPRACTICAL TIPS: Use the correct cooking utensil for the size of the hob. Do not use excess water when cooking. The more water used, the more energy needed. Whenever possible, use a pressure cooker, it saves time and energy. Only switch the hobs on when the cookware is ready and turn the hobs off before removing the cookware. Cookware must be flat bottomed. Use the right sized cookware for the quantity being cooked. Using large sized cookware for small amounts increases energy consumption. Cooking without using the lid on the cookware increases energy consumption.

Do not use the appliance if the ON/OFF switch does not work. Switch the appliance off when not in use and before undertaking any cleaning task. Store this appliance out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use Never leave the appliance switched on and unattended. Unsupervised cooking can be dangerous and could cause a fire. CAUTION: The appliance and its accessible parts become hot during use. Do not touch hot components. CAUTION: If the surface is cracked, disconnect the appliance from the mains power supply to prevent the risk of electric shock. Call the technical support service. CAUTION: Water condensation may appear on surfaces and objects around this appliance. BEFORE INSTALLING: Make sure that all the product’s packaging material has been removed. Make sure the worktop surface is level and square, and that no structural elements interfere with the required space. Make sure the worktop is made of heat resistant material. If the hob is installed above an oven, the oven has to have a built-in fan. The installation has to comply with all required space requirements and applicable standards and regulations. A suitable isolation switch must be incorporated into the permanent wiring to provide complete disconnection from the main power source. This must be positioned and mounted in compliance with local wiring rules and regulations. The isolation switch must be easily accessible with the hob installed. If in doubt about the installation, check with the local authorities and bylaws. Use heat-resistant, easy-to-clean finishes on the wall surfaces that surround the hob. To prevent accidents, contact a qualified technician if the power cable is damaged and needs to be replaced. Make sure that the electric cable is not bent or crushed. INSTALLATION The appliance must be installed by a professional. Do not install it yourself. The appliance must be installed and connected in accordance with current regulations. After unpacking the appliance, check for any visible signs of damage. If it has been damaged in transit, DO NOT USE IT, and contact the shop where it was purchased. Do not cover or obstruct any of the appliance’s openings. Do not install the appliance directly above a dishwasher, refrigerator, freezer, washing machine or dryer. Downloaded by: pd-oliana on 07-03-2023 11:23 CET-Cut the worktop as per the sizes shown in the diagram. -For assembly and use, leave a space of at least 5 cm around the hole. -Make sure the worktop is at least 30mm thick. To prevent the heat given off by the hob from deforming the worktop, the worktop must be made of a heat-resistant material.

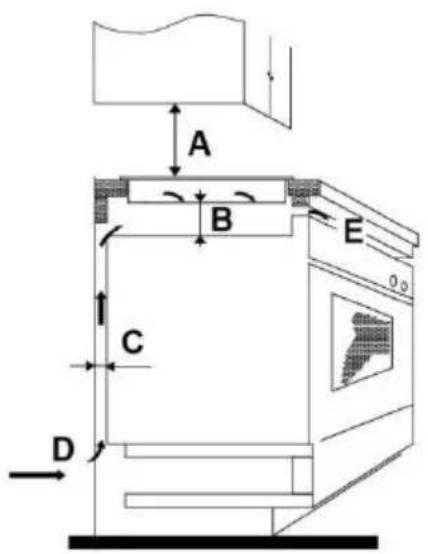

Check that the hob is properly ventilated, that the air inlet and outlet are not blocked and that it operates correctly.

Note: There must be at least a 650 mm safety distance between the hob and any cabinet located above the hob.

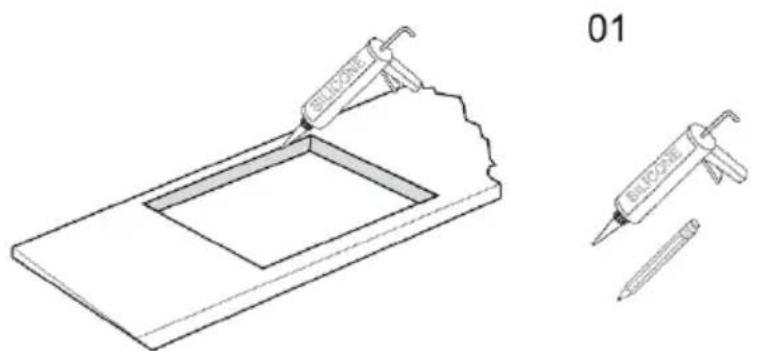

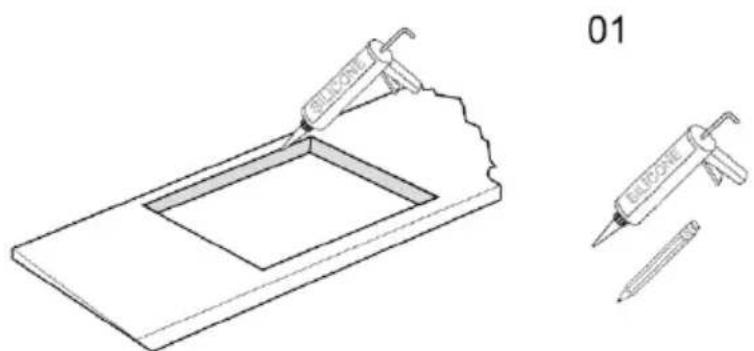

Downloaded by: pd-oliana on 07-03-2023 11:23 CETUse the appropriate to cut the worktop as per the sizes shown in the diagram. Use Silicone or PTFE to seal the edges of the cut surface and allow it to dry before fitting the hob.

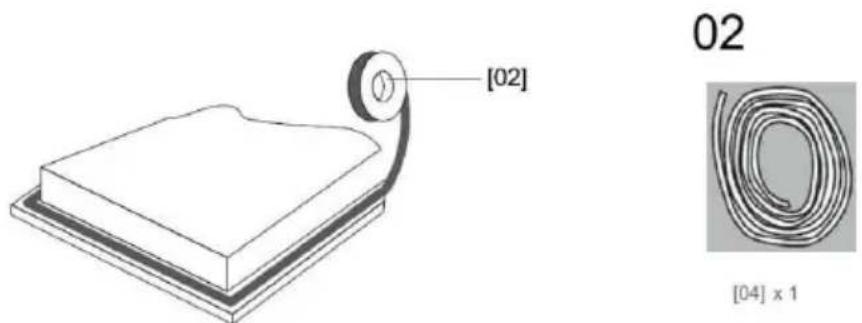

Run the protective strip around the underside of the hob, making sure that the ends overlap. Do not fit the hob into position without applying the protective foam.

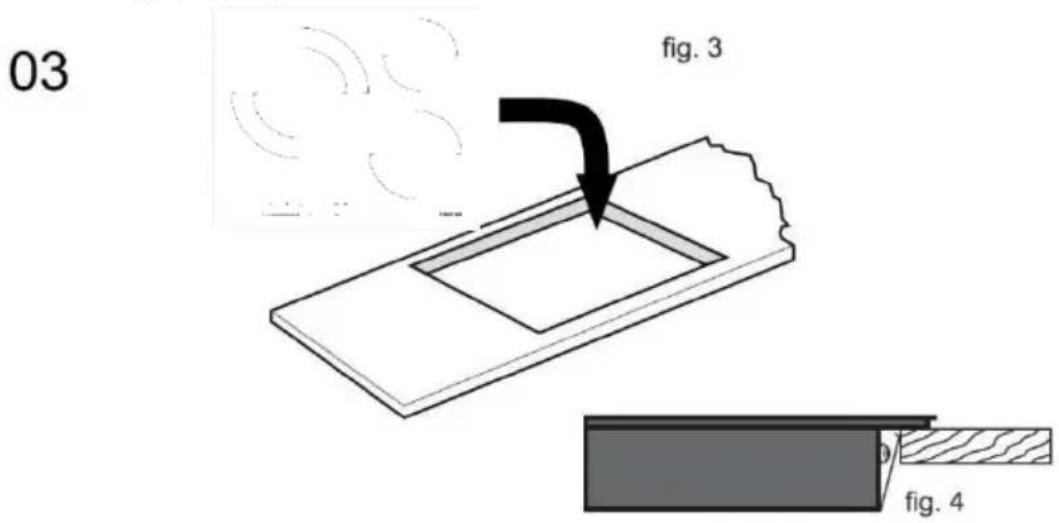

Do not use adhesives to stick the hob onto the worktop. Once the protective strip has been fixed to the underside of the hob, place it into the hole made in the worktop. Carefully apply pressure to fit the hob into the space, ensuring a good seal on the outer edge. MAINS CONNECTION This appliance must be connected to the domestic power circuit by a qualified person. Before connecting the hob to the electric supply, check that: The home wiring can handle the power of the hob. Downloaded by: pd-oliana on 07-03-2023 11:23 CETThe voltage corresponds to the value stated on the label on the bottom of the appliance. The cable cross section is capable of withstanding the load specified on the hob’s label. Do not use adapters, reducers or bypass devices to connect the appliance to the power supply, as these may lead to overheating and fire. The power cable must not be in contact with any hot part and be positioned in such a way that at no point does its temperature exceed 75ºC. Ask the electrician whether the home wiring system is adequate or needs to be modified. Any modifications must be made by a qualified electrician.

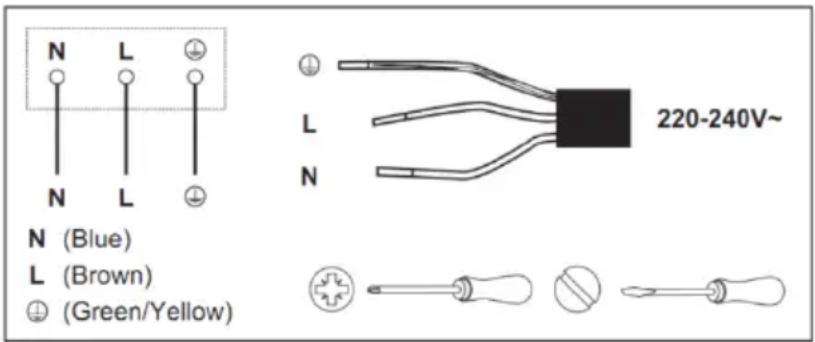

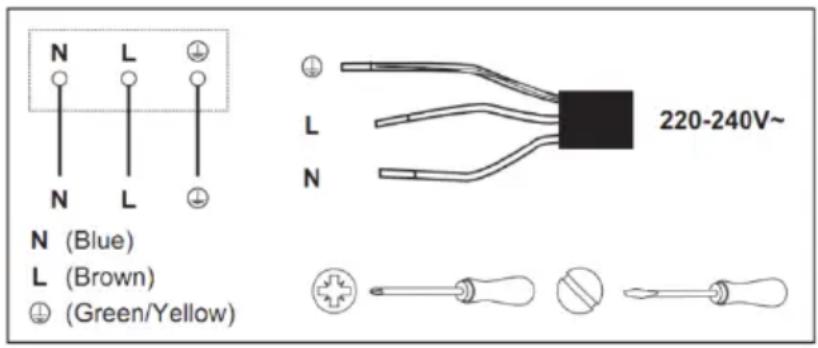

Brown = L or Live Blue = N or Neutral Green and Yellow=E or Earth

AFTER INSTALLING: Check that the cable for the hob is not accessible through any doors or cabinets. Check that there is adequate circulation of fresh air from the outside to the base of the worktop If the hob is installed on top of a cabinet or drawer, install thermal protection under the base of the hob. The isolation switch must be readily accessible to the user. INSTRUCTIONS USE Place the appropriate cookware on the cooking area that you want to use. Make sure that the bottom of the cookware and surface are dry and clean. Turn the appliance on using the on/off switch. For the V302MT hob, press the + button for the area you want to use (Left top area, Right bottom area) For the other models: Switch the device on by pressing the On/Off button and wait until “0” appears on the displays Depending on the area where the cookware is placed, press the appropriate cooking area selection control. The selected 0 symbol will flash. Move your finger across the sliding control towards + or – to select the desired power. The power control goes from 0 to 9, increasing the power in numerical order. If no power setting is selected, the hob will switch off automatically after 60 seconds. The power setting can be changed any time during cooking. In order to minimize the generation of acrylamide during the cooking process, do not overbrown or burn the food. Notes: When a control is pressed, the hob emits an audible signal. If the power supply is interrupted during cooking, all selections made are cancelled.

USE OF THE TOUCH CONTROLS

The controls respond to touch, so there is no need to apply any pressure. Use the flat of the finger, not the tip. A beep is emitted each time a touch control is used. Downloaded by: pd-oliana on 07-03-2023 11:23 CETMake sure that the controls are kept clean and dry and that there are no objects covering them (e.g., a kitchen utensils or cloths). Even a thin coating of water can make the controls difficult to operate.

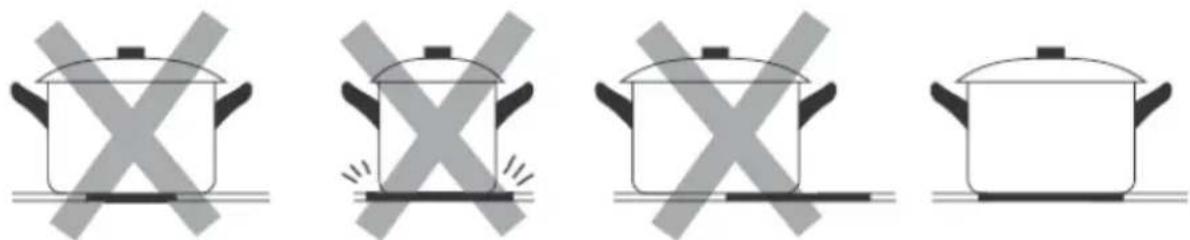

COOKWARE It is important to only use metal pots and pans specifically designed and/or approved for use on vitro-ceramic hobs. Never allow melamine or plastic containers to come into contact with the heated areas. Do not use cookware with uneven edges or convex bases.

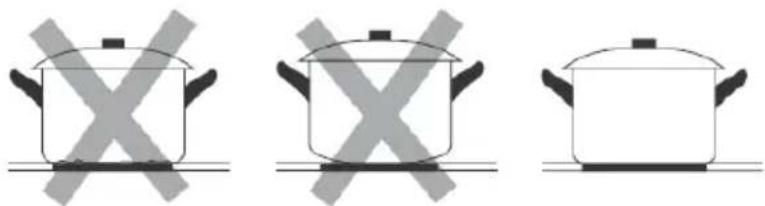

Make sure that the base of the cookware is smooth, sits flat on the hob and is the same size as the cooking area. If smaller diameter cookware is used, efficiency may be lower than expected. Always place the cookware in the centre of the cooking area.

Always lift the cookware, do not slide it as this may scratch the glass.

TIMER FUNCTION The appliance’s operating time can be controlled up to 99 minutes. 1 Select the corresponding cooking area by using the corresponding area selection button 2 Press the timer selection control 3 To program in an operating time, simply use the sliding control or the + - buttons to change the timer setting. The set time or time remaining will appear on the display. Use the sliding control or the + - buttons to change the timer setting. Downloaded by: pd-oliana on 07-03-2023 11:23 CET4 Once the time is selected, the countdown starts immediately. After 5 seconds the indicator returns to showing the power indicator. A red dot appears next to it to show that area is using the timer (except for model V302MT). 5 If you need to check or modify the time, repeat steps 1 and 2 6 When the countdown ends, the corresponding cooking area switches off. The other areas, if they are switched on, will continue to operate normally. 7 If no area is selected in step 1, the timer will not switch off any cooking area when the timer finishes. In this case, the timer only functions as a time reminder. CHILD LOCK FUNCTION (EXCEPT V302MT) The controls can be locked to prevent accidental use of the hob. (except V302MT) When the controls are locked, all controls except the Off control are disabled. Press the child lock button for 3 seconds. The time indicator will show “Lo” To unlock the controls, press and hold the child lock button until the controls are unlocked. STOP&GO FUNCTION (EXCEPT V302MT) The pause function can be used at any time during cooking. It allows the hob to be stopped and then started again without losing the settings it had previously. While the hob is operating, press the Stop&Go button The cooking area indicator will display “II” To cancel the pause function, press the Stop&Go button again, the cooking areas will return to their previous power settings. DOUBLE RING FUNCTION (ONLY V6031S) While the left cooking area is operating, press the flexible area selection control. This will activate the outer ring KEEP WARM FUNCTION (EXCEPT V302MT) By touching the Keep Warm mode selection button the selected area heats up at the selected low power setting (A, b or c). One or two lines appear on the left-hand cooking area panel, depending on whether one or two rings are being used.

CLEANING AND MAINTENANCE

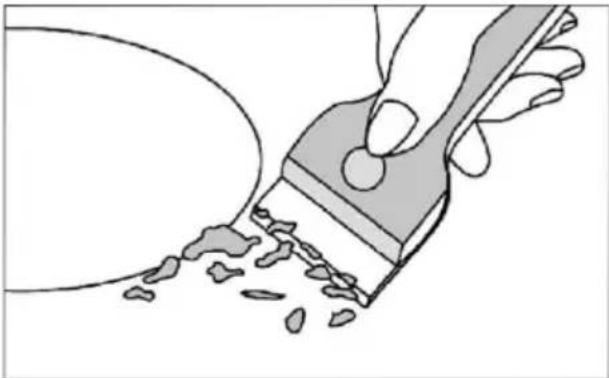

Before carrying out any maintenance or cleaning tasks, disconnect the appliance from the mains and make sure that it is completely cold. Avoid scratching the hob with abrasives, the bottom of the cookware, etc., as this will eventually leave marks on the glass. Clean the surface of the appliance regularly to prevent a build-up of residues. The hob should be cleaned after use. Different types of dirt can be cleaned as follows: Type of dirt Cleaning method Cleaning materials Limescale Apply white vinegar to the surface, then wash it off using a soft cloth. Special ceramic hob cleaning liquid Burnt stains Clean off with a damp cloth and then dry with a soft cloth. Special ceramic hob cleaning liquid Light stains Clean off with a damp cloth and then dry with a soft cloth. Sponge Melted plastic or sugar Use a suitable vitro-ceramic scraper to remove any marks. Special ceramic hob cleaning liquid Downloaded by: pd-oliana on 07-03-2023 11:23 CETTo prevent any damage to the surface of the hob, use a suitable scraper to immediately remove any remains of kitchen foil, food, splashed fat, sugar stains and other sugary foods. Then use a towel and a suitable product to clean the surface, rinse with water and dry with a clean cloth. Do not use abrasive sponges or cloths and avoid using harsh chemical detergents.

TROUBLESHOOTING Before calling customer services, make sure that the hob is connected correctly. The warranty does not cover any of the following cases: Damage caused by improper use or storage. Damage caused by unauthorised dismantling and/or repair. Damage caused by misuse. Use of the hob for commercial purposes. The following are the error codes that may appear on the hob in the event of a fault: Error code Possible cause What to do ER03 Water or cookware in the control area Clean the control area

When an “H” appears in pause or off mode, this means that the surface temperature of the cooking area is too high. It will disappear automatically as soon as the appliance cools down.

The temperature inside the hob is too high Contact the supplier

The glass on the hob is too hot Switch the hob off and wait. To avoid damage and risks, do not try to dismantle the hob yourself.

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our ofcial technical assistance services. You can nd the closest one by accessing the following web link: http://taurus-home.com/ You can also request related information by contacting us. You can download this instruction manual and its updates at http://taurus-home.com/
