Product type	Active 2-way speaker
Brand	HK Audio
Model	Premium PR:O 115 XD2
Amplifier power	1200 W peak (Class D bi-amplified)
Bass driver	1x 15" (38 cm) with 2.5" (6.35 cm) voice coil
Tweeter	1" (2.54 cm) compression driver with 1" (2.54 cm) voice coil
Frequency response	61 Hz - 16 kHz (±3 dB), -10 dB extension at 57 Hz - 18 kHz
Max SPL	125 dB continuous, 130 dB peak (half space)
Dispersion	90° x 55° (CD horn)
Active crossover frequency	2.5 kHz (FIR, 48 dB/octave)
Inputs	1x combo XLR/Jack balanced
Outputs	1x XLR Thru balanced
Controls	Gain, Tone (Music/Speech), Flat/Boost switch, Mic/Line switch
Features	Auto Stand-By (disableable), DuoTilt 3°/7° for pole mounting tilt, installation angle 42°
Indicators	Bicolor LED (green power, red limiter/error)
Protection	Independent peak and RMS limiters for HF and LMF
Enclosure	MDF with black acrylic lacquer, 1.5 mm metal grille with acoustic foam
Handles	2x MultiGrip
Dimensions (W x H x D)	47.5 x 63 x 45.5 cm
Weight	24.9 kg
Power supply	220-240 V~, 50/60 Hz
Standby consumption	<0.5 W (Auto Stand-By enabled)

Frequently Asked Questions - Premium PR:O 115 XD2 HK AUDIO

How to connect the Premium PR:O 115 XD2 speaker?

Use a balanced XLR or jack cable to connect your source (mixer, microphone, etc.) to the combo Input. For a Line signal, set the switch to Line; for a microphone, to Mic. Connect the supplied mains cable to the Mains socket and set the Power switch to ON.

What does the red LED on the speaker mean?

The red LED indicates limiter activation (brief flashing) or overload (steady red). If the LED stays solid red, reduce the input level via the Gain knob or the mixer. If the speaker produces no sound with solid red, the protection circuit has triggered: contact a dealer.

How to use the DuoTilt system?

The DuoTilt allows tilting the speaker on a stand. The front opening gives a 7° angle (recommended for close audience), the rear opening gives 3° (for distant audience). Insert the stand into the chosen socket to get the desired tilt.

How to set the optimal gain?

Start with the Gain knob at the center position (click at +4 dBu). Then adjust the volume from your mixer. If the sound is too low or too high, slightly adjust the gain. Avoid keeping the red LED lit continuously.

When to use Flat or Boost mode?

The Flat mode offers a linear response, ideal for live use or with subwoofers. The Boost mode enhances low frequencies (70-80 Hz) for more presence. Choose Boost if you use the speaker alone without a subwoofer.

How to disable the Auto Stand-By function?

Locate the Auto Stand-By switch on the rear panel. Set it to Off for the speaker to remain active continuously. In the On position, it goes into standby after 4 hours without a signal.

Why is the sound saturated or distorted?

First check the levels on your mixer: the LEDs should not stay in the red. Reduce the output level. If the mixer is correct, reduce the Gain knob on the speaker. Also ensure the Mic/Line switch is set to Line for a line source.

How to clean the Premium PR:O 115 XD2 speaker?

Disconnect the speaker before any cleaning. Use a dry, lint-free cloth to wipe the surface. Never use liquid or abrasive products. The front grille can be dusted with a soft vacuum cleaner.

Can I suspend the speaker?

Yes, the PR:O 115 XD2 has attachment points in the side handles for flying hardware (e.g., HK Audio TB-45N). Use only approved accessories and have a qualified installer perform the setup. Follow the safety instructions in the manual.

What minimum impedance can I connect to the Thru output?

The Thru output is a passive loop that transmits the input signal. It should not be used to connect passive speakers. Use it only to send the signal to other active speakers or a subwoofer. The load impedance on this output is not critical as it is a high-level line output.

USER MANUAL Premium PR:O 115 XD2 HK AUDIO

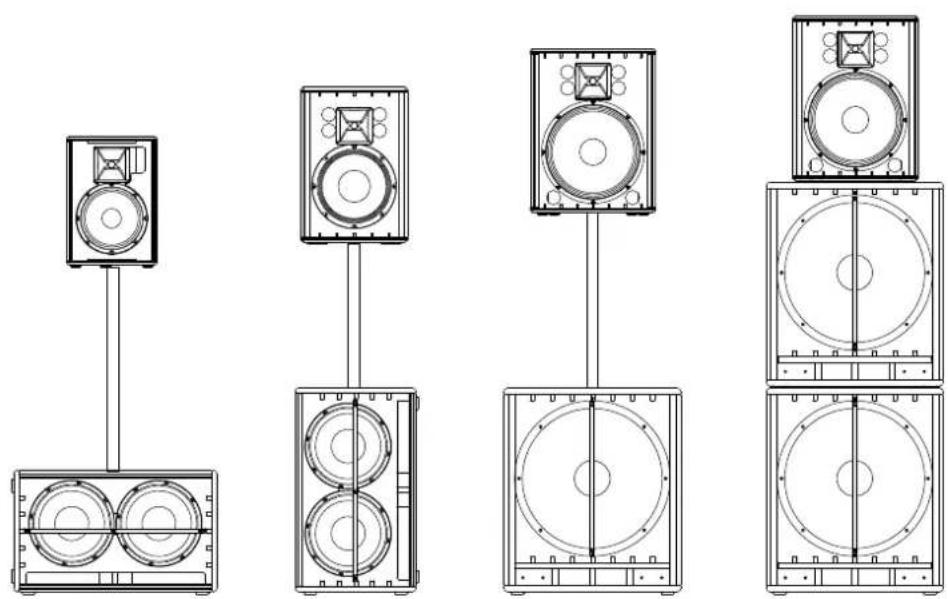

Technical line drawings of four different speaker models with multi-tiered speakers and circular base plates (no text or symbols)

PREMIUM PR:0

D2 models

PR:0 110 XD2 • PR:0 112 FD2 • PR:0 112 XD2 • PR:0 115 FD2

PR:O 115 XD2 • PR:O 118 SUB D2 • PR:O 210 SUB D2

Manual 1.0

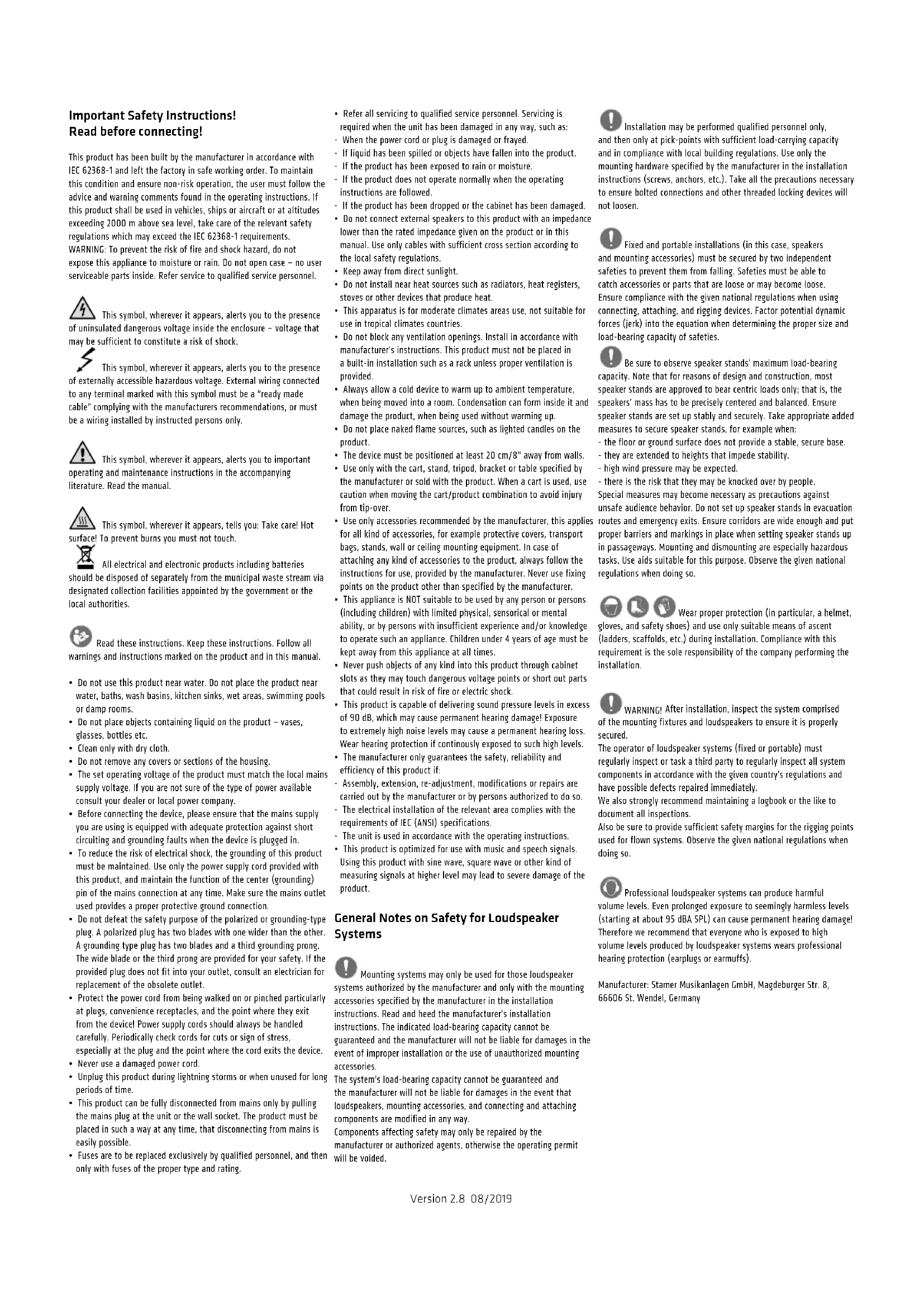

Important Safety Instructions! Read before connecting!

This product has been built by the manufacturer in accordance with IEC 62368-1 and left the factory in safe working order. To maintain this condition and ensure non-risk operation, the user must follow the advice and warning comments found in the operating instructions. If this product shall be used in vehicles, ships or aircraft or at altitudes exceeding 2000 m above sea level, take care of the relevant safety regulations which may exceed the IEC 62368-1 requirements.

WARNING: To prevent the risk of fire and shock hazard, do not expose this appliance to moisture or rain. Do not open case – no user serviceable parts inside. Refer service to qualified service personnel.

This symbol, wherever it appears, alerts you to the presence of regulated dangerous voltage inside the enclosure – voltage that sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to the presence normally accessible hazardous voltage. External wiring connected terminal marked with this symbol must be a "ready made complying with the manufacturers recommendations, or must being installed by instructed persons only.

This symbol, wherever it appears, alerts you to important and maintenance instructions in the accompanying e. Read the manual.

This symbol, wherever it appears, tells you: Take care! Hot To prevent burns you must not touch.

All electrical and electronic products including batteries

should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

Read these instructions. Keep these instructions. Follow all gs and instructions marked on the product and in this manual.

• Do not use this product near water. Do not place the product near water, baths, wash basins, kitchen sinks, wet areas, swimming pools or damp rooms.
• Do not place objects containing liquid on the product – vases, glasses, bottles etc.
• Clean only with dry cloth.
• Do not remove any covers or sections of the housing.
• The set operating voltage of the product must match the local mains supply voltage. If you are not sure of the type of power available consult your dealer or local power company.
• Before connecting the device, please ensure that the mains supply you are using is equipped with adequate protection against short circuiting and grounding faults when the device is plugged in.
• To reduce the risk of electrical shock, the grounding of this product must be maintained. Use only the power supply cord provided with this product, and maintain the function of the center (grounding) pin of the mains connection at any time. Make sure the mains outlet used provides a proper protective ground connection.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the device! Power supply cords should always be handled carefully. Periodically check cords for cuts or sign of stress, especially at the plug and the point where the cord exits the device.
• Never use a damaged power cord.
• Unplug this product during lightning storms or when unused for long periods of time.
• This product can be fully disconnected from mains only by pulling the mains plug at the unit or the wall socket. The product must be placed in such a way at any time, that disconnecting from mains is easily possible.

• Fuses are to be replaced exclusively by qualified personnel, and then only with fuses of the proper type and rating.

• Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as:

• When the power cord or plug is damaged or frayed.
  If liquid has been spilled or objects have fallen into the product.
• If the product has been exposed to rain or moisture.
• If the product does not operate normally when the operating instructions are followed.
• If the product has been dropped or the cabinet has been damaged.

- Do not connect external speakers to this product with an impedance lower than the rated impedance given on the product or in this manual. Use only cables with sufficient cross section according to the local safety regulations.

- Keep away from direct sunlight.

- Do not install near heat sources such as radiators, heat registers, stoves or other devices that produce heat.

- This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.

- Do not block any ventilation openings. Install in accordance with manufacturer's instructions. This product must not be placed in a built-in installation such as a rack unless proper ventilation is provided.

- Always allow a cold device to warm up to ambient temperature, when being moved into a room. Condensation can form inside it and damage the product, when being used without warming up.

- Do not place naked flame sources, such as lighted candles on the product.

- The device must be positioned at least 20 cm/8" away from walls.

- Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the product. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.

- Use only accessories recommended by the manufacturer, this applies for all kind of accessories, for example protective covers, transport bags, stands, wall or ceiling mounting equipment. In case of attaching any kind of accessories to the product, always follow the instructions for use, provided by the manufacturer. Never use fixing points on the product other than specified by the manufacturer.

- This appliance is NOT suitable to be used by any person or persons (including children) with limited physical, sensorical or mental ability, or by persons with insufficient experience and/or knowledge to operate such an appliance. Children under 4 years of age must be kept away from this appliance at all times.

- Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock.

- This product is capable of delivering sound pressure levels in excess of 90 dB, which may cause permanent hearing damage! Exposure to extremely high noise levels may cause a permanent hearing loss. Wear hearing protection if continuously exposed to such high levels.

- The manufacturer only guarantees the safety, reliability and efficiency of this product if:

- Assembly, extension, re-adjustment, modifications or repairs are carried out by the manufacturer or by persons authorized to do so.

- The electrical installation of the relevant area complies with the requirements of IEC (ANSI) specifications.

- The unit is used in accordance with the operating instructions.

- This product is optimized for use with music and speech signals. Using this product with sine wave, square wave or other kind of measuring signals at higher level may lead to severe damage of the product.

General Notes on Safety for Loudspeaker Systems

Mounting systems may only be used for those loudspeaker

systems authorized by the manufacturer and only with the mounting accessories specified by the manufacturer in the installation instructions. Read and heed the manufacturer's installation instructions. The indicated load-bearing capacity cannot be guaranteed and the manufacturer will not be liable for damages in the event of improper installation or the use of unauthorized mounting accessories.

The system's load-bearing capacity cannot be guaranteed and the manufacturer will not be liable for damages in the event that loudspeakers, mounting accessories, and connecting and attaching components are modified in any way.

Components affecting safety may only be repaired by the manufacturer or authorized agents, otherwise the operating permit will be voided.

Installation may be performed qualified personnel only, and then only at pick-points with sufficient load-carrying capacity and in compliance with local building regulations. Use only the mounting hardware specified by the manufacturer in the installation instructions (screws, anchors, etc.). Take all the precautions necessary to ensure bolted connections and other threaded locking devices will not loosen.

Fixed and portable installations (in this case, speakers mounting accessories) must be secured by two independent risks to prevent them from falling. Safeties must be able to accessories or parts that are loose or may become loose. Compliance with the given national regulations when using tinging, attaching, and rigging devices. Factor potential dynamic (jerk) into the equation when determining the proper size and bearing capacity of safeties.

Be sure to observe speaker stands' maximum load-bearing dry. Note that for reasons of design and construction, most or stands are approved to bear centric loads only; that is, the rers' mass has to be precisely centered and balanced. Ensure or stands are set up stably and securely. Take appropriate added res to secure speaker stands, for example when:

- the floor or ground surface does not provide a stable, secure base. - they are extended to heights that impede stability. - high wind pressure may be expected.

- there is the risk that they may be knocked over by people. Special measures may become necessary as precautions against unsafe audience behavior. Do not set up speaker stands in evacuation routes and emergency exits. Ensure corridors are wide enough and put proper barriers and markings in place when setting speaker stands up in passageways. Mounting and dismounting are especially hazardous tasks. Use aids suitable for this purpose. Observe the given national regulations when doing so.

Wear proper protection (in particular, a helmet, gloves, and safety shoes) and use only suitable means of ascent (ladders, scaffolds, etc.) during installation. Compliance with this requirement is the sole responsibility of the company performing the installation.

WARNING! After installation, inspect the system comprised mounting fixtures and loudspeakers to ensure it is properly

The operator of loudspeaker systems (fixed or portable) must regularly inspect or task a third party to regularly inspect all system components in accordance with the given country's regulations and have possible defects repaired immediately.

We also strongly recommend maintaining a logbook or the like to document all inspections.

Also be sure to provide sufficient safety margins for the rigging points used for flown systems. Observe the given national regulations when doing so.

Professional loudspeaker systems can produce harmful levels. Even prolonged exposure to seemingly harmless levels (e.g. at about 95 dBA SPL) can cause permanent hearing damage. More we recommend that everyone who is exposed to high levels produced by loudspeaker systems wears professional protection (earplugs or earmuffs).

Manufacturer: Stamer Musikanlagen GmbH, Magdeburger Str. 8, 66606 St. Wendel, Germany

PREMIUM PR:0

Welcome to the HK Audio family!

Thank you for choosing a brand-name product made by our company. Rest assured, we engineered and built it with the greatest care so it will serve you well for many tomorrows to come.

Even if your experience with sound systems runs deep, some things about this product are sure to be new to you. This is why we ask that you do not set this manual aside without reading it first. Be sure to keep it in a safe place for later reference.

Here's wishing you the best sound at every occasion!

Your HK Audio team

Strong electromagnetic interference or electrostatic discharge may prevent the product from functioning normally. If this happens, the product may be returned to normal operation by powering off and on again. Should this not result in the product functioning normally again, please move the product away from the source of disturbance and try again.

Warranty

Use the convenient online registration option at www.hkaudio.com.

http://warranty.hkaudio.com

The registration is only valid if the device is registered within 30 days of the date of purchase.

HK Audio

Technischer Service

Postfach 1509

66595 St. Wendel, Germany

Fax: [phone]

1 PREMIUM PR:O Self-powered Cabinets

PR:0 110 XD2 • PR:0 112 FD2 • PR:0 112 XD2 • PR:0 115 FD2 • PR:0 115 XD2

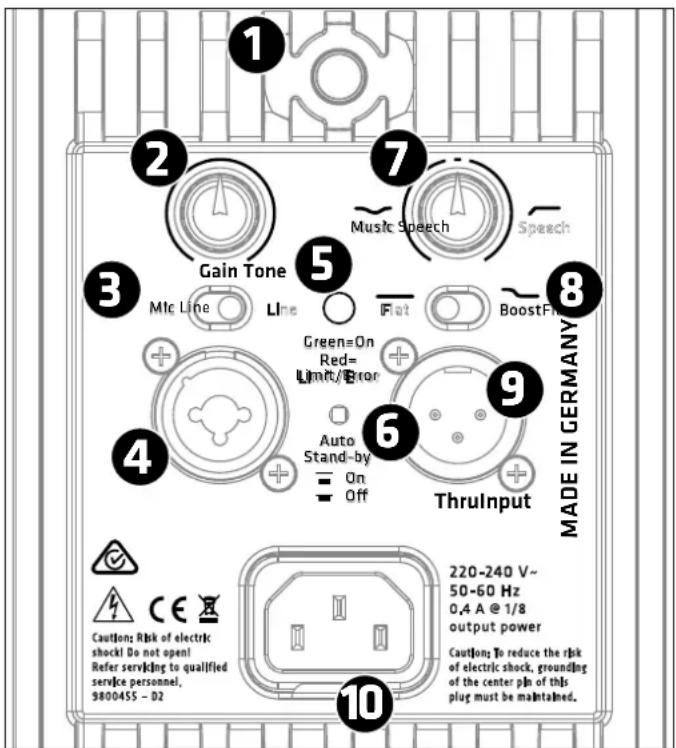

1.1 Control Features

1 2 3 4 5 6 7 Music Speech Speech Gain Tone Mlc Line Line Flat BoostFit Green=On Red= Limit/Error Auto Stand-by On Off 9 ThruInput MADE IN GERMANY Caution: Risk of electric shock! Do not open! Refer servicing to qualified service personnel, 9800455 - D2 220-240 V~ 50-60 Hz 0,4 A @ 1/8 output power Caution: To reduce the risk of electric shock, grounding of the center pin of this plug must be maintained.

1 Power

This is the PREMIUM PR:O powered cabinet's on/off button. The Limiter/Status LED lights up green to indicate the cab is powered up.

2 Gain

Use this knob to adjust the input gain to match the incoming signal's level.

Adjusting volume levels with the Gain knob:

The +4 dBu (center-notched) position is the factory default setting. It is tuned to achieve the right balance of levels between the mid/ high unit and subwoofer. If necessary, turn the Gain knob to adjust the balance of levels between the mid/ high unit and subwoofer(s) to suit the incoming line signals.

3 Mic/Line Selector

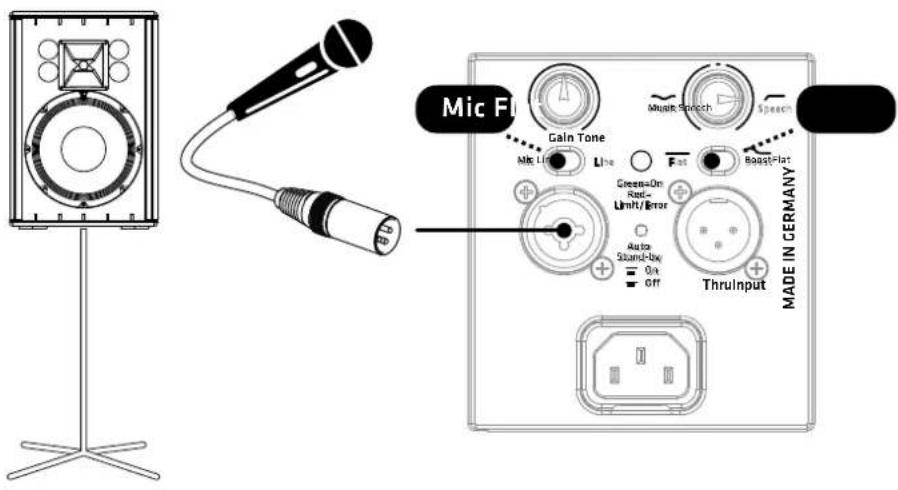

When connecting a microphone, you can optimize the input's gain level by setting this switch to Mic. This setting provides a 30 dB boost. When connecting a line-level source such as a mixer, audio playback device, or electronic musical instrument, set this switch to Line.

4 Input

Route the incoming audio signal into this electronically balanced, combination XLR/ 6.3 mm (1/4") input (pin 1 = ground, 2 = +, 3 = -).

5 Limiter/Status LED

This dual-color LED serves as a status indicator for the PREMIUM PR:0 powered cabinet (green = power on, red = limit/error). The LED briefly flashes red to tell you the limiter is responding to signal peaks.

Caution! If the Status LED stays red during operation, the cabinet is being overloaded. Turn down the signal level! If you are not routing a signal in and the Status LED stays red, the system has detected a fault.

6 Auto Standby

PREMIUM PR:0 mid/ high units have a power-saving function that can be activated and deactivated. The power amp switches to standby mode when the button is set to On and the unit does not receive a signal for about four hours (consumption <0.5 watts). To power the PREMIUM PR:0 cabinet back up again, simply set its Power button to Off for five seconds and then back to On. Mid/ high units will remain up and running if you disable Auto Standby by setting this button to Off.

7 Tone

The Tone knob adjusts the frequency response to suit the given application. Setting the knob to the center position defeats the filter.

Turning the Tone knob counterclockwise towards Music attenuates by up to -6 dB a broad midrange band with a center frequency of 2500 Hz, thereby taking the edge off the sound. The overall volume is not affected.

Turning the Tone knob clockwise towards Speech activates a 80-to-200 Hz low-cut filter, which enhances clarity for speech applications and reduces subsonic noise.

The X models (PR:0 110 XD2, PR:0 112 XD2, PR:0 115 XD2) are also tuned to minimize feedback and distortion at high volume levels.

8 Flat/Boost Selector

Setting this switch to Flat conjures the optimum linear frequency response for live performances and for operation in combination with subwoofers.

Setting this switch to Boost pumps up the bass. This boosts a broad band of bass frequencies in the kick-drum range between 70 Hz and 80 Hz and extends the low-end response.

9 Thru

This passive parallel output routes the signal routed into the front-end Input back out again (pin 1 = ground, 2 = +, 3 = -).

10 Mains

Use the factory-included power cord to connect this socket to a wall outlet.

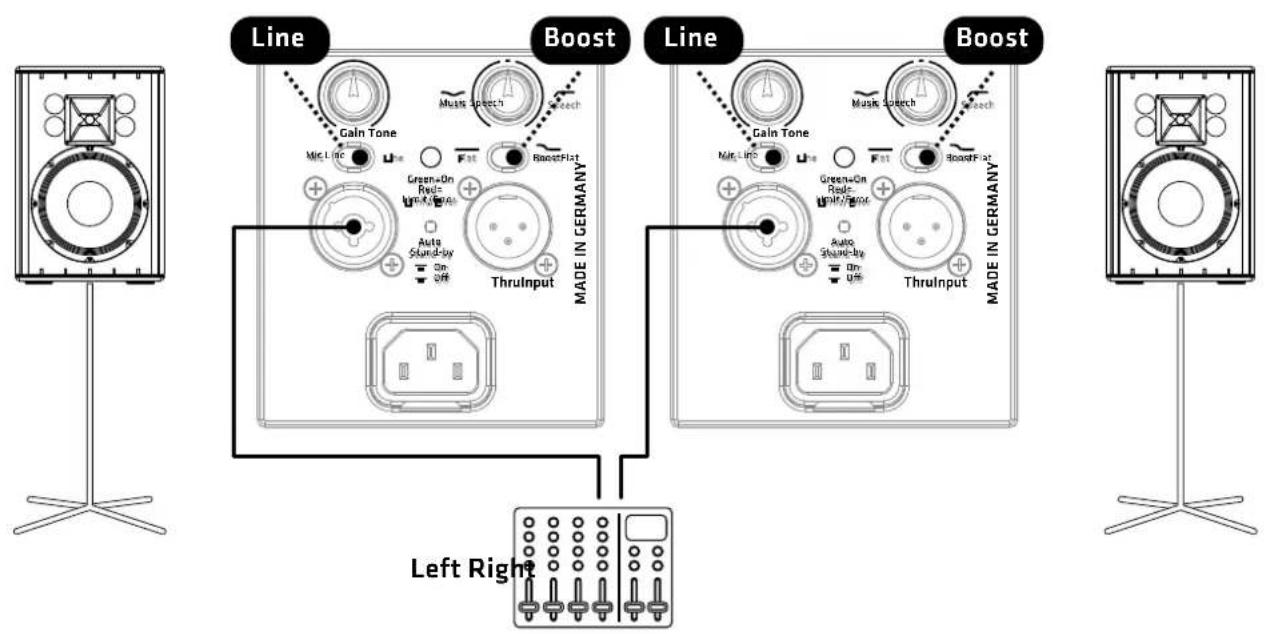

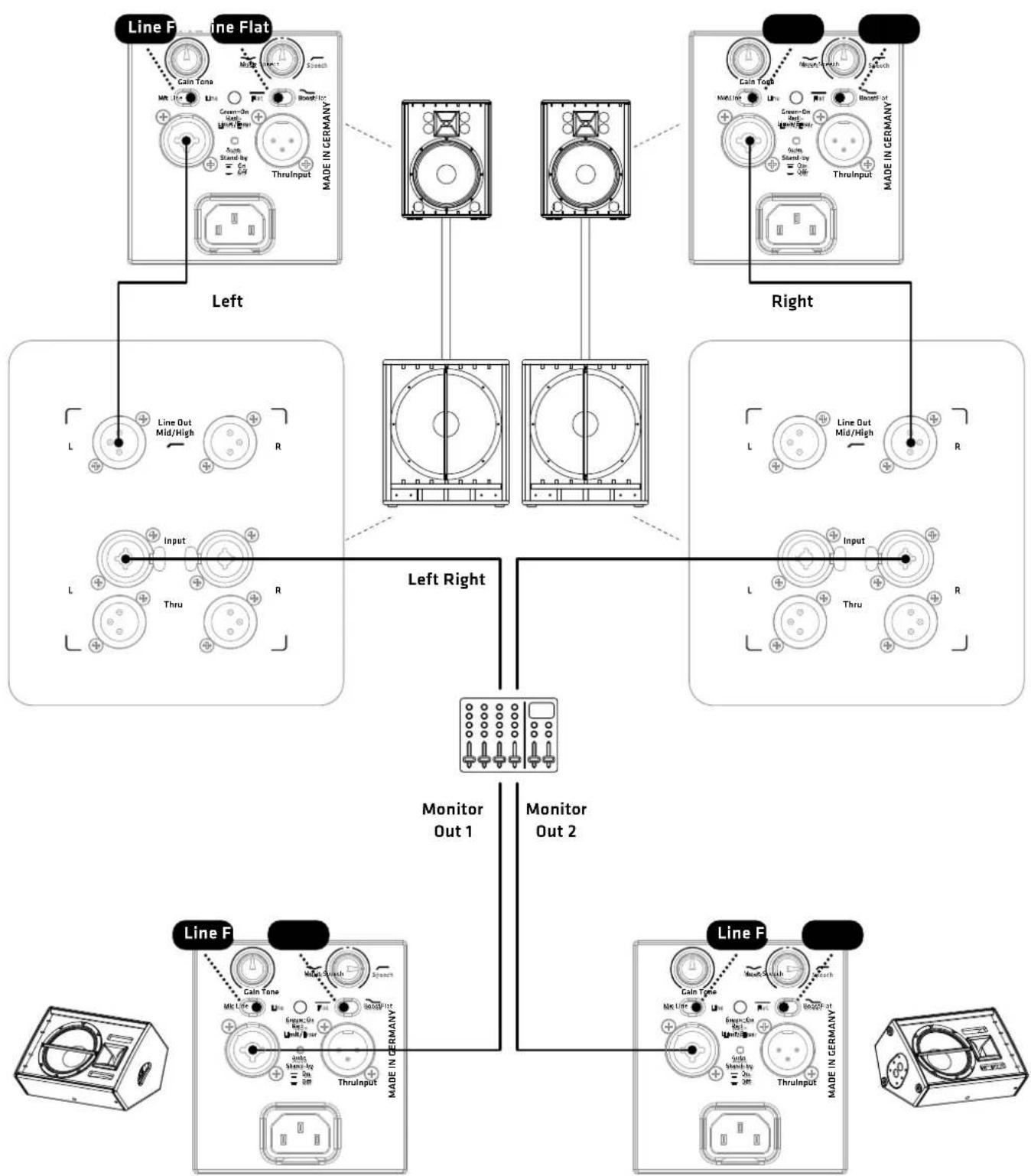

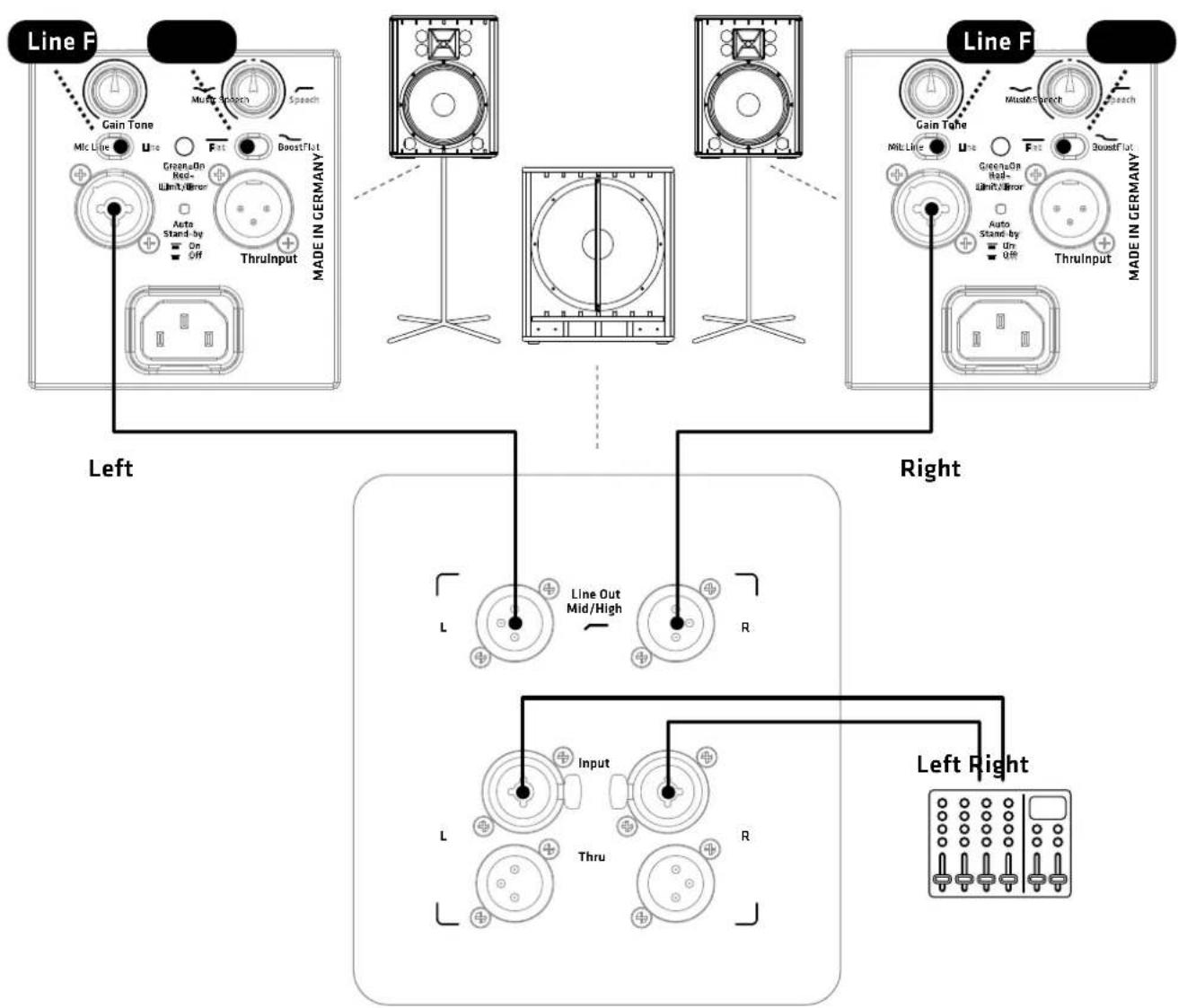

1.2 Connecting Cords

• When operating the PREMIUM PR:O speaker cabinet as a standalone unit or monitor without an added subwoofer, use a balanced cord equipped with XLR connectors or 6.3 mm (1/4") jack plugs to route the signal from the mixer (via a monitor out, line out, or a similar output) or microphone to the Input.

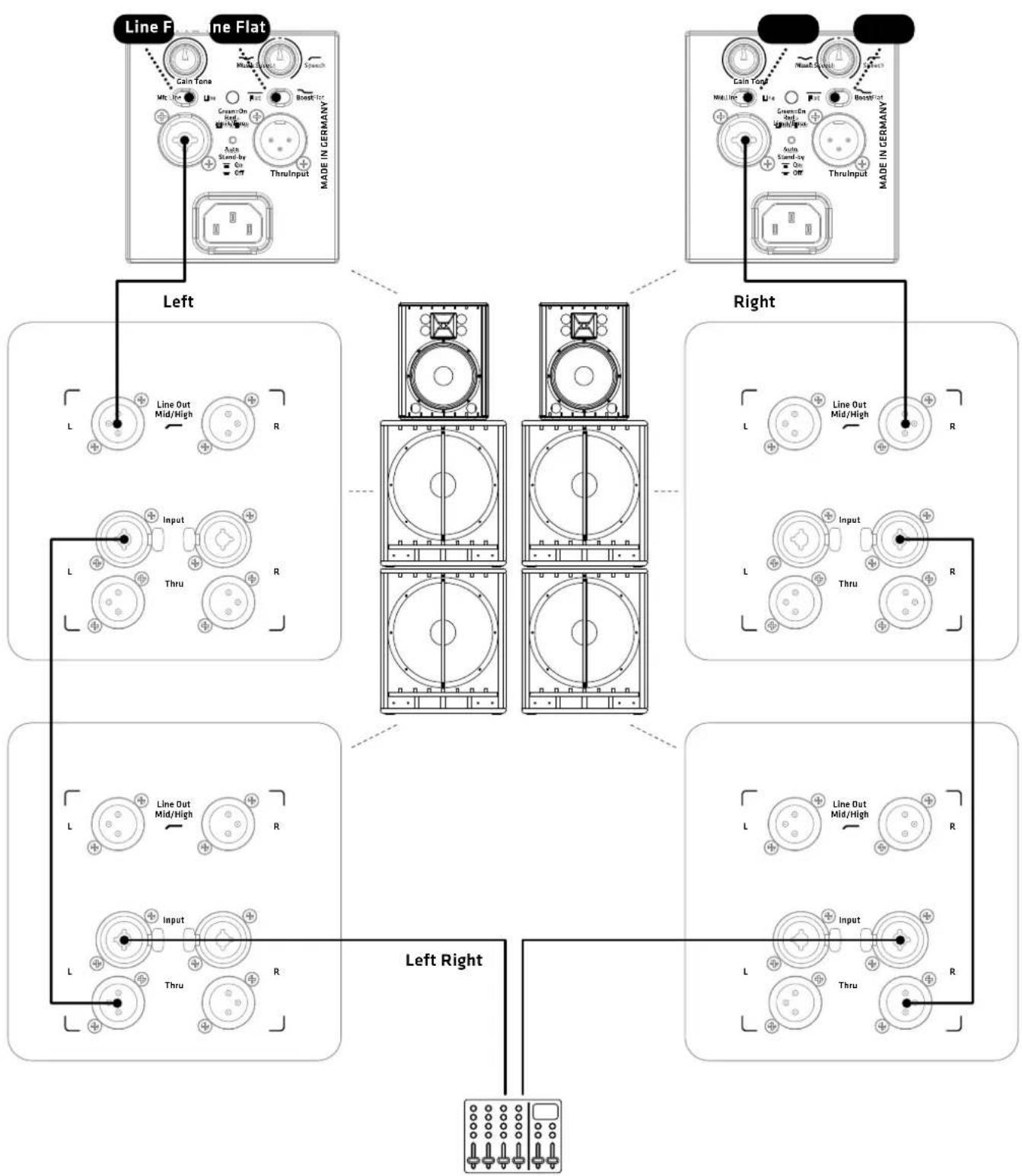

• When operating the cabinet in combination with PREMIUM PR:O series powered subwoofers, use a cord equipped with XLR connectors to connect the subwoofer's Line Out Mid/High to the cabinet's Input.
• Plug a cord equipped with XLR connectors into the Thru port to route the input signal out again.

Go to page 42-45 for illustrations of cable connections.

1.3 Operating the Cabinet

- Ensure the powered PREMIUM PR:O cabinet is switched off.

• When patching in line signals, ensure all other connected components are switched on before powering up. The connected mixer as well as all signal sources connected to it—keyboards, instrument amps, eff ects and the like—should be switched on first. Always switch on the PREMIUM PR:0 last, after you power up all connected devices, and switch it off first; that is, before you switch off all connected devices.
• When you flip on the Power switch, the fan will start up briefly for a system check and switch off after around five seconds. After that, the cabinet's circuitry controls the fan. It kicks in only at very high volume levels and is regulated according to the temperature. The Status LED lights up red during the system check. It will turn green if there is no error and the system is getting mains power.
• The Gain knob's default setting is the 12 o'clock position (+4 dBu / center-notched). This is the preferred level if you have connected a mixer to the PREMIUM PR:O cabinet. If you plug a CD player or keyboard straight into the cabinet, you may have to turn this knob to adjust the gain to match it to the device's signal level.

Caution! Turn the Gain knob counterclockwise all the way down to the far left when switching the input sensitivity from Line to Mic.

- If you hear distortion or clipping occurs, first check the signal sources and, if possible, reduce the output signal level there.

1.4 Aiming the Cabinet

DuoTilt™ 3/7

The HK Audio DuoTilt 3/7 pole mount lets you align PREMIUM PR:O cabinets vertically on a speaker stand or mounting pole to prevent or reduce troublesome ceiling reflections. The front aperture of the HK Audio DuoTilt provides a 7° angle, the rear aperture a 3° angle of tilt.

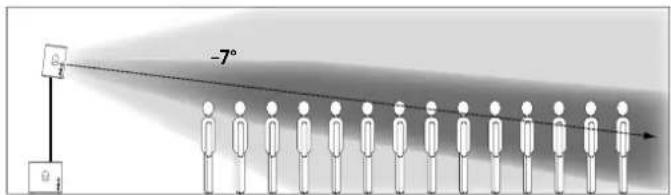

Rule of thumb: We recommend that you opt for the 7" angle if the audience close by and you place cabinets at an elevated position—for example, on stands on the stage—or if the audience is seated. This way the sound and particularly the high frequencies are distributed more uniformly right on up to the front face of the speakers.

-7°

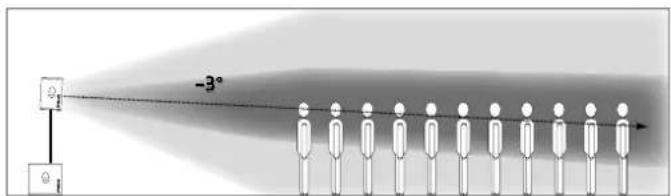

If you wish to address more listeners at a greater distance from the speakers, opt for the 3° angle on the HK Audio DuoTilt 3/7.

-3°

In both situations, you can vary the speakers' reach by adjusting their height. They throw sound over a greater distance as their elevation increases.

Rigging Points (PR:0 110 XD2, PR:0 112 XD2)

The PREMIUM PR:0 models PR:0 110 XD2 and PR:0 112 XD2 come with three countersunk M8 rigging points. They lets you fly the speaker on steel cables or chains at inclinations from 0° up to 45°. When flying the cabinet, for example, from a truss, use the rear rigging point to determine the degree of inclination.

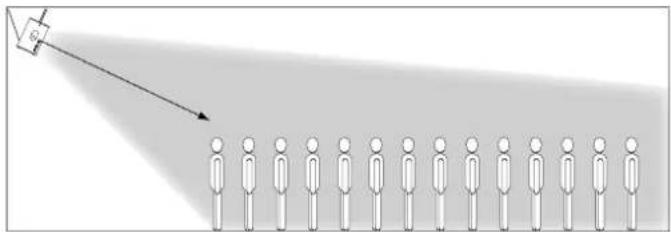

Diagram showing a person standing in rows with a light source projecting to the right (no text or symbols)

We recommend using our secure AP-8 suspension points to rig the speaker to the mounting hardware.

Tilt Brackets (PR:0 112 FD2, PR:0 115 FD2, PR:0 115 XD2)

Technical line drawing of a mechanical device with no visible text or symbols

The PREMIUM PR:O models PR:O 112 FD2, PR:O 115 FD2 and PR:O 115 XD2 may be fl own on a tilt bracket. These three models come with heavy-duty 4x5 mm threaded inserts in the side-mounted shell grips that serve to attach the HK Audio TB-45N and TB-45NQ tilt brackets. (The Q model detaches with quick-release pins.) Mounting instructions are enclosed with the tilt brackets.

2 PREMIUM PR:O Self-powered Subwoofers

PR:0 118 SUB D2 • PR:0 210 SUB D2

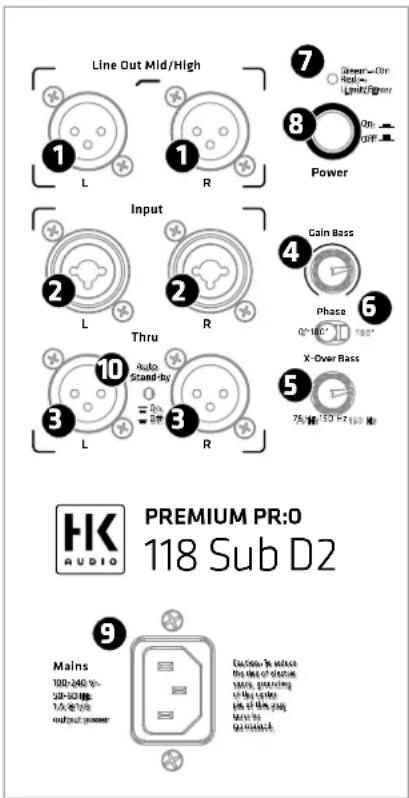

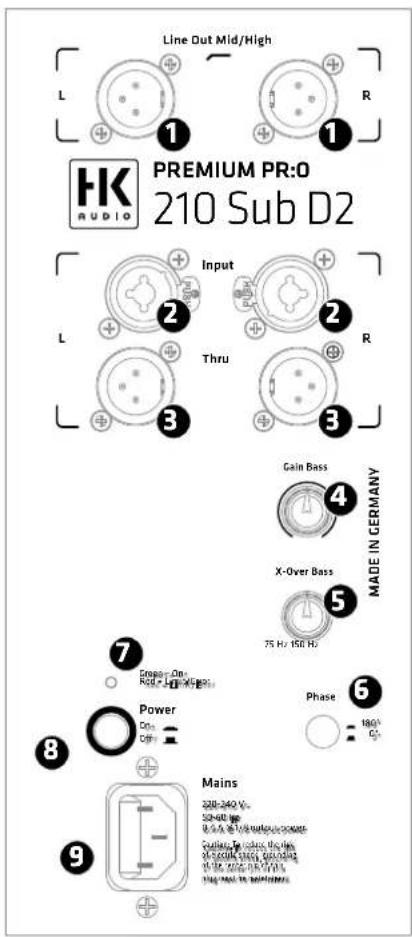

2.1 Control Features

1 Line Out Mid/High L/R

Two electronically balanced XLR outputs for connecting PREMIUM PR:0 mid/ high units (pin 1 = ground, 2 = +, 3 = -).

② Input L/R

These two electronically balanced XLR / 1/4" combi inputs accept signals from mixing consoles (pin 1= ground, 2= +, 3= -).

③ Thru L/R

These two parallel outputs patch incoming line signals through, for example, to other PREMIUM PR:O active speakers or monitors (pin 1= ground, 2= +, 3= -).

4 Gain Bass

This knob adjusts the input level (center position = 0 dBV). The 12 o'clock position is the ideal starting point when operating the subwoofer in combination with a PREMIUM PR:O active cabinet. Then you can simply twist the knob to the left or right to cut and boost bass frequencies. If you connect a PREMIUM PR:O satellite, first set the Gain knob to the center detent and then adjust the level to suit the given sound reinforcement situation.

5 X-Over Bass

The active crossover can serve to vary the top cutoff frequency of the subwoofer with a range of 75 to 150 Hz. The best cutoff frequency for the given application depends on the surroundings and satellite, so you will have to experiment.

Note: If you set the cutoff to a frequency higher than 100 Hz, the subwoofer will render mostly the lower frequencies of signals generated by bass guitars, kick drums, and low-end keyboard sounds. If you set the cutoff to a frequency higher than 100 Hz, the subwoofer will also render the lower frequencies of voices and other sound sources.

6 Phase

The Phase switch changes the subwoofer's phase position to match it to the connected satellite's phase position (0°/180°). Set the switch to 0° when operating in combination with a PREMIUM PR:O active cabinet.

You may have to invert the phase for combinations with other enclosures. If you are unsure, simply try the 180° setting. If the bass response changes and the signal sounds weak and washed out, the phase setting is incorrect.

7 Limiter/Status LED

This dual-color LED serves as a status indicator for the PREMIUM PR:O powered cabinet (green = power on, red = limit/error). The LED briefl y fl ashes red to tell you the limiter is responding to signal peaks.

Caution! If the Status LED stays red during operation, the cabinet is being overloaded. Turn down the signal level! If you are not routing a signal in and the Status LED stays red, the system has detected a fault.

Line Out Mid/High 1 L 1 R 7 Ginger=On Ride= Limit/Imprr 8 On OFF Power Input 2 L 2 R 4 Gain Bass Phase 6 0°-160° 160° X-Over Bass 5 75 Hz 130 Hz 130 Hz THru 10 Audio Stand-by 3 L 3 R HK AUDIO PREMIUM PR:0 118 Sub D2 9 Mains 100-240 % 50-500 振 1.5 等 7/88 output power Electronic To notice the idea of structure basis, grounding of the top line bits of the top line main by main board

Line Out Mid/High L R 1 1 PREMIUM PR:0 210 Sub D2 HK AUDIO Input L Thru 2 2 R 3 3 Gain Bass 4 MADE IN GERMANY X-Over Bass 5 75 Hz 150 Hz 6 Phase 8 Power On- Offy 180V Mains 9 220-240 V~ 50-60 V~ 8.5 V~ 10.5 V~ Coating for power, the line of 240V white, according the 1.5V, 2.5V to 3.5V. Top panel is performed.

Power

This is the PREMIUM PR:0 powered cabinet's on/off button. The signal LED lights up green to indicate the cab is powered up.

Mains

Use the factory-included power cord to connect this socket to a wall outlet. Note: All PREMIUM PR:O self-powered subwoofers are equipped with V-Lock mains sockets. If you use a VOLEX locking mains cord or another optionally available brand with the same design, you can fix the mains cord in place to prevent accidental disconnection..

Auto Stand-by (PR:0 118 Sub D2 only)

The built-in amp switches to standby mode (Consumption around 0.5 watts) when the button is set to „On“ and the unit does not receive a signal for 180 minutes. To power the subwoofer back up again, simply set its Power button to „Off“ for five seconds and then back to On. The subwoofer will remain up and running if you disable Auto Stand-by by setting this button to „Off“.

2.2 Setting Up and Connecting the Cabinet

Use a balanced cord equipped with XLR connectors or 6.3 mm (1/4") jack plugs to route the signal from the mixer (via a monitor out, line out, or a similar output) to the Input. Then connect the active satellites to the XLR outputs labeled Line Out Mid/High. Use the two Thru ports to feed the fullrange signal to other enclosures. Make sure the XLR connectors' terminals are configured as follows: 1= ground, 2= +, 3=-.

2.3 Operating Speakers

• Ensure the powered PREMIUM PR:O cabinet is switched off.
• Back the Gain knobs all the way off, turning them counterclockwise as far as they will go.

Ensure you first switch on all other connected components, for example, a connected mixing console as well as all signal sources patched into it, such as keyboards, instrument amps, effects and so forth. Always connect PREMIUM PR:0 active cabinets to Line Out Mid/High, and always switch them on last; that is, after you switch on all other connected components. When you powering down, first turn the Gain knobs to the far left and switch active cabinets off first, before switching off any connected devices.

After you power the system up by engaging the Power switch, a system check prompts the fan to briefly kick on and back off again in about five seconds. The fan is temperature-controlled, actuating only at very high volumes and temperatures requiring cooling.

- The Limiter/Status LED lights up green when the cabinet receives mains power.

Set the Gain knob to the center or 12 o'clock position (= 0 dBV). This is the preferred level if you have connected a mixer to the PREMIUM PR:O active cabinet. You can boost the input level 6 dB by turning up the Gain knob. For the best audio results, ensure the Limiter/Status LED does not light up continuously red.

2.4 Settings

Adjusting volume with the Gain knob

Twist this knob to adjust the line signal levels.

If you hear distortion or saturated signals, first check the signal sources and, if possible, reduce the output signal level there. If you cannot adjust the level of the signal routed to the PREMIUM PR:0 active cabinet at the source, match it to the power amps by backing off the Gain knob to lower the input level.

3 Tips and Tricks

1 Do not expose electronic circuitry to moisture! Protect cabinets against rain when you set them up outdoors. Keep soft drinks, beer, and any other liquids away from the electronic components to prevent short circuits.
2 PREMIUM PR:O active enclosures provide optimum sound to you, so be sure to provide optimum input signals to them! Noise such as humming is generally caused by defective cables, the wrong type of cords, or unbalanced signals routed into the mixing console. Check all signal and mains cables.
3 Prevent distortion! Not only is it unpleasant to your audience's ears, it also endangers your equipment. Make sure all components that are connected directly and indirectly to PREMIUM PR:0 active cabinets have sufficient power ratings, and that they don't distort because they're running at their respective limits. Ensure all sources deliver clean audio signals.
4 Avoid ground loops! Annoying humming can arise even within audio systems with balanced circuits, for example, when the mixing console's mains cord isn't connected and grounded to the same mains circuit as PREMIUM PR:0 active enclosures. Using two different ground circuits can create a ground loop. To prevent this problem, always connect PREMIUM PR:0 active enclosures and the mixing console to the same electrical circuit; that is, the same phase!

4 Optional HK Audio Accessories

Visit the PREMIUM PR:O series product pages at www.hkaudio.com to learn more about the original accessories available from HK Audio.

5 Troubleshooting

The Limiter/Status LED does not light up when the power switched on.

• Check if the power cord is plugged into the Mains input.
• Check if the mains power supply is providing current.

The Limiter/Status LED lights up red, flashing intermittently.

- The Limiter has actuated; lower the input level if necessary.

The Limiter/Status LED lights up red continuously, but no sound is issuing from the cabinet.

- The enclosure's protective circuit has tripped. Please contact your dealer.

The rendered music sounds distorted.

• Check your mixing console's LED meters. They should not be constantly in the red. If necessary, back off the volume at the mixer.
• If the LED displays on your mixer are in the green, back off the PREMIUM PR:0 active cabinet's Gain knob.
• Observe the Limiter/Status LED on the PREMIUM PR:0 active enclosure's control panel. It may light up red, but only intermittently. The light may not illuminate continuously red. If it does, turn down the Gain knob.

6 Applications

Go to page 42-45 for illustrations of cable connections.

7 Technical Specifications

Model PR:O 110 XD2 PR:O 112 FD2
Max. SPL @ 10% THD 122 dB half space 124 dB half space
Max. SPL peak @ 10% THD	131 dB half space 132 dB half space
Max SPL calculated 133 dB half space 133 dB half space
Frequency response +/- 3 dB	81 Hz - 16 kHz 72 Hz - 16 kHz
Frequency response -10 dB	69 Hz - 18 kHz	62 Hz - 18 kHz
Power amp output (peak power)	1200 W	1200 W
Amp type	Class D - biamped	Class D - biamped
Active protective circuits	Peak and RMS Sound Limiter (separate for HF and LMF)	Peak and RMS Sound Limiter (separate for HF and LMF)
Bass woofer	-	-
Low/Mid speaker	1x 10", 2" voice coil	1x 12", 2" voice coil
HF driver	1", 1" voice coil 1", 1" voice coil
Horn directivity	90° x 55° CD horn	90° x 55° CD horn
Active x-over frequency	2.5 kHz FIR X-Over with 48 dB/oct.	2.5 kHz FIR X-Over with 48 dB/oct.
Audio ports in 1x XLR-1/4"-Combo In bal. 1x XLR-1/4"-Combo In bal.
Audio ports out	1x XLR-Thru bal.	1x XLR-Thru bal.
Sensitivity switch	Mic/Line	Mic/Line
Equalizer	Tone knob (Music/Speech)	Tone knob (Music/Speech)
Filter presets	Flat/Boost	Flat/Boost
Angles up	35°	-
Pole mount	DuoTilt 3°/7°	DuoTilt 3°/7°
Suspension points	3x M8 (AP-8)	-
Grips	1x SingleGrip, 1x MultiGrip	2x MultiGrip
Housing	MDF	MDF
Finish	Acrylic enamel, black	Acrylic enamel, black
Front grille	1.5 mm metal grille backed with black acoustic foam	1.5 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)	34.5 x 49.5 x 29 cm 13-37/64 x 19-31/64 x 11-27/64"	40.5 x 59.5 x 37 cm 15-61/64 x 23-7/16 x 14-37/64"
Weight	14.0 kg / 30.9 lbs 20.2 kg /	44.5 lbs

PR:0 112 XD2 PR:0 115 FD2 PR:0 115 XD2 PR:0 118 SUB D2 PR:0 210 SUB D2
	124 dB half space 125 dB half space 125 dB half space 126 dB half space 123 dB half space
	132 dB half space 130 dB half space 130 dB half space 127 dB half space 126 dB half space
	133 dB half space 133 dB half space 133 dB half space 127 dB half space 126 dB half space
	80 Hz - 16 kHz 60 Hz - 16 kHz 61 Hz - 16 kHz 45 Hz - X-over 60 Hz - 150 Hz
	69 Hz - 18 kHz	54 Hz - 18 kHz	57 Hz - 18 kHz	36 Hz - X-over	40 Hz - 150 Hz
	1200 W	1200 W	1200 W	1200 W	600 W
	Class D - biamped	Class D - biamped	Class D - biamped	Class D	Class D
	Peak and RMS Sound Limiter (separate for HF and LMF)	Peak and RMS Sound Limiter (separate for HF and LMF)	Peak and RMS Sound Limiter (separate for HF and LMF)	Subsonic Filter, Peak Limiter	Subsonic Filter, Peak Limiter
	-	-	-	1x 18", 3" voice coil	2x 10", 2" voice coil
	1x 12", 2" voice coil	1x 15", 2.5" voice coil	1x 15", 2.5" voice coil	-	-
	1", 1" voice coil	1", 1" voice coil	1", 1" voice coil	-	-
	90° x 55° CD horn	90° x 55° CD horn	90° x 55° CD horn	-	-
	2.5 kHz FIR X-Over with 48 dB/oct.	2.5 kHz FIR X-Over with 48 dB/oct.	2.5 kHz FIR X-Over with 48 dB/oct.	75 Hz - 150 Hz, switchable	75 Hz - 150 Hz, switchable
	1x XLR-1/4"-Combo In bal.	1x XLR-1/4"-Combo In bal.	1x XLR-1/4"-Combo In bal.	2x XLR-1/4"-Combo In bal.	2x XLR-1/4"-Combo In bal.
	1x XLR-Thru bal.	1x XLR-Thru bal.	1x XLR-Thru bal.	2x XLR L/R Out Mid/High bal., 2x XLR Thru bal.	2x XLR L/R Out Mid/High bal., 2x XLR Thru bal.
	Mic/Line	Mic/Line	Mic/Line
	Tone knob (Music/Speech)	Tone knob (Music/Speech)	Tone knob (Music/Speech)	-	-
	Flat/Boost	Flat/Boost	Flat/Boost
	33°	-	42°	-	-
	DuoTilt 3°/7°	DuoTilt 3°/7°	DuoTilt 3°/7°	1x M20	2x M20
	3x M8 (AP-8) -	-	-	-
	2x MultiGrip	2x MultiGrip	2x MultiGrip	2x MultiGrip	2x MultiGrip
	MDF	MDF	MDF	MDF	MDF
	Acrylic enamel, black	Acrylic enamel, black	Acrylic enamel, black	Acrylic enamel, black	Acrylic enamel, black
	1.5 mm metal grille backed with black acoustic foam	1.5 mm metal grille backed with black acoustic foam	1.5 mm metal grille backed with black acoustic foam	2 mm metal grille backed with black acoustic foam	2 mm metal grille backed with black acoustic foam
	41 x 59.5 x 31 cm 16-9/64 x 23-7/16 x 12-13/64"	47 x 63 x 43 cm 18-32/64 x 24-51/64 x 16-15/16"	47.5 x 63 x 45.5 cm 18-45/64 x 24-51/64 x 17-29/32"	53 x 62 x 64 cm 20-55/64 x 24-13/32 x 25-13/64"	37 x 62 x 53 cm 14-9/16 x 24-13/32 x 20-55/64"
	17.9 kg / 39.5 lbs	25.7 kg / 56.7 lbs	24.9 kg / 54.9 lbs	39.8 kg / 87.8 lbs	27.2 kg / 60.0 lbs

1 2 7 Music Speech Speech 3 Gain Tone 5 Mlc Line Line Flat BoostFit Green=On Red= Limit/Error + + 6 9 4 Auto Stand-by On Off ThruInput MADE IN GERMANY 220-240 V~ 50-60 Hz 0,4 A @ 1/8 output power Caution: Risk of electric shock! Do not open! Refer servicing to qualified service personnel, 9800455 - D2 10 Caution: To reduce the risk of electric shock, grounding of the center pin of this plug must be maintained.

1 Power

Diagram showing a person standing in rows with a light source pointing toward them, no text or symbols present

Line drawing of a mechanical device with a handle and mounting bracket (no text or symbols)

1 Line Out Mid/High L/R

Line Out Mid/High ① L ① R ② L ② R ③ L ③ R ④ Gain Bass Phase X-Over Bass 75% 150 Hz ⑦ Green-On Red- Limit/Power ⑧ On Off Line Out Mid/High Input Thru Auto Stand-by Mains 100-240 % 50-600 % 1.5-250 % output power Customs to notice the idea of setting work, grounding with the main lithing the main main by MATERIALS.

Line Out Mid/High L R 1 1 PREMIUM PR:0 210 Sub D2 HK AUDIO Input L Thru R 3 3 Gain Bass 4 MADE IN GERMANY X-Over Bass 5 75 Hz 150 Hz 6 Phase 8 Power On- Off 180V + 9 Mains 220-240 V~ 50-60 V~ U & U' & U' & U' & U' Ceiling, I'll know, the line of SCOWING WIRE, according U & U' & U' & U' Tay ahead to be performed.

Power

1 2 3 Gain Tone 5 7 Music Speech Speech 8 Mlc Line Line Flat BoostF Green=On Red= Limit/Error + + Auto Stand-by - On - Off 9 ThruInput MADE IN GERMANY 4 10 Caution: Risk of electric shock! Do not open! Refer servicing to qualified service personnel, 9800455 - D2 220-240 V~ 50-60 Hz 0,4 A @ 1/8 output power Caution: To reduce the risk of electric shock, grounding of the center pin of this plug must be maintained.

1 Power

Diagram showing a person pointing at a target with a pointer and shadow, no text or symbols present

Line drawing of a mechanical device with a handle and mounting bracket (no text or symbols)

1 Line Out Mid/High L/R

Line Out Mid/High 1 L 1 R 7 Power 8 On Power Input 2 L 2 R 4 Gain Bass Phase 6 X-Over Bass 5 75% 130 Hz 130 Hz 10 Auto Stand-by 3 L 3 R HK AUDIO PREMIUM PR:0 118 Sub D2 9 Mains 100-240 Hz- 50-524 Hz- 1.5 Hz/Hz- output power Electronic To notice the idea of structure space, granding of the top line bits of the top line main by grating it.

Line Out Mid/High L R 1 1 PREMIUM PR:0 210 Sub D2 HK AUDIO Input L Thru R 3 3 Gain Bass 4 MADE IN GERMANY X-Over Bass 5 75 Hz 150 Hz 6 Phase 8 Power On- Off 180V Mains 9 220-240 V~ 50-60 V~ 8.5 x 1.5 W/mW/Hz/Hz/Hz/Hz/ Coating by color, the light of 2100 V/Hz, according the 1.5 V/Hz/Hz/Hz/Hz/ Top load in performers.

Power

1 2 7 Music Speech Speech 3 Gain Tone 5 MIC Line Line Flat BoostFit Green=On Red= Limit/Off + + 6 9 4 Auto Stand-by On Off ThruInput MADE IN GERMANY 220-240 V~ 50-60 Hz 0,4 A @ 1/8 output power Caution: Risk of electric shock! Do not open! Refer servicing to qualified service personnel, 9800455 - 02 10 10 Caution: To reduce the risk of electric shock, grounding of the center plug of this plug must be maintained.

1 Power

Diagram showing a person standing in rows with a light source pointing toward it, no text or symbols present

Line drawing of a white industrial machine with a handle and mounting bracket (no text or symbols)

1 Line Out Mid/High L/R

Due ingressi XLR, bilanciati elettronicamente per collegare satelliti PREMIUM PR:0 (pin 1= ground, 2= +, 3= -).

② Input L/R

Line Out Mid/High 1 L 1 R 7 Power 8 On Power Input 2 L 2 R 4 Gain Bass Phase 6 X-Over Bass 5 75% 130 Hz 130 Hz 10 Auto Stand-by 3 L 3 R HK AUDIO PREMIUM PR:0 118 Sub D2 9 Malns 100-240 Hz- 50-520 Hz- 1.5 Hz/Hz- output power Electronic To notice the idea of structure space, granding of the top line bits of the top line main by grating.

Line Out Mid/High L R 1 1 PREMIUM PR:0 210 Sub D2 HK AUDIO Input L Thru 2 2 R 3 3 Gain Bass 4 MADE IN GERMANY X-Over Bass 5 75 Hz 150 Hz 6 Phase 8 Power On- Off 180V Mains 9 220-240 V~ 50-60 V~ 8.5 x 1.5 W/mW/g/Hz/Hz/Hz/ Ceiling in power, the light of 2400V/Hz/Hz/Hz/Hz/ 1.5 V, 2.5 V/Hz/Hz/Hz/Hz/ Top load in bell/Bosses.

9 Mains

1 2 3 Gain Tone 5 Mlc Line Line Flat Green=On Red= Limit/Error + - Auto Stand-by - On Off 7 Music Speech Speech 8 9 ThruInput MADE IN GERMANY 4 10 Caution: Risk of electric shock! Do not open! Refer servicing to qualified service personnel, 9800455 - D2 220-240 V~ 50-60 Hz 0,4 A @ 1/8 output power Caution: To reduce the risk of electric shock, grounding of the center pin of this plug must be maintained.

Diagram showing a person standing in rows with a light source projecting to the right (no text or symbols)

Line drawing of a white industrial cabinet or enclosure with a handle and mounting bracket (no text or symbols)

1 Line Out Mid/High L/R

Line Out Mid/High 1 L 1 R 7 Power 8 On Power Input 2 L 2 R 4 Gain Bass Phase 6 X-Over Bass 5 75 Hz 130 Hz 130 Hz 10 Audio Stand-by 3 L 3 R HK AUDIO PREMIUM PR:0 118 Sub D2 9 Mains 100-240 Hz- 50-500 Hz- 1.5 Hz/Hz- out loud power Electronic To notice the idea of stature source, grounding of the top line light of light plung main by Polarist

Line Out Mid/High L R 1 1 PREMIUM PR:0 210 Sub D2 HK AUDIO Input L Thru R 3 3 Gain Bass 4 MADE IN GERMANY X-Over Bass 5 75 Hz 150 Hz 6 Phase 8 Power On- Off 180V Mains 9 320-240 V~ 50-400 V~ 8.5 V~ 100 V~ Coulching in power, driving of 2400 Vatts, including W. M. C. 150 V~ High speed in batteries.

Mono Fullrange/Monitor System

Mic Fl Gain Tone Music Stretch Speech Mie Line Line Fast Reset-Flat Green=On Red- Unit/Error Auto Stand-by On Off ThrulInput MADE IN GERMANY

Stereo Fullrange System

Line Boost Line Boost Line Gain Tone Music Speech Mie Lino Green-On Real- Auto Stand-by On One ThruInput Made in Germany Made in Germany Gain Tone Music Speech Mie Lino Green-On Real- Auto Stand-by On One ThruInput Made in Germany Left Right

2.1 System
    subgraph_Line_F["Line F"]
        A1["Gain Tone"] --> A2["Mic Line"]
        A2 --> A3["Line"]
        A3 --> A4["Fat"]
        A4 --> A5["BoostFlut"]
        A5 --> A6["GreenOn Red-Ilimit/Y/mirror"]
        A6 --> A7["Auto Stand-by On Off"]
        A7 --> A8["ThrulInput"]
        A8 --> A9["Made in Germany"]
    end

    subgraph_Line_B["Line B"]
        B1["Gain Tone"] --> B2["Mit Line"]
        B2 --> B3["Line"]
        B3 --> B4["Fat"]
        B4 --> B5["BoostFlut"]
        B5 --> B6["GreenOn Red-Ilimit/Y/mirror"]
        B6 --> B7["Auto Stand-by On Off"]
        B7 --> B8["ThrulInput"]
        B8 --> B9["Made in Germany"]
    end

    subgraph_Line_R["Line R"]
        R1["Line Out Mid/High"] --> R2["L"]
        R2 --> R3["R"]
        R3 --> R4["Input"]
        R4 --> R5["L"]
        R5 --> R6["Thru"]
        R6 --> R7["R"]
        R7 --> R8["Left Right"]
    end

Halfstack System + Monitoring

Fullstack System

• Application Samples

PREMIUM PR:0

D2 models

HK Audio® • Postfach 1509 • 66595 St. Wendel • Germany • [e-mail] • www.hkaudio.com

International Inquiries: fax [phone] • [e-mail]
