Premium PR:O 15 X - Speaker HK AUDIO - Free user manual and instructions

Product Type	Passive PA Speaker
Woofer Size	15 inches (381 mm)
Power Handling (RMS)	400 W
Power Handling (Peak)	800 W
Impedance	8 Ω
Frequency Response	50 Hz - 20 kHz (-10 dB)
Sensitivity (1W/1m)	97 dB
Maximum SPL	123 dB (peak)
Construction	15 mm plywood, black textured paint
Grille	Steel grille with black acoustically transparent foam
Handles	2 side handles
Pole Mount	35 mm socket (top)
Input Connectors	2 x Neutrik speakON NL4MP (parallel)
Dimensions (W x H x D)	430 x 700 x 420 mm (16.9 x 27.6 x 16.5 in)
Weight	23 kg (50.7 lbs)
Power Supply	None (passive, requires external amplifier)
Recommended Amplifier Power	600 - 800 W at 8 Ω
Cleaning	Wipe with a dry cloth; do not use solvents
Safety Features	Rubber feet, recessed handles
Spare Parts Availability	Contact HK Audio support for replacement drivers or grilles
Repairability	Modular design; drivers and crossover accessible from rear

Frequently Asked Questions - Premium PR:O 15 X HK AUDIO

What is the power handling of the HK Audio Premium PR:O 15 X?

The speaker has an RMS power handling of 400 W and a peak of 800 W at 8 Ω. Use an amplifier delivering 600-800 W for optimal performance.

Is the Premium PR:O 15 X an active or passive speaker?

It is a passive speaker. It requires an external amplifier with speakON connectors to operate.

What is the impedance of the PR:O 15 X?

The impedance is 8 Ω. Ensure your amplifier is rated for 8 Ω loads.

How do I connect the speaker to an amplifier?

Use Neutrik speakON NL4MP cables. Connect the amplifier output to one of the two parallel input connectors. The second can be used to daisy-chain another speaker.

Can I mount the PR:O 15 X on a stand?

Yes, it has a 35 mm pole mount socket on the top. Use a speaker stand with a M20 thread and tighten properly.

What are the dimensions and weight of the speaker?

Dimensions are 430 x 700 x 420 mm (W x H x D) and it weighs 23 kg. Two side handles facilitate carrying.

What is the frequency response of the PR:O 15 X?

The frequency response is 50 Hz to 20 kHz (-10 dB). It can reproduce deep bass and clear highs with its 15-inch woofer and high-frequency driver.

How should I clean the speaker?

Wipe the enclosure with a dry, soft cloth. Avoid using solvents or water. For the grille, vacuum with a soft brush attachment to remove dust.

Are spare parts available for the PR:O 15 X?

Yes, contact HK Audio or authorized dealers for replacement woofers, high-frequency drivers, crossovers, and grilles. The speaker is designed to be serviceable.

What is the maximum SPL of this speaker?

The maximum peak SPL is 123 dB at 1 meter, making it suitable for medium-sized venues and live events.

USER MANUAL Premium PR:O 15 X HK AUDIO

PREMIUM PR:0

Passive models

PR:0 8 • PR:0 10 X • PR:0 12 • PR:0 12 M • PR:0 15

PR:0 15 X • PR:0 18 S • PR:0 210 S

Manual 2.0

Important Safety Instructions! Read before connecting!

This product has been built by the manufacturer in accordance with IEC 62368-1 and left the factory in safe working order. To maintain this condition and ensure non-risk operation, the user must follow the advice and warning comments found in the operating instructions. If this product shall be used in vehicles, ships or aircraft or at altitudes exceeding 2000 m above sea level, take care of the relevant safety regulations which may exceed the IEC 62368-1 requirements.

WARNING: To prevent the risk of fire and shock hazard, do not expose this appliance to moisture or rain. Do not open case – no user serviceable parts inside. Refer service to qualified service personnel.

This symbol, wherever it appears, alerts you to the presence of regulated dangerous voltage inside the enclosure – voltage that sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to the presence normally accessible hazardous voltage. External wiring connected terminal marked with this symbol must be a "ready made complying with the manufacturers recommendations, or must being installed by instructed persons only.

This symbol, wherever it appears, alerts you to important and maintenance instructions in the accompanying e. Read the manual.

This symbol, wherever it appears, tells you: Take care! Hot To prevent burns you must not touch.

All electrical and electronic products including batteries

should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

Read these instructions. Keep these instructions. Follow all gs and instructions marked on the product and in this manual.

• Do not use this product near water. Do not place the product near water, baths, wash basins, kitchen sinks, wet areas, swimming pools or damp rooms.
• Do not place objects containing liquid on the product – vases, glasses, bottles etc.
• Clean only with dry cloth.
• Do not remove any covers or sections of the housing.
• The set operating voltage of the product must match the local mains supply voltage. If you are not sure of the type of power available consult your dealer or local power company.
• Before connecting the device, please ensure that the mains supply you are using is equipped with adequate protection against short circuiting and grounding faults when the device is plugged in.
• To reduce the risk of electrical shock, the grounding of this product must be maintained. Use only the power supply cord provided with this product, and maintain the function of the center (grounding) pin of the mains connection at any time. Make sure the mains outlet used provides a proper protective ground connection.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the device! Power supply cords should always be handled carefully. Periodically check cords for cuts or sign of stress, especially at the plug and the point where the cord exits the device.
• Never use a damaged power cord.
• Unplug this product during lightning storms or when unused for long periods of time.
• This product can be fully disconnected from mains only by pulling the mains plug at the unit or the wall socket. The product must be placed in such a way at any time, that disconnecting from mains is easily possible.

• Fuses are to be replaced exclusively by qualified personnel, and then only with fuses of the proper type and rating.

• Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as:

• When the power cord or plug is damaged or frayed.
  If liquid has been spilled or objects have fallen into the product.
• If the product has been exposed to rain or moisture.
• If the product does not operate normally when the operating instructions are followed.
• If the product has been dropped or the cabinet has been damaged.

- Do not connect external speakers to this product with an impedance lower than the rated impedance given on the product or in this manual. Use only cables with sufficient cross section according to the local safety regulations.

- Keep away from direct sunlight.

- Do not install near heat sources such as radiators, heat registers, stoves or other devices that produce heat.

- This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.

- Do not block any ventilation openings. Install in accordance with manufacturer's instructions. This product must not be placed in a built-in installation such as a rack unless proper ventilation is provided.

- Always allow a cold device to warm up to ambient temperature, when being moved into a room. Condensation can form inside it and damage the product, when being used without warming up.

- Do not place naked flame sources, such as lighted candles on the product.

• The device must be positioned at least 20 cm/8" away from walls.
• Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the product. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.
• Use only accessories recommended by the manufacturer, this applies for all kind of accessories, for example protective covers, transport bags, stands, wall or ceiling mounting equipment. In case of attaching any kind of accessories to the product, always follow the instructions for use, provided by the manufacturer. Never use fixing points on the product other than specified by the manufacturer.
• This appliance is NOT suitable to be used by any person or persons (including children) with limited physical, sensorical or mental ability, or by persons with insufficient experience and/or knowledge to operate such an appliance. Children under 4 years of age must be kept away from this appliance at all times.
• Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock.
• This product is capable of delivering sound pressure levels in excess of 90 dB, which may cause permanent hearing damage! Exposure to extremely high noise levels may cause a permanent hearing loss. Wear hearing protection if continuously exposed to such high levels.
• The manufacturer only guarantees the safety, reliability and efficiency of this product if:
• Assembly, extension, re-adjustment, modifications or repairs are carried out by the manufacturer or by persons authorized to do so.
• The electrical installation of the relevant area complies with the requirements of IEC (ANSI) specifications.
• The unit is used in accordance with the operating instructions.
• This product is optimized for use with music and speech signals. Using this product with sine wave, square wave or other kind of measuring signals at higher level may lead to severe damage of the product.

General Notes on Safety for Loudspeaker Systems

Mounting systems may only be used for those loudspeaker

systems authorized by the manufacturer and only with the mounting accessories specified by the manufacturer in the installation instructions. Read and heed the manufacturer's installation instructions. The indicated load-bearing capacity cannot be guaranteed and the manufacturer will not be liable for damages in the event of improper installation or the use of unauthorized mounting accessories.

The system's load-bearing capacity cannot be guaranteed and the manufacturer will not be liable for damages in the event that loudspeakers, mounting accessories, and connecting and attaching components are modified in any way.

Components affecting safety may only be repaired by the manufacturer or authorized agents, otherwise the operating permit will be voided.

Installation may be performed qualified personnel only, and then only at pick-points with sufficient load-carrying capacity and in compliance with local building regulations. Use only the mounting hardware specified by the manufacturer in the installation instructions (screws, anchors, etc.). Take all the precautions necessary to ensure bolted connections and other threaded locking devices will not loosen.

Fixed and portable installations (in this case, speakers mounting accessories) must be secured by two independent risks to prevent them from falling. Safeties must be able to accessories or parts that are loose or may become loose. Compliance with the given national regulations when using tinging, attaching, and rigging devices. Factor potential dynamic (jerk) into the equation when determining the proper size and bearing capacity of safeties.

Be sure to observe speaker stands' maximum load-bearing carry. Note that for reasons of design and construction, most or stands are approved to bear centric loads only; that is, the users' mass has to be precisely centered and balanced. Ensure for stands are set up stably and securely. Take appropriate added reserves to secure speaker stands, for example when:

- the floor or ground surface does not provide a stable, secure base. - they are extended to heights that impede stability. - high wind pressure may be expected.

- there is the risk that they may be knocked over by people. Special measures may become necessary as precautions against unsafe audience behavior. Do not set up speaker stands in evacuation routes and emergency exits. Ensure corridors are wide enough and put proper barriers and markings in place when setting speaker stands up in passageways. Mounting and dismounting are especially hazardous tasks. Use aids suitable for this purpose. Observe the given national regulations when doing so.

Wear proper protection (in particular, a helmet, gloves, and safety shoes) and use only suitable means of ascent (ladders, scaffolds, etc.) during installation. Compliance with this requirement is the sole responsibility of the company performing the installation.

WARNING! After installation, inspect the system comprised mounting fixtures and loudspeakers to ensure it is properly

The operator of loudspeaker systems (fixed or portable) must regularly inspect or task a third party to regularly inspect all system components in accordance with the given country's regulations and have possible defects repaired immediately.

We also strongly recommend maintaining a logbook or the like to document all inspections.

Also be sure to provide sufficient safety margins for the rigging points used for flown systems. Observe the given national regulations when doing so.

Professional loudspeaker systems can produce harmful levels. Even prolonged exposure to seemingly harmless levels (e.g. at about 95 dBA SPL) can cause permanent hearing damage. More we recommend that everyone who is exposed to high levels produced by loudspeaker systems wears professional protection (earplugs or earmuffs).

Manufacturer: Stamer Musikanlagen GmbH, Magdeburger Str. 8, 66606 St. Wendel, Germany

PREMIUM PR:0 Passive models

Welcome to the HK Audio family!

Thank you for choosing a brand-name product made by our company. Rest assured, we engineered and built it with the greatest care so it will serve you well for many tomorrows to come.

Even if your experience with sound systems runs deep, some things about this product are sure to be new to you. This is why we ask that you do not set this manual aside without reading it first. Be sure to keep it in a safe place for later reference.

Here's wishing you the best sound at every occasion!

Your HK Audio team

Warranty

Use the convenient online registration option at www.hkaudio.com.

http://warranty.hkaudio.com

The registration is only valid if the device is registered within 30 days of the date of purchase.

HK Audio

Technischer Service

Postfach 1509

66595 St. Wendel, Germany

Fax: [phone]

1 Aligning Cabinets with DuoTilt™

The novel integrated DuoTilt™ pole mount allows sound energy to be utilized far more efficiently. With two angles of tilt to choose from, 3° and 7°, the enclosure can be aimed directly at the audience. The cabinet is stabilized at its center of gravity - no wobbling, unwanted tilting, or unintentional turning.

Your choice of DuoTilt ¹⁹ angle - 3° or 7° - depends on the required speaker height and the size of the room. If you set mid/high units on fully extended tripods or mounting poles, select 7° to minimize ceiling reflections.

If you want to address an audience where more listeners are farther away from the speakers, use the HK Audio DuoTilt™ at the 3° angle.

Mono Tilt 3 ^™ (PR:O 8) offers one angle of tilt.

2 Connecting Components and Speakers

Speaker cords with a diameter of 2x2.5 sq. mm are recommended for connecting cabinets, power amps or powered mixing consoles.

Recommended Amplifier Power Output

Connect amps rated from 600 W @ 4 ohms RMS to 800 W RMS @ 4ohms per amp channel to power the PREMIUM PR:O cabinets. To have enough headroom available for dynamic musical signals, the power amp should deliver peak performance of at least 1,200 W @ 4 ohms per channel.

Note: An electrical connection between the cord and input jack is not established until the Speakon connector locks into place. Twist the Speakon connector clock wise until it engages.

2.1 PR:0 8 / 10 X / 12 / 15 / 15 X in Fullrange Mode

Connect the speaker output from the powered mixer or power amp to the input (IN) of the PR:O 8, PR:O 10 X, PR:O 12, PR:O 15 and PR:O 15 X fullrange speaker cabinet.

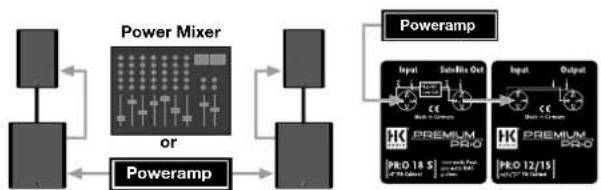

2.2 PR:0 8 / 10 X / 12 / 15 / 15 X in Satellite Mode with the PR:0 18 S or the PR:0 210 S

First connect the speaker output of the powered mixer or power amp to the subwoofer's input, and then connect the subwoofer's SATELLITE OUT to the PR:0 8, PR:0 10 X, PR:0 12, PR:0 15 and PR:0 15 X full-range cabinet's input (IN).

Note: The nominal impedance of systems consisting of a combination of PR:0 18/210 S and PR:0 8, PR:0 10 X, PR:0 12, PR:0 15 and PR:0 15 X cabinets is 4 ohms!

2.3 PR:0 10 X, PR:0 12 M and PR:0 15 X

Connect the monitor power amp's speaker output to the PR:0 10 X, PR:0 12 M und PR:0 15 X monitor's input (IN). Depending on the type of power amp or powered mixer that you are using, several PR:0 10 X, PR:0 12 M und PR:0 15 X monitors can be connected in parallel to one power amp channel.

Note:

• When two PR:0 10 X, PR:0 12 M and PR:0 15 X monitors are -connected in parallel, overall impedance is 4 ohms.
• When three PR:0 10 X, PR:0 12 M and PR:0 15 X monitors are connected in parallel, overall impedance is 2.7 ohms.
• When four PR:0 10 X, PR:0 12 M and PR:0 15 X monitors are connected in parallel, overall impedance is 2 ohms.

Caution: Do not allow the overall nominal impedance of the connected monitors to fall below the power amp channel's minimum impedance! If it does, you risk destroying the power amp!

4 Technical Specifications

Model PR:O 8 PR:O 10 X PR:O 12 PR:O 12 M PR:O 15 PR:O 15 X PR:O 210 S PR:O 18 S
Frequency response +/- 3 dB	89 Hz - 19 kHz	95 Hz - 19 kHz	68 Hz - 19 kHz	70 Hz - 19 kHz	60 Hz - 19 kHz	60 Hz - 19 kHz	60 Hz - 150 Hz	48 Hz - 150 Hz
Frequency response -10 dB	63 Hz - 19 kHz	80 Hz - 19 kHz	60 Hz - 19 kHz	63 Hz - 19 kHz	53 Hz - 19 kHz	53 Hz - 19 kHz	40 Hz - 150 Hz	38 Hz - 150 Hz
Max SPL @ 10% THD*	122 dB	126 dB	128 dB	128 dB	128 dB	128 dB	126 dB	129 dB
Axial sensitivity 1W @ 1m*	97 dB	99 dB	104 dB	104 dB	104 dB	104 dB	101 dB	104 dB
Power handling, peak	1200 W	1200 W	1200 W	1200 W	1200 W	1200 W	1500 W	1,500 W
Power handling, program	600 W	600 W	800 W	800 W	800 W	800 W	1,000 W	1,000 W
Power handling, nom. (RMS)	300 W	300 W	400 W	400 W	400 W	400 W	500 W	500 W
Speaker	1x 8"	1x 10"	1x 12"	1x 12"	1x 15"	1x 15"	2x 10"	18"
HF driver	1"	1"	1"	1"	1"	1"	-	-
Impedance	8 ohms	8 ohms	8 ohms	8 ohms	8 ohms	8 ohms	4 ohms	4 ohms
HF protection (passive)	Dyn. protective circuit	Dyn. protective circuit	Dyn. protective circuit	Dyn. protective circuit	Dyn. protective circuit	Dyn. protective circuit	-	-
Horn dispersion	80° x 80° CD horn	90° x 60° CD horn	60° x 40° CD horn	60° x 40° CD horn	60° x 40° CD horn	60° x 40° CD horn	-	-
X-over frequency	2.5 kHz, 12 dB/oct.	2.2 kHz, 12 dB/oct.	2 kHz, 12 dB/oct.	2 kHz, 12 dB/oct.	2 kHz, 12 dB/oct.	2 kHz, 12 dB/oct.	150 Hz, 12 dB/oct.	150 Hz, 12 dB/oct.
Connectors	2x Speakon NL4	2x Speakon NL4	2x Speakon NL4	2x Speakon NL4	2x Speakon NL4	2x Speakon NL4	2x Speakon NL4	2x Speakon NL4
Angles up	-	30°	-	30°	-	45°
Pole mount	MonoTilt 3°	DuoTilt 3°/7°	DuoTilt 3°/7°	-	DuoTilt 3°/7°	DuoTilt 3°/7°	2x M20	1x M20
Rigging/ pick points	3x M8	3x M8	3x M8	-	3x M8	3x M8	-	-
Casters	-	-	-	-	-	-	-	Optional 100 mm
Dimensions (W x H x D)	27 x 42 x 27.5 cm	32 x 48.5 x 30 cm	41 x 58 x 37 cm	39 x 56 x 38 cm	47.5 x 62 x 41.5 cm	47.5 x 62 x 45 cm	36 x 61 x 53 cm	53 x 61 x 64 cm
Weight	10 kg / 22.1 lbs	12.9 kg / 28.4 lbs	18.5 kg / 40.8 lbs	16.5 kg / 36.4 lbs	22.5 kg / 50.8 lbs	22 kg / 48.5 lbs	26 kg / 57.3 lbs	40 kg / 88.2 lbs

Recommended power output: Use amps that deliver between 600 and 800 watts RMS per channel @ 4 ohms to drive PREMIUM PR:O enclosures. Ensure the amp's peak power output is at least 1,200 watts per channel @ 4 ohms to leave enough headroom for dynamic musical signals.

*) All measurements taken under half-space conditions. **) Active x-over frequency at 24 dB/ octave

PREMIUM PR:0 Passive models

PREMIUM PR:0 Passive models

Recommended power output: Use amps that deliver between 600 and 800 watts RMS per channel @ 4 ohms to drive PREMIUM PR:O enclosures. Ensure the amp's peak power output is at least 1,200 watts per channel @ 4 ohms to leave enough headroom for dynamic musical signals.

PREMIUM PR:0 Passive models

Recommended power output: Use amps that deliver between 600 and 800 watts RMS per channel @ 4 ohms to drive PREMIUM PR:O enclosures. Ensure the amp's peak power output is at least 1,200 watts per channel @ 4 ohms to leave enough headroom for dynamic musical signals.

PREMIUM PR:0

Passive models

HK Audio ^® • Postfach 1509 • 66595 St. Wendel • Germany • [e-mail] • www.hkaudio.com

International Inquiries: fax [phone] • [e-mail]
