USER MANUAL Solido VP8072 Concept

ACKNOWLEDGEMENT Thank you for purchasing a Concept product. We hope you will be satised with our product throughout its service life. Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure that any persons handling the vacuum cleaner are also familiar with this Operating Manual.

IMPORTANT SAFETY PRECAUTIONS

• Do not use this appliance in a way that is dierent from the instructions this manual.

• Remove all packaging and marketing materials from the appliance before you use it for the rst time.

• Make sure that the connecting voltage corresponds to the values on the appliance type label.

• Do not leave the appliance unattended when turned on or plugged into the electrical socket.

• Disconnect the appliance from the electrical socket when you are not using it.

• Never pull the supply cable when disconnecting the appliance from the electrical socket; pull the plug instead.

• Do not allow children or irresponsible people to handle the appliance. Use the appliance out of the reach of these people.

• Handicapped people, people with impaired faculties or mental capabilities or people unfamiliar with the appliance operation are only allowed to use it when supervised by responsible, knowledgeable people.

• Be especially careful when there are children near the appliance.

• Do not allow the appliance to be used as a toy.

• Do not use the appliance outdoors or on wet surfaces as there is a threat of electric shock in these places.

• Do not use any other accessories except those recommended by the manufacturer.

• Never use the appliance if the supply cable or plug has been damaged; have the defect repaired immediately by an authorised service centre.

• Never run over the supply cable with the oor attachment or the appliance itself.

• Provided the rotary brush is used, it may be dangerous to run the appliance over the supply cable.

• Never pull the supply power cord or use it to carry the appliance.

• Keep the appliance away from any sources of heat, such as radiators, ovens, etc. Do not expose the appliance to direct sunlight or moisture.

• Do not touch the appliance with damp or wet hands.

• Do not insert any items into the openings. Do not use the appliance if any of these openings is obstructed.

• Unplugging the appliance from the wall socket, rst turn o the main switch, then pull the plug out of the electric voltage socket.

• If the appliance‘s suction inlet becomes obstructed, turn the appliance o and remove any obstructing dirt before turning the appliance on again.

• Hold the supply cable while winding it in order to avoid uncontrolled movement.

• Before xing any accessories, cleaning, or in the case of a defect turn o the appliance and pull the plug out of the electrical socket.

• Unwind the necessary length of power supply cord before using the appliance. The ideal length of the power supply cord is marked by a yellow dot on the cord. Do not unwind the power supply cord past the red mark.

• The appliance is intended for household use only (not for commercial use).

• Do not vacuum any burning items such as cigarettes, matches, or hot ash.

• Do not use the appliance in wet rooms; do not vacuum any wet items or liquids, ammable liquids (such as petrol) and do not use the appliance in places where these substances may be present.

• Never vacuum without using the dust collection bag or the appliance‘s lters. Before each using the appliance, make sure the dust collection bag and the appliance‘s lters are properly installed.

• Do not immerse the supply cable, the plug, or the appliance itself into water or any other liquid.

• Check the appliance and the supply cable regularly for any damage. Never turn the appliance on if it is damaged.

• Prior to cleaning and after using the appliance, turn it o , disconnect it from the electric voltage outlet and let it cool.

• Before using the appliance, remove any large or sharp items from the surface you want to vacuum as these items may damage the dust collection bag or the appliance‘s lters.

• Do not use the appliance if the lters are dirty.

• Never repair the appliance by yourself. Instead, contact an authorised service centre for repair.

• This appliance may be used by children 8 years of age and older and by persons with physical or mental impairments or by inexperienced persons if they are properly supervised or have been informed about how to use of the product in a safe manner and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age. Failure to follow the manufacturer‘s instructions may invalidate the warranty. VP 807xEN

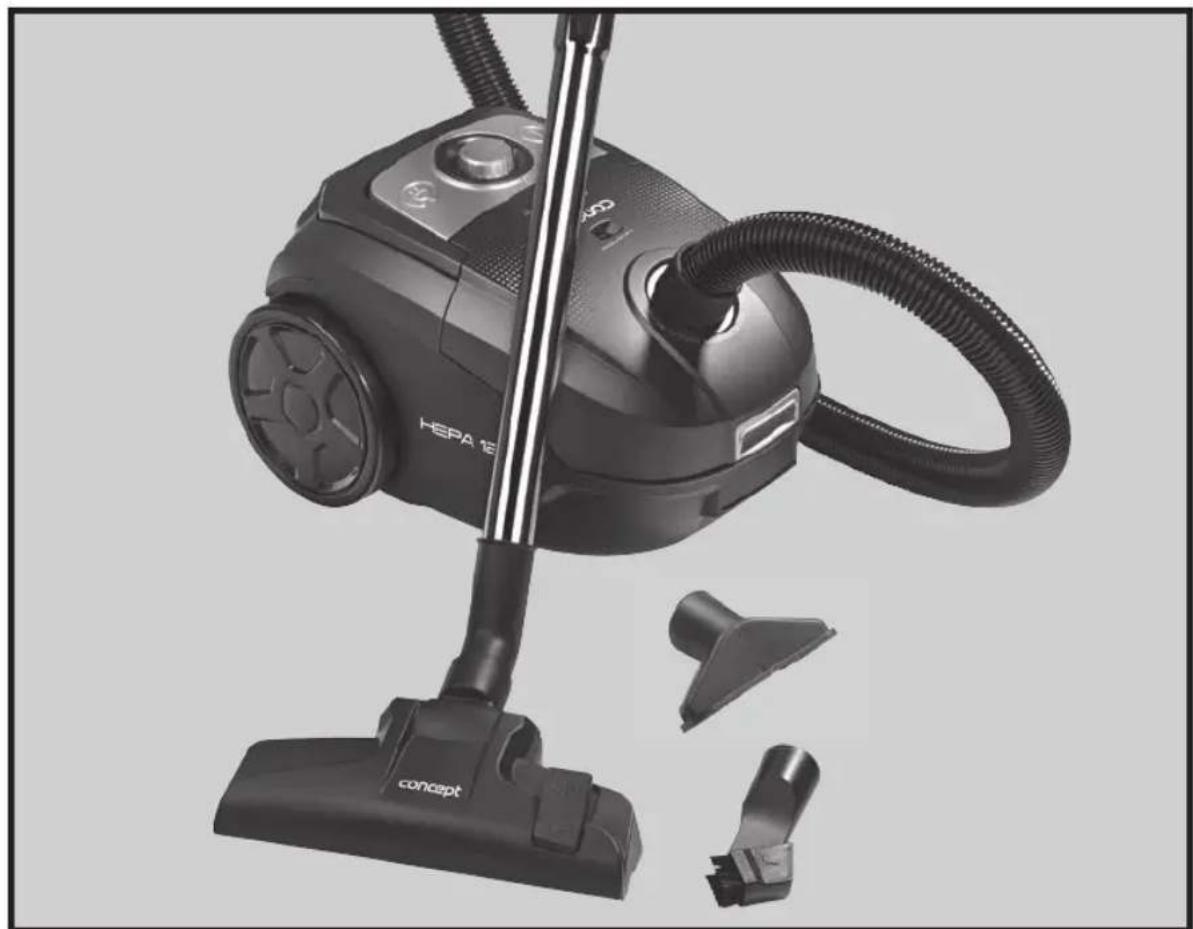

PRODUCT DESCRIPTION 1 Hose holder 2 Telescopic tube 3 Air discharge lter HEPA 4 Floor attachment 5 Flexible hose 6 Power cord winding button 7 Dust collection bag ll indicator 8 ON/OFF button 9 Carrying handle 10 Front cowl clap 11 Rubber-coated wheels ACCESSORIES A Slotted nozzle B Nozzle for upholstery

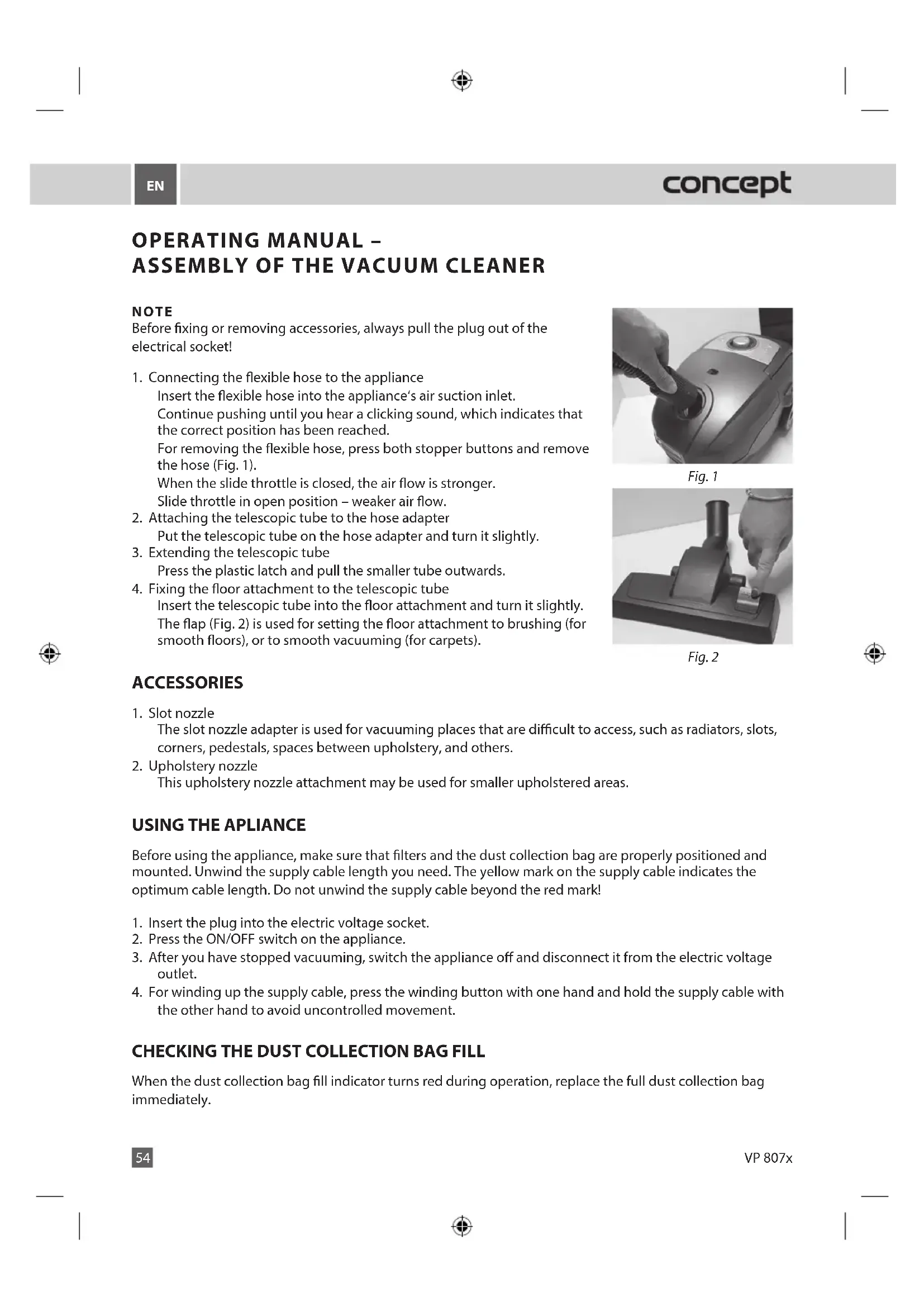

NOTE Before xing or removing accessories, always pull the plug out of the electrical socket!

1. Connecting the exible hose to the appliance

Insert the exible hose into the appliance‘s air suction inlet. Continue pushing until you hear a clicking sound, which indicates that the correct position has been reached. For removing the exible hose, press both stopper buttons and remove the hose (Fig. 1). When the slide throttle is closed, the air ow is stronger. Slide throttle in open position – weaker air ow.

2. Attaching the telescopic tube to the hose adapter

Put the telescopic tube on the hose adapter and turn it slightly.

3. Extending the telescopic tube

Press the plastic latch and pull the smaller tube outwards.

4. Fixing the oor attachment to the telescopic tube

Insert the telescopic tube into the oor attachment and turn it slightly. The ap (Fig. 2) is used for setting the oor attachment to brushing (for smooth oors), or to smooth vacuuming (for carpets). ACCESSORIES

The slot nozzle adapter is used for vacuuming places that are dicult to access, such as radiators, slots, corners, pedestals, spaces between upholstery, and others.

2. Upholstery nozzle

This upholstery nozzle attachment may be used for smaller upholstered areas.

Before using the appliance, make sure that lters and the dust collection bag are properly positioned and mounted. Unwind the supply cable length you need. The yellow mark on the supply cable indicates the optimum cable length. Do not unwind the supply cable beyond the red mark!

1. Insert the plug into the electric voltage socket.

2. Press the ON/OFF switch on the appliance.

3. After you have stopped vacuuming, switch the appliance o and disconnect it from the electric voltage

4. For winding up the supply cable, press the winding button with one hand and hold the supply cable with

the other hand to avoid uncontrolled movement.

CHECKING THE DUST COLLECTION BAG FILL

When the dust collection bag ll indicator turns red during operation, replace the full dust collection bag immediately. Fig. 1 Fig. 2 VP 807xEN

If the dust collection bag ll indicator is still red after the bag has been replaced, this may be due to several causes: - some of the air passages (hoses, telescopic tube, suction inlet, brush adapter, or other adapters) are obstructed; - the motor lter is dirty; - the air outlet lter is dirty. Check for each of the possible causes above and eliminate the problem before you start vacuuming. If the cause of the problem cannot be identied, hand over the product to the nearest service centre. Never use the vacuum cleaner if the bag level indicator is completely red during operation. The motor could be damaged irreparably

CLEANING AND MAINTENANCE

You may clean the accessories and the appliance with a wet cloth. Never immerse the appliance in water! Do not use any aggressive substances for cleaning, such as solvents or abrasives!

REPLACING THE DUST COLLECTION BAG

1. Unplug the product from the mains. Disconnect the hose from the suction inlet and open the appliance

retention bag (Fig. 3). Dispose of a paper or SMS dust collection bag. Be careful not to tear the bag when handling. If the bag is made of fabric, empty it and close it carefully – it can be used repeatedly.

3. Insert a new or empty dust retention bag by tting the plate in the bag

holder. The bag opening must be aligned with the hose hole in the ap- pliance cover.

4. Never use the vacuum cleaner without the dust bag installed! If you

forget to insert the dust retention bag or you insert it incorrectly, the appliance‘s motor may become damaged.

5. Close the cover. Press until you hear a click.

• The lters should be cleaned or replaced when they are visibly dirty, or if the appliance‘s suction power is reduced. Always check the lters after using the appliance.

• In order to avoid damage to the appliance, do not use it with incorrectly installed lters.

• Before replacing the lters, disconnect the appliance from the electrical socket.

• You can buy suitable types of lters from your dealer, or you can order them from the manufacturer. CLEANING AND REPLACEMENT OF THE MOTOR FILTER

1. Disconnect the exible hose and open the appliance cover.

2. Pull the dust collection bag out of its holder so that you can access the

motor lter more easily. Fig. 3 Fig 4 Fig 5 VP 807xEN

3. Remove the motor lter (Fig. 4). You can clean the lter by tapping it. If the lter is heavily soiled, you may

wash it in lukewarm water and let it dry properly.

4. Insert the cleaned or new motor lter into the appliance and close the cover.

CLEANING AND REPLACING THE AIR OUTLET FILTER

1. Open the air outlet grid in the appliance‘s rear section (Fig. 5).

2. Remove the air outlet lter. You can clean this lter by tapping it, then brushing it with a soft brush. After

this operation is complete, you may clean a very dirty lter by washing and brushing with a soft brush in lukewarm water with no cleaning agents added. It is important to let the wet parts dry thoroughly. A wet lter will be damaged by vacuuming! Do not use a hair dryer to dry it! Note: Wet cleaning may cause more wear and tear of the lter and, consequently, may shorten its service life.

3. Insert the cleaned or new air outlet lter into the appliance and close the air outlet grid.

TROUBLESHOOTING Problem Cause Solution Motor does not run. Plug inserted into the mains outlet incorrectly or insuciently. Check the plug connection. The mains outlet is not live. Check for voltage, e.g. by connecting another appliance. Motor has stopped operating. Improper or insucient air ow. Motor overheating fuse activated. Disconnect the cable from the socket. Check and release the air suction and discharge holes; check the lter’s cleanliness and/or replace the dust bag. Let the vacuum cleaner cool down. Front cover cannot be closed Dust bag inserted incorrectly. Check the dust lter installation. Reduced suction power Dust bag full or clogged. Replace the dust bag. Obstructed lter. Clean or replace the lter. Clogged nozzle, tube, or hose. Check and clear the air passage on the suction and discharge sides. Vacuum cleaner heats up Slight heating of the vacuum cleaner is normal and cannot be considered a failure. OPTIONAL ACCESSORIES The following appliance accessories can be purchased additionally: Dust bags (5 units + 2 units of motor lters) Order code SMS9000 Price according to the valid price list VP 807xThis product meets all the basic EU regulation requirements that relate to it. Changes to the text, design and technical speci cations may occur without prior notice and we reserve the right to make these changes.

SERVICE Any larger maintenance or repairs requiring intervention into the internal parts of the product shall only be performed by an authorized service ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.

• The transport box may be disposed of as sorted waste.

• Polyethylene bags shall be handed over for recycling. Appliance recycling at the end of its service life: A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative eects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product. VP 807xDE

WARRANTY TERMS Warranty The manufacturer (or importer) is responsible for en- suring the product complies with the requirements of applicable legal regulations as well as those of the rel- evant technical standards. Moreover, they are respon- sible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and fur- ther they are responsible for ensuring the product is t for the purpose proposed by the manufacturer or that a product of the same type is normally used for. The quality warranty term is 24 months from product takeover by the customer. The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer. The warranty specically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,

• to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,

• to malfunctions caused by an inexpert third-party intervention,

• to malfunctions caused by natural disaster,

• to malfunctions caused by insucient or inappro- priate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,

• to changes in colour of the heating surface or to scratching of the surface caused as a result of us- ing the products in an unusual manner,

• to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,

• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc. The warranty does not apply to any products and ser- vices provided along with the product (gifts, promo- tional articles, etc.). Filing a complaint A complaint against a product defect must be led as soon as identied, yet no later than before the end of the warranty term. The customer must le a product complaint with the dealer from which they have purchased the pro- duct, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com. While ling a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person. The customer must submit proof of having conclud- ed a purchase contract for the product by producing the receipt. While ling their complaint, the customer must indi- cate the noted defect and identify the preferred com- plaint application method. Complaints processing As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis. Where such a procedure is not reasonable with re- gard to the nature of the defect, the user may require to be supplied a new defect-free product (replace- ment), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge. VP 807x
