USER MANUAL UC30 Duronic

Creative Consumer Products

MAX — ON/OFF

UC30

Ultrasonic Cleaner

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Contents

English Manual 3

Features and Specifications

Dimensions	Water Tank Capacity	Power	Ultrasonic Frequency	Timer
20.8x9.3x6.4cm8.2x3.7x2.5in	300ml 18W	53KHz 3 mins

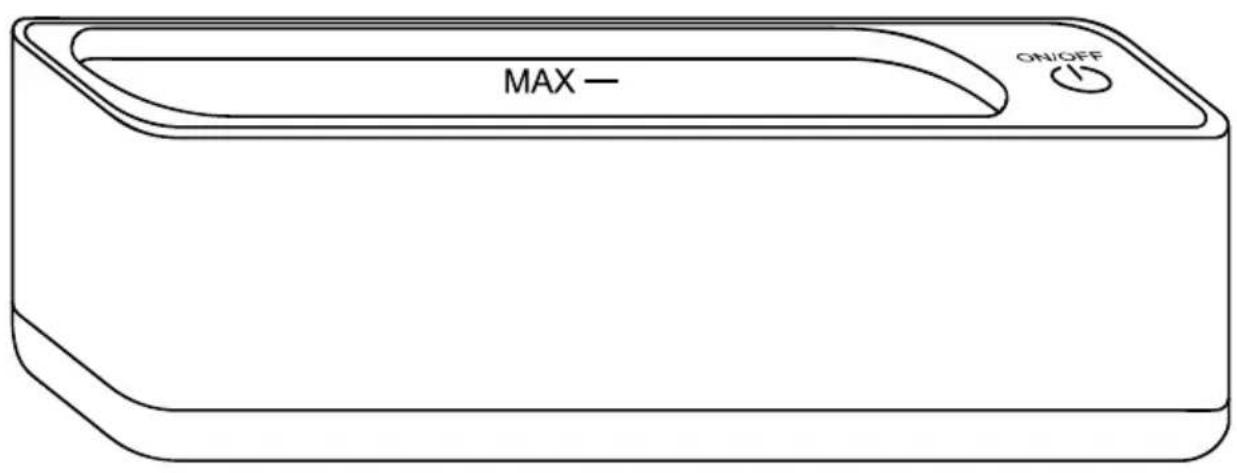

Components

1 2 3 MAX - ON/OFF 4 5 6 7 8

1. Lid
2. Stainless Steel Basin
3. Max Line

4. On/Off Button

5. Power Input

6. Silicone Tab
7. Power Adaptor
8. Mesh Container

DURONIC

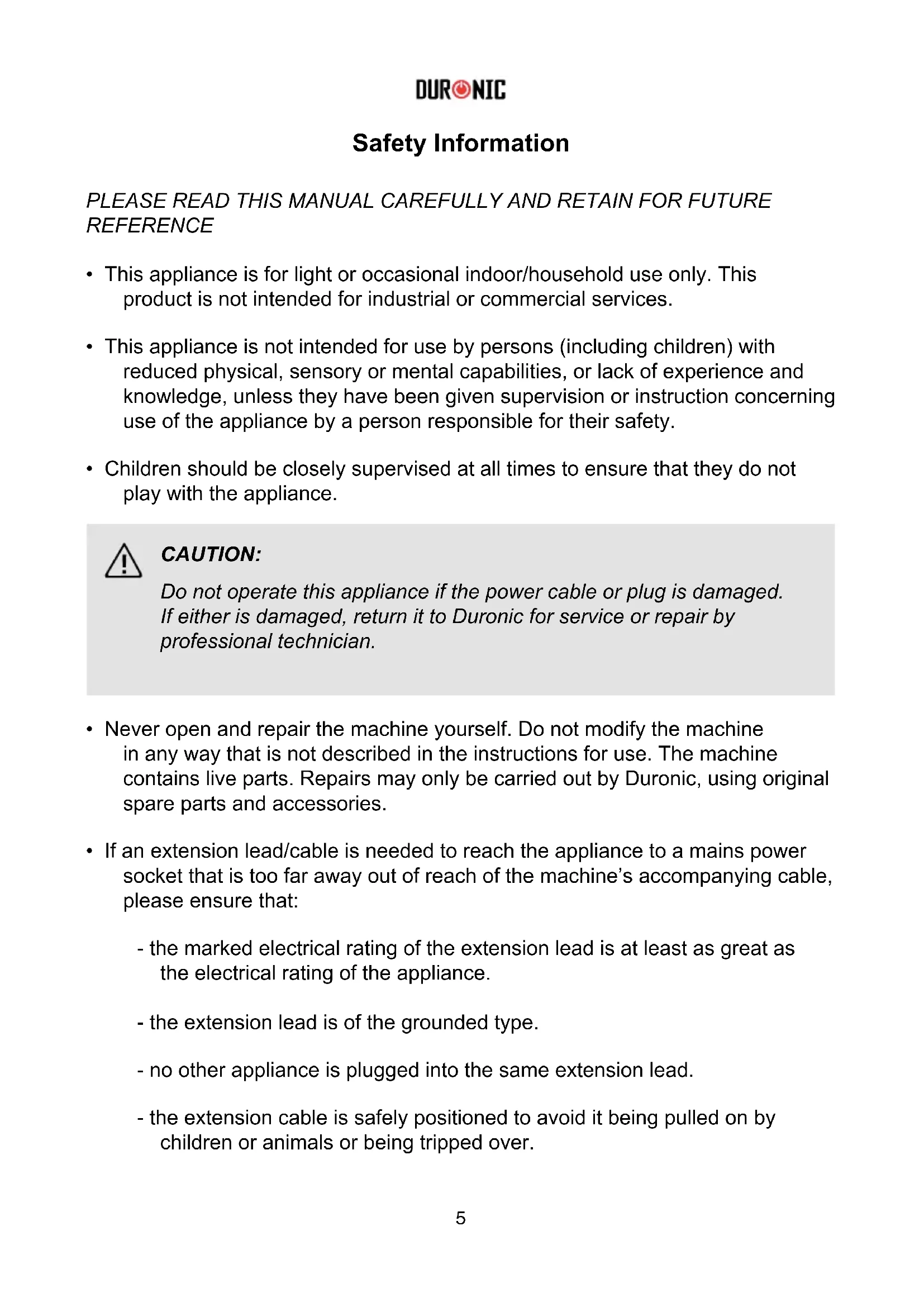

Safety Information

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

- This appliance is for light or occasional indoor/household use only. This product is not intended for industrial or commercial services.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be closely supervised at all times to ensure that they do not play with the appliance.

CAUTION:

Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by professional technician.

- Never open and repair the machine yourself. Do not modify the machine in any way that is not described in the instructions for use. The machine contains live parts. Repairs may only be carried out by Duronic, using original spare parts and accessories.

- If an extension lead/cable is needed to reach the appliance to a mains power socket that is too far away out of reach of the machine's accompanying cable, please ensure that:

- the marked electrical rating of the extension lead is at least as great as the electrical rating of the appliance.

- the extension lead is of the grounded type.

- no other appliance is plugged into the same extension lead.

- the extension cable is safely positioned to avoid it being pulled on by children or animals or being tripped over.

DURONIC

Safety Information

• To reduce the risk of electric shock, never operate this product with wet hands, spill liquid on electrical parts of the appliance or submerge appliance, mains cable, and plug in water or any other liquid.
• Ensure ultrasonic cleaner is only used on a flat, hard and level surface.
• Avoid using the appliance in bathrooms or humid environments.
  • Always unplug the appliance before moving, filling, cleaning, or when not in use. Never pull the mains cable; always pull directly on the plug itself.
• Ensure water only goes inside the stainless steel basin to prevent damaging the cleaner.
• Never fill the water above the MAX line.
• Avoid kinking or crushing the mains cable.
• Do not use the appliance if it, the mains cable, or the plug is damaged.
• Keep the ultrasonic cleaner and its components away from open flames and hot surfaces.
• Ensure there is a 5 mins gap between each cleaning session.
  • Always dry the ultrasonic cleaner with a dry cloth or tissue.
  • This product is not a toy. Ensure children are supervised around this product.
• Never use the appliance without water in the Stainless Steel Basin.
• Do not use abrasive or caustic cleaning agents on the appliance's outer surfaces.

DURONIC

How to Use

1. Place the items to be cleaned inside the stainless steel basin. If cleaning glasses, please ensure the lens is facing up. When cleaning jewellery, place the jewellery inside the mesh container.
2. Pour water into the stainless steel basin and ensure the water does not go above the MAX line.
3. Place the lid onto the ultrasonic cleaner.
4. Open the silicone tab found at the back of the ultrasonic cleaner and connect the power adaptor.
5. Plug the appliance in and then touch the On/Off button. An indicator light will appear to show that it has been turned on.
6. The ultrasonic cleaner will run for 3 minutes.
7. Once the timer has finished, the indicator light will flash and the ultrasonic waves will stop.
8. The cleaned items can now be taken out from the appliance.
9. Once all the cleaning has been completed, turn the appliance off and remove the plug. Pour the water inside the stainless steel basin out and then wipe the appliance until dry.

What Can I Clean?

• Mechanical watches and watch straps
• Eyeglasses and sunglasses
- Jewellery (e.g. earrings, necklaces, bracelets, rings, wristbands)
- Razors
• Dental care (e.g. toothbrushes, braces, retainers, dentures)
- Beauty (e.g. tweezers, nail clippers, makeup brushes, combs)
• Tableware (e.g. small knives, small forks, teaspoons)
• Baby care (e.g. dummies, bottle nipples, teethers)
- Coins and medals

WARNING:

DO NOT immerse electrical items like watches in the ultrasonic cleaner unless deemed waterproof by the manufacturer. Clean at your own risk.

DO NOT attempt to clean magnets or items with magnets in them as they can damage the appliance.

Never place batteries or chemicals inside the appliance.

DO NOT clean delicate or easily damageable items in the ultrasonic cleaner including pearls and jade. Always research to check if the item you want to clean is suitable. Clean delicate items at your risk.

Cleaning and Maintenance

Cleaning

• Ensure the ultrasonic cleaner is off and unplugged before you start to clean the appliance.
• Ensure the ultrasonic cleaner is empty and that there are no items left within the tank.
  • Using a damp cloth (not wet), wipe down the outside of the ultrasonic cleaner.
• Rinse the tank inside with warm water and then dry the ultrasonic cleaner
• Ensure the cleaner is fully dry before plugin in and using again.

Storage

• Unplug the appliance and carefully empty the water tank.
• Ensure the appliance is completely dry before storing.
• Store in a dry place.

Troubleshooting

Problem Probable Cause Solution
The machine won't turn on.	Is the power supply plugged into the socket correctly?	Insert the power plug into the socket correctly.
	Is the power cord damaged?	Stop attempting to use the machine. Contact Duronic.
Items did not clean properly after washing.	Insufficient water in the steel basin.	Add enough water to fully immerse the cleaning items or fill to the "MAX" water level line.
	The item may need some cleaning solution.	Add a small amount of cleaning solution.
	The dirt on the surface of the item is very sticky.	Can be cleaned multiple times (the best interval between two cleanings is 5 minutes).
	The item has a lot of oil on the surface.	The degreasing effect of tap water is not strong enough to clean, be sure to add a little cleaning solution to assist cleaning.
	Oxidised and blackened surfaces of gold and silver jewellery was not cleaned.	Add a small amount of professional cleaning solution for gold and silver jewellery to remove the surface oxidised layer. Seek professional help if unsure.
The surface of the item is damaged after cleaning.	The standard cleaning power of the machine is too strong.	Items with electroplating and spraying treatment on the surface should have a shorter cleaning time. Place delicate items in a protective container or bag before cleaning. Clean delicate items at your own risk. If you are unsure, take items to be professionally cleaned. Do not attempt to clean in the ultrasonic cleaner as this may damage the item.

For any other problems or queries, please contact Duronic.

Information for consumers on the disposal of Waste Electrical & Electronic Equipment (WEEE).

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
