APPM32B - Monitor Approx - Free user manual and instructions

Product type	Monitor
Brand	Approx
Model	APPM32B
Screen size	32 inches
Resolution	Full HD (1920 x 1080)
Refresh rate	75 Hz
Response time	4 ms
Technologies	Blue light reduction, anti-flicker, HDR, FreeSync
Video inputs	HDMI 1.4, VGA
Audio input	3.5mm jack (via VGA)
Built-in speakers	Yes
Power supply	12 VDC, 4 A (adapter included)
Power consumption (max)	48 W
Standby consumption	0.08 W
Power adapter	Model DC-838-1204000V, input 100-240 V AC, 50/60 Hz
Operating temperature	0 to 30 °C
Maximum altitude	2000 m
Package contents	Monitor, user guide, stand and screws, adapter, HDMI cable
Maintenance	Disconnect before cleaning, use a soft cloth, avoid liquids
Safety	Do not open, do not insert objects, do not expose to heat, use provided adapter
Recycling	Compliant with WEEE (Directive 2012/19/EU), recyclable packaging
Technical support	www.approx.es, [e-mail]

Frequently Asked Questions - APPM32B Approx

How to turn the APPM32B monitor on or off?

Press the Power button on the monitor's keypad. Press once to turn on, again to turn off.

What cables are included with the monitor?

The package contains an HDMI cable, a power adapter (12 VDC/4 A), and the stand with screws. The VGA cable and 3.5mm audio cable are sold separately.

How to connect a PC with a VGA output?

Purchase a VGA cable and connect it between the PC's VGA output and the monitor's VGA input. For audio, use a 3.5mm jack cable between the PC's audio output and the monitor's jack input.

How to adjust brightness and contrast?

Press the M button to open the OSD menu. Navigate with the up/down keys to BRIGHTNESS, then adjust the Brightness and Contrast settings.

What to do if the screen flickers?

Make sure anti-flicker mode is active (default). If flickering persists, try reducing brightness or enabling FreeSync in the Additional menu.

How to enable HDR mode?

Press the Down key (outside OSD menu) to toggle HDR between ON and OFF. You can also enable it in the OSD menu under BRIGHTNESS > HDR.

Does the monitor have speakers?

Yes, the monitor has built-in speakers. Volume is adjusted in the Additional menu, and you can mute sound with the Mute option.

How to safely clean the screen?

Unplug the power adapter, use a soft, dry cloth. Avoid any liquids and chemicals. Do not spray anything directly onto the screen.

What to do in case of unusual smell or noise?

Immediately unplug the power adapter and contact the authorized service via [e-mail]. Do not attempt to repair yourself.

How to recycle the monitor at end of life?

Comply with WEEE Directive 2012/19/EU. Dispose of the device at a selective collection point. Cardboard and plastic packaging must be recycled in appropriate containers.

USER MANUAL APPM32B Approx

Read the instructions

before using.

DE

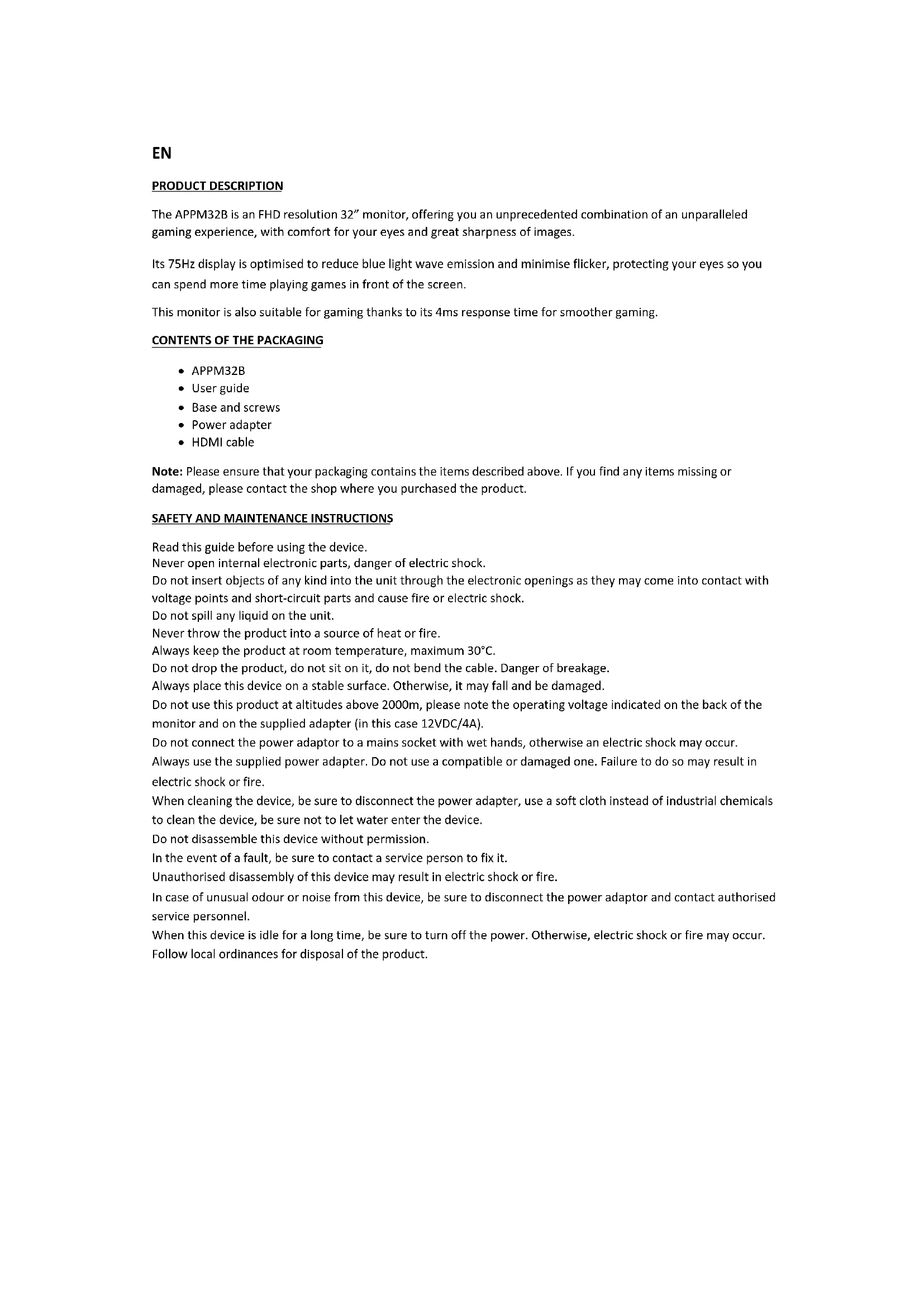

PRODUKTBESCHREIBUNG

The APPM32B is an FHD resolution 32" monitor, offering you an unprecedented combination of an unparalleled gaming experience, with comfort for your eyes and great sharpness of images.

Its 75Hz display is optimised to reduce blue light wave emission and minimise flicker, protecting your eyes so you can spend more time playing games in front of the screen.

This monitor is also suitable for gaming thanks to its 4ms response time for smoother gaming.

CONTENTS OF THE PACKAGING

• APPM32B
• User guide
• Base and screws
• Power adapter
• HDMI cable

Note: Please ensure that your packaging contains the items described above. If you find any items missing or damaged, please contact the shop where you purchased the product.

SAFETY AND MAINTENANCE INSTRUCTIONS

Read this guide before using the device.

Never open internal electronic parts, danger of electric shock.

Do not insert objects of any kind into the unit through the electronic openings as they may come into contact with voltage points and short-circuit parts and cause fire or electric shock.

Do not spill any liquid on the unit.

Never throw the product into a source of heat or fire.

Always keep the product at room temperature, maximum 30°C.

Do not drop the product, do not sit on it, do not bend the cable. Danger of breakage.

Always place this device on a stable surface. Otherwise, it may fall and be damaged.

Do not use this product at altitudes above 2000m, please note the operating voltage indicated on the back of the monitor and on the supplied adapter (in this case 12VDC/4A).

Do not connect the power adaptor to a mains socket with wet hands, otherwise an electric shock may occur.

Always use the supplied power adapter. Do not use a compatible or damaged one. Failure to do so may result in electric shock or fire.

When cleaning the device, be sure to disconnect the power adapter, use a soft cloth instead of industrial chemicals to clean the device, be sure not to let water enter the device.

Do not disassemble this device without permission.

In the event of a fault, be sure to contact a service person to fix it.

Unauthorised disassembly of this device may result in electric shock or fire.

In case of unusual odour or noise from this device, be sure to disconnect the power adaptor and contact authorised service personnel.

When this device is idle for a long time, be sure to turn off the power. Otherwise, electric shock or fire may occur.

Follow local ordinances for disposal of the product.

INPUTS AND OUTPUTS

HDMI input

If your PC has HDMI video output, connect the supplied HDMI cable between the HDMI input of the monitor and the HDMI output of the PC. This input is HDMI version 1.4.

VGA input

If your PC has VGA video output, purchase a VGA cable and connect it between the VGA input of the monitor and the VGA output of the PC.

DC input

Connect the supplied power supply cable to the DC input of the Monitor and plug the adapter into a household electrical outlet. 12V/4A power supply.

3.5mm jack input

This input can only be used if the monitor is connected via a VGA cable, purchase a 3.5mm Jack to 3.5mm Jack (male-male) cable and connect it between the audio output of your PC and the 3.5mm Jack input of the monitor, the PC audio will be played through the rear speakers of the monitor.

FUNCTIONS OF THE KEYPAD

On/Off button: If you want to turn on the monitor press the on/off button, if you want to turn off the monitor press it again.

M button: The OSD menu is displayed on the screen. Once inside, it also has the function to accept or access the interior functions.

E button: Exits the current menu or exits the OSD menu.

Up / Down direction buttons: The up and down direction button allows you to move between the different menus and modify values. If you are not in the OSD menu, down allows you to enable / disable (HDR) High Dynamic Range, up allows you to modify the contrast of the monitor.

The OSD menu of the monitor provides various settings for the monitor, such as colour, brightness and contrast, etc.

Main Menu	Icon	Submenu	Sub-Sub-Menu	Description
LUMINOSITY		SHINE		Adjusts screen brightness
		CONTRAST		Adjusts display contrast
		ECO	STANDARD	Adjusts lighting to suit normal use
			GAME	Adjusts lighting to suit gaming use
			FILM	Adjusts lighting adapted for films
			INTERNET	Adjusts lighting adapted for the internet
		DCR	ON	Enables DCR
			OFF	Disable DCR
		HDR	ON	Enable HDR
			OFF	Disable HDR
IMAGE		POSITION H		Adjusts image position horizontally
		POSITION V		Adjusts image position vertically
		WATCH		Adjusts the frame rate
		FOCUS		Adjusts the focus in the image
		IMAGE RELATIONSHIP	WIDTH	Adjusts the width in the image
			4:3	Automatically adjusts the aspect ratio to 4:3
COLOUR		COLOUR	NORMAL	Adjusts the colour in standard shades
			CALIDO	Adjusts the colour in warm tones
			FRIO	Adjusts the colour in cool tones
			USER	Enables custom colour adjustment
		RED		Adjusts redshift values
		GREEN		Adjusts green values
		BLUE		Adjusts blue values
		LOW BLUE MODE	ON	Enable low blue filter
			OFF	Disable low blue filter
OSD		LANGUAGE		Allows you to select the language displayed on the OSD menu.
		POSITION H		Adjusts OSD menu position horizontally
		POSITION V		Adjusts OSD menu position vertically
		OSD TIME		Adjusts the OSD menu time
		TRANS		Adjusts the transparency of the OSD menu
RESET		AUTO SETTING		Performs an auto adjustment of the image in all its values.
		COLOUR ADJUSTMENT		Performs an auto colour adjustment of the image colour in all its values.
		RESET		Restores the configuration to its default values.
EXTRA		INPUT	HDMI	Select HDMI input
			VGA	Select VGA input
		MUTE	ON	Enable Sound
			OFF	Disable Sound
		VOLUME		Adjust the volume of the speakers
		FREESYNC	ON	Enable FreeSync
			OFF	Disable FreeSync

TECHNICAL SUPPORT

For more information about the installation of this product, please visit our website www.approx.es or send an email to [e-mail]

Power adapter specifications

Name or trademark	KEEP-OUT
Commercial register number	B-91202499
Manufacturer's address	C/Tecnología, 5 Gelves, Sevilla, España
Model identifier	DC-838-1204000V
Description Model identifier	AC/DC adapter for APPM32B
Input voltage	100-240VAC, 1.5A
Input AC frequency	50/60Hz
Output voltage	12VDC
Max. output current	4A
Max. output power	48W
Average active efficiency	87.91%
Efficiency at low load (10%)	85.76%
No load power consumption	0,08W

RECYCLING

AEE RII-RAEE 5548. In this manual, the crossed-out WEEE symbol indicates that the product is subject to a European directive, 2012/19/UE, electrical or electronic products, batteries, and accumulators and other accessories necessarily must be subject to selective collection.

At the end of the device's useful life, make use of the recycling containers. This gesture will help reduce health risks and preserve the environment.

Town halls and distributors will provide you with the essential details regarding the recycling of your old device. If this device has an internal battery, it must be removed and deposited separately for proper management.

Please recycle, the packaging of this product is recyclable. The product box is made of cardboard and must be recycled in the blue container or intended for cardboard and the internal protections and bags are made of plastic and must be recycled in the yellow container or intended for plastic. Among all we can help conserve the planet.

ES

IMPORTADO POR / IMPORTED BY: APPROX IBERIA S. L. CIF: B-91202499

SOPORTE TÉCNICO / TECHNICAL SUPPORT: [e-mail]

The content of this guide is subject to typographical errors.

MADE IN CHINA
