USER MANUAL GigaMax III ZM650GV3 ZALMAN

80 PLUS® BRONZE 230V EU

GigaMax III SERIES

POWER SUPPLY UNITS

650W, 750W, 850W

User's manual

Ver. 081023

www.zalman.com

English

Warnings and Safety Precautions

Neglecting the following may cause serious injury or death.

• Opening the cover of the product while the power cord is plugged into an outlet may cause electrocution or critical damage to the product.
• Handling the power cord with wet hands may cause electrocution.
• Inserting fingers or metallic objects into the cooling fan may cause injury or electrocution.

Neglecting the following may cause minor injuries, degrade product conditions or cause malfunction.

• Operating the product in an extremely cold or hot environment can degrade product performance and lifespan.
• Exposure to liquids may cause malfunction.
  ▶ Operation in a humid or non-ventilated environment may reduce product lifespan.
• Plugging the main power connector P1 into the motherboard while the product is connected to the AC power source may cause damage to the motherboard.
  ▶ Make sure that the connectors are connected to their designated locations, and that the connectors are not oriented in the wrong direction when connecting the DC output connectors.
• Please use gloves to prevent injuries during installation.
• Product designs and specifications may be revised without prior notification to improve quality and performance.

WARNING

This product is designed for computer use only, such as offices, multimedia, the Internet and games. Using this product in any other application will void the warranty. The power supply unit(PSU) is for integration into a computer system and not intended for external or outdoor usage. Please note that Full Modular PSU's warranty is applicable to the power supply unit ONLY and does not include accessories such as, power cable, connector and etc. Non-Modular warranty is applicable to PSU and its power cables. If you have any questions, please ask a specialist for help.

DISCLAIMER

Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.

Cable Ties x5Screws x4Power

Modular Cable

User's ManualAC Power Cord

2. ZM650-GV3 Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 200-240V~				Vout	Output Load Rating			Combined Power
	Frequency 50Hz-60Hz I					min	Imax	Ipeax
AC Input Current 240VAC 5A					+3.3V 0.3A 20A				110W	650W
					+5V 0.3A 20A
PFC Type Active PFC +12V 0.6A 54.16A 650W
Power Factor Correction Max 99% -12V 0.01A 0.3A 3.6W
Inrush Current Limit(@ Cold Start at 25°C)	240VAC Max 100A				+5VSB	0.1A	3A		15W
					Ambient Temperature
Efficiency	Max 88% @ 230VAC, Typical load				Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 85% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.2V		Dimensions		140(L) X 150(W) X 86(H) mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		1.65Kg
DC Output Ripple & Noise	Vout	Standard Range		At Full Load	Protection Funtions
	+3.3VDC	50mV			Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC 120mV				Over-Power Protection (OPP)
	-12VDC	120mV			Over-Temperature Protection (OTP)
	+5VSB	50mV			Under-Voltage Protection (UVP)
					Short-Circuit Protection (SCP)

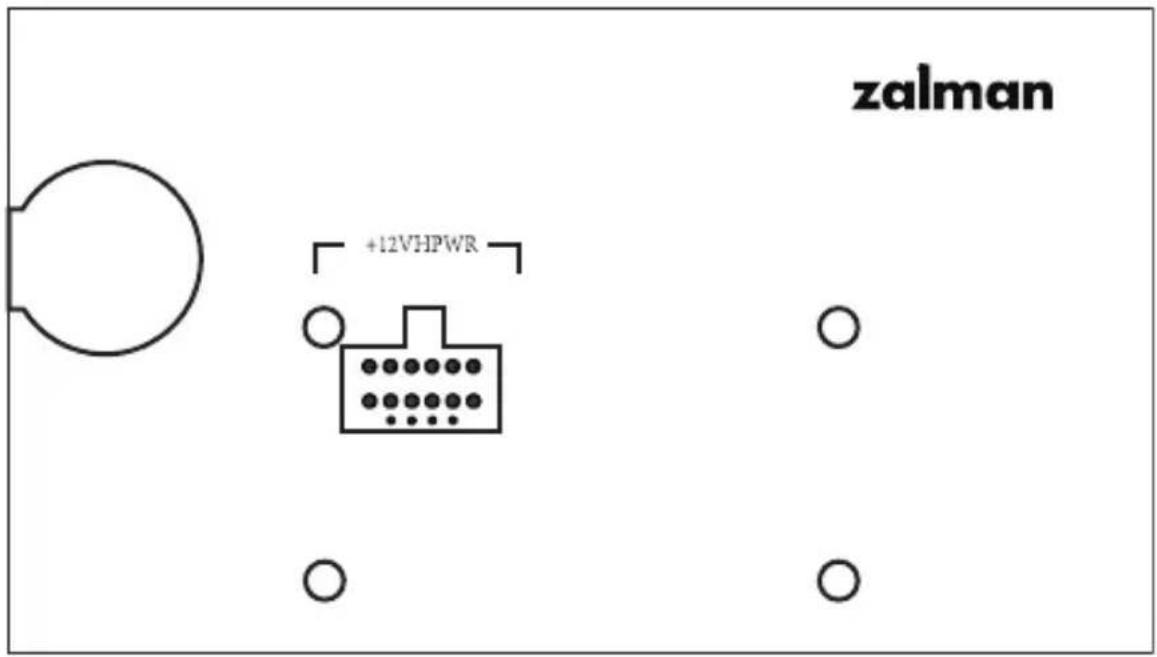

2) Connector Specifications

zalman +12VHPWR

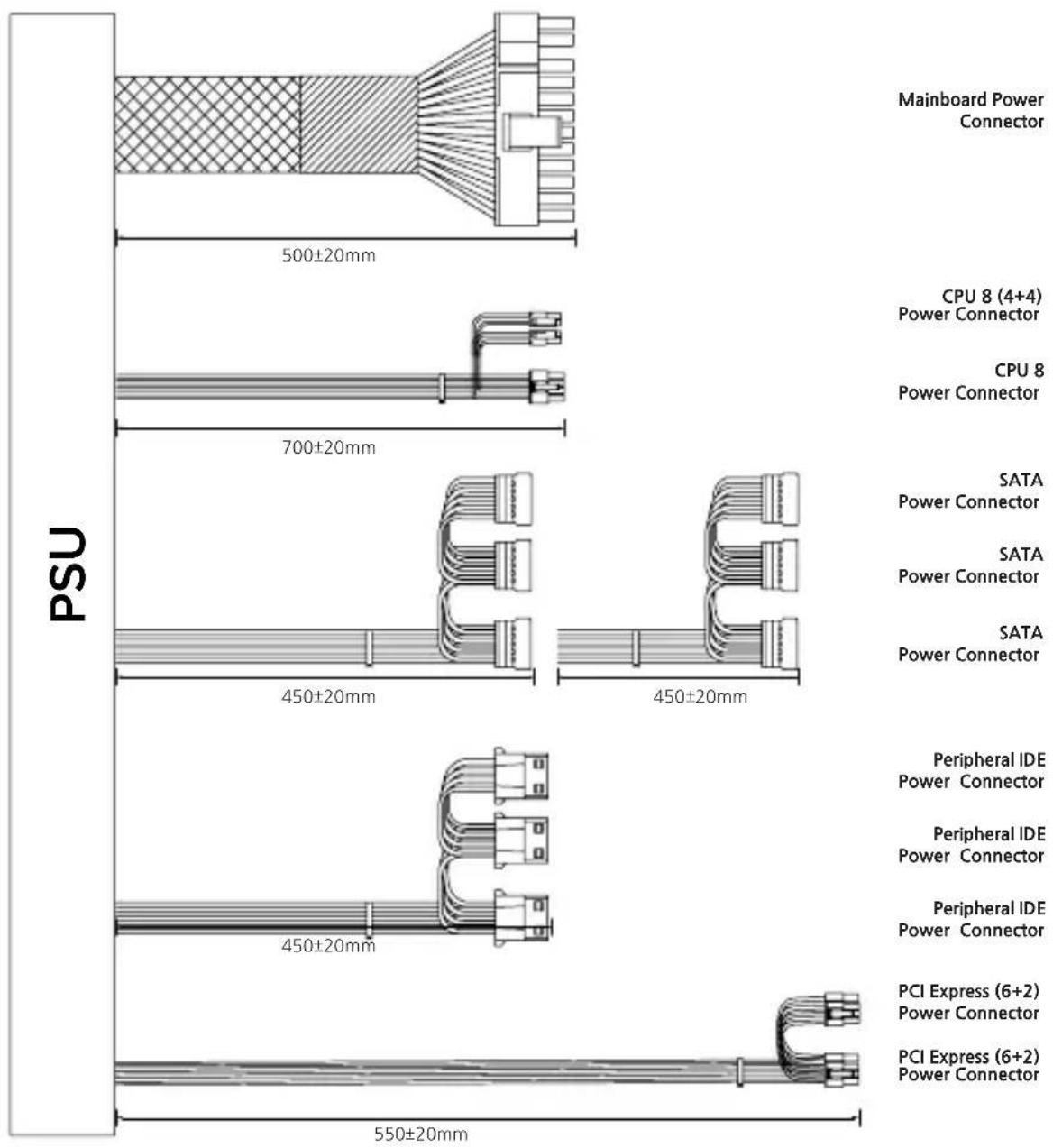

3) Cable Specifications

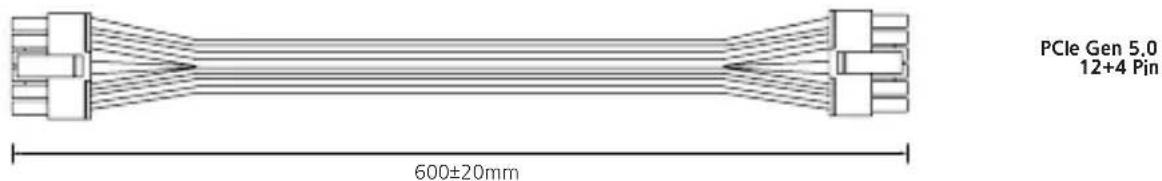

PCIe Gen 5.0 12+4 Pin 600±20mm

2. ZM750-GV3 Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 200-240V~				Vout	Output Load Rating			Combined Power
	Frequency 50Hz-60Hz I					min	Imax	Ipeax
AC Input Current 240VAC 6A					+3.3V 0.3A 20A				120W	750W
					+5V 0.3A 20A
PFC Type Active PFC +12V 0.6A 62.5A 750W
Power Factor Correction Max 99% -12V 0.01A 0.3A 3.6W
Inrush Current Limit (@ Cold Start at 25°C)	240VAC Max 100A				+5VSB	0.1A	3A		15W
					Ambient Temperature
Efficiency	Max 88% @ 230VAC, Typical load				Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 85% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.2V		Dimensions		140(L) X 150(W) X 86(H) mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		1.7Kg
DC Output Ripple & Noise	Vout	Standard Range		At Full Load	Protection Funtions
	+3.3VDC	50mV			Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC 120mV				Over-Power Protection (OPP)
	-12VDC	120mV			Over-Temperature Protection (OTP)
	+5VSB	50mV			Under-Voltage Protection (UVP)
					Short-Circuit Protection (SCP)

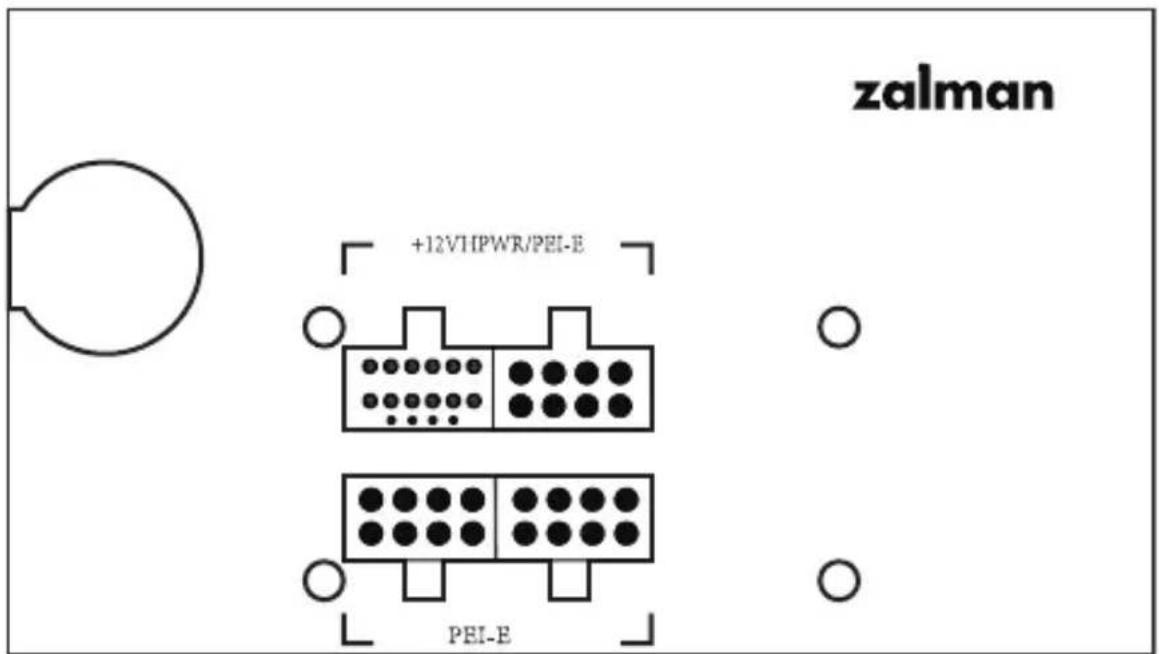

2) Connector Specifications

zalman +12VTHPWR/PEI-E PEI-E

3) Cable Specifications

PSU 550±20mm 700±20mm 450±20mm 450±20mm 450±20mm

Mainboard Power Connector
CPU 8 (4+4) Power Connector
CPU 8 Power Connector
SATA Power Connector
SATA Power Connector
SATA Power Connector
Peripheral IDE Power Connector
Peripheral IDE Power Connector
Peripheral IDE Power Connector
PCI Express (6+2) Power Connector
PCI Express (6+2) Power Connector
PCI Express (6+2) Power Connector
PCI Express (6+2) Power Connector
PCIe Gen 5.0 12+4 Pin

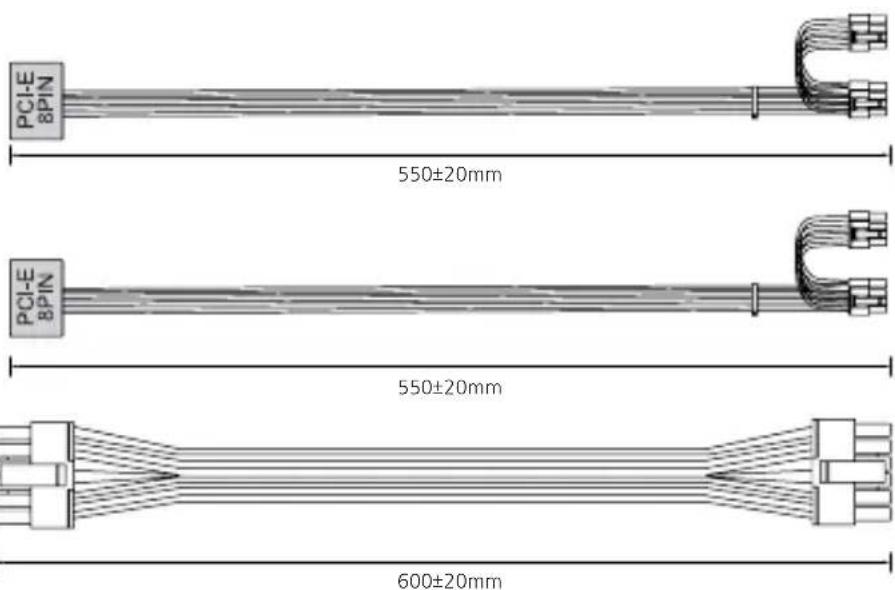

PCI-E BPIN 550±20mm PCI-E BPIN 550±20mm 600±20mm

3. ZM850-GV3 Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 200-240V~				Vout	Output Load Rating			Combined Power
	Frequency 50Hz-60Hz I					min	Imax	Ipeax
AC Input Current 240VAC 7A					+3.3V 0.3A 20A				130W	850W
					+5V 0.3A 20A
PFC Type Active PFC +12V 0.6A 70.83A 850W
Power Factor Correction Max 99% -12V 0.01A 0.3A 3.6W
Inrush Current Limit(@ Cold Start at 25°C)	240VAC Max 100A				+5VSB	0.1A	3A		15W
					Ambient Temperature
Efficiency	Max 88% @ 230VAC, Typical load				Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 85% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.2V		Dimensions		140(L) X 150(W) X 86(H) mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		1.8Kg
DC Output Ripple & Noise	Vout	Standard Range		At Full Load	Protection Funtions
	+3.3VDC	50mV			Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC 120mV				Over-Power Protection (OPP)
	-12VDC	120mV			Over-Temperature Protection (OTP)
	+5VSB	50mV			Under-Voltage Protection (UVP)
					Short-Circuit Protection (SCP)

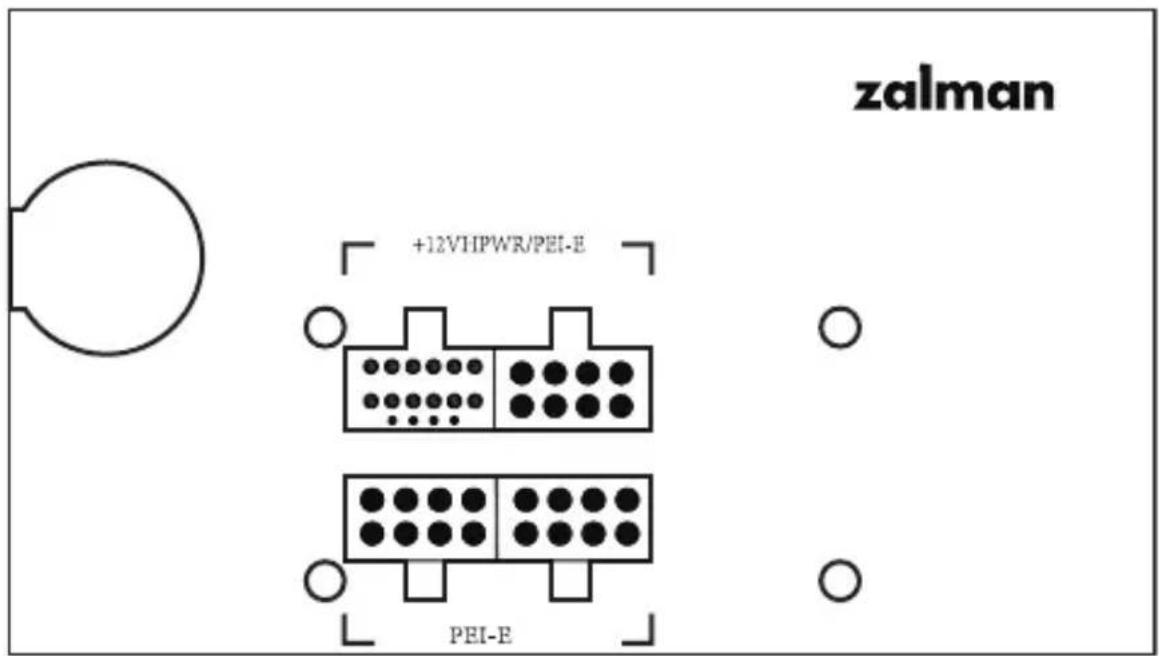

2) Connector Specifications

zalman +12VHPWR/PEI-E PEI-E

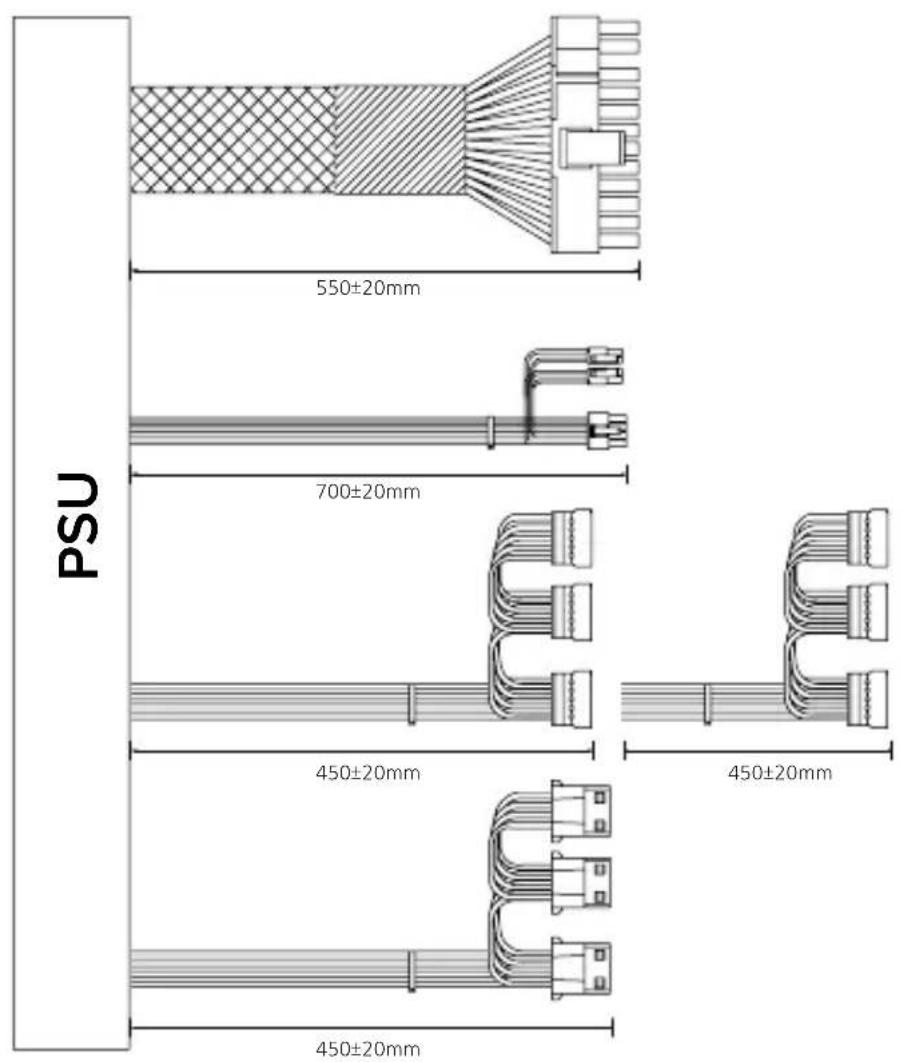

3) Cable Specifications

PSU 550±20mm 700±20mm 450±20mm 450±20mm 450±20mm

Mainboard Power Connector
CPU 8 (4+4) Power Connector
CPU 8 Power Connector
SATA Power Connector
SATA Power Connector
SATA Power Connector
Peripheral IDE Power Connector
Peripheral IDE Power Connector
Peripheral IDE Power Connector
PCI Express (6+2) Power Connector
PCI Express (6+2) Power Connector
PCI Express (6+2) Power Connector
PCI Express (6+2) Power Connector
PCIe Gen 5.0 12+4 Pin

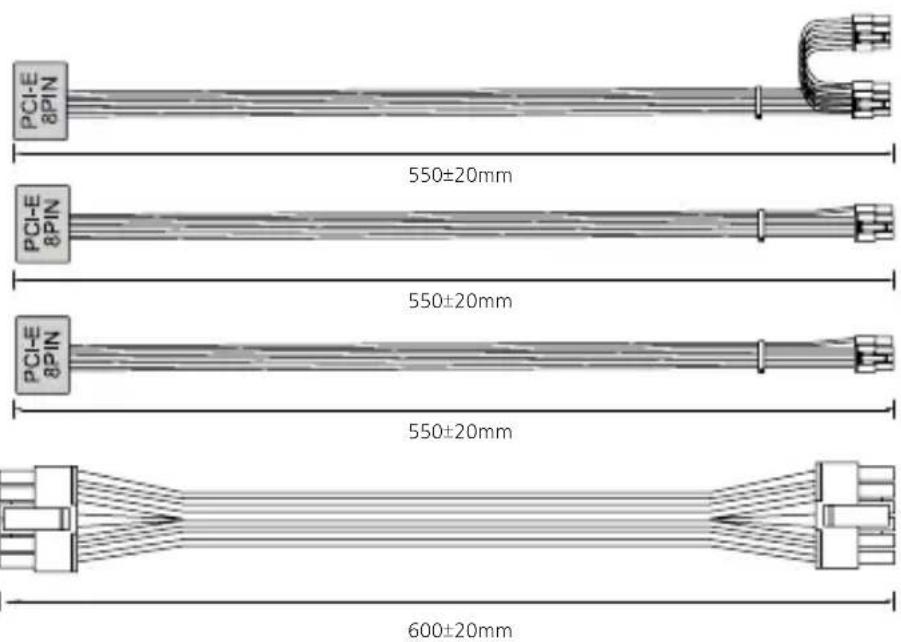

PCI-E 8PIN 550±20mm PCI-E 8PIN 550±20mm PCI-E 8PIN 550±20mm 600±20mm
