302509 - Storage box Aplic - Free user manual and instructions

Product type	External hard drive enclosure
Brand	Aplic
Model	302509
Compatible hard drive format	2.5 inches (6.4 cm) SATA
Maximum disk height	9.5 mm
External interface	USB 3.0 (backward compatible with USB 2.0/1.1)
Internal interface	Serial ATA (SATA)
Power supply	Via USB bus (without power adapter)
Enclosure material	Robust plastic
Main functions	Convert an internal hard drive into an external storage device
Installation	No driver required, plug & play operation
Package contents	Enclosure, USB 3.0 cable, quick start guide
Care and cleaning	Clean with a dry cloth; avoid moisture and water
Safety	Do not open, do not expose to high temperatures, do not short-circuit
Spare parts and repairability	Not user-serviceable; any modification voids the warranty
General information	Compliant with WEEE directive 2012/19/EU; WEEE registration number: 94495668

Frequently Asked Questions - 302509 Aplic

How to install a hard drive in the enclosure?

Open the enclosure by sliding the cover, insert your 2.5-inch SATA hard drive into the internal connector, then close the enclosure. Then connect the provided USB cable to the computer.

My computer does not recognize the enclosure. What should I do?

Make sure the hard drive is inserted correctly and the USB cable is properly connected. Try another USB port. If the disk is new, it must be initialized in the operating system's disk management.

What types of hard drives are compatible?

This enclosure accepts 2.5-inch (6.4 cm) SATA hard drives with a maximum height of 9.5 mm. It does not support 3.5-inch drives or IDE drives.

Does the enclosure require external power?

No, the enclosure is powered directly from the computer's USB port. No power adapter is needed.

Can I use an SSD in this enclosure?

Yes, 2.5-inch SSDs with SATA interface are compatible.

How to safely eject the enclosure?

Use the 'Safely Remove Hardware' function of your operating system before disconnecting the USB cable to avoid data loss.

Is the enclosure shockproof?

The plastic enclosure provides basic protection, but it is not designed to withstand strong shocks. Handle it with care.

Can I use this enclosure with a gaming console?

It depends on the console. Generally, consoles like PlayStation or Xbox can recognize an external disk formatted in FAT32 or exFAT. Check your console's compatibility.

Does the hard drive heat up inside the enclosure?

Slight heat is normal during intensive use. Make sure the enclosure is well ventilated and do not cover it during operation.

How to recycle this product at the end of its life?

Do not dispose of the device with household waste. Take it to a WEEE collection point or return it to the store where you purchased it.

USER MANUAL 302509 Aplic

USB 3.0 Enclosure for 2,5" SATA Hard disks

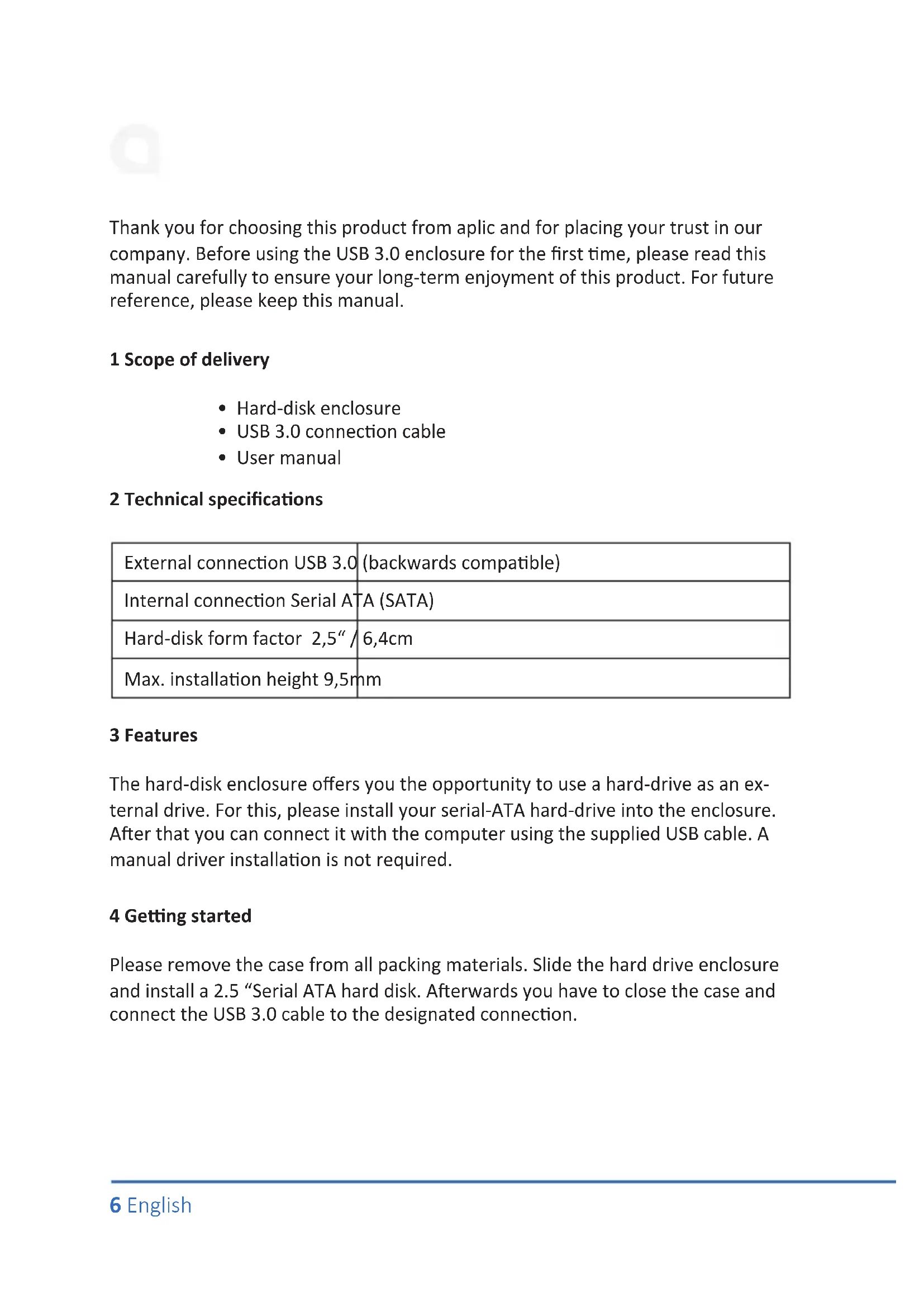

Thank you for choosing this product from aplic and for placing your trust in our company. Before using the USB 3.0 enclosure for the first time, please read this manual carefully to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• Hard-disk enclosure
• USB 3.0 connection cable
• User manual

2 Technical specifications

External connection USB 3.0	(backswards compatible)
Internal connection Serial ATA (SATA)
Hard-disk form factor 2,5" /	6,4cm
Max. installation height 9,5mm

3 Features

The hard-disk enclosure offers you the opportunity to use a hard-drive as an external drive. For this, please install your serial-ATA hard-drive into the enclosure. After that you can connect it with the computer using the supplied USB cable. A manual driver installation is not required.

4 Getting started

Please remove the case from all packing materials. Slide the hard drive enclosure and install a 2.5 "Serial ATA hard disk. Afterwards you have to close the case and connect the USB 3.0 cable to the designated connection.

5 Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. Please avoid any contact to the electric current. This product is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperatures and direct sunlight.

Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage of the internal electronic part of this unit. Check this product for signs of damage before putting it in operation. In case the device received any damage, it should not be used. Please contact our customer support. Please observe the relevant national provisions and legal restrictions. Do not use this product for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims.

Persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention may only use the network card. This unit is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

6 Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment if disposed of incorrectly. As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or importer free of charge.

The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

WEEE guideline: 2012/19/EU
WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 302509/20170209SZ135 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
