USER MANUAL AJOMS18TRB Aqua Joe

INDESTRUCTIBLE METAL BASE

TURBO OSCILLATING

SPRINKLER

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

If you have any questions or comments,

please call the Snow Joe® + Sun Joe® customer service department at:

Read the owner's manual and safety rules carefully before using your oscillating sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

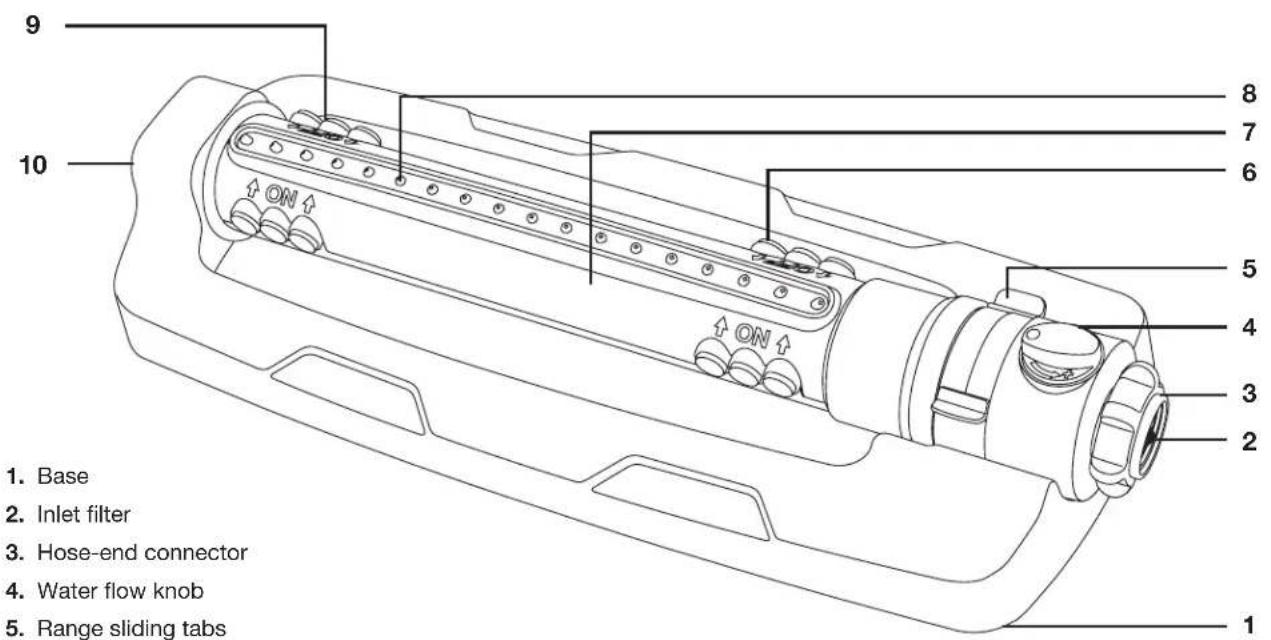

9 10 8 7 6 5 4 3 2 1 1. Base 2. Inlet filter 3. Hose-end connector 4. Water flow knob 5. Range sliding tabs

1. Base
2. Inlet filter
3. Hose-end connector
4. Water flow knob
5. Range sliding tabs
6. Spray range adjusters 1
7. Oscillator tube
8. Spray nozzles (18)
9. Spray range adjusters 2
10. Cleaning pin

Technical Data

Nozzle Heads 18

Adjustable Range Control ....Yes

Adjustable Width Control ....Yes

Coverage Max 4500 sq ft (418 m²)

Spray Distance Max 72.2 ft (22 m)

Spray Width Max 62.3 ft (19 m)

Max Pressure ^* 120 PSI

Max Flow 6.2 GPM (23.5 l/min)

Fitting Size......Standard Garden Hose

Net Weight.... 2.2 lbs (1 kg)

Operation

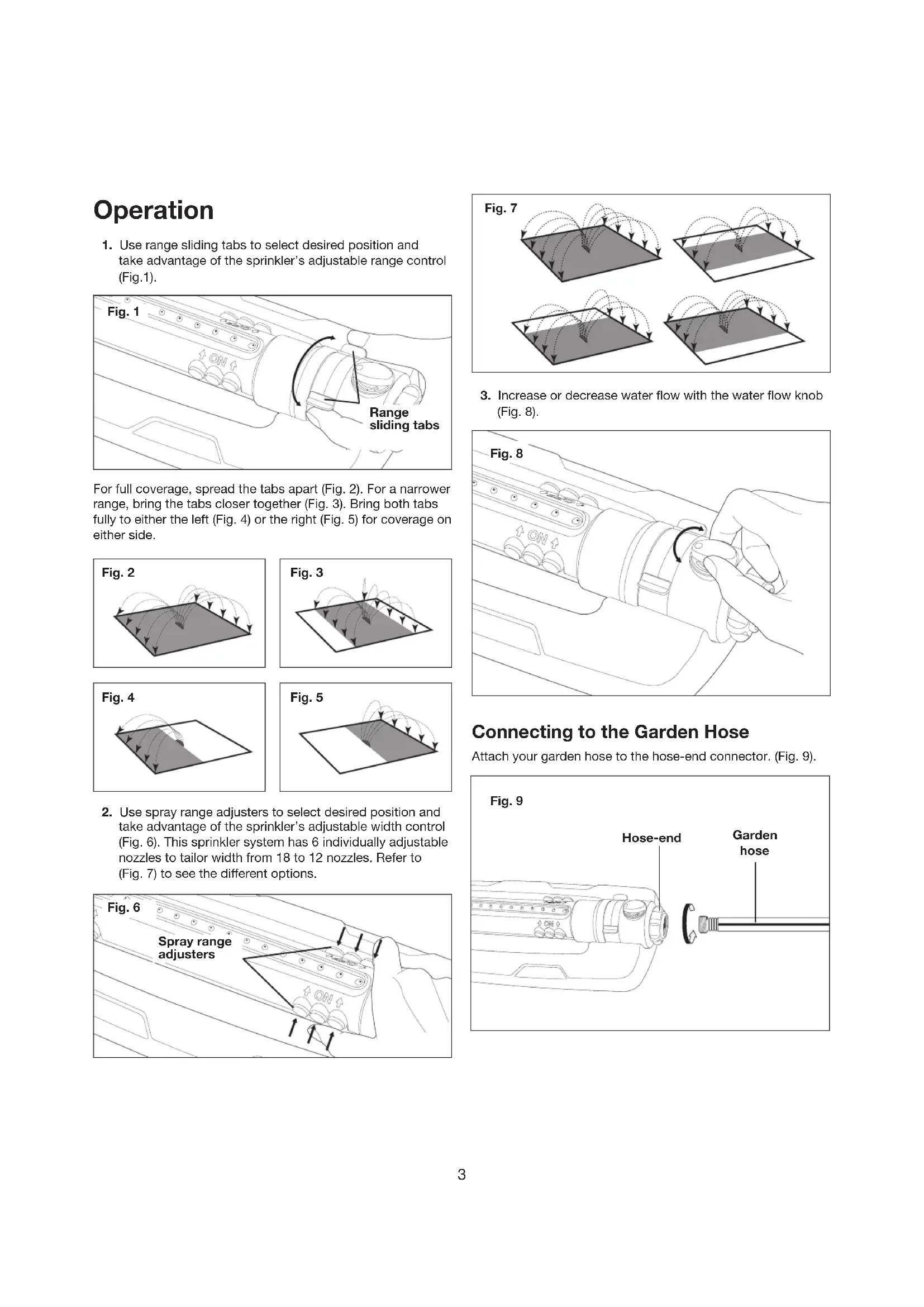

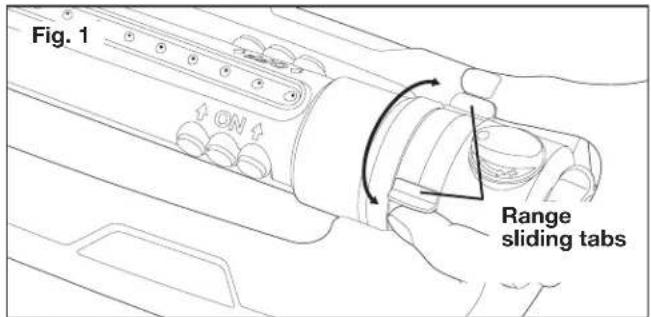

1. Use range sliding tabs to select desired position and take advantage of the sprinkler's adjustable range control (Fig.1).

Fig. 1 ON Range sliding tabs

For full coverage, spread the tabs apart (Fig. 2). For a narrower range, bring the tabs closer together (Fig. 3). Bring both tabs fully to either the left (Fig. 4) or the right (Fig. 5) for coverage on either side.

Diagram showing airflow or particle trajectory around a rectangular plane, labeled 'Fig. 2' (no text or symbols on diagram itself)

Diagram showing wave propagation around a shaded rectangular region, labeled 'Fig. 3' (no text or symbols on the diagram itself)

Diagram showing a shaded plane with curved arrows indicating direction, labeled 'Fig. 4' (no text or symbols on the diagram itself)

Diagram showing light rays reflecting off a flat surface, labeled 'Fig. 5' (no text or symbols on the diagram itself)

1. Use spray range adjusters to select desired position and take advantage of the sprinkler's adjustable width control (Fig. 6). This sprinkler system has 6 individually adjustable nozzles to tailor width from 18 to 12 nozzles. Refer to (Fig. 7) to see the different options.

Fig. 6 Spray range adjusters

Four diagrams showing wave propagation from a rectangular surface, with arrows indicating direction and shading (no text or symbols)

1. Increase or decrease water flow with the water flow knob (Fig. 8).

Fig. 8

Connecting to the Garden Hose

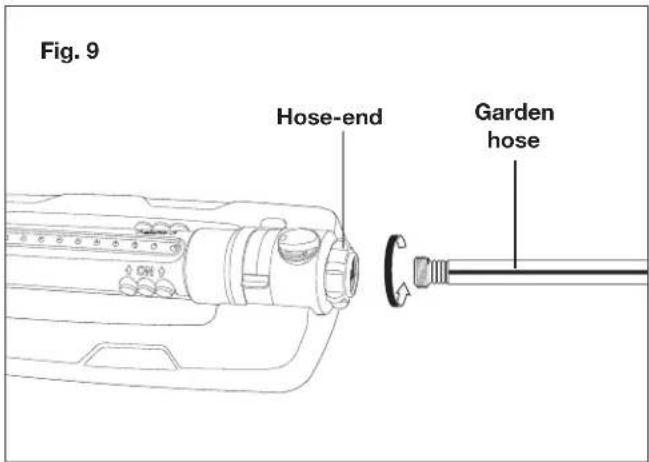

Attach your garden hose to the hose-end connector. (Fig. 9).

Fig. 9 Hose-end Garden hose

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.

Maintenance + Care

Follow the steps below if the sprinkler stops working or exhibits poor water quality due to debris or dirt build-up.

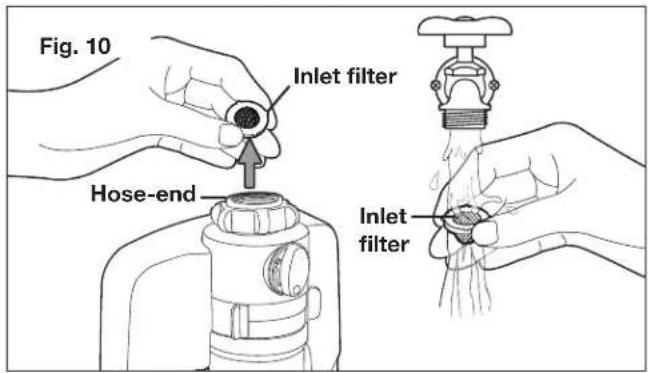

1. Remove the inlet filter from the hose-end of the oscillator and run under water (Fig. 10).

Fig. 10 Inlet filter Hose-end Inlet filter

1. Remove the cleaning pin from the opposite end of the oscillator (Fig. 11).

Fig. 11 Cleaning pin

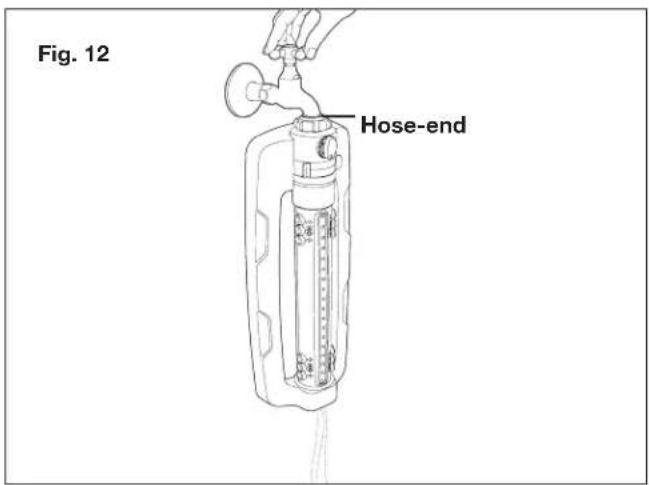

1. To flush, connect the oscillator to a spigot. Turn on the faucet and while the water continues running, spin the tube gently back and forth for few minutes. Then screw the inlet filter firmly back in place (Fig. 12)

Fig. 12 Hose-end

1. Use the provided cleaning pin to clear any clogs from the spray nozzles. Fit cleaning pin firmly back in place before using the sprinkler (Fig. 13).

Fig. 13 cleaning pin

Storage

Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler.

Service + Support

If your Aqua Joe ^® AJ-OMS18-TRB oscillating sprinkler requires service or maintenance, please call Snow Joe ^® + Sun Joe ^® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.

Record the following numbers from the bottom of your new product: Model #: A | J | - | O | M | S | 1 | 8 | - | T | R | B | Serial #:
