Product Type	360° Impulse Sprinkler
Brand	Aqua Joe
Model	AJISH2PK
Maximum Watering Area	130 m²
Maximum Watering Diameter	12.8 m
Maximum Pressure	120 psi (827 kPa)
Maximum Flow Rate	17 L/min
Spray Patterns	Jet to Mist
Watering Area Adjustment	Partial to Full Circle (360°)
Connector Compatibility	Standard Garden Hose
Net Weight	1 kg
Material	Zinc
Box Contents	2 sprinklers, user manual, registration card
Warranty	2-year limited (residential use)
Range Adjustment	Yes, via deflector screen
Spray Angle Adjustment	From 5° to 360°
Stake Type	Step-in stake
Maintenance	Drain after use; do not allow to freeze
Customer Service	Snow Joe + Sun Joe: 1-866-SNOWJOE (1-866-766-9563)
Winter Compatibility	Drain water completely before freezing

Frequently Asked Questions - AJISH2PK Aqua Joe

How do I adjust the spray range?

Use the deflector screen to adjust the spray distance. Turn it to change from a long to a short spray.

How do I change the spray pattern?

Turn the diffuser pin to change from a narrow jet to a wide mist.

How do I set the watering area to 360°?

Raise the trip lever to achieve full circle watering (0 to 360°).

What is the maximum watering diameter?

The maximum diameter is 12.8 meters, covering an area of 130 m².

Can I use a standard garden hose?

Yes, the sprinkler is compatible with standard garden hoses.

How do I maintain the sprinkler in winter?

Completely drain the water from the sprinkler and hose before freezing to prevent damage due to water expansion.

What is the warranty period?

The limited warranty is 2 years for normal residential use from the date of purchase.

Where can I find the sprinkler serial number?

The serial number and model number are located on the sticker label attached to the sprinkler.

What if a part is missing from the package?

Do not return the product to the store. Call Snow Joe + Sun Joe customer service at 1-866-SNOWJOE (1-866-766-9563) to obtain the missing part.

How do I push the stake into the ground?

Simply press down on the stake with your foot to push it straight into the ground. It leaves no visible marks.

USER MANUAL AJISH2PK Aqua Joe

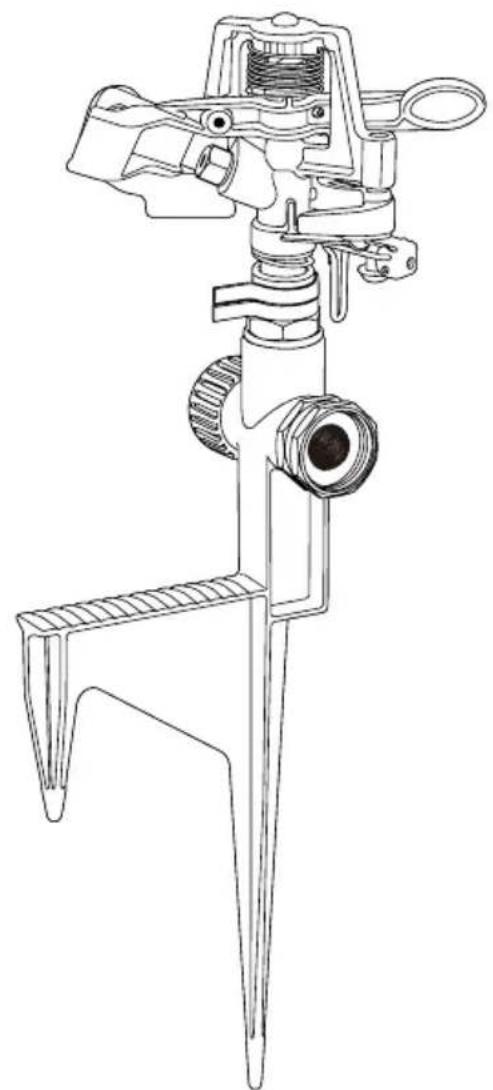

INDESTRUCTIBLE ZINC IMPULSE 360° SPRINKLER

1400 SQ FT COVERAGE MAX | STEP SPIKE | 2-PACK

Model AJ-ISH-2PK

Line drawing of a mechanical lever device with no visible text or symbols

If you have any questions or comments, please call the Snow Joe® + Sun Joe® customer service department at:

1-866-SNOWJOE (1-866-766-9563)

Original instructions. © 2022 Snow Joe, LLC. All rights reserved. SAVE THESE INSTRUCTIONS

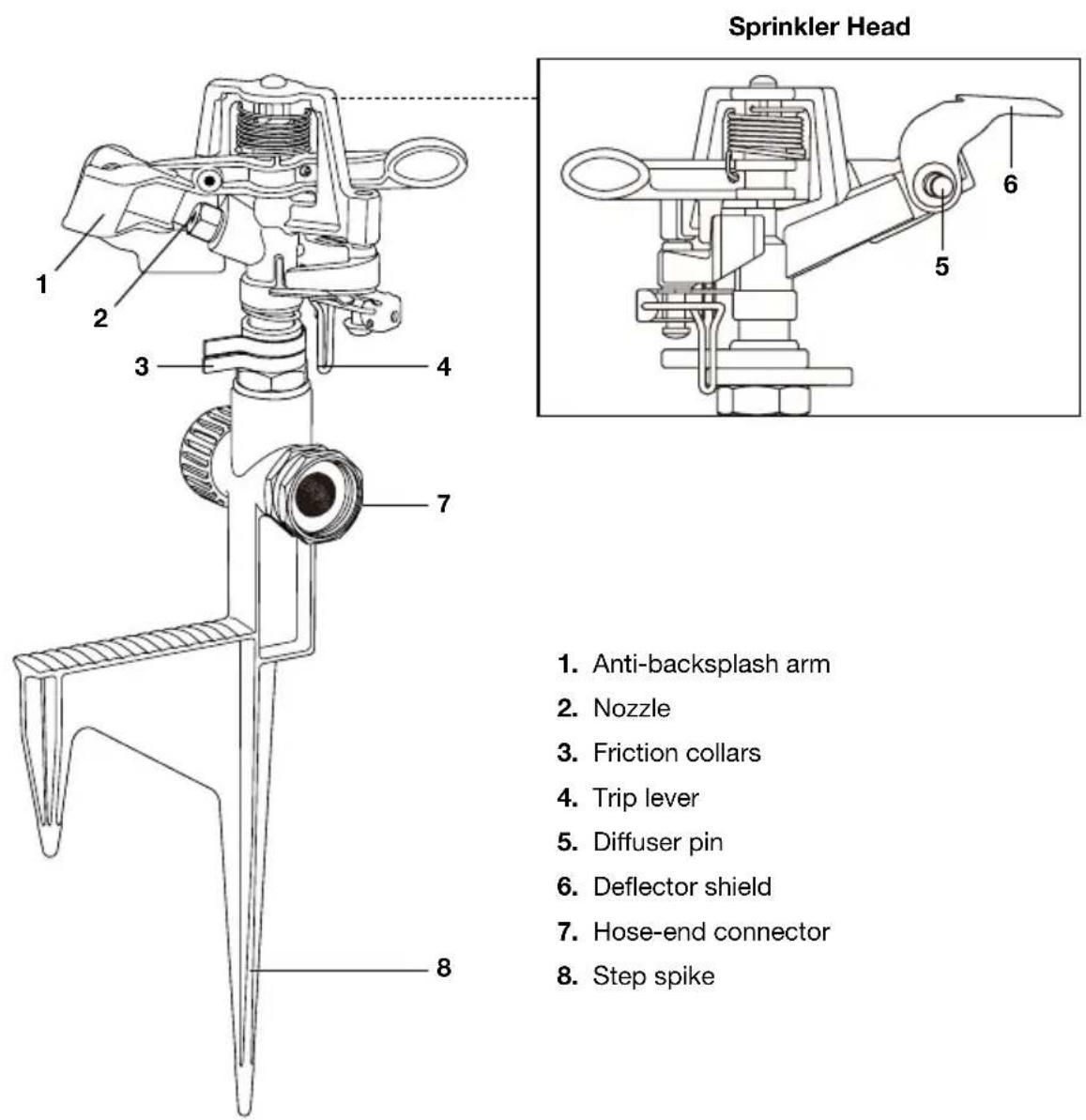

Know Your Indestructible Zinc Impulse 360° Sprinkler

Read the owner's manual and safety rules carefully before using your Indestructible Zinc Impulse 360^ Sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

Technical Data

Coverage Max...... 1400 sq ft

Spray Diameter Max......42 ft (12.8 m)

Max Pressure* 120 PSI

Max Flow....4.5 GPM (17 l/min)

Spray Patterns....Jet to mist

Adjustable Coverage .......Partial to full 360° circle

Fitting Size......Standard garden hose

Net Weight......2.2 lbs (1 kg)

Unpacking

Carton Contents

• Impulse 360^ sprinkler (x2)
  • Manual and registration card

• Carefully remove the sprinkler and check to see that all of the above items are supplied.

• Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Instead, please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new sprinkler. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

Operation

Distance Control

Use the deflector shield to adjust the length of the spray (Fig. 1).

Three diagrams showing a central fountain with multiple fountains radiating outward, each with a shaded base (no text or symbols)

Rotation Control

Set the friction collars for desired part circle coverage (5° - 360°) (Fig. 2).

360° Coverage Control

Flip the trip lever up for full circle ( 0^-360^ ) (Fig. 3).

Adjusting Spray Patterns

Turn diffuser pin to adjust spray from narrow jet to wide mist (Fig. 4).

Step Spike

The spike pierces the soil for extra stability without tearing up your yard as you move the sprinkler around to cover different areas (Fig. 5). Push the spike straight into the soil.

Connecting to the Garden Hose

Attach your garden hose to the hose-end connector (Fig. 6).

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.

NOTE: Since water expands when it freezes, completely drain water from sprinklers and hoses to avoid damage if temperature falls below 32^ F ( 0^ C).

Maintenance

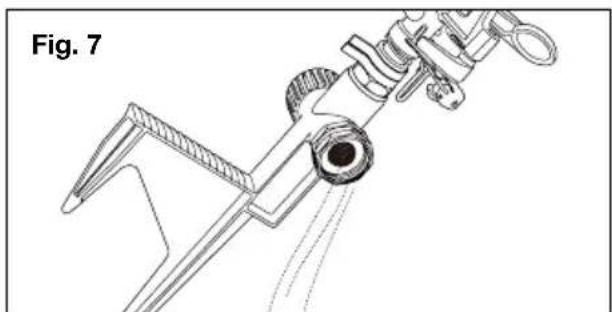

Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler (Fig. 7).

Technical line drawing of a mechanical assembly with no visible text or symbols

Service + Support

If your Aqua Joe® AJ-ISH-2PK Indestructible Zinc Impulse 360° Sprinkler requires service or maintenance, please call Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

ROCIADOR DE ZINC

INDESTRUCTIBLE IMPULSE 360°

MÁXIMA COBERTURA DE 130 M² | ESTACA | 2 UNIDADES

Modelo AJ-ISH-2PK

Line drawing of a mechanical lever device with no visible text or symbols

Three diagrams showing a central fountain with multiple arms and surrounding water jets, arranged in a fan-like structure (no text or symbols)

Control de rotación

Technical line drawing of a mechanical device with no visible text or symbols

Servicio y soporte

Line drawing of a mechanical lever device with no visible text or symbols

Three diagrams showing a central fountain with multiple arms and water jets, arranged in a fan-like structure (no text or symbols)

Réglage de la rotation

Technical line drawing of a mechanical assembly with no visible text or symbols
