USER MANUAL Anti Hair Wrap DuoClean IZ320EU SHARK

Anti Hair Wrap, DuoClean® & Powerfins Cordless Vacuum

Anti Hair Wrap, DuoClean® & Powerfins Kabelloser Staubsauger

Black and white photo of a Shark vacuum cleaner with control panel and brand logo (no readable text or symbols on device body)

VIELEN DANK

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical diagram showing a device's internal structure with labeled components and directional arrows indicating assembly or operation.

AKKU AUFLADEN

VERWENDUNG DES LITHIUM-IONEN-LADEGERÄTS

LITHIUM-IONEN-LADEGERÄT

IM HANDGERÄT

Top-down diagram of a medical device with a power button and leaf-like structure (no text or symbols)

Technical line drawing of a USB flash unit (no text or symbols on the diagram itself)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Simple line drawing of a robotic arm positioned beside a rectangular block (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Technical diagram showing a mechanical assembly with an inset view of a component (no text or symbols present)

Technical diagram showing a mechanical device with a downward arrow and a close-up of its internal structure, alongside a magnified view of the device's internal components.

Technical diagram showing three stages of a mechanical device with arrows indicating motion and particle distribution.

Diagram showing a water tower with an outlet and a showerhead, labeled with directional arrows and page number 2

Technical line drawing of a device with an arrow indicating a component or assembly (no text or symbols present)

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or labels)

Diagram of a vehicle front view showing a battery and a cylindrical component with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal compartments and ventilation slots (no text or symbols)

Technical line drawing of a mechanical device with three orthographic views (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical diagram showing a device with internal components and a close-up view of the main body area.

CHARGEMENT DE LA BATTERIE

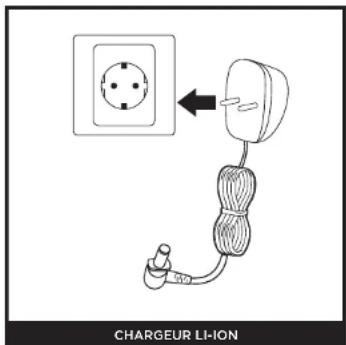

UTILISATION DU CHARGEUR LI-ION

CHARGEUR LI-ION

Technical line drawing of a Hauteur Sans le Tube device, showing internal components and a close-up inset (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with an inset showing a vertical component (no text or symbols)

Line drawing of a mechanical device positioned next to a blank rectangular block (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

(Clipser)

Technical diagram showing a mechanical assembly with an inset view of a component (no text or symbols present)

Technical diagram showing a mechanical device with a downward arrow and a magnified view of its internal structure.

Technical diagram showing three stages of a mechanical device with arrows indicating motion and particle distribution.

Diagram showing a water tower with an inverted cylinder and a showerhead, labeled with '2' in the corner.

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or labels)

NETTOYAGE DU ROULEAU MOU

Diagram of a vehicle front view showing a rectangular object and a striped cylindrical component with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with three orthographic views (no text or symbols)

ENTRETIEN DE VOTRE ASPIRATEUR

CONTRÔLE DES OBSTRUCTIONS

Technical line drawing of a mechanical component with no visible text or symbols

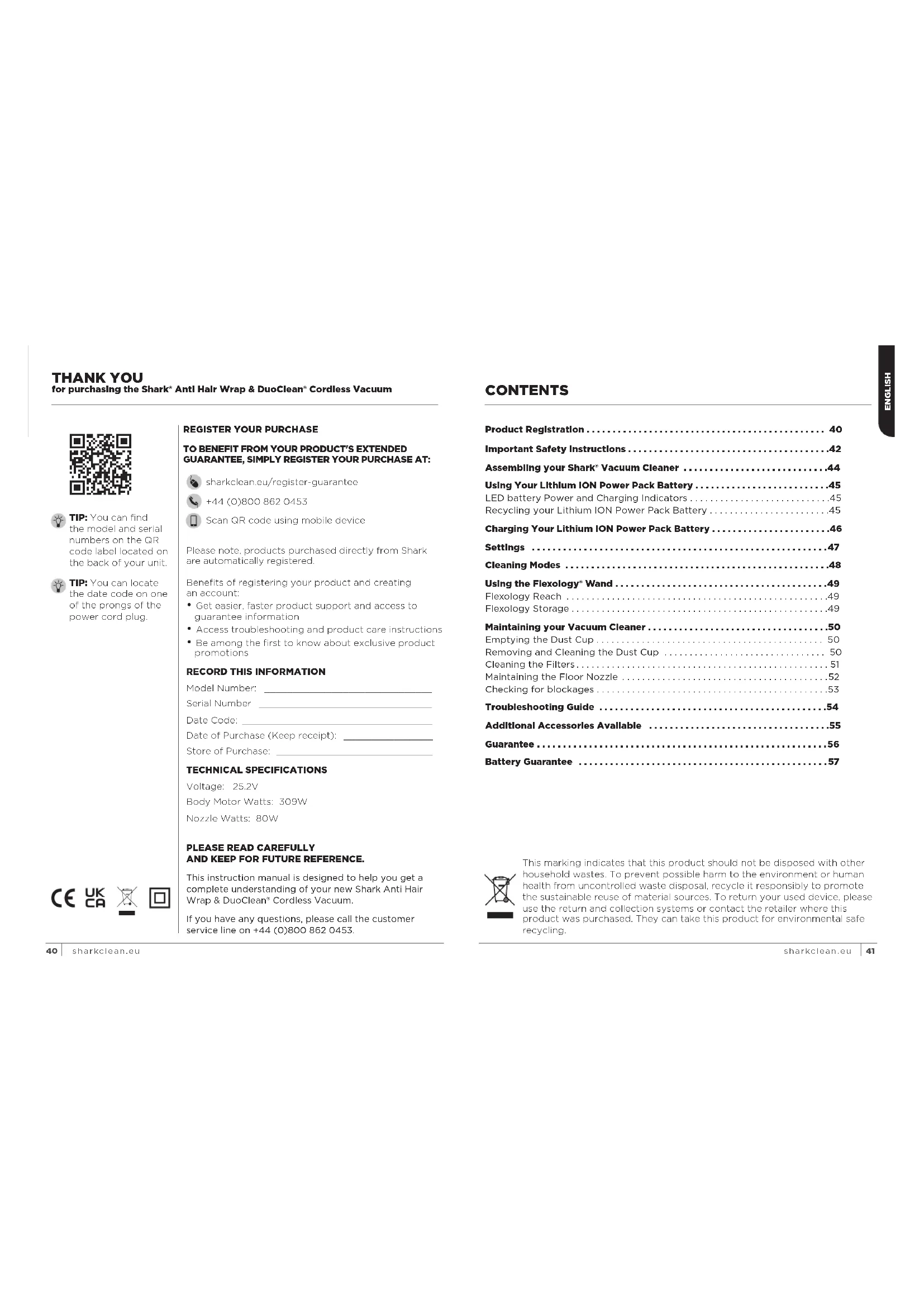

for purchasing the Shark® Anti Hair Wrap & DuoClean® Cordless Vacuum

TIP: You can find the model and serial numbers on the QR code label located on the back of your unit.

TIP: You can locate the date code on one of the prongs of the power cord plug.

REGISTER YOUR PURCHASE

TO BENEFIT FROM YOUR PRODUCT'S EXTENDED GUARANTEE, SIMPLY REGISTER YOUR PURCHASE AT:

sharkclean.eu/register-guarantee

[phone]

Scan QR code using mobile device

Please note, products purchased directly from Shark are automatically registered.

Benefits of registering your product and creating an account:

• Get easier, faster product support and access to guarantee information
- Access troubleshooting and product care instructions
- Be among the first to know about exclusive product promotions

RECORD THIS INFORMATION

Model Number: ____

Serial Number ____

Date Code: ____

Date of Purchase (Keep receipt): ____

Store of Purchase:

TECHNICAL SPECIFICATIONS

Voltage: 25.2V

Body Motor Watts: 309W

Nozzle Watts: 80W

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This instruction manual is designed to help you get a complete understanding of your new Shark Anti Hair Wrap & DuoClean® Cordless Vacuum.

If you have any questions, please call the customer service line on [phone].

CONTENTS

Product Registration 40

Important Safety Instructions....42

Assembling your Shark® Vacuum Cleaner ....44

Using Your Lithium ION Power Pack Battery ....45

LED battery Power and Charging Indicators 45

Recycling your Lithium ION Power Pack Battery 45

Charging Your Lithium ION Power Pack Battery ....46

Settings 47

Cleaning Modes ....48

Using the Flexology® Wand ....49

Flexology Reach 49

Flexology Storage....49

Maintaining your Vacuum Cleaner....50

Emptying the Dust Cup 50

Removing and Cleaning the Dust Cup 50

Cleaning the Filters....51

Maintaining the Floor Nozzle 52

Checking for blockages 53

Troubleshooting Guide ....54

Additional Accessories Available ....55

Guarantee 56

Battery Guarantee ....57

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmental safe recycling.

IMPORTANT SAFETY INSTRUCTIONS

FOR HOUSEHOLD USE ONLY • PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

To reduce the risk of shock and unintended operation, turn off power and remove the ION Power Pack battery before servicing.

NOTE: If you have delicate or wool carpets, particularly loop pile, please try the vacuum on a hidden area first to ensure the spinning brush-rolls do not damage or unpick carpet fibres.

WARNING

REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, INJURY, OR PROPERTY DAMAGE:

THE FLOOR NOZZLE, WAND, AND HANDHELD VACUUM CONTAIN ELECTRICAL CONNECTIONS:

1. This vacuum consists of a motorised nozzle, wand, and handheld vacuum. These components contain electrical connections, electrical wiring, and moving parts that potentially present risk to the user.
2. Before each use, carefully inspect all parts for any damage. If a part is damaged, discontinue use.
3. Use only identical replacement parts.
4. This vacuum contains no serviceable parts.
5. Use only as described in this manual. DO NOT use the vacuum for any purpose other than those described in this manual.
6. With the exception of the filters and dust cup, DO NOT expose any parts of the vacuum to water or other liquids.
   7 DO NOT allow the appliance to be used by children. Keep the appliance and its cord out of reach of children. Do not allow to be used as a toy. Close supervision is necessary when used near children.

GENERAL USE

8 This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be done by children.
9 Always turn off the vacuum before connecting or disconnecting any current carrying noses, motorised nozzles, chargers, batteries, or other electrical or mechanical parts.

10 DO NOT handle plug or vacuum with wet hands.
11 DO NOT use without dust cup, filters, and brush-roll in place.
12 Only use Shark® branded filters and accessories. Damage caused by non-Shark filters and accessories may not be covered by the warranty.
13 DO NOT put any objects into nozzle or accessory openings. DO NOT use with any opening blocked, keep free of dust, lint, hair, and anything that may reduce airflow.
14 DO NOT use if nozzle or accessory airflow is restricted. If the air paths or the motorised floor nozzle become blocked, turn the vacuum off. Remove all obstructions before you turn on the unit again.
15 Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.
16 DO NOT use if vacuum is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.
17 Use extra care when cleaning on stairs.
18 DO NOT leave the vacuum unattended while powered on.
19 When powered on, keep the vacuum moving over the carpet surface at all times to avoid damaging the carpet fibres.
20 If you have delicate or wool carpets, particularly loop pile, please try the vacuum on a hidden area first to ensure the soinning brush-rolls do not damage or unpick carpet fibres.

21 DO NOT use to pick up

a) Liquids
b) Large objects
c) Hard or sharp objects (glass, nails, screws, or coins)
d) Large quantities of dust (including drywall, fireplace ash, or embers). DO NOT use as an attachment to power tools for dust collection.
e) Smoking or burning objects (hot coals, cigarette bulbs, or matches)
f) Flammable or combustible materials (lighter fluid, petrol, or kerosene)
g) Toxic materials (chlorine bleach, ammonia, or drain cleaner)

22 DO NOT use in the following areas:

a) Poorly lit areas
b) Wet or damp surfaces
c) Outdoor areas
d) Spaces that are enclosed and may contain explosive or toxic fumes or vapours (lighter fluid, petrol, kerosene, paint, paint thinners, mothproofing substances, or flammable dust)

23 Turn off the vacuum before plugging in or unplugging the charger.

24 Turn off the vacuum before any adjustment, cleaning, maintenance or troubleshooting.
25 During cleaning or routine maintenance, DO NOT cut anything other than hair, fibres, or string wrapped around the brush-roll.
26 Allow all filters to air-dry completely before replacing in the vacuum to prevent liquid from being drawn into electric parts.
27 DO NOT modify or attempt to repair the vacuum or the battery yourself, except as indicated in this manual.

DO NOT use the battery or vacuum if it has been modified or damaged. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

1. Turn off all controls before unplugging
   29 Always turn off this appliance before connecting or disconnecting motorised nozzle or hand tool

BATTERY PACK

1. The battery is the power source for the vacuum. Carefully read and follow all charging instructions.
2. To prevent unintentional starting, ensure the vacuum is powered off before picking up or carrying the vacuum. DO NOT carry the appliance with your finger on the power switch.

SAVE THESE INSTRUCTIONS

1. Use only the charger supplied with the unit. Use of an incorrect charger may result in no charging, and/or unsafe conditions. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
2. Keep the battery away from all metal objects such as paper clips, coins, keys, nails, or screws. Shorting the battery terminals increases the risk of fire or burns.
3. Under abusive conditions, liquid may be ejected from the battery. Avoid contact with this liquid, as it may cause irritation or burns. If contact occurs, flush with water. If liquid contacts eyes, seek medical help.
4. Battery should not be stored at temperatures below 3^ C ( 37.4^ F) or above 104^ F ( 40^ C) to maintain long-term battery life.
5. DO NOT charge battery at temperatures below 5°C (40°F) or above 104°C (104°F). Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
6. Store the appliance indoors. DO NOT use or store it below 3°C (37.4°F). Ensure the appliance is at room temperature before operating.
7. DO NOT expose the battery to fire or temperatures above 265°F (130°C) as it may cause explosion.
8. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
9. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
10. For IZ300UK, IZ300UKT, IZ320UK, IZ320UKT use only with Shark battery pack XBATR725EU.

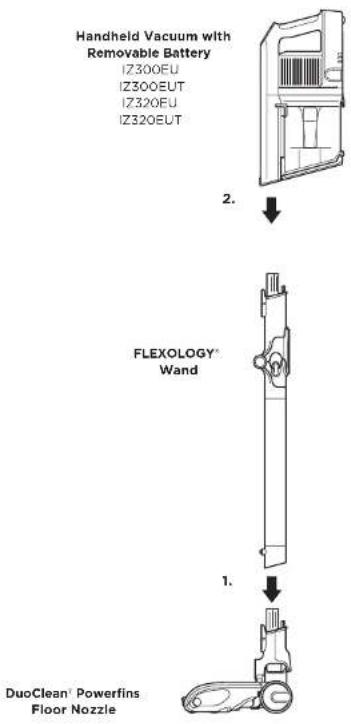

ASSEMBLY

1. Insert Wand into Floor Nozzle.
2. Insert Handheld Vacuum into wand.

For proper operation, ensure all components are completely connected and clicked into place.

LI-ION BATTERY

The Lithium ION Power Pack battery does not come fully charged. Prior to first use, charge completely. During first use, run the battery down until it is completely out of power. This will condition the battery.

LED BATTERY POWER AND CHARGING INDICATORS

Technical line drawing of a mechanical device with a right-angle arrow indicating rotation (no text or symbols)

Charging

NOTE: Full charge takes approximately 3.5 hours.

RECYCLING THE LI-ION BATTERY

This product uses a Lithium ION rechargeable and recyclable battery. When the battery no longer holds a charge, it should be removed from the vacuum and recycled. DO NOT incinerate or compost the battery.

When your Lithium ION Power Pack Battery needs to be replaced, dispose of it or recycle it in accordance with local regulations. In some areas, it is illegal to place spent Lithium ION batteries in the bin or in a municipal solid waste stream. Return spent power packs to an authorised recycling center or to retailer for recycling. Contact your local recycling center for information on where to drop off the spent power pack.

To charge, remove the handheld vacuum from the wand by pressing the Wand Release button and pulling up. Plug the charger into the charging port.

Technical diagram showing a device with internal components and a close-up view of the component's internal structure.

CHARGING THE BATTERY

USING THE LI-ION CHARGER

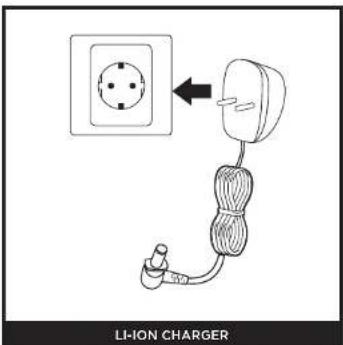

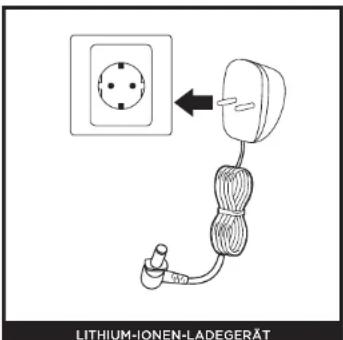

LI-ION CHARGER

Plug the LI-Ion Charger into a wall outlet.

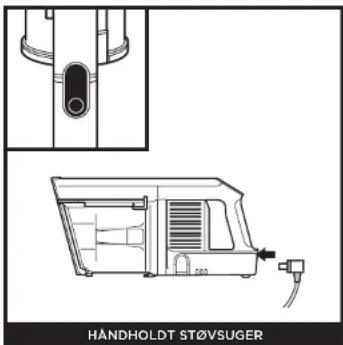

IN HANDHELD VACUUM

To charge simply plug the charger into the charging port while still attached to the wand.

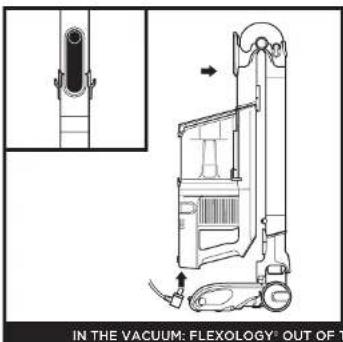

IN THE VACUUM: FLEXOLOGY OUT OF T

To put the vacuum in storage mode, press the FLEXOLOGY ^® Wand Unlock Latch while folding the handheld vacuum forward until the wand clicks and locks. Plug the charger into the charging port on the handheld vacuum.

ACUUM

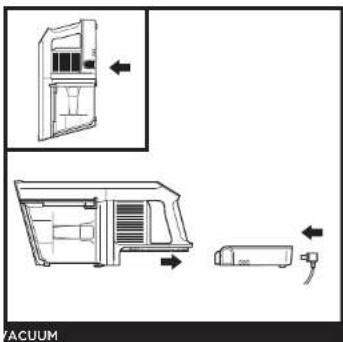

The battery is removable (IZ300UK, IZ300UKT, IZ320UK, IZ320UKT), press and hold the Battery Release Button, then slide out the battery. Plug the charger into the charging port on the battery. To reinstall the battery, slide it into the slot in the back of the handheld vacuum.

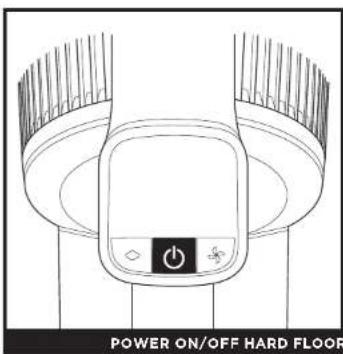

SETTINGS

Line drawing of a handheld electronic device with power button and control buttons (no text or symbols on the device itself)

Press power button to turn on or off the vacuum.

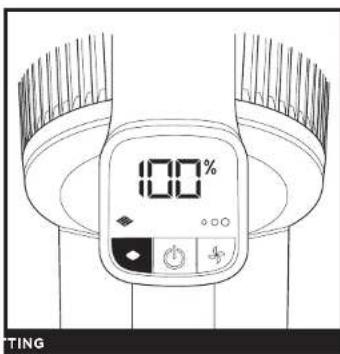

100% FTING

To vacuum in hard floor mode, press the floor select button until the hard floor icon (◆) illuminates. The brushrolls will spin slowly to clean bare floors and small area rugs.

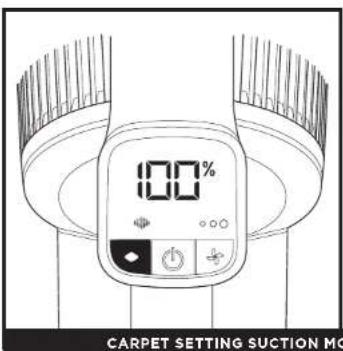

100% CARPET SETTING SUCTION MO

To vacuum in carpet mode, press the floor select button until the carpet icon (☑) illuminates. The brushroils will spin faster to pick up debris below the surface of your carpets.

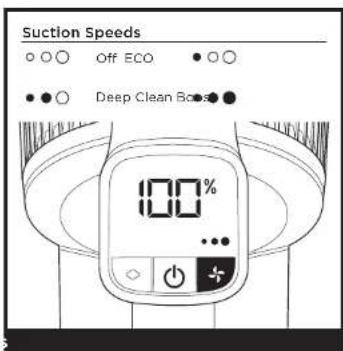

Suction Speeds ○ ○ ○ Off ECO ● ○ ○ ● ● ○ Deep Clean Boost ●

Press the (*) button to toggle between ECO, Deep Clean and Boost modes. To save battery power, select ECO mode. For everyday cleaning power, select Deep Clean. For an extra burst of power, select Boost mode

CLEANING MODES

UPRIGHT MODE

To clean floors, place foot on floor nozzle and tilt handheld vacuum back.
NOTE: Brushrolls will only engage when the handheld vacuum is tilted back.

Technical line drawing of a handheld device with an inset close-up view (no text or symbols on the device itself)

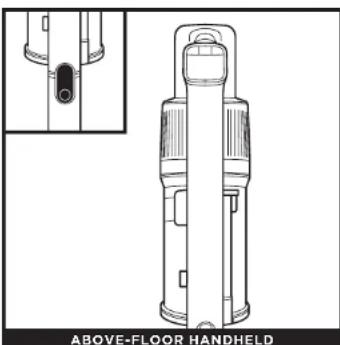

Press the wand release button and lift the handheld vacuum off the wand. Attach an accessory for great cleaning on stairs, furniture, and other above-floor areas.

Technical line drawing of a double-floor kitchen fixture with an above-floor floor, showing internal components and a close-up detail (no text or symbols)

Stand the vacuum upright and press the nozzle release button located at the bottom of the wand, above the nozzle. Lift wand to detach. Great for cleaning skirting boards, ceiling fans, window sills, and other hard-to-access areas.
NOTE: All accessories are compatible with both the wand and the handheld vacuum.

USING THE FLEXOLOGY* WAND
FLEXOLOGY® REACH

Technical line drawing of a mechanical device with an inset showing a vertical component (no text or symbols)

Press the unlock latch on the back of the wand, then adjust the angle.

Line drawing of a mechanical device positioned next to a blank rectangular block (no text or symbols)

Adjust the wand to a lower angle to easily clean under furniture.

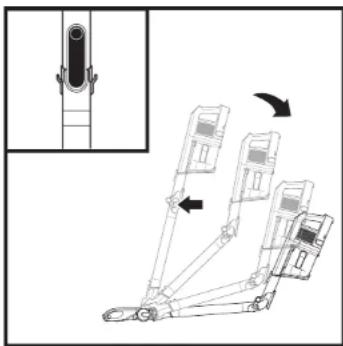

FLEXOLOGY ^® STORAGE

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or assembly.

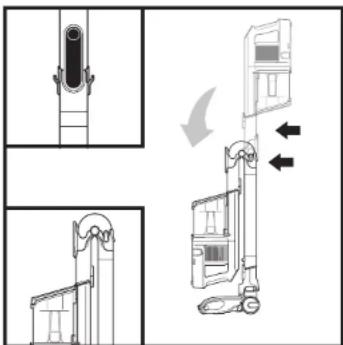

To put the vacuum in storage mode, press the unlock latch while folding the handheld vacuum forward.

(Click)

To take the vacuum out of storage mode, press the unlock latch and lift up the handheld vacuum until the wand clicks and locks into place.

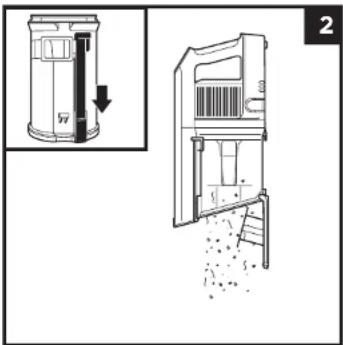

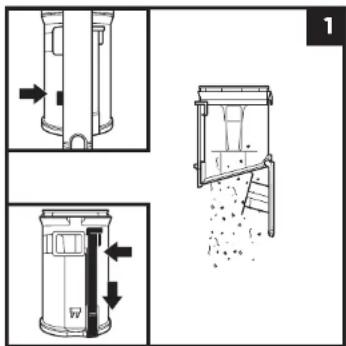

MAINTAINING YOUR VACUUM

Technical diagram showing a mechanical assembly with an inset view of a component (no text or symbols present)

Press the wand release button to detach the handheld vacuum from the wand.

Technical diagram showing a mechanical device with a downward arrow and a magnified view of its internal structure.

To empty the Dust Cup while it is attached to the handheld vacuum, position the dust cup over a bin and slide the lid release slider forward.

REMOVING AND CLEANING THE DUST CUP

Diagram illustrating three stages of a waste sorting or recycling process with labeled arrows and a scale bar.

To remove the dust cup from the handheld vacuum, press the Dust Cup Release button near the handheld vacuum nozzle. Tilt the dust cup and lift off to remove. To empty dust and debris, hold the dust cup over the bin, then slide the CleanTouch Dirt Ejector slider forward.

Diagram showing a water tower with an outlet and a showerhead, labeled with directional arrows and page number 2

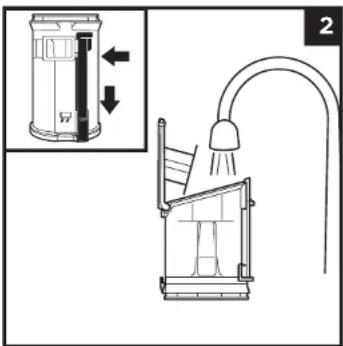

To clean the interior of the dust cup, rinse it with water. Place it on its side with the lid open to air-dry for at least 24 hours before reinstalling.

MAINTAINING YOUR VACUUM

CLEANING THE FILTERS

Regularly rinse and replace the filters to maintain your vacuum's suction power.

To clean filters, rinse them with water only. Allow all filters to air-dry completely before reinstalling to prevent liquid from being drawn into electric parts. Clean the pre-motor filters at least once a month and post-motor filter at least once a year. Tap off loose dirt between washes when needed. More frequent cleaning may sometimes be necessary with heavy use.

IMPORTANT: DO NOT use soap when cleaning the filters. Use water only. The vacuum will not have suction if the post-motor HEPA filter is not installed. Ensure that all filters are installed before using.

PRE-MOTOR FILTER POST-MOT

Press the dust cup release button and remove the dust cup. Pull the foam and felt filters out of the back of the dust cup.

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

Remove the dust cup. Pull the post-motor filter out of the handheld vacuum.

Pre-Motor Foam and Felt Filter Kit Post-Motor Filter

MAINTAINING YOUR VACUUM

FLOOR NOZZLE

If any hair is wrapped around the brushroll, continue cleaning using the Carpet setting on a bare floor surface, a low-pilo carpet, or a small area rug. If some fibers remain wrapped around the brushroll after continued use, carefully remove them. If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages by following the steps under 'Checking for Blockages in the Floor Nozzle' on the bottom right of this page.

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or labels)

CLEANING SOFT ROLLER

Diagram of a vehicle front view showing a battery and a cylindrical component with arrows indicating motion (no text or symbols)

1 To remove Soft Roller from nozzle, pull the Soft Roller out by the tab.
2 Tap loose debris off the Soft Roller. Use a dry towel to wipe the Soft Roller clean and to remove any debris caught in the teeth behind the Soft Roller.
3 Hand wash the Soft Roller as needed. Use only water, and let air-dry completely, which should take at least 24 hours.
4 Reinsert the Soft Roller.

Technical line drawing of a mechanical housing or enclosure with internal compartments and ventilation slots (no text or symbols)

Technical line drawing of a mechanical device with three orthographic views (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical shaft and base (no text or symbols)

MAINTAINING YOUR VACUUM

CHECKING FOR BLOCKAGES

Checking for Blockages In the Handheld Vacuum:

1. Turn off vacuum.
2. Remove the handheld vacuum from the wand.
3. Check all intake openings on the dust cup and remove any debris or blockage.

Checking for Blockages In the Wand:

Standard Wand:

1. Turn off vacuum.
2. Remove the handheld vacuum and floor nozzle.
3. Check intake openings for blockages and debris.
4. Clear away debris and blockages.

Flexology ^4 Wand:

1. Turn off vacuum.
2. Remove the handheld vacuum and floor nozzle from the wand.
3. ChecktheClog Access Hose on the Flexology section of the ward by pinching the tabs on both sides of the hose and lifting the hose out.
4. Clear any debris and blockages.

Checking for Blockages in the Floor Nozzle:

1. Turn off vacuum.
2. Detach the wand.
3. Use the edge of a coin to open the three locks on the bottom of the floor nozzle.
4. Remove the cover and tilt back the neck of the floor nozzle.
5. Check the opening and remove any debris.
6. Replace the cover by sliding the inserts into the slots, then pressing down firmly on all sides before turning the locks clockwise to close, until they click securely into place.

TROUBLESHOOTING GUIDE

WARNING: To reduce the risk of shock and unintended operation, turn off power and remove the Lithium ION Power Pack battery before servicing.

Vacuum is not picking up debris. No suction or light suction. Nozzle light is red. (Refer to Checking for Blockages section for more information.)

- Check filters to see if they need cleaning. Follow instructions for rinsing and completely air-drying the filters before reinserting in the vacuum.

• Dust cup may be full; empty dust cup.
• Check floor nozzle for blockages; clear blockages if required.
• Remove any string, carpet fibres, or hair that may be wrapped around the brushroll.
• Check connection between handheld vacuum and wand for blockages; clear blockages if required. If the issue persists, please contact Customer Service.
• Check clog access in wand for any blockages and clear any debris.

Vacuum lifts area rugs.

• Make sure you are not engaging Boost mode as this can be too much suction for lighter rugs. Take care when vacuuming area rugs or rugs with delicately sewn edges.
- Turn off the unit to disengage the brushroll and restart with the power/selector switch.
Brushrolls do not spin.
- Immediately turn off the vacuum. Remove any blockages before turning the vacuum back on. Make sure the handheld vacuum is tilted back far enough for the brushrolls to engage. If the brushrolls still do not spin, please contact Customer Service.
- If the floor nozzle has headlights and they are not illuminated, there is a connection issue between the handheld vacuum, wand, and nozzle. Try disconnecting and reattaching the pieces. If the headlights still do not illuminate, please contact Customer Service.

Vacuum turns off on its own.

There are several possible reasons for the vacuum turning off on its own, including blockages, battery issues, and overheating. If vacuum turns off on its own, perform the following steps:

1. Turn on the vacuum and check the battery indicator lights located on the handheld vacuum. If recharging is needed, make sure power is turned off before connecting to the charger.
2. Empty dust cup and clean filters (see Emptying the Dust Cup and Cleaning the Filters section).
3. Check wand, accessories, and inlet openings and remove any blockages.
4. Allow unit and battery to cool for at least 45 minutes, until they return to room temperature.
5. Press power button to restart the vacuum.

NOTE: If vacuum still does not operate properly, contact Customer Service at [phone]

Battery Indicator Lights on handheld vacuum are flashing.

• Bottom LED light is flashing (Fig. A): Battery needs to be charged.
• Top and bottom LED lights are flashing (Fig. B): Battery temperature is not optimal, so charging is temporarily paused. Leave battery plugged in and charging will resume soon.
  • If top 2 or bottom 2 LED lights are flashing (Fig. C, Fig. D), call Customer Service at [phone]

Hn A Hn C Hn B Hn D

ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM

A 8" Crevice Tool
B 18" Flexi Crevice Tool
© Duster Crevice Tool
Dusting Brush
E Multi-Angle Dusting Brush
F Anti-Allergen Dust Brush
G Upholstery Tool
H Wide Upholstery Tool
1 Pet Multi-Tool
Deep-Cleaning motorised Pet Tool
K Flexology* Under-Appliance Wand
Accessory Bag
M LI-Ion Charger
N Dual LI-Ion Charger
Li-Ion Battery
P Car Detail Kit

LMNOP

NOTE: Not all accessories come with all units. For a list of the accessories included with this model, see the top inside flap of the box. To order additional accessories, visit sharkninja.eu

Shark NINJA

FIVE (5) YEAR LIMITED GUARANTEE

When a consumer buys a product in the Europe, they get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these rights against your retailer. However, at Shark ^1 we are so confident about the quality of our products that we give the original product owner an additional manufacturer's guarantee of up to five years (2 years standard plus 3 on registration). These terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected.

The conditions below describe the prerequisites and scope of our guarantee. They do not affect your statutory rights or the obligations of your retailer and your contract with them.

The Lithium ION power pack is not covered by the 5 year guarantee (see battery guarantee on next page) Shark ^® Guarantees

A household appliance like a vacuum cleaner constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

Every Shark ^® machine comes with a free parts and labour guarantee. Our customer service helpline (0800 862 0453) is open from 9.00am to 6.00pm Monday - Friday. It's free to call, and you'll be put straight through to a Shark ^® representative. You'll also find online support at www.sharkclean.eu

How do I register my extended Shark guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

- Date you purchased the machine (receipt or delivery note)

• To register online, please visit www.Sharkclean.eu/register-guarantee. Products purchased directly from Shark® are automatically registered.

IMPORTANT

- Both the 2 years and the extended 3 years guarantee will only cover your product from the date of purchase.

- Please keep your receipt at all times. Should you need to use your extended guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

What are the benefits of registering my free Shark guarantee?

When you register your guarantee we'll have your details to hand if we ever need to get in touch. If you further agree to receive communications from us, you can also receive tips and advice on how to get the best out of your Shark® vacuum and hear the latest news about new Shark® technology and launches.

If you register your guarantee online, you'll get instant confirmation that we've received your details.

How long are new Shark ^® machines guaranteed for?

Our confidence in our design and quality control means that your new Shark ^® vacuum cleaner is guaranteed for a total of up to five years (2 years plus 3 years on registration).

What is covered by the free Shark ^® guarantee?

Repair or replacement (at Shark's discretion) of your Shark® machine, including all parts and labour. A Shark® guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark® guarantee?

1. Blockages - for details of how to unblock your vacuum cleaner, please refer to the instructions.

2. Normal wear and tear such as brush bar, fuse, belt, batteries, hose etc.

3. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with the Shark® instructions supplied with your machine.

4. Use of the vacuum cleaner for anything other than normal domestic household purposes.

5. Use of parts not assembled or installed in accordance with the operating instructions.

6. Use of parts and accessories which are not Shark ^A Genuine Components.

7. Faulty installation (except where installed by Shark®).

8. Repairs or alterations carried out by parties other than Shark ^® or its agents.

9. The Lithium ION power pack battery. Please see next page for battery guarantee.

What happens when my guarantee runs out?

Shark ^® does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their vacuum cleaners after the guarantee has lapsed. In this case please contact our Freephone customer service help line and ask about our out of guarantee programme, on 0800 862 0453.

Where can I buy genuine Shark ^1 spares and accessories?

Shark ^® spares and accessories are developed by the same engineers who developed your Shark ^® vacuum. You'll find a full range of Shark ^® spares, replacement parts and accessories for all Shark ^® machines at www.sharkclean.eu. Please remember that damage caused by use of non-Shark ^® spares is not covered under your guarantee

Shark NINJA

TWO (2) YEAR LIMITED BATTERY GUARANTEE

When a consumer buys a product in the Europe, they get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these rights against your retailer. However, at Sharki we are so confident about the quality of our products that we give you an additional manufacturer's guarantee of two years. These terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected.

Every Shark ^® machine comes with a free parts and labour guarantee. Our customer service helpline (0800 862 0453) is open from 9.00am to 6.00pm Monday - Friday. It's free to call, and you'll be put straight through to a Shark ^® representative. You'll also find online support at www.Sharkclean.eu/uk.

IMPORTANT

• The manufacturer's guarantee covers your product for 2 years starting on the date of delivery.

- Please keep your receipt at all times. Should you need to use your guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

How long are new Shark® battery guaranteed for?

Our confidence in our design and quality control means that your new Shark ^® vacuum cleaner is guaranteed for a total of two years.

What is covered by the free Shark® guarantee?

Repair or replacement of your Shark® machine (at Shark's discretion to decide whether to replace or repair) including all parts and labour. A Shark® guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark\* guarantee?

1. Normal wear and tear of parts which require regular maintenance and/or replacement to ensure the proper functioning of your unit.

2. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with the Shark® Instructions supplied with your machine.

3. Use of the vacuum cleaner for anything other than normal domestic household purposes.

4. Use of parts not assembled or installed in accordance with the instructions.

5. Use of parts and accessories which are not Shark ^4 spares.

6. Faulty installation (except where installed by Shark ^2 ).

Where can I buy genuine Shark® spares and accessories?

Shark ^ spares and accessories are developed by the same engineers who developed your Shark ^ vacuum. You'll find a full range of Shark ^ spares, replacement parts and accessories for all Shark ^ machines at www.Sharkclean.eu. Please remember that using non-Shark ^ spares may invalidate your manufacturer's guarantee. However, your statutory rights are unaffected.

TAK

Technical line drawing of a mechanical device with a right-angle arrow indicating rotation (no text or symbols)

Technical diagram showing a device's internal structure with labeled components and directional arrows indicating assembly or operation.

OPLADNING AF BATTERIET

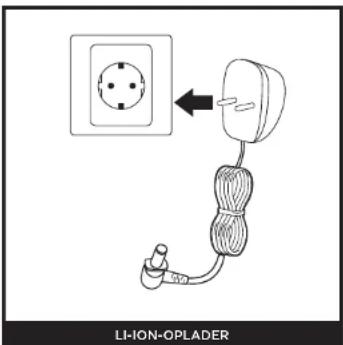

BRUG AF LI-ION-OPLADEREN

LH-ION-OPLADER

I HÄNDHOLD ST∅VSUGER

100% G TIL HARDT GULV

Technical line drawing of a hovercraft with labeled component 'OVER-GULV HÄNDHOLDT' (no other text or symbols)

Technical line drawing of a medical device labeled 'OVER-GULV MED SKAFT' (no other text or symbols)

Technical line drawing of a mechanical device with an inset showing a vertical component (no text or symbols)

Simple line drawing of a mechanical device with a base and arm attachment (no text or symbols)

Justér skaftet til en lavere vinkel for let at rengøre under møbler.

FLEXOLOGY OPBEVARING

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Technical diagram showing a mechanical assembly with an inset view of a component being inserted into a housing.

Technical diagram showing a mechanical device with a downward arrow and a magnified view of its internal structure.

Diagram illustrating three stages of a waste sorting or recycling process, with arrows indicating removal and particle distribution.

For at fjørne støvbeholderen fra den håndholdte støvsuger, tryk på Frigør Støvbeholder knappen nær mundstykket på den håndholdte støvsuger. Vip støvbeholderen og løft op for at fjørne den. For at tømme støv og snavs skal du holde støvopsam- leren over skraldespanden og derefter skubbe CleanTouch Dirt Ejector-skydeknappen fremad.

Diagram showing a water tower with an inverted cylinder and a side view of the tower's internal structure, labeled with '2' in the corner.

Technical line drawing of a device with an arrow indicating a component or assembly (no text or symbols present)

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or labels)

RENG∅RING AF DEN BL∅DE RULLE

Diagram of a vehicle front view showing a battery and a cylindrical component with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with three orthographic views (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical shaft and base (no text or symbols)

VEDLIGEHOLDELSE AF ST∅VSUGEREN

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Technical line drawing of a mechanical device with a right-angle arrow indicating rotation (no text or symbols)

Technical diagram showing a device's internal structure with labeled components and directional arrows indicating assembly or operation.

CARGA DE LA BATERÍA

Technical line drawing of a handheld device with an inset close-up view (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a vertical component (no text or symbols)

Simple line drawing of a mechanical device with a rectangular block and a vertical rod extending from it (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Technical diagram showing a mechanical assembly with an inset view of a component (no text or symbols present)

Technical diagram showing a mechanical device with a downward arrow and a magnified view of its internal structure.

Technical diagram showing three stages of a waste sorting machine with arrows indicating material movement and particle distribution.

Diagram showing a water tower with an inverted cylinder and a side view of the tower's internal structure, labeled with '2' in the corner.

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or labels)

LIMPIEZA DEL RODILLO SUAVE

Diagram of a vehicle front-mounted device with a cable inserted, showing no text or symbols

Technical line drawing of a mechanical device with three orthographic views (no text or symbols)

MANTENIMIENTO DE LA ASPIRADORA

BÚSQUEDA DE OBSTRUCCIONES

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with a right-angle arrow indicating rotation (no text or symbols)

Ricarica

Carica

Carica

Quasi

Carica
completa

Technical diagram showing a device's internal structure with labeled components and directional arrows indicating assembly or operation.

Diagram showing a wall socket connected to a plug with a cable, indicating installation or connection.

CARICABATTERIE PER BATTERIE AGLI IONI DI LITIO

Technical line drawing of a device interior with an inset view showing a cylindrical component and a connected outlet (no text or symbols)

ASPIRAPOLVERE PORTATILE

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

NELL'ASPIRAPOLVERE: FLEXOLOGY® FUOR

Diagram showing three views of a refrigerator with arrows indicating direction, no text or symbols present

L'ASPIRAPOLVERE

Top-down line drawing of a smart device with a power button and control panel (no text or symbols)

ACCENSIONE/SPEGNIMENTO IMPOST

MODALITÀ VERTICALE

Technical line drawing of a mechanical device with an inset detail view (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up view (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or assembly (no text or symbols present)

Simple line drawing of a mechanical device connected to a rectangular block (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or movement.

Technical diagram showing a mechanical assembly with an inset view of a component (no text or symbols present)

Technical diagram showing a mechanical device with a downward arrow and a magnified view of its internal structure.

Technical diagram showing three stages of a waste sorting machine with arrows indicating material movement and particle distribution.

Diagram showing a water tower with an inverted cylinder and a side view of the tower's internal structure, labeled with '2' in the corner.

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or labels)

PULIZIA DEL RULLO MORBIDO

Diagram of a vehicle front view showing a rectangular object and a striped cylindrical component with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with three orthographic views (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical shaft and base (no text or symbols)

Bastone Flexology\*:

ACCESSORI AGGIUNTIVI DISPONIBILI SU SHARKACCESSORIES.COM

Technical line drawing of a mechanical device with a right-angle arrow indicating rotation (no text or symbols)

Technical diagram showing a device with internal components and a close-up view of the interior panel.

DE BATTERIJ OPLADEN

GEBRUIK DE LI-ION-LADER

LI-ION-LADER

Technical line drawing of a handstofzuiger device with internal components and wiring (no text or symbols)

100% R HARDE VLOEREN

Technical line drawing of a handstofiziugger device with no visible text or symbols

Technical line drawing of a mechanical device with arrows indicating motion or assembly (no text or symbols)

Line drawing of a mechanical device connected to a flat surface (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Technical diagram showing a mechanical assembly with an inset view of a component (no text or symbols present)

Technical diagram showing a mechanical device with a downward arrow and a close-up of its internal structure, alongside a magnified view of the device's internal components.

Technical diagram showing three stages of a waste sorting machine with arrows indicating material movement and particle distribution.

Diagram showing a water tower with an inverted cylinder and a side view of the tower's internal structure, labeled with '2' in the corner.

Technical line drawing of a device with an arrow indicating direction, showing internal components and a 302° label (no text or symbols beyond basic labels)

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or labels)

DE ZACHTE ROLLER REINIGEN

Diagram of a vehicle front view with a cylindrical component inserted, showing arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with three orthographic views (no text or symbols)

Technical line drawing of a mechanical component with a pointed tip and base (no text or symbols)

Flexology ^4 -buls:

Body Motor Watts: 309W

Dyse-watt:

80W

LES N∅YE OG OPPBEVAR FOR FREMTIDIG REFERANSE.

Technical line drawing of a mechanical device with a right-angle arrow indicating rotation (no text or symbols)

Lading

MERK: En full opplading tar ca. 3.5 timer

RESIRKULERING AV LI-ION-BATTERIET

Technical diagram showing a device with internal components and a close-up view of the main body area.

LADING AV BATTERIET

BRUKER LI-ION-LADEREN

LI-ION-LADER

Plugg LI-Ion-laderen inn i et vegguttak.

HÄNDHOLD ST∅VSUGER

Line drawing of a smart air conditioner unit with control buttons and a power button (no text or symbols on the device itself)

100% STILLING

100% CARPET-INNSTITILLING SUGEMOD

Technical line drawing of a cylindrical device with internal components and a close-up inset showing a small component (no text or symbols)

Technical line drawing of a medical device with cross-sectional view and labeled 'OVER GULV MED SKAFT' (no technical annotations or symbols)

Technical line drawing of a mechanical device with arrows indicating motion or assembly (no text or symbols)

Simple line drawing of a mechanical device with a bracket and lever (no text or symbols)

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or assembly.

VEDLIKEHOLDE ST∅VSUGEREN

T∅MMING AV ST∅VKOPP

Technical diagram showing a mechanical assembly with an inset view of a component (no text or symbols present)

Diagram illustrating a mechanical device with a downward arrow and labeled components, alongside a magnified view of the device's internal structure.

Diagram illustrating three stages of a waste sorting or recycling process, with arrows indicating material movement and particle distribution.

Diagram showing a water tower with an outlet and a showerhead, labeled with directional arrows and page number 2

VEDLIKEHOLDE ST∅VSUGEREN

RENGJ∅RE FILTRENE

F∅R-MOTOR-FILTER ETTER-MO

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

VEDLIKEHOLDE ST∅VSUGEREN

GULVMUNNSTYKKE

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or labels)

Diagram of a vehicle front-mounted device with a roller being inserted (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal compartments and ventilation slots (no text or symbols)

Technical line drawing of a mechanical device with three orthographic views (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

VEDLIKEHOLDE ST∅VSUGEREN

HVORDAN DU SER ETTER BLOKKERINGER

Sjekke etter blokkeringer i den håndholdte støvsugeren:

Technical line drawing of a mechanical device with a right-angle arrow indicating rotation (no text or symbols)

Technical diagram showing a device with internal components and a close-up view of the component's internal structure.

sharkclean.eu

153

CARREGAR A BATERIA

Technical line drawing of a cylindrical device with internal components, shown from top and side views (no text or symbols on the device itself)

Technical line drawing of a mechanical device with an inset view showing a cylindrical component (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a vertical component (no text or symbols)

Simple line drawing of a mechanical device connected to a rectangular block (no text or symbols)

Diagram illustrating a mechanical lifting or lifting process with labeled components and directional arrows indicating motion.

Technical diagram showing a device with a close-up view and a magnified inset highlighting a component detail.

Technical diagram showing a waste bin with downward arrow and labeled components, alongside a close-up of the device's internal structure.

Diagram illustrating a waste sorting or recycling process with labeled steps and directional arrows indicating material flow.

Diagram showing a water tower with an inverted cylinder and a handbowl, illustrating the process of a water tower installation.

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or labels)

Diagram of a vehicle front view showing a rectangular object and a striped cylindrical component with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal compartments and ventilation slots (no text or symbols)

Technical line drawing of a mechanical device with three orthographic views (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with a right-angle arrow indicating direction (no text or symbols)

Technical diagram showing a device with internal components and a close-up view of the component's internal structure.

AKUN LATAAMINEN

LITIUMIONILATURIN KÄYTTÖ

LITIUMIONILATURI

Technical line drawing of a kitchen appliance with a side view showing internal components and a close-up detail (no text or symbols)

Diagram showing a device with labeled components and directional arrows indicating movement or assembly.

Top-down schematic of a device with power button and control buttons (no text or symbols on diagram)

Technical line drawing of a cylindrical device with internal components, shown from two orthographic angles (no text or symbols on the device itself)

Technical line drawing of a mechanical device with an inset showing a vertical component (no text or symbols)

Line drawing of a mechanical device positioned next to a blank rectangular block (no text or symbols)

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or assembly.

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or labels)

SOFT ROLLER -RULLAN PUHDISTUS

Diagram of a vehicle front view showing a battery and a cylindrical component with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal compartments and ventilation slots (no text or symbols)

Technical line drawing of a mechanical device with three orthographic views (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

IMURIN HUOLTO

TUKOSTEN TARKASTUS

Rikkalmurin tukosten tarkastus:

Technical line drawing of a mechanical device with a right-angle arrow indicating rotation (no text or symbols)

Technical diagram showing a device with internal components and a close-up view of the main body area.

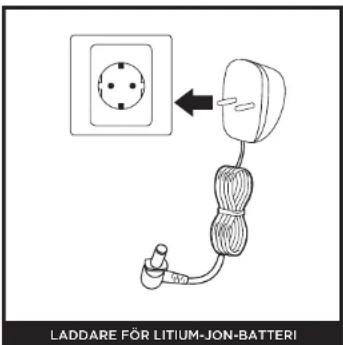

LADDA BATTERIET

ANVÄNDA LADDAREN FÖR LITIUM-JONBATTERIET

LADDARE FÖR LITIUM-JON-BATTERI

I HANDHÄLLEN DAMMSUGARE

E DAMMSUGER

Diagram of a device with power button and fan blade, no readable text or symbols

Technical line drawing of a handhållet ovank golv device (no text or symbols on the diagram itself)

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a mechanical device positioned next to a blank rectangular block (no text or symbols)

Technical diagram showing a door mechanism with labeled components and directional arrows indicating movement or assembly.

Technical diagram showing a mechanical assembly with an inset view of a component (no text or symbols present)

Technical diagram showing a mechanical device with a downward arrow and a close-up of its internal structure, alongside a magnified view of the device's internal components.

Technical diagram showing three stages of a waste sorting or recycling process with arrows indicating material movement.

Diagram showing a water tower with an outlet and a showerhead, labeled with directional arrows and page number 2

Technical line drawing of a device with an arrow indicating direction, showing internal components and a 302° label (no text or symbols beyond basic labels)

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or labels)

RENGÖRA DAMMRULLEN

Diagram of a vehicle front view showing a rectangular object and a cylindrical component with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal compartments and ventilation slots (no text or symbols)

Technical line drawing of a mechanical device with three orthographic views (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Bid A Bid C b E Bid U

FLER TILLBEHÖR FINNS ATT BESTÄLLA PÅ SHARKACCESSORIES.COM

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This Owner's Guide is designed to help you get a complete understanding of your new Shark ^® vacuum. Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice. © 2021 SharkNinja Operating LLC. DUOCLEAN, FLEXOLOGY and SHARK are registered trademarks of SharkNinja Operating LLC. POWERFINS is a trademark of SharkNinja Operating LLC.

LÆS DENNE VEJLEDNING OMHYGGELIGT IGENNEM, OG GEM DEN TIL FREMTIDIGE OPSLAG.
