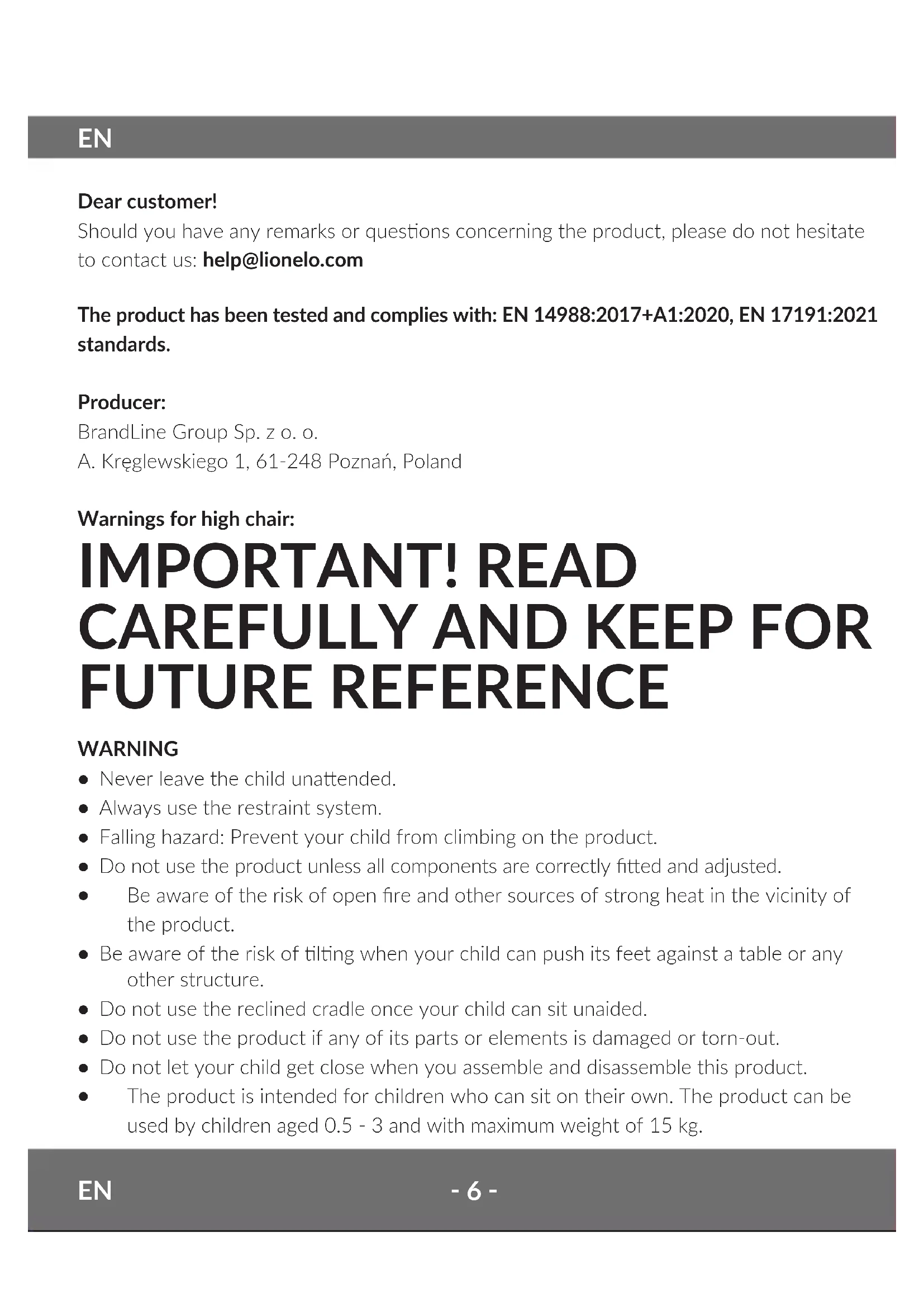

USER MANUAL Maya Lionelo

Should you have any remarks or questions concerning the product, please do not hesitate to contact us: [e-mail]

The product has been tested and complies with: EN 14988:2017+A1:2020, EN 17191:2021 standards.

Producer:

BrandLine Group Sp. z o. o.

A. Krieglewskiego 1, 61-248 Poznań, Poland

Warnings for high chair:

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING

• Never leave the child unattended.
  Always use the restraint system.
• Falling hazard: Prevent your child from climbing on the product.
• Do not use the product unless all components are correctly fitted and adjusted.
• Be aware of the risk of open fire and other sources of strong heat in the vicinity of the product.
• Be aware of the risk of tilting when your child can push its feet against a table or any other structure.
• Do not use the reclined cradle once your child can sit unaided.
• Do not use the product if any of its parts or elements is damaged or torn-out.

• Do not let your child get close when you assemble and disassemble this product.
  The product is intended for children who can sit on their own. The product can be used by children aged 0.5 - 3 and with maximum weight of 15kg

• Always use the crotch protection, the child must always be secured on a high chair, in any position. The tray cannot fully protect the child.

Warnings for the child seat:

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING

• DO NOT place this product near a window as it can be used as a step by the child and cause the child to fall out of the window.
• Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product.
• DO NOT place this product near a window where cords from blinds or curtains could strangle a child.
• Product intended for children from three years.
• All assembly fittings should always be tightened properly.
• Do not use the seating if any part is broken, torn or missing and use only spare parts approved by the manufacturer.
• Restraint system shall be removed when the product is used as a seating.

Description (see: fig. 1 and 2)

1. Seat with backrest
2. Seat inclination adjustment key
3. Wooden legs
4. Chair legs connector
5. Tray
6. Plastic crotch protection
7. Footrest
8. Plastic high chair pads
9. Skids
10. Tray adjustment key

A. Seat with backrest
B. Upper part of high chair legs (x4)
C. Lower part of high chair legs (x4)
D. High chair legs connector
E. Two-layer tray
F. Plastic crotch protection
G. Skids (x2)
H. Footrest

I. Plastic low chair leg pads (x4)
J. Bolts (×8)
K. Footrest screws (x4)
L. Screwdriver

How to install high chair (see fig. 1, 2 and 3):

Legs elements are marked (A, B, C, D), adjust upper (A) and lower (B) legs to one another, as in the pattern: (A + A,B + B,C + C,D + D)

a. Screw upper legs (B) in lower legs (C) in relevant marking of the high chair.
b. Screw folded high chair legs (B and C) into holes on sides of the seat (A).
c. The chair legs connector (D) must be screwed with four bolts (J) into chair legs (B and C).
d. Screw the footrest with screws (K) in the high chair legs connector (D).
e. Place the plastic crotch protection (F) in seat holes (A) until you can hear a „click".
f. Rotate plastic pads (8) and adjust to the floor to increase stability of the high chair.
To provide your child with maximum safety, make sure all elements have been properly and securely tightened.
h. Hold side tray keys (10) by pulling them out. Insert the tray (E) in the seat holder (A), set one of two available positions of the tray (E).
i. The first and second position of seat inclination is intended for the function of the high chair.

Warning!

The high chair can be used by a child aged up to 3, whose weight does not exceed 15kg and who can sit on its own!

3-stage seat inclination adjustment (A) (see fig. 4 and 1), how to fasten and undo safety belts (see fig. 5).

• Press the adjustment keys (2) on both sides of the seat and set one of three positions

which best suits your child.

• Put the child in, insert right and left part of the hip belt in the central buckle until you can hear a „click“ and fasten safety belts.
• To undo safety belts, press the central key and take belts out of the central buckle.

Installation of a low chair (see figures 6 and 2)

• Remove the lower legs (C) of the high chair. Attach the plastic caps of the low chair (I), screw the four screws (J) into the upper legs (B) of the chair and check that they are securely fixed.
• The first, second and third reclining positions of the seat are responsible for the low chair function.

An additional option is the low chair with skids (not included in the basic set) (see figures 7, 1 and 2):

• Remove the four screws (J) from the upper legs (B) of the chair and remove the plastic caps of the low chair (I).
• Then adjust the skids (G) and screw the four screws into the upper legs of the chair (C). Using the seat adjustment button (2), select one of three possible seat reclining positions.

Warning!

The reclined cradle can be used by a child whose weight does not exceed 9kg and who cannot sit on its own!

Cleaning and storage:

• Do not expose the chair to sunlight for a long time.
• Cushions must not be cleaned chemically or ironed. Machine wash at 30^ .
• For cleaning, use soft cleaning agents.
• Frequently check the chair for damage and loose elements.
• Wipe the seat with a wet cloth.
• Do not use abrasive agents.
• In case of any dirt on the top tray, you can wash it in the dishwasher.
• Stop using the chair after you have identified any damage.

Illustrations are for informational purposes only. The actual appearance of the products may differ from the pictures.
