USER MANUAL GP1200 BARTSCHER

Read these instructions before using and keep them available at all times!

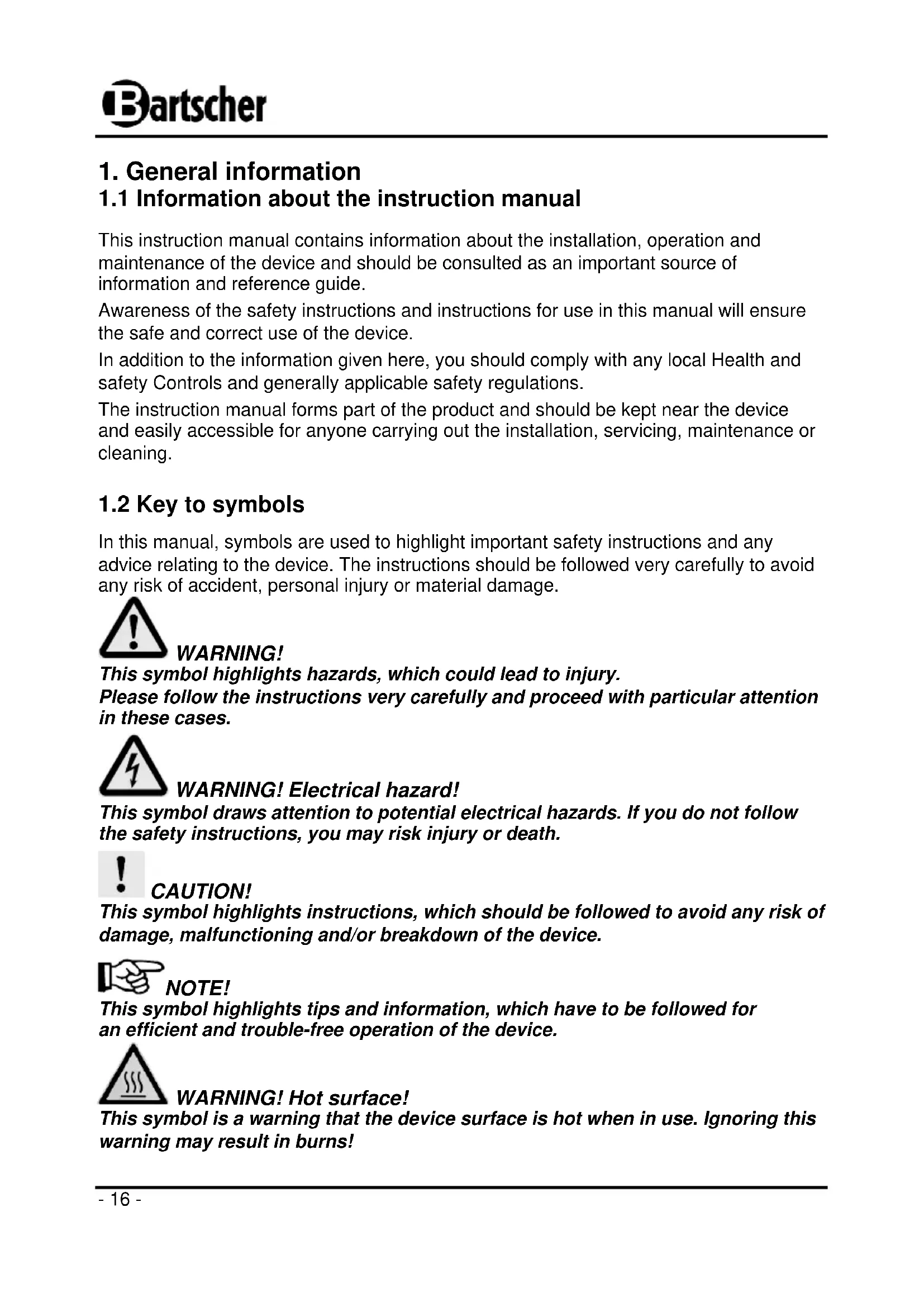

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations. The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage. WARNING! This symbol highlights hazards, which could lead to injury. Please follow the instructions very carefully and proceed with particular attention in these cases. WARNING! Electrical hazard! This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death. CAUTION! This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device. NOTE! This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device. WARNING! Hot surface! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns!- 17 -

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive. If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. NOTE! Read this manual carefully and thoroughly before any operation of the device, and especially before turning it on! Manufacturer is not liable for any damages or faults caused by: - violation of advice concerning operation and cleaning; - use other than designed; - alterations made by user; - use of inadequate spare parts. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved. NOTE! The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity.- 18 - 2.Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately. Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards. To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken. This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device. The user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications. Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with. Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with. CAUTION! o The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers.- 19 - o Children should not play with the device. o Cleaning and maintenance cannot be performed by children younger than 8 years old and must be done under supervision. o Children under the age of 8 years old must be kept away from the device and its power cord. o Please keep these instructions and give them to future owners of the device. o All people using the device should follow the instructions and tips contained in these instructions. o Only use the device indoors.

Safe operation is only guaranteed when using the device for its intended purpose. Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only. The device is not suitable for continuous commercial use. The device is not adapted for use with an external timer or remote control. The device is intended for home use or in similar places such as: - in kitchens for store or office employees or in other service locations; - in suburban properties; - by guests of hotels, motels and other places of accommodation;

in Bed & Breakfasts.

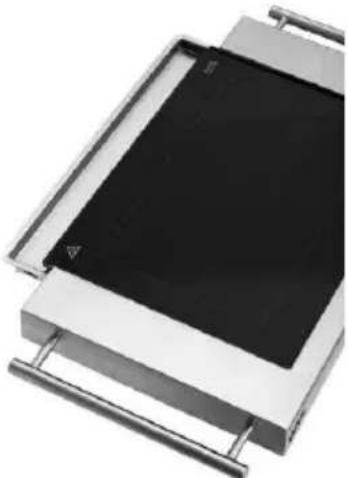

Ceran grill plate is meant to be used for grilling of meat, fish and vegetables only, directly on the heating surface. CAUTION! Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional. Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible. The operator is liable for all damages resulting from inappropriate use.- 20 -

3. Transport, packaging and storage

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation. NOTE! If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling. Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings. Packages should be stored under consideration of the following: - Do not store outdoors. - Keep it dry and dust-free. - Do not expose it to aggressive media. - Do not expose it to direct sunlight. - Avoid mechanical shocks and vibration. - In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.- 21 -

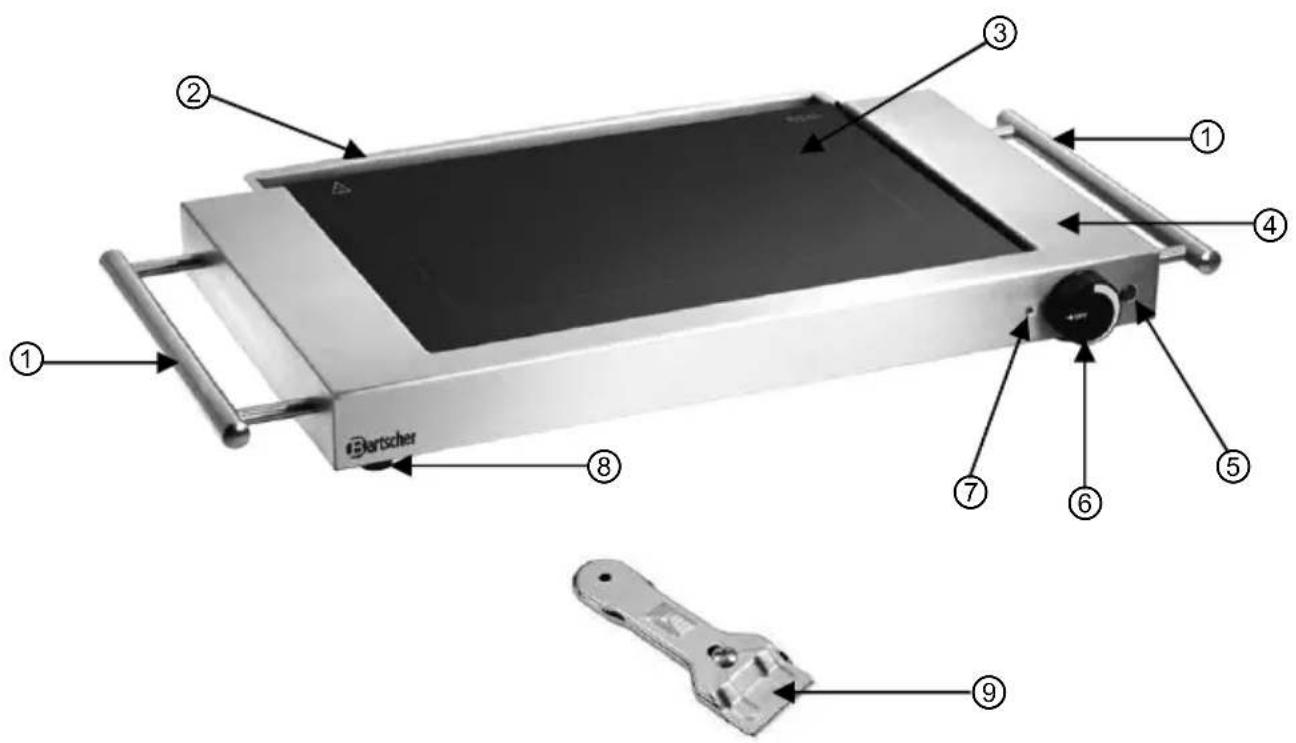

4.1 Overview of parts

Temperature adjustment knob

Side handles and body: Stainless steel Power: 1.2 kW / 220-240 V~ 50 Hz Temperature setting: Infinitely variable by knob regulation Temperature range: from 50 °C up to 250 °C max. Dimensions: width 630 x depth 360 x height 68 mm Ceran glass plate: width 385 x depth 285 mm Heating plate: width 310 x depth 190 mm Weight: 4.1 kg Accessories: 1 ceran plate scraper We reserve the right to make technical changes!

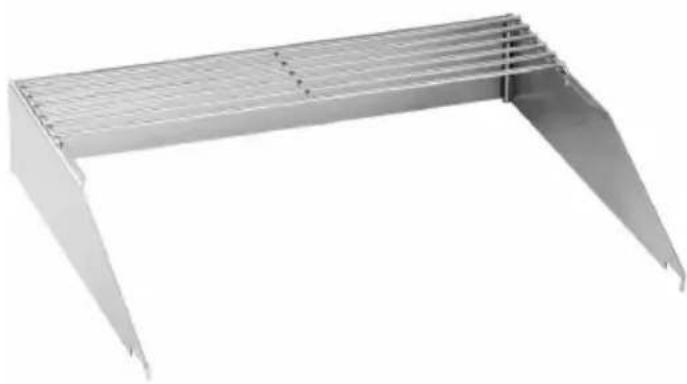

Additional equipment (not included in the delivery!)

5. Installation and operation

5.1 Safety instructions

• Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable.

• The power cable must not be folded, bent or tangled, and must always remain fully unrolled.

• Never place the device or other objects on the power cable.

• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.

• Do not use the device in case it does not function properly, has been damaged or dropped.

• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.

• Do not move or tilt the device when in operation.

5.2 Installation and connection

• Discard the complete packing material after unpacking the device.

• Place the device on top of an even and safe surface which supports the weight of the device and is not heat sensitive.

• Not at any time should you place the device on an inflammable surface.

• Do not place the device near an open flame, electric heater or other heat source.

• Never put the device in a moist or wet area. WARNING! Hazard via electrical current! The device can cause injuries due to improper installation! Before installation the local power grid specification should be compared with that of the device (see type label). Connect the device only in case of compliance! The device must only be connected to a properly installed single socket with protective contact. Never remove the power cable by pulling the cable itself; always grab the plug housing.- 24 -

• The electrical circuit of the socket must be secured to at least 16A. Only connect the device to a wall outlet; do not use any extension cords or power strips.

• Place the device so that the plug is easily accessible so as to quickly disconnect the device if the need arises.

• Before first use wash the device with warm water and a mild cleaning agent. Clean with water again so as to remove detergents from the surface. Finally, wipe the device dry thoroughly.

• Attach the drip tray at the back of the device.

• Plug the device into a correctly earthed electrical socket.

• Heat the device without any food at the highest temperature setting for about 5 minutes. If this is the very first use, some smoke may be present. It is not dangerous and smoke should appear no more during further use of the device.

• Turn the device off (set temperature adjustment knob to „OFF“ position) and allow it to cool down.

• Temperature is infinitely variable and set with a temperature adjustment knob.

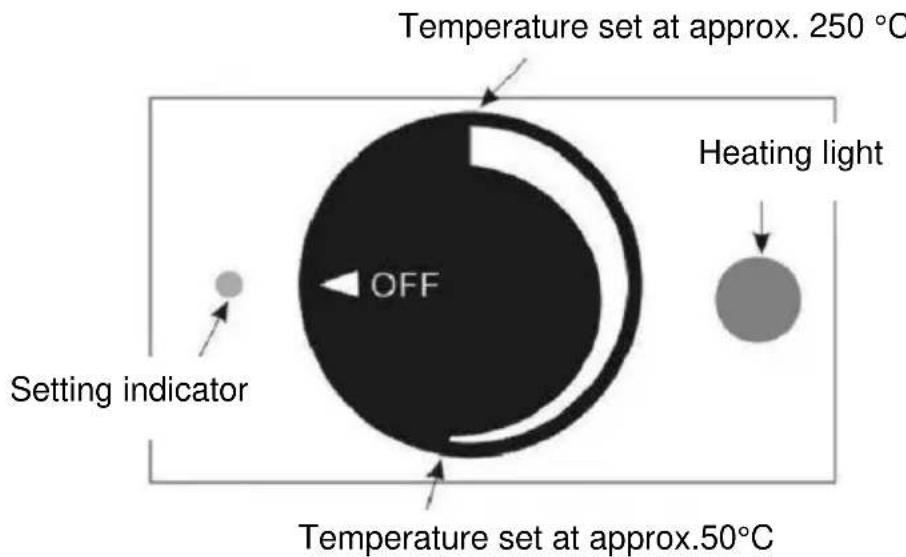

• Set temperature by turning the adjustment knob clockwise to the required position starting from „OFF“ position. Temperature adjustment ranges are shown in the picture below.

Temperature set at approx.50°C

Temperature set at approx. 250 °C- 25 -

• Preheat ceran grill plate for approx. 3 minutes before each use.

• During the preheating phase a red heating light, located near temperature adjustment knob, turns on. When the device reaches the set temperature level, light goes off and turns on again whenever cooking plate reheats.

• Place food directly on the cooking plate.

Further indications for the preparation of food Ceran cooking plate is designed for preparation of food directly on the heating plate with a very low amount of fat used. It is a healthy and careful way of preparation of meat, fish and vegetables. It also saves time and energy, and limits dishwashing to minimum.

• Cooking plate is marked with a white line. The temperature is spread evenly within this area.

• Before putting any food on the cooking plate, apply some oil to its surface. High smoke point oils are to be used ideally, such as sunflower or canola oils.

• Meat, bacon, etc. require just a little drop of oil, because they already contain fat; During preparation of fish or vegetables you may apply some more oil to the cooking plate. Oil prevents burning and adhesion of food to the surface of the heating plate.

• After grilling remove any food remains, as well as the oil, into the drip tray by using the plate scraper.

• Check and empty the drip tray regularly. It should be cleaned whenever required and reattached to the device. CAUTION! Never use the device without the drip tray.

• So as not to mix tastes or aromas of one dish with another, remove food remains from the cooking plate before preparing new dish.

• Prepare food in the following sequence: vegetables after a steak or fish.- 26 -

• Use aluminum foil for dishes that are to be simmered or when we want to preserve particular aromas or juices.

• Avoid using sugar or sweetened beverages for grilling. If a dish requires sugar, wrape the dish in aluminum foil. NOTE! If sugar, milk or any kind of syrup is spillt over the cooking plate, remove it carefully with a ceran plate scraper when the plate is still hot: if allowed to cool down, food remains (especially sugar or syrup) are very difficult to clean.

• You can choose any preferred grill accessories in order to prepare and move food around on the plate (forks, tongs, etc.) but plastic kitchen utensils must not be used.

• Never cut the dishes with a knife directly on the cooking plate, you may damage the surface of the plate.

• You can decrease the temperature and use ceran grill plate to keep prepared dishes heated for prolonged time.

• Turn the device off with the temperature adjustment knob and unplug it (remove the plug!), if the device is not to be used again.

6. Cleaning and maintenance

o Before beginning with repair or cleaning works make sure the device has been disconnected from power supply and has cooled down. o Do not use any acid agents and make sure no water ingresses the device. o To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids. CAUTION! The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!- 27 -

o Before cleaning, turn the device off with the temperature adjustment knob (set it to an „OFF” position) and unplug the device (remove the plug!). o Clean the body, side handles and plate of the device regularly with warm water, a mild cleaning agent and soft cloth. Wipe dry all cleaned surfaces. o Should there be any remains of grilled food that cannot be removed from the plate, wet them with a sponge and heat the device for a few minutes at the highest temperature setting. Turn the device off and remove food remains with a ceran ceramic scraper. o Remove the drip tray and wash it regularly with a mild cleaning agent and soft cloth. o Use soft cloth only and make sure you never use any kind of abrasive agents or pads, which could scratch the surface. o After the cleaning procedure you should use a soft and dry cloth to wipe dry and polish the surface.

6.3 Safety instructions for maintenance

o Inspect the power cable regularly for damage. Never use the device if the cable is damaged. If the power cable is damaged, have an authorised service center or qualified electrician replace it. o In case of damage or malfunction, please contact your stockist or our customer service centre. o Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.- 28 -

Discarding old devices At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community. WARNING! To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device. NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.
