Golf 18555 - Kettle UNOLD - Free user manual and instructions

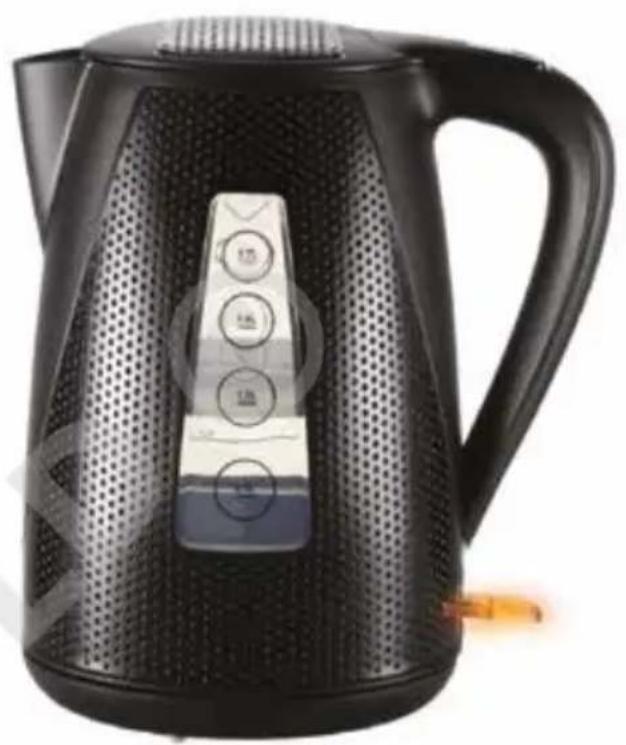

USER MANUAL Golf 18555 UNOLD

White digital water heater with control buttons and mesh grille (no visible text or symbols)

Black portable kettle with perforated grille and control buttons, no visible text or symbols

Bedienungsanleitung

Instructions for use | Notice d'utilisation Gebruiksaanwijzing | Istruzioni per l'uso Instrucciones de uso | Instrukcja obsługi Modell 18550/18555

Impressum:

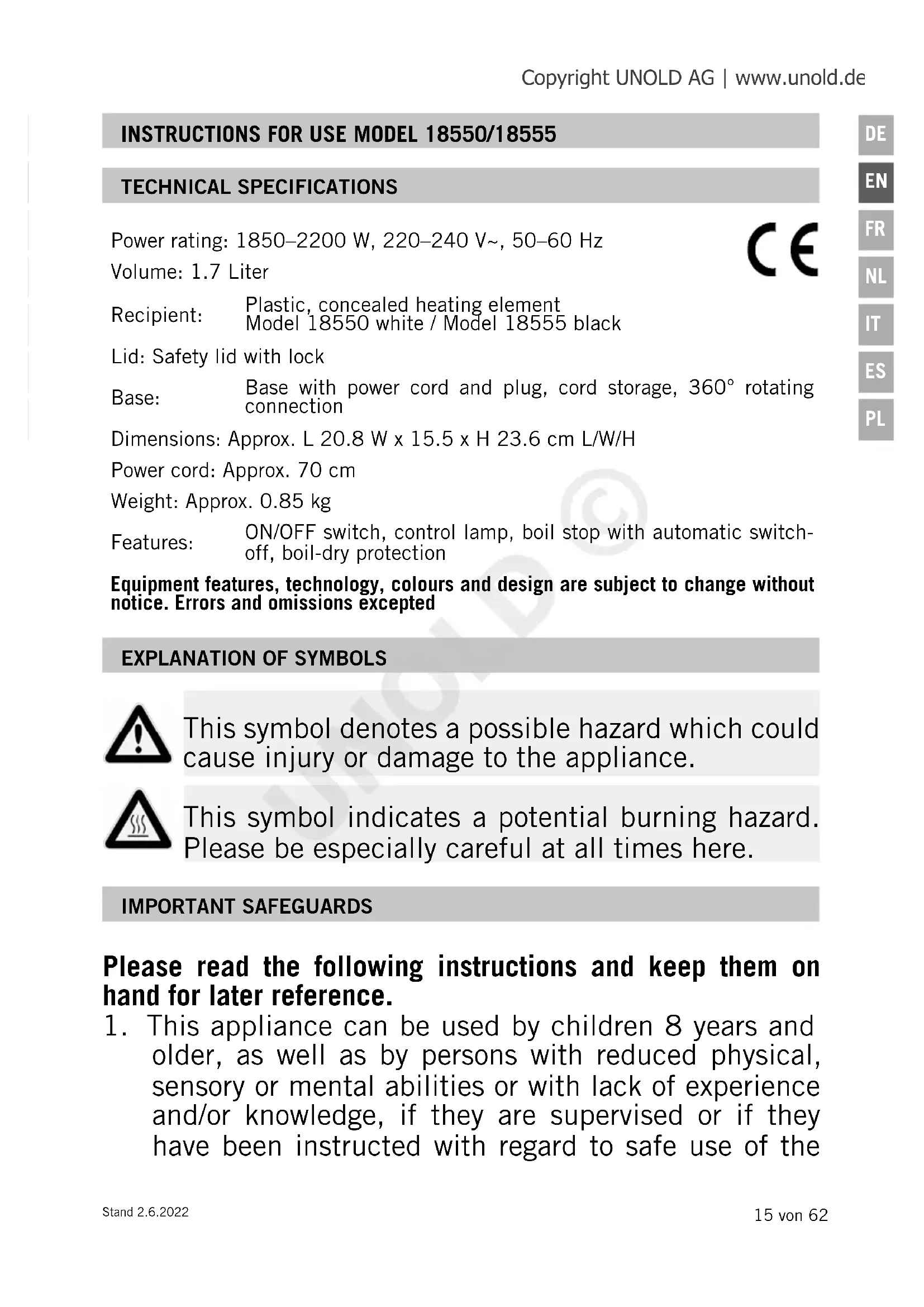

Instructions for use Model 18550/18555

Technical Specifications....15

Explanation of symbols....15

Important Safeguards......15

Before using the appliance the first time..19

Operation....19

Cleaning and Care 20

Descaling....21

Guarantee Conditions....22

Waste Disposal /

Environmental Protection ......22

Service 14

Close-up of a hand pointing at a white ceramic kettle with blades (no text or symbols visible)

Hand pouring white powder into a white cup (no text or symbols visible)

Close-up of a black and white industrial water heater with a handle and internal structure (no visible text or symbols)

Power rating: 1850–2200 W, 220–240 V\~, 50–60 Hz

Volume: 1.7 Liter

Recipient: Plastic, concealed heating element Model 18550 white / Model 18555 black

Lid: Safety lid with lock

Base: Base with power cord and plug, cord storage, 360° rotating connection

Dimensions: Approx. L 20.8 W x 15.5 x H 23.6 cm L/W/H

Power cord: Approx. 70 cm

Weight: Approx. 0.85 kg

Features: ON/OFF switch, control lamp, boil stop with automatic switch-off, boil-dry protection

Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

IMPORTANT SAFEGUARDS

Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children 8 years and older, as well as by persons with reduced physical, sensory or mental abilities or with lack of experience and/or knowledge, if they are supervised or if they have been instructed with regard to safe use of the

appliance and have understood the dangers that can result from use of the appliance.

1. Children must not play with the appliance.
2. Children are not allowed to perform cleaning and user maintenance, unless they are 8 years of age or older and are supervised.
3. Keep the appliance and the power cord out of the reach of children under 8 years of age.
4. CAUTION – parts of this product can become very hot and cause burn injuries! Particular caution is required if children or persons at risk are present.
5. Connect appliance only to an AC power supply with voltage corresponding to the voltage on the rating plate.
6. Do not operate this appliance with an external timer or remote control system.
7. Never immerse the appliance or the power cord in water or other liquids.
8. The base should never come into contact with water or other liquids. In case this ever happens, it must be completely dry before operating the appliance again.
9. Do not clean the electric kettle or the base in a dish-washer.
10. Never touch the appliance or power cord with wet hands.
11. This appliance is intended to be used in household applications.
12. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.
13. Do not place the appliance or power cord near open flames during operation.
14. Always use the electric kettle on a level, uncluttered and heat-resistant surface.
15. Make sure that the power cord does not hang over the edge of the countertop or table, since this can cause

accidents, for example if small children pull on the cord.

1. Route the power cord so that there is no possibility of the cord being pulled or tripped over.
2. Never wrap the power cord around the appliance.
3. Use the electric kettle only indoors.
4. Use the appliance only for heating water. Do not use it to heat milk or other liquids, since they will boil over when heated.
5. Never heat objects such as cans or bottles in the electric kettle.
6. Make sure that the lid of the appliance is always completely closed, to prevent injuries from hot splashing water.
7. Do not open the lid as long as the water is boiling, to prevent injuries from hot splashing water.
8. Never fill the appliance with more than 1.7 liters of water, to prevent the water from boiling over.
9. Never switch on the appliance if there is no water in the kettle.
10. Make sure that all users, especially children, are aware of the danger of injury from emerging steam or hot splashing water – danger of burns!
11. Do not move the appliance as long as it is in operation, to prevent burns from splashing water.
12. The electric kettle features boil dry protection, which means the appliance shuts off automatically if the heating element becomes too hot. Allow the appliance to cool about 15 minutes. Then fill the electric kettle with cold water. The boil dry protection is deactivated and the appliance is ready for operation again.
13. Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.

14. Unplug the appliance from the power supply after use and prior to cleaning. Never leave the appliance unattended when it is plugged in to the power supply.

15. Check the appliance, the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance or the base for inspection and repair to our after sales service.

16. Unauthorized repairs can result in serious risks to the user and void the warranty.
17. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

CAUTION:

Do not open the lid while the water is boiling. If the kettle jug is filled beyond its maximum capacity, boiling water can splash out. The appliance becomes very hot during operation and maintains the heat during some time after disconnection.

Never open the housing of the appliance. This can result in electric shock.

The kettle is only to be used with the stand provided.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE USING THE APPLIANCE THE FIRST TIME

1. Remove all packaging materials and any transport guards and stickers (not the type plate or the serial number!). Keep the packaging material away from children. Choke hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.
2. Inspect the appliance for damage. If there is visible damage, do not operate the appliance; instead, contact our customer service department.
3. Clean all parts with a damp cloth, as described in the chapter “Cleaning and care”.
4. Check to make sure that the appliance is stable.
5. Connect the base via the power cord to the power supply (220–240 V\~, 50–60 Hz).
6. Remove the kettle from the base.
7. Press the opening button on top of the handle. The lid is released and can be open.
8. Add clear, cold water to the "Max" marking.
9. Close the lid by pressing lightly.
10. Place the kettle level on the base.
11. Switch on the kettle by pressing the ON/OFF switch downwards into the „I“-position. The kettle cannot be switched on if it is not properly seated on the base.
12. When the water boils, the appliance automatically shuts off.
13. For hygienic reasons, please discard the water from the first boiling.

OPERATION

1. Remove the kettle from the base.
2. Press the opening button on top of the handle. The lid is released and can be open.
3. Fill the kettle with water (minimum 0.5 litres, mark MIN, maximum 1.7 litres, mark MAX).
4. CAUTION!
   If the kettle is overfilled, boiling water may be ejected!
5. Close the lid until it clicks into place. The locking prevents accidental opening.

6. Place the kettle level on the base in order to establish the contact with the power connection.

7. Switch on the kettle by pressing the ON/OFF switch downwards into the „I“-position. The kettle cannot be switched on if it is not properly seated on the base.

8. The kettle automatically stops heating at the latest when the water boils.
9. ATTENTION:

The automatic switch-off only works, if the lid is correctly closed.

1. Of course you may also push the switch into the „O“-position to interrupt heating.
2. CAUTION!

Ensure that the kettle is switched off before removing it from the base.

1. Please allow the product to cool down for a certain time before using the kettle again to heat water.
2. The kettle is fitted with a dry-operation cutout that switches off the heating elements when they become too hot, for instance when the kettle has boiled dry. Allow the kettle to cool down. Then fill the kettle with cold water. This will reset the cutout so that the kettle can be used again.
3. Always use fresh and cold water. Do not leave water in the kettle.
4. Switch off and unplug electrical appliances after use.

Boiling water can cause scalding. Therefore, please handle the appliance with care when it contains hot water.

The appliance becomes very hot during operation and maintains the heat during some time after disconnection.

CLEANING AND CARE

Before cleaning, always turn off the appliance and unplug it from the power supply.

Allow the appliance to cool before cleaning it.

1. Do not immerse the base, power cord or kettle in water or other liquids or wash them in the dishwasher.
2. Wipe off the base and the kettle with a damp cloth and a little dishwashing detergent. Do not use any abrasive scouring agents, steel wool, metal

objects, hot cleaning agents or disinfectants, since they can damage the appliance.

1. The appliance must be completely dry on the outside before you use it again.

DESCALING

1. To keep the appliance operating efficiently and to prolong its service life, it should be descaled regularly, depending on the hardness of your water.

Close-up of a hand pouring liquid into a white ceramic teapot (no text or symbols visible)

1. The lime scale filter has to be cleaned regularly. Please empty the kettle completely and allow it to cool off. Carefully remove the filter from the pour spout. Clean the filter carefully with a soft brush under running water. You can also place the filter in a bowl with a descaling solution. Then rinse the filter with clear water and insert it in the pour spout.

2. Use off-the-shelf descaling products for electronic kettles and comply with the manufacturer's instructions. To descale, fill the kettle half full, maximum, otherwise the liquid can boil over and can cause severe injuries.

3. Heat the liquid (do not boil!) and allow it to sit for some time in the electronic kettle.
4. Pour the descaling solution out of the kettle.
5. Then fill it with fresh water and bring to a boil. Pour this water out as well. Then rinse out the kettle at least twice with clean water.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODÈLE 18550/18555

SPÉCIFICATION TECHNIQUE

Alimentation : 1.850–2.200 W, 220–240 V\~, 50–60 Hz
