Cadence CR3111A - Speaker Crosley - Free user manual and instructions

Product type	Bluetooth speaker
Brand	Crosley
Model	Cadence CR3111A
Power supply	DC 18V, 2A power adapter
Power consumption	40 W
Speakers	5.25" woofer (6Ω) and 1" tweeter (6Ω)
Frequency response	20 Hz - 20 kHz
Bluetooth version	5.0
Bluetooth indicator	Flashing blue light during pairing, solid blue when connected
Auto-off	After 20 minutes without audio input
Functions	Play and stream from a Bluetooth device
Maintenance and cleaning	Clean with a dry, soft cloth. Do not use abrasive products.
Safety	Do not expose to water. Do not open the casing. Use only the supplied adapter.
Package contents	Bluetooth speaker, power adapter

Frequently Asked Questions - Cadence CR3111A Crosley

How to pair my phone with the speaker?

Turn on the speaker. The Bluetooth light flashes blue. On your phone, enable Bluetooth and search for "CROSLEY CR3111A". Select it to pair. A confirmation sound is heard and the light turns solid blue.

What to do if the speaker does not turn on?

Check that the power adapter is properly plugged into the wall outlet and the speaker. Try another outlet if necessary. If the problem persists, contact customer service.

How to disconnect a Bluetooth device?

Press and hold the Pair button on the speaker. The connection will be interrupted and the Bluetooth light will start flashing again.

Why is the sound choppy or cutting out?

Make sure the distance between your device and the speaker does not exceed 10 meters and that no thick obstacles block the signal. Avoid interference from other wireless devices.

What does the flashing blue light mean?

The flashing blue light indicates that the speaker is in pairing mode and ready to be connected to a Bluetooth device.

How to adjust the volume?

The volume is adjusted from your connected device (phone, tablet, etc.). The speaker does not have a dedicated volume control.

Can I use the speaker while it is charging?

Yes, the speaker can be used while plugged into the power adapter.

What to do if the speaker becomes unresponsive?

Turn off the speaker using the ON/OFF switch, wait a few seconds, then turn it back on. If the problem persists, unplug the adapter for 30 seconds and then plug it back in.

How to reset the speaker?

There is no specific factory reset. You can simply turn the device off and on. To forget a Bluetooth device, press and hold the Pair button until the light flashes.

Where to find the serial number?

The serial number is on the label on the back or bottom of the speaker. It may be needed for technical support.

USER MANUAL Cadence CR3111A Crosley

Cadence Bluetooth Speaker

Instruction Manual

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. - 6 p.m., EST, Monday - Friday

1-888-CROSLEY

www.crosleyradio.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Bluetooth Speaker
• Adapter

Please contact Crosby customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power DC 18V,2A

Power Output 40 W

Speaker

5.25" woofer 6Ω & 1" tweeter 6Ω

Frequency Response 20Hz-20KHz

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

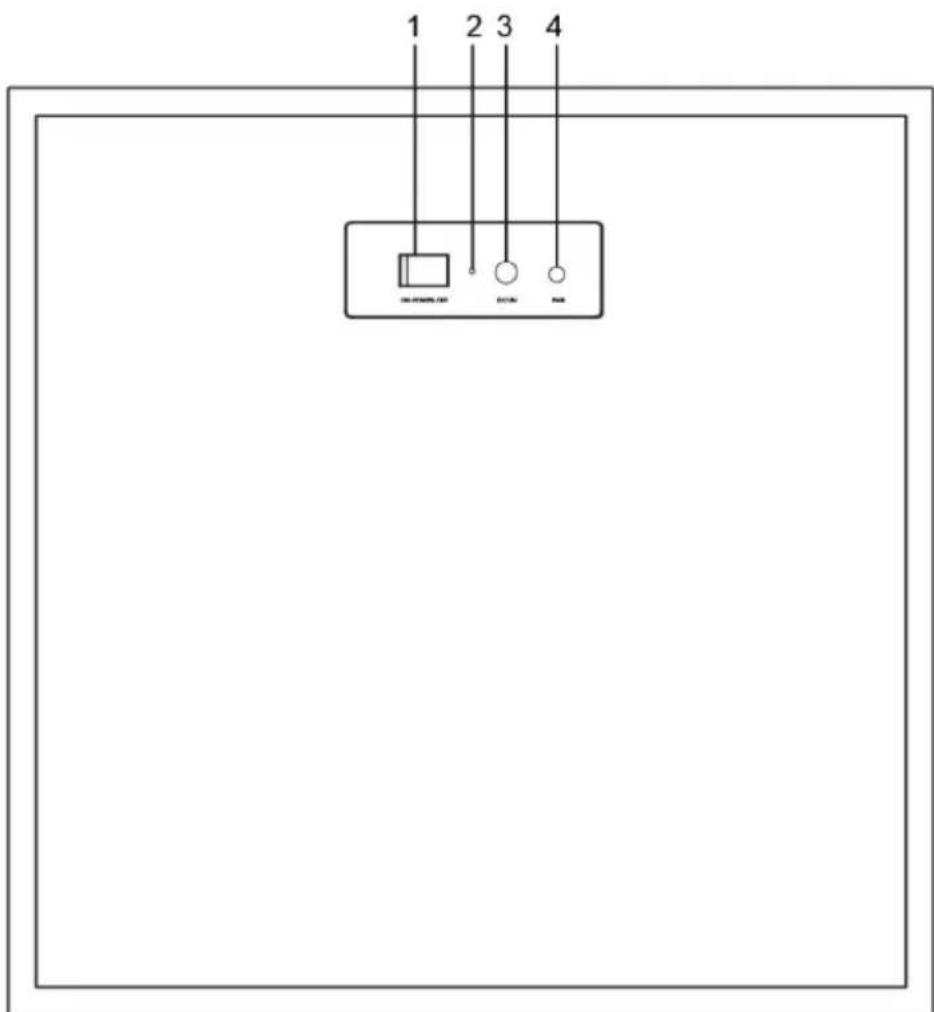

Product Description

1. ON/OFF Switch
2. Bluetooth Indicator
3. Power Jack
4. Pair Button

Bluetooth Operation

1. Turn on the unit and you will hear an activation sound from the unit. Note: The Bluetooth indicator will be flashing blue.
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR3111A" and pair.
3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit, and the Bluetooth indicator will be blue.
4. Play and stream music from your device to the unit.
5. To disconnect, press and hold the Pair Button on the unit.

Note: Bluetooth version - 5.0

FCC Statements

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

2. This device may not cause harmful interference, and

3. This device must accept any interference received, including interference that may cause undesired operation.

4. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

RF warning statement:

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

CROSLEY

CR3111A

Altavoz Bluetooth Cadence
