USER MANUAL TB22TM TROY-BILT

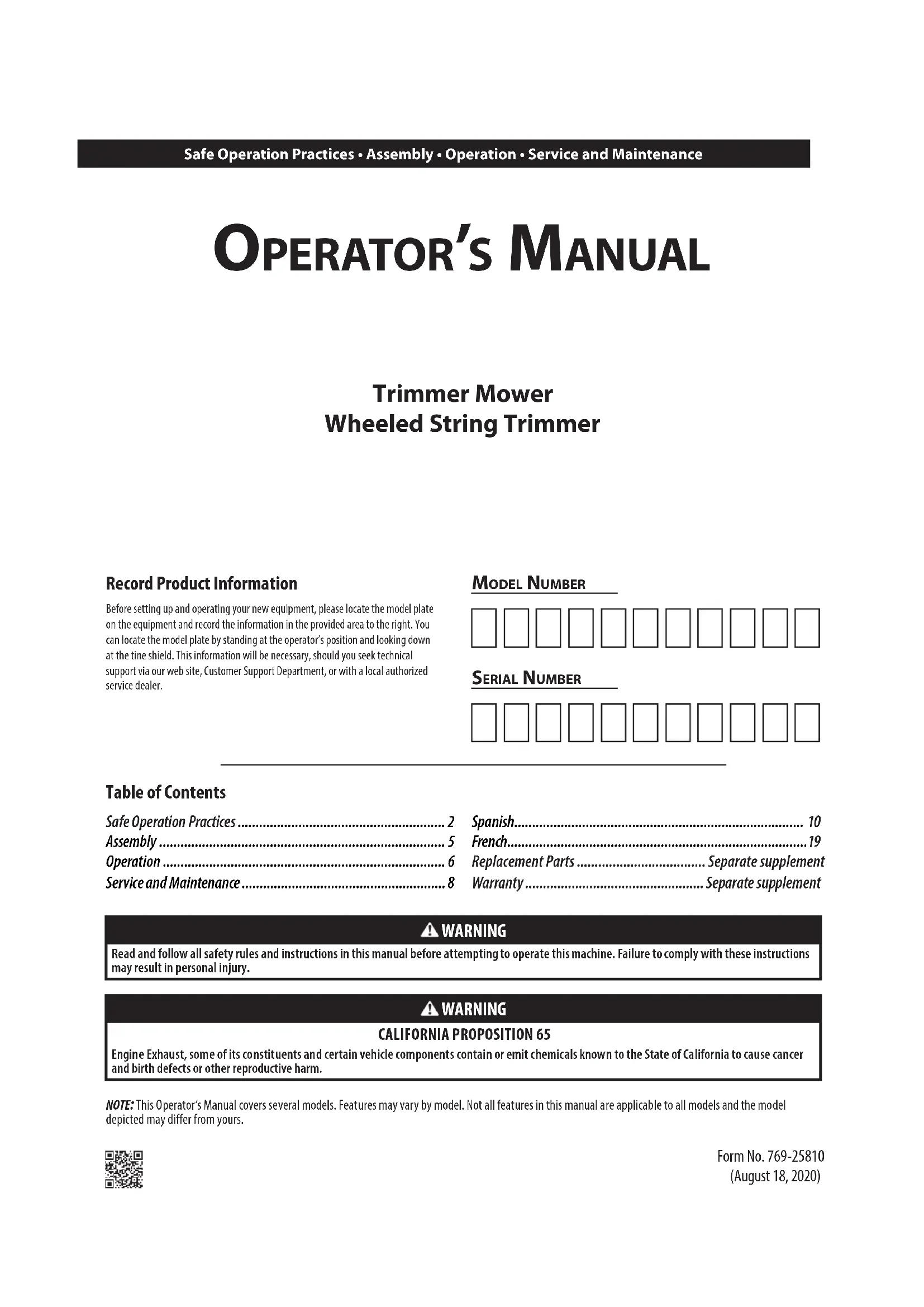

• OperatOr’s Manual Safe Operation Practices • Assembly • Operation • Service and Maintenance Record Product Information Before setting up and operating your new equipment, please locate the model plate on the equipment and record the information in the provided area to the right. You can locate the model plate by standing at the operator’s position and looking down at the tine shield. This information will be necessary, should you seek technical support via our web site, Customer Support Department, or with a local authorized service dealer. Model NuMber Serial NuMber Form No. 769-25810 (August 18, 2020) WARNING Read and follow all safety rules and instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. Safe Operation Practices p. 2
• Assembly p. 5
• Operation p. 6
• Service and Maintenance p. 8
• Spanish p. 10
• French Replacement Parts Separate supplement Warranty Separate supplement Table of Contents NOTE: This Operator’s Manual covers several models. Features may vary by model. Not all features in this manual are applicable to all models and the model depicted may differ from yours. WARNING CALIFORNIA PROPOSITION 65 Engine Exhaust, some of its constituents and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Trimmer Mower Wheeled String TrimmerSAFE OPERATION PRACTICES p. 19

WARNING This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol - HEED ITS WARNING! DANGER This machine was built to be operated according to the safe operation practices in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing debris. Failure to observe the following safety instructions could result in serious injury or death. General Operation

1. Read this operator’s manual carefully in its entirety before attempting to assemble

this machine. Read, understand and follow all instructions on the machine and in the manual(s) before operation. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

2. Be completely familiar with the controls and the proper use of this machine before

3. This machine is a precision piece of power equipment, not a plaything. Therefore,

exercise extreme caution at all times. This machine has been designed to perform one job: to cut vegetation and grass. Do not use it for any other purpose.

4. Never allow children under 14 years of age to operate this machine. Children 14 and

over should read and understand the instructions and safe operation practices in this manual and on the machine and should be trained and supervised by an adult.

5. Only responsible individuals who are familiar with these rules of safe operation

should be allowed to use this machine.

6. Thoroughly inspect the area where the equipment is to be used. Remove all stones,

sticks, wire, bones, toys and other foreign objects, which could be tripped over or picked up and thrown by the Trimmer Mower. Thrown objects can cause serious personal injury.

7. Plan your trimming pattern to avoid discharge of material toward roads,

sidewalks, bystanders and the like. Also, avoid discharging material against a wall or obstruction, which may cause discharged material to ricochet back toward the operator.

8. To help avoid trimmer line contact or a thrown object injury, stay in operator zone

behind handles and keep children, bystanders, helpers and pets at least 75 feet (23 meters) from the Trimmer Mower while it is in operation. Stop machine if anyone enters area.

9. Always wear safety glasses or safety goggles during operation and while

performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

10. Wear sturdy, rough-soled work shoes and close-fitting slacks and shirts. Shirts and

pants that cover the arms and legs and steel-toed shoes are recommended. Never operate this machine in bare feet, sandals, or light-weight (e.g. canvas) shoes.

11. Do not put hands or feet near or under rotating parts. Keep clear of discharge area at

all times as the rotating spindle and trimmer lines can cause injury.

12. Never operate the Trimmer Mower without proper shields, guards, control lever or

other safety protective devices in place and working.

13. Never operate the Trimmer Mower with damaged safety devices. Failure to do so can

result in personal injury.

14. Many injuries occur as a result of the Trimmer Mower being pulled over the foot

during a fall caused by slipping or tripping. Do not hold on to the Trimmer Mower if you are falling; release the handle immediately.

15. Never pull the Trimmer Mower back toward you while you are walking. If you must

back the Trimmer Mower away from a wall or obstruction first look down and behind to avoid tripping and then follow these steps: a. Step back from the Trimmer Mower to fully extend your arms. b. Be sure you are well balanced with sure footing. c. Pull the Trimmer Mower back slowly, no more than half way toward you. d. Repeat these steps as needed.

16. Do not operate the Trimmer Mower while under the influence of alcohol or drugs.

17. Do not engage the self-propelled mechanism on machines so equipped while

18. The control lever is a safety device. Never attempt to bypass its operation. Doing

so makes the safety device inoperative and may result in personal injury through contact with the rotating trimmer line. The control lever must operate easily in both directions and automatically return to the disengaged position when released.

19. Never operate the Trimmer Mower in wet grass. Always be sure of your footing. A

slip and fall can cause serious personal injury. If you feel you are losing your footing, release the control lever immediately and the spindle will stop rotating within three (3) seconds.

20. Operate only in daylight or good artificial light. Walk, never run.

21. Stop the spindle when crossing gravel drives, walks or roads.

22. If the equipment should start to vibrate abnormally, stop the engine and check

immediately for the cause. Vibration is generally a warning of trouble.

23. Shut the engine off and wait until the spindle comes to a complete stop before

cleaning the discharge area. The spindle continues to rotate for a few seconds after the control lever is released. Never place any part of the body in the trimmer line area until you are sure the spindle has stopped rotating.

24. Never operate Trimmer Mower without proper trail shield, discharge cover, control

lever or other safety protective devices in place and working. Never operate Trimmer Mower with damaged safety devices. Failure to do so can result in personal injury.

25. Muffler and engine become hot and can cause a burn. Do not touch.

26. Only use parts and accessories made for this machine by the manufacturer. Failure to

do so can result in personal injury.

27. When starting engine, pull cord slowly until resistance is felt, then pull rapidly. Rapid

retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go. Broken bones, fractures, bruises or sprains could result.

28. If situations occur which are not covered in this manual, use care and good

judgement. Contact Customer Support for assistance or the name of the nearest service dealer. Slope Operation Slopes are a major factor related to slip and fall accidents, which can result in severe injury. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not trim on it. For your safety, use the slope gauge included as part of this manual to measure slopes before operating this machine on a sloped or hilly area. If the slope is greater than 15° (25%), do not trim on it. Do:

1. Trim across the face of slopes; never up and down. Exercise extreme caution when

changing direction on slopes.

2. Watch for holes, ruts, rocks, hidden objects or bumps which can cause you to slip or

trip. Tall grass can hide obstacles.

3. Always be sure of your footing. A slip and fall can cause serious personal injury. If

you feel you are losing your balance, release the control lever immediately and the spindle will stop rotating within three (3) seconds. Do Not:

1. Do not trim near drop-offs, ditches or embankments, you could lose your footing

2. Do not trim slopes greater than 15° (25%) as shown on the slope gauge.

3. Do not trim on wet grass. Unstable footing could cause slipping.SAFE OPERATION PRACTICES

Children Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the Trimmer Mower and the trimming activity. They do not understand the dangers. Never assume that children will remain where you last saw them.

1. Keep children out of the trimming area and under watchful care of a responsible

adult other than the operator.

2. Be alert and turn Trimmer Mower off if a child enters the area.

3. Before and while moving backwards, look behind and down for small children.

4. Use extreme care when approaching blind corners, doorways, shrubs, trees

or other objects that may obscure your vision of a child who may run into the Trimmer Mower.

5. Keep children away from hot or running engines. They can suffer burns from a

6. Never allow children under 14 years of age to operate this machine. Children 14 and

over should read and understand the instructions and safe operation practices in this manual and on the machine and be trained and supervised by an adult. Service Safe Handling Of Gasoline:

1. To avoid personal injury or property damage use extreme care in handling gasoline.

Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes, which can ignite. Wash your skin and change clothes immediately.

2. Use only an approved gasoline container.

3. Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner.

Always place containers on the ground away from your vehicle before filling.

4. Remove gas-powered equipment from the truck or trailer and refuel it on the

ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

5. Keep the nozzle in contact with the rim of the fuel tank or container opening at all

times until fueling is complete. Do not use a nozzle lock-open device.

6. Extinguish all cigarettes, cigars, pipes and other sources of ignition.

7. Never fuel machine indoors because flammable vapors will accumulate in the area.

8. Never remove gas cap or add fuel while engine is hot or running. Allow engine to

cool at least 5 minutes before refueling.

9. Never over fill fuel tank. Fill tank to no more than 1 inch below bottom of filler neck

to provide for fuel expansion.

10. Replace gasoline cap and tighten securely.

11. If gasoline is spilled, wipe it off the engine and equipment. Move machine to another

area. Wait 5 minutes before starting engine.

12. Never store the machine or fuel container near an open flame, spark or pilot light as

on a water heater, space heater, furnace, clothes dryer or other gas appliances.

13. To reduce fire hazard, keep machine free of grass, leaves or other debris build-up.

Clean up oil or fuel spillage and remove any fuel soaked debris.

14. Allow machine to cool at least 5 minutes before storing.

1. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains

carbon monoxide, an odorless and deadly gas.

2. Before cleaning, repairing or inspecting, make certain the spindle and all moving

parts have stopped. Disconnect the spark plug wire and ground against the engine to prevent unintended starting.

3. Check the spindle and engine mounting bolts at frequent intervals for proper

tightness. Also, visually inspect spindle for damage. Replace with the original equipment manufacturer’s (O.E.M.) parts only, listed in this manual. Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!

4. Keep all nuts, bolts and screws tight to be sure the equipment is in safe

5. Never tamper with safety devices. Check their proper operation regularly.

6. After striking a foreign object, stop the engine, disconnect the spark plug wire and

ground against the engine. Thoroughly inspect the Trimmer Mower for any damage. Repair the damage before starting and operating the Trimmer Mower.

7. Trimmer components, guards and shields are subject to wear and damage which

could expose moving parts or allow objects to be thrown. For safety protection, frequently check components and replace immediately with original equipment manufacturer’s (O.E.M.) parts only, listed in this manual. Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!

8. Do not change the engine’s governor setting or over-speed the engine. The governor

controls the maximum safe operating speed of the engine.

9. Check fuel line, tank, cap and fittings frequently for cracks or leaks. Replace

10. Do not crank engine with spark plug removed.

11. Maintain or replace safety and instruction labels, as necessary.

12. Observe proper disposal laws and regulations. Improper disposal of fluids and

materials can harm the environment.

13. According to the Consumer Products Safety Commission (CPSC) and the U.S.

Environmental Protection Agency (EPA), this product has an Average Useful Life of seven (7) years, or 140 hours of operation. At the end of the Average Useful Life have the machine inspected annually by an authorized service dealer to ensure that all mechanical and safety systems are working properly and not worn excessively. Failure to do so can result in accidents, injuries or death. Do not modify engine To avoid serious injury or death, do not modify engine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper with factory setting of engine governor. Notice Regarding Emissions Engines which are certified to comply with California and federal EPA emission regulations for SORE (Small Off Road Equipment) are certified to operate on regular unleaded gasoline, and may include the following emission control systems: Engine Modification (EM), Oxidizing Catalyst (OC), Secondary Air Injection (SAI) and Three Way Catalyst (TWC), if so equipped. Spark Arrestor WARNING This machine is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrestor meeting applicable local or state laws (if any). If a spark arrestor is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrestor for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131, Cleveland, Ohio 44136-0019.SAFE OPERATION PRACTICES

Safety Symbols This page depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbol Description READ THE OPERATOR’S MANUAL(S) Read, understand and follow all instructions in the manual(s) before attempting to assemble and operate.EYE PROTECTION Always wear safety glasses or safety goggles when operating this machine.DANGER — BYSTANDERS Do not trim when children or others are around.DANGER — HAND/ FOOT CUT Keep hands and feet away from rotating parts.DANGER — THROWN DEBRIS Remove objects that can be thrown by the machine in any direction. Wear safety glasses.DANGER — SLOPESUse extra caution on slopes. Do not trim on slopes greater than 15° (25%).WARNING — GASOLINE IS FLAMMABLE Allow the engine to cool at least five (5) minutes before refueling.WARNING — CARBON MONOXIDE Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.

WARNING — HOT SURFACE

Engine parts, especially the muffler, become extremely hot during operation. Allow engine and muffler to cool before touching. WARNING Your Responsibility — Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

SAVE THESE INSTRUCTIONS!5

ASSEMBLY Thank You Thank you for purchasing this product. It was carefully engineered to provide excellent performance when properly operated and maintained. Please read this entire manual prior to operating the equipment. It instructs you how to safely and easily set up, operate and maintain your machine. Please be sure that you, and any other persons who will operate the machine, carefully follow the recommended safety practices at all times. Failure to do so could result in personal injury or property damage. All information in this manual is relative to the most recent product information available at the time of printing. Review this manual frequently to familiarize yourself with the machine, its features and operation. Please be aware that this Operator’s Manual may cover a range of product specifications for various models. Characteristics and features discussed and/or illustrated in this manual may not be applicable to all models. We reserve the right to change product specifications, designs and equipment without notice and without incurring obligation. If applicable, the power testing information used to establish the power rating of the engine equipped on this machine can be found at www.opei.org or the engine manufacturer’s web site. If you have any problems or questions concerning the machine, phone an authorized service dealer or contact us directly. Customer Support telephone numbers, website address and mailing address can be found on this page. We want to ensure your complete satisfaction at all times. Throughout this manual, all references to right and left side of the machine are observed from the operating position. The engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, specifications, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual, packed separately with your machine, for more information. Contents of Carton

• Pack of Trimmer Line (1)

• Engine Operator’s Manual (1)

• Oil (1) Assembly NOTE: This Trimmer Mower is shipped without gasoline or oil in the engine. Fill up the gasoline and oil as instructed in the Engine Operator’s Manual BEFORE operating your machine. Upper Handle

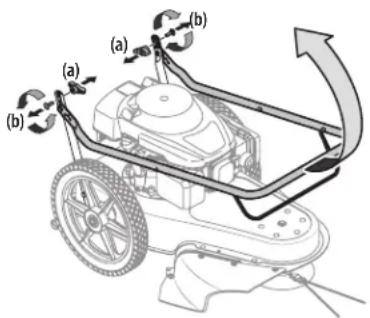

1. Remove the wing knob (a) and carriage bolt (b) from the left lower handle

and the right lower handle. See Figure 1.

2. Pivot the upper handle into the operating position. See Figure 1.

(a) (a) (b) (b) Figure 1

3. Move the upper handle into one of three positions by pivoting it

forward or rearward.

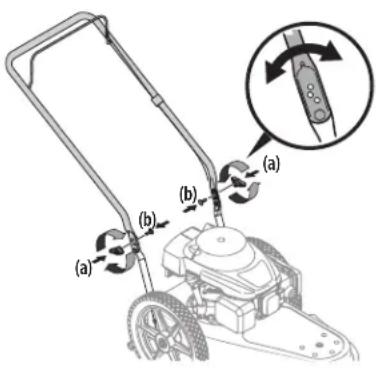

4. Flip the wing knobs (a) and carriage bolts (b) so that the wing knobs are

positioned at the outside of the handle when installed. See Figure 2.

5. Secure the upper handle to the lower handle using the wing knobs (a) and

carriage bolts (b) removed in Step 1. See Figure 2. NOTE: Make sure to use corresponding holes on left and right sides of upper handle. (a) (a) (b) (b) Figure 2 Starter Rope

1. Disconnect the spark plug boot from the spark plug (refer to the Engine

2. Pivot the control handle against the upper handle and pull the rope out of

Figure 3 Set-Up Gas and Oil Fill-Up Refer to the Engine Operator’s Manual for additional engine information.

1. Add oil provided before starting unit for the first time.

2. Service the engine with gasoline as instructed in the Engine

Operator’s Manual. WARNING Use extreme care when handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Never fuel the machine indoors or while the engine is hot or running. Extinguish cigarettes, cigars, pipes and any other sources of ignition.6 OPERATION Controls

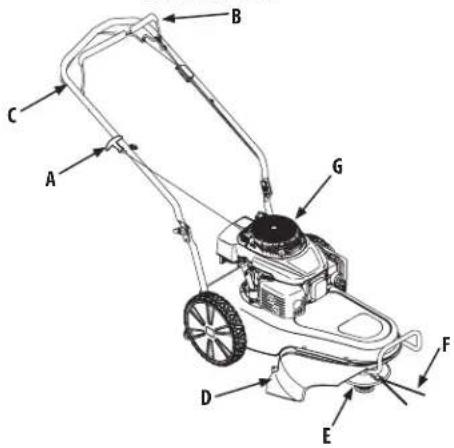

The recoil starter is attached to the right side of the upper handle. Stand behind the unit and pull the recoil starter rope to start the unit.

B. ENGINE CONTROL LEVER

The control lever must be depressed to start the engine and rotation of trimmer spindle assembly. Releasing the control lever stops the engine and trimmer spindle assembly. WARNING This control lever is a safety device. Never attempt to bypass its operations.

C. DRIVE CONTROL IF EQUIPPED

The drive control is located at the back of the upper handle and is used to engage the drive. Squeeze the control against the upper handle to engage the drive; release it to slow down or stop the trimmer from propelling.

D. TRIMMER DEFLECTOR

The trimmer deflector is connected to the trimmer base and it is used to prevent debris from being thrown. E. SPINDLE The spindle rotates the trimmer line.

The trimmer line is attached to the spindle assembly and it is used to trim grass, vegetation, undergrowth and weeds.

Keep the flywheel screen free of grass clippings and debris at all times. Engine Controls See the Engine Operator’s Manual for the location and function of the controls on the engine. Operation Adjusting the Spindle Height The spindle height can be adjusted for various applications. To do so, proceed as follows:

1. Loosen the wing nut found on each side of the spindle shaft.

NOTE: The wing nuts are designed so that they cannot be removed from the spindle shaft.

2. Slide the spindle upward or downward to the desired position before

retightening the wing nuts. See Figure 5. Figure 5 Starting and Stopping Engine Refer to the Engine Operator’s Manual packed with your Trimmer Mower for instructions on starting and stopping the engine. Using Your Trimmer Mower Be sure trimming area is clear of stones, sticks, wire or other objects which could damage the Trimmer Mower or engine. Such objects could be accidentally thrown by the trimmer in any direction and cause serious personal injury to the operator and others.

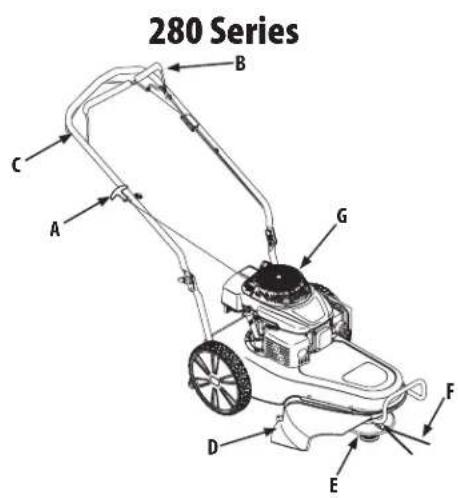

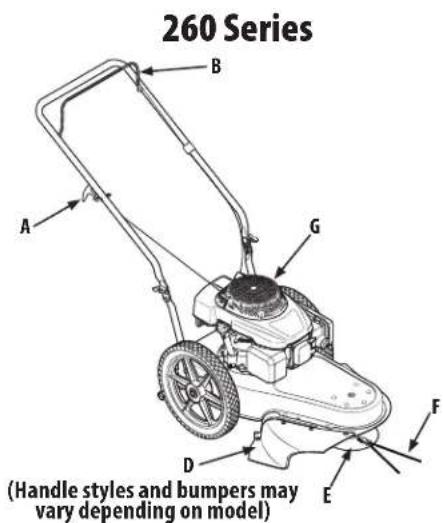

260 Series 280 Series (Handle styles and bumpers may vary depending on model) Figure 47 OPERATION WARNING The operation of any Trimmer Mower can result in foreign objects being thrown into the eyes, which can damage your eyes severely. Always wear safety glasses while operating the Trimmer Mower, or while performing any adjustments or repairs on it.

• The Trimmer Mower is designed with the spindle offset to the left side, allowing the operator to trim along a fence, landscaping or a house to his or her right side without having to make any adjustments to the machine.

• Operate the Trimmer Mower at a slower walking speed when trimming tall, thick weeds or grass.

• Clean the underside of the trimmer after each use to remove any debris build up. WARNING Shut the engine off and wait until the trimmer head comes to a complete stop before cleaning the discharge area. The trimmer head continues to rotate for a few seconds after the trimmer head control is released.

• Do not trim on excessively steep slopes. If a slope is difficult to stand on, do not trim. Do not trim on slopes when the ground is slippery or wet. Trim across the face of a slope, not up and down. To use the Drive Control (if equipped):

• Once the engine is running, squeeze the drive control lever against the upper handle to propel the Trimmer Mower.

• Release the single lever drive control to slow down or stop the Trimmer Mower from driving. CAUTION While operating the Trimmer Mower, do not allow the spindle to contact a concrete, asphalt or gravel surface. Doing so will result in premature wear. Changing the Trimmer Line To ease in removing worn trimmer line, change the trimmer line before it becomes too short (i.e. approximately half its original length).

1. Remove the worn trimmer line from the spindle.

2. Fold the replacement trimmer line in half and insert both ends through the

loop near the edge of the spindle.

3. Pull the ends of the trimmer line through the loop until the line is securely

beneath the metal tab.

4. Cross the line ends and pull each tightly to secure the trimmer line in place.

Figure 6 NOTE: Always use an OEM certified cutting line. Consult the separate supplement for ordering information8

SERVICE AND MAINTENANCE

General Recommendations

• Always observe safety rules when performing any maintenance.

• The warranty on this Trimmer Mower does not cover items that have been subjected to operator abuse or negligence. To receive full value from warranty, operator must maintain the Trimmer Mower as instructed here.

• Changing of engine-governed speed will void engine warranty.

• All adjustments should be checked at least once each season.

• Periodically check all fasteners and make sure these are tight. WARNING Always stop engine, allow engine to cool, disconnect spark plug and ground against engine before performing any type of maintenance on your machine. Lubrication

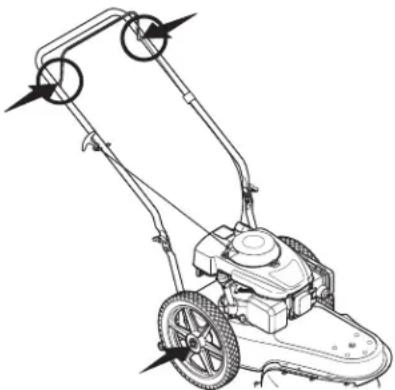

1. Lubricate pivot points on the engine control lever at least once a season

with light oil. This control must operate freely in both directions. See Figure 7. Figure 7

2. On 280 Series models equipped with a drive control, also lubricate pivot

points on the drive control lever at least once a season with light oil. This control must operate freely in both directions. See Figure 8. Figure 8

3. Lubricate the wheels at least once a season with light oil (or motor oil). If

wheels are removed for any reason, lubricate surface of the axle bolt and inner surface of the wheel with light oil. See Figure 8.

4. Follow the Engine Operator’s Manual for lubrication schedule and

instruction for engine lubrication. Deck Care Clean underside of the machine after each use to prevent build-up of grass clippings or other debris.

1. Allow engine to run until it is out of fuel. Do not attempt to pour fuel from

the engine. Disconnect spark plug wire.

2. Tip trimmer so that it rests on its side. Keep the side with the air cleaner

facing up. Hold trimmer firmly. WARNING Never tip the trimmer more than 90° in any direction and do not leave the trimmer tipped for any length of time. Oil can drain into the upper part of the engine causing a starting problem.

3. Scrape and clean the underside of the machine with a suitable tool. Do not

spray with water. WARNING Do not use a pressure washer or garden hose to clean the machine. These may cause damage to the engine. The use of water will result in shortened life and reduce serviceability.

4. Put the trimmer back on its wheels on the ground.

Engine Care A list of key engine maintenance jobs required for good Trimmer Mower performance is given below. Follow the accompanying Engine Operator’s Manual for a detailed list and instructions.

• Maintain oil level as instructed in Engine Operator’s Manual.

• Service air cleaner every 25 hours under normal conditions. Clean every few hours under extremely dusty conditions. Poor engine performance and flooding usually indicates that the air cleaner should be serviced. To service the air cleaner, refer to the Engine Operator’s Manual.

• Clean spark plug and reset the gap once a season. Spark plug replacement is recommended at the start of each mowing season. Check Engine Operator’s Manual for correct plug type and gap specifications.

• Clean engine regularly with a cloth or brush. Keep the top of the engine clean to permit proper air circulation. Remove all grass, dirt and debris from muffler area.

• Engines stored between 30 and 90 days need to be treated with a gasoline stabilizer to prevent deterioration and gum from forming in fuel system or on essential carburetor parts. Off-Season Storage Take the following steps to prepare your trimmer for storage. Refer to Engine Operator’s Manual for specific engine storage instructions.

• Clean and lubricate trimmer.

• Store trimmer in a dry, clean area. Do not store next to corrosive materials, such as fertilizer.

• Using a light oil or silicone, coat the equipment, especially cables and all moving parts of your Trimmer Mower.9

Engine fails to start 1. Control lever disengaged.

2. Spark plug boot disconnected.

3. Fuel tank empty or stale fuel.

4. Engine not primed (if equipped with primer).

5. Faulty spark plug.

6. Blocked fuel line.

8. Fuel valve (if equipped) closed.

9. Engine not choked (if equipped with choke).

3. Fill tank with clean, fresh gasoline.

4. Prime engine as instructed in the Operation section.

7. Wait a few minutes to restart, but do not prime.

2. Blocked fuel line or stale fuel.

3. Vent in gas cap plugged.

4. Water or dirt in fuel system.

5. Dirty air cleaner.

6. Unit running with CHOKE (if equipped) applied.

1. Connect and tighten spark plug boot.

2. Clean fuel line; fill tank with clean, fresh gasoline.

4. Drain fuel tank. Refill with fresh fuel.

Engine overheats 1. Engine oil level low.

2. Air flow restricted.

1. Fill crankcase with proper oil.

2. Clean area around and on top of engine.

Occasional skips (hesitates) at high speed 1. Spark plug gap too close. 1. Adjust gap to .030”. Idles poorly 1. Spark plug fouled, faulty or gap too wide.

1. Tighten wing nuts.

2. See an authorized service dealer.

Poor trimming performance 1. Trimmer line too short or worn.
