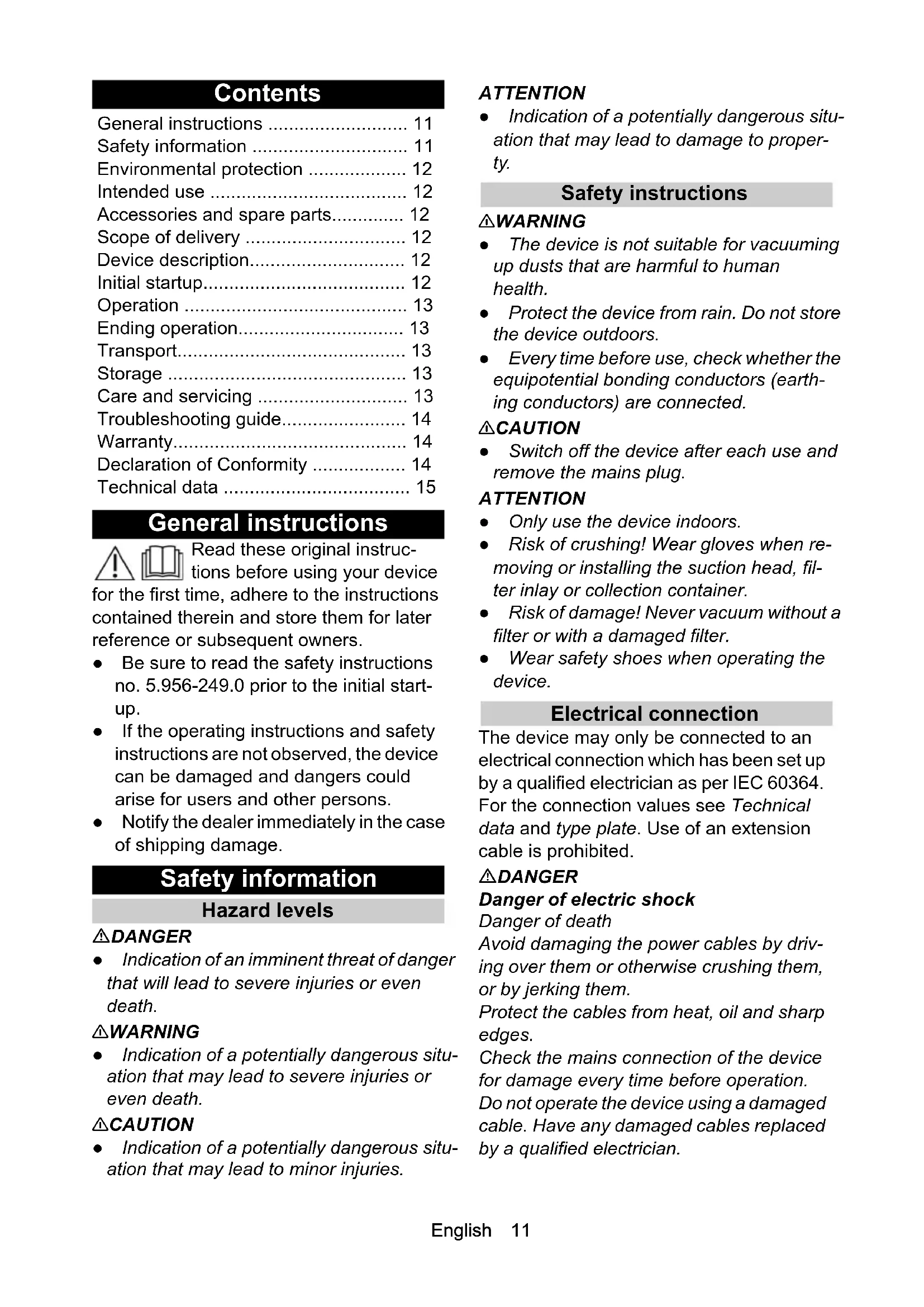

• 3 x 1,5 Teilenummer (EU) 9.979-874.0 Kabellänge m 6,0English 11 Contents General instructions Read these original instruc- tions before using your device for the first time, adhere to the instructions contained therein and store them for later reference or subsequent owners. ● Be sure to read the safety instructions no. 5.956-249.0 prior to the initial start- up. ● If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons. ● Notify the dealer immediately in the case of shipping damage. Safety information Hazard levels DANGER ● Indication of an imminent threat of danger that will lead to severe injuries or even death. 몇 WARNING ● Indication of a potentially dangerous situ- ation that may lead to severe injuries or even death. 몇 CAUTION ● Indication of a potentially dangerous situ- ation that may lead to minor injuries. ATTENTION ● Indication of a potentially dangerous situ- ation that may lead to damage to proper- ty. Safety instructions 몇 WARNING ● The device is not suitable for vacuuming up dusts that are harmful to human health. ● Protect the device from rain. Do not store the device outdoors. ● Every time before use, check whether the equipotential bonding conductors (earth- ing conductors) are connected. 몇 CAUTION ● Switch off the device after each use and remove the mains plug. ATTENTION ● Only use the device indoors. ● Risk of crushing! Wear gloves when re- moving or installing the suction head, fil- ter inlay or collection container. ● Risk of damage! Never vacuum without a filter or with a damaged filter. ● Wear safety shoes when operating the device. Electrical connection The device may only be connected to an electrical connection which has been set up by a qualified electrician as per IEC 60364. For the connection values see Technical data and type plate. Use of an extension cable is prohibited. DANGER Danger of electric shock Danger of death Avoid damaging the power cables by driv- ing over them or otherwise crushing them, or by jerking them. Protect the cables from heat, oil and sharp edges. Check the mains connection of the device for damage every time before operation. Do not operate the device using a damaged cable. Have any damaged cables replaced by a qualified electrician. General instructions p. 11
• Safety information p. 11
• Environmental protection p. 12
• Intended use p. 12
• Accessories and spare parts p. 12
• Scope of delivery p. 12
• Device description p. 12
• Initial startup p. 12
• Operation p. 13
• Ending operation p. 13
• Transport p. 13
• Storage p. 13
• Care and servicing p. 13
• Troubleshooting guide p. 14
• Warranty p. 14
• Declaration of Conformity p. 14
• Technical data English Behaviour in the event of an emergency DANGER Risk of injury and material damage when vacuuming inflammable materi- als, or in the case of a short-circuit or other electrical faults Danger of inhalation of gases hazardous to health, danger of electric shock, danger of burns. In the event of an emergency, switch off the device and unplug the mains plug. Environmental protection The packing materials can be recy- cled. Please dispose of packaging in accordance with the environmental regula- tions. Electrical and electronic devices con- tain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if han- dled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.de/REACH Intended use 몇 WARNING Inhalation of dusts posing a health haz- ard Health hazard Never use the appliance to vacuum up dusts which pose a health hazard. ATTENTION Short-circuit due to high levels of hu- midity Damage to the device Only use the device indoors. The device is intended for: ● the vacuuming of non-flammable and non-explosive substances ● the vacuuming of dusts and coarse dirt ● industrial usee.g. in storage and produc- tion areas ● commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies. Any other use will be regarded as improper use. Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Scope of delivery Check the contents for completeness when unpacking. In the event of shipping dam- age, please notify your dealer. Device description For the figures, please refer to the graphics page Illustration A 1 Collection container 2 Lever for lowering the collection con- tainer 3 Suction hose connection 4 Push handle 5 Power switch 6 Mains cable 7 Suction head lock 8 Pocket filter 9 Filter cleaning handle 10 Lever for lowering the collection con- tainer 11 Accessory holder 12 Chassis 13 Steering rollers with parking brake Initial startup See graphics pages for illustration p. 1512

1. Bring the device into the working posi-

3. Ensure that the suction head is fitted

correctly.English 13

4. Insert the suction hose into the suction

hose connection. Illustration B

5. Plug the desired accessory onto the suc-

tion hose. Operation

1. Plug the mains plug into the socket.

2. Switch on the device at the trigger.

Illustration C The switch has multiple level settings: 0 The device is off. 1 Motor 1 is switched on. 2 Motors 1 and 2 are switched on. ATTENTION Operation with a motor Risk of damage to the drive motor Switch between the level settings quickly. Always operate device in level 2

Cleaning the dust filter See graphics page for illustration Note Clean the filter regularly to avoid declining suction power. Illustration D

1. Move the filter cleaning handle back and

forth several times to clean the filter. Emptying the collection container

1. Switch off the device and disconnect

from the mains supply.

2. Clean the dust filter.

3. Push down the lever to lower the collec-

tion container. Illustration E

4. Pull the collection container out of the

device. Illustration F

5. Empty the collection container into the

6. Dispose of or reuse the contents in ac-

cordance with statutory regulations. Note Move the collection container on its rollers only. Do not use a crane ore.g. a forklift. Removing the suction head See graphics page for illustration

1. Switch off the device and disconnect

from the power supply.

2. Open the suction head lock.

3. Remove the suction head and put it to

one side. Ending operation

1. Switch off the device using the on/off

Empty and clean the collection container.

3. Remove the accessories and clean and

dry them as necessary. Transport 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transport and storage.

1. When transporting in vehicles, secure

the device against slipping and tipping over according to the applicable guide- lines. Storage 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transport and storage.

1. Store the device indoors only.

1. Rinse off the device and accessories at

regular intervals using a suitable liquid and allow to dry.

2. Check the bag filter regularly for dam-

age. Replace the bag filter if damaged. Replacing the pocket filter Illustration H 1 Screws 2 Clamping ring 3 Pocket filter 4 Cleaning fixture

1. Remove the suction head.

Illustration I14 English

2. Remove the filter unit from the device

using the handles and turn it over.

3. Remove the screws and remove the

4. Loosen the clamping ring screw connec-

5. Remove the pocket filter.

6. Fit the new pocket filter.

During installation, take care to ensure that the lug on the filter insert engages the shaft. Illustration J

7. Fit the clamping ring and tighten.

8. Fit the cleaning fixture and tighten.

Troubleshooting guide DANGER Risk of injury Danger of the device unintentionally start- ing and danger of electric shock Switch off the device and unplug the mains plug before performing any work on the de- vice. Have all checks and work on electrical parts performed by an qualified technician. The motor (suction turbine) does not start up No electrical voltage present Check the socket and the power supply fuse. Check the mains cable and the mains plug of the device. Customer Service department If the malfunction cannot be corrected, the device must be checked by the Customer Service department. Warranty The warranty conditions issued by our rele- vant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a war- ranty case, please contact your dealer (with the purchase receipt) or the next author- ised customer service site. (See overleaf for the address) Further warranty information (if available) can be found in the service area of your lo- cal Kärcher website under "Downloads". Declaration of Conformity We hereby declare that the product named below complies with the relevant provisions of the directives and regulations listed. This dec- laration is invalidated by any changes made to the product that are not approved by us. Product: Dry vacuum cleaner Type: 9.986-xxx Directives and Regulations 2006/42/EC (+2009/127/EC) 2011/65/EU 2014/30/EU Harmonised standards used EN 55014-1: 2017 + A11: 2020 EN 55014-2: 2015 EN 60335-1 EN 60335-2-69
