CM420ESBL - Fridge Summit - Free user manual and instructions

Product Type	Compact Refrigerator
Brand	Summit
Model	CM420ESBL
Power Supply	115 V, 15 A, grounded outlet
Temperature Setting	Dial from 1 (warmest) to 7 (coldest) + Off
Freezer Compartment	Yes, for ice cubes and short-term storage
Ice Cube Tray	Included, hand wash only with warm water
Shelves	Large metal shelves and glass shelf
Vegetable Crisper	Transparent, removable
Can Dispenser	Dispense-A-Can™, holds up to 4 cans per compartment
Security Lock	With key, located at the top center of the door
Adjustable Legs	Two in front for leveling
Door Swing	Reversible (left/right)
Door Alignment	Possible via top hinge
Defrosting	Manual, when ice buildup reaches 1/4 inch (6 mm)
Drip Tray	Removable, located under the freezer compartment
Cleaning	Baking soda and warm water solution, rinse with warm water
Gasket Maintenance	Clean every 3 months, apply petroleum jelly to hinges
Normal Noises	Gurgling, bubbling, thermostat clicking
Warranty	1 year parts and labor, 5 years on compressor (parts only)
Minimum Ambient Temperature	55 °F (about 12.8 °C)

Frequently Asked Questions - CM420ESBL Summit

How do I adjust the temperature on my Summit CM420ESBL refrigerator?

Use the control dial inside. Settings range from 1 (warmest) to 7 (coldest) plus Off. First set to 4 and wait 24 hours before adjusting.

What should I do if the refrigerator doesn't work?

Check that the dial is not set to Off, that the unit is plugged in, and that the circuit breaker hasn't tripped. If the problem persists, contact customer service.

How do I defrost the freezer compartment?

Remove food and ice cube tray, place the drip tray under the freezer, and set the dial to Off. Defrosting takes a few hours. Then clean the tray and interior.

Can I change the door swing direction?

Yes, the door is reversible. Follow the instructions in the manual: remove the hinge cover, unscrew the hinges, reverse the door pin, and reassemble. Refer to the Door Swing Change section.

How do I clean the interior of the refrigerator?

Unplug the unit. Use a solution of 3-4 tablespoons of baking soda in warm water, rinse with warm water, and dry with a soft cloth. Do not use abrasive cleaners or ammonia.

Why is there moisture inside or outside?

This is normal in humid weather. Check that the doors are fully closed and the gaskets are clean. If doors are frequently opened, moisture can increase.

The refrigerator makes strange noises, is that normal?

Yes. Gurgling or bubbling comes from the circulation of the refrigerant. Clicking occurs when the thermostat turns on or off. These are normal sounds.

How do I use the Dispense-A-Can™ can dispenser?

Store cans by sliding them in from the top of the compartment. To take a can, grab it from the bottom. Each compartment holds up to 4 cans.

What should I do in case of a power outage?

Unplug the refrigerator during the outage. When power is restored, plug it back in. If the outage was long, check food and clean the interior.

The refrigerator doesn't close properly, what should I check?

Check that the unit is level using the adjustable legs. Make sure the door is properly aligned (see alignment section). Remove any obstructions such as containers or shelves sticking out.

USER MANUAL CM420ESBL Summit

Line drawing of an open refrigerator with shelves and door (no text or symbols)

User Manual

Model # CM420ES CM420ESBL

Read all of the instructions before using this appliance. When using this appliance, always exercise basic safety precautions, including the following:

1) Use this appliance only for its intended purpose as described in this use and care guide.
2) This refrigerator must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.
3) This refrigerator should not be recessed or built into an enclosed cabinet. It is designed for freestanding installation only.
4) Never unplug your refrigerator by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
5) Repair or replace immediately, all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or the connector end.
6) If your old refrigerator is not being used, we recommend that you remove the doors. This will reduce the possibility of danger to children.
7) After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.
8) Do not refreeze foods which have been thawed completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 reads: "... You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold—below 40°F"
“…Thawed ground meats, poultry, or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, discard it. The food may be dangerous to eat.”
“...Even partial thawing and re-freezing reduce the eating quality of foods, particularly fruits, vegetables, and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible, to save as much of their eating quality as you can.”
9) Do not use any electrical device or any sharp instrument in defrosting your refrigerator.

10) Unplug your refrigerator before cleaning or before making any repairs.
11) Do not operate your refrigerator in the presence of explosive fumes.

SAVE THESE INSTRUCTIONS

DANGER

Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors. Leave the shelves in place so that children may not easily climb inside.

Thank you for using our Summit product. This easy-to-use manual will guide you in getting the best use of your refrigerator.

Remember to record the model and serial number. They are on a label in the refrigerator.

Model number

Serial number

Date of purchase

Staple your receipt to your manual.

You will need it to obtain warranty service.

Table Of Contents

PAGE

Safety Precautions....1

Parts And Features .... 4

Unpacking Your Refrigerator 5

Proper Air Circulation....5

Electrical Requirements 5

Use of Extension Cords....5

Install Limitations....5

Leveling Your Refrigerator 6

Door Alignment 6

Reversing the Door....7

Adjusting Temperature Control 8

Freezer Compartment 8

Interior Shelves 8

Crisper 9

Dispense-A-Can™ 9

Using the Lock 9

Defrosting Your Refrigerator 10

Normal Operating Sounds You May Hear....10

Proper Refrigerator Care and Cleaning 11

Power Interruptions....11

Vacation and Moving Care....11

Troubleshooting 12

Warranty Information....13

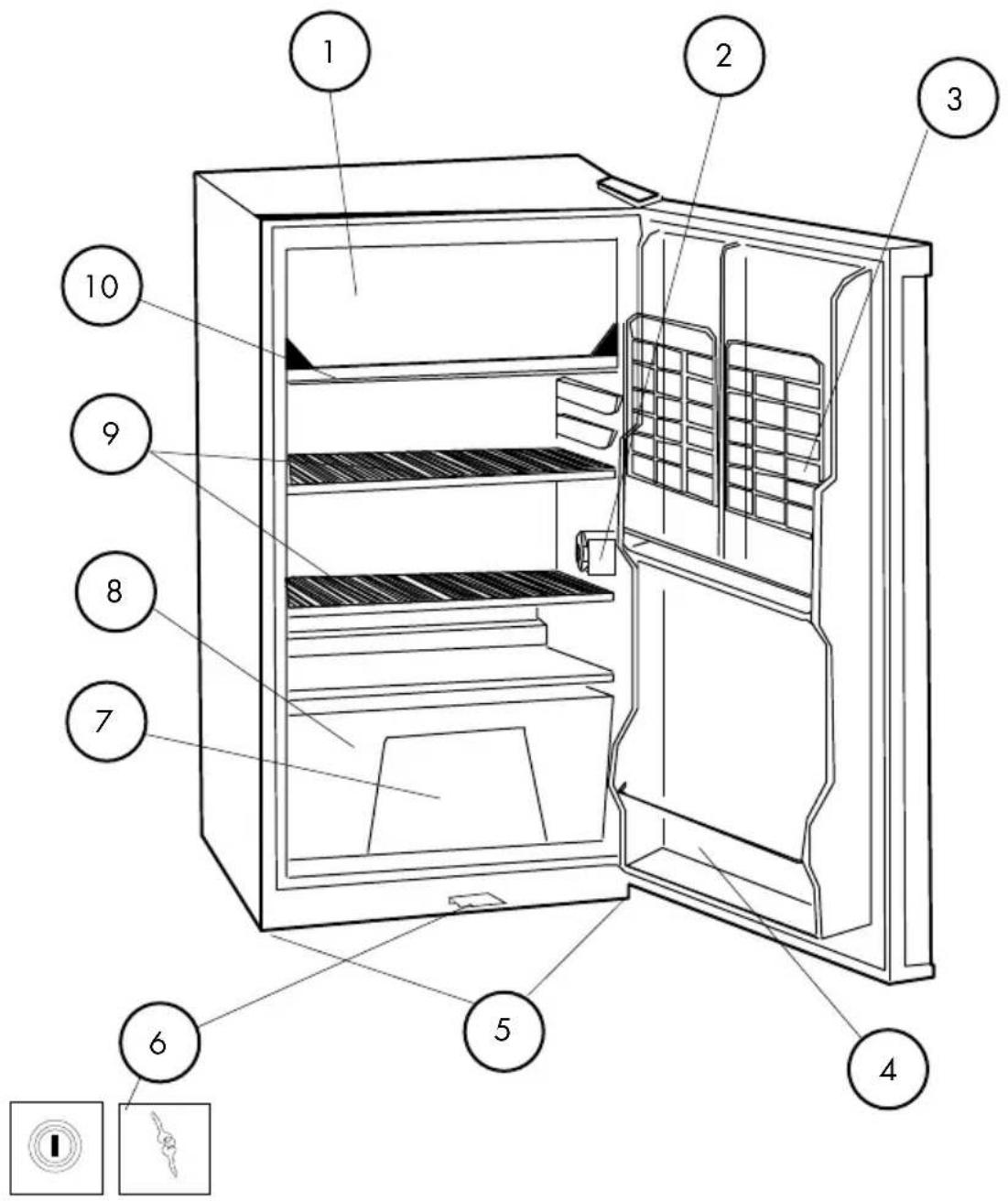

Parts and Features

Simple line drawing of a 3D tray with internal compartments, no text or symbols present

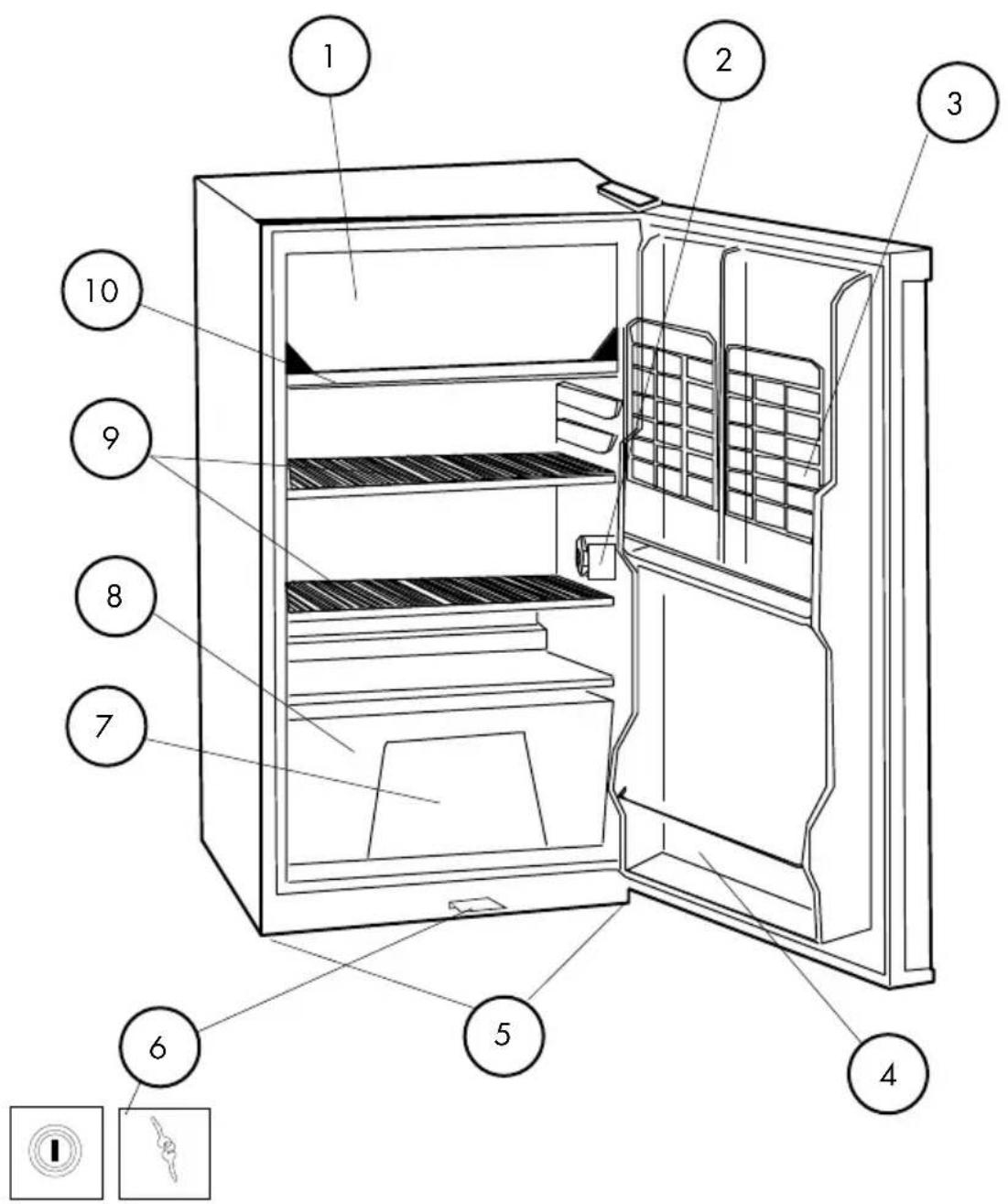

Labeled diagram of an open refrigerator with numbered parts for identification

1. Freezer Compartment
2. Adjustable temperature control
3. Dual Can Dispensers
4. Tall Bottle Storage
5. Leveling Legs (not shown)

6. Lock & Key

7. Clear Crisper

8. Glass Shelf
9. Full-width Wire Shelves
10. Drip Tray
11. Ice Cube Tray

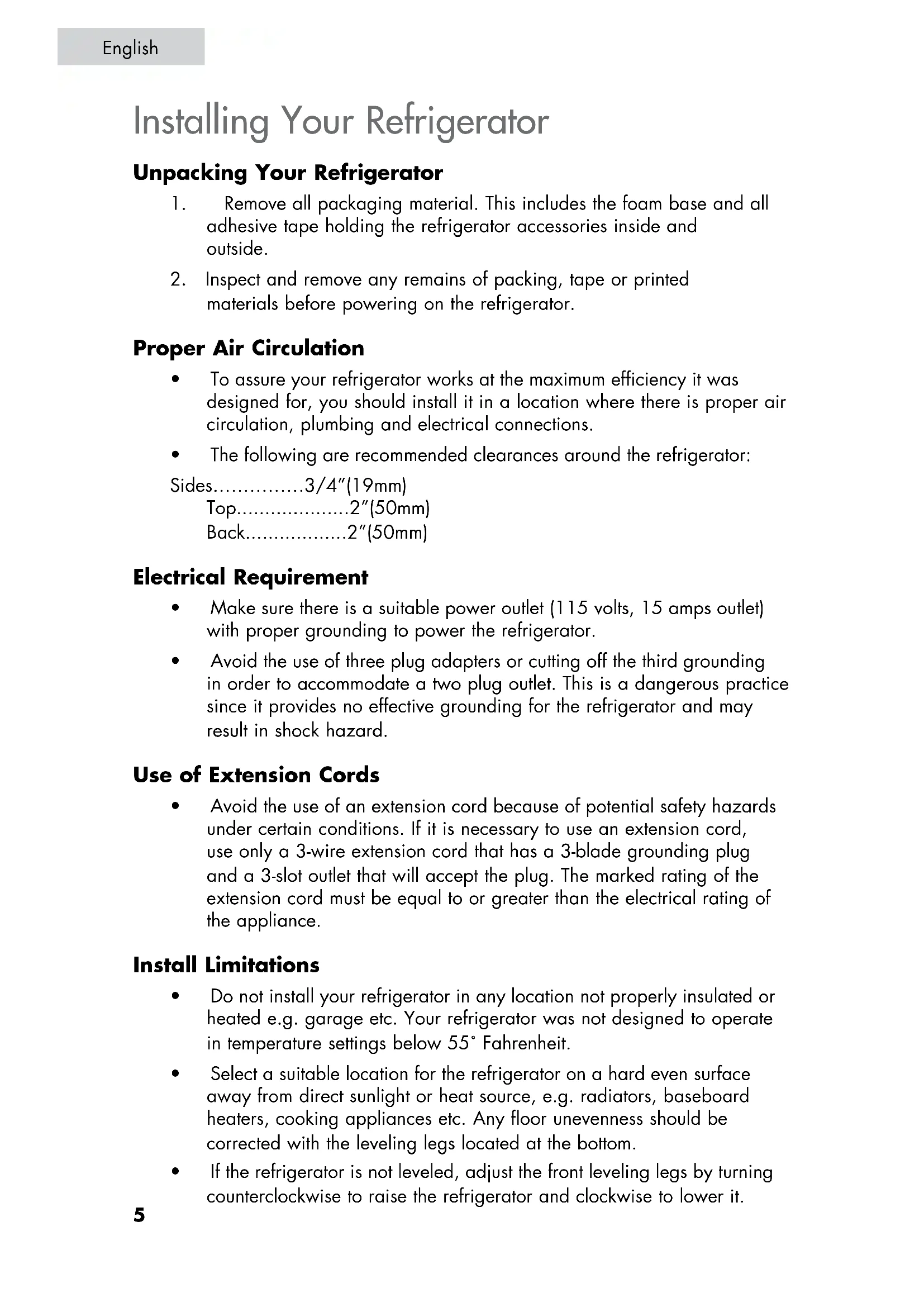

Installing Your Refrigerator

Unpacking Your Refrigerator

1. Remove all packaging material. This includes the foam base and all adhesive tape holding the refrigerator accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials before powering on the refrigerator.

Proper Air Circulation

• To assure your refrigerator works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation, plumbing and electrical connections.
  • The following are recommended clearances around the refrigerator:

Sides....3/4"(19mm) Top....2"(50mm) Back....2"(50mm)

Electrical Requirement

• Make sure there is a suitable power outlet (115 volts, 15 amps outlet) with proper grounding to power the refrigerator.
- Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two plug outlet. This is a dangerous practice since it provides no effective grounding for the refrigerator and may result in shock hazard.

Use of Extension Cords

- Avoid the use of an extension cord because of potential safety hazards under certain conditions. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance.

Install Limitations

• Do not install your refrigerator in any location not properly insulated or heated e.g. garage etc. Your refrigerator was not designed to operate in temperature settings below 55° Fahrenheit.
• Select a suitable location for the refrigerator on a hard even surface away from direct sunlight or heat source, e.g. radiators, baseboard heaters, cooking appliances etc. Any floor unevenness should be corrected with the leveling legs located at the bottom.
• If the refrigerator is not leveled, adjust the front leveling legs by turning counterclockwise to raise the refrigerator and clockwise to lower it.

Leveling Your Refrigerator

• Your refrigerator has two leveling legs which are located in the front corners of your refrigerator. After properly placing your refrigerator in its final position, you can level your refrigerator.
• Levelings legs can be adjusted by turning them counterclockwise to raise your refrigerator or by turning them clockwise to lower your refrigerator. The refrigerator door will close easier when the leveling legs are raised.

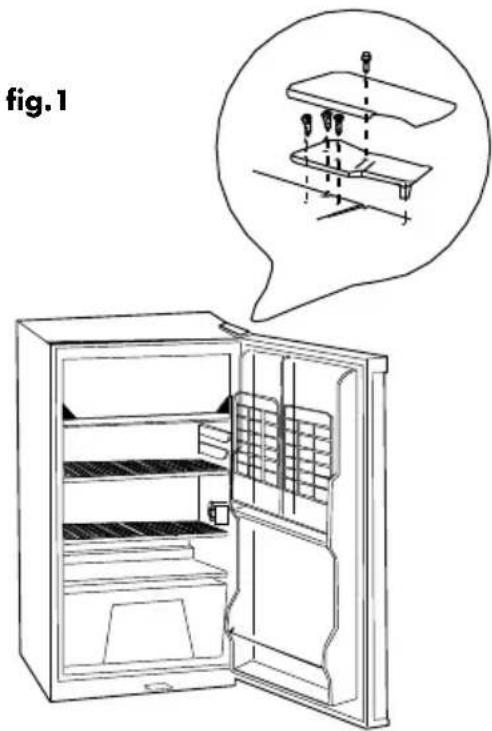

Door Alignment

1. Remove the top hinge cover screw and then remove the top hinge cover. (see fig. # 1)
2. Remove the top hinge cover using a flat head screw driver. Gently lift from the rear of the hinge and slide forward.
3. Loosen the top hinge screws using a phillips head screwdriver.
4. Adjust the door or put a spacer in between and then tighten the screws.
5. Replace the top hinge cover by aligning the rear of the cover with the rear of the hinge. Press firmly on the front of the cover until it snaps in place.

Line drawing of an open refrigerator with a thought bubble showing internal components (no text or symbols)

Reversing the Door

1. Remove the top hinge cover screw and then remove the top hinge cover. (see fig. # 1)

2. Using a Phillips Head Screwdriver, loosen and remove the screws holding the top hinge in place. (see fig. # 1)

3. Remove the top hinge and carefully lift off the door.

4. Remove the screw hole plug from the opposite side and insert the plug in the screw hole openings of the just removed screws. (see fig. # 2)

5. Remove the door pin from the bracket of the lower hinge by turning counter clockwise. Move the pin to the opposite hole and tighten. (see fig. # 3)

6. Loosen the screws holding the lower hinge bracket and remove the hinge. (see fig. # 3)

7. Align the holes in the lower hinge bracket to the corresponding holes in the opposite side of the cabinet. Insert and tighten the screws.(see fig. # 3)

8. Align the bottom hole on the left side of the door.

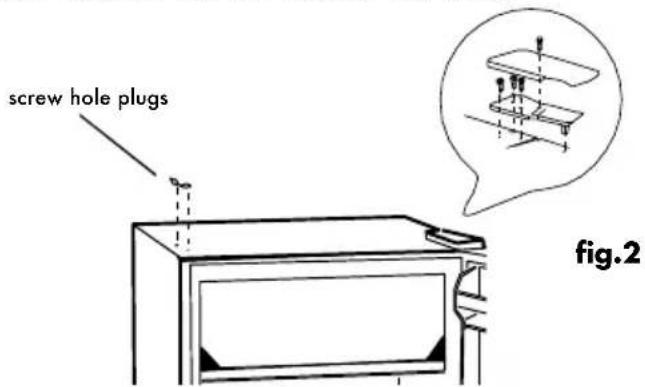

screw hole plugs fig.2

1. Align the pin of the top hinge with top hole on the left side of the door and push into place. Replace the screws in the upper hinge bracket but do not tighten all the way. (see fig. # 2)

2. Make sure the door closes easily but forms a tight seal. Adjust the door as needed. Once you are satisfied with the door alignment, completely tighten the upper door hinge screws.

3. Replace the hinge cover, insert the screw and tighten completely. (see fig. # 2)

4. If the door does not close properly, refer to the section titled "Door Alignment".

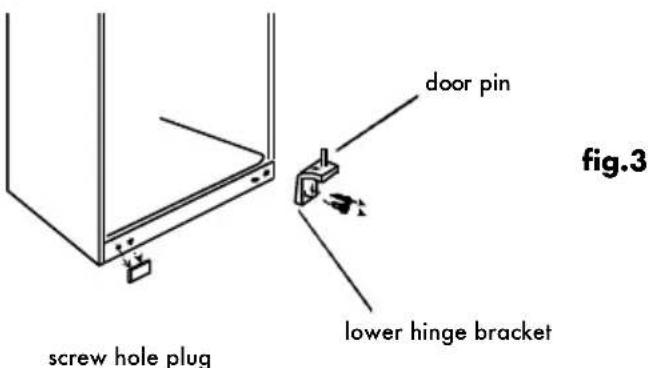

door pin screw hole plug lower hinge bracket fig.3

Refrigerator Features and Uses General Features

Temperature Control Dial

The temperature control dial has settings from

• "1" to 7 plus "OFF".
• "1" is the warmest
• "7" is the coldest

Initially, set the temperature control dial to "4". After using the refrigerator for 24 hours, adjust the temperature control dial to the setting that best suits your needs. Turning the temperature control dial 'OFF' stops the cooling cycle; however, it will not shut off power to the refrigerator.

NOTE: If the refrigerator has been placed in a horizontal or tilted position for any period of time, wait 24 hours before plugging the unit in.

IMPORTANT: If you unplug or turn off the refrigerator, allow 4 minutes before restarting it or re-plugging it in.

FREEZER COMPARTMENT & USE OF THE ICE CUBE TRAYS

This compartment is designed for making ice cubes and for short-term food storage (a few days at most). This compartment is not cold enough to freeze foods safely for extended periods of time.

- If ice cube tray freezes to the floor, pour a little warm water around it to loosen it. Do not use boiling water, which can damage plastic parts, or sharp metal objects such as a knife or screwdriver, which can damage the cooling system tubing. Wash tray in lukewarm water only. Do not wash in the dishwasher.

Interior Shelves

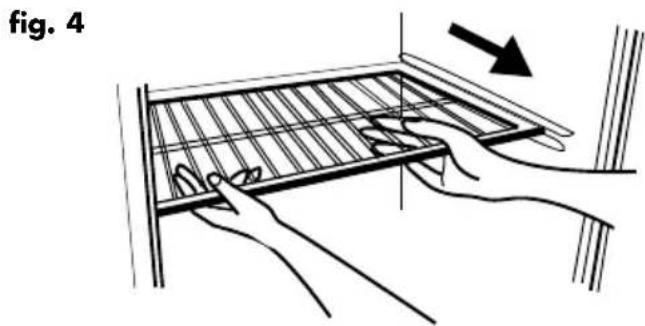

To remove or replace a full-width slide-out shelf: (see fig. #4)

1. Gently tilt the shelf up and slide forward until the shelf has been completely removed.
2. To replace the shelf, gently slide the shelf back.

Illustration of hands using a grid-based instrument to interact with a panel, no text or symbols present

Crisper

- Your refrigerator has a clear crisper. Grasp the top of the crisper and gently slide out. Push back to replace.

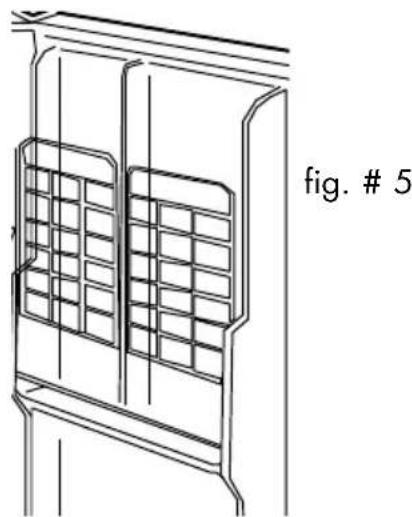

Using the Dispense-A-Can™ (see fig. # 5)

- Your refrigerator is equipped with the convenient "Dispense-A-Can™" compartment. Each compartment will hold up to four cans. Simply load the cans from the top. To dispense a can, simply draw one out from the bottom. It is that easy.

Technical line drawing of a structural frame with grid panels, labeled 'fig. # 5' (no other text or symbols)

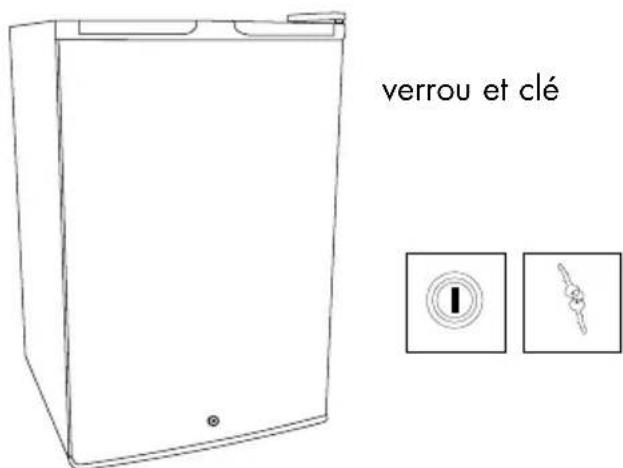

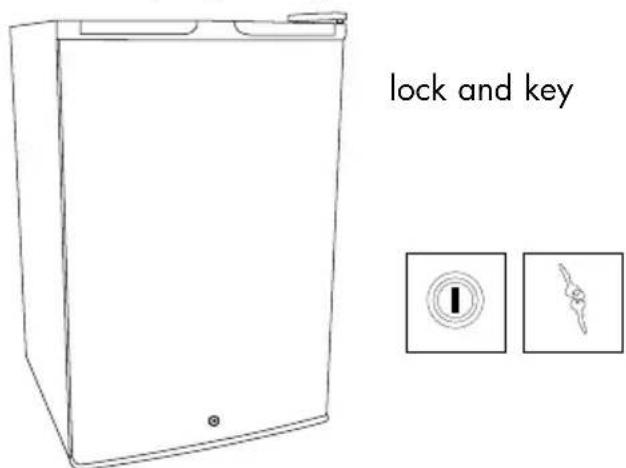

Using the Lock (see fig. # 6)

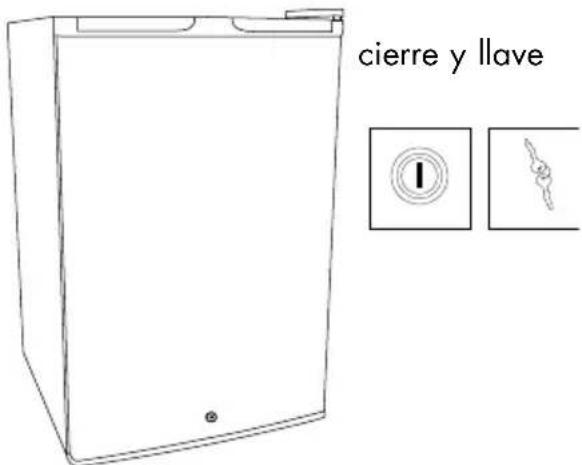

- Your refrigerator is equipped with a lock and key (located at the bottom center of the door) for optional security, should you choose. Simply close the refrigerator door, insert the key, push in and turn. To open, insert the key, push in and turn in the opposite direction.

NOTE: Keep keys away from children.

lock and key

fig. # 6

Defrosting Your Refrigerator

• For maximum energy efficiency, defrost freezer section whenever frost accumulates to a thickness of 1/4" or more on freezer walls. Note that frost tends to accumulate more during the summer months.
• To defrost, remove the food and ice cube tray from the freezer section. Make sure the drip tray is under the freezer section and turn off the thermostat. Defrosting may take a few hours.
• While defrosting, water will accumulate in the drip tray. The drip tray may also need to be emptied during the defrost process. Do not leave unattended. (see Fig. 7)
• After defrosting, empty and wipe down the drip tray, as well as the interior of the refrigerator.

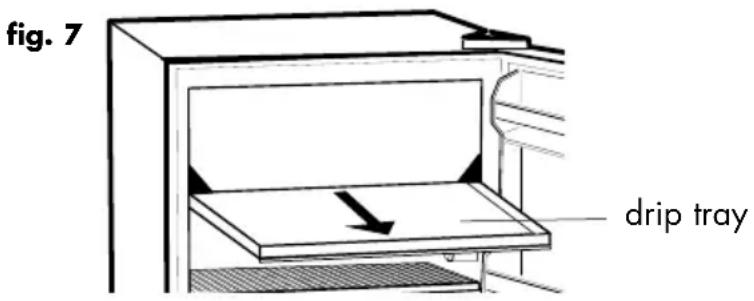

fig. 7 drip tray

Normal Operating Sounds You May Hear

• Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.

Proper Refrigerator Care and Cleaning

Warning: To avoid electric shock always unplug your refrigerator before cleaning. Ignoring this warning may result in death or injury.

Caution: Before using cleaning products, always read and follow manufacturer's instructions and warnings to avoid personal injury or product damage.

General: • Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your refrigerator.

• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemicals may dissolve, damage and/or discolor your refrigerator.

Door Gaskets:

• Clean door gaskets every three months according to general instructions. Gaskets must be kept clean and pliable to assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and assure a good seal.

Power Interruptions

- Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored, replug power cord to AC outlet. If outage is for a prolonged period, inspect and discard spoiled food in the refrigerator. Clean inside the refrigerator before reusing.

Vacation and moving Care

- For long vacations or absences, empty food from refrigerator, move the temperature DIAL to the OFF position and clean the refrigerator and door gaskets according to "General cleaning" section. Prop doors open, so air may circulate inside. When moving, always move the refrigerator vertically. Do not move with the unit lying down. Possible damage to the sealed system could occur.

Trouble Shooting

Refrigerator Does Not Operate

• Check if thermostat control is not in the "OFF" position.
• Check if refrigerator is plugged in.
• Check if there is power at the AC outlet, by checking the circuit breaker.

Food temperature appears too warm

• Frequent door openings.
• Allow time for recently added warm food to reach fresh food or freezer temperature.
• Check gaskets for proper seal.
• Clean condenser coils in the back of the unit.
• Adjust temperature control to colder setting.

Food temperature is too cold

- If temperature control setting is too cold, adjust to a warmer setting and allow several hours for temperature to adjust.

Refrigerator runs too frequently

• This may be normal to maintain constant temperature during high temperature and humid days.
• Doors may have been opened frequently or for an extended period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.

Moisture build up on interior or exterior of the refrigerator:

• This is normal during high humidity periods.
• Prolonged or frequent door openings.
• Check door gaskets for proper seal.

Refrigerator has an odor:

• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.

Refrigerator door does not shut properly:

• Level the refrigerator.
• Re-align refrigerator door.
• Check for blockages e.g. food containers, shelves, bins etc.

FELIX STORCH, INC.

770 GARRISON AVENUE BRONX, NY 10474

SUMMIT LIMITED WARRANTY

Summit Appliances warrants this product to be free from defects in materials and workmanship for a period of one year from the date of original purchase or delivery. Any parts determined to be defective will be replaced by SUMMIT at no charge to you. Plastic parts, liners and outer cabinets are warranted to be manufactured to commercially acceptable standards and free from defects at the time of delivery. In addition, the compressor is covered for 5 years, but replacement does not include labor.

This limited warranty does not apply to:

1. Improper installation
2. Customer misuse, negligence or damage
3. Incorrect electrical current
4. Products with the serial number altered or removed
5. Products sold or used outside the fifty United States or the District of Columbia

6. Commercial or Industrial Users

7. Damage to this product from accidents, alterations, failure to follow instructions, fire, floods, earthquakes, war, civil disturbance or Acts of God.

SUMMIT is not liable for consequential or incidental damage.

SUMMIT APPLIANCE DIV.

FELIX STORCH, INC.

770 GARRISON AVENUE

BRONX, NY 10474

FACTORY REGISTRATION CARD THANK YOU FOR PURCHASING A QUALITY SUMMIT® APPLIANCE

Summit Model Number Serial

Customer's Name Date of Delivery

Address

Apt. No.

City State Zip

Dealer's Name City State

Is this unit for: Private Home Apartment Office Other

Reasons for selecting this unit: Dealer Recommendation

Size

Price

□Other

□

□

PRECAUTIONS DE SURETE

Simple line drawing of a 3D tray with grid pattern, no text or symbols present

Labeled diagram of an open refrigerator with numbered parts for identification

Au-dessus.....2" (50mm)

Derriere....2" (50mm)

Condition Electriques

Line drawing of an open refrigerator with a thought bubble showing internal components (no text or symbols)

Illustration of hands using a ruler to measure a rectangular object, with an arrow indicating direction (no text or symbols)

fig. 4

Bac à legumes

Line drawing of a cabinet or enclosure structure with grid panels, labeled 'fig. # 5' (no other text or symbols)

NOTE: Keep keys away from children.

Diagram of a door opening with a slide and a downward arrow indicating direction (no text or symbols)

770 GARRISON AVENUE BRONX, NY 10474

SUMMIT GARANTIE LIMITEE

SUMMIT APPLIANCE DIV.

FELIX STORCH, INC.

770 GARRISON AVENUE

BRONX, NY 10474

CARTE D'ENREGISTREMENT D'USINE

MERCI D'AVOIR ACHETE SUMMIT®, UN PRODUIT DE QUALITE

Numero du modele Summit Serie

Simple line drawing of a rectangular container with internal compartments, enclosed in a circle labeled '11' (no text or symbols on the container itself)

Labeled diagram of an open refrigerator with numbered parts for identification

Illustration of hands using a ruler to measure a grid on a surface, with an arrow indicating direction (no text or symbols)

Line drawing of a cabinet or storage unit with two gridded compartments (no text or symbols)

fig.5

Uso del Cierre (see fig. # 6)

NOTE: Keep keys away from children.

Diagram of a door opening with a downward arrow indicating force or movement (no text or symbols present)

bandeja de goteo

770 GARRISON AVENUE BRONX, NY 10474

SUMMIT GARANTIA LIMITADA

This limited warranty does not apply to:

SUMMIT APPLIANCE DIV.

FELIX STORCH, INC.

770 GARRISON AVENUE

BRONX, NY 10474

TARJETA DE REGISTRO DE FABRICA GRACIAS POR COMPRAR UN PRODUCTO SUMMIT® APPLIANCES

Summit Modelo Numbero Serial

If you have a problem with this product, please contact the "Summit Customer

Satisfaction Center" at [phone] or [phone].

DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE

IMPORTANT

Yin-Yang symbol logo (no text or symbols present)

Summit

Made in China

Fabriqué en Chine

Hecho en China

Summit Appliance Division

Felix Storch Inc.

Bronx, NY 10474
