Product type	Water filter for faucet
Brand	Philips
Model	AWP3703
Usage	Cold water only (temperature 5-38°C)
Max water pressure	0.35 MPa
Compatible faucet diameter	15 to 24 mm
Selection mode	PUSH button (AWP3703) or lever (AWP3704)
Replacement timer	Yes, manually adjustable
Cartridge lifespan	5-6 months (1 person), 2-3 months (2 persons), 1-2 months (3 persons)
Included adapters	Type A, B, C and mini wrench
Maintenance	Rinse before use, regular cartridge replacement
Material	Plastic, rubber seals
Package contents	Device, optional adapters, user manual
Warranty	Philips customer service (see website)
Use	Household only

Frequently Asked Questions - AWP3703 PHILIPS

How to install the type A adapter?

Remove the original aerator cap and sealing ring. Screw the type A adapter onto the faucet and tighten using the mini wrench.

What is the compatible faucet diameter?

The diameter must be between 15 and 24 mm. Not compatible with shower head faucets, rectangular or oval outlets.

When should I replace the filter cartridge?

The frequency depends on the number of users: 5-6 months for 1 person, 2-3 months for 2 people, 1-2 months for 3 people. Replace sooner if the flow rate drops noticeably.

How to switch from filtered to unfiltered mode?

On the AWP3703 model, press the PUSH button to toggle between filtered mode and unfiltered spray mode. On lever models, turn the lever to select the mode.

What to do if the water flow decreases?

This is usually a sign that the filter cartridge is clogged. Replace the cartridge and rinse the system in unfiltered mode for 5 seconds, then in filtered mode for 3 minutes.

Can I use hot water with the filter?

No, use only cold water between 5 and 38°C. Hot water would damage the filter.

How to clean the filter?

Cleaning is not necessary; just replace the cartridge. For routine maintenance, let unfiltered water run for 5 seconds before use, and after 2 days of inactivity, let filtered water run for 20 seconds.

What to do if the filtered water has an odor?

An odor indicates that the cartridge is saturated. Replace it immediately. After replacement, rinse by letting filtered water run for 3 minutes.

Where can I get spare parts?

Filter cartridges and other accessories are available on the website www.philips.com/water or from your local retailer.

Does this device soften water?

No, this filter does not soften water. It reduces certain contaminants but does not change hardness.

USER MANUAL AWP3703 PHILIPS

White Philips water filter cleaner with a metallic handle and 'PUSH' button (no text or symbols on the device itself)

	User manual 1EN
	Ръководство за употреба 6BG
	Návod k použití 10CZ
	Benutzerhandbuch 15DE
ES	Manual del usuario	20

	Manuel d'utilisation 25FR
	Manuale utente 30IT
	Podręcznik użytkownika 35PL
	Руководство пользователя 40RU
SK	Návod na použitie	44

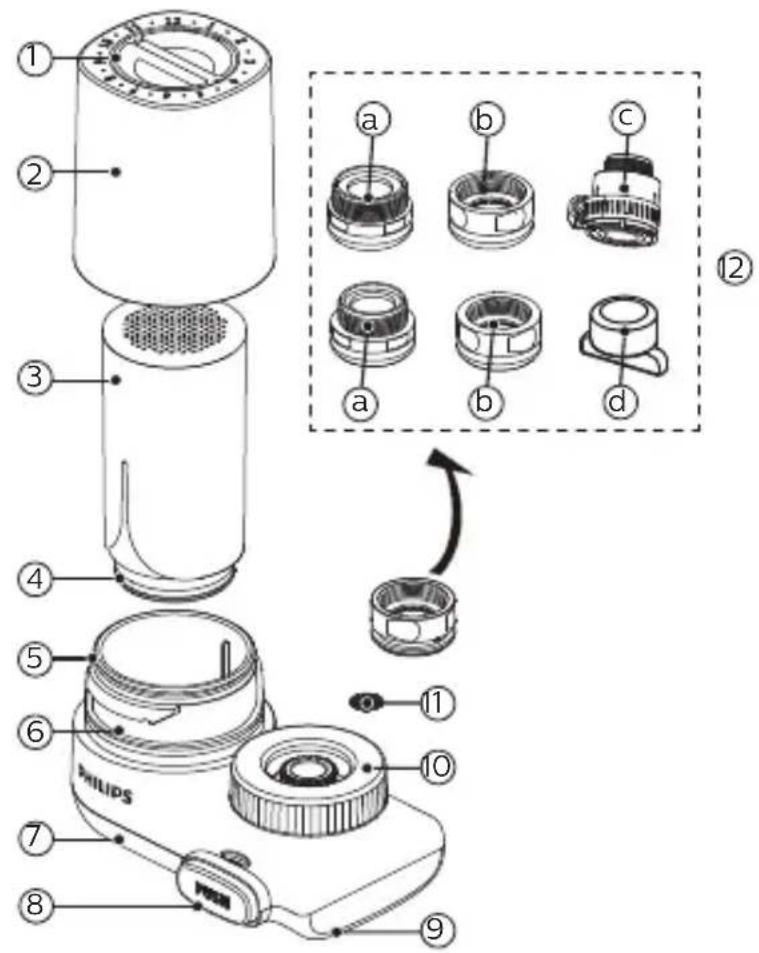

Technical diagram of a Philips device with labeled parts and exploded view showing internal components and assembly steps.

EN

①

Timer

②

Filter cartridge housing

③

Filter cartridge

④

⑤ Seal ring

⑥

Filter cartridge holder

⑦

Filtered water outlet

⑧

Selection button

⑨

Unfiltered water outlet

10

Attachment nut

11

Pre-filter

12

Optional adaptors

a

A-Type

b

B-Type

C

C-Type

d

Mini wrench

BG

①

Таймер

②

Technical diagram of a mechanical device with numbered parts and exploded view, showing internal components and assembly steps.

EN

① Attachment nut
② Filter cartridge holder
③ Timer
④ ⑤ Seal ring
⑥ Filter cartridge
⑦ Filter cartridge housing
⑧ Filtered water outlet
⑨ Unfiltered water outlet
⑩ Selection lever
⑪ Pre-filter
⑫ Optional adaptors
a) A-Type
b) B-Type
© C-Type
d Mini wrench

BG

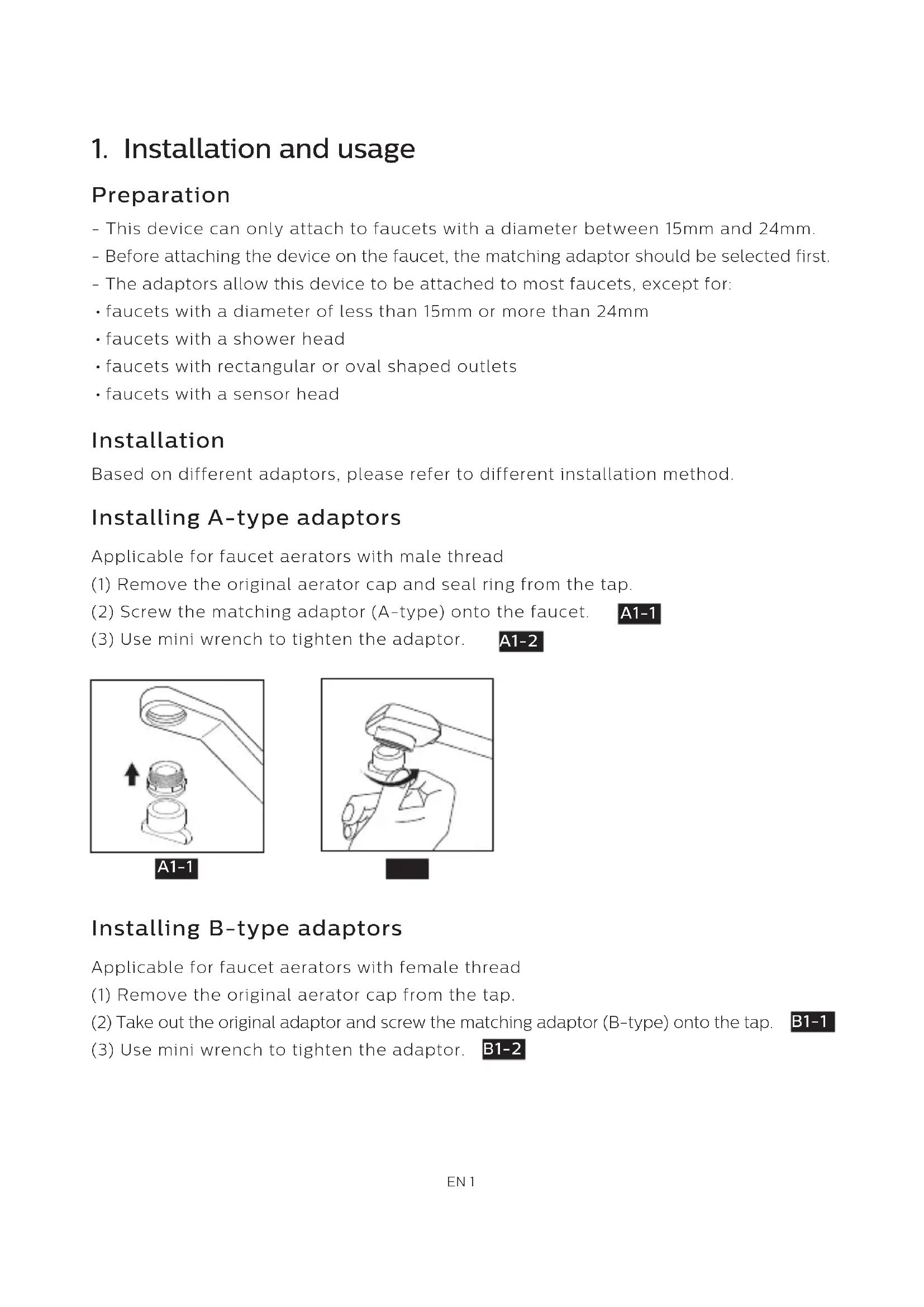

1. Installation and usage

Preparation

• This device can only attach to faucets with a diameter between 15mm and 24mm.
• Before attaching the device on the faucet, the matching adaptor should be selected first.

• The adaptors allow this device to be attached to most faucets, except for:

• faucets with a diameter of less than 15mm or more than 24mm

• faucets with a shower head
• faucets with rectangular or oval shaped outlets
• faucets with a sensor head

Installation

Based on different adaptors, please refer to different installation method.

Installing A-type adaptors

Applicable for faucet aerators with male thread

(1) Remove the original aerator cap and seal ring from the tap.
(2) Screw the matching adaptor (A-type) onto the faucet.

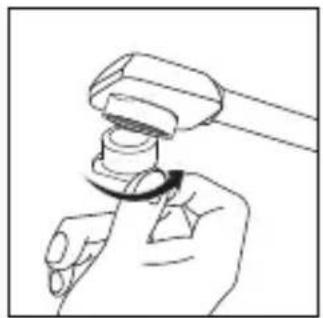

(3) Use mini wrench to tighten the adaptor.
A1-2

Technical illustration of a wrench tool interacting with a mechanical component (no text or symbols)

A1-1

Illustration of a hand using a hammer to press a bolt (no text or symbols present)

The image is too blurry to recognize any text content.

Installing B-type adaptors

Applicable for faucet aerators with female thread

(1) Remove the original aerator cap from the tap.
(2) Take out the original adaptor and screw the matching adaptor (B-type) onto the tap.
(3) Use mini wrench to tighten the adaptor. B1-2

B1-1

Diagram showing a pipe fitting with a valve and an arrow indicating upward motion (no text or symbols)

B1-1

Line drawing of a hand holding a tool with a curved handle (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Installing C-type adaptor

Applicable for faucets other than A or B with a diameter of 15mm-21mm. Please prepare a slotted screwdriver in advance before installing. C-type adaptor.

(1) Whether the inner or the outer seal ring of C-type adaptor is necessary depends on the dimension of the faucet outlet. C1-1
(2) Combine the B-type adaptor with the C-type adaptor. C1-2
(3) Adjust and screw the combined adaptors onto faucet. C1-3

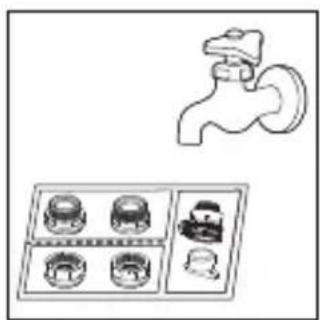

Illustration of a faucet with six small containers arranged in a tray, alongside a separate diagram of a water tap (no text or symbols present)

C1-1

Diagram showing a mechanical assembly process with three components and an arrow indicating direction (no text or labels)

C1-2

Diagram of a faucet with handle and valve mechanism, no text or symbols present

C1-3

Installing the device

(1) Unscrew the filter cartridge housing.
(2) Take the filter cartridge out from the protective film, and put it in the holder. Put the housing back.
(3) Anticlockwise turn the attachment nut and attach the device to the faucet, then release the nut.
(4) Set up the timer

a. Point the arrow to the starting month
b. When to replace the filter depends on the user number and the daily usage:

• 1 person
.. 2 persons
... 3 persons

Notes

For the first time use, select the unfiltered mode and let the water run for 5 seconds. Then switch to the filtered mode and let the water water run through the filter for 3 minutes.

Daily usage

AWP3703, AWP3753:

Press the PUSH button to switch between filtered and unfiltered mode.

- Unfiltered shower mode

Press the PUSH button to select the Ⓞ mode

- Filtered stream mode

Press the PUSH button again to select the ⚠ mode.

AWP3704, AWP3754:

Turn the lever to switch among the filtered stream, unfiltered shower and unfiltered stream mode.

Always use cold water (5-38°C) for the filtered mode. Otherwise the filter will be damaged.

2. Maintenance

Daily maintenance

• For everyday usage: extract unfiltered water for 5 seconds before switching to prevent filter from being clogged, and extract filtered water for 5 seconds before usage.
• If it hasn't been used for more than 2 days, extract the filtered water for 20 seconds before usage.
• If it hasn't been used for more than 2 weeks, extract the filtered water for 3 minutes before usage. If there is odor found in the filtered water, please change the filter cartridge.

Filter replacement

When to replace:

Based on the daily usage assumption, the filter should be replaced:

• every 5-6 months for 1 person
• every 2-3 months for 2 persons
• every 1-2 months for 3 persons

Notes

The actual lifespan of the filter cartridge depends on the local tap water quality and daily usage. If significant lower flow rate is observed, please replace the filter cartridge.

Replacing the filter cartridge

D1-1 1-2

A. Turn off the faucet

B. Take off the filter housing

C. Insert a new filter cartridge into the holder and put the housing back. Please check if the seal ring is in place, and if it's damaged.

D. Set the timer

E. Let the water run for 5 seconds under the ⚠ mode, and 3 minutes under the filtered mode.

Diagram of a mechanical device with a cylindrical component and a lever mechanism (no text or symbols)

D1-1

Diagram showing a mechanical assembly with two cylindrical components and a separate cylindrical component, no text or symbols present.

The image is too blurry to recognize any text content.

3. Precautions

Warning

- Always use municipal tap water as the water source. Do not use with water that is microbiologically unsafe or unknown quality without adequate disinfection before or after the device.

- Do not install this device on a water supply line with a water pressure exceeding 0.35 MPa. If the inlet water pressure exceeds 0.35 MPa, a relief valve must be installed (purchased separately).

- The water temperature for the filtration mode should be between 5-38°C. If the inlet water temperature exceeds 38°C, the filter will be damaged. If the inlet water temperature is lower than 5°C, it may cause freezing and water leakage.

- Do not reverse the installation order.

- This device is intended for domestic use only.

Caution

• The System and installation shall comply with applicable and local regulations.
• The containment or other substances removed or reduced by this water purifier are not necessarily in all user's water.
• For best performance, please change your filter cartridge based on the filter replacement period suggested in chapter 2. When significantly lower flow rate is observed, we recommend to change the filter.
• Do not block the filtered water outlet or connect other devices to it.
• Keep the device away from heat to avoid distortion or breakage.
• Do not tamper with the device.
• This appliance does not soften water.
• Do not use filtered water in aquariums. Tap water, filtered or unfiltered, can be harmful to fish.

4. Guarantee & Service

If you need information or if you have any problems, please visit the Philips website at www.philips.com/water or contact the consumer care center in your country. If there is no consumer care center in your country, go to the local dealer.

5. Packing list

Device 1x
Optional adaptors 1x
User manual 1x

Technical line drawing of a wrench and a mechanical component with an arrow indicating motion (no text or symbols)

A1-1

Illustration of a hand using a hammer to press a bolt (no text or symbols visible)

The image is too blurry to recognize any text content.

Diagram of a kitchen handle with a valve and a connector, showing an upward arrow (no text or symbols)

B1-1

Line drawing of a hand holding a tool with a curved handle (no text or symbols)

The image is too blurry to recognize any text content.

Адаптер за инсталиране тип С

Illustration of a faucet with four circular components and a small robot figure (no text or symbols)

C1-1

Diagram showing a mechanical component being processed into a final assembled part (no text or symbols present)

C1-2

Line drawing of a faucet with a handle and valve, showing fluid flow direction (no text or symbols)

C1-3

Diagram of a mechanical device with a cylindrical component and a lever mechanism (no text or symbols)

D1-1

Mechanical assembly diagram showing a cylindrical component being inserted into a flanged housing (no text or symbols present)

The image is too blurry to recognize any text content.

3. Предпазни мерки

Внимание

Technical illustration of a wrench and a mechanical component with an arrow indicating motion (no text or symbols)

A1-1

Line drawing of a hand holding a bolt with a hammer, no text or symbols present

The image is too blurry to recognize any text content.

Diagram showing a curved pipe with a valve and a small mechanical component with an upward arrow (no text or symbols)

B1-1

Line drawing of a hand holding a tool with a curved tool inserted (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Montáž adaptéru typu C

Illustration of a faucet with three identical containers and one valve, alongside a grid of small containers (no text or symbols)

C1-1

Diagram showing a mechanical assembly process with three components and an arrow indicating direction (no text or labels)

C1-2

Diagram of a faucet with a handle and valve, showing fluid flow direction (no text or labels)

C1-3

Montáž zařízení

Diagram of a mechanical device with a cylindrical component and a lever mechanism (no text or symbols)

D1-1

Diagram showing a mechanical assembly with cylindrical components and a directional arrow indicating motion (no text or symbols)

The image is too blurry to recognize any text content.

Technical illustration of a wrench and a mechanical component with an arrow indicating rotation (no text or symbols)

A1-1

Line drawing of a hand holding a bolt and nut, no text or symbols present

C

Diagram showing a curved pipe with a valve and a separate mechanical component with an upward arrow (no text or symbols)

B1-1

Line drawing of a hand holding a tool, no text or symbols present

B1-2

Illustration of a faucet with three labeled parts and a separate inset showing mechanical parts (no text or symbols)

C1-1

Diagram showing a mechanical assembly process with three components and an arrow indicating transformation (no text or labels)

C1-2

Line drawing of a faucet with a handle and valve, showing fluid flow direction (no text or symbols)

C1-3

Diagram of a mechanical device with a cylindrical component and a lever mechanism (no text or symbols)

D1-1

Diagram showing a mechanical assembly with two cylindrical components and an arrow indicating a transformation or assembly (no text or symbols present)

The image is too blurry to recognize any text content.

Technical illustration of a wrench tool interacting with a mechanical component (no text or symbols)

A1-1

Line drawing of a hand holding a mechanical component, no text or symbols present

A1-2

Diagram showing a pipe with a valve and a valve component, no text or symbols present

B1-1

Line drawing of a hand holding a tool with a curved handle (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a faucet with six mechanical parts arranged in a grid, no text or symbols present.

C1-1

Diagram showing a mechanical component being processed into a final product, with three views and an arrow indicating transformation.

C1-2

Diagram of a faucet with a handle and valve, showing fluid flow direction (no text or labels)

C1-3

Based on the daily usage assumption, the filter should be replaced:

Diagram of a mechanical device with a cylindrical component and a lever mechanism (no text or symbols)

D1-1

Mechanical assembly diagram showing a cylindrical component being inserted into a flanged housing (no text or symbols present)

The image is too blurry to recognize any text content.

3. Precauciones

Advertencia

Diagram of a wrench and a mechanical component with an arrow indicating motion (no text or symbols)

A1-1

Line drawing of a hand holding a mechanical component, no text or symbols present

The image is too blurry to recognize any text content.

Diagram showing a curved pipe with a valve and a separate mechanical component with an upward arrow (no text or symbols)

B1-1

Line drawing of a hand holding a tool with a magnifying glass (no text or symbols)

The image is too blurry to recognize any text content.

Applicable for faucets other than A or B with a diameter of 15mm-21mm. Please prepare a slotted screwdriver in advance before installing. C-type adaptor.

Illustration of a faucet with six labeled parts and a separate inset showing mechanical parts (no text or symbols)

C1-1

Diagram showing a mechanical assembly process with three components and an arrow indicating transformation

C1-2

Diagram of a faucet with a handle and valve, showing fluid flow direction (no text or labels)

C1-3

Diagram of a mechanical device with a cylindrical component and a lever mechanism (no text or symbols)

D1-1

Mechanical assembly diagram showing two cylindrical components with a directional arrow indicating rotation (no text or symbols)

The image is too blurry to recognize any text content.

3. Précautions

Avertissement

Technical illustration of a wrench and a mechanical component with an arrow indicating rotation (no text or symbols)

A1-1

Line drawing of a hand holding a mechanical component, no text or symbols present

The image is too blurry to recognize any text content.

Diagram showing a curved pipe with a valve and a small mechanical component with an upward arrow (no text or symbols)

B1-1

Line drawing of a hand holding a tool with a curved handle (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Illustration of a faucet with six small containers arranged in a tray, alongside a separate view of a container with three items (no text or symbols)

C1-1

Diagram showing a mechanical component being processed into a final assembled part (no text or symbols present)

C1-2

Line drawing of a faucet with handle and lever mechanism (no text or symbols)

C1-3

Diagram of a mechanical device with a cylindrical component and a lever mechanism (no text or symbols)

D1-1

Diagram showing a mechanical assembly with cylindrical components and a separate cylindrical component, no text or symbols present.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

3. Precauzioni

Avvertenza

Technical illustration of a wrench and a mechanical component with an arrow indicating motion (no text or symbols)

A1-1

Illustration of a hand using a hammer to press a bolt (no text or symbols present)

The image is too blurry to recognize any text content.

Diagram showing a pipe fitting with a valve and an arrow indicating direction (no text or symbols)

B1-1

Line drawing of a hand holding a tool with a curved handle (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Illustration of a faucet with six small mechanical parts arranged in a grid, alongside a line drawing of the faucet (no text or symbols present)

C1-1

Diagram showing a mechanical component being processed into a final product, with three views of the component.

C1-2

Diagram of a faucet with handle and valve mechanism (no text or labels)

C1-3

Montaż urządzenia

Diagram of a mechanical device with a cylindrical component and a lever mechanism (no text or symbols)

D1-1

Diagram showing a mechanical assembly with cylindrical components and a directional arrow indicating motion (no text or symbols)

The image is too blurry to recognize any text content.

Technical illustration of a wrench tool interacting with a mechanical component (no text or symbols present)

A1-1

Line drawing of a hand holding a mechanical component (no text or symbols)

The image is too blurry to recognize any text content.
A1-2

Diagram showing a curved pipe with a small valve and a separate mechanical component with an upward arrow (no text or symbols)

B1-1

Line drawing of a hand holding a mechanical component (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
B1-2
B1-1

Illustration of a faucet with six labeled mechanical parts (no text or symbols present)

C1-1

Diagram showing a mechanical component being processed into a final product, with three views of the component.

C1-2

Diagram of a faucet with a handle and valve, showing fluid flow direction (no text or labels)

C1-3

Diagram of a mechanical device with cylindrical components and a lever mechanism (no text or symbols)

D1-1

Mechanical assembly diagram showing two cylindrical components with a directional arrow indicating assembly (no text or symbols)

The image is too blurry to recognize any text content.

Technical illustration of a wrench and a mechanical component with an arrow indicating rotation (no text or symbols)

A1-1

Line drawing of a hand holding a mechanical component with a bolt (no text or symbols)

The image is too blurry to recognize any text content.

Diagram showing a curved pipe with a valve and a mechanical component with an upward arrow (no text or symbols)

B1-1

Line drawing of a hand holding a mechanical component (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Illustration of a faucet with four labeled items arranged in a grid (no text or symbols)

C1-1

Diagram showing a mechanical assembly process with three components and an arrow indicating direction (no text or labels)

C1-2

Line drawing of a faucet with handle and valve (no text or symbols)

C1-3

Montáž zariadenia

Diagram of a mechanical device with a cylindrical component and a lever mechanism (no text or symbols)

D1-1

Diagram showing a mechanical assembly with two cylindrical components and an arrow indicating direction (no text or symbols)

The image is too blurry to recognize any text content.

Register your product and learn more in the website link below:

www.philips.com/water

Specifications are subject to change without notice

© 2020 AquaShield

All rights reserved.

The Philips trademark and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license.

This product has been manufactured by and is sold under the responsibility of Hong Kong AquaShield

Health Technology Company Limited and Hong Kong AquaShield Health Technology Company Limited is the

warrantor in relation to this product.

Rev B MAR 20
