USER MANUAL TD606513 Nesco

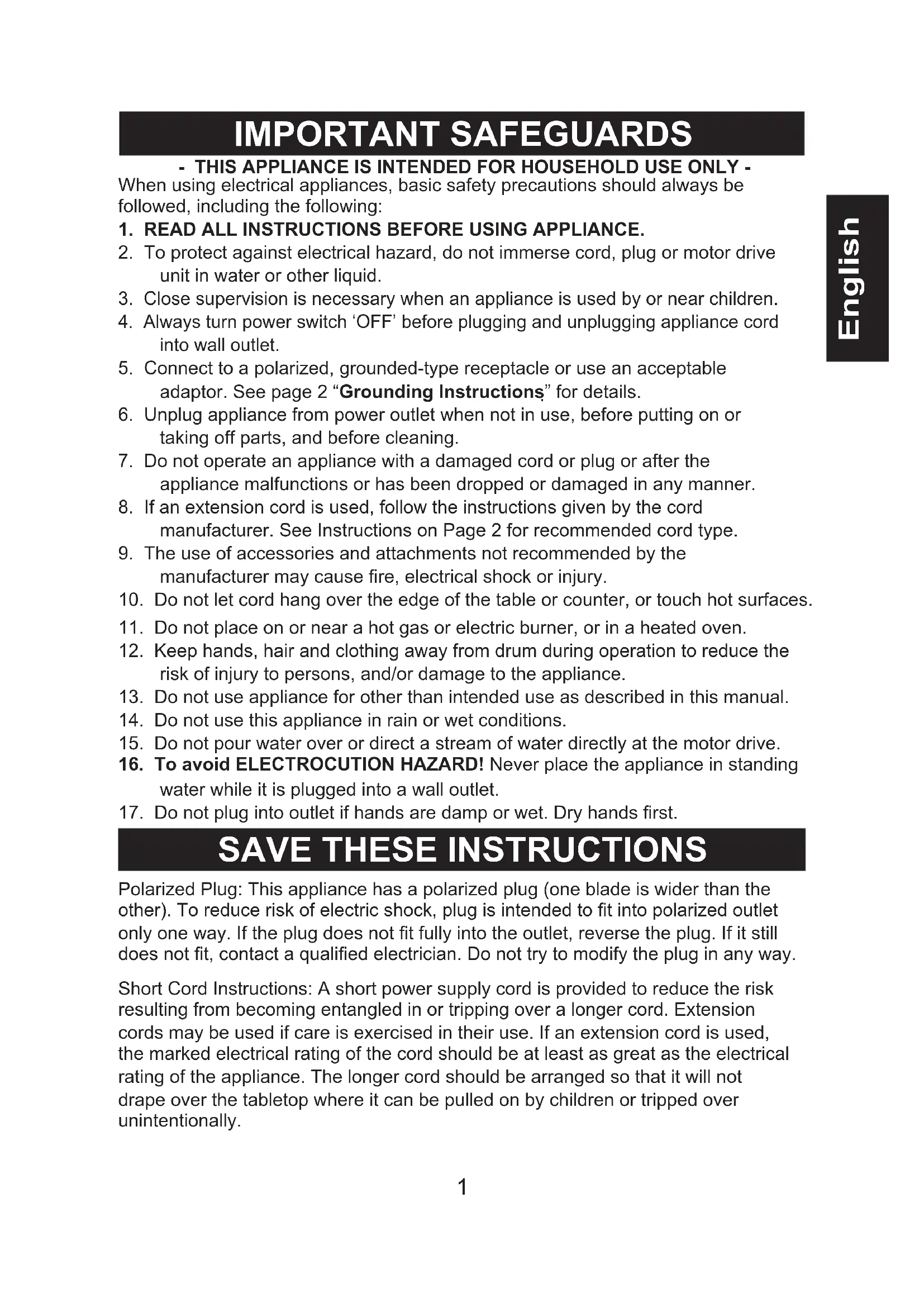

English IMPORTANT SAFEGUARDS - THIS APPLIANCE IS INTENDED FOR HOUSEHOLD USE ONLY - When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS BEFORE USING APPLIANCE.

2. To protect against electrical hazard, do not immerse cord, plug or motor drive

unit in water or other liquid.

3. Close supervision is necessary when an appliance is used by or near children.

4. Always turn power switch ‘OFF’ before plugging and unplugging appliance cord

adaptor. See page 2 “Grounding Instructions” for details.

6. Unplug appliance from power outlet when not in use, before putting on or

taking off parts, and before cleaning.

7. Do not operate an appliance with a damaged cord or plug or after the

appliance malfunctions or has been dropped or damaged in any manner.

8. If an extension cord is used, follow the instructions given by the cord

manufacturer. See Instructions on Page 2 for recommended cord type.

9. The use of accessories and attachments not recommended by the

manufacturer may cause re, electrical shock or injury.

10. Do not let cord hang over the edge of the table or counter, or touch hot surfaces.

11. Do not place on or near a hot gas or electric burner, or in a heated oven.

12. Keep hands, hair and clothing away from drum during operation to reduce the

risk of injury to persons, and/or damage to the appliance.

13. Do not use appliance for other than intended use as described in this manual.

14. Do not use this appliance in rain or wet conditions.

15. Do not pour water over or direct a stream of water directly at the motor drive.

16. To avoid ELECTROCUTION HAZARD! Never place the appliance in standing

water while it is plugged into a wall outlet.

17. Do not plug into outlet if hands are damp or wet. Dry hands rst.

SAVE THESE INSTRUCTIONS

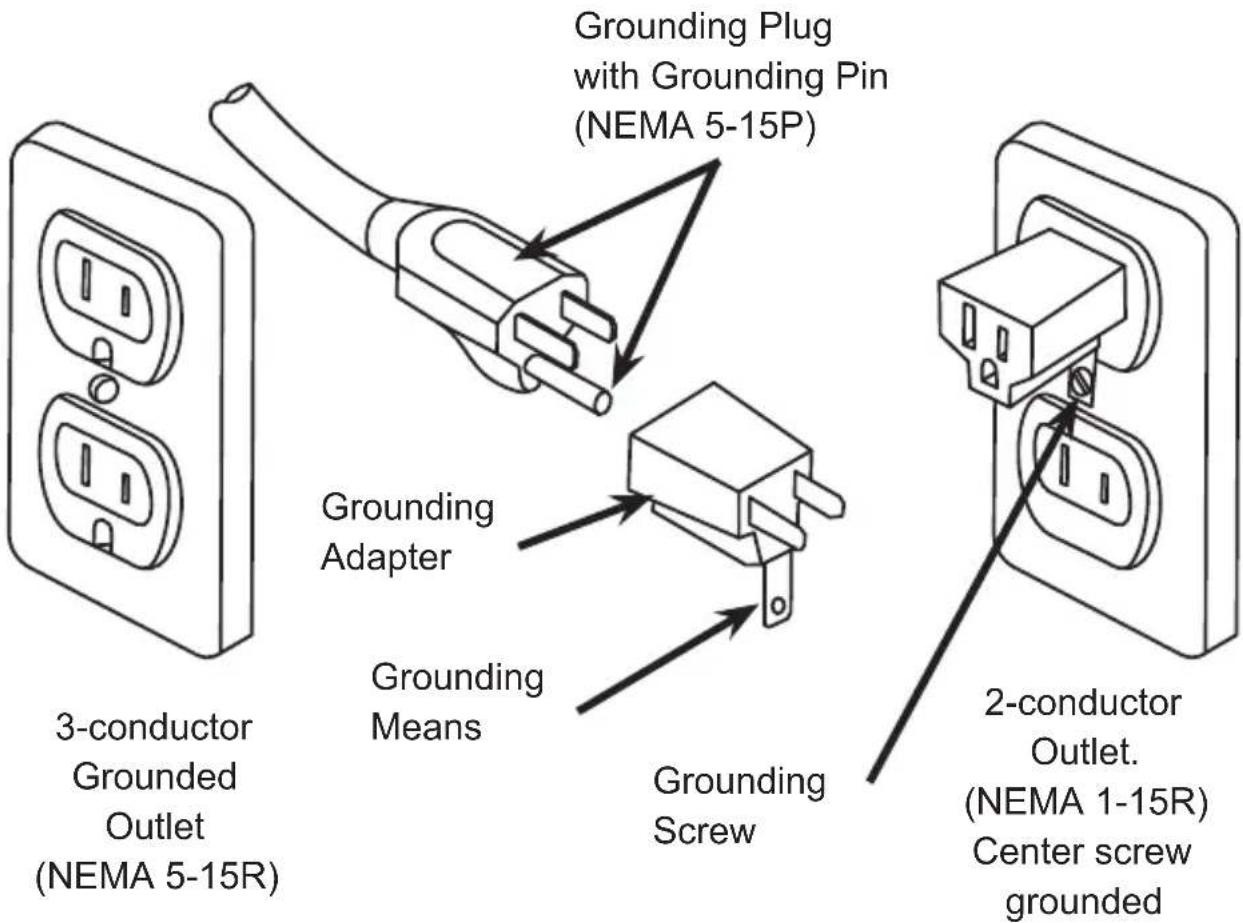

Polarized Plug: This appliance has a polarized plug (one blade is wider than the other). To reduce risk of electric shock, plug is intended to t into polarized outlet only one way. If the plug does not t fully into the outlet, reverse the plug. If it still does not t, contact a qualied electrician. Do not try to modify the plug in any way. Short Cord Instructions: A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Extension cords may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the cord should be at least as great as the electrical rating of the appliance. The longer cord should be arranged so that it will not drape over the tabletop where it can be pulled on by children or tripped over unintentionally.2 English Grounding Instructions Extension Cords This appliance is equipped with a 3-conductor cord and 3-pin plug (NEMA 5-15P) to t into standard 15A grounded receptacle (NEMA 5-15R). The appliance must be grounded while in use to protect the operator from an electrical hazard or shock. Grounding Adapter may be used if you are using a 2-conductor receptacle. The grounding means, which extends from the adapter body, must be connected to the screw in a properly grounded outlet box. See diagram for reference. Grounding Adapter 3-conductor Grounded Outlet (NEMA 5-15R) Grounding Plug with Grounding Pin (NEMA 5-15P) Grounding Means 2-conductor Outlet. (NEMA 1-15R) Center screw grounded Grounding Screw Use only polarized grounded-type extension cord that is rated 15A (minimum). We recommend using an extension cord that is intended for outdoor use. Do not use damaged extension cords. Extension cords are only to be used for temporary purposes. They do not replace the need for installation of outlets and proper wiring where necessary. Do not pull on cord to disconnect. Keep away from heat and sharp objects.3 English Operating Instructions

1. Remove all packaging materials before using the rst time.

2. Wash parts with soapy water and rinse. Reduce splashing and dump

dirty water by lifting Tub from Motor Drive to keep water from entering Motor Drive area. CAUTION: ALWAYS WEAR SAFETY GLOVES WHEN REACHING INSIDE OF DRUM!

3. Rotate Drive Coupling until slot is horizontal. Using Tub handles, lift

Drum and insert Drive Shaft into Drive Coupling. Lower the opposite end shaft of Drum into groove on Bearing Block.

4. Place unit on level surface and add water to the “Maximum Fill Line”.

Water level inside of Drum should be 1/4” to 1/2” above the bottom. CAUTION: DO NOT POUR WATER OVER MOTOR DRIVE!

5. Release Latch by lifting and open door, place sh into Drum. For best

results load scaler by similar size and types of sh.

6. Note: TD-6065-13 (18” long drum) will scale up to 50 small pansh

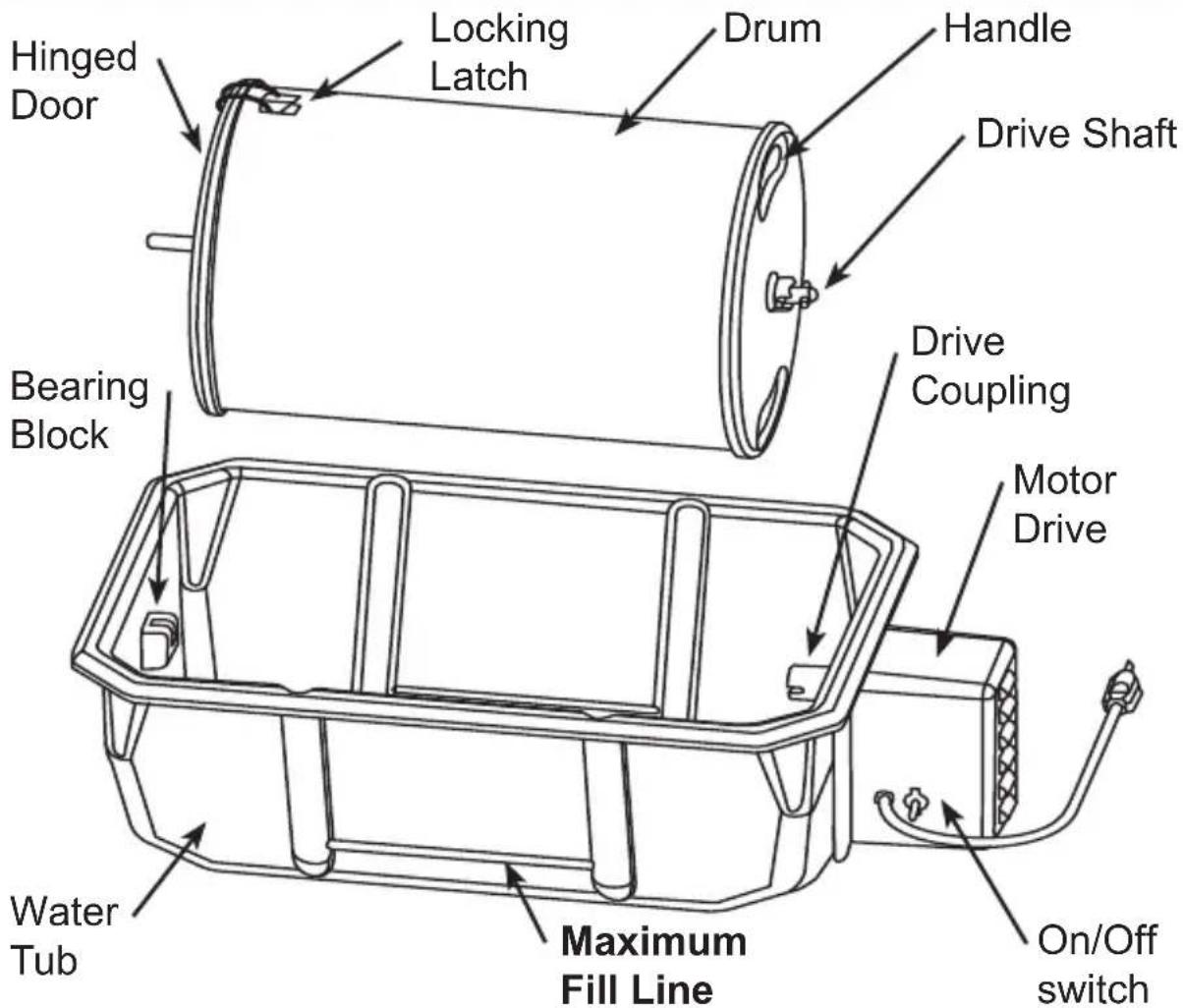

and TD-6065-13L (26” long drum) is designed to scale large s up to 22” in length. Parts and Accessories Locking Latch Water Tub Drum On/Off switch Handle Motor Drive Hinged Door Drive Coupling Bearing Block Maximum Fill Line Drive Shaft4 English

7. Close door and lock the Latch by pressing rmly.

8. Check that Switch is in OFF position and hands are dried. Plug cord

into standard grounded 120 V.a.c. outlet. If grounded outlet is not available use adapter as shown on page 2.

9. Flip Switch to ON position and allow “Tumble Drumm™” to operate

about 10 to 25 minutes. Times will vary due to size / type / number of sh per load.

10. Turn switch to OFF position and allow Drum to stop rotating. Release

latch, open door and inspect sh. Drum has sharp edges that can cause cuts and abrasions. CAUTION: ALWAYS WEAR SAFETY GLOVES WHEN REACHING INSIDE OF DRUM!

11. If more time is needed to remove scales, close door and lock latch.

Operate a few minutes longer, check frequently to avoid damaged sh.

12. When sh are completely scaled, turn Switch to OFF position and

unplug cord from outlet.

13. Remove Drum from Tub by lifting opposite end of Motor Drive, then

slide Drum away from Motor Drive while lifting to remove.

14. Release Latch and open door. Dump sh into suitable container.

15. Rinse Drum with hose. Repeat steps as needed.

1. Be sure cord is disconnected from outlet and switch in OFF position.

2. Remove Drum from Tub and rinse with clean water. Drum has sharp

edges that can cause cuts and abrasions. CAUTION: ALWAYS WEAR SAFETY GLOVES WHEN REACHING INSIDE OF DRUM!

3. Dump the dirty water by tilting Tub with Motor Drive upwards. Rinse

with clean water. NOTE: If scales are dried, try soaking parts by lling Tub with warm soapy water to the Maximum Fill Line, add Drum and cycle without sh for several minutes.

4. Rinse all parts separately and allow to dry thoroughly. The Tub and

Motor Drive can be wiped with dry cloth.

5. When all parts have dried, assemble Drum or store Drum in bottom of

6. Store indoors in a dry place. Do not expose to rain.5

This appliance is warranted for one year from date of original purchase against defects in material and workmanship. This warranty does not cover transportation damage, misuse, accident or similar incident. This warranty gives you specic legal rights and you may have other rights, which vary from state to state. This product is intended for household use only, not for commercial use. Warranty does not cover commercial use. Your new appliance comes equipped with numerous safety features. Any attempt to interfere with the operation of these safety features makes this warranty null and void. In the event we receive an appliance for service that has been tampered with, we reserve the right to restore it to its original state and charge for the repair. For service in warranty - Defective products may be returned, postage prepaid, with a description of the defect to: The Metal Ware Corporation, 1700 Monroe Street, Two Rivers, Wisconsin 54241, for no-charge repair or replacement at our option. Must include proof of purchase or copy of original bill of sale when returning product for warranty service. Please call Customer Satisfaction at 1-800-288-4545 to obtain a Return Authorization before shipping.

• For service in warranty, follow instructions set forth in warranty. When ordering new parts, make sure that you always mention the model number of the product.

• Call us on our toll free number, 1-800-288-4545 and tell us about your problem.

• If we instruct you to send all or part of your appliance to us for repair or replacement, our Customer Satisfaction representative will provide a Return Authorization number (this number noties our receiving department to expedite your repair). Pack your unit carefully in a sturdy carton with sufcient padding to prevent damage because any damage caused in shipping is not covered by the warranty.

• Print your name, address and Return Authorization number on the carton.

• Write a letter explaining the problem. Include the following: your name, address and telephone number and a copy of the original bill of sale.

• Attach the sealed envelope containing the letter inside the carton. Insure the package for the value of the appliance and ship prepaid to: Attn: Factory Service Dept. The Metal Ware Corporation 1700 Monroe Street Two Rivers, WI 542416 Français
