Product Type	Cordless Stick Vacuum Cleaner
Brand	Samsung
Model	POWERstick VS6AK6050KW
Power Supply	Rechargeable Li-ion Battery (21.6 V)
Charger	Mains charger supplied
Run Time	Approximately 30 minutes in normal mode
Charge Time	Approximately 4 hours
Dust Capacity	0.5 L
Filtration	Washable sponge filter
Operating Modes	Normal, Turbo
Included Accessories	Crevice tool, dusting brush, charger, battery
Optional Accessory	Extension for confined spaces
Features	Removable portable vacuum, LED display, auto shut-off
Usage	Indoor only, domestic
Maintenance	Washable dust container, washable sponge filter
Safety	Overheat protection, polarized plug
Weight	2.5 kg
Dimensions (L x W x H)	250 x 200 x 1100 mm

Frequently Asked Questions - POWERstick VS6AK6050KW SAMSUNG

How to recharge the battery of the Samsung POWERstick VS6AK6050KW vacuum cleaner?

Insert the battery fully into the supplied charger. The charge level indicator blinks during charging. Plug the charger into a wall outlet. Charging takes approximately 4 hours.

What is the battery run time?

The run time is approximately 30 minutes in normal mode. In Turbo mode, it is reduced. The battery is a 21.6 V Li-ion type.

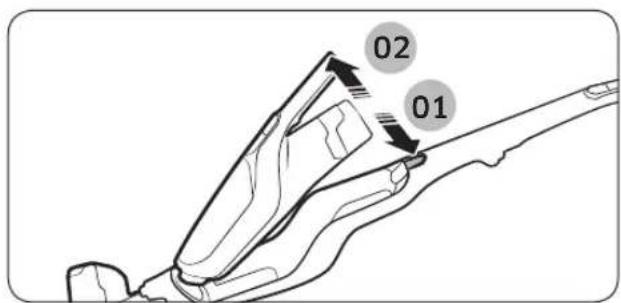

How to use the portable vacuum?

Press the release button of the portable vacuum (06) to detach it from the main body. Use it with accessories like the crevice tool or dusting brush. To reattach, insert it until it clicks.

How to clean the dust container?

Press the release button of the dust container (03) to remove it. Empty it into a trash bin. Wash it with clean water and a neutral detergent (dish soap). Dry it in the shade before reassembling.

How to clean the sponge filter?

Remove the sponge filter from the dust container. Wash it with clean water and a neutral detergent. Gently squeeze it and let it dry in the shade. Do not put it in the dishwasher or dryer.

What to do if suction power decreases?

Check if the dust container is full or if the air inlet is blocked. Clean the sponge filter. If the problem persists, recharge the battery.

How to detach and clean the air inlet?

Press the release button of the air inlet (15) to remove the front part. Remove hair or debris using a tool. Do not use water to clean the air inlet.

Can I use the vacuum without a filter?

No, never use the vacuum without a filter. This could damage the motor and void the warranty.

What to do if the vacuum does not start?

Check the battery charge level and recharge if necessary. Ensure the appliance is turned on by pressing the On/Off button. If you have used the portable vacuum, turn it off first.

How to change the battery?

Press the battery release button (14) and remove it. Insert a new compatible Samsung battery. Use only original Samsung batteries.

USER MANUAL POWERstick VS6AK6050KW SAMSUNG

• Before operating this unit, please read the instructions carefully.
• For indoor use only.

PREPARATION

Important safety instructions 3

INSTALLATION

Name of the parts 12

OPERATIONS

Using the vacuum cleaner 13

Charging the stick vacuum cleaner 13

Assembling and Disassembling a battery 13

Using the stick vacuum cleaner 14

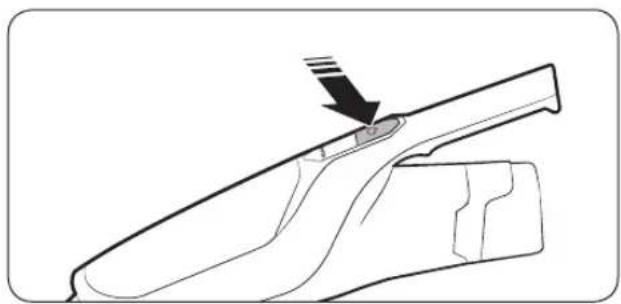

Using the handy vacuum cleaner 14

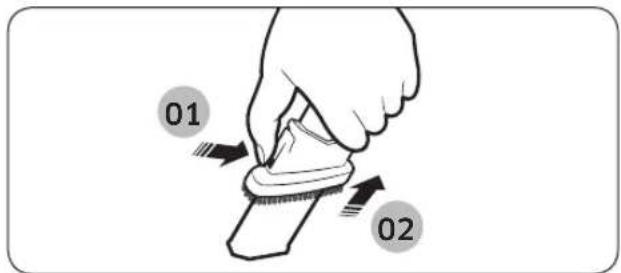

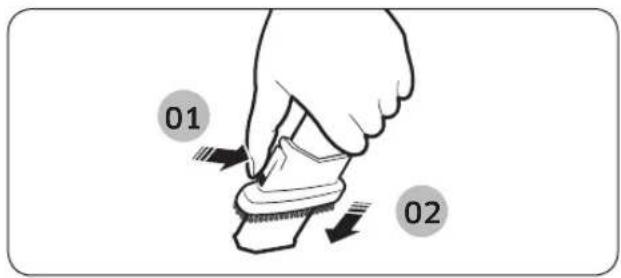

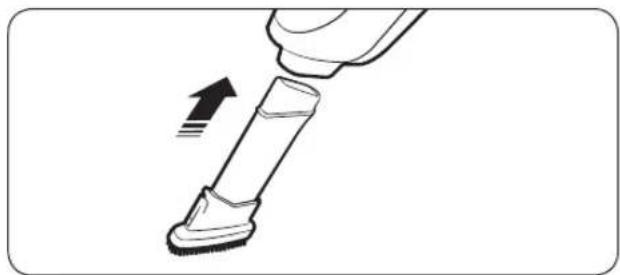

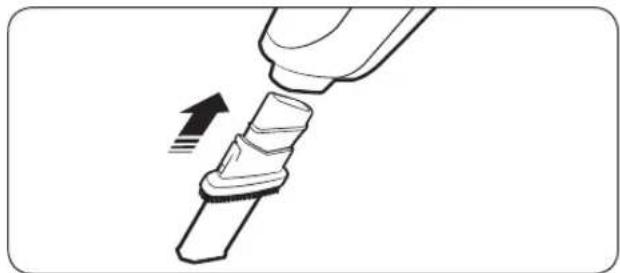

Using the crevice tool and dusting brush 15

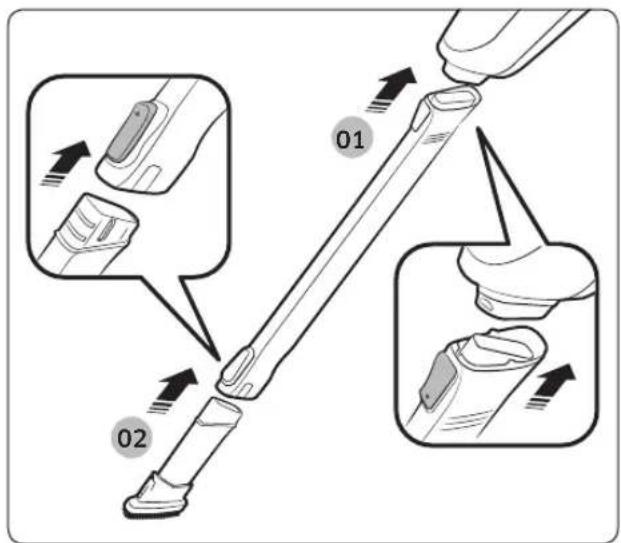

Using the Long Reach Tool (option) 15

MAINTENANCE

Maintaining the vacuum cleaner 16

Disassembling / Assembling the dust bin 16

Cleaning the dust bin 16

Cleaning the sponge filter 16

Cleaning the air intake 16

APPENDICES

Notes and cautions 17

Battery usage 17

Operation 17

Maintenance 18

Troubleshooting 19

Accessories

Crevice tool / Dusting brush

Power cord

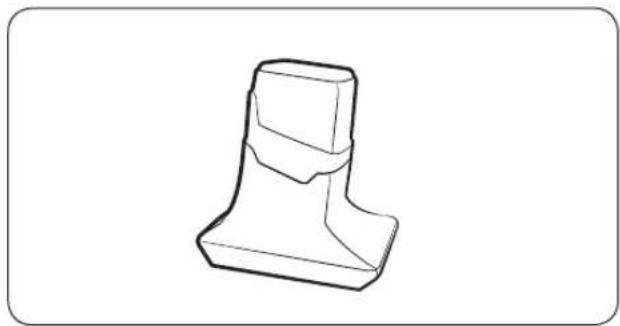

Charger / battery

User manual

Simple line drawing of a long, elongated object with rounded ends and a small protrusion at the end (no text or symbols)

Long Reach Tool (option)

Safety information

WARNING

- Before operating the appliance, please read this manual thoroughly and retain it for your reference.

WARNING

- Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

Caution/Warning symbols used

WARNING

Indicates that a danger of death or serious injury exists.

CAUTION

Indicates that a risk of personal injury or material damage exists.

Other symbols used

NOTE

Indicates that the following text contains additional important information.

State of California Proposition 65 Warning (US only)

WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

For battery recycling go to call2recycle.org; or call 1-800-822-8837

Failure to meet these requirements could cause damage to the internal parts and void your warranty.

General

• Use only as described in this manual. Use only manufacturer's recommended attachments.
• If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
• WARNING: Do not use the vacuum cleaner when rug or floor is wet.
• Close supervision is necessary when any appliance is used by or near children. Do not allow the vacuum cleaner to be used as a toy. Do not allow the vacuum cleaner to run unattended at any time. Use the vacuum cleaner only for its intended use as described in these instructions.
• Do not use the vacuum cleaner without a dust bin.
• Empty the dust bin before it is full in order to maintain the best efficiency.
• Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.
• Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts.

• Do not block the suction or the exhaust port.

• Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before emptying the dust bin. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Unplug the cleaner when not in use. Turn off the power switch before unplugging.
• Do not use to suction up water
• Do not immerse in water for cleaning.
• Please contact the manufacturer or service agent for a replacement.

Battery charger

• Do not modify the polarized plug to fit a non-polarized outlet or extension cord.
• Do not use outdoors or on wet surfaces.
• Unplug the charger from the outlet when not in use and before servicing.
• Use only the charger supplied by the manufacturer to recharge.
• Do not use with a damaged cord or plug.
• Do not pull or carry by the cord, use the cord as a handle, close the door on the cord, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not mutilate or incinerate batteries as they will explode at high temperatures.
• Do not attempt to open the charger. Repairs should only be carried out by a qualified customer care centre.
• Do not expose the charger to high temperatures or allow moisture or humidity of any kind to come into contact with the charger.

Stick vacuum cleaner

• Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc.

• Do not use without a filter in place. When servicing the unit, never put fingers or other objects into the fan chamber in case the unit accidentally turns on.

• Do not put any objects into openings. Do not use with any openings blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.

• Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids such as gasoline, nor use on areas where they may be present.
• Do not use STICK vacuum cleaner in an enclosed space filled with vapours given off by oil based paint, paint thinner, moth proofing substances, flammable dust, or other explosive or toxic vapours.
• Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.

Power related

WARNING

• Do not bend the power cord with excessive force or do not put heavy object on the power cord.
• Otherwise, electric shock or fire may occur.
• If there is dust, water, etc. on the pin or contact point of the power plug, wipe them carefully.

• Otherwise, abnormal operation or electric shock may occur.

• Do not use a power source other than national rated voltage, do not use a multi outlet to supply power for multiple electronic appliances and do not leave the power cord carelessly on the floor.

• Otherwise, electric shock or fire may occur.
• Do not use a damaged power plug, power cord or loose power outlet.
• Otherwise, electric shock or fire may occur.
• If the power cord is damaged, replace the power cord with a new one by a certified repairman.
• Otherwise, electric shock or fire may occur.

Operation

WARNING

• Do not touch the terminal of a charger with chop sticks, driver, etc.
• Otherwise, fatal damage to the charger may occur.
• Make sure that the terminal of a charger should not come into contact with a conductor such as a bracelet, watch, metal rod, nail, etc.
• Make sure that any liquid such as water or juice is not allowed to enter the charger.

• Otherwise, electric shock or fire may occur.

• Do not use a charger for other purposes.

• Otherwise, fatal damage to the charger or fire may occur.

- Do not vacuum liquid, blade, pin, ember, etc. during the cleaning.

- Otherwise, abnormal operation or product damage may occur.

- Do not step on the product body or do not give a shock to the product.

- Otherwise, an injury or product damage may occur.

- The air intake and air outlet should not be blocked during the cleaning.

- Otherwise, product malfunction or fire may occur due to overheating of the product.

- This product is intended for household use, so do not use this product for a heavy duty.

• Otherwise, abnormal operation or product damage may occur.
• Outdoor cleaning: stone and cement
• Billiards: chalk powder
• Hospital aseptic room

- Do not use the product near a heating appliance such as a heater, combustible spray and flammable materials.

- Otherwise, fire or product deformation may occur.

- Before using the product, the sponge filter should be inserted.

- Otherwise, dust can enter the motor inside the main body and it may cause product damage.

- When there is gas leakage or combustible spray is used, do not touch the power outlet with with hands and open the window for ventilation.

- Otherwise, explosion or fire may occur.

- When a strange sound, smell, smoke arises, turn off the product immediately and contact a service center.

- Otherwise, electric shock or fire may occur.

CAUTION

- Before using the stick vacuum cleaner, check that the handy vacuum cleaner is assembled to the main body correctly.

- When the handy vacuum cleaner is not assembled to the main body, the stick vacuum cleaner does not work.

- Do not use the product near a combustible material.

- In a place where candlelight or desk lamp is placed on the floor.

- In a place where heating is turned on without supervision or an ember exists.

- In a place where combustible materials such as gasoline, alcohol, thinner, ashtray with unextinguished cigarette, etc. exist.

• Make sure a child does not step onto the charger or sit on the charger.
• Otherwise, the child may fall and be injured or fatal product damage may occur.
• Before plugging or unplugging the charger, turn off the main body and handy vacuum cleaner and make sure that the pin of power plug should not come into contact with your hands.
• Otherwise, fire or electric shock may occur.

Maintenance

WARNING

- Do not use the vacuum cleaner for other than cleaning purpose.

- Otherwise, an injury or product damage may occur.

- When removing foreign matters inside the product, you should turn off the the vacuum cleaner first and use a tool to remove the foreign matters.

- If the product operates while you are removing the foreign matters, an injury or product damage may occur.

- When cleaning the exterior of the product, turn off the product first and then wipe it with dry towel. Do not spray water directly onto the product or wipe it with volatile materials such as benzene, thinner or alcohol.

- If water gets into the product and an error occurs, turn off the product and contact a service center.

• After unplugging the product, clean the charger.

- When cleaning the washable parts, do not use alkaline detergent, acid, industrial detergent, air freshener, acetic acid, etc.

- Otherwise, product damages such as plastic breakage, deformation, discoloration, printing deterioration, etc. may occur.

Washable Parts Dust bin, sponge
Available detergent	Neutral Dish washing	detergent
Prohibited detergent	Alkaline Lox, mold cleaner, etc.
	Acid Paraffin oil, an emulsifier, etc.
	Industrial cleaners	NV-I, PB-I, Opti, alcohol, acetone, benzene, thinner, etc.
	Air freshener	Jet spray air fresheners (coffee flavor, herb, etc.)
	Oils Animal oils, vegetable oils
	Etc.	Edible acetic acid, vinegar, glacial acetic acid, etc.

CAUTION

- Do not push the stick vacuum cleaner while it stands as it may fall. - Otherwise, an injury, product damage, or floor damage may occur.

Save these instructions

Polarized plug instructions

- To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not modify the plug in any way.

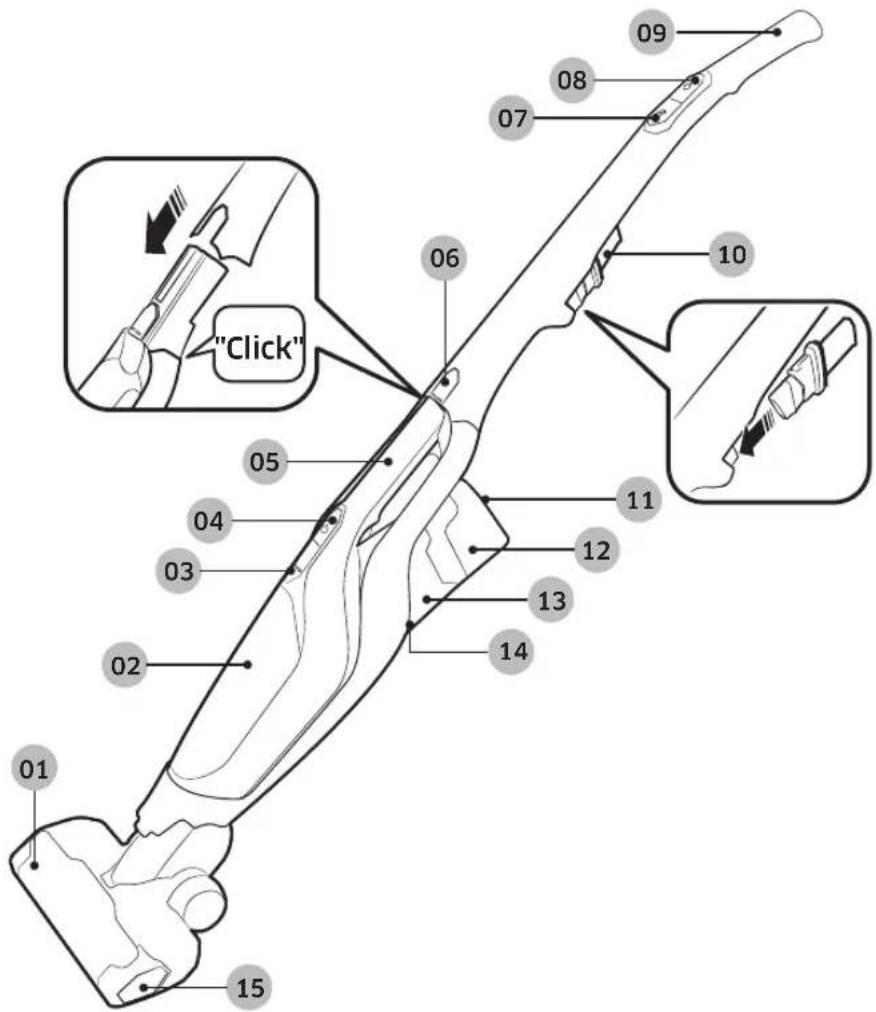

01 Air intake
02 Dust bin
03 Dust bin release button
04 Handy vacuum cleaner power button
05 Handy vacuum cleaner
06 Handy vacuum cleaner release button
07 Turbo button
08 Power button

09 Handle
10 Crevice tool / Dusting brush
11 LED display
12 Battery
13 Air outlet
14 Battery release button
15 Air intake release button

Using the vacuum cleaner

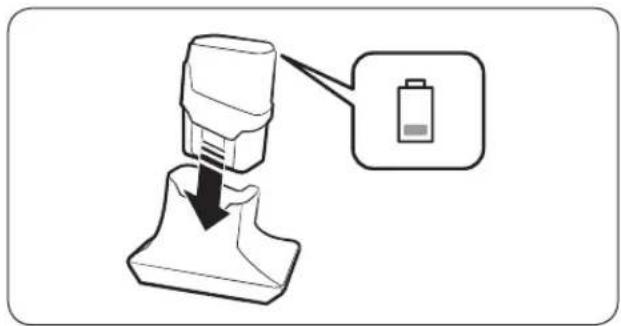

Charging the stick vacuum cleaner

Line drawing of a mechanical component with stepped base and flange (no text or symbols)

NOTE

• Assemble the battery into the charger completely.
• Battery level indicator blinks while the battery is charging.

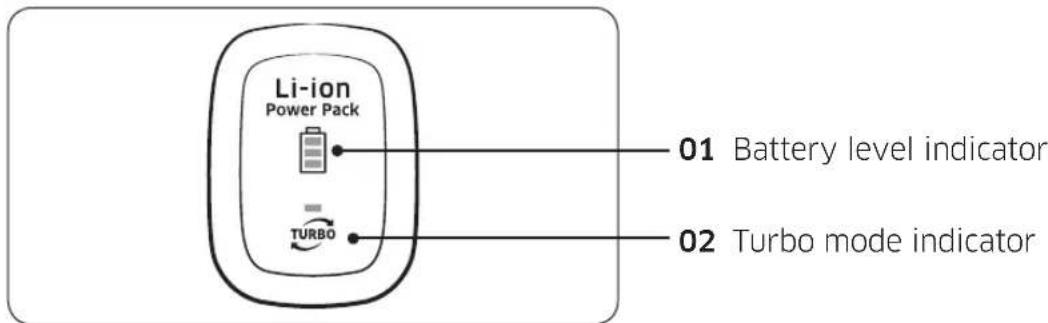

LED display

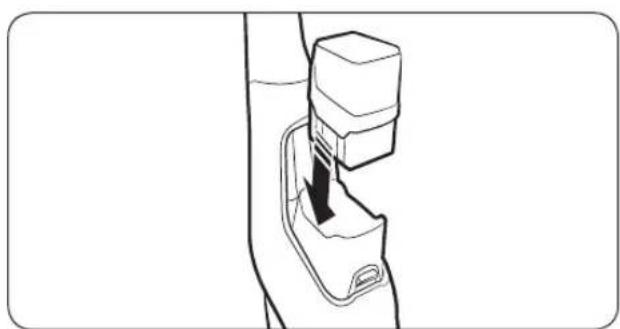

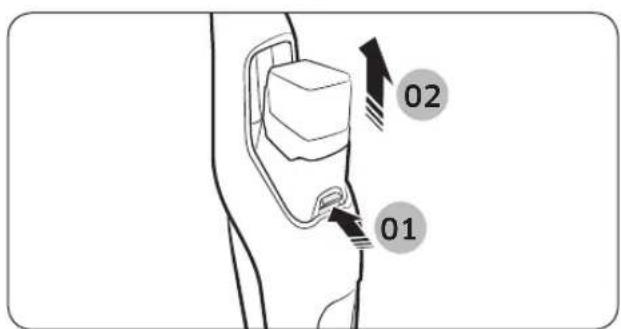

Assembling and Disassembling a battery

Line drawing of a mechanical component with a black arrow indicating direction (no text or symbols)

CAUTION

- Before disassembling the battery from a charger, turn off the stick vacuum cleaner.

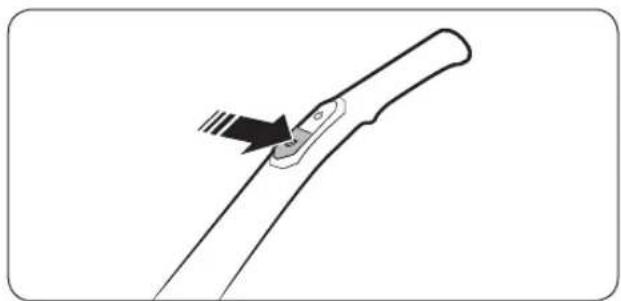

Using the stick vacuum cleaner

Diagram of a tool or tool with a black arrow pointing to a specific part, no text or symbols present

Diagram of a tool interacting with a curved blade, showing a force or grip mechanism (no text or symbols present)

Power on/off

The stick vacuum cleaner starts operating in Turbo mode.

Press the TURBO button to convert operation mode. (Normal/Turbo)

Using the Turbo mode

Using the handy vacuum cleaner

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Disassembling the handy vacuum cleaner from the main body

Power on/off

The handy vacuum cleaner starts operating in Turbo mode. The operation mode cannot be changed.

Using the crevice tool and dusting brush

Dusting brush

When removing fine dust on curtain, furniture, sofa etc.

Diagram of a medical or laboratory procedure showing a tool interacting with a cylindrical device, with an arrow indicating motion (no text or symbols present)

Crevice tool

When removing fine dust on groove of window frames, chink, corner etc.

Diagram of a mechanical component with an arrow indicating motion or force (no text or symbols present)

Using the Long Reach Tool (option)

When cleaning a place which is narrow and deep or hard to reach by hand such as under furniture or a ceiling

Maintaining the vacuum cleaner

CAUTION

- Before cleaning the stick vacuum cleaner, turn off the vacuum cleaner.

Disassembling / Assembling the dust bin

Cleaning the dust bin

Illustration of a bottle being poured into a container with liquid, no text or symbols present

Illustration of a hand using a tool to spray water from a faucet (no text or symbols)

Illustration of a brick wall with a sun symbol above it and a folded paper or sheet below, no text or symbols present.

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

NOTE

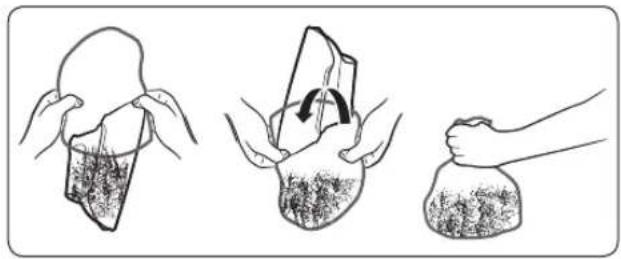

• Emptying the dust bin in a simple way

Three-step illustration showing a hand holding a bag, a close-up of a bag with a handle, and a hand holding a sack (no text or symbols)

Cleaning the sponge filter

Line drawing of a toilet with an open lid and a side panel, showing a curved arrow indicating rotation (no text or symbols)

Line drawing of a mechanical device with an open lid and a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a container with liquid and a lid, no text or symbols present

Simple line drawing of an open backpack with a curved arrow indicating rotation (no text or symbols)

Cleaning the air intake

Diagram of a mechanical component with a rotating arrow indicating motion (no text or symbols)

Illustration of a hand tool stirring liquid in a container (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a bird's head and neck with a magnified inset showing the anatomical structure (no text or symbols)

Line drawing of a vacuum cleaner's base with a hand operating the blade (no text or symbols)

Battery usage

NOTE

- When a vacuum cleaner does not work after charging a battery, change the battery. If it still does not work with the new battery, contact a service center.

CAUTION

• Do not disassemble a battery or a charger.
• Do not apply heat to a battery and do not put a battery on the fire.
• As the battery is manufactured only for this product, do not use the battery for other electronic appliances or other purposes.
• Removing a battery during operation may cause product malfunction.
• If the battery is removed while vacuum cleaner motor is operating, the battery may not work for 30 seconds after being replaced due to safety reasons.

• If battery charging time and battery usage time are reduced with battery use, replace the exhausted battery with a new one.

• Use a battery with genuine logo (SAMSUNG) only.

• Before assembling the battery into a charger or a vacuum cleaner, check that the battery is placed in the correct direction.
• When discarding a dead battery, put it into the battery collection box.
• When a vacuum cleaner is not going to be used for a long time, disassemble the battery from a vacuum cleaner.

Operation

NOTE

• Please charge the battery for the following cases.
• When a battery is used for the first time after purchase or the battery is not used for a long time.
• When battery level indicator is on the lowest indication.
• When you are away from home for a long period of time, unplug the battery charger and disassemble the battery from the charger. When a battery is not being charged, it will be discharged.

CAUTION

• After the handy vacuum cleaner is assembled to the main body, the stick vacuum cleaner operates.
  • After using the handy vacuum cleaner, assemble it to the main body.
• Before assembling the handy vacuum cleaner to the main body, the handy vacuum cleaner should be turned off.
  • After assembling the handle to the vacuum cleaner, do not disassemble the handle again.
• Otherwise, it may cause an injury to you.
• When the brush is rotating, do not touch the brush.
• Otherwise, your hand can be caught and it may cause an injury.

Maintenance

NOTE

- Sometimes the wheel of air intake may scratch floor. Therefore, before using the stick vacuum cleaner, check the wheel status of air intake.

- When there are foreign matters which cannot be removed easily on the wheel of air intake, contact a service center.

CAUTION

- Drying the parts of the stick vacuum cleaner in the sun for long hours may cause deformation or discoloration. Therefore, after cleaning the parts of the stick vacuum cleaner, dry them in the shade.

- Do not clean the air intake of the stick vacuum cleaner with water as it may cause deformation or discoloration of parts.

If the requested service is proved as not product malfunction, the service fee will be charged. Therefore, please read the user manual carefully.

Problem Solutions
The stick vacuum cleaner does not work.	Check the battery level and charge the battery.Check that the product is turned off and press the power button to turn on.If the product has not been used for a long time, charge the product.
The stick vacuum cleaner does not stop even though I pressed the power button.	Check whether the handy vacuum cleaner is turned on. If so, press the power button of the handy vacuum cleaner first and then press the power button of the stick vacuum cleaner.
Suction force decreases suddenly and vibrating sound is generated from the stick vacuum cleaner.	Check whether the air intake is clogged with foreign matters or dust bin is fully filled. If so, remove them.Check whether the filter is dirty and clean the filter by referring to the 'Maintaining the stick vacuum cleaner' section of this manual.Check the battery level and charge the battery.
The vacuum cleaner cannot be charged.	Check current power voltage of the stick vacuum cleaner. It should be national rated voltage.Check that the stick vacuum cleaner is turned on and then check the LED of the battery level indicator is turned on.Check the status of charger terminal and remove the foreign matters (dust) on the charger terminal with a cotton swab or soft cloth.
The brush inside the air intake does not rotate.	Check whether the air intake is clogged with foreign matters and remove them.Check the stick vacuum cleaner is turned on and then turn off and turn on the vacuum cleaner again.
Odor is generated from the air outlet of the stick vacuum cleaner.	Frequently empty the dust bin and clean the filter.As your stick vacuum cleaner is a new product, it may have slight odor for the first 3 months from the purchase.Accumulated dirt in the dust bin or dust on the filter may generate an odor.

Aspirateur

Guide d'utilisation

Série SS6AK6050KW

Simple line drawing of a long, elongated mechanical component with flanges (no text or symbols)

- Before operating the appliance, please read this manual thoroughly and retain it for your reference.

⚠ AVERTISSEMENT

- Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

Caution/Warning symbols used

⚠️ AVERTISSEMENT

INSTRUCTIONS DES PRISES POLARISÉES

Line drawing of a mechanical component with stepped base and flange (no text or symbols)

REMARQUE

Line drawing of a mechanical component with a black arrow indicating direction (no text or symbols)

ATTENTION

Diagram of a tool or tool with a black arrow pointing to a specific part, no text or symbols present

Diagram of a tool interacting with a curved blade, showing a black arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating a feature (no text or symbols present)

Diagram of a medical or laboratory procedure showing a tool interacting with a device, with an arrow indicating motion (no text or symbols present)

Suceur plat

Diagram of a mechanical component with an arrow indicating motion or force (no text or symbols present)

Illustration of a hand pouring liquid into a container with bubbles (no text or symbols)

Illustration of a hand using a tool to clean or spray water from a faucet (no text or symbols)

Illustration of a brick wall with a sun symbol above it and a folded paper or sheet below (no text or symbols)

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

REMARQUE

Three-step illustration showing a hand holding a small object, a close-up of a rectangular object with a curved arrow, and a hand holding a large irregular object (no text or symbols)

Line drawing of a toilet with an open lid and a curved arrow indicating rotation (no text or symbols)

Line drawing of a shoe seat with an arrow indicating rotation (no text or symbols)

Simple line drawing of a container with liquid and a lid, no text or symbols present

Simple line drawing of an open space container with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with a numbered label (2) and rotation arrow, no readable text or symbols present.

Illustration of a hand pouring liquid from a cylindrical container onto a surface (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object, showing a close-up view of the handle (no text or symbols present)

Diagram of a vacuum cleaner's base with a curved arrow indicating motion (no text or symbols)

Line drawing of a long, straight mechanical rod or lever (no text or symbols)

- Before operating the appliance, please read this manual thoroughly and retain it for your reference.

ADVERTENCIA

- Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

Caution/ADVERTENCIA symbols used

ADVERTENCIA

Line drawing of a mechanical component with stepped base and flange (no text or symbols)

NOTA

Line drawing of a mechanical component with a black arrow indicating force or direction (no text or symbols)

PRECAUCIÓN

Diagram of a tool or tool with a black arrow pointing to a specific part, no text or symbols present

Encendido/apagado

Diagram of a tool interacting with a curved blade, showing a black arrow indicating direction (no text or symbols present)

Uso del modo Turbo

Line drawing of a mechanical component with an arrow pointing to a feature (no text or symbols present)

Encendido/apagado

Diagram of a medical or laboratory procedure showing a tool interacting with a device, with an arrow indicating motion (no text or symbols present)

Boquilla para rincones

Diagram of a mechanical device with an arrow indicating motion or force (no text or symbols present)

Illustration of a hand pouring liquid into a container with bubbles (no text or symbols)

Illustration of a hand using a faucet to clean water from a pipe (no text or symbols)

Illustration of a sun shining on a brick wall and a folded paper or sheet, with no text or symbols present.

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

NOTA

Three-step illustration showing hand holding a rock, folding a piece of material, and lifting a bag (no text or symbols)

Line drawing of a toilet with an open lid and a curved arrow indicating rotation (no text or symbols)

Illustration of a shoe seat with an open lid and a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a container with liquid and a lid, no text or symbols present

Simple line drawing of an open backpack with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with rotational arrow indicating motion (no text or symbols)

Illustration of a mechanical lever lifting a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object, showing a close-up of the interior (no text or symbols)

Line drawing of a vacuum cleaner's base with a hand operating the blade (no text or symbols)
