USER MANUAL DRLC703 Air King

SAVE THESE INSTRUCTIONS

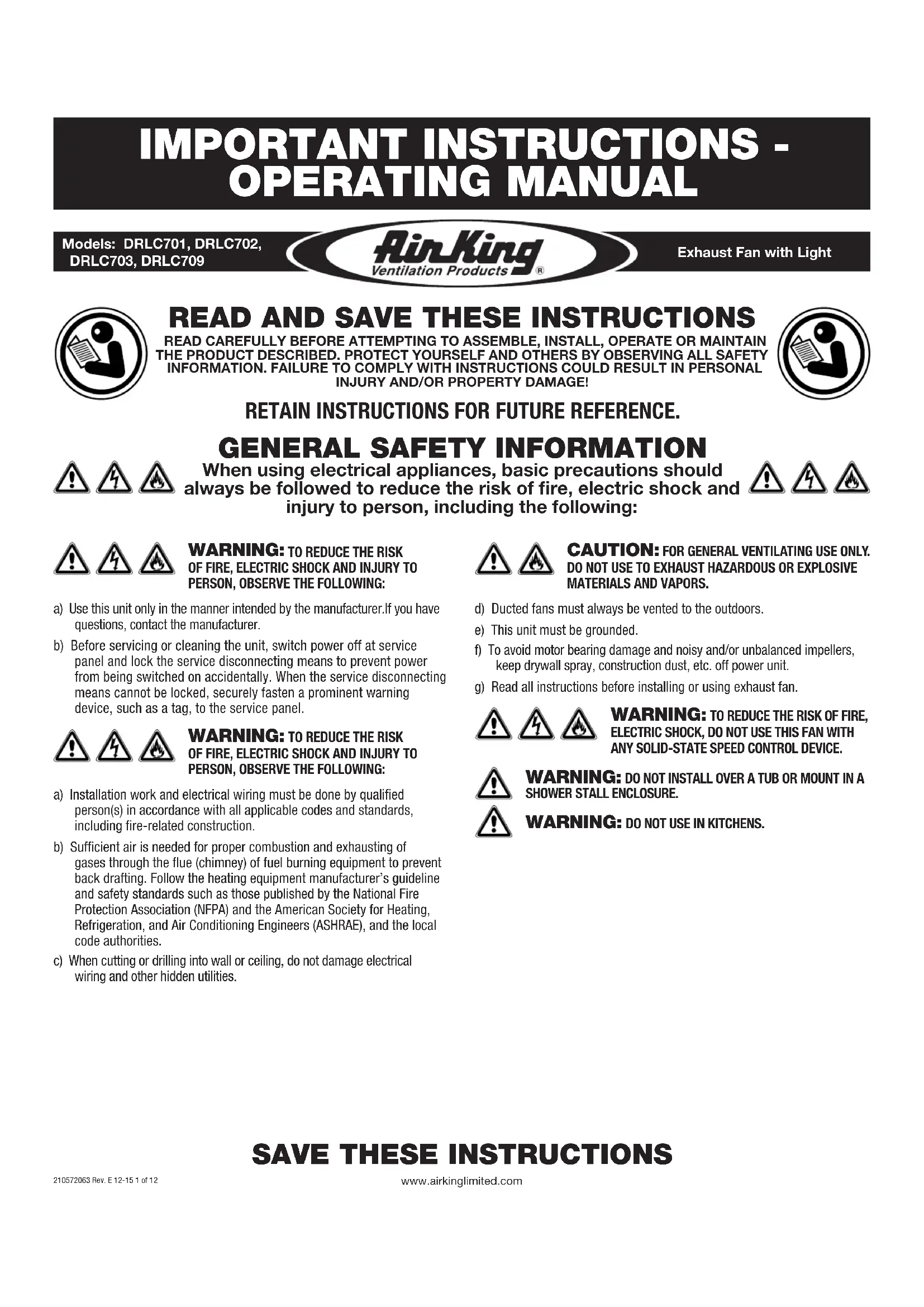

www.airkinglimited.com210572063 Rev. E 12-15 1 of 12 Exhaust Fan with Light Models: DRLC701, DRLC702, DRLC703, DRLC709

READ AND SAVE THESE INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to person, including the following:

OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSON, OBSERVE THE FOLLOWING: a) Use this unit only in the manner intended by the manufacturer.If you have questions, contact the manufacturer. b) Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

WARNING: TO REDUCE THE RISK

OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSON, OBSERVE THE FOLLOWING: a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-related construction. b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local code authorities. c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS. d) Ducted fans must always be vented to the outdoors. e) This unit must be grounded. f) To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit. g) Read all instructions before installing or using exhaust fan.

WARNING: DO NOT INSTALL OVER A TUB OR MOUNT IN A

Preparing the Exhaust Fan

1. Unpack fan from the carton and confirm that all pieces are present. In addition to the

exhaust fan you should have:

1 - Grill with Glass Light Lens

1 - Damper Assembly (attached)

1 - Instruction/Safety Sheet

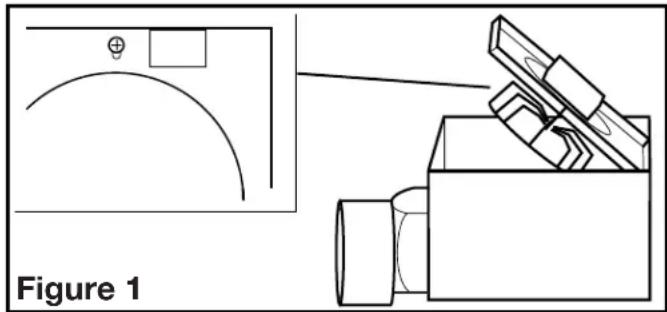

2. Remove the fan’s venturi assembly, which is secured in place with one screw through the

venturi (Figure 1). This is a captive screw and will stay installed in the venturi. Keep the venturi assembly and the grill in the carton until needed so they do not get damaged or lost.

3. Choose the location for your fan. To ensure the best

air and sound performance, it is recommended that the length of ducting and the number of elbows be kept to a minimum, and that insulated hard ducting be used. Larger duct sizes will reduce noise and airflow restrictions. This fan will require at least 6” of clearance in the ceiling or wall, and will mount through drywall up to 3/4” thick. The fan can be mounted directly to the joist using the mounting tabs on the side of the housing or between 16” on center joists using the 4 provided mounting rails.

4. Select the most convenient electrical knockout and

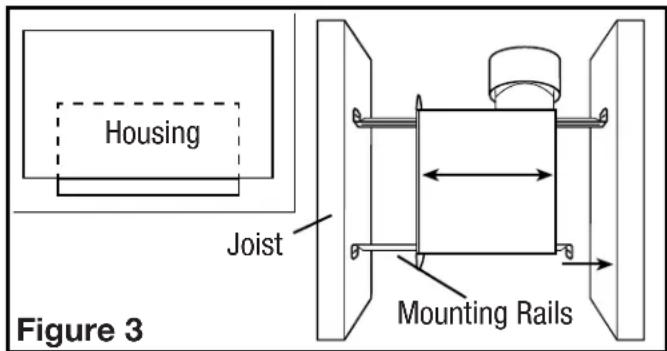

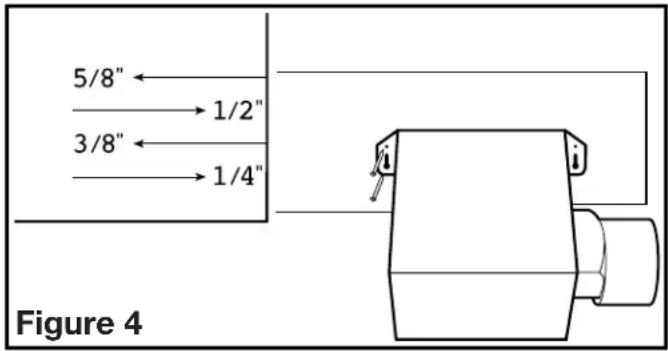

New Construction 1a. Mounting Rail Installation: Install the rails on the housing and position the housing next to the joist. Using the gauge on the fan’s housing, line up housing so that it will be flush with the finished ceiling. Secure the ends of the rails with screws or nails (not included) to the joists and slide the housing into the final position (Figure 3). 1b. Mounting Tab Installation: Using the gauge on the fan’s housing, line up housing so that it will be flush with the finished ceiling. Position the fan so that the tabs rest flat against the joist and secure with four nails (not provided) to ensure proper installation (Figure 4). www.airkinglimited.com 210572063 Rev. E 12-15 2 of 12

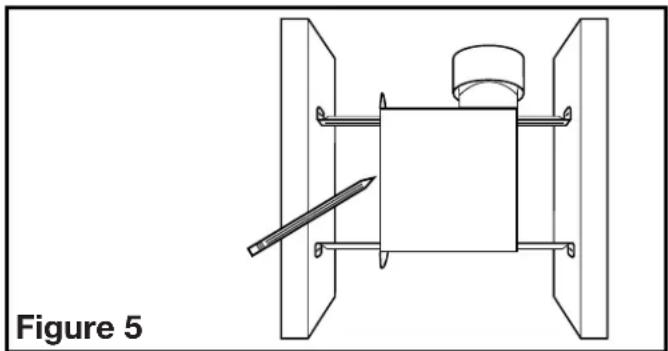

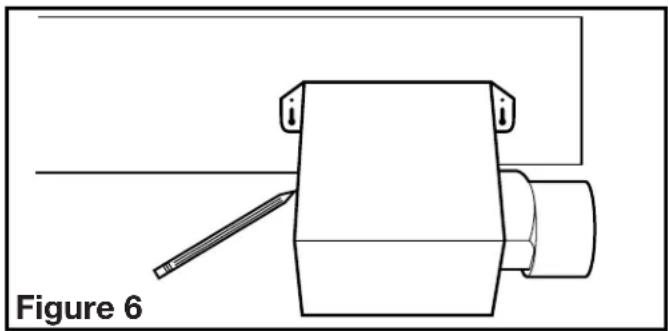

Existing Construction 1a. Mounting Rail Installation: Set housing in position between the joist and trace an outline onto the ceiling material (Figure 5). Set housing aside and cut opening, being careful not to cut or damage any electrical or other hidden utilities. Install the rails on the housing and position the housing in the previously cut hole so that it is flush with the finished ceiling. Secure the ends of the rails to the joists (Figure 3). 1b. Mounting Tab Installation: Position housing against the joist and trace an outline of the housing onto the ceiling material (Figure 6). Set housing aside and cut opening, being careful not to cut or damage any electrical or other hidden utilities. Place housing next to the joist and insure that it is flush with the finished ceiling. Secure with four nails (not provided) to ensure proper installation (Figure 4).

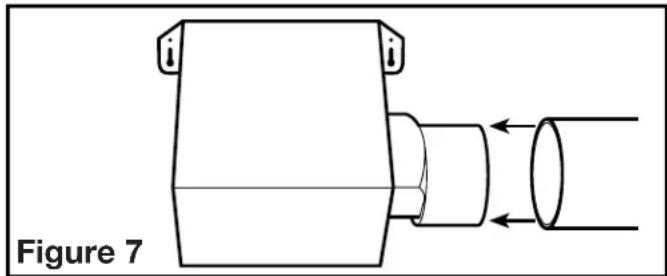

1. Connect the ducting to the fan’s duct collar (Figure 7). Secure in place using tape or

screw clamp. Always duct the fan to the outside through a wall or roof cap. Figure 3 Housing Joist Mounting Rails Figure 2 Figure 5 Figure 4 Figure 6 Figure 1NOTE: If damper detaches from unit, reattach by snapping the collar back onto the unit. It is designed to only fit one way.

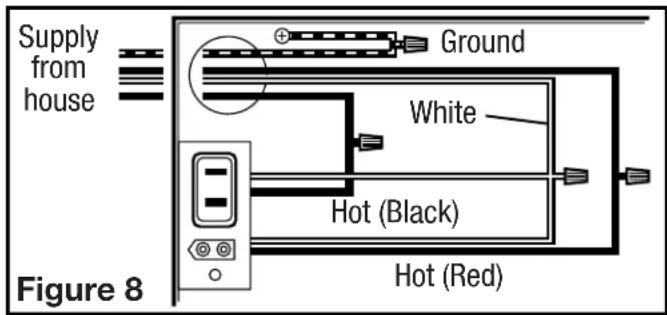

1. Wiring Fan/Light Independently: Run wiring from an approved wall switch carrying the

appropriate rating. One neutral (white), one ground (green or bare copper), and two hot (black lead connected to the switch). Secure the electrical wires to the housing with an approved electrical connector. Make sure you leave enough wiring in the box to make the connection to the fan’s receptacle. 1a. From where you have access to inside the fan’s junction box, connect the one white wire from the house to both the white wire from the fan’s light receptacle and the white wire from the fan’s exhaust receptacle. Connect the first black wire from the wall switch to the red wire from the fan’s light receptacle. Connect the second black wire from the switch to the fan’s exhaust receptacle. Connect the ground wire from the house to the green wire from the fan’s grounding screw (Figure 8). Use approved methods for all connections.

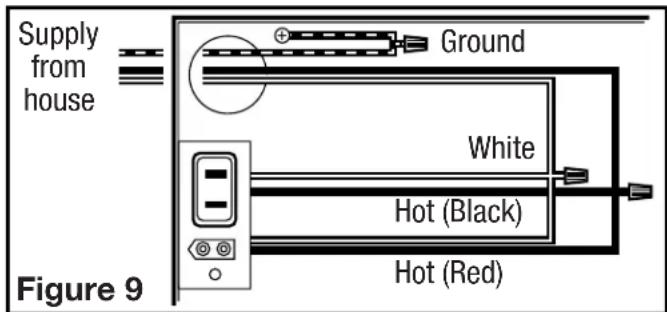

2. Wiring Fan/Light together: Run wiring from an approved wall switch carrying the

appropriate rating. One neutral (white), one ground (green or bare copper), and one hot (black lead connected to the switch). Secure the electrical wires to the housing with an approved electrical connector. Make sure you leave enough wiring in the box to make the connection to the fan’s receptacle. 2a. From where you have access to inside the fan’s junction box, connect the one white wire from the house to both the white wire from the fan’s light receptacle and the white wire from the fan’s exhaust receptacle. Connect the black wire from the wall switch to both the red wire from the fan’s light receptacle and the black wire from the fan’s exhaust receptacle. Connect the ground wire from the house to the green wire from the fan’s grounding screw (Figure 9). Use approved methods for all connections. www.airkinglimited.com 210572063 Rev. E 12-15 3 of 12

Completing the Installation

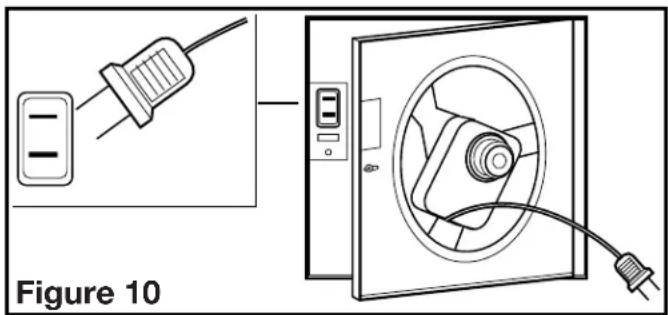

1. Reinstall the fan’s venturi by holding it at approximately a 45 degree angle, hook the two

tabs on the venturi into the slots on the housing and secure in place by tightening the venturi screw. Rotate the blower wheel by hand to ensure it spins freely. Now plug the fan motor into the receptacle (Figure 10).

2. Remove glass light lens from grill by unscrewing knob at the top of lens (Figure 11).

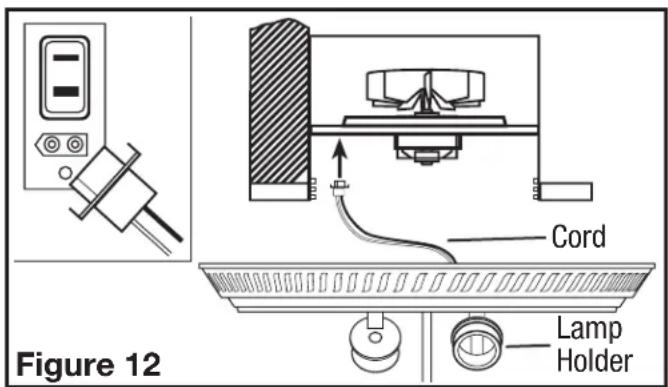

3. Plug cord from lamp holders into the appropriate receptacle (Figure 12).

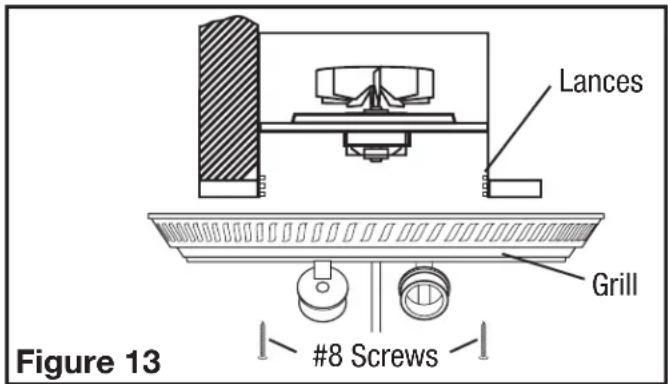

4. Line up slots in the grill with lances on inside of housing. Insert included #8 screws

through grill slots and into housing lances. Tighten both screws until the grill fits snugly to the ceiling. DO NOT OVER TIGHTEN (Figure 13). CAUTION: FAILURE TO SECURE THE REFLECTOR BOLT MAY RESULT IN A RATTLING OR HUMMING NOISE.

5. Install 2 - 60 watt maximum, type A19 medium base incandescent bulbs (not included).

Figure 10 Figure 7 Supply from house White Hot (Black) Ground Figure 8 Hot (Red) Figure 9 Supply from house White Hot (Black) Ground Hot (Red) Figure 11 Glass Lens Knob Figure 12 Cord Lamp Holder Figure 13 #8 Screws Lances Grillwww.airkinglimited.com 210572063 Rev. E 12-15 4 of 12 Troubleshooting Guide Trouble Probable Cause Suggested Remedy 1. Fan does not operate when the switch is on. 1a. A fuse may be blown or a circuit tripped. 1a. Replace fuse or reset circuit breaker. 1b. Connector plug from motor is not plugged in. 1b. Turn off power to unit. Remove Grill and plug motor into receptacle in housing. Restore power to unit. 1c. Wiring is not connected properly. 1c. Turn off power to unit. Check that all wires are connected. 1d. Motor has stopped operating. 1d. Replace motor. 2. Fan is operating, but air moves slower than normal. 2. Obstruction in the exhaust ducting. 2. Check for any obstructions in the ducting. The most common are bird nests in the roof cap or wall cap where the fan exhausts to the outside. 3. Fan is operating louder than normal. 3a. Motor is loose. 3a. Turn off power to unit. Remove grill and check that all screws are fully tightened. Restore power to unit. 3b. Fan blade is hitting housing of unit. 3b. Call your dealer for service.

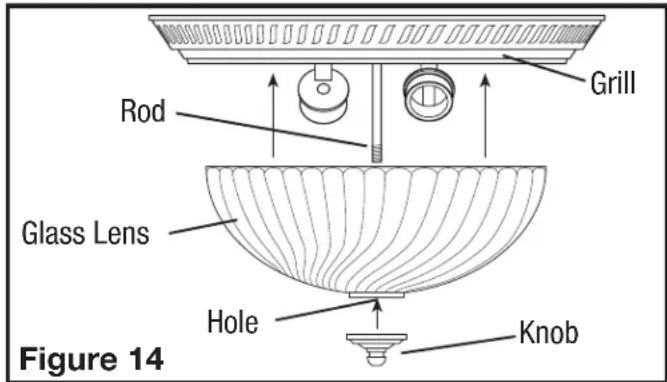

6. Reinstall the glass lens in place by sliding the hole in the lens onto the rod from the grill

and securing in place with the lens knob removed in step 3 (Figure 14).

7. Restore power and test your installation.

1. Cleaning the Grill: Remove grill and use a mild detergent, such as dishwashing liquid,

and dry with a soft cloth. NEVER USE ANY ABRASIVE PADS OR SCOURING POWDERS. Completely dry grill before reinstalling. Refer to instructions in Section 6 Completing the Installation, to reinstall grill.

2. Cleaning the Fan Assembly: Unplug the motor cord from receptacle and loosen the

venturi screw to remove the venturi from the unit. Wipe all parts with a dry cloth or gently vacuum the fan. NEVER IMMERSE ELECTRICAL PARTS IN WATER. Refer to instructions in

Section 6 Completing the Installation, to reinstall venturi.

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE STARTING INSTALLATION.

3. Changing the Light Bulb: Disconnect power to the unit. Remove glass light lens from

grill by unscrewing knob at the top of lens (Figure 11). Replace light bulb(s) with 60 watt maximum, type A19 medium base incandescent bulb(s).

4. Reinstall the glass lens in place by sliding the hole in the lens onto the rod from the grill

and securing in place with the lens knob (Figure 14). CALIFORNIA RESIDENTS ONLY:

WARNING: THIS PRODUCT CAN EXPOSE YOU TO A CHEMICAL [OR

CHEMICALS] KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER.

WARNING: THIS PRODUCT CAN EXPOSE YOU TO A CHEMICAL

[OR CHEMICALS] KNOWN TO THE STATE OF CALIFORNIA TO CAUSE REPRODUCTIVE TOXICITY. Figure 14 Rod Glass Lens Hole Knob GrillLIMITED WARRANTY WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials. HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs. WHAT AIR KING WILL DO: During the warranty period, Air King will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model. WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of products to Air King for repair or replacement. Air King will pay return shipping charges from Air King following warranty repairs or replacement ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL AIR KING’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACEMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL AIR KING’S LIABILITY UNDER ANY EX- PRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD. Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province. Proof of purchase is required before a warranty claim will be accepted. CUSTOMER SERVICE: Toll-Free [phone] Our Customer Service team is available to assist you with product questions, service center locations, and replacement parts. They can be reached Monday through Friday, 8am-4pm Eastern. Please have your model number available, as well as the type and style (located on the label inside of your product). Please do not return product to place of purchase. www.airkinglimited.com PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION OR REPLACEMENT. www.airkinglimited.com 210572063 Rev. E 12-15 5 of 12 Installer: Installation Date: Place of Purchase: Model Number:www.airkinglimited.com 210572063 Rev. E 12-15 6 of 12 # Qty. Description Replacement Part # 1 4 Mounting Rails 5S1299002 2 1 Damper Assembly 5S1201110 3 1 Venturi 5S1201014 4 1 Goose Neck Wire Cover 5S1201004 5 1 Receptacle 5S1999001 6 1 Polarized Connector 2P 5S1201012 # Qty. Description Replacement Part # 7 1 Motor with Impeller 5S1201031 8 1 Scroll 5S1201006 9 1 Light Assembly - Bronze 5S5231001 1 Light Assembly - Nickel 5S5231002 1 Light Assembly - White 5S5231003 1 Light Assembly - Brass 5S5231009

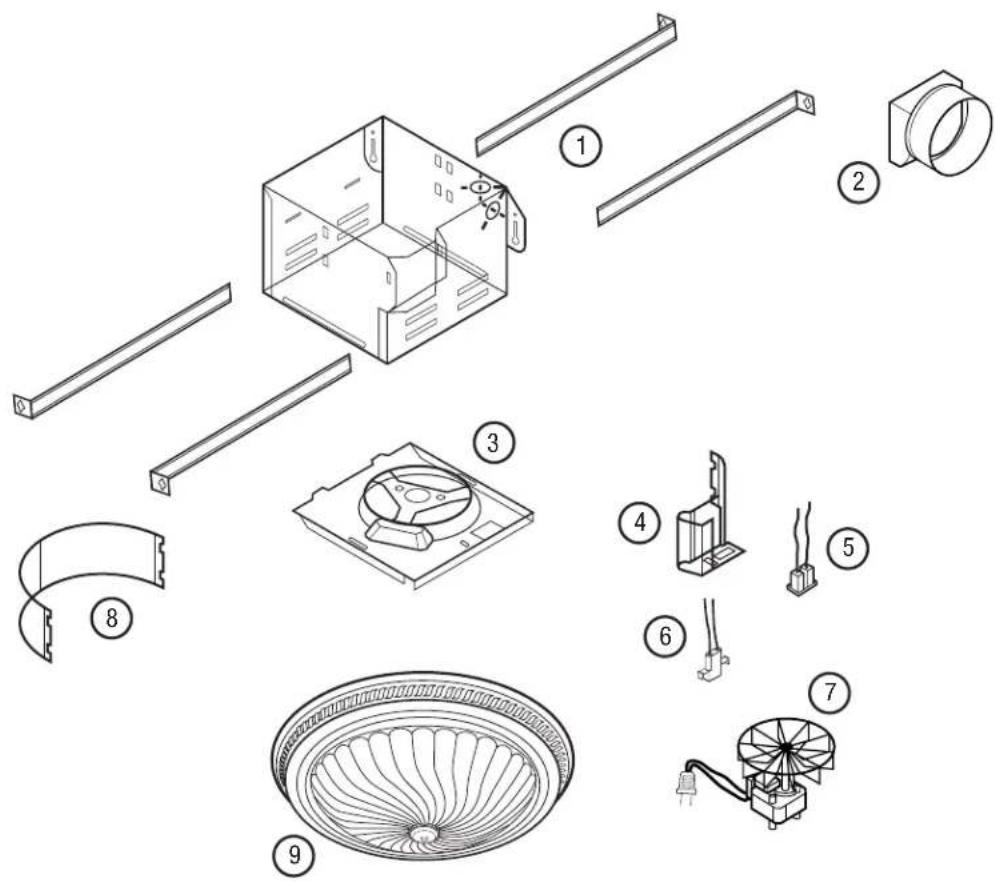

REPLACEMENT PARTS DIAGRAM
