| Brand | Black & Decker |
| Model | PW1500SP |
| Category | High-pressure cleaner |
| Type of use | Domestic and professional |
| Working pressure | 8.5 MPa (max 12 MPa) |
| Water flow rate | 6 L/min |
| Motor power | 1.5 kW |
| Power supply | 220-240 V ~ 50/60 Hz |
| Motor protection | IPX5 |
| Max inlet water temperature | 50 °C |
| Water supply pressure | 0.1 - 1 MPa |
| Gun recoil force | 9.4 N |
| Sound pressure level (LPA) | 81.2 dB(A) |
| Sound power level (LWA) | 89 dB(A) |
| Vibrations | 3.72 m/s² |
| Weight | 8 kg |
| Head type | Adjustable (variable spray) + rotating nozzle (kit) |
| Automatic shut-off system (TSS) | Yes |
| Detergent tank | Yes, integrated |
| Included accessories | Lance, safety gun, high-pressure hose, head cleaning tool |
| Safety devices | Safety valve, thermostatic valve, gun safety |
| Warranty | 24 months |
| Compliance standards | EN 60335-1, EN 60335-2-79, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN 61000-3-11, EN 60704-1 |
Frequently Asked Questions - PW1500SP BLACK & DECKER
User questions about PW1500SP BLACK & DECKER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pressure washer in PDF format for free! Find your manual PW1500SP - BLACK & DECKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PW1500SP by BLACK & DECKER.
USER MANUAL PW1500SP BLACK & DECKER

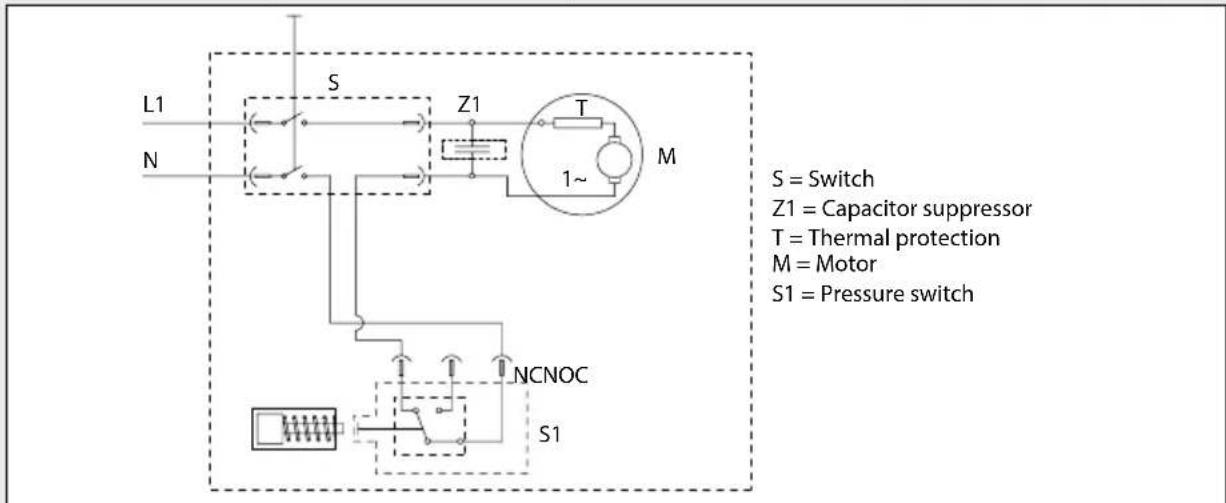

S1 = Pressure switch
ENGLISH

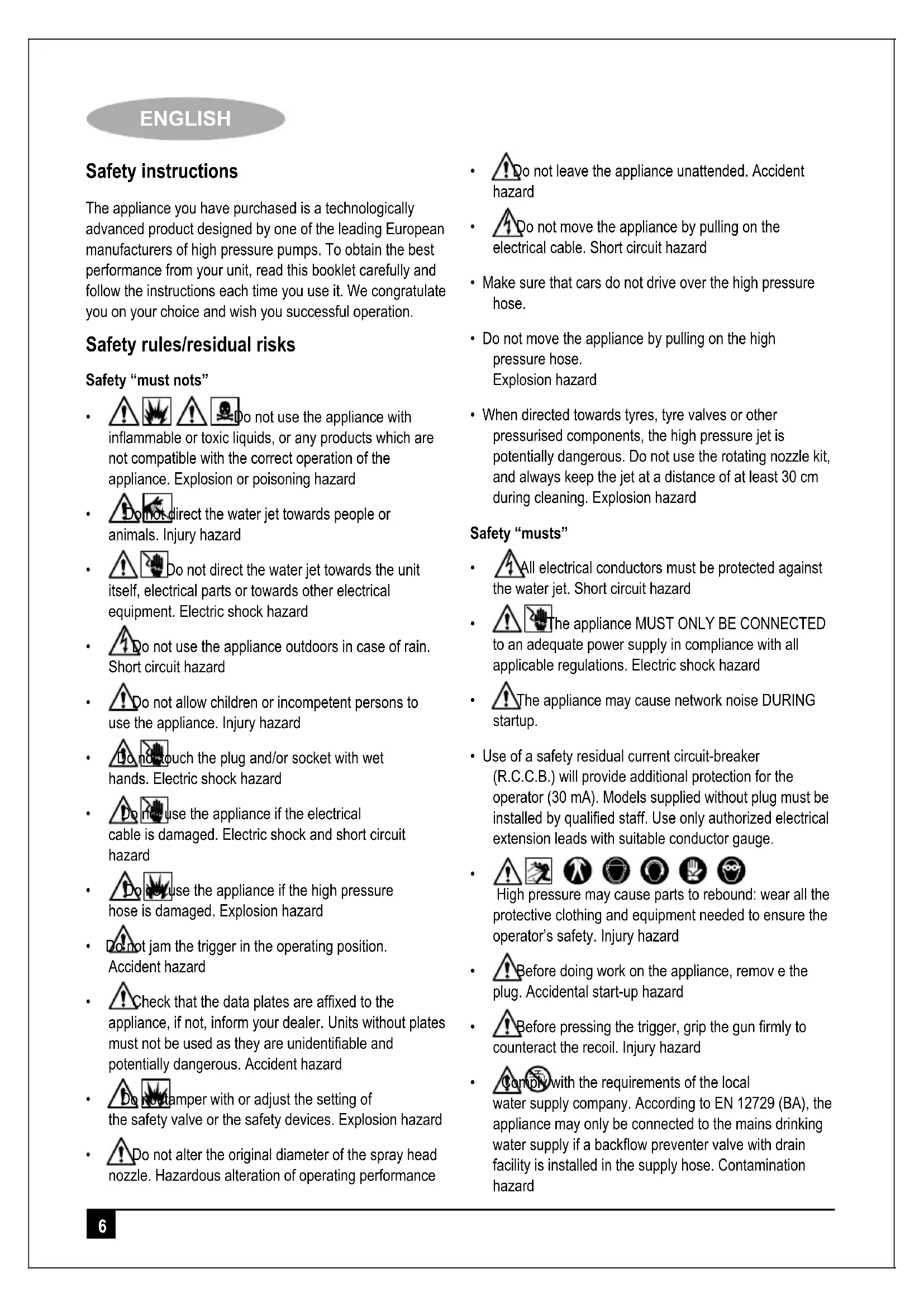

Safety instructions
The appliance you have purchased is a technologically advanced product designed by one of the leading European manufacturers of high pressure pumps. To obtain the best performance from your unit, read this booklet carefully and follow the instructions each time you use it. We congratulate you on your choice and wish you successful operation.
Safety rules/residual risks
Safety "must nots"
- Do not use the appliance with inflammable or toxic liquids, or any products which are not compatible with the correct operation of the appliance. Explosion or poisoning hazard
- Do not direct the water jet towards people or animals. Injury hazard
- Do not direct the water jet towards the unit itself, electrical parts or towards other electrical equipment. Electric shock hazard
- Do not use the appliance outdoors in case of rain. Short circuit hazard
Do not allow children or incompetent persons to use the appliance. Injury hazard - Do not touch the plug and/or socket with wet hands. Electric shock hazard
- Use the appliance if the electrical cable is damaged. Electric shock and short circuit hazard
Do use the appliance if the high pressure hose is damaged. Explosion hazard - Do not jam the trigger in the operating position. Accident hazard
- Check that the data plates are affixed to the appliance, if not, inform your dealer. Units without plates must not be used as they are unidentifiable and potentially dangerous. Accident hazard
Do not tamper with or adjust the setting of the safety valve or the safety devices. Explosion hazard -
Do not alter the original diameter of the spray head nozzle. Hazardous alteration of operating performance
-
!Do not leave the appliance unattended. Accident hazard
Do not move the appliance by pulling on the electrical cable. Short circuit hazard - Make sure that cars do not drive over the high pressure hose.
- Do not move the appliance by pulling on the high pressure hose. Explosion hazard
- When directed towards tyres, tyre valves or other pressurised components, the high pressure jet is potentially dangerous. Do not use the rotating nozzle kit, and always keep the jet at a distance of at least 30cm during cleaning. Explosion hazard
Safety "musts"
All electrical conductors must be protected against the water jet. Short circuit hazard
The appliance MUST ONLY BE CONNECTED to an adequate power supply in compliance with all applicable regulations. Electric shock hazard
The appliance may cause network noise DURING startup.
- Use of a safety residual current circuit-breaker (R.C.C.B.) will provide additional protection for the operator (30 mA). Models supplied without plug must be installed by qualified staff. Use only authorized electrical extension leads with suitable conductor gauge.
High pressure may cause parts to rebound: wear all the protective clothing and equipment needed to ensure the operator's safety. Injury hazard
Before doing work on the appliance, remove the plug. Accidental start-up hazard
Before pressing the trigger, grip the gun firmly to counteract the recoil. Injury hazard
- Comply with the requirements of the local water supply company. According to EN 12729 (BA), the appliance may only be connected to the mains drinking water supply if a backflow preventer valve with drain facility is installed in the supply hose. Contamination hazard
- Maintenance and/or repair of electrical components must be carried out by qualified staff. Accident hazard
DISCHARGE residual pressure before disconnecting the unit hose. Injury hazard
Before using the appliance, CHECK every time that the screws are fully tightened and that there are no broken or worn parts. Accident hazard - Only use detergents which will not corrode the coating materials of the high pressure hose/electrical cable. Explosion and electric shock hazard
- Ensure that all people or animals keep a minimum distance of 16 yd. (15m) away. Injury hazard

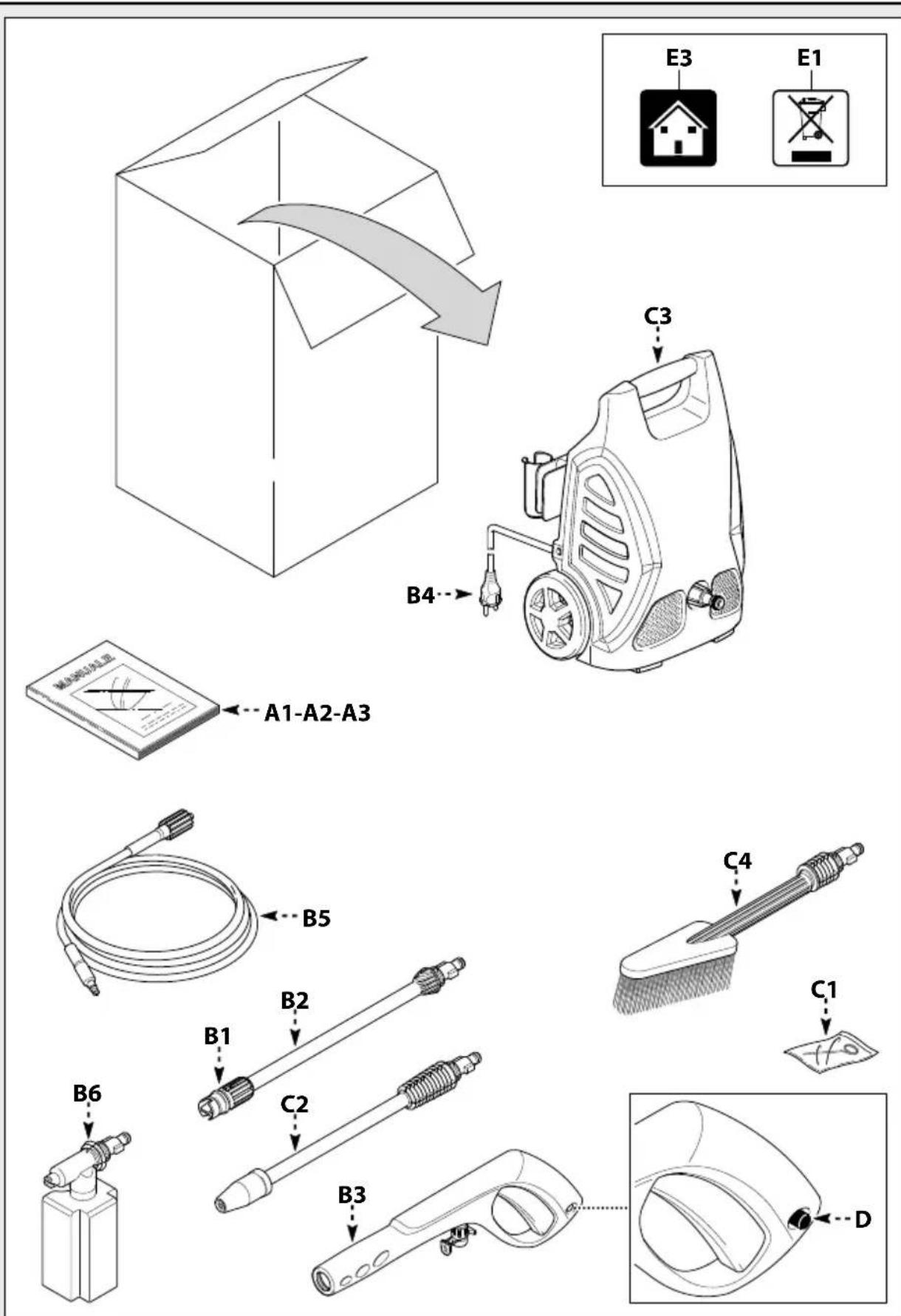

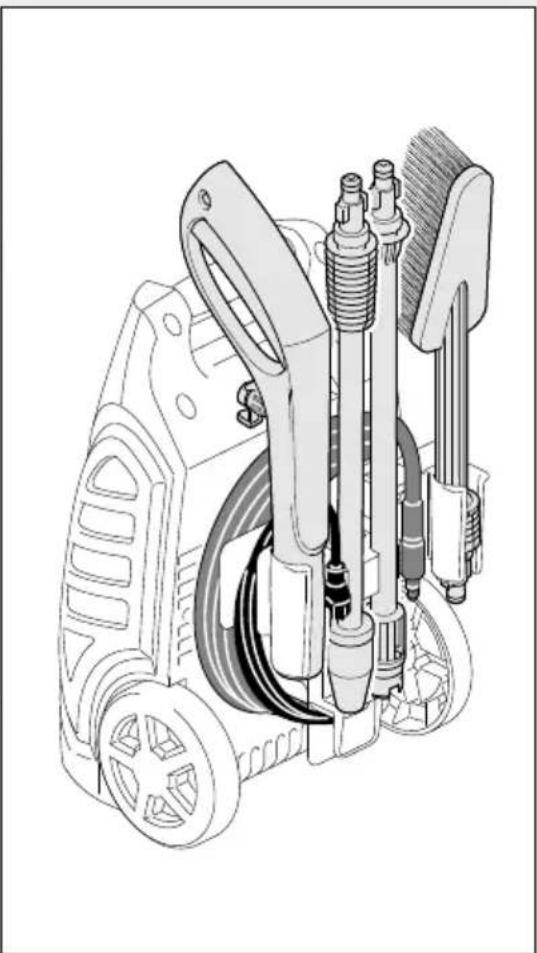

General information (fig.1)
Use of the manual
This manual forms an integral part of the appliance and should be kept for future reference. Please read it carefully before installing/ using the unit. If the appliance is sold, the Seller must pass on this manual to the new owner along with the appliance.
Delivery
The appliance is delivered partially assembled in a cardboard box. The supply package is illustrated in fig.1.
Documentation supplied with the appliance
A1 Use and maintenance manual
A2 Safety instructions
A3 Declaration of conformity
A4 Warranty regulations
Disposing of packaging
The packaging materials are not environmental pollutants but must still be recycled or disposed of in compliance with the relevant legislation in the country of use.
Safety signs
Comply with the instructions provided by the safety signs fitted to the appliance.
Check that they are present and legible; otherwise, fit replacements in the original positions.
E1 sign - Indicates that the appliance must not be disposed of as municipal waste; it may be handed in to the dealer on purchase of a new appliance. The appliance's electrical and electronic parts must not be reused for improper uses since they contain substances which constitute health hazards.
Symbols
2 symbol - Indicates that the appliance is intended for professional use, i.e. for experienced people informed about the relative technical, regulatory and legislative aspects and capable of performing the operations necessary for the use and maintenance of the appliance.
E3 symbol - Indicates that the appliance is intended for non-professional (domestic) use.
Technical information (fig.1)
Envisaged use
This appliance has been designed for individual use for the cleaning of vehicles, machines, boats, masonry, etc, to remove stubborn dirt using clean water and biodegradable chemical detergents. Vehicle engines may be washed only if the dirty water is disposed of as per regulations in force.
- Intake water temperature: see data plate on the appliance.
- Intake water pressure: min. 0,1MPa-max 1MPa.
- Operating ambient temperature: above 0^ .
- The appliance is compliant with the EN 60335-2-79/A1 standard.
Operator
The symbol on the front cover identifies the appliance's intended operator (professional or non-professional).
Improper use
- Use by unskilled persons or those who have not read and understood the instructions in the manual is forbidden.
- The introduction of inflammable, explosive and toxic liquids into the appliance is prohibited.
- Use of the appliance in a potentially inflammable or explosive atmosphere is forbidden.
- The use of non-original spare parts and any other spare parts not specifically intended for the model in question is prohibited.
ENGLISH
- All modifications to the appliance are prohibited. Any modifications made to the appliance shall render the Declaration of Conformity null and void and relieve the manufacturer of all liability under civil and criminal law.
Main components
B1 Adjustable spray nozzle
B2 Lance
B3 Gun with safety catch
B4 Power supply cable with plug
B5 High pressure hose
B6 Detergent tank (on models with this feature)
Accessories (if included in the supply package - see fig.1)
C1 Nozzle cleaning tool
C2 Rotating nozzle kit
C3 Handle
C4 Brush
C5 Hose reel
Safety devices
Caution - Danger!
Do not tamper with or adjust the safety valve setting.
- Safety valve and/or pressure limiting valve. The safety valve is also a pressure limiting valve. When the gun trigger is released, the valve opens and the water recirculates through the pump inlet or is discharged onto the ground.
- Thermostat valve (D1 where fitted) If the water temperature exceeds the temperature set by the manufacturer, the thermostat valve discharges the hot water and draws in an amount of cold water equal to the amount of water discharged, until the correct temperature is restored.
- Safety catch (D): prevents accidental spraying of water.
Installation (fig.2)
Assembly
Caution - Danger!
All installation and assembly operations must be
performed with the appliance disconnected from the mains power supply.

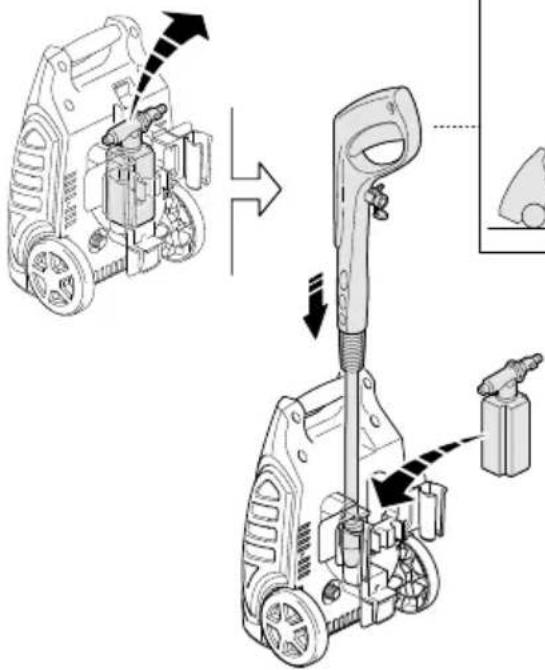

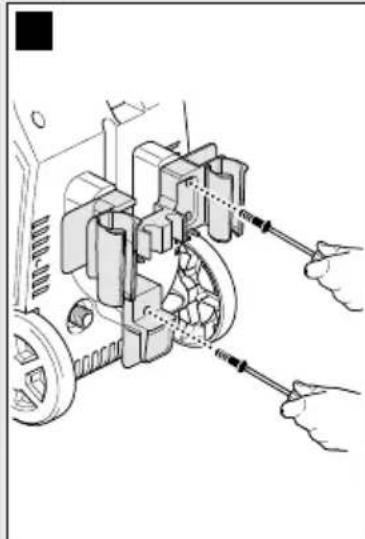

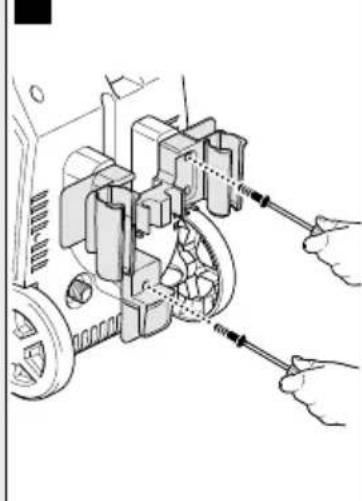

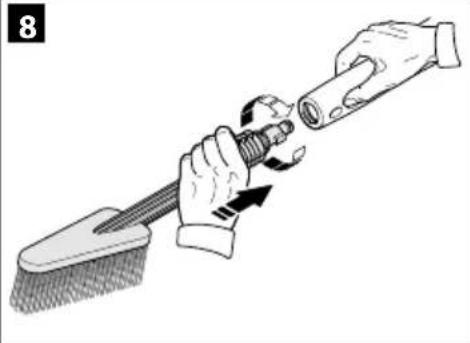

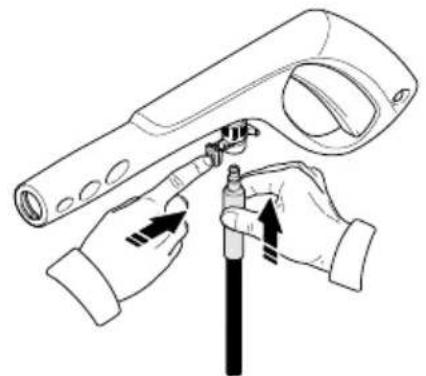

The assembly sequence is illustrated in fig.2.

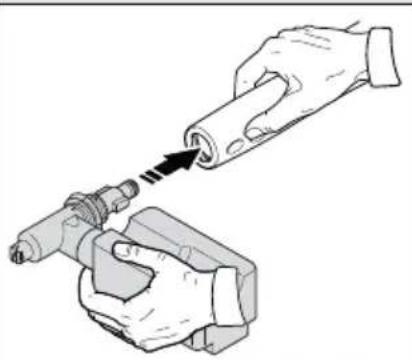

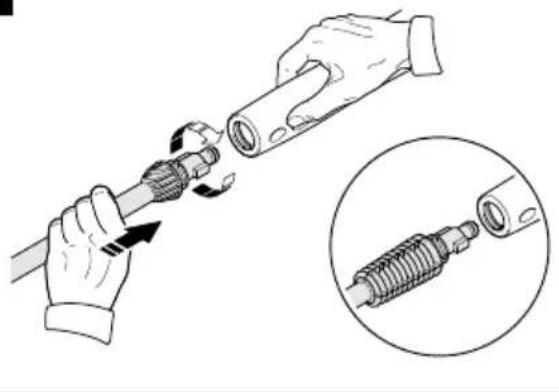

Assembling the rotating nozzle (For models with this feature)
The rotating nozzle kit delivers greater washing power. Use of the rotating nozzle may cause of reduction in pressure of 25% compared to the pressure obtained with the adjustable nozzle. However, the rotating nozzle kit delivers greater washing power due to the rotation of the water jet.
Electrical connection
Caution - Danger!

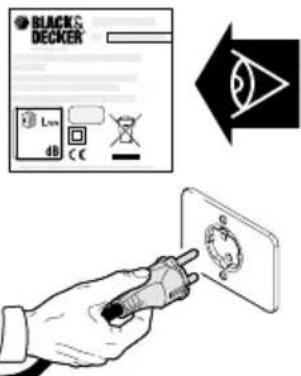

Check that the electrical supply voltage and frequency (V-Hz) correspond to those specified on the appliance data plate (fig.2). The appliance should only be connected to a mains power supply equipped with an adequate earth connection and a differential security breaker (30 mA) to cut off the electricity supply in the instance of a short circuit.
Use of extension cables
Use cables and plugs featuring "IPX5" protection level. The cross-section of the extension cable should be proportionate to its length; the longer it is, the greater its cross-section should be. See table I.
Water supply connection
!Caution - Danger!
Only clean or filtered water should be used for intake. The delivery of the water intake tap should be equal to that of pump capacity.
Place the appliance as close to the water supply system as possible.

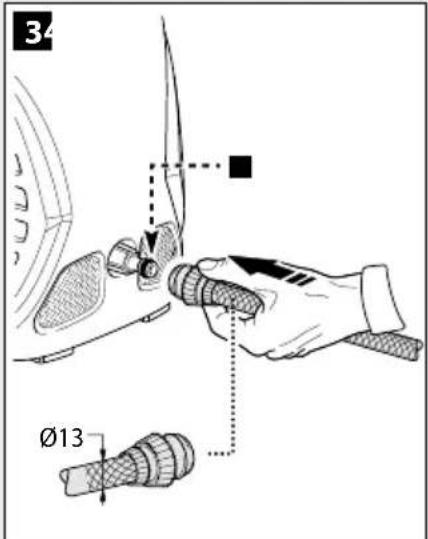

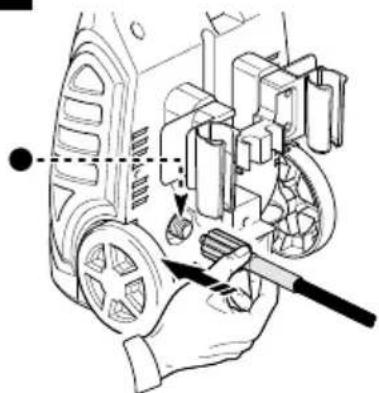

Connection points
Water outlet (OUTLET)
Water inlet with filter (INLET)
Connection to the mains water supply
The appliance can be connected directly to the mains drinking water supply only if the supply hose is fitted with a backflow preventer valve as per current regulations in force. Make sure that the hose is at least 0.13mm and that it is reinforced.
Adjustment information (fig.3)

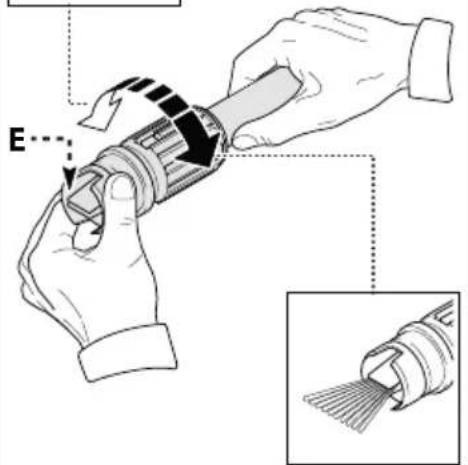

Adjusting the spray nozzle
(for models with this feature)
Water flow is adjusted by regulating the nozzle (E).
Adjusting the detergent
(on models with this feature)
- Detergent flow is adjusted using the regulator (F).
Adjusting the detergent pressure
Set the adjustable nozzle (E) on " - " to deliver detergent at the correct pressure (on models with this feature).
Adjusting the pressure
(on models with this feature)
- The regulator (G) is used to adjust the working pressure. The pressure is shown on the pressure gauge (where fitted).
Information on use of the appliance (fig.4)
Controls
- Starter device (H).
Set the starter switch on (ON/1) to:
a) Start the motor (in models without TSS device);
b) Set the motor ready to start (in models with TSS device).
- If there is a pilot light on the starter device, it should light up.
- If the "low/high" settings are available, use them as follows:
- Low: low pressure washing
High:high pressure washing
- Set the starter device switch on (OFF/0) to shut down the appliance.
- If there is a pilot light on the starter device, it should go out.
Water jet control lever (I).
Caution - Danger!
During operation the appliance must be positioned as shown in fig. 4 on a sturdy, stable surface.
Start-up
1) Turn on the water supply tap fully.

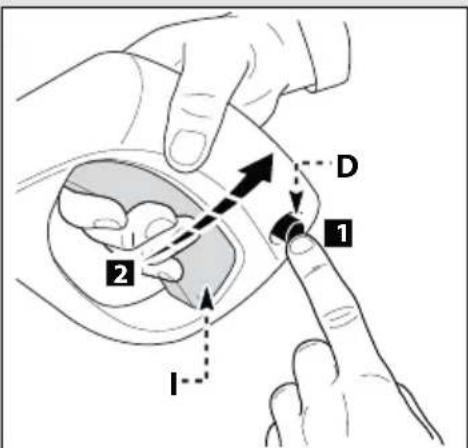

2) Release the safety catch (D).
3) Depress the gun trigger for a few seconds and start up the appliance using the starter device (ON/1).
Caution - Danger!
Before starting up the appliance check that the water supply hose is connected properly; use of the appliance without water will damage it; do not cover the ventilation grilles when the appliance is in use.
TSS models - In TSS models with automatic delivery flow cut-off system:
- When the gun trigger is released the dynamic pressure automatically cuts out the motor (see fig.4);
- When the gun trigger is depressed the automatic drop in pressure starts the motor and the pressure is restored after a very slight delay;
- If the TSS is to function correctly all gun releasing and depressing operations must be performed at intervals of less than 4-5 seconds.
- On three-phase models for professional use, at first use start the appliance for a very short time to check that the motor is running in the correct direction. If the motor fan is turning anti-clockwise, exchange two of the three phase wires (L1, L2, L3) in the electrical plug.
- To prevent damage to the appliance, do not allow it to operate dry and when running do not stop the water jet for more than 10 minutes at a time (for models without TSS device).
Stopping the appliance
1) Set the starter device switch on (OFF/0).
2) Depress the gun trigger and discharge the residual pressure inside the hoses.
3) Engage the gun safety catch (D).
Restarting
1) Release the safety catch (D).
2) Depress the gun trigger and discharge the residual air inside the hoses.
3) Set the starter device on (ON/1).
ENGLISH
Storage
1) Switch the appliance off (OFF/0).
2) Remove the plug from the socket.
3) Turn off the water supply tap.
4) Discharge the residual pressure from the gun until all the water has come out of the nozzle.
5) Drain and wash out the detergent tank at the end of the working session. To wash out the tank, use clean water instead of the detergent.
6) Engage the gun safety catch (D).

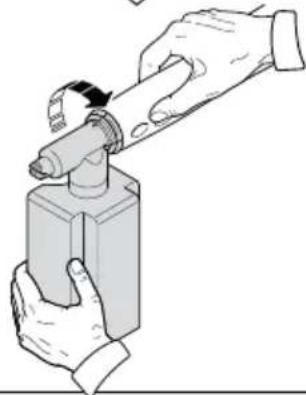

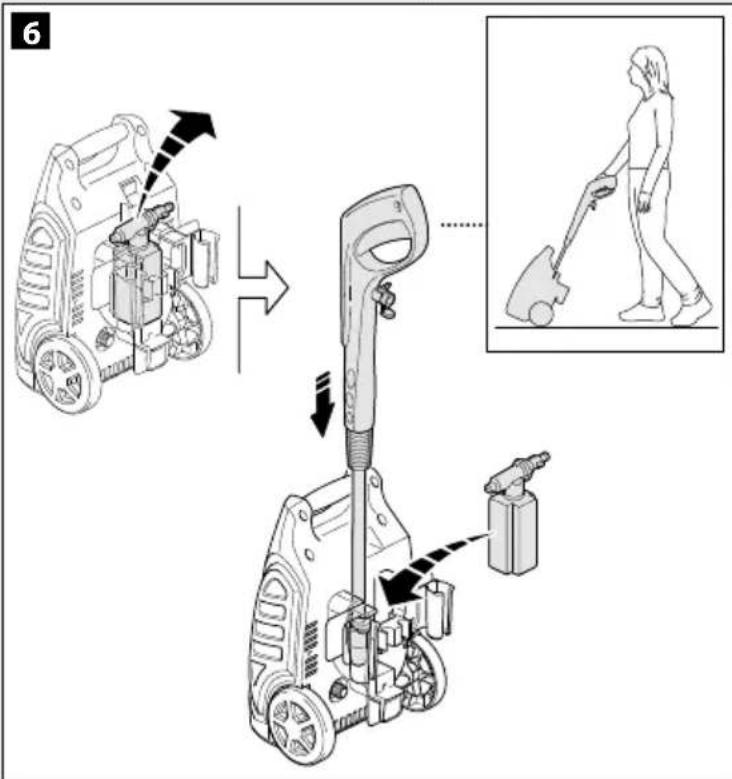

Refilling and using detergent
When using detergent, the adjustable nozzle must be set on "-" (on models with this feature).
Use of a high pressure hose longer than the one originally supplied with the cleaner, or the use of an additional hose extension, may reduce or completely halt the intake of detergent.
Fill the tank with highly degradable detergent.
Recommended cleaning procedure
Dissolve dirt by applying the detergent mixed with water to the surface while still dry.
When dealing with vertical surfaces work from the bottom upwards.
Leave the detergent to act for 1-2 minutes but do not allow the surface to dry. Starting from the bottom, use the high pressure jet at a minimum distance of 30~cm . Do not allow the rinse water to run onto unwashed surfaces.
In some cases, scrubbing with brushes is needed to remove dirt.
High pressure is not always the best solution for good washing results, since it may damage some surfaces. The finest adjustable nozzle jet setting or the rotating nozzle should not be used on delicate or painted parts, or on pressurised components (e.g tyres, inflation valves, etc.).
Effective washing depends on both the pressure and volume of the water used, to the same degree.
Maintenance (fig.5)
Any maintenance operations not covered by this chapter should be carried out by an Authorized Sales and Service Centre.
Caution - Danger!
Always disconnect the plug from the power socket before carrying out any work on the appliance.

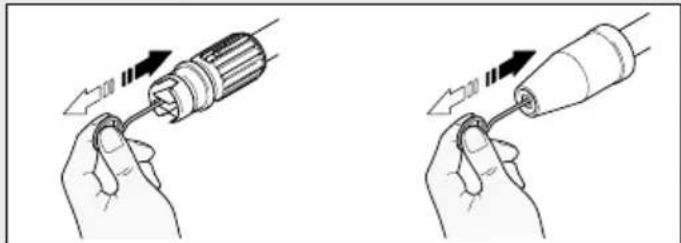

Cleaning the nozzle
1) Disconnect the lance from the nozzle.
2) Remove any dirt deposits from the nozzle hole using the tool (C1).

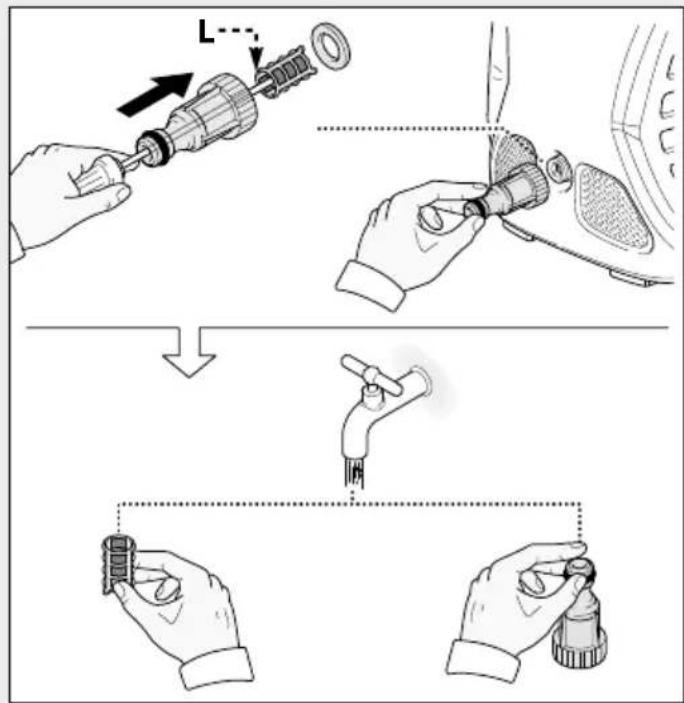

Cleaning the filter
Inspect the intake filter (L) and detergent filter (if fitted) before each use, and clean in accordance with the instructions if necessary.
Unjamming the motor (on models with this feature)
In case of lengthy stoppages, limescale sediments may cause the motor to seize. To unjam the motor, turn the drive shaft with a tool (M).
End-of-season storage
Treat the appliance with non-corrosive, non-toxic antifreeze before storing it away for winter.
Put the appliance in a dry place, protected from frost.
Mains plug replacement (U.K. & Ireland only)
If a new mains plug needs to be fitted:
- Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the new plug.
- Connect the blue lead to the neutral terminal.
Warning! No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 5 A.
Troubleshooting
| Problem | Possible causes | Remedy |
| Nozzle worn Replace nozzleWater filter fouled Clean filter (L)Water supply pressure low Turn onAir being sucked into system CheckPump does not reach Air in pump working pressure releasing the gun a steady flow. Switch the applianzAdjustable nozzle not Turn the ad positioned correctly nozzle (E) (+)Thermostatic valve tripped Wait for correct water temperature to be restored | Fig.5)on water supply tap fullycheck tightness of hose fittingsSwitch off the appliance and keep depressing and turn trigger until the water comes out in ice back on again. | and |
| adjustable (fig.3)for correct water temperature to be restored | ||
| Water intake from external tank Connect appliance to the mains water supplyPressure drops during use Intake Nozzle cloggedIntake filter (L) dirty | water too hot Reduce temperatureClean nozzle (fig.5)Clean filter (L) (fig.5) | |
| Insufficient power supply check that the voltage of the mains power supply line is the same as that on the plate (fig.2)Voltage loss due to use of Check motor "sounds" but fails to start Appliance not used for a long period of timeProblems with TSS device | characteristics of extension cable extension cableContact your nearest Authorized Service CentreContact your nearest Authorized Service Centre | |
| No electrical power check that the plug is firmly in the socket and that the mains voltage supply is present (*)Motor fails to startAppliance not used for a long period of time(in models with this feature) (fig.5) | Problems with TSS deviceUsing the tool (M) unjam the motor from the hole at the rear of the appliance | |
| Seals worn Have the seals replaced at your nearestWater leakageSafety valve tripped and discharging Contact an Authorized Service Centre | Authorized Service Centre | |
| Appliance noisy Water too hot Reduce temperature (see technical data | Water too hot | |
| Oil leakage Seals worn Contact your nearest Authorized Service Centre | High pressure system or pump hydraulic circuit not watertight | Contact your nearest Authorized Service Centre |
| TSS versions only: motor starts even with gun trigger is released | Nozzle clogged | Clean nozzle (fig.5) |
| TSS versions only: no water delivery when gun trigger is depressed (with supply hose connected) | Adjustable nozzle on high pressure setting | Set nozzle on "-" setting (fig.3) |
| Detergent too dense | Dilute with water | |
| No detergent taken in | High pressure hose extension being used | Fit original hose |
| If the problem persists, contact an Authorized Service Centre | Deposits or restriction in detergent circuit | Flush with clean water and eliminate any restrictions. |
(*) If the motor starts and does not restart during operation, wait 2-3 minutes before repeating the start-up procedure (overload cutout has been tripped). If the problem recurs more than once, contact your nearest Authorized Service Centre.
Declaration of conformity
We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents
EN 60335-1 - EN 60335-2-79; EN 55014-1; EN 55014-2;
EN 61000-3-2; EN 61000-3-3; EN 61000-3-11; EN 60704-1
In accordance with the regulations:
2006/42/CE, 2006/95/CE, 2002/95/CE, 2002/96/CE, 2004/108/CE, 2000/14/CE
For more information, please contact Black & Decker at the following address or refer to the back of the manual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.
Kevin Hewitt
Vice-President Global Engineering
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
United Kingdom
04/02/2013
Technical Data
| Unit PW1500 | ||
| Output L/min 6 | ||
| Pressure MPa 8,5 | ||
| Maximum pressure MPa 12 | ||
| Power kW 1,5 | ||
| T° input °C 50 | ||
| Maximum input pressure MPa 1 | ||
| Repulsive force of the gun to the maximum pressure N 9,4 | ||
| Motor Insulation | - | Class F |
| Motor Protection | - | IPX5 |
| Voltage | V/Hz | 220-240~1 |
| Maximum allowed net impedance | Ω | - |
| Sound level (K=3 dB(A)): LPA (EN 60704-1) | dB (A) | 81,2 |
| LWA (EN 60704-1) | dB (A) | 89 |
| Unit vibrations (K=1,5M/s2) | M/s2 | 3,72 |
| Weight | kg | 8 |
Protecting the environment
ate collection. This product must not be disposed of with normal household waste.
Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with other household waste. Make this product available for separate collection.
- Black & Decker provides a facility for recycling Black & Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
- You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorized Black & Decker repair agents and full details of our after-sales service and contact are available on the Internet at: www.2helpU.com.
Warranty
Black & Decker is confident of the quality of its products and offers an outstanding warranty.
This warranty statement is in addition to and in no way prejudices your statutory rights.
If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker warranty to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:
- The product has been used for trade, professional or hire purposes;
- The product has been subjected to misuse or neglect;
- The product has sustained damage through foreign objects, substances or accidents;
- Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.
To claim on the warranty, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual.
Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.
1
2
34
6
7
8
3
4
| Volt | 1÷25m | 25÷50m |
| 230 2 x 1,5 mm | 2 | 2 x 2,5 mm2 |
FRANÇAIS
Informations techniques (fig.1)
Utilisation prévue
Installation (fig.2)
Montage
Attention - danger!
2006/42/CE, 2006/95/CE, 2002/95/CE, 2002/96/CE, 2004/108/CE, 2000/14/CE
Vice-President Global Engineering
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
Royaume-Uni
04/02/2013
Données Techniques
| PW1500\( ^{1} \) | ||
| 6\( ^{2} \) | \( ^{3} \) | |
| 8.5\( ^{3} \) | \( ^{4} \) | |
| 12\( ^{5} \) | \( ^{6} \) | |
| 1.5\( ^{7} \) | \( ^{8} \) | |
| 50\( ^{9} \) | \( ^{10} \) | |
| 1\( ^{11} \) | \( ^{12} \) | |
| 9.4 | \( ^{13} \) | \( ^{14} \) |
| F\( ^{15} \) | - | \( ^{16} \) |
| IPX5 | - | \( ^{17} \) |
| 220-240~1 | \( ^{18} \) | \( ^{19} \) |
| - | \( ^{20} \) | \( ^{21} \) |
| 81.2 | (A) \( ^{22} \) | \( ^{23} \) |
| 89 | (A) \( ^{24} \) | \( ^{25} \) |
| 3.72 | \( ^{26} \) | \( ^{27} \) |
| 8 | \( ^{28} \) | \( ^{29} \) |
| الله | الإستعمال | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | ||
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS）(L) | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS) (L) | |
| (5 JS) (L) | (5 JS) (L) |
1j 32 j 3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
ARABIC
(5)
jso gla jgai 1 aal oia sio 2i iie
aaiiei 1
y-
Jc Jc s Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc
lg = ^2
aagai 1
1
2
.C1)
wll
JL (i) j0g(L) Jdall
ailll aall iie oLayll lgs Lgaiyii
（）
aagaae aee
d 1000
(M) 1
gall
Jlll jaoaagaaal jaoaog aagaaal jaoaajgaiy
joll
aaii 100
Jll
（）
Lai
Jkiy jaiy jaiy
ailll lss jno jlae aol
1K 1
aill 1
jio 1
culll cull lcllll g w y
Jaw 1e Jao Jallgai aai jll gao Jaleil sic
21 10j jjj dal bll l Jaiil
Looos JwJ 0000000000000000000000000000000
Jusell 30 Juaa cbball jae
1
LgA 1
j11p11i11i11a2glll0k
TSS-TSS
L
LgSolilalbllp 1 Juaa aie
(4K)
slll lssy
4j jai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia
5
iie. gaiol plusy 2aiae aalj y
sill sssssjglll jssss
a 1
aaii iin jnnn nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn
L(L1.L2.L3)
10 2
(TSS 10
JlJI JIJI
(OFF/0)
2
(D) joloo Joa 3
J
(D)
2
(ON/1)
(3)
aagb
aaii jia 100000000000000000000000000000000000000000000000000000000
iL 1y jolal jao pai jaylljqall
Jogill bai
(2) all 1 all
（Jssoll）
jaiyolall jgiil
13 12
J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J
aai jllg
B1
B2
JLoi 2000 B3
B4
B5
jz jll baiall gbs jgll jz
J 30 J 31
aalll"
1
m = 311
6
7
8
Names & Addresses for Black & Decker Service Concessionaries
ALGERIA: SARL Outillage Corporation, After Sale Service Center-08, Rue Mohamed Boudiaf - Cheraga, Algiers, Algeria, Tel: +213 21 375131, Fax: +213-0-369667. BAHRAIN: Alfouz Services Co. WLL, P.O. Box 26562, Tubli, Manama, Tel: +973-17783562 / 17879987, Fax: +973-17783479. EGYPT: Anasia Egypt for Trading S.A.E, P.O. Box 2443, 9, Mostafa Refaat Street, Sheraton Heliopolis 11361, Cairo, Tel: +202-22684159, Fax: +202-22684169. ETHIOPIA: Seif Sherif Trade PLC -Arada Sub City, Kebele 01-02, Global Insurance Bldg., 2nd Flr. Room 43, P.O.Box 2525, Addis Ababa, Ethiopia, Tel: 00-251-11-1563968/ 1563969, Fax: 00-251-11-1558009. IRAQ: Financial Links, Kazzaz Building Arasat Al-Hindia Block No: 629 Street: 31Building No: 1 Baghdad - Iraq, Tel: +964 (0)780 195 2223 /+ 964 (0)781 3763044. JORDAN: Bashiti Hardware, 93 King Abdullah 2nd St., Opp ELBA House, P.O. Box 3005, Tel: +962-6-5349098 ext.11, Fax: +962-6-5330731. KENYA: Leading Concepts, P.O. Box: 40877-00100, Nairobi, Kenya. Tel: +254 20 690 5000, Fax: +254 20 690 5111. KUWAIT: Al Omar Technical Co., P.O. Box 4062, Safat 13041, Kuwait, Tel: +965-24848595 / 24840039, Fax: +965-248485652. LEBANON: Aces Service Centre, P.O. Box 90-102, Nahr El Mot, Seaside Highway, Pharaon Building, Beirut. Tel: 00961-1-898989, Fax: 00961-1-245880. LIBYA: Homeworld Co., Building No.5, Senidal St., Amr Ibn Elaa's Road, Benghazi, Libya. Tel: 00218-61-9094183. Service Center1 - Benghazi; Tel: +218-061-3383994, Fax: +218-092-7640688, Service Center2 - Tripoli; Tel: +218-021-3606430, Fax: +218-092-6514813. MALTA: John G Cassar Ltd. 36-Victory Street Qormi QRM 06, Malta. Tel: +356-21493251, Fax: +356-21483231. MAURITIUS: J.M. Goupille & Co. Ltd., Rogers Industrial Park 1, Riche Terre, Mauritius, Tel: +230 206 9450/+230 207 1700, Fax: +230 206 9474/+230 248 3188. MOROCCO: UATS, No. 37, Lotissement KADIRIA, km 10 Route Eljadida - LISASSFA, Casablanca, Morocco, Tel: +212 522652602, Fax: +212522652603. NIGERIA: Dana Electronics Ltd. (Lagos) 116/ 120, Apapa Oshodi Express Way, Isolo, Lagos, Nigeria. Tel: +234-17431818/+234-8037767774/+234-8057445477. (Abuja) 18, A.E. Ekukinam Street Off Obsfemi Awolowo Road Utako, Abuja, Nigeria. Tel: +234-8032276101/+234-8037767774. (Kano) 9A - Mai Malari Road, Bompai, Kano, Nigeria. Tel: +234-8053294947/+234-8037767774. OMAN: Oman Marketing & Service Co. (Omasco), P.O. Box 2734, Behind Honda Showroom, Wattayah, Oman, Tel: +968-24560232/ 24560255, Fax: +968-24560993. Oman Marketing & Service Co. (Omasco) - Sanaya, Salalah, Oman, Tel: +968-26846379, Fax: +968-26846379. Oman Marketing & Service Co. (Omasco) - Sanaya, Salalah, Oman, Tel: 00968-23212290, Fax: +968-23210936. PAKISTAN: Ammar Service & Spares - 60-Bank Arcade,Serai Road,Karachi,Pakistan,Tel: 0092-21-32426905,Fax: 0092-21-32427214.QATAR: Al Mufah Service Centre Al Wakrah Road,P.O.Box 875,Doha,Qatar.Tel: 00974-4650880/4650110/4446868,Fax: 00974-4441415/4662599.SAUDI ARABIA:(Dammam) Al Bawardi Tools & Hardware,P.O.Box 112,DammamTel:(966-3) 8330780 Ext.24 / 8348585 Ext. ^+ / 966-3-8335555,Fax:(966-3) 8336303.Fawaz Ebrahim Al Zayani Trading Est.P.O.Box 76026,Al Raka #31952 Tel:+966-3-8140914,Fax:+966-3-8140824.(Al Hassa) Al Bawardi Tools & Hardware,P.O.Box 16905,Jeddah 21474Tel:(966-2) 6444547 / 6439035 / 6456095,Fax:(966-2) 6439024.(Jeddah) Banaja Trading Co.Ltd,P.O.Box 366,Jeddah-21411,Tel:+966-2-6511111,Fax:+966-2-6503668.(Riyadh) Al Bawardi Tools & Hardware,P.O.Box 68,Riyadh 11411,Tel:(966-1) 4484999,Fax:(966-1) 4487877.Banaja Trading Co.Ltd,P.O.Box 566,Riyadh-11421,Tel: 00966-1-4124444,Fax:+966-1-4033378.SOUTH AFRICA: Benray Tool Wholesalers C.C., 460 Koeberg Road,Cape Town South Africa,Tel: 021 551 7244,Fax: 021 552 6395.Stanley Black & Decker - RSA; Inverz Drive Stormill Ext 9 Roodepoort,Tel:(271) 472 0454,Fax:(271) 472 0482.TUNISIA:Societe Tunisienne De Manutention - Rue de la Physique,Nouvelle Zone Industrielle de Ben Arous-2o13 Tunisie,Tel:+216 79 389687 Fax:+216 71 385154 ext. 216. UGANDA: Anisuma Investment and Services Ltd., J R complex,Ware House No.5, Plot No 101, 3rd Street Industrial Area Jinja Road,Kampala,Tel:+256-4142371O6.UAE:(Abu Dhabi) Galaxy Equipment Trading,Madinath Zayed Baada Zaid), Abu Dhabi,P.C.5891O,Tel:+97I-2-88A4FZ79Fax:+97I-2-8BAAFZP7Light House Electrical,P.O.Box 12O Abu Dhabi,Tel:+97I-2-67ZbCnEeEh (AI Ain) Zllion Equipment and Spare Parts Trading LLC,P.O.Box 1974Opp.Bin Sadal/Trimix Redymix Sanaiya,Ai Ain.Tel:+97I-3-72IcNnEeHt(Dubai) Black & Decker (Overseas) GmbH,P.O.Box 542O,Dubai,Tel:+97I-4-IaIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyI y
BLACK&DECKER
WARRANTY REGISTRATION CARD
YOUR NAME/
YOUR ADDRESS
POSTCODE
DATE OF PURCHASE
DEALER'S NAME & ADDRESS/
