USER MANUAL THBDH09DE THOMSON

DIGITAL / DECO THBDH09DE INSTRUCTION MANUAL CAREFULLY READ THESE INSTRUCTIONS This product is only suitable for well insulated spaces or occasional useSAFETY RECOMMENDATIONS Warning! The heater must not be switched on, only when the wheels are fully mounted.

1. Read the instructions before using the

appliance for the first time.

2. The appliance must be installed following

national regulations for use.

3. It is necessary to be vigilant and supervise the

appliance while children are close by.

4. This appliance is only designed for domestic

and indoor use. Do not use outdoors. Use the heater only as indicated in the instructions. Any other use that does not conform to the supplier's instructions may cause material damage or personal injury

5. Any other use not in accordance with

manufacturer's instructions may result in property damage or personal injury. Do not use this appliance for other purposes than intended by the manufacturer.

6. Use this appliance in a well aerated and

ventilated room. Do not cover the appliance or air flow.

7. Never try to open the fins filled with oil, remove

the control knobs, push objects into the ventilation. The manufacturer can’t be held responsible. GB-28. Do not leave this appliance unsupervised while it is on. When not being used, always ensure that the product is securely in the 'Off' position (O) and unplugged from the socket.

9. Great care must be taken when being used

by or in the presence of children of older persons.

10. If the power cable is damaged, it must be

replaced by the manufacturer, their after- sales service or a similarly qualified person to avoid any hazards.

11. Do not place the cable under a carpet or any

heavy object, and do not cover.

12. To avoid accidents, keep away from areas

where people may trip. Do not place on unstable surfaces

13. To avoid any risk of fire or electric shock, it is

essential that the appliance not be exposed to rain or moisture, and not be opened. The appliance contains electric parts that may electrocute or burn you.

14. Do not place this appliance close to

flammable fabrics, surfaces or liquids in order to avoid any risk of fire. Keep it well away from any source at risk of causing hazards and maintain it at a safe distance (whether this is the front, rear or sides). Do not use this

GB-3appliance in locations such as garages, warehouses etc. where dangerous or flammable products are stored (paint, fuel, alcohol etc.).

15. The appliance must not be placed just

underneath an electric socket.

16. This product is hot when it is on. To avoid any

injuries or burns, do not touch it directly and use gloves or other means.

17. Do not use this heating appliance close to a

bath, shower or swimming pool

18. Check that the voltage corresponds to that of

the power supply (230v mains socket) To avoid any risk of electric shock, plug the appliance in with the pins fitted correctly into the socket.

19. In the event that you need an extension

cable, ensure that it is suitable for the appliance's power level.

20. While the appliance remains plugged into the

socket (wall socket) it is not disconnected from the power supply, even if it is switched off. The appliance must be completely unplugged before cleaning, services, maintenance or even moving from one place to another.

21. The power socket must always be equipped

with an earth connection. If your domestic

GB-4electrical installation is not earthed, you should not connect the appliance.

22. WARNING: To avoid overheating, do not cover

23. This heater is filled with a precise quantity of

special oil. Repairs requiring opening of the oil tank should be done only by the manufacturer or its service who should be contacted in case of oil leakage. Regulations regarding the disposal of oil when the heater is discarded must be respected.

24. This appliance can be used by children aged

from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

25. It is advisable that you supervise children to

ensure they do not play with the appliance.

26. Appliances are not designed to be used in

conjunction with a separate timer or with a control system used at a distance.

27. This appliance is designed to be used for

GB-5domestic and indoor use only

28. WARNING: To avoid overheating, do not cover

the heater. This symbol means that you must not cover the appliance

29. Children under 3 years must be kept away

unless constantly monitored.

30. Children aged between 3 and 8 years can

only turn on or off the unit provided it has placed or installed in its normal operating position expected and were trained and supervised in instructions for using the machine safely and understand the potential hazards.

31. Children aged between 3 and 8 years must

not connect, adjust or clean the machine or perform user maintenance.

32. Regarding detailed information on how to set

the casters before using the heater, refer to the section "INSTALLATION" WARNING - Some parts of this product may become hot and cause burns. Particular attention must pay in presence of children and vulnerable people.

Warning: Plug the appliance in correctly and do

not leave within reach of children without supervision.

GB-6EARTHING This appliance must be earthed. This appliance is equipped with an earthed plug. It must be plugged into a correctly installed and earthed wall socket.

WARNING: Incorrect use of the earth connection

can lead to the risk of electric shock. Notes: If you have any questions regarding earthing or connecting to a power supply, please consult a qualified person.

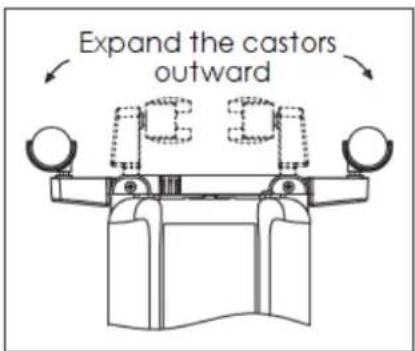

GB-7 In the event of short-circuit, earthing reduces the risk of electric shock by enabling the current to escape through the earth cable.INSTALLATION Unpack the heater and expand the four casters outward into place Caution: To ensure stability and avoid overturn, always expand the four casters outward before use.

220-240V~50Hz CLASS I This product conforms to the requirements set by directives 2014/35/EC (repealing directive 73/23/EEC amended by directive 93/68/EEC) and 2014/30/EC (repealing directive 89/336/EEC)

1. Before using this appliance, ensure that it is placed on a flat, stable surface.

2. Place the heater at least 100cm from the wall, furniture or curtains.

3. Check that the voltage corresponds to that of the power supply (230v mains

4. This heater contains oil, and slowly cool down after being turned off.

5. Leave the heater to cool and unplug it before moving it.

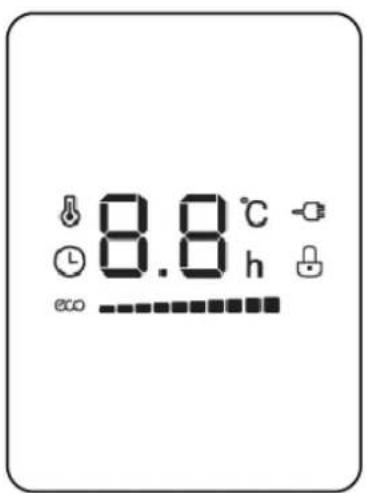

This heater is equipped with Digital Controls that provide the ability to set the temperature to the exact degree desired. To operate, simply follow these instructions. GB-81.Place the product in an upright position on a flat, steady, stable, heat-resistant surface. (Casters on the floor) Make sure there is nothing flammable or heat sensitive within 1 meter. Operating the product in any other position could cause a hazard.

2. Insert the mains plug into a suitable wall socket, a bip sounds and icon light on.

Always ensure the powercord is fully unwound and doesn’t touch the product in use.

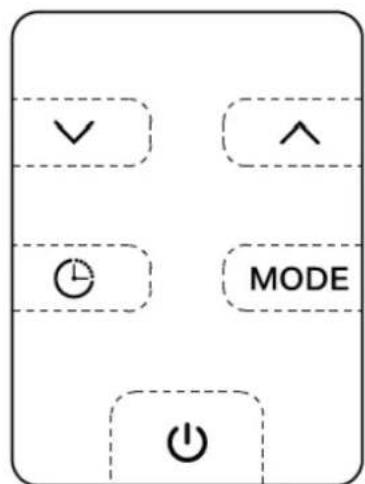

3. Press the power button ( ) once to start the heater on High Power, the unit will run on

4. Press the power button MODE to select the high power / Mid power / low power /

eco. High power Mid power Low power In Eco mode ( ): press / to set the required temperature. When the ambient temperature is much lower than the set temperature, the product is heated at a high power; when the ambient temperature is close to the set temperature, the product is heated at a low power. When the ambient temperature is higher than the set temperature, the product stops heating.

5. Press the power button ( ) again to turn the heater in Standby.

1. Use the buttons " " and " " to set the desired temperature.

2. The temperature icon will stop blinking and the target is set.

3. The icon thermostat light on when the heating element is working

4. The heater stops to heat when the ambient temperature reached the desired

5. The heater will turn back on when the room temperature drops below the desired

temperature. Note: By default, the pre-registered temperature at factory is 35°C and mode high power.

TIMER (AUTO-OFF) This function should only be set if you desire that the heater be automatically shut off after a certain period of time (1 to 24 hours from the time the function is set) NOTE: Always set the desired temperature prior setting the Timer. Press the Timer button until the timer icon blinks. Use the " " and " " button to set the heater operation time between 1 and 24 hours. This function will activate once the timer icon stops blinking. The heater will automatically turn-off when time runs out.

TIMER (AUTO-ON) This function provides a delayed start option and should only be set if you desire that the heater be automatically turned ON after a certain period of time (1 to 24 hours from the time the function is set). NOTE: Always set the desired temperature prior to setting the timer so that the heater will turn on at the desired temperature setting. GB-9Press the Timer button until the timer icon blinks. Use the " " and " " buttons to set the heater start time between 1 and 24 hours. This function will activate once the timer icon stops blinking. The heater will automatically turn on when time expires. CHILD LOCK Press the simutaneously the buttons: MODE and Timer during 3 seconds to active or desactivate the function child lock . Caution: When Child Lock is on, all buttons are locked including On / Standby. It is necessary to unlock to be able to turn off the device.

Requires 2 AAA batteries, 1.5 volts, not included. Used batteries should be disposed of safely. Drop in collection bins (please ask your dealer) to protect the environment. Respect the polarities inserting them. The head towards the radiator control panel. Note: When not in use, please turn off the power and disconnect from mains wall socket.

1. Always unplug the appliance and keep it away from any socket before cleaning.

2.To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly with a soft, dry cloth before using again. 3.Do not use any cleaning or chemical products of any kind. Do not let water enter the openings on the heater. Do not use wax or products that create a shine as they can react to heat and cause discoloration. 4.When the appliance is not being used for prolonged periods, ensure that it is fully unplugged from the socket and store in its packaging for simple storage and later use. Clean your radiator as mentioned above and fold up the castors to store in the carton box. The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. GB-10The warranty does not cover the wear parts of the product, nor the problems or damage resulting from: (1) surface deterioration due to normal wear and tear of the product; (2) defects or deterioration due to contact with liquids and corrosion caused by rust or presence of insects; (3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair; (4) improper maintenance, improper use concerning the product or connection to an incorrect voltage; (5) any use of accessories not supplied or not approved by the manufacturer. The guarantee will be cancelled if the nameplate and / or serial number of the product are removed. Information requirements for electric local space heaters Model identifier: THBDH09DE Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output Pnom 2,0 kW manual heat charge control, with integrated thermostat

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output Pmax,c 2,0 kW electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption

max n a kW Type of heat output/room temperature control (select one) At minimum heat output

min n a kW single stage heat output and no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control no electronic room temperature control plus day timer yes electronic room temperature control plus week timer

Other control options (multiple selections possible) room temperature control, with presence detection

room temperature control, with open window detection

with distance control option no with adaptive start control no with working time limitation no with black bulb sensor no Contact details
