Product type	Mobile radiant heater
Brand	Thomson
Model	THRAY01A
Nominal thermal power	1.5 kW (1500 W)
Minimum thermal power	0.75 kW (750 W)
Supply voltage	230 V ~ 50 Hz
Electrical class	Class II
Protection rating	IP24 (protected against water splashes)
Temperature control	Adjustable mechanical thermostat
Power levels	2 positions: low (750 W) and high (1500 W)
Heating element	Aluminum
Tip-over safety	Yes, automatic shut-off switch in case of overturn
Overheat protection	Yes, integrated safety system
Assembly	Feet to be fixed with 4 screws provided
Usage	Indoor, well-ventilated room, only on stable and level floor
Safety distance	At least 90 cm from walls, furniture and curtains
Cleaning	Unplug, clean with a slightly damp cloth, dry thoroughly
Power cord	To be replaced only by a qualified professional
Warranty	Does not cover wear parts, normal wear, improper use or unauthorized repairs
Regulatory information	Compliant with WEEE directive (2012/19/EU)

Frequently Asked Questions - THRAY01A THOMSON

Why is there smoke or an odor during first use?

During first use, a thin layer of protective lubricant on the heating elements may produce smoke or an odor. This phenomenon is normal and stops quickly. Ensure the room is well ventilated.

How to mount the heater feet?

Turn the heater over, fix the two feet using the 4 screws provided on the base, then upright the device. Check that the feet are mounted in the correct direction before use.

What safety distance should I maintain around the heater?

Place the heater at least 90 cm away from walls, furniture and curtains. Never place it directly under a power outlet.

Can I use this heater in a bathroom?

Yes, but only outside volumes 0, 1 and 2 defined by standard NF C 15-100. The device is rated IP24 (protected against water splashes). Consult a professional electrician if needed.

How to clean the heater?

Always unplug the device before cleaning. Use a slightly damp cloth for the outer surface, then dry with a soft, dry cloth. Do not use detergents or chemicals.

What to do if the heater overheats or turns off?

The heater is equipped with overheat protection that turns it off automatically. Unplug it, let it cool down, then check that it is not obstructed. If the problem persists, contact after-sales service.

How to store the heater in summer?

Unplug it, clean it as indicated, remove the feet if desired, and store it in its original packaging in a dry place.

Is this heater safe for children?

The device can become very hot. Never leave children unsupervised nearby. Children under 3 years must be kept at a distance. Between 3 and 8 years, they may only turn it on or off under supervision.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any danger. Do not use the device with a damaged cord.

Where can I recycle this heater at end of life?

Do not dispose of the device with household waste. Use the selective collection points (recycling centers) provided by your municipality or distributors, in accordance with the WEEE directive.

USER MANUAL THRAY01A THOMSON

READ THESE INSTRUCTIONS CAREFULLY

This product is only suitable for well insulated spaces or occasional use.

SAFETY RECOMMENDATIONS

1. Read the instructions before using the appliance for the first time.
2. The appliance must be installed following national regulations for use.
3. It is necessary to be vigilant and supervise the appliance while children are close by.
4. This appliance is only designed for domestic and indoor use. Do not use outdoors. Use the heater only as indicated in the instructions.
5. Any other use that does not conform to the supplier's instructions may cause material damage or personal injury Any other use not in accordance with manufacturer's instructions may result in property damage or personal injury. Do not use this appliance for other purposes than intended by the manufacturer.
6. Use this appliance in a well aerated and ventilated room. Do not cover the appliance or air flow.
7. Never try to open the product, remove the control knobs, push objects into the ventilation. The manufacturer cannot be held responsible.
8. Do not leave this appliance unsupervised while it is on. When not being used, always ensure that the product is securely

in the 'Off' position (O) and unplugged from the socket.

1. Great care must be taken when being used by or in the presence of children of older persons.
2. If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to avoid any hazards.
3. Do not place the cable under a carpet or any heavy object, and do not cover.
4. To avoid accidents, keep away from areas where people may trip.

Do not place on unstable surfaces

1. To avoid any risk of fire or electric shock, it is essential that the appliance not be exposed to rain or moisture, and not be opened. The appliance contains electric parts that may electrocute or burn you.
2. Do not place this appliance close to flammable fabrics, surfaces or liquids in order to avoid any risk of fire. Keep it well away from any source at risk of causing hazards and maintain it at a safe distance (whether this is the front, rear or sides). Do not use this appliance in locations such as garages, warehouses etc. where dangerous or flammable products are stored (paint, fuel, alcohol etc.).

3. The appliance must not be placed just underneath an electric socket.

4. This product is hot when it is on. To avoid any injuries or burns, do not touch it directly and use gloves or other means.

5. Do not use this heating appliance close to a bath, shower or swimming pool
6. Check that the voltage corresponds to that of the power supply (230v mains socket) To avoid any risk of electric shock, plug the appliance in with the pins fitted correctly into the socket.
7. In the event that you need an extension cable, ensure that it is suitable for the appliance's power level.
8. While the appliance remains plugged into the socket (wall socket) it is not disconnected from the power supply, even if it is switched off. The appliance must be completely unplugged before cleaning, services, maintenance or even moving from one place to another.
9. WARNING: To avoid overheating, do not cover the heater.

10. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

11. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children.

12. It is advisable that you supervise children to ensure they do not play with the appliance.
13. Appliances are not designed to be used in conjunction with a separate timer or with a control system used at a distance.
14. This appliance is designed to be used for domestic purposes.
15. WARNING: To avoid overheating, do not cover the heater. This symbol means that you must not cover the appliance.
16. Children under 3 years must be kept away unless constantly monitored.
17. Children aged between 3 and 8 years can only turn on or off the unit provided it has placed or installed in its normal operating position expected and were trained and supervised in instructions for using the machine safely and understand the potential hazards.
18. Children aged between 3 and 8 years must not connect, adjust or clean the machine or perform user maintenance.

19. Regarding detailed information on how to attach the feets to the heater, refer to the section "ASSEMBLY"

20. The heater must not be wall mounted and used as a wall mounted heater.

WARNING Hot surfaces

CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

Warning: Plug the appliance in correctly and do not leave within reach of children without supervision.

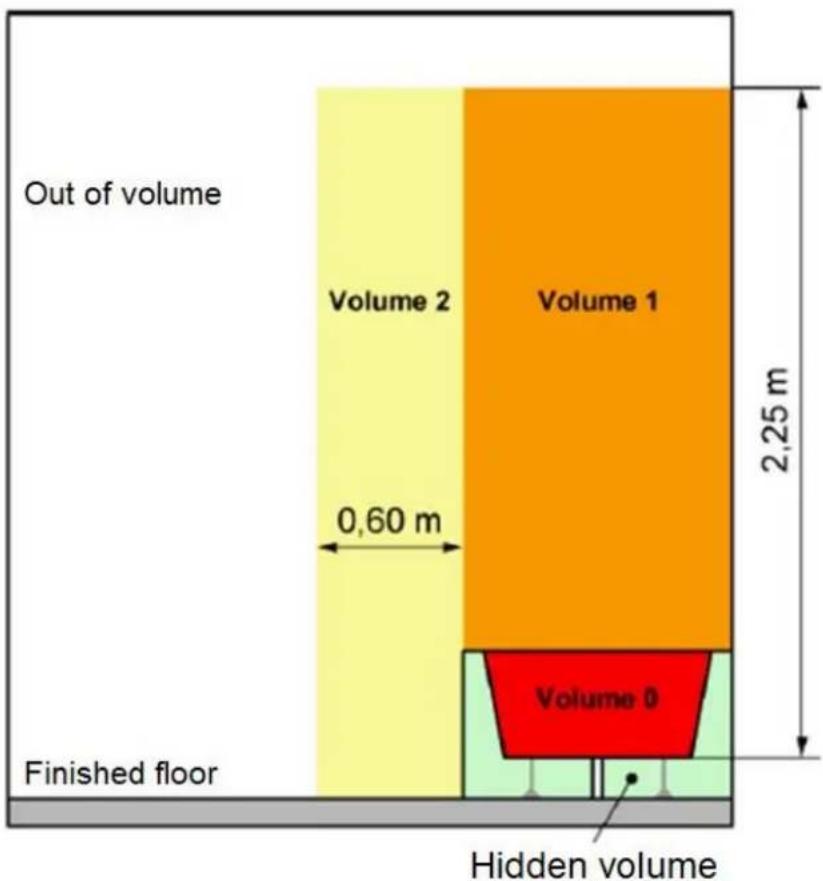

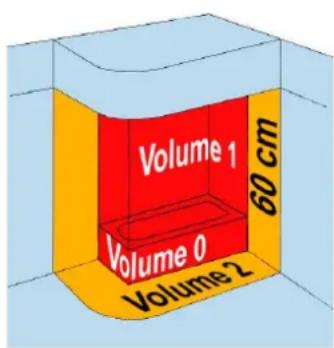

WARNING: In the bathroom, the heater can only be installed in Out of volume, means out of volumes 0, 1, 2, hidden volume according to the requirements of the French norm on the

electrical installation NFC 15-100.

Remark: The diagram below is only given as an example.

We suggest that you contact a qualified electrician for any help.

TECHNICAL SPECIFICATIONS :

Portable radiative heater	Power 1	Power 2
THRAY01A	750W	1500W

230V~50Hz
CLASS II
IP24

ASSEMBLY:

Unpack the heater and the accessories.

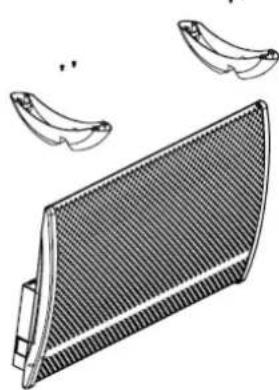

A. Turn the radiator upside-down
B. Fix the 2 wheels feet to the base of the radiator with the 4 screws provided

C. Turn the radiator upright

Only operate the radiator in normal upright position with feet assemblies attached to the bottom

Note: The heating elements of the device are covered with a thin protective layer of lubricant, there may be a small amount of smoke and odor during the first use of the heater. This is not harmful or dangerous and rapidly stop.

Please ensure that there is sufficient ventilation of the room.

OPERATING:

PRECAUTIONS FOR USE

1. Before using this appliance, ensure that it is placed on a flat, stable surface. This heater is equipped with a tip over device that stops the product rollover and if it is not placed on a stable surface.
2. Place the heater at least 90cm from the wall, furniture or curtains.
3. Check that the voltage corresponds to that of the power supply (230v mains socket)
4. Leave the heater to cool and unplug it before moving it, and use the handle to move it.

USING THE HEATER

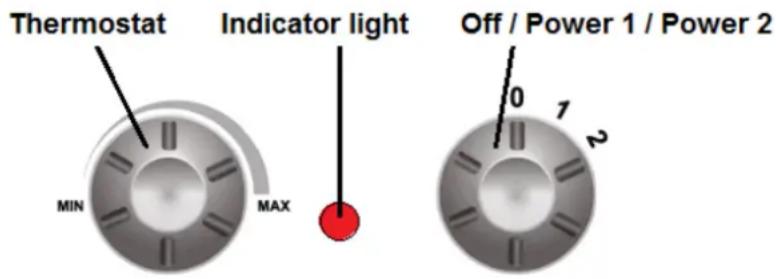

1. The switches control the thermostat and power selection should be on the OFF and minimum position, connect the radiator to the socket.

2. Switch on the heater on one of the following positions:

3. Turn the power switch to 1 : low power

4. Turn the power switch to 2 : high power

5. The ambient temperature can be set by the thermostat. Turn the thermostat knob in the direction of clockwise to increase the temperature, or counterclockwise to decrease, until the desired temperature.

6. When not using this heater, return the 2 switches to their initial position: "0" and thermostat to "MIN.", and then unplug it.
7. The heating system has a protection device against overheating.
8. Do not cover or place any object on the radiator during operation.

PRECAUTIONS FOR USE AND MAINTENANCE

1. Always unplug the appliance and keep it away from any socket before cleaning.
   2.To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly with a soft, dry cloth before using again.
   3.Do not use any cleaning or chemical products of any kind. Do not let water enter the openings on the heater. Do not use wax or products that create a shine as they can react to heat and cause discoloration.
2. When the appliance is not being used for prolonged periods, ensure that it is fully unplugged from the socket and store in its packaging for simple storage and later use. Clean your radiator as mentioned above and remove the feets.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of

the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust;
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair;
(4) improper maintenance, improper use

Concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

Information requirements for electric local space heaters

Model identifier: THRAY01A
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	1,5	kW		manual heat charge control, with integrated thermostat	no
Minimum heat output(indicative)	Pmin	0,75	kW		manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax,c	1,5	kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output	no
At nominal heat output	eI max	1,5	kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI min	0,75	kW		single stage heat output and no room temperature control	no
In standby mode	eISB	N/A	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	yes
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	SCHNEIDER CONSUMER GROUP, 12 Rue Jules Ferry, 93110 Rosny sous Bois, France

KEEP THESE INSTRUCTIONS

Imported by SCHNEIDER CONSUMER GROUP, 12 Rue Jules Ferry, 93110 Rosny sous Bois, France
THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP.
