Product type	Design ceramic fan heater
Compatible models	THSFC15, THSFC15B, THSFC15R
Rated heating power	1500 W (mode II)
Minimum heating power	750 W (mode I)
Power supply	220-240 V ~ 50 Hz
Protection class	Class II
Dimensions (approx.)	20 x 15 x 30 cm
Weight (approx.)	1.5 kg
Main functions	Adjustable thermostat, 2 power levels (warm / very hot), fan only
Safety	Tip-over switch, overheat protection, do not cover
Recommended use	Well-insulated room or occasional use, indoor only
Safety distance	100 cm above and on sides, 120 cm in front
Maintenance and cleaning	Unplug, clean with a damp cloth, dry thoroughly
Storage	Store in its packaging after unplugging
Warranty	Does not cover wear, misuse or incorrect voltage
Recycling (WEEE)	Do not dispose of with household waste, take to a recycling center
Manufacturer contact	SCHNEIDER CONSUMER GROUP, 12 rue Jules Ferry, 93110 Rosny-sous-Bois, France

Frequently Asked Questions - THSFC15 THOMSON

How to turn on the THSFC15 heater?

Plug the appliance into a 230V socket. Turn the thermostat knob to MAX, then turn the selection knob from 0 to ⚠️ for fan only, I for warm (750W) or II for very hot (1500W).

How to set the desired temperature?

Turn the thermostat knob clockwise to increase the temperature. Once the room temperature is reached, slowly turn it counterclockwise until you hear a click. The thermostat will then maintain that temperature.

What to do if the appliance suddenly turns off?

This is likely due to overheating. The appliance has a protection that cuts the power. Let the appliance cool down, identify the cause (e.g., blocked air inlets/outlets) and restart. If the problem persists, unplug and contact a professional.

How to clean the heater?

Always unplug the appliance before cleaning. Use a slightly damp cloth to wipe the outer surface, then dry with a soft, dry cloth. Do not use detergents or chemicals. Do not let water enter the openings.

Can I use this heater in a bathroom?

No, the appliance is not designed for use in a bathroom, nor near a bathtub, shower or swimming pool. Use it only in dry, well-ventilated rooms.

What safety distances must be observed?

Leave at least 100 cm above and on the sides, and 120 cm in front of the appliance. Keep it away from textiles, curtains, furniture and other flammable materials.

Can the appliance be used by children?

Children under 3 years must be kept at a distance. Children aged 3 to 8 may only turn the appliance on/off under supervision. Children over 8 and persons with reduced capabilities may use it if supervised or have received instructions.

How to properly turn off the heater?

Before turning off, set the function knob to fan for 2 minutes to cool the appliance. Then set both knobs to 0 and MIN, then unplug from the socket.

What to do if the power cord is damaged?

Do not use it. The cord must be replaced by the manufacturer, its after-sales service or a qualified person to avoid any danger. Contact technical support.

How to recycle the appliance at end of life?

Do not throw it with household waste. According to the WEEE directive, take it to a recycling center or to the collection point of your retailer. For more info, visit www.quefairedemesdechets.fr.

USER MANUAL THSFC15 THOMSON

Black rectangular electric heating fan with mesh grille and control buttons (no visible text or symbols)

LIRE ATTENTIVEMENT LES INSTRUCTIONS

Black rectangular industrial heating pot with mesh grille and control buttons (no visible text or symbols)

READ THESE INSTRUCTIONS CAREFULLY

This product is only suitable for well insulated spaces or occasional use.

SAFETY RECOMMENDATIONS:

1. Read the instructions before using the appliance for the first time.
2. The appliance must be installed following national regulations for use.
3. It is necessary to be vigilant and supervise the appliance while children are close by.
4. This appliance is only designed for domestic and indoor use. Do not use outdoors. Use the fan heater only as indicated in the instructions. Any other use that does not conform to the supplier's instructions may cause material damage or personal injury
5. Use this appliance in a well aerated and ventilated room. Do not cover the appliance or air flow.
6. Do not leave this appliance unsupervised while it is on. When not being used, always ensure that the product is securely in the 'Off' position (O) and unplugged from the socket.
7. Great care must be taken when being used by or in the presence of children of older persons.
8. If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to avoid any hazards.

9. Do not place the cable under a carpet or any heavy object, and do not cover.

10. To avoid accidents, keep away from areas where people may trip. Do not place on unstable surfaces.

11. To avoid any risk of fire or electric shock, it is essential that the appliance not be exposed to rain or moisture, and not be opened. The appliance contains electric parts that may electrocute or burn you.
12. Do not place this appliance close to flammable fabrics, surfaces or liquids in order to avoid any risk of fire. Keep it well away from any source at risk of causing hazards and maintain it at a safe distance (whether this is the front, rear or sides). Do not use this appliance in locations such as garages, warehouses etc. where dangerous or flammable products are stored (paint, fuel, alcohol etc.).
13. This product is hot when it is on. To avoid any injuries or burns, do not touch it directly and use gloves or other means.
14. Do not use this heating appliance close to a bath, shower or swimming pool.
15. Check that the voltage corresponds to that of the power supply (230v mains socket) To avoid any risk of electric shock, plug the appliance in with the pins fitted correctly into the socket.

16. In the event that you need an extension cable, ensure that it is suitable for the appliance's power level.

17. If objects or liquids penetrate the inside of the appliance, unplug it and have it check by qualified persons.

18. While the appliance remains plugged into the socket (wall socket) it is not disconnected from the power supply, even if it is switched off. The appliance must be completely unplugged before cleaning, services, maintenance or even moving from one place to another.

19. The appliance must not be placed just underneath an electric socket.

20. WARNING: To avoid overheating, do not cover the fan heater.

21. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children.

22. It is advisable that you supervise children to ensure they do not play with the appliance.

23. Appliances are not designed to be used in conjunction with a separate timer or with a control system used at a distance.

24. Leave enough space around the heater: 100cm above and sides, 120cm on the front.

25. Children under 3 years must be kept away unless constantly monitored.
26. Children aged between 3 and 8 years must only turn on or off the unit provided it has placed or installed in its normal operating position expected and were trained and supervised in instructions for using the machine safely and understand the potential hazards.
27. Children aged between 3 and 8 years must not connect, adjust or clean the heater or perform user maintenance.

CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present"

Warning: Plug in the appliance correctly and do not leave within reach of children without supervision.

This symbol means that you must not cover the appliance.

WARNING, to avoid overheating, do not cover the fan heater.

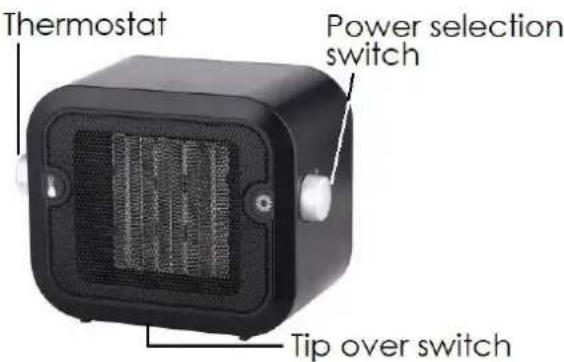

COMPOSITION:

TECHNICAL SPECIFICATIONS

Model No.	THSFC15 / THSFC15B / THSFC15R
Item	Ceramic design fan heater	Power level (mode I)	750 W
Voltage:	220-240V~ 50Hz	Power level (mode II)	1500 W

CLASS II

This product conforms to the requirements set by directives 2014/35/EC (repealing directive 73/23/EEC amended by directive 93/68/EEC) and 2014/30/EC (repealing directive 89/336/EEC)

USING THE HEATER:

DO NOT USE THIS HEATER IN A BATHROOM.

1. Before using this appliance, ensure that it is placed on a flat, stable surface.
   This appliance is equipped with an anti-tripping switch that switches the appliance off in the event that it tips over and is not placed on a stable surface.
2. Check that the voltage corresponds to that of the power supply (230v mains socket) Once the appliance is plugged in, turn the thermostat dial and heater will switch on.
3. Turn the thermostat dial in a clockwise direction towards "MAX", then turn the "0" dial towards "to activate the ventilator motor. Check that everything is working correctly.
4. Turn the function setting switch from "I" to "II" to select your chosen temperature. (Hot/Very hot)

To set the power, turn the dial towards:

$$ \mathbf {0} = \text { Off } $$

$$ Ⓧ = \text { ventilation } $$

$$ \mathbf {I} = \text { h o t } $$

$$ \mathbf {I I} = \text { very hot } $$

1. After reached the desired temperature, to maintain the temperature: turn the thermostat knob counterclockwise until you hear the small "click" sound. The desired temperature will be kept constant by the thermostat function.

2. The heater comprises a protection device protecting against overheating. If the fan heater overheats, a temperature limiting system inside the appliance will automatically cut the power supply. The appliance can re-start as soon as the normal conditions and temperature needed for it to function are re-established. Identify the causes of this overheating to avoid any recurrences.

3. Before switching off the heater, select the ventilation function for 2 minutes to cool the appliance before returning the 2 buttons to their initial position: "0" and "MIN. And then unplug it.

PRECAUTIONS FOR USE AND MAINTENANCE:

1. Always unplug the appliance and keep it away from any socket before cleaning.
   To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly with a soft, dry cloth before using again.
   Do not use any cleaning or chemical products of any kind. Do not let water enter the openings on the heater.

2. When the appliance is not being used for prolonged periods, ensure that it is fully unplugged from the socket and store in its packaging for simple storage and later use.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or unauthorized repair;
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

Information requirements for electric local space heaters

Model identifier(s): THSFC15 / THSFC15B / THSFC15R
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,5	kW		manual heat charge control, with integrated thermostat	no
Minimum heat output(indicative)	P_min	0,0194	kW		manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	P_max,c	1,5	kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output	no
At nominal heat output	eI_max	N/A	kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	N/A	kW		single stage heat output and no room temperature control	no
In standby mode	eI_SB	N/A	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	yes
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	SCHNEIDER CONSUMER GROUP12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

KEEP THESE INSTRUCTIONS

Imported by SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE
