Product type	Mobile turbo convector
Brand	Thomson
Model	THCVT001T
Color	Silver
Power supply	230 V ~ 50 Hz
Rated power	2000 W (max)
Available power levels	800 W, 1200 W, 2000 W
Main functions	Convection with turbo, adjustable thermostat, overheat protection
Controls	On/off switches, power selection, turbo; rotary thermostat
Protection class	Class I (earthing required)
Dimensions	Not specified in the manual
Weight	Not specified in the manual
Maintenance and cleaning	Unplug before cleaning; use a damp cloth, no detergents
Safety	Overheat protection, do not cover, keep away from children and flammable surfaces
Intended use	Domestic indoor use, well-insulated room
Included accessories	Feet and mounting screws
Warranty	Does not cover normal wear or damage due to misuse
General information	Compliant with directives 2014/35/EU and 2014/30/EU

Frequently Asked Questions - THCVT001T THOMSON

How to attach the feet of the THCVT001T heater?

Turn the heater over, insert the screws inside the feet and fix them under the base at the designated locations. Refer to the Mounting section of the manual.

What are the available power levels on this convector?

The appliance offers three levels: 800 W (switch I), 1200 W (switch II) and 2000 W (switches I+II). A turbo switch activates the fan.

How to set the desired temperature?

Turn the thermostat knob clockwise to increase the temperature, or counterclockwise to decrease it. To maintain a constant temperature, reduce the thermostat until the indicator light goes out.

Can I use this heater in a bathroom?

No, the appliance must not be used near a bathtub, shower, or swimming pool. It is designed for domestic indoor use only, in a well-ventilated room.

What to do if the appliance does not heat?

Check that the appliance is plugged into a 230 V earthed socket, the power switches are pressed, and the thermostat is not at the minimum position. If the problem persists, contact after-sales service.

How to clean the convector?

Unplug the appliance and let it cool down. Clean the exterior surface with a slightly damp cloth, then dry with a soft cloth. Do not use any detergents or chemicals.

Can I cover the heater?

No, never cover the appliance while it is operating. This could cause overheating and a fire risk. The symbol DO NOT COVER is present on the appliance.

Does the appliance need to be earthed?

Yes, this appliance is class I and must be plugged into a properly earthed wall socket. The earth connection reduces the risk of electric shock in case of a short circuit.

What are the safety tips for children?

Children under 3 years must be kept away unless continuously supervised. Children aged 3 to 8 may only turn the appliance on/off, but must not plug it in, adjust it, or clean it. Some parts become very hot.

How to store the heater when not in use?

Ensure it is unplugged and completely cooled down. Clean it as indicated, then store it in its original packaging to protect from dust and shocks.

USER MANUAL THCVT001T THOMSON

Exterior view of a modern electric heater with heat exchanger and ventilation slots (no text or symbols visible)

LIRE ATTENTIVEMENT LES INSTRUCTIONS

Exterior view of a modern electric heater with cooling fins and ventilation slots (no text or symbols visible)

CAREFULLY READ THESE INSTRUCTIONS

This product is only suitable for well insulated spaces or occasional use.

SAFETY RECOMMENDATIONS:

Caution! The heater should be switched on only when the foots are fully secured.

1. Read the instructions before using the appliance for the first time.
2. The appliance must be installed following national regulations for use.
3. It is necessary to be vigilant and supervise the appliance while children are close by.
4. This appliance is only designed for domestic and indoor use. Do not use outdoors. Use the heater only as indicated in the instructions. Any other use that does not conform to the supplier's instructions may cause material damage or personal injury
5. Any other use not in accordance with manufacturer's instructions may result in property damage or personal injury. Do not use this appliance for other purposes than intended by the manufacturer.
6. Use this appliance in a well aerated and ventilated room. Do not cover the appliance or air flow.
7. Never try to remove the control knobs, push objects into the ventilation. The manufacturer cannot be held responsible.
8. Do not leave this appliance unsupervised while it is on. When not being used, always ensure that the product is securely in the 'Off' position (O) and unplugged from the socket.
9. Great care must be taken when being used by or in the presence of children of older persons.
10. If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to avoid any hazards.
11. Do not place the cable under a carpet or any heavy object, and do not cover.
12. To avoid accidents, keep away from areas where people may trip. Do not place on unstable surfaces
13. To avoid any risk of fire or electric shock, it is essential that the appliance not be exposed to rain or moisture, and not be opened. The appliance

contains electric parts that may electrocute or burn you.

1. Do not place this appliance close to flammable fabrics, surfaces or liquids in order to avoid any risk of fire. Keep it well away from any source at risk of causing hazards and maintain it at a safe distance (whether this is the front, rear or sides). Do not use this appliance in locations such as garages, warehouses etc. where dangerous or flammable products are stored (paint, fuel, alcohol etc.).

2. The appliance must not be placed just underneath an electric socket.

3. This product is hot when it is on. To avoid any injuries or burns, do not touch it directly and use gloves or other means.

4. Do not use this heating appliance close to a bath, shower or swimming pool

5. Check that the voltage corresponds to that of the power supply (230v mains socket) To avoid any risk of electric shock, plug the appliance in with the pins fitted correctly into the socket.

6. In the event that you need an extension cable, ensure that it is suitable for the appliance's power level.

7. While the appliance remains plugged into the socket (wall socket) it is not disconnected from the power supply, even if it is switched off. The appliance must be completely unplugged before cleaning, services, maintenance or even moving from one place to another.

8. The power socket must always be equipped with an earth connection. If you domestic electrical installation is not earthed, you should not connect the appliance.

9. WARNING: To avoid overheating, do not cover the heater.

10. Appliances are not designed to be used in conjunction with a separate timer or with a control system used at a distance.

11. This device can be used by children with at least 8 years old and people with reduced physical, sensory

or mental capabilities or lack of experience or knowledge, if they are properly monitored (s) or given to them instructions for using the machine safely and if the risks were apprehended. Children should not play with the appliance. Cleaning and user maintenance should not be performed by children unattended.

1. Children of less than 3 years should be kept away unless continuously supervised.

2. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

3. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

4. For domestic & indoor use only. This product must be installed according to national fittings standards.

5. WARNING: To avoid overheating, do not cover the heater.

This symbol means: WARNING: DO NOT COVER

1. Regarding detailed information on how to attach the feet to the heater, refer to the section "ASSEMBLY"

2. Regarding detailed information on how to clean and maintain the heater, refer to the section "CLEANING AND MAINTENANCE"

Warning: Plug the appliance in correctly and do not leave within reach of children without supervision.

EARTHING

This appliance must be earthed. This appliance is equipped with an earthed plug.

It must be plugged into a correctly installed and earthed wall socket.

WARNING: Incorrect use of the earth connection can lead to the risk of electric shock.

Notes: If you have any questions regarding earthing or connecting to a power supply, please consult a qualified person.

In the event of short-circuit, earthing reduces the risk of electric shock by enabling the current to escape through the earth cable.

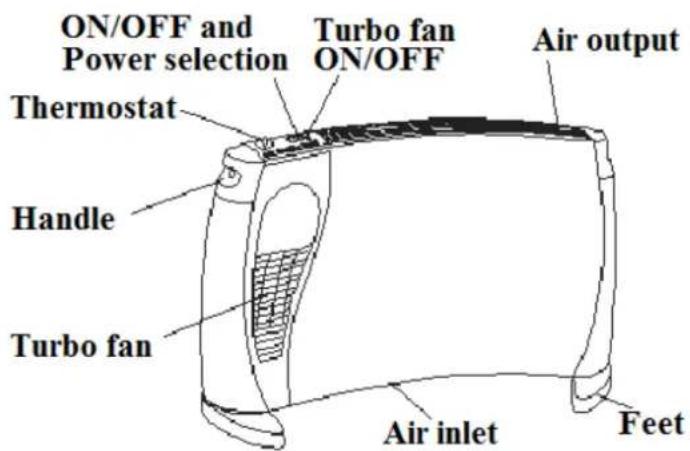

COMPOSITION :

ASSEMBLY :

Unpack the heater and accessories.

A. Turn the convector upside-down
B. Place the two feet and tighten the screws
C. Turn the convector to the upright position

TECHNICAL SPECIFICATIONS

Model N° :	THCVT001T	Power (mode I)	800 W
Description :	Silver portable Turbo convection heater	Power (mode II)	1 200 W
Voltage :	230V~ 50Hz	Power (mode I + II)	2 000 W

CLASS 1

This product conforms to the requirements set by directives 2014/35/EC (repealing directive 73/23/EEC amended by directive 93/68/EEC) and 2014/30/EC (repealing directive 89/336/EEC)

OPERATING:

PRECAUTIONS FOR USE

1. Before using this appliance, ensure that it is placed on a flat, stable surface.
2. Place the heater at least 90cm from the wall, furniture or curtains.
3. Check that the voltage corresponds to that of the power supply (230v mains socket)
4. Leave the heater to cool and unplug it before moving it, and use the handle to move it.

USING THE HEATER

1. The switches control the thermostat and power selection should be on the OFF position, connect the radiator to the socket.

2. Switch on the heater on one of the following positions:

3. Press the switch (I): 800 W

4. Press the switch (II): 1200 W
5. Press the switch (I + II): 2000 W
6. Press the "turbo" switch to activate the fan.
7. The power switch will illuminate when the heater is operating.
8. The ambient temperature can be set by the thermostat. Turn the thermostat knob in the direction of clockwise to increase the temperature, or counterclockwise to decrease, until the desired temperature.
9. After reached the desired temperature, to maintain the temperature: turn the thermostat knob counterclockwise until the light turns off. The desired temperature will be kept constant by the thermostat function.
10. When not using this heater, return the 2 switches to their initial position: "0" and "MIN", and then unplug it.
11. The heating system has a protection device against overheating.
12. Do not cover or place any object on the radiator during operation.

CLEANING AND MAINTENANCE

1. Always unplug the appliance and keep it away from any socket before cleaning.
2. To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly with a soft, dry cloth before using again.
3. Do not use any cleaning or chemical products of any kind. Do not let water enter the openings on the heater. Do not use wax or products that create a shine as they can react to heat and cause discoloration.
4. When the appliance is not being used for prolonged periods, ensure that it is fully unplugged from the socket and store in its packaging for simple storage and later use. Clean your radiator as mentioned above.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling

of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair;
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.
The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

Model identifier: THCVT001T

Item		Symbol		Value	Unit		Item	Unit
	Heat output						Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output		Pnom		1,973	kW		manual heat charge control, with integrated thermostat	no
Minimum heat output (indicative)		P_min		0,0	kW		manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output		Pmax,c		1,973	kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption							fan assisted heat output	no
At nominal heat output		el_max		N/A	kW		Type of heat output/room temperature control (select one)
At minimum heat output		el_min		N/A	kW		single stage heat output and no room temperature control	no
In standby mode		el_SB		N/A	kW		Two or more manual stages, no room temperature control	no
							with mechanic thermostat room temperature control	yes
							with electronic room temperature control	no
							electronic room temperature control plus day timer	no
							electronic room temperature control plus week timer	no
							Other control options (multiple selections possible)
							room temperature control, with presence detection	no
							room temperature control, with open window detection	no
							with distance control option	no
							with adaptive start control	no
							with working time limitation	no
							with black bulb sensor	no
Contact details			SCHNEIDER CONSUMER GROUP12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

KEEP THESE INSTRUCTIONS

Imported by SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

THOMSON is a trademark of Technicolor SA used under license by
