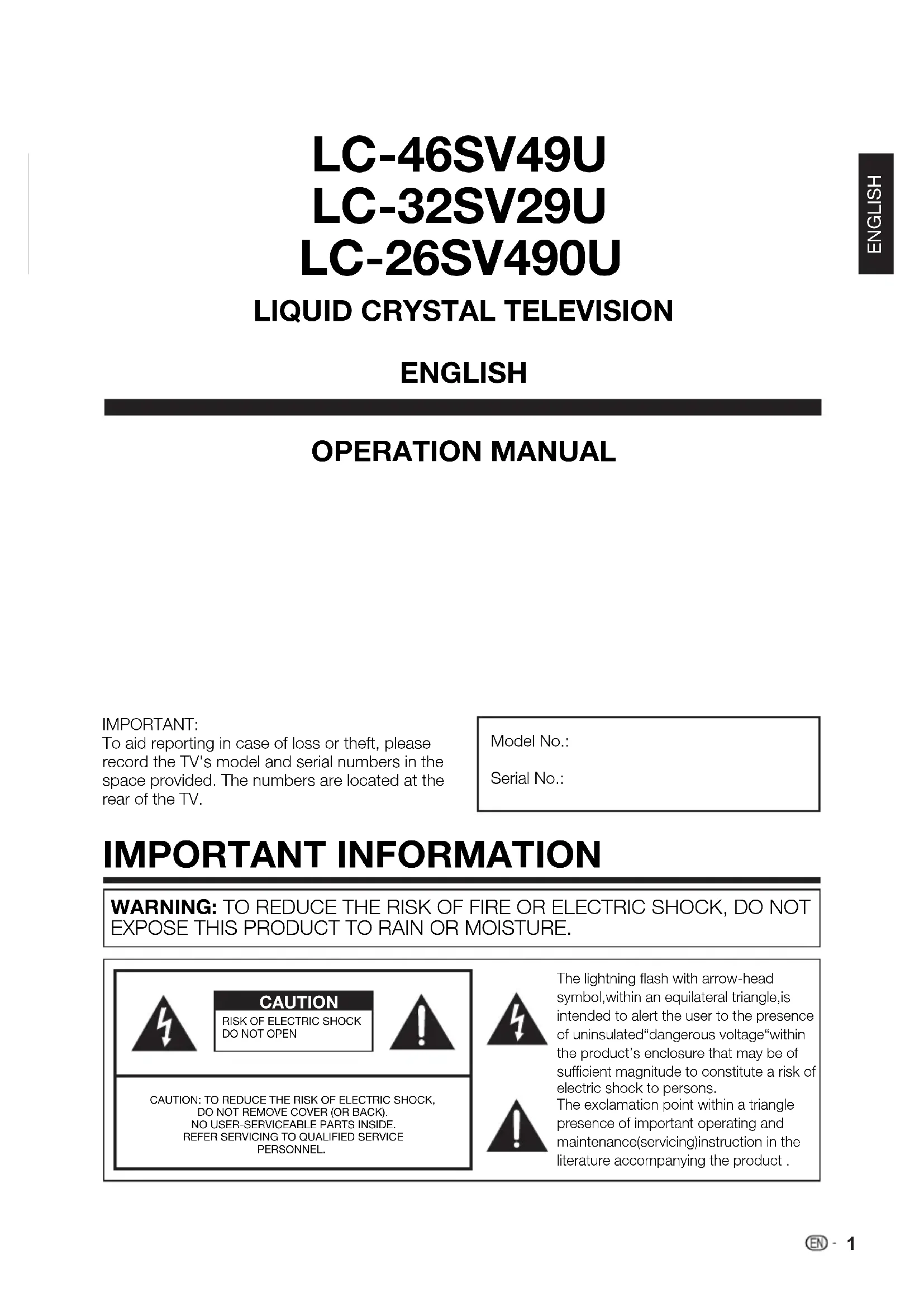

LC-32SV29U LC-46SV49U OPERATION MANUAL IMPORTANT:To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space provided. The numbers are located at the rear of the TV.Model No.:Serial No.:

EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICEPERSONNEL.The lightning flash with arrow-headsymbol,within an equilateral triangle,isintended to alert the user to the presenceRIXQLQVXODWHGqGDQJHURXVYROWDJHqZLWKLQWKHSURGXFWpVHQFORVXUHWKDWPD\EHRIsufficient magnitude to constitute a risk ofelectric shock to persons.The exclamation point within a triangle presence of important operating andmaintenance(servicing)instruction in theliterature accompanying the product .

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the userps authority to operate this equipment. CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections. DECLARATION OF CONFORMITY: SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-32SV29U/LC-46SV49U/LC-26SV490U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RESPONSIBLE PARTY:

For Business Customers: URL http://www.sharpusa.com INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: u5HRULHQWRUrelocate the receiving antenna. u,QFrease the separation between the equipment and receiver. u Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. u&RQVXOWWKHGHDOHURUDQH[SHULHQFHGUDGLR79WHFKQLFLDQIRUKHOS Note to CATV system installer: This reminder is provided to call the CATV system installerps attention to Article 820 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. This product qualifies for ENERGY ST$5ZKHQq+RPHrLVVHOHFWHGIRUq/RFDWLRQr 6HWWLQJq/RFDWLRQrWRq+RPHrDOORZVWKH79WRDFKLHYHDQHQHUJ\VDYLQJVWDWXVIRUKRXVHKROG use. HDMI,the HDMI logo,and High-Definition Multimedia Interface are trademarks or Manufactured under license from Dolby Laboratories.Dolby and the double-D symbol are trademarks of Dolby Laboratories. Products that have earned the ENERGY STAR are designed to protect the enviroment through superior energy efficiency. registered trademarks of HDMI Licensing LLC in the United States and other countries. CAUTION: TO PREVENT ELECTRIC SHOCK,MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. This product utilizes fluorescent lamp containing a small amount of mercury LC-46SV49U/ LC-32SV29U. Disposal of these materials may be regulated due to environmental consider ations. For disposal or recycling information,please contact your local authorities,the Electronic Industries Alliance:www.eiae.org,the lamp recycling organization: (For U.S.A only) www.lamprecycle.org or Sharp at 1-800-BE-SHARP

IMPORTANT INFORMATION3 Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Instructions carefully before using this product.

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can rHVXOWLQHOHFWULFVKRFNDQGRUÛre. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully before using the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions..

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

LQFOXGLQJDPSOLÛHUVWKDWSroduce heat.

9) Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

12) Unplug this apparatus during lightning storms or when unused for long periods of

13) 5HIHUDOOVHUYLFLQJWRTXDOLÛHGVHUYLFHSHUVRQQHO6HUYLFLQJLVrequired when the apparatus has

been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Additional Safety Information

14) 3RZHU6RXrFHVu7KLVSroduct should be operated only from the type of power source indicated

on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

15) 2YHUORDGLQJu'RQRWRYHUORDGZDOORXWOHWVH[WHQVLRQFRrds, or integral convenience receptacles

as this can rHVXOWLQDULVNRIÛre or electric shock.

16) 2EMHFWDQG/LTXLG(QWU\u1HYHUSXVKREMHFWVRIDQ\NLQGLQWRWKLVSroduct through openings as

they may touch dangerous voltage points or short-out parts that could rHVXOWLQDÛre or electric VKRFN1HYHUVSLOOOLTXLGRIDQ\NLQGRQWKHSroduct.4

WHFKQLFLDQWRSHUIRUPVDIHW\FKHFNVWRGHWHUPLQHWKDWWKHSrRGXFWLVLQSrRSHURSHUDWLQJ FRQGLWLRQ

CHILD SAFETY It Makes A Difference How and Where You Use Your Flat Panel Display Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind: THE ISSUE The home theater entertainment experience is a growing trend and larger s

ÜDWSDQHOGLVSOD\VDUHSRSXODUSXUFKDVHV+RZHYHUÜDWSDQHOGLVSOD\VDUH

not always supported on the proper stands or installed according to the PDQXIDFWXUHUpVUHFRPPHQGDWLRQV Flat panel displays that are inappropriately situated on dressers, bookcases, s VKHOYHVGHVNVVSHDNHUVFKHVWVRUFDUWVPD\IDOORYHUDQGFDXVHLQMXU\ THIS MANUFACTURER CARES! The consumer electronics industry is committed to making home s HQWHUWDLQPHQWHQMR\DEOHDQGVDIH

DGYRFDFy, market research, technical training and education, industry promotion and the fostering of business and strategic rHODWLRQVKLSV IMPORTANT SAFETY INSTRUCTIONSAlways use the AC cord supplied with the TV. The illustrations above are for explanation purposes and may vary slightly from the actual accessories. Make sure the following accessories are provided with the product. Remote control unit

Attaching/Detaching the Stand Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal. Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged. CAUTION Attach the stand in the correct direction. Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over. Put the TV face down on a safe surface that is covered by a soft and smooth cloth.1. Adjust the TV stand to the bottom of the TV.2. Fasten the screws by using a cross-head screwdriver (Not supplied).3. CAUTION Do not push too hard or put excessive pressure to the stand neck to avoid the damages when you turn the TV for the most comfortable viewing angle. To detach the stand, perform the steps in reverse order. 46’’ 32’’ 26’’

Please use care when disassembling cabinet, stand, and pillar for wall s mounting. Detach the stand neck in the correct direction.s Do not remove the stand neck from the TV unless using an optional wall mounts bracket to mount it. Loosen the 4 screws that secure the stand neck by using a cross-head screwdriver. 1. Remove stand cover from the TV set. To attach the stand neck, perform the steps in reverse order.s Do not force or overtighten and do not install without stand covers.s

QUICK REFERENCE Detaching the stand neck for wall mounting Stand Cover LC-46SV49UQuick Installation Tips Attach your antenna to the back of the television. (See page 12.) How to turn on the television for the first time. A) Press POWER on the television. B) The POWER indicator on the front of the television lights off. Connect the AC plug for the television into the AC outlet. Speakers cannot be detached from the s TV. Place the TV close to the AC outlet, and s keep the power plug within reach. This product must only be connected to s a 120V, 60Hz AC outlet. Connecting it to any other kind of outlet will damage the product and invalidate the warranty. TO PREVENT RISK OF ELECTRIC s

Using the Remote Control Unit Use the remote control unit by pointing it towards the remote control sensor on the TV. Objects between the remote control unit and the remote control sensor may prevent proper operation.

Cautions regarding the remote control unit Do not expose the remote control unit s to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity. Do not install or place the remote controls unit under direct sunlight. The heat may cause deformation of the remote control unit. The remote control unit may not work s properly if the remote control sensor on the TV is under direct sunlight or strong lighting. In such cases, change the angle of the lighting or the TV, or operate the remote control unit closer to the remote control sensor. IMPORTANT: If the POWER indicator light on the television still does not turn off, press POWER on the remote control to turn the power on. IMPORTANT: IF THE UNIT DOES NOT POWER ON - UNPLUG THE TELEVISION FROM THE OUTLET AND REPEAT THE INSTALLATION STEPS. IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP. QUICK REFERENCE

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector, plug it into the antenna terminal at the rear of the TV set. A 75-ohm system is generally a round 1. cable with F-type connector that can easily be attached to a terminal without tools (Commercially available). $RKPV\VWHPLVDÜDWqWZLQOHDGr2. cable that can be attached to a 75-ohm terminal through a 300/75-ohm adapter (Commercially available). When connecting the RF cable to the TV set, do not tighten F-type connector with tools. If tools are used, it may cause damage to your TV set. (The breaking of internal circuit, etc.) Connecting Antenna Cable Connect the antenna cable to the TV using one of the methods in the illustration as s shown (

VHF/UHF antenna2 Combination VHF/UHF antenna3 Separate VHF/UHF antenna4 To TV antenna terminal Antennas Preparation13 Installing Batteries in the Remote Control Unit CAUTION Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below. Do not mix batteries of different types. Different types of batteries have different s characteristics. Do not mix old and new batteries. Mixing old and new batteries can shorten the life of s new batteries or cause chemical leakage in old batteries. Remove batteries as soon as they are worn out. Chemicals that leak from batteries s

FRPHLQFRQWDFWZLWKVNLQFDQFDXVHDUDVK,I\RXÛQGDQ\FKHPLFDOOHDNDJHZLSH

thoroughly with a cloth. The batteries supplied with this product may have a shorter life expectancy due to s storage conditions. ,I\RXZLOOQRWEHXVLQJWKHUHPRWHFRQWUROXQLWIRUDQH[WHQGHGSHULRGRIWLPHUHPRYHs batteries from it. The batteries (batteries installed) shall not be exposed to excessive heat such as s VXQVKLQHÛUHRUWKHOLNH 1 Open the battery cover. Place the batteries with their terminals s corresponding to the (

Part Names TV (Front)Part Names When using the remote control unit, s point it at the TV. POWER:

DISPLAY: Display the current channel (or input source) information on the screen.

/ : Select the channel. (See page 25.) VIEW MODE: Select the Picture Mode. (See page 28.) FLASHBACK: Press to switch to the previously tuned channel or external input mode. Press again to switch back to the currently tuned channel or external input mode. SLEEP:25 Allows you to set a time when the TV automatically switches to standby. This display will disappear after a few seconds, and the sleep timer automatically starts counting down. (See page 25.) RETURN: Return to the previous menu screen.

POWER MUTE: Mute the sound. (See page 25.) TV: Direct switch TV source. USB: Direct switch USB source. CC: Display captions during closed-caption source.(See page 27.) :Only for USB . 2 0–9: Set the channel.

FAVORITE CH: A, B, C, D: Select 4 preset favorite channels in 4 different categories. (See page 34 for details.) While watching, you can toggle the selected channels by pressing A, B, C and D. AV MODE: Select an adjusted picture settings. ( Standard, Movie, Power Saver User, Dynamic) (See page 26.)

PC: Direct switch PC source.

Remote Control UnitAn HDTV without an HD source is just an ordinary TV. To enjoy HD images on the TV, you should get HD programming from the following: Over-the-air broadcasting via HD quality antenna HD cable/satellite subscription HD compatible external equipment For information on updating to HD programming, ask your cable/satellite service provider. Types of Connection Image quality differs depending on the terminal used. To enjoy clearer images, check the output terminals of your external equipment and use its appropriate terminals for higher For connecting the TV to external equipment, use commercially available cables. The illustrations of the terminals are for explanation purposes and may vary slightly from the actual products.

Introduction to Connections Experiencing HD ImagesConnecting to External Equipment

Press INPUT. The CH List screen displays.

Press / to select the input source. You can also select the input source by pressing INPUT. Each time INPUT the input source toggles.

INPUT1 INPUT2 INPUT3INPUT4TV

An image from the selected source automatically displays.

ExampleExample To view external source images, select the input source by pressing INPUT on the remote INPUT control unit or on the TV. is pressed, INPUT

PC IN Input HDMI1 HDMI2 HDMI3 COMP/AV USB Displaying an External Equipment Image DisplayYou can connect many types of external equipment to your TV. To view external source images, select the input source from INPUT on the remote control unit or on the TV. available cables. CAUTION

• To protect equipment, always turn off the TV before connecting any external equipment.

• Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections. Connecting a Blu-ray Disc/DVD Player or HD Cable/Satellite Set-top Box When using HDMI cable (INPUT 1, 2, or 3): The HDMI (High Definition Multimedia Interface) terminal is an audio-video interface that enables a connection for audio and video signals using a single cable. The HDMI terminal supports high-resolution video input.

• Blu-ray disc player • DVD player

• HD cable/satellite set-top box

• To enjoy 1080p display capability, connect your external equipment using an HDMI-certified cable or a component cable and set the equipment to 1080p output.

• When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to connecting a DVI-HDMI conversion cable to the INPUT 1,2,3(HDMI) terminal,

(See pages 18 and 25.)For connecting the TV to external equipment, use commercially INPUT 1 terminal (HDMI) USB

Connecting to External EquipmentWhen using Component cable (INPUT 4):

• To enjoy 1080p display capability, connect your external equipment using an HDMI-certified cable or a component cable and set the equipment to 1080p output.

• See page 19 for connecting a Blu-ray disc player, DVD player or an HD cable/satellite set-top box to the HDMI terminal. Connecting a Game Console, VCR, Camcorder or Cable/Satellite Set-top Box When using Composite cable (INPUT 4):

• Cable/Satellite set-top box COMPONENT OUTAUDIO-R (Red)AUDIO-L (White)Y (Green)

(Red)Audio cableComponent video cableBack panel vertical inputsBack panel vertical inputsAUDIO-R (Red)AUDIO-L (White)VIDEO (Yellow)AUDIO-R (Red)AUDIO-L (White)VIDEO (Yellow)

Connecting to External EquipmentConnecting an Audio Amplifier When using coaxial cable: It is possible to output audio through the DIGITAL AUDIO terminal.PCM audio outputs from the terminal. Connecting an AV Amplifier

• If the image is not in sync with the audio, check the settings of the connected surround system.

Connecting to External EquipmentRefer to page 46 for a list of PC signals compatible with the TV. When using HDMI cable (INPUT 1, 2 or 3):

• When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to connecting a DVI-HDMI conversion cable to the INPUT 1,2,3 (HDMI) terminal, connect

Connecting to External Equipment Connecting a PCWhen you turn on the TV for the first time, the Initial Setup will guide you through the setup process. Perform the following steps before you press POWER on the remote control unit. Insert the batteries into the remote 1. control unit. (See page 13.) Connect the antenna cable to the TV. 2. (See page 12.) Plug in the AC cord to the AC outlet. 3

(See page 10.) Initial Setup1. The Initial Setup screen display at • the first use. Press ENTER to start the initial setup. Language setting2. Select the OSD menu language • from English, Spanish, or French. Press• to select the desired language listed on the screen, and then press the button to the Press POWER on the TV, or POWER on the remote control unit to turn the power on. POWER indicator : Power on,nothing;Power off,red. s Press POWER on the TV, or POWER on the remote control unit again to turn the power off. The TV enters standby and the image on the screen s disappears. s If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the AC outlet. s6PDOODPRXQt of electric power is still consumed even when the TV is turned off. s Ifthere is no signal input for 5 minutes, the power will turn to standby mode automatically. POWER INPUT

Turning On/Off the Power Initial Setup Watching TV Initial Setup Welcome Please press [ENTER] to start the wizard. Thank you for your purchase of our SHARP Liquid Crystal Television. Initial Setup Language Please select your Language: Back Select Next Return Exit English Españpl Français3. Location setting Press• WRVHOHFWq+RPHrRU q6WRUHrDQGSUHVV WRWKHQH[W VWHS

8. Initial setup completed

6. Channel scan setting

Watching TV Initial Setup Time Zone Please select your time zone:Eastem TimeCentral TimeIndianaMountain TimePacific TimeArizonaHawaiiAlaska Initial Setup Location Home StoreSelect where the TV will be placed.The picture will be optimized forthat location. This productqualifies for ENERGY STAR inHome mode default setting. Back Select NextReturn Exit Back Select NextReturn Exit Initial Setup Tuner Air CablePlease select your tuner mode: Back Select NextReturn Exit Initial Setup Channel Scan Scan Skip ScanFirst,please connect cable and/orantenna.Start channel scan now?If you skip this step,the channelscan could be performed in Menu. Back Select NextReturn Exit Initial Setup Channel ScanReturnCancelThe channel scan may take a while to complete.Status: Scanning...Analog Channels: 0Digital Channels: 0 12% Initial Setup Complete Congratulations!!Completed Initial Setup.Please press [ENTER] to exit the wizard. BackAn image from the selected source • automatically displays. Each time • INPUT is pressed, the input source toggles. If you press • to select the input source, press ENTER to confirm your selection. connection. MUTE Mutes the current sound output. Press MUTE. Mute can be canceled by using the s method below. - Mute will be canceled if you press VOL

or MUTE. SLEEP Allows you to set a time when the TV automatically switches to standby. Press SLEEP. The remaining time displays when • the sleep timer has been set. Each time you press • SLEEP, the remaining time switches as shown below. Off, 10, 20, 30, 40, 50, 60, 90, 120 When set, the time automatically • starts counting down. If you want to adjust the sleep • timer, you can press SLEEP twice then change the time setting. Selects "Off" by pressing SLEEP to cancel the sleep timer. The TV will enter standby mode (power s indicator lights red) when the remaining time reaches zero. Changing Channels You can change channels by pressing CH or 0-9, or • (DOT). Examples: To select a 1 or 2-digit channel number (e. g., Channel 5): Press 5 ENT. To select a 3-digit channel number (e. g., Channel 115): Press 1 1 5 ENT. To select a 4-digit channel number (e. g., Channel 22.1): Press 2 2 • (DOT) 1 ENT. When selecting a 1-digit channel s number, it is not necessary to press 0 before the number. Changing Volume You can change the volume by pressing VOL on the TV or on the remote control unit. To increase the volume, press • VOL . To decrease the volume, press • VOL . INPUT To view external source images, select the input source using INPUT on the remote control unit or INPUT on the TV. Press1. INPUT. A list of selectable sources • appears. Press2. INPUT again to select the input source. INPUT

Ÿ/ź s See page 19-22 for external equipment

Direct Button Operation

+FLASHBACK Press FLASHBACK to switch to the previously tuned channel or input. Press• FLASHBACK again to switch back to the currently tuned channel or input. SURROUND The surround function produces Surround effect from the speakers. Each time you press SURROUND, the mode changes between On and Off.

• On: Makes it possible to enjoy natural, realistic surround sound.

• Off: Outputs the normal sound. You can have the same settings by s FKRRVLQJq6XUURXQGrRQWKHPHQX items. (See page 33.) FREEZE Allows you to capture and freeze a moving image that you are watching. Press FREEZE. A moving image is captured.• Press• FREEZE again to cancel the function AV MODE AV MODE gives you several viewing options to choose from to best match the surrounding environment of the TV, which can vary due to factors like room brightness, type of program watched or the type of image input from external equipment. Press AV MODE. Current AV MODE displays. Press• AV MODE again before the mode displayed on the screen disappears. AUDIO

MTS/SAP stereo mode The TV has a feature that allows reception of sound other than the main audio for the program. This feature is called Multi- channel Television Sound (MTS). The TV with MTS can receive mono sound, stereo sound and Secondary Audio Programs (SAP). The SAP feature allows a TV station to broadcast other information, which could be audio in another language or something completely different like weather information. You can enjoy Hi-Fi stereo sound or SAP broadcasts when available. Stereo broadcasts: • View programs like live sporting events, shows and concerts in dynamic stereo sound. SAP broadcasts: • Receive TV broadcasts in either MAIN or SAP sound. MAIN sound: The normal program soundtrack (either in mono or stereo). SAP sound: Listen to a second language, supplementary commentary or other information. (SAP is mono sound.) If stereo sound is difficult to hear. Obtain a clearer sound by manually • switching to fixed mono-sound mode. You can change MTS as shown below to match the television broadcast signal. Press AUDIO to toggle between audio modes. Examples: when receiving MTS and SAP MAIN + SAP mode: MAIN SAP MONO mode: MONO

Direct Button OperationŶ Digital broadcasting audio mode The types of audio transmitted in a digital broadcast include SURROUND as well as MONO and STEREO. In addition, it is possible for multiple audio tracks to accompany a single video track. Press MTS/SAP to toggle between audio modes. Example: when receiving Digital broadcasting STEREO (Audio1) STEREO (Audio2) SURROUND (Audio3) MTS only operates while in TV mode. Closed Captions (CC) Your TV is equipped with an internal Closed Caption decoder. It allows you to view conversations, narration and sound effects as subtitles on your TV. Closed Captions are available on some TV programs and on some VHS home video tapes at the discretion of the program provider. Digital Closed Caption service is a new caption service available only on digital TV programs (also at the discretion of

WKHVHUYLFHSURYLGHU,WLVDPRUHÜH[LEOH

system than the original Closed Caption system, because it allows for a variety of caption sizes and font styles. When the Digital Closed Caption service is in use, it will be indicated by the appearance of a 3-letter abbreviation that also indicates the language of the Digital Closed Captions: ENG (English), SPA (Spanish), FRA (French) or other language codes. Not all programs and VHS videotapes offer closed captions. In the Closed Caption system, there can be more than one caption service

SURYLGHG(DFKLVLGHQWLÛHGE\LWVRZQ

QXPEHU7KHq&&rWRq&&rVHUYLFHV display subtitles of TV programs superimposed over the program's picture. In the Closed &DSWLRQV\VWHPWKHq7(;7r WRq7(;7rVHUYLFHVGLVSOD\WH[WWKDWLV unrelated to the program being viewed (e.g., weather or news). These services are also superimposed over the program currently being viewed. Press1. CC. This will display the current Closed Caption information. Press CC to turn the Closed Caption on or off. Caption Display will not work when YLHZLQJDLSSLRU SLQSXWYLDWKH&20321(17 Y-PbPr or HDMI inputs. Closed Captions availability and content depends on the broadcaster. Closed Caption are available when the Closed Caption icon is displayed on screen. Closed Captions and Digital Captions availability and content depends on the broadcaster. Closed Caption are available when the Closed Caption icon is displayed on screen

Direct Button OperationYou can select the screen size.

Press VIEW MODE. The View Mode menu displays. The menu lists the View Mode options selectable for the type of video signal currently being received.

Press VIEW MODE or / while the View Mode menu is displayed to select a desired item on the menu. You can sequentially select a View Mode that has its own aspect ratio. For 4:3 programs Example: Screen size images For HD programs Stretch: Suitable for viewing wide-screen 1.78:1 aspect ratio program, stretch mode will still show very thin black bands at the top and bottom of the screen. Full Screen (720p only): You can select “Full Screen” only when receiving a 720p signal. S.Stretch (Smart stretch): Suitable for stretching 4:3 programs to fill the screen. Zoom: Suitable for viewing wide-screen 2.35:1 aspect-ratio programs in full screen. When using Dot by Dot or Full Screen, it is possible to see noise or bars around different outer portions of the screen, Please change view mode to correct this. For PC input mode Connect the PC before making adjustments. Selectable screen size may vary with input signal type. Example: Screen size images

hctertSmooZ)hctertstramS(hctertS.SSuitable for viewing conventional 4:3 programs in their normal format.Suitable for stretching 4:3 programs to fill the screen.Suitable for viewing wide-screen 2.35:1 anamorphic DVDs in full screen.This mode is useful for 1.78:1 DVDs. When viewing 1.85:1 DVDs, stretch mode will still show very thin black bands at the top and bottom of the screen.Normal Dot by Dot (1080i/p only):Detects the resolution of the signal and displays an image with the same number of pixels on the screen. Input signal Normal Cinema 4:3 Keeps the original aspect ratio in a full screen display.For viewing widescreenprograms. The top and bottom of the image is cropped.An image fully fills the screen.Detects the resolution of the signal and displays an image with the same number of pixels on the screen.Input signal16:9 An image fully fills the screen.Detects the resolution of the signal and displays an image withthe same number of pixels on the screen.Full Screen Dot by DotDot by DotNormal

On-Screen Display Menu Menu ItemsItem displayed in yellow This indicates the item currently • selected. Press• to go to the adjustment screen for this item. Item displayed in blue This indicates that the item can be • selected. Item displayed in box This indicates the item currently • selected. Menu options differ in the selected input s modes, but the operating procedures are the same. Press to enter the desired item or return to the upper level menu. Press to select the desired item. Press to adjust the item. Ż / Ź

The bar above is an operational guide for the remote control. The bar will change in accordance with each menu setting screen. Video Adjust Select Return Back EnterUsing the remote control Use the following buttons on the remote control to operate the menu. MENU : Press to open or close the menu screen. : Press to select a desired item on the screen or adjust a selected item. ENTER: Press to go to the next step or complete the setting. RETURN: Press to return to the previous step. Using the control panel of the main unit You can also operate the menu with the control panel of the main unit. Button operations on the control panel correspond to the ones on the remote control as shown below. Adjusts the picture to your preference with the following picture settings. Example Press1. MENU to display the MENU screen, and then press to select q9LGHRrDQGSUHVVENTERor to enter it. Press2. to select a specific adjustment item and press ENTER or to enter the setting. Press3. to adjust the setting. Press4. MENU to exit. Selected item

button Backlight For darker background For brighter background Brightness For less brightness For more brightness Contrast For less contrast For more contrast Saturation For less color intensity For more color intensity Hue Skin tones become reddish Skin tones become greenish Sharpness For less sharpness For more sharpness Backlight control is disabled when s Adaptive Backlight or Ambient Light 6HQVRULVq2Qr

MENU NRUTERTIXE ENTERAV Mode Adjust the best picture appearance from selecting the preset value of Standard, Movie, Power Saver, User, or Dynamic.. Color Temperature For a better white balance, use color temperature correction. Warm: White with reddish tone Standard: Cool: White with bluish tone s User: White balance can be adjusted manually through the R/G/B Gain between a maximum of 255 and a minimum of 0 for each color temperature. Advanced Video Provide various advanced functions for optimizing the picture quality. DNR DNR (Digital Noise Reduction) enables you WRqVRIWHQrWKHVFreen representation of a weak signal to reduce the noise effect. Select effect degrees from Low, Medium, Adaptive Luma Control Automatically adjusts the brightness and contrast after analyzing the input signal. This function enriches the colors and the depth of the picture. Flesh Tone You can adjust the skin color to be more natural. HDMI Mode HDMI Mode only shows and is available when HDMI device is connected. Select from Auto, Graphic, or Video. Auto:s The HDMI input timing is set to Video mode or Graphic mode automatically Graphic:s HDMI input timing set to Graphic mode (PC). The image is full scan Video:s HDMI input timing set to Video mode. The image is over scan. HDMI Mode is only workable for HDMI s Video & Progressive timing as followed: 1920x1080p,1280x720p,720x480p, 720x576p. Adaptive Backlight When Adaptive Backlight is activated, it will automatically optimize the backlighting levels for dark scenes. VGA The VGA adjustment is only available when the input source is PC and your TV is receiving a computer signal. Select Auto Adjust for adjusting the settings automatically, or select H. Position,

V. Position, Phase or Clock and use

VGA VGAAmbient Light Sensor Deg a natural looking picture whether you are watching movies late at night or playing video games during the day with am Ambient Light Sensor that automtically adjust the EDFNOLJKWEDVHGRQDURRPpVOLJKWLQJ Medium.The DNR function was disabled Strong or Off. The default setting is On-Screen Display Menu 32Audio Menu Adjusts the sound quality to your preference with the following settings. Example Press1. MENU to display the MENU screen, and then press to select q$XGLRrDQGSUHVVENTER or to enter it. Press2. to select a specific adjustment item and press ENTERor Ź to set. Press3. to adjust the desired setting. Press4. MENU to exit. Selected item

button Balance Decrease audio from the right speaker Decrease audio from the left speaker Bass For weaker bass For stronger bass Treble For weaker treble For stronger treble Surround The surround function produces Surround effect from the speakers. On: Makes it possible to enjoy natural, realistic surround sound. Off: Off: Disables digital audio output. Outputs the normal sound. You can choose Surround by pressing s

PCM: Outputs audio to PCM type

SPDIF Type is only available when the input source is TV and your TV is receiving a DTV signal.

SURROUND on the remote control unit. (See page 26.) Equalizer Select the preset audio mode from Off, Speaker Choose to turn on or off the TV internal speaker. The audio output signals will not be turned off even though the TV speaker is off. The default setting is On. SPDIF Type

Rock, Pop, Live, Classic. Select the type of digital audio output. The default setting is PCM. Audio select Select the path of audio output. The default setting is AUTO. Auto: Audio path is set to HDMI or PC line in automatically. HDMI:Outputs audio from HDMI path. PC Line in: Outputs audio from PC line in. NOTE: Audio Select is only workable for HDMI input. On-Screen Display Menu

On-Screen Display Menu TV Enter SelectReturn ExitEnterVideoAudio SetupParentalCH SkipAudio LanguageFavorite ChannelsEnglishStereoAudio Mode CH Skip 7o prevent certain programs from being viewed by pressing CH buttons on the remote control, the selected channel can be skipped. 7KHVNLSSHGFKDQQHOPD\QRWEHIRXQGs by pressing CH buttons but can be access by pressing number buttons directly.

Audio Mode Select the audio mode from Stereo, SAP, or Mono. Audio Language Gives you the possibility to swap between main and alternative language, when it is available in digital channel. Favorite Channels 7KLVIXQFWLRQDOORZV\RXWRSrogram 4 favorite channels, in 4 different categories. By setting the favorite channels in advance, you can select your favorite channels easily. To register your favorite channel: Press1. MENU on the remote control DQGVHOHFWqTVrqFavorite channelsr Press2. to select the category that you want to store your favorite channel. Press3. to select your desired channel and press ENTER button to confirm. To delete your favorite channel: Press1. MENU on the remote control DQGVHOHFWqTVrqFavorite channelsr Press2. WRVHOHFWqAll data clearr and press ENTER to start clearing all favorite channel data. While watching, you can toggle the s selected channels by pressing the A, B, C, and D button on the remote control.

Air/Cable:0DNHVXre what kind of

Digital Closed Caption This allows you to configure the way you choose to view digital captioning. Select one of the digital service channels made available by the caption provider. There are six standard services. Service 1 is designated as the Primary Caption Service. This service contains the verbatim, or near-verbatim captions for the primary language being spoken in the accompanying program audio. Service 2 is designated as the Secondary Language Service. This service contains captions in a secondary language, which is a translation of the captions in the primary Caption Service. The other service sub channels are not pre-assigned. It is up to the discretion of the individual caption provider to utilize the remaining service channels. Digital Caption Style This allows you to modify how digital captions are displayed on your TV. Select from the following options to change the visual characteristics of the TVps digital captioning

• Caption Style: Set to As Broadcaster or Custom mode. If Custom mode is selected, user can modify the detail styles described below. The setting result will be shown immediately on the bottom of the submenu OSD. Note: This feature is only available in Digital TV (ATSC) mode.

• Font Size: Selects this option to choose a caption display size according to your own preference. Select qSmallrqMediumrRUqLarger

• Font Style: Select digital closed caption font style.

• Font Color: Choose the caption display text color.

• Font Opacity: Select the text opacity.

• Window Opacity: Select one of the display windows color. Caption Analog Closed Caption This allows you to select the Closed Captions service levels of analog broadcasting to be displayed. Closed captioning allows you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired, this feature uses on- scrHHQqWH[WER[HVqWRVKRZGLDORJXHV and conversations while the TV program is in progress. Captions will appear on the screen during captioned broadcasts.

• CC1, 2, 3, or 4 Dialogues (and descriptions) for the action on the captioned TV program shows on screen. Usually CC1 is the most used. CC2 can be used for alternate languages if they are being transmitted.

• TEXT1, 2, 3, or 4 Often used for channel guide, schedules, bulletin board information for Closed captions programs, news, weather information, or stock market reports. Not all Caption services are necessarily being used by a TV channel during the transmission of a Closed Caption program. Location Select from Store or Home mode. Store mode is recommended for displaying in a retail showroom, and Home mode is recommended for normal home use for Energy Saving. Version Info Display the Software information. Reset Restore all the default Setup settings.Before entering the Parental Control sub-menu, user has to key in the password first. After entering the parental sub-menu, the user can modify the restricted table. While exiting the sub-menu, the parental control function is activated. Enter a 4-digit password with the number buttons on the remote control. The default password is 0000.s Example Press1. MENU to display the MENU screen, and then press WRVHOHFWq3DUHQWDOr and press ENTER or to enter it. (QWHUWKHPDVWHUSDVVZRUGqr2. Press3. to select a specific item and press ENTER or to select the item. Press4. MENU to exit. Channel Block This function prevents children from watching certain channels. Restart the TV for the change to take effect.s If you access the blocked channels from the number buttons on the remote control, a s screen prompting you to enter your current password appears. Program Block Your TV is equipped with a V-chip that allows you to control access to individual programs based on their age rating and content rating. The program content advisory data are sent by the broadcaster or by the program provider Block certain programs to prevent children from watching.

Parental Enter SelectReturn ExitEnterVideoAudio SetupParentalPasswordParental Enter SelectReturn BackEnterVideoAudio SetupParentalChannel BlockProgram BlockInput BlockClean ALLChange PasswordRating Enable Set the Enable Rating to On to activate the program rating system. U.S. TV Ratings If you are receiving channels through a set-top box or cable receiver box connected by HDMI, you cannot use the TV ratings lock. Your set-top box or cable receiver box must be connected through RF or AV connectors. gnitartnetnoCgnitaregA NONE None TV-Y Appropriate for children of all ages with themes and elements suitable for children aged 2-6. None TV-Y7 Programs designed for children age 7 and older. Fantasy Violence (FV) TV-G Programs suitable for all ages. These programs contain little or no violence, no strong language and little or no sexual dialog or situations. None TV-PG Programs contain elements that some parHQWVPD\ÛQGXQVXLWDEOH for younger children and which may need parental guidance. The program may contain moderate violence, sexual dialog and/or situations and some strong language. Dialog (D) Language (L) Sex (S) Violence (V) TV-14 Programs contain elements that may not be suitable for children under 14 years of age. These programs include one or more of the following: intense violence, intense sexual situations, suggestive dialog and strong language. Dialog (D) Language (L) Sex (S) Violence (V) TV-MA Programs are designed to be viewed by adults and may be unsuitable for children under the age of 17. These programs may contain graphical violence, explicit sexual activity and/ or crude or indecent language. Language (L) Sex (S) Violence (V)

On-Screen Display MenuU.S. Movie Ratings This section describes how to control viewing of movies based on their Motion Picture Association of America (MPAA) rating. noitpircseDgnitareivoM

General audiences. All ages admitted.

Parental guidance suggested. Some material may not be suitable for children. PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.

Restricted. Under 17 requires accompanying parent or adult guardian (age varies in some jurisdictions). NC-17 No one 17 and under admitted.

the data of older movies. Canadian Rating Systems (Canadian English ratings and Canadian French ratings). 7KH79UDWLQJV\VWHPVLQ&DQDGDDUHEDVHGRQWKH&DQDGLDQ5DGLR7HOHYLVLRQDQG

7HOHFRPPXQLFDWLRQV&RPPLVVLRQ&57&SROLF\RQYLROHQFHLQWHOHYLVLRQSURJUDPPLQJ

While violence is the most important content element to be rated, the structure developed takes into consideration other program content, like language, nudity, sexuality and mature themes. When setting the V&+IP on the &Dnadian system, you can choose either thH&anadian

Exempt: Includes news, sports, documentaries and other information programming; talk shows, music videos, and variety programming.

&KLOGren: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well being. C8+ &KLOGrHQRYHU\HDUVROG&RQWDLQVQRSRUWUD\DORIYLROHQFHDVWKH preferred, acceptable, or only way to rHVROYHFRQÜLFWQRUHQFRXUDJH children to imitate dangerous acts which they may see on the screen.

*HQHUDO&RQVLGHred acceptable for all age groups. Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional.

Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues.

On-Screen Display MenunoitpircseDgnitareivoM 14+ Over 14 years: Could contain themes where violence is one of the dominant elements of the storyline, but it must be integral to the development of plot or character. Language usage could be profane and nudity present within the context of the theme. 18+ Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of sex and nudity. Canadian French Ratings noitpircseDgnitareivoM

General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner. 8 ans+ General but inadvisable for young children: May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with parent. 13 ans+ Over 13 years: Could contain frequent violent scenes and therefore recommended for viewing with parent. 16 ans+ Over 16 years: Could contain frequent violent scenes and intense violence. 18 ans+ Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence. Open V-Chip The inhibitive channels or source signals can be unlock. Block Unrated When Block Unrated is set to on, the channel can be selected using the CH and the number buttons. Input Block Disable the specific external input signals. Change Password Enter a 4-digit New Password with the number buttons on the remote control.1. Enter your new 4-digit password again to confirm.2. Clean All Clean all the parental blocks to default settings.

On-Screen Display MenuThis TV is fitted with a USB connector that enables you to view photos play music and play video that stored on a USB storage device. Browse the file folder Press1. USB direct button.The USB thumbnail browser appears. Press2. MENU to display the sub-menu. You can browser the files by the following options. Sort• Media type• Thumbnail Size• You can also use the short keys on the s remote control and follow the on-screen instructions to operate.

• : For normal moving. USB Press1. INPUT to select USB from the input list or press direct button to enter it. To exit the USB menu, press TUPNI.2 to select other sources. The avi codec can support MPEG1 ands MPEG2 format. Some of the USB storage devices may not be supported to this function. USB storage device compatibility: USB storage device only support • FAT 32 file system and USB disk within 16GB size. Music file format: mp3.•

File format Compress type Support limitationJPG,JPEG Progressive DCT 1024x768BMP -- 1024x768JPG,JPEG Baseline sequential DCT 3872x2952 For playing photo conditions, please reference the following table. If the files ( jpg, jpeg, bmp format) don't meet below conditions, you still can see the files in browser list. But it will display warning message "File not supported." when you play the files. For playing video conditions, once the files (*.avi, *.mpg) video decoder are not MPEG1 or MPEG2, they still can be seen in browser list. But it will display warning message "File not supported." when you play the files.

to the previous page or exit the option menu. You can also use the short keys on the s remote control and follow the on-screen instructions to operate.

• Color Keys GREEN: Duration. BLUE: Effect.

• : Go to the next/previous photo.

• DISPLAY: Display the information. When slide show is paused: • GREEN: Rotate the photo.(Progressive -3(*GRHVQpWVXSSRUWURWDWHIXQFWLRQ Play Audio In the file thumbnail browser, press 1. to select a music file. Press2. ENTER to play the music file. While the music is playing, use the 3. color buttons on the remote control and follow the on-screen instructions to operate. Press4. MENU to display the sub-menu and select the following options to operate. Pause• Repeat• Shuffie• Show Info• Spectrum• Audio Only• You can also use the short keys on the s remote control to operate.

• : Next/Previous track.

When pohto is playing:

Press. MENU to display the sub-menu and select the following options to operate. Pause• Repeat• Show Info• AV Mode• View Mode• You can also use the short keys on the s remote control to operate.

• : Next/Previous track.

and re-plugging it after 1 or 2 minutes. Remote control unit does not operate. Are batteries inserted with polarity (

) aligned? (See page 13.) Are batteries worn out? (Replace with new batteries.)

$UH\RXXVLQJLWXQGHUVWURQJRUÜXRUHVFHQWOLJKWLQJ"

,VDÜXRUHVFHQWOLJKWLOOXPLQDWHGQHDUWKHUHPRWHFRQWURO sensor? Picture is cut off/with sidebar screen. Are screen mode adjustments such as picture size made 6WUDQJHFRORU OLJKWFRORURUFRORU misalignment Is the room too bright? The picture may look dark in a room that is too bright. Power is suddenly turned off. 7KHXQLWpVLQWHUQDOWHPSHUDWXUHKDVLQFUHDVHG5HPRYHDQ\ REMHFWVEORFNLQJYHQW No picture Is picture adjustment correct? (See page 28.) No sound +DYH\RXSUHVVHGMUTE on the remote control unit? The TV sometimes makes a cracking sound. This is not a malfunction. This happens when the cabinet slightly expands and contracts according to change in WHPSHUDWXUH7KLVGRHVQRWDIIHFWWKH79pVSHUIRUPDQFH Cautions regarding use in high and low temperature environments :KHQWKHXQLWLVXVHGLQDORZWHPSHUDWXUHVSDFHHJURRPRIÛFHWKHSLFWXUH

and the Liquid Crystal panel to malfunction. Storage temperature: -4°F to +140°F (-20°C to +60°C) Has the power been turned on? (See page 23.) correctly? (See page 28.) Adjust the picture tone. (See page 32.) Is the sleep timer set? (See page 25.) Is connection to other components correct? (See page 17.) ,VWKHYROXPHWRRORZ"6HHSDJH (See page 25.) Is the correct input selected? (See page 25.)

'LJLWDOFDEOH 4$0 FKQRQVFUDPEOHGFKDQQHORQO\ $XGLRPXOWLSOH[ %76&6\VWHP W+WWXRRiGXA 7HUPLQDOV 5HDU $17&$%/(

&RPSRQHQW&RPSRVLWHLQ

'LJLWDOFDEOH 4$0 FKQRQVFUDPEOHGFKDQQHORQO\ $XGLRPXOWLSOHx %76&6\VWHP W+WWXRRiGXA 7HUPLQDOV 5HDU $17&$%/(

&RPSRQHQW&RPSRVLWHLQ

&RD[LDOGLJLWDODXGLRRXWSXW[3&0'ROE\'LJLWDO

3PECIÚCATIONS !PPENDIX 46It is necessary to set the PC correctly to display XGA and WXGA signal. Refer to page PC Resolution Horizontal Frequency Vertical Frequency VESA Standard

• Attach an RS-232C cable cross-type (commercially available) to the supplied Din/D-Sub RS-232C for the connections. This operation system should be used by a person who is accustomed to using computers. Communication conditions Set the RS-232C communication settings on the PC to match the TV's communication conditions. The TV's communication settings are as follows:

Communication procedure Send the control commands from the PC via the RS- 232C connector. The TV operates according to the received command and sends a response message to the PC. Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the next command. Parameter Input the parameter values, aligning left, and fill with blank(s) for the remainder. (Be sure that 4 values are input for the parameter.) When the input parameter is not within an adjustable range, “ERR” returns. (Refer to “Response code format”.) Any numerical value can replace the “x” on the table.

When “?” is input for some commands, the present setting value responds. Command format Eight ASCII codes

ERR Command table Commands not indicated here are not guaranteed to operate. CONTROL ITEM COMMAND PARAMETERCONTROL CONTENTSPOWER ON COMMAND SETTINGPOWER SETTINGThe Power On command rejected.It input-switches by the toggle. (It is the same as an input change key)It input-switches to TV. (A channel remains as it is. (Last memory))It input-switches to INPUT1~INPUT8.Although it can choose now, it is toggle operation in inside.The screen position variable ranges depend on the View Mode or the signal type. The ranges can be seen on the position-setting screen.(Toggle)Input terminal number (1–8)An input change is included if it is not TV display.In Air, 2–69ch is effective.In Cable, 1–135ch is effective.Toggle operation of a closed caption.0: (Toggle), 1: On, 2: Off0: Off, 1: OFF TIMER – 30 MIN., 2: OFF TIMER – 60 MIN., 3: OFF TIMER – 90 MIN., 4: OFF TIMER – 120 MIN.The channel number of TVThe channel number of TV +1The channel number of TV –1(Toggle)(1–135)R S P WI T G DI T V DI A V DINPUT SELECTION AAV MODE SELECTIONVOLUMEPOSITIONVIEW MODESURROUNDSLEEP TIMERCHANNEL DIRECT(ANALOG)(DIGITAL)CH UPCH DOWNCHANNELH-POSITIONV-POSITIONCLOCKPHASEA V M DV O L M HPOS VPOS C L C KP H S EA C S UO F T M DCCH C H U PC H D WC L C PW I D E

DIGITAL Air (Two-Part numbers, 2-digit plus 2-digit)(0100-9999)(1-999)(0-999)(0-9999)(0-6383)DIGITAL Cable (Two-Part numbers, 3-digit plus 3-digit)DIGITAL Cable (Two-Part numbers, 3-digit plus 3-digit)Front half of DIGITAL CABLE CHANNEL NO. (Designate major channel)Rear half of DIGITAL CABLE CHANNEL NO. (Designate minor channel)DIRECTCHANNELD A 2 P * * * *D C 2 U * * * _D C 2 L * * * _DIGITAL Cable (One-Part numbers, 5-digit, less than 10,000)D C 1 0 * * * *DIGITAL Cable (One-Part numbers, 5-digit, more than 10,000)D C 1 1 * * * *(Toggle)AUDIO SELECTIONA C H A x _ _ _0: (Toggle), 1: On, 2: Off MUTE M U T E * _ _ _ OffThe Power On command accepted.1 _ _ _ OnThe Power On Command must be waited until system is completely Power Off (LED powerindicator turns to be Red)1 _ _ _ Power OnIt shifts to standby.P O W R 0 _ _ _ Power Off INPUT1-8 If an underbar (_) appears in the parameter column, enter a space.

If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL

If it is not TV display, it will input-switch to TV. (same function as CH ) 0: Although it can choose now, it is toggle operation in inside. 5: [AV] Only available when 720P is being input. 2,3,4: [AV] Only available when AV signal is being input. [PC] Available except when 1280x720 and 1920x1080(46’’&26’’)are being input. 6: [PC] Available except when 1600x1200 and 1280x1024 (32’’only) and 1400x1050 1: [AV] Only available when SD content is being input. [PC-32’’] Only available when 720X480 and 1280x720 are being input. [PC-46’’&PC-26’’] Available except when 1920X1080 is being input. 7: [PC] Available except when 1360x768 and 1280x720 and 1920x1080 (46’’&26’’) are Only PC mode. (0–40,menu display range+/-20)Only PC mode. (0–180,menu display range+/-90)Only PC mode. (0–40,menu display range+/20)Only PC mode. (0–100,menu disolay range+/-50)Volume (0–100)0:(Toggle) 1:Normal 2:S.Stretch 3:Stretch 4:Zoom 5:Full Screen 6:Dot by Dot 7:Cinema)0:(Toggle) ,1:STANDARD,2:DYNAMIC,3:MOVIE,4:POWER SAVER,5:USER (32’’only) are being input. being input. TOGGLE

!PPENDIXŶ Software composition The software included in this product is comprised of various software components whose individual copyrights are held by SHARP or by third parties.

Software developed by SHARP and open source software The copyrights for the software components and various relevant documents included with this product that were developed or written by SHARP are owned by SHARP and are protected by the Copyright Act, international treaties, and other relevant laws. This product also makes use of freely distributed software and software components whose copyrights are held by third parties. These include software components covered by a GNU General Public License (hereafter GPL), a GNU Lesser General Public License (hereafter LGPL) or other license agreement.

Obtaining source code Some of the open source software licensors require the distributor to provide the source code with the executable software components. GPL and LGPL include similar requirements. For information on obtaining the source code for the open source software and for obtaining the GPL, LGPL, and other license agreement information, visit the following website: http://www.sharpusa.com/gpl We are unable to answer any questions about the source code for the open source software. The source code for the software components whose copyrights are held by SHARP is not distributed.

Acknowledgements The following open source software components are included in this product: sOLQX[NHUQHOEXV\ER[X&OLEF]OLEOLESQJOLEMSHJ

CLEARING THE MASTER PASSWORD

If you forgot the password number, reset the secret number by following the procedures below: Press1. MENU

As a precautionary measure, make a note of your secret number above, cut it from this s manual, and keep it in a safe place. Select2. “PARENTAL” ,press “ENTER” Press number 70713.

5. Enter new password

“Change Password” Information on the Software License for This Product Appendix 49Ŷ FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.s Increase the separation between the equipment and receiver.s Connect the equipment into an outlet on a circuit different from that to which the s receiver is connected. Consult the dealer or an experienced radio/TV technician for help.s

FCC warning Changes or modifications not expressly approved by the party responsible for compliance ZLWKWKH)&&5XOHVFRXOGYRLGWKHXVHUpVDXWKRULW\WRRSHUDWHWKLVHTXLSPHQW

Cables Connections to this device must be made with shielded cables with metallic RF/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

HDMI HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Legal notices Appendix 50For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or customer assistance, please call 1-800-BE-SHARP. LIMITED WARRANTY Calling for Service

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand Liquid Crystal Display product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product or if the serial number or model number affixed to the Product has been removed, defaced, changed, altered or tampered with. This warranty does not cover installation or signal reception problems. This limited warranty will not apply if the Product has been or is being used in a commercial setting or application; this warranty is meant solely for the non-commercial, household use of the Product by consumers in their home or residence. If you intend to or already use this Product for commercial purposes or in a commercial setting, there are warranties available to cover your use of this Product, the terms of which may vary. Please contact 1-800-BE-SHARP for further information. In order to enforce your rights under this limited warranty, you should follow the steps set forth below. You must be able to provide proof of purchase to the servicer, which proof must include the date of purchase. To the extent permitted by applicable state law, the warranties set forth are in lieu of, and exclusive of, all other warranties, express or implied. Specifically ALL OTHER WARRANTIES OTHER THAN THOSE SET FORTH ABOVE ARE EXCLUDED, ALL EXPRESS AND IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE, AND FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. IF, UNDER APPLICABLE STATE LAW, IMPLIED WARRANTIES MAY NOT VALIDLY BE DISCLAIMED OR EXCLUDED, THE DURATION OF SUCH IMPLIED WARRANTIES IS LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. The warranties given herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser and only for the time periods set forth herein. No other representations or promises made by anyone are permitted. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. Sharp does not warrant nor shall Sharp be liable, or in any way responsible, for Products which have been subject to abuse (including, but not limited to, improper voltage), accident, misuse, negligence, lack of reasonable care, alteration, modification, tampering, misuse, improper operation or maintenance or any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than a Sharp authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow limits on warranties or on remedies for breach in certain transactions; in such states, the limits herein may not apply.THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA. AND PUERTO RICOModel Specific SectionWhat to do to Obtain Service: TO OBTAIN PRODUCT INFORMATION OR PURCHASE ACCESSORIES, CALL 1-800-BE-SHARP OR VISIT www.SharpUSA.com Additional Exclusions fromWarranty Period for this Product:Your Product Model Number & Description:

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07495-1163 SHARP CORPORATION Warranty Coverage (if any):LC-26SV490U,LC-32SV29U,LC-46SV49U LCD Color Television(Be sure to have this information and Proof of Purchase available when you need service for your Product.)One (1) year parts and labor from date of purchase.Image Retention resulting from a fixed image being displayed for long periods of time is not covered by this Limited Warranty (see Operation Manual on how to prevent this).Service is provided by a Sharp Authorized Service Center in the United States. To find the location of the nearest Sharp Authorized Service Center, call Sharp toll free at 1-800-BE-SHARP. Sharp will provide instructions on service options available for your Product.If it is deemed the Product is to be shipped for servicing, be sure it is insured and packaged securely. Please use two persons to carry the Product, transport it in original packaging or packaging that provides comparable protection of the Product, and ensure that the Product is covered to avoid scratches and damage. Sharp shall not be responsible for lost, stolen or misdirected mail or for damage to the product incurred during shipping. For Products that are deemed in home service, a servicer will come to your location. If necessary, the servicer may remove the unit for repair at the service facility and return it once completed. In home service is not available in all areas and Sharp may, at our option, elect to provide transportation of the Product to and from an Authorized Service Center in those areas.1

( 2) Page 13 Support (

9-pin D-sub male connector

47.712 kHz 60.015 Hz

BASCULE I T G D X _ _ _
