USER MANUAL Active Smart E522BLXU Fisher & Paykel

Installation instructions and user guide US CA (EN) Ice & Water refrigerator

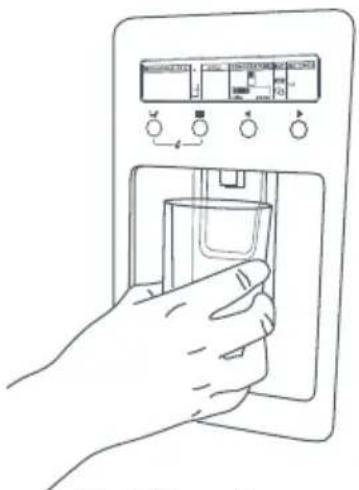

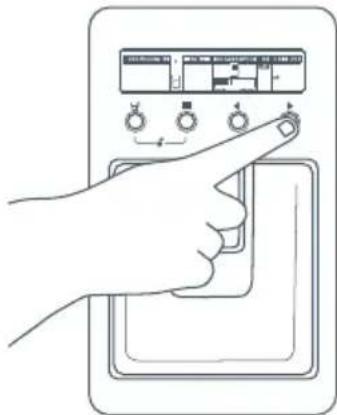

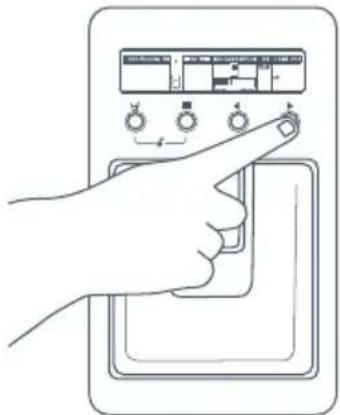

Hand inserting a cup into a refrigerator control panel (no text or symbols visible)

Safety and warnings 3

Installation instructions 5

Before you start using your Ice & Water refrigerator 15

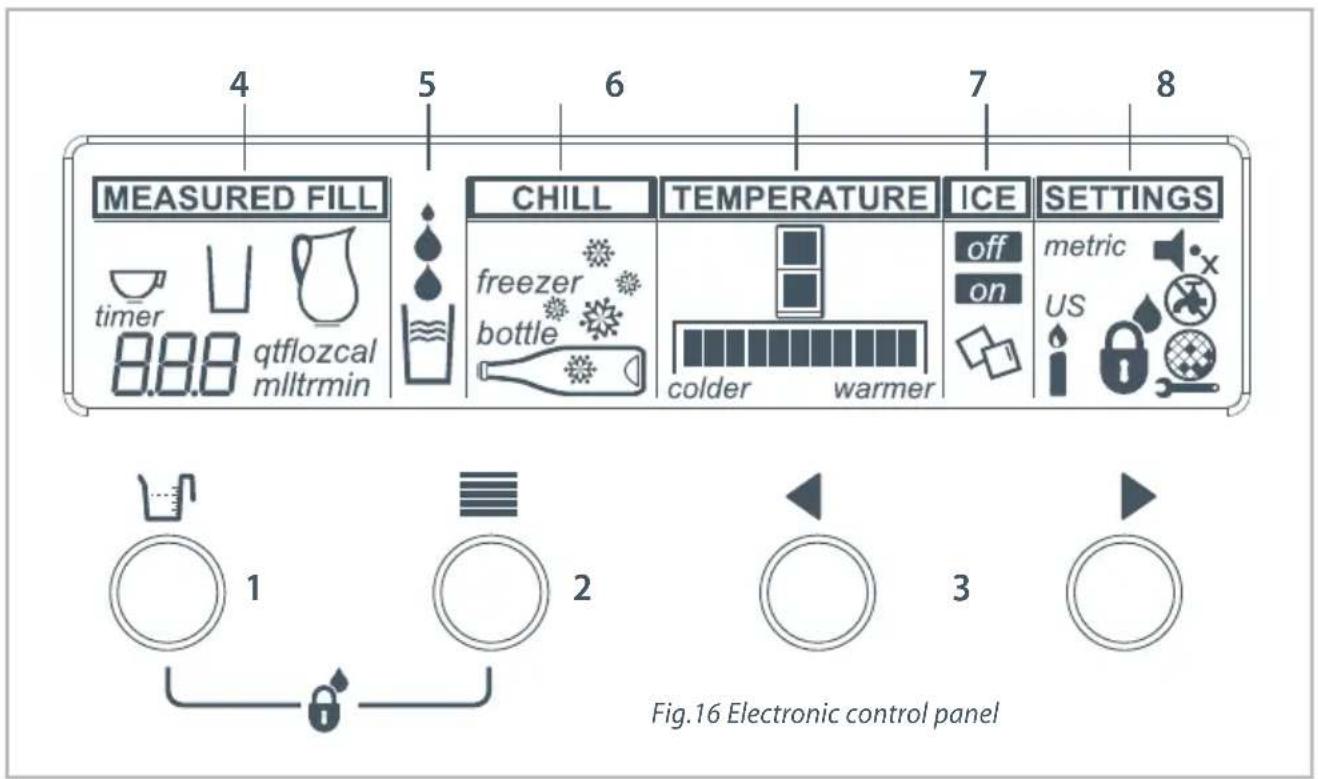

All about the display 16

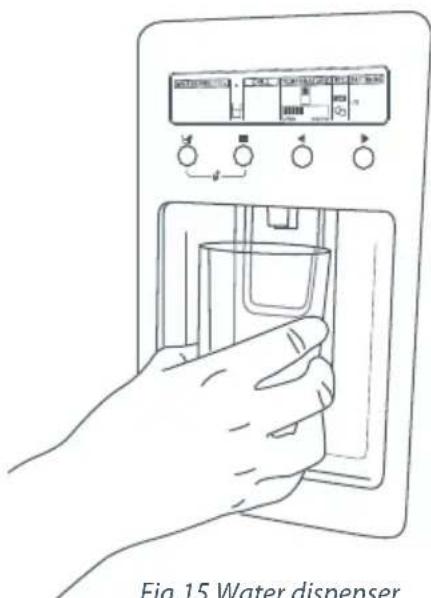

Using your water dispenser 18

Using your ice maker 19

Using the display options 21

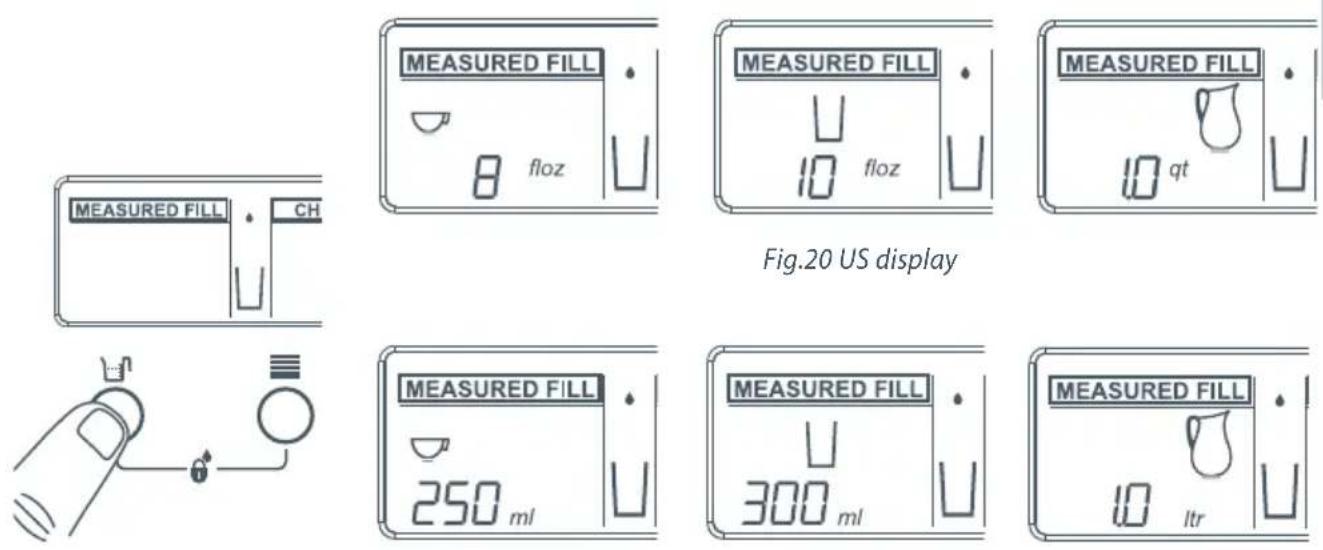

Measured Fill 21

Freezer Chill and Bottle Chill 22

The temperature of your refrigerator and freezer 23

Settings/User warnings 24

Active Smart™ special features 26

Water filter 28

Measured Fill calibration 30

Active Smart™ maintenance 31

Cleaning and caring for your refrigerator 32

On vacation/holiday 35

Refrigerator sounds 36

Storing food in your refrigerator 37

Storing food in your freezer 38

Troubleshooting 40

Limited warranty 44

Filter performance data sheet 139

Important!

SAVE THESE INSTRUCTIONS

The models shown in this user guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

Thank you for buying a Fisher & Paykel Active Smart™ refrigerator with chilled water through the door and automatic ice dispensing.

At Fisher & Paykel we are very proud of this refrigerator. We feel we have achieved water dispensing through the door without compromising storage space or access in the refrigerator. During our testing we have enjoyed the health benefits of having easily accessible cool filtered water, while minimizing the number of door openings.

Thousands of hours of food care research and 70 years of refrigeration experience has been programmed into your refrigerator to give you the best possible performance.

We hope you enjoy your new refrigerator.

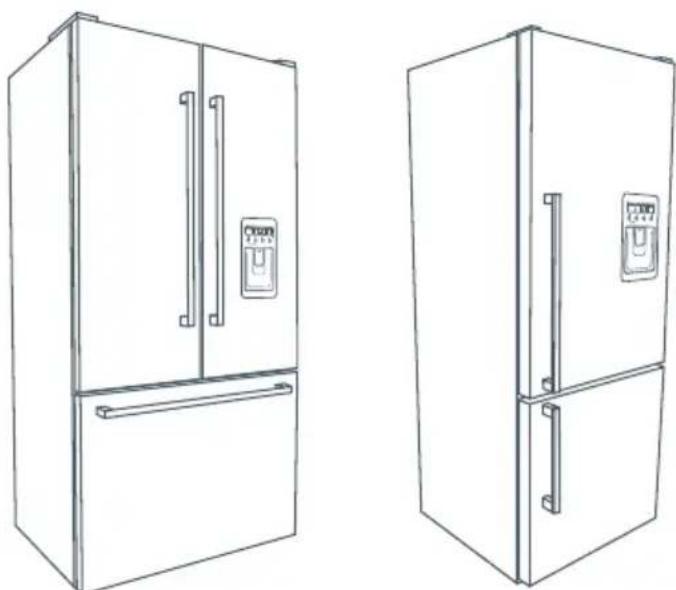

Line drawings of two different refrigerator units, one front and one side, with no text or symbols present.

Fig.1 Ice & Water Refrigerators

Important!

It is important that this User Guide should be retained with your Ice & Water refrigerator for future reference. Should the appliance be sold or transferred to another owner, please ensure that the User Guide is left with the appliance. This will ensure that the new owner can familiarize themselves with the information and warnings contained within the Guide.

WARNING!

Electric Shock Hazard

Read and follow the SAFETY AND WARNINGS outlined in this User Guide before operating this appliance.

Failure to do so can result in death, electric shock, fire or injury to persons.

Use this appliance only for its intended purpose as described in this User Guide.

Important safety precautions

Warning

When using this appliance always exercise basic safety precautions including the following:

Danger

This appliance is not intended for use by children or infirmed persons without supervision. This is especially important when using the freezer drawer compartment. Young children should be supervised to ensure they do not play with the appliance.
Risk of child entrapment. Before you throw away your old refrigerator or freezer:
- Take off the doors
- Leave the shelves in place so that children may not easily climb inside.

Disposal

Extreme care must be taken when disposing of your old appliance to avoid hazards. The refrigerant gas must be safely removed and for the safety of young children, remove doors.
- Your Fisher & Paykel Appliances Authorised Service Center will be able to give advice on environmentally friendly methods of disposing of your old refrigerator or freezer.

Electrical

This appliance must be properly installed in accordance with the installation instructions before it is used.
■ Never unplug your refrigerator or freezer by pulling on the power cord.
■ Always grip the plug firmly and pull straight out from the outlet socket.
- Do not plug in any other appliance at the same power point outlet socket as your refrigerator or freezer is using. Do not use extension cords or double adapters with these products.
Repair or replace immediately all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug or appliance end.

If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Appliances Authorised Service Center because special purpose tools are required.

4 Safety and warnings

• When moving your appliance away from the wall, be careful not to roll over or damage the power cord.
  ■ Unplug your refrigerator or freezer before cleaning or replacing the interior lightbulb.

Storing food and drinks

■ Never store volatile or flammable materials in your refrigerator or freezer as they may explode.
- Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the container to explode.
■ Never freeze carbonated drinks. They may explode.
Do not consume food if it is too cold. Food removed from the freezer compartment may be cold enough to cause damage when brought into contact with bare skin, eg. frozen ice cubes.

Power failure – food safety

Do not refreeze frozen foods that have thawed completely. Follow the recommendations below if you discover food in your freezer has thawed:
1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than recommended.
2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some cooked food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately or cook then refreeze. Vegetables – discard as they usually go limp and soggy.
3) Thawed but warmer than 38^ F ( 4^ C). Red meat can be cooked immediately and refrozen but use as soon as possible. Discard all other frozen foods.
Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Important!

Cleaning

Many commercially available cleaning products contain solvents which may attack plastic components of your refrigerator or freezer and cause them to crack. Please refer to the cleaning care section of this booklet for further advice.

Contents of filter kit

1 13 ft (4 m) white 14 " (6 mm) tubing
2 1 x 8" (200 mm) blue tubing
3 1 x pressure reducing valve (PRV)
4 1 x double sided tape
5 2 x locking keys
6 1 x water filter cartridge and head
7 1 x faucet connection

Pure elliptical contour lines without any text, numbers, or symbols

1

2

3

4

Simple line drawing of a cylindrical container with two labeled ports (inlet and outlet), no text or symbols present.

5

6
7
Fig.2 Water connection kit

Important!

It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. This valve ensures the water will not flow back into the mains from the refrigerator water system. If the PRV is not fitted to the connection line your Ice & Water refrigerator features may not function in some circumstances.
It is recommended that an authorised plumber in your state or town is used to install the water connection.
The new tubings supplied with the refrigerator are to be used, old tubings from old Ice & Water connections should not be used.

Installation precautions/warning

• DO NOT use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
  ■ WARNING – connect to potable water supply only.
  ■ DO NOT install on line pressure above 130 psi (900 kPa) or below 22 psi (150 kPa).
  ■ DO NOT use on hot water supply (100°F [38°C max.]).
• DO NOT install near electrical wires or water pipes that will be in the path of drilling when selecting the location of filter system.
• DO NOT mount filter in such a position so that it will be struck by other items, such as wastebaskets, etc.
• DO NOT install the filter in direct sunlight as prolonged exposure to light can weaken plastic components.
• DO NOT install in a location that is susceptible to freezing temperatures as damage to the housing could occur.
  ■ DO NOT screw filter to the refrigerator.
  ■ AVOID contamination of pipes during installation.
  ■ DO NOT use copper tubing. The plastic tubing supplied should always be used.

6

Installation instructions

Installation instructions:

1 Ensure that refrigerator is not plugged into a power supply.
2 Locate a cold water supply/feed only suitable for a water connection. Tee & tap fitting is not supplied. If you can't find the connection faucet, contact an authorised plumber in your state or town to fit your water connection.

3 Connect the 8" (200 mm) blue tubing to the outlet of the PRV (blue collet) and the inlet connection of the water filter cartridge as shown in Diagram 1. Gently pull on both ends to ensure it is locked.

4 Connect the white 14 " (6 mm) tubing to the outlet of the water filter cartridge as shown in Diagram 2. Gently pull to ensure it is locked.

5 Measure the required length of tubing to run from the PRV to the water connection point.

6 Cut the tubing making sure the ends are square and clean.

7 Connect the tubing to the faucet connection and the base of the PRV (white collet) and then to the faucet as shown in Diagram 3. Please note that the faucet connection supplied should fit most installation situations. If your faucet requires a different fitting, please contact an authorised plumber in your state or town to purchase the correct fitting.

8 Connect one locking key to each side of the water filter cartridge in between the cartridge and the locking collet as shown in Diagram 4.

9 To flush the water filter and check for leaks, aim the end of the tubing into a bucket, turn isolating faucet on and run at least 3 qt (3 L) of water through. Once complete, turn isolating faucet off.

10 Locate desired position for water filter noting carefully the following points:

• It is recommended to fit the water filter in a vertical orientation with the water filter head at the top. This will minimize water leakage when replacing cartridge.
• Ensure the filter is in a convenient location to access every 6 months for replacement. We suggest that this location is beside the water filter supply faucet in a cupboard beside the refrigerator.
• A minimum clearance of 2 12 (64 mm) from the bottom of the filter cartridge is required to perform cartridge removal.
  ■ Do not screw water filter to refrigerator.

Simple line drawing of a water level control device with inlet and outlet ports, no text or symbols present

Diagram 1

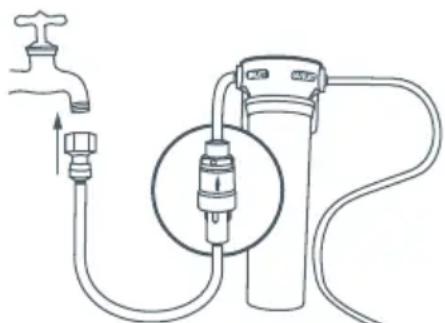

Fig.3 PRV connection

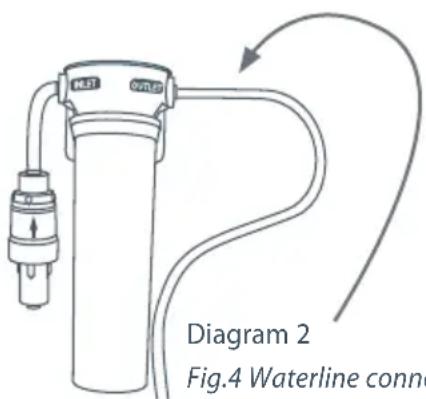

HUST OUTLE Diagram 2 Fig.4 Waterline conne

Fig.4 Waterline connection to refrigerator

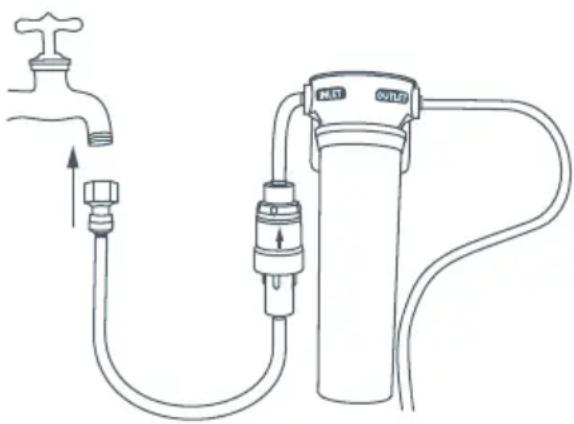

Line drawing of a water tap connected to a water dispenser with tubing (no text or symbols)

Diagram 3
Fig.5 Faucet connection

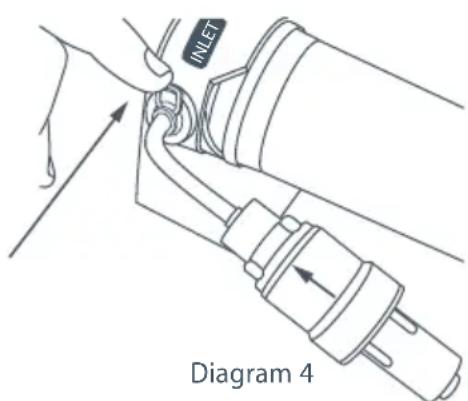

INLET Diagram 4

Fig.6 Locking key

11 Attach double sided foam to the back of the water filter head as shown in Diagram 5. Write the date to be replaced on the filter (date installed + 6 months). Remove double sided foam backing and attach filter to the desired position as located in step 10 (refer to previous page).
12 Run the 14 " (6 mm) tubing to back of the refrigerator ensuring there is enough tubing to pull out the refrigerator for service.

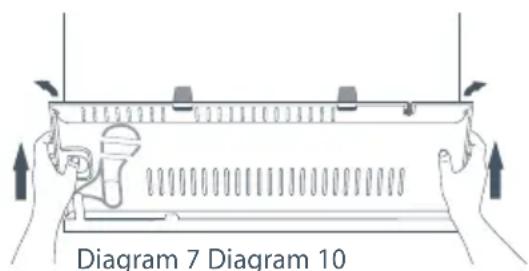

13 Remove compressor compartment cover by removing screw at the top of each side of the cover as shown in Diagram 6. Lift and tilt the compressor compartment cover to remove as shown in Diagram 7.

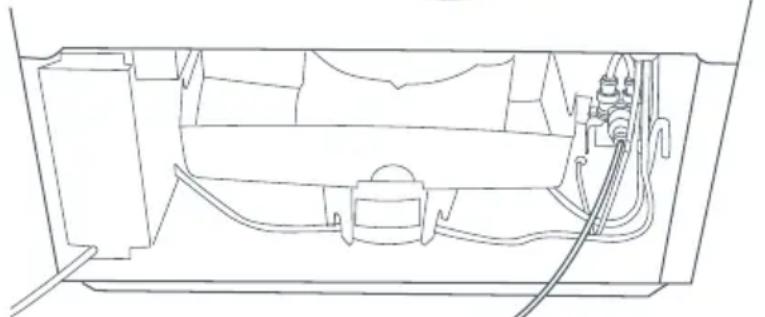

14 Connect tubing into the water (solenoid) valve located on the right hand side of the unit (compressor) compartment as shown in Diagram 8. Beware of hot pipes.
15 Pull gently on tubing to ensure it is locked in as shown in Diagram 9.
16 Place compressor compartment cover back into position, run the 14 " (6 mm) tubing through the space provided at the top right hand side of the compressor compartment cover in an upward direction and rescrew the compressor compartment cover. As shown in Diagram 10.

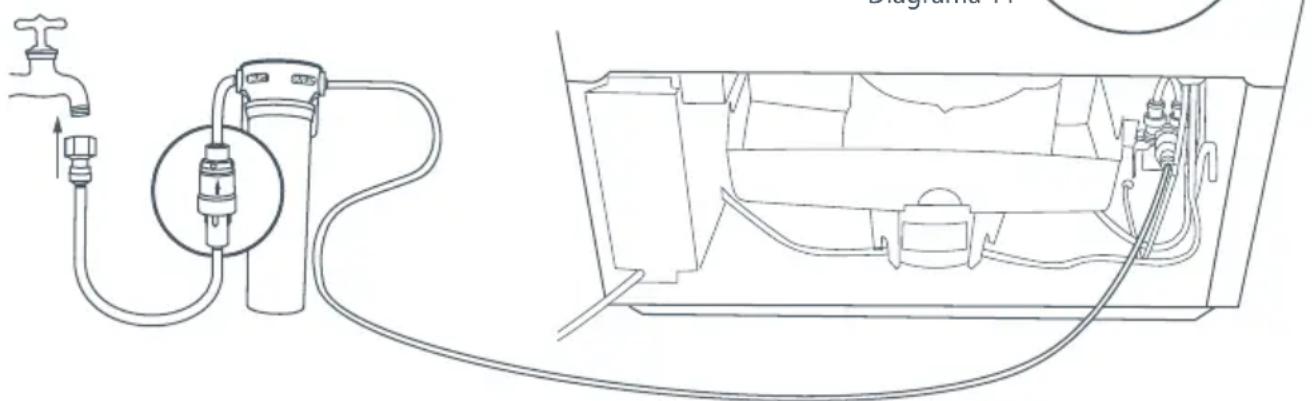

17 The completed installation should look like Diagram 12 on page 8.

Simple line drawing of a cylindrical object with a rectangular top and a small protrusion on the side (no text or symbols)

Diagram 5
Fig.7 Double sided foam attachment

INSTRUCTIONS

Diagram of a hand holding a tool interacting with a device inside a container (no text or symbols visible)

Line drawing of two hands holding a mechanical component, no text or symbols present

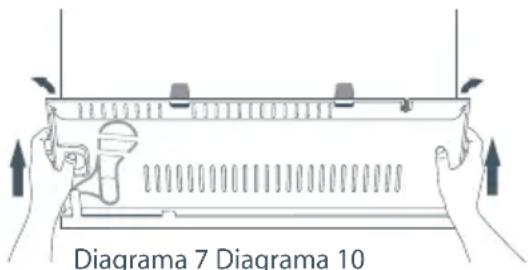

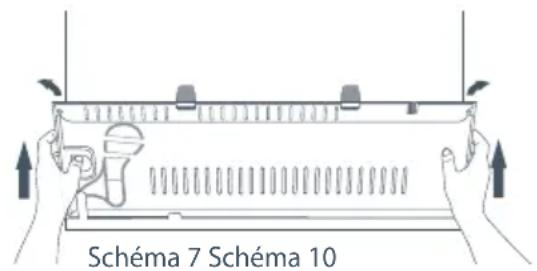

Diagram 7 Diagram 10

Diagram of a hand holding a tool interacting with a container, showing fluid flow and an upward arrow (no text or symbols)

Fig.8 Waterline connection to refrigerator

18 Turn isolating faucet on and check that all connections are dry and free of drips. If not, please alert the plumber.
19 Coil water line tubing behind the refrigerator. Push your refrigerator into place being careful not to kink or squash the water line running into the water (solenoid) valve.
20 Read pages 9 – 14 carefully, and then turn refrigerator on.
21 The first time you require water out of the dispenser, there will be a delay while the water reservoir fills up. As this is happening, the ⚙ symbol will flash. Once the reservoir is full, this symbol will stop flashing.

8

Installation instructions

22 Run a further 3 qt (3 L) through the system, stopping intermittently to ensure the reservoir is flushed out. Failure to do this will result in excessive dripping from your dispenser.
23 Press ≡ until the Ice menu is highlighted then press ▶ to turn on the ice maker. Press √◀▶ together to force a cycle. The ice tray will flip. Force another cycle. The ice tray will flip and spill the water into the ice bin. Empty water and replace bin.
24 You are now ready to enjoy chilled water and ice dispensing from your Active Smart™ refrigerator. Please note that once installation is complete a few drips may appear out of the dispenser over the next few days as the remaining trapped air is cleared.

Important!

■ All connections must be checked for leaks.
If unsure of connection process and/or leaks then contact your local plumber to install and check the system for you.
- Ensure white 14'' (6 mm) tubing is routed away from sharp objects, sharp corners (beware of kinking tube as this will stop water flow), clear of the refrigerator unit compartment and not in a location where it can be squashed.
- Ensure all push-fit connections are firmly pushed into place. The tube should push in 34'' (20 mm) before reaching the stop.
If tubing is removed at any point, re-cut the end and re-insert. Tubing must be fully inserted to avoid leaks.
- To remove tube from connection points, turn off the isolating faucet, push in the collet and gently pull tubing at the same time, as shown in Diagram 11.

Line drawing of a hand holding a tool with a connector, enclosed in a circle (no text or symbols)

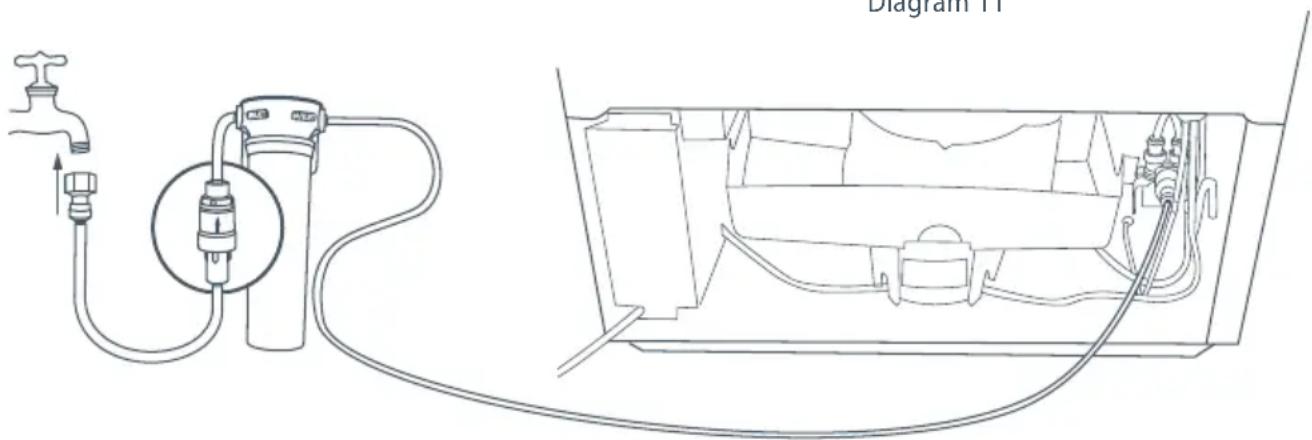

Diagram 11

Diagram 11

Diagram 12Fig.9 Connecti

System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dichlorobenzene, Toxaphene & Turbidity; against Standard NSF/ANSI 42 for the reduction of Chlorine Taste and Odor and Nominal Particulate Class I to a capacity of 750 gallons (2,838 liters).

WARNING!

Electric Shock Hazard

Read and follow the SAFETY AND WARNINGS outlined in this User Guide before operating this appliance, pages 3 – 4.

Failure to do so can result in death, electric shock, fire or injury to persons.

Please follow the steps for installation to ensure your appliance operates correctly.

1. Power

■ The appliance must be installed so the plug is accessible.
- To ensure that the appliance is not accidentally switched off, connect your refrigerator or freezer to its own power point. Do not plug in any other appliance at this power point or use extension cords and double adaptors, as the combined weight of both power cords can pull the double adaptor from a wall outlet socket.
- For power requirements, refer to the information on the serial plate located at the front bottom right-hand side of the refrigerator when the door is open.
It is essential that the appliance be properly grounded (earthed).

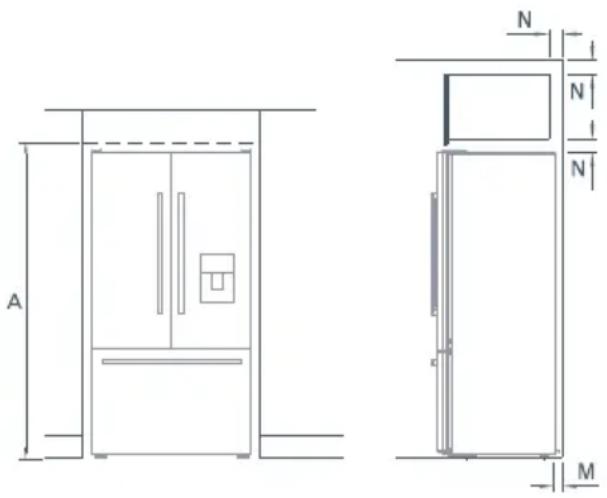

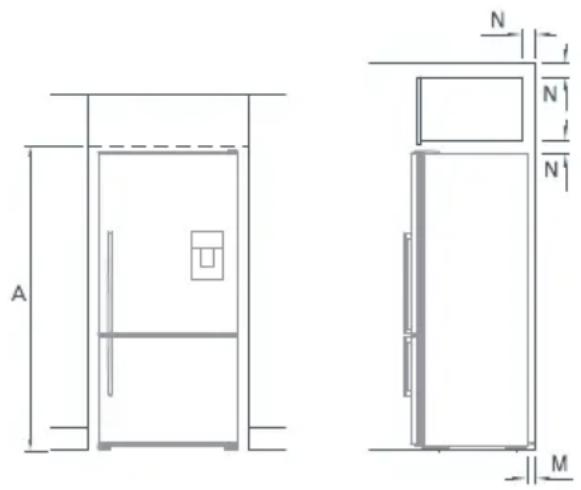

2. Location

- Your refrigerator or freezer should not be located in direct sunlight or next to any heat generating appliance such as a cooktop, oven or dishwasher.

E522B RF201A

A N I N I N M

Flush with refrigerator chassis – full door rotation

B I —U— —U— M I C

Flush with refrigerator door - 90^ door rotation (for full drawer/shelf access, the doors need to be open past 90^ )

D I -|J| -|K| M 1 E/F

Flush with refrigerator door – full door rotation

G J L M H/I

A N I N I N M

Flush with refrigerator chassis – full door rotation

B M C a b c U U

Flush with refrigerator door - 90^ door rotation (for full drawer/shelf access, the doors need to be open past 90^ )

D M F K K

Flush with refrigerator door – full door rotation

G L L M l v₁₁ v

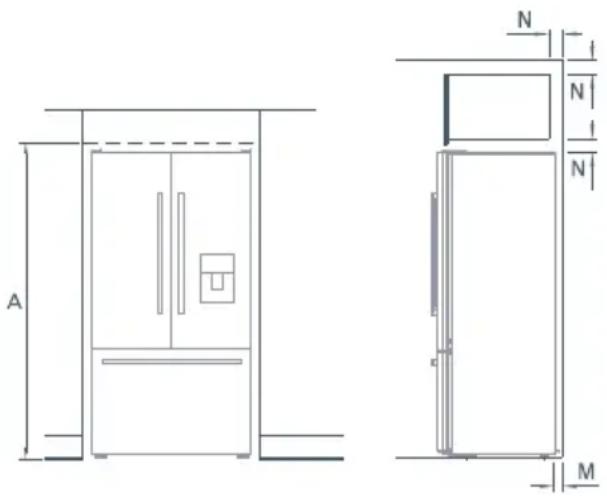

3. Ventilation and installation

• To ensure adequate ventilation for your refrigerator and it's correct operation see recommended cabinetry dimensions below.
• The appliance is intended to be placed against a wall with a free distance not exceeding 3" (75 mm).

Cabinetry dimensions (including minimum air clearances) inches mm inches mm		E522B RF201A
A inside height 68 34 1745 71 14 1810
Flush with refrigerator chassis – full door rotation
B inside width 32 34 830 37 940
C inside depth		24 38 620	24 38 620
Flush with refrigerator door – 90° door rotation (for full drawer/shelf access, the doors need to be open past 90°)
D inside width 32 78 835 37 38 950
E inside depth flush to curved door		26 58	675	-
F inside depth flush to flat door		27 18	690	27 18	690
Flush with refrigerator door – full door rotation
G inside width 37 38 950 46 12 1180
H inside depth flush to curved door		26 58	675	-
I inside depth flush to flat door		27 18	690	27 18	690
Minimum clearances
J side clearance		34	20	34	20
K side clearance – hinge side flush with door – 90° rotation		1	25	1	25
L side clearance – hinge side flush with door – full rotation		5 12	140	5 12	140
M rear clearance (incl. evaporator tray)		1 14	30	1 14	30
N vent		2	50	2	50

Installation instructions

4. Installation

Your Fisher & Paykel Active Smart™ refrigerator is fitted with front and rear rollers, designed for moving the product in the forwards and backwards direction.

Avoid moving the product in a sideways direction as this may damage the rollers or the floor covering/ surface.

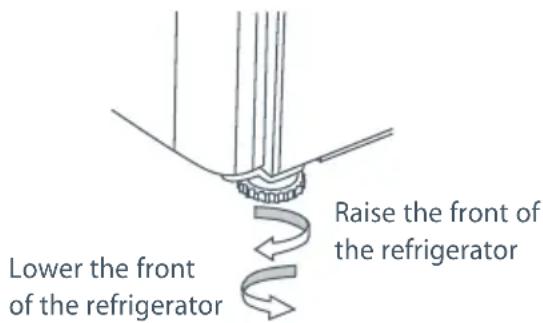

Lower the front of the refrigerator Raise the front of the refrigerator

Fig.10 Refrigerator feet

A Your refrigerator will arrive with the front feet wound up making moving the product into its final location a simple task.

B Roll the refrigerator into its final position making sure there is the correct air gap between the product and surrounding cabinetry. See minimum clearance in cabinetry dimensions table (refer to page 11).

(RF201A only)

C Adjust the front feet down until the refrigerator is leaning backward with the front approximately 38 " (10 mm) higher than the back. This will ensure a good door closing action. (Refer to Fig.10).

D Aligning your refrigerator with cabinetry.

- Align the sides of the refrigerator with the cabinetry by adjusting the hinge side front foot.

- Adjust the handle side foot until it touches the floor and takes a small amount of weight.

- Once the refrigerator is in place and aligned with upboards /alcove push gently on the front top and check if the product is rocking or stable.

Line drawing of a refrigerator with door, front panel, and side legs (no text or symbols)

Fig.11 Uneven door alignment

5. Levelling of refrigerator door (RF201A only)

■ For uneven surfaces, front feet can be used to align the 2 doors.

- If left hand door is too low, then unscrew the left hand foot to lift up the cabinet until the two doors top edges are aligned.

■ If right hand door is higher, then process the same way with right hand foot.

Line drawing of a refrigerator with door, front panel, and side drawer (no text or symbols)

Fig.12 Even door alignment

6. What to do if your product is unstable

E Gently push the refrigerator back until the rear rollers contact floor.
■ Measure the gap under the front foot, which has come off the floor.
- Obtain some solid packing material (hardwood, plastic etc) which fits firmly into the gap under the foot.

Note: Do not use metallic materials that may corrode and stain or damage floor coverings.

F Wind both front feet up and roll the product out of position.
- Place the packing material in the location diagonally opposite the front roller that lifts off the floor.
■ Make sure the packing material stays in place when the product is pushed back into position.
- Ideally, the packing material is large enough to rest against the back wall so as to prevent it moving when the cabinet is pushed into position.

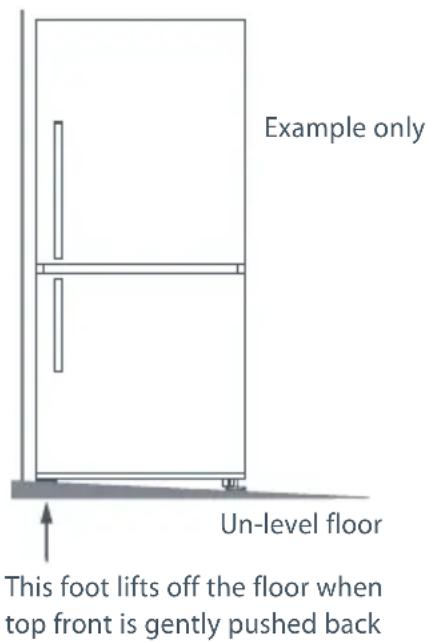

Example only Un-level floor This foot lifts off the floor when top front is gently pushed back

Fig 13. Unstable refrigerator

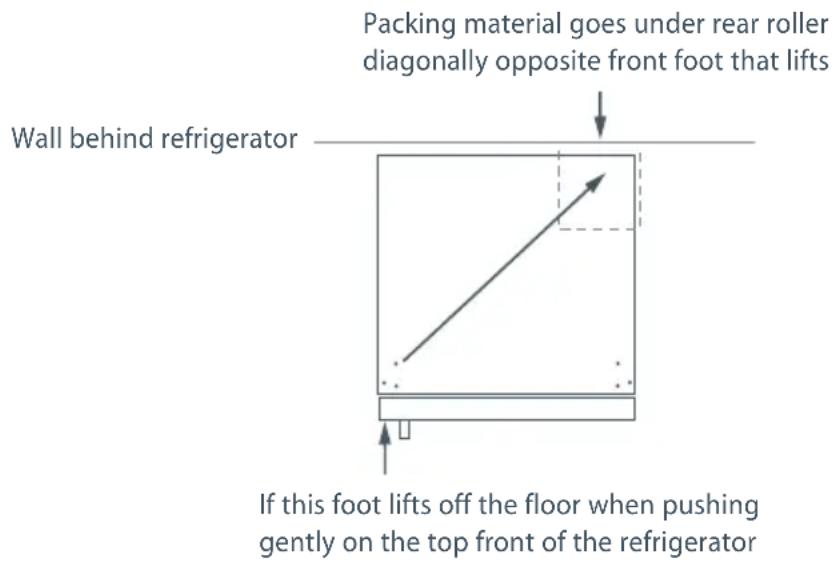

Packing material goes under rear roller diagonally opposite front foot that lifts Wall behind refrigerator If this foot lifts off the floor when pushing gently on the top front of the refrigerator

Fig.14 Stabilizing your refrigerator

G Roll the refrigerator back into position and adjust front feet as per step D. (Check alignment and door closing action are satisfactory).
■ Make small adjustments to front feet where necessary.
- Check that the product is stable (all 4 feet are on the floor). If not return to step E and repeat steps F and G.

Before placing food in the fresh food or freezer compartments

■ Remove all packaging. Ensure that all transit clips are removed from the refrigerator. These are small rubber stops located at the back of the shelves.
- Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.
- Allow the refrigerator and freezer to run empty for 2 – 3 hours to allow each compartment to cool to the appropriate temperature.
The appliance may have an odor on its initial operation, but this will go when the refrigerator and freezer have cooled sufficiently.

Energy efficiency

• Do not cover your appliances with any material that will prevent air from flowing around the cabinet sides.
• Do not leave the door open for any longer than is necessary.
• Allow good clearances in front of the air ducts within the cabinet for maximum cold air distribution.

Moving or storing your refrigerator

If your refrigerator or freezer is turned off for any reason, wait 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

Moving your refrigerator

■ Turn off the appliance and unplug from the power point. Remove all food.
■ Turn the adjustable feet to the right as far as they will turn (refer to page 12).
Ease the refrigerator out of its position. Tuck the power cord away and tape the doors closed. Tape the shelves in place. If the cabinet needs to be placed at an angle or laid down, carefully lay it on its side (the right hand side when viewed from the front).
- Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

Storing your refrigerator or freezer

• When storing your cleaned appliance, leave the door(s) open. This allows air to circulate and prevents the build up of bacteria and moulds.
  Before using again, clean well using a mixture of warm water and baking soda (add 1 teaspoon of baking soda to each 1 pint (500 ml) of water). Rinse with clean water.

Holiday time

We recommend you leave your refrigerator or freezer operating while you are on holiday.

Before you start using your Ice & Water refrigerator

• Check refrigerator is switched on and has cooled for at least 2 hours (refer to page 23 – The temperature of your refrigerator and freezer) before use.
• Check that the water filter has been connected and turned on.
  ■ Turn on ice maker (refer to page 19).
  At first use allow approximately 1 minute from when the dispensing pad is pushed until water is dispensed. This will allow the tank to fill.
• Run through and discard the first 3 qt (3 L) of water from the dispenser, stopping intermittently (refer to page 18 – First use). Failure to do this will result in excessive dripping from your dispenser.
• Discard the first bin of ice (refer to page 19 – First use).

You are now ready to enjoy ice and water from your Active Smart™ refrigerator.

Fig.15 Water dispenser

Fig.15 Water dispenser

Please note that once installation is complete a few drips may appear out of the dispenser over the next few days as the remaining trapped air is cleared.

All about the display

The display screen enables you to view and modify all the features and options on your refrigerator. For example, you can change the temperature in your refrigerator or freezer, and select the Freezer Chill function when you want to quickly freeze meat. You may want a measured amount of chilled water when you are cooking, or want to quickly chill a bottle of wine when friends arrive unexpectedly.

4 5 6 7 8 MEASURED FILL timer 8.8.8 qtflozcal mlltrmin CHILL freezer bottle TEMPERATURE colder warmer ICE off on SETTINGS metric US Fig.16 Electronic control panel

9

Keys

For more detailed information on these functions please refer to pages 18 – 25.

	1. Measured Fill (see page 21)
	Enables you to select the amount of water to be dispensed.
	2. Main menu
	Scrolls through the main menu. (Chill, Temperature, Ice and Settings).
	3. Arrow keys
	Scrolls through the settings of each function.

Display features

MEASURED FILL	4. Measured Fill (see page 21)
	A pre-measured volume of water can be selected and dispensed automatically.
[C3BD]	5. Dispensing water (see page 18)
	Animation shows you water is being dispensed.
	6. Chill (see pages 22 - 23)
	Freezer ChillWhen activated this feature boosts cooling in your freezer, optimizing the rate at which your foods are frozen.
	Bottle ChillYour drinks can be chilled more rapidly using this function. An alarm will alert you when they are ready to be removed.
TEMPERATURE	7. Temperature (see page 23)
	The temperature setting can be individually adjusted for each compartment.
	8. Ice (see page 19)
[ZZG8]	The ice making function can be turned on or off.
[BY62]
metric	9. Settings/User alerts (see page 24)
US	Water conversionYour volume can be displayed as either US or metric units.
	Key Silent ModeAll key presses can be silenced.
	Key and dispenser lockDispenser lock - disables the buttons and prevents water from being dispensed.
	Key lock - disables the buttons.
[SHD]	Sabbath ModeCan be activated if necessary (refer to page 24).

Using your water dispenser

Dispensing pad

Your water dispenser has been designed for one handed operation. Simply push your glass up against the dispenser pad found at the back of the dispenser area. This pad requires only a gentle press to activate.

Please remember that pressing very hard against the dispensing pad will not make the dispenser operate faster or produce greater quantities of water.

First use

■ After installation, on the first use, allow approximately a one minute delay from when the dispensing pad is pushed until water is dispensed. This will allow the tank to fill completely.
- The ⚙ symbol will flash while the water reservoir fills up. Once the reservoir is full, the symbol will stop flashing.
■ After you fill the tank for the first time, dispense and discard approximately 3 qt (3 L) stopping intermittently to flush the tank out.

Dispensing

■ Unless Measured Fill is selected, water will be dispensed in free-flow mode. (For more information on Measured Fill refer to page 21).
- To dispense water push the dispensing pad gently, using a glass or container.
- When you dispense water, a light will appear above the dispensing area, and on the display screen. The water fill icon ⚙ will also appear.
- To stop the flow of water, simply pull your glass away from the dispensing pad.

Line drawing of a hand holding a glass container inside a control panel (no text or symbols)

Fig.17 Water dispenser

Important!

To avoid damage to property or personal injury do not put hands, fingers or objects up the dispenser opening.

Please note that once installation is complete a few drips may appear out of the dispenser over the next few days as the remaining trapped air is cleared.

on

Ice maker

Your ice maker is designed to automatically dispense ice until it senses that the bin is full. So the more ice you use, the more it makes. It is even clever enough to sense when there is no bin in place to catch the ice.

First use

• When you first turn your refrigerator on after installation, the ice maker will be off.
• To turn your ice maker on use the ≡ button to scroll to the ICE screen.
  Use theor button to turn the ice maker on or off.

on

Shows the ice maker is on.

off

Shows the ice maker is off.

• Press together to force a cycle. The ice tray will flip. Force another cycle. The ice tray will flip and spill the water into the ice bin. Empty water and replace bin.
  If the bin is full, or inserted incorrectly the ice maker will not operate. When the bin is inserted correctly the scoop will be on the right hand side of the bin for models E522B and the front of the bin for model RF201A (refer to Fig.19 on page 20). If the bin is removed the ice maker will not operate
  Once your ice maker is in operation, discard the first bin of ice cubes. This will flush away any impurities in the water line and ensure that you get the best quality ice. We recommend that you also do this after vacations or extended periods of not using ice.
  ■ We recommend that you turn the ice maker off if:
• The water supply is to be off for several hours or
• The ice storage bin is to be removed for a period of time or
• You are going on holiday/vacation.

Line drawing of a hand pressing down on a device with control knobs (no text or symbols)

Line drawing of a hand pressing down on a control panel with three rotary switches (no text or symbols)

Fig.18 Turning ice maker on

Information about your ice maker

• Your automatic ice maker will produce approximately eight cubes of ice every 2 – 3 hours, dependent on freezer compartment temperature and number of door openings.
  ■ The ice cube tray will fill with water after the freezer has reached the correct temperature. The first cubes will normally freeze after several hours.
  ■ When cubes are frozen, they will be ejected from the mould into the ice storage bin.
  ■ Ice making will continue until the storage bin is full.
  ■ Ice making will resume when the ice is used.
  ■ For maximum ice storage, level the stored cubes with the ice scoop provided.
• Your Ice & Water product comes with a smaller ice bin inside the larger freezer bin. Attached to this is a scoop for the ice.
  If a large amount of ice is required, remove the smaller storage bin and allow ice to fall into the larger bin.
  If ice is not used often, old cubes will become cloudy, taste stale, will shrink and may stick together. Empty the ice storage bin periodically, wash in lukewarm water, dry thoroughly and place back.

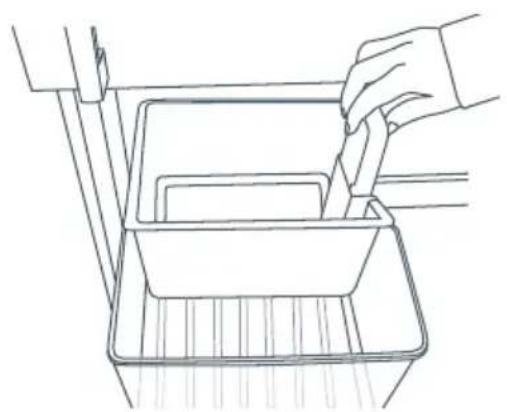

Line drawing of a hand using a tool to clean or wash a plastic container (no text or symbols)

E522B RF201A

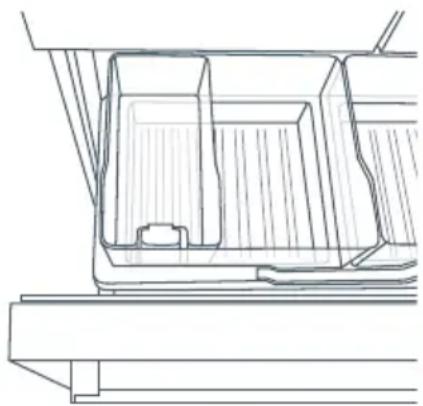

Technical line drawing of a mechanical component or housing assembly (no text or symbols)

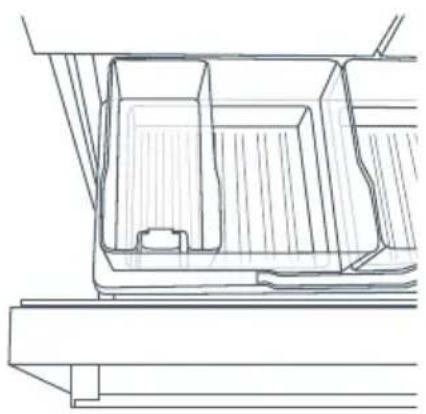

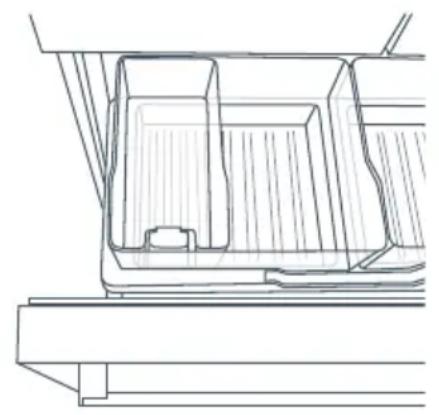

Fig.19 Ice storage bin and scoop in correct position

Important!

• Avoid contact with the moving parts of the ice maker ejector mechanism, and do not place your fingers on the automatic ice making mechanism while the refrigerator is in operation.
  Do not use ice cubes that may have become discolored, usually with a green-blue color. If such discolouration is noted, discard the ice cubes and contact your Fisher & Paykel Appliances Authorised Service Center.
  ■ Ensure the ice maker is connected to the filter and only to a drinkable water supply.
• Installation of the water connection to the ice maker must be completed by a qualified service technician or a qualified plumber (see installation instructions).

Measured Fill

One useful feature of your water dispenser is it's ability to dispense a pre-measured amount of water. This comes in handy when cooking or preparing drinks.

- Press the button to highlight the measurement again to cycle through the preset quantities.

MEASURED FILL 8 floz MEASURED FILL 10 floz MEASURED FILL 10 qt Fig.20 US display MEASURED FILL 250 ml MEASURED FILL 300 ml MEASURED FILL 10 ltr

Fig.21 Metric display

• Push the dispensing pad to receive the pre-selected quantity of chilled water. The units will count up to confirm operation.
  If you stop dispensing part way through your pre-selected quantity the dispenser will remember the remaining quantity to be dispensed for a short time. Simply continue by pressing the pad.
• The ◀ and ▶ buttons can be used to increase or decrease the pre-set measurements in 1 oz, (25 ml) increments, to a maximum of 1 qt (1 L).

Changing the Measured Fill units

The pre-set measurements can be displayed in US imperial or metric units.

The unit setting can be changed by pressing the ≡ button to scroll to the SETRANS and pressing the ◀ and ▶ buttons until the desired units are displayed. To return to the Measured Fill option, press the ⏻ button.

Using the display options

Freezer Chill

We have created the Freezer Chill feature to help you to get the best possible results when freezing fresh food. Freezer Chill boosts freezing speed, which helps to ensure that vital freshness, texture and taste are retained during the freezing process.

The Freezer Chill feature drops the freezer to it's coldest temperature for a 12 hour period and then returns to its normal mode. You may wish to use this when freezing a quantity of meat or when you are making frozen desserts.

To activate, use the button to scroll to the screen. Then use the button until is displayed.

- To deactivate manually, use the button to scroll to the screen. Then use the ◀ and ▶ buttons until there is no icon in the screen. CHILL

For best results, we recommend that you activate the function approximately 2 hours before it is required. Alternatively, activate it when placing food into the freezer.

Bottle Chill

This function allows you to chill your beverages in the freezer without the worry of forgetting about them.

When activated Bottle Chill will remind you to remove your beverage by sounding an alarm. The user alarm will continue to sound until any key on the panel is pressed.

The time taken to chill depends on the size of your beverage. Bottle Chill allows you to customise this chill time.

Recommended times:

20 minutes – can or small bottle.

25 minutes – wine bottle or similar size beverage.

30 minutes – larger bottle.

If you remove your beverage from the freezer and it is not chilled to your liking, reset the timer to 10 minutes and place the beverage back into the freezer.

- To activate, use the button to scroll to the screen. Then use the button until is displayed.

- Then use the ▶ button to select 10, 15, 20, 25 or 30 minutes as displayed on the left hand side of the screen in the MEASURED FILL screen.

An alarm will sound after the amount of time selected has elapsed.

- Press any button on the display to silence the alarm. Remember to remove the beverage from the freezer.

Bottle Chill contd...

Important!

Do not leave the bottle inside the freezer longer than the time needed for chilling.

- To deactivate Bottle Chill manually, use the button to scroll to the screen, then use the ◀ and ▶ buttons until there is no icon in the screen.

Note: The freezer chill and bottle chill option cannot be used at the same time.

The temperature of your refrigerator and freezer

• When the refrigerator is first turned on it will take approximately 2 to 3 hours to cool, depending on the humidity and temperature of the environment.
• To adjust the temperature of a compartment, use the ≡ button to scroll to the TEMPERATURE screen, use the ≡ button to select the compartment to change.
• The temperature can then be adjusted using the ▶ button to make the compartment warmer or the ◀ button to make the compartment colder.
  ■ The temperature setting will be indicated on the icon below.

It is important to have your refrigerator set to the correct temperature. Setting it too cold may cause some items in the refrigerator to freeze, and setting it too warm will decrease the storage life of your food.

For further information on food storage refer to the Food Care section (pages 37 – 39).

Using the display options

Settings

Water unit conversion

- You can change the units your refrigerator uses between US and metric units. To change the units press the ≡ button to scroll to the Screen Option and press one of the or buttons until the desired units are displayed.

Key Silent Mode

■ The Key Silent Mode allows you to silence all key presses.
It can be activated or deactivated by holding the button for four seconds.

When Key Silent Mode is on 📁 will appear. When this function is off no symbol will appear.

Note: Faults, Bottle Chill timer and the door alarm will still sound when the refrigerator is set on Key Silent Mode.

Key and dispenser lock

■ The dispenser lock disables all the buttons and prevents water from being dispensed.
■ Key lock disables the buttons.
■ Activate by holding down both the 📊 button and the ≡ button together.
■ After 2 seconds 🔒 icon will appear indicating dispenser lock is activated.
■ After 2 more seconds 🔒 icon will appear indicating key lock is activated.
- To de-activate, hold down both the 📋 button and the ≡ button together for 2 seconds.

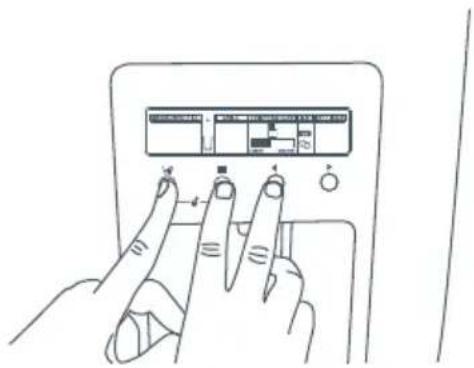

Diagram showing finger positioning with labeled finger positions and a small icon indicating finger movement

Fig.22 Key and dispenser lock

Sabbath Mode

In Sabbath Mode alarms, lights and displays are deactivated.
- Sabbath Mode can be activated or deactivated by holding down the 📋, 📋 and button for 4 seconds.

Hand-drawn diagram showing finger pressing a device with labeled buttons and indicators

Fig.23 Sabbath Mode

Settings

Once in Sabbath Mode:

■ The interior light will not turn on when the refrigerator is opened.
■ The door alarm will not operate.
■ The display will not be illuminated.
■ Electronic control panel will not work.

Note: If power is turned off the refrigerator will automatically continue in Sabbath Mode once power is restored. Sabbath Mode will automatically de-activate after 80 hours.

User warnings

Your refrigerator is clever enough to diagnose it's own problems. It will alert you when there is a fault.

No water

The no water icon will appear when the water supply to the refrigerator is interrupted. Please refer to the Troubleshooting checklist (refer to pages 40 – 43).

Filter reset

The filter reset icon will appear when the water filter needs changing. This will flash when dispensing water. To change the filter and reset the filter icon refer to pages 28 – 29.

Fault

In the unlikely event a fault occurs the 📄 icon appears on the front of the display and a fault code will be displayed on the left in the MEASURED FILL screen.
- When the door is open the refrigerator fault alarm will sound. To silence this press any button on the display.
Please take note of the fault code and contact our Customer Care Center. Details of Customer Care phone numbers can be found in the back of this book.

F30

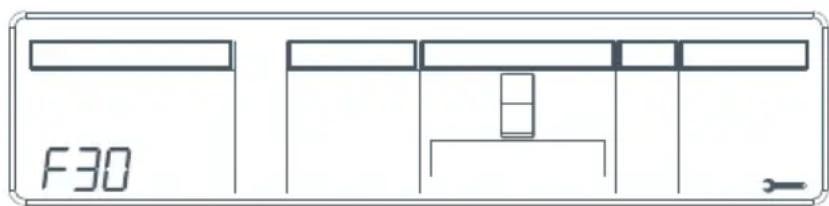

Fig.24 Fault code display

Fruit and vegetable bins and humidity control cover

The fruit and vegetable bins feature a unique cover which provides two functions:

• The humidity cover seals the bins and provides a humid microclimate to extend storage times of fruits and vegetables.
  The humidity cover prevents condensation, which forms at high humidities, from dripping down onto the fruit and vegetables. The ability to retain high humidity in the fruit and vegetable bin may produce small amounts of water in the bottom of the fruit and vegetable bins. This can be wiped out as required.

Fruit and vegetable bins and humidity slide (where fitted)

■ Each fruit and vegetable bin has a humidity slide control that can be adjusted to fruit or vegetables depending on what is stored in the bins.
If possible try to store fruit and vegetables separately. This will help extend their storage life.
If there is a mixture of fruit and vegetables in the bin adjust the position of the control to the center.
If there is too much water in the bins the control can be adjusted towards the setting with fewer drips.
■ Remember a small amount of water in the bins is beneficial for fruit and vegetable storage.


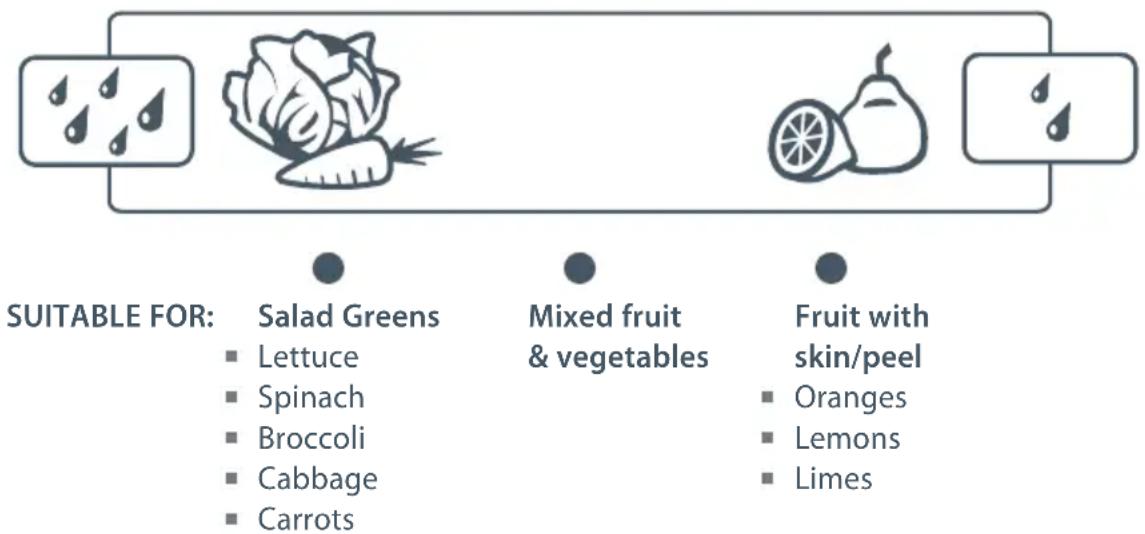

Fig.25 Humidity Control graphic

Slim storage drawer (where fitted)

The bins at the bottom of the refrigerator provide storage space for items that you may want to keep separate from the rest of the refrigerator. These slim storage bins can be used for deli item storage, beverages or for defrosting foods.

Line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

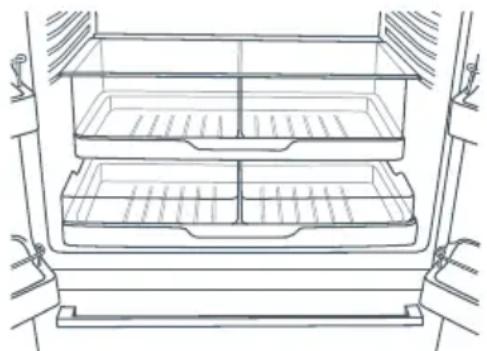

Fig.26 Slim storage drawer

Door alarms

If the fresh food compartment door is left open the alarm will beep after 90 seconds and if the freezer door is left open the alarm will beep after 60 seconds.
■ While either door remains open, subsequent beeps will sound every 30 seconds for 5 minutes.
A continuous alarm will sound if the door has been left open for 5 minutes or longer and the light will turn off. The alarm will stop when the door is closed.

Bottle rack (where fitted)

The bottle rack can be used to store a variety of bottles and can be positioned anywhere you would position a shelf. To re-position, lift the rear of the rack and pull forward. Bottles are best stored with the neck of the beverage facing the front of the refrigerator.

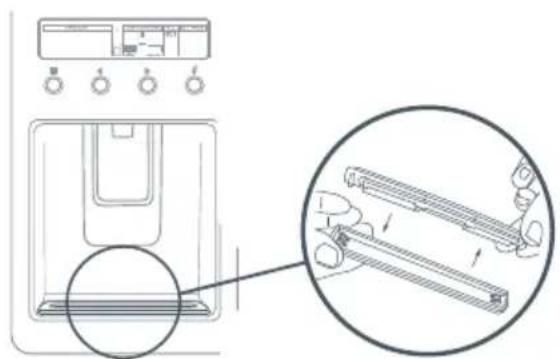

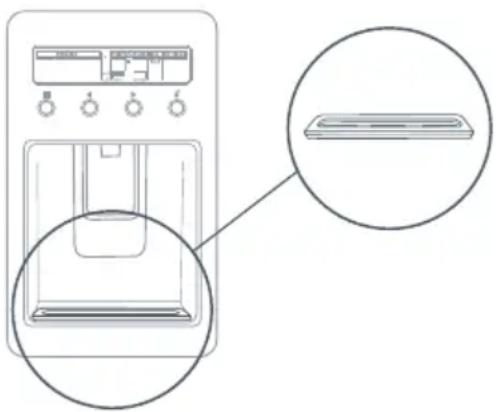

Drip Tray

■ The drip tray is designed to fit into the lip at the bottom of the water dispenser panel.
■ To insert the tray always ensure that the rounded sides are fitted into the dispenser panel first.
■ The purpose of the tray is to capture any odd drips of water that may fall after dispensing.
■ The tray can be easily removed for cleaning (see page 32).

Diagram of a refrigerator with labeled control panel and close-up view of the front panel

Glass Shelves

■ Glass shelves can be repositioned in the cabinet as desired.
■ Remove by lifting up at the back and pulling forward.

All the water that enters your refrigerator is filtered to remove impurities through a cartridge located in a position of your choice outside the refrigerator. Of course, this will need changing approximately every 6 months or up to 740 gallons (2800 L) depending on the quality of the incoming water and how much you use the dispenser.

There is a replacement indicator ✕ icon on the control panel which will appear when the filter needs replacing. It will flash, when dispensing water, as a reminder.
- Replacement cartridges are available from your authorised Fisher & Paykel Dealer. The details of the replacement cartridge are on the label on the cartridge.

Changing the water filter cartridge

It is not necessary to turn off the water supply before attempting to change the water filter cartridge.

1 Grasp and firmly twist the cartridge in an anticlockwise direction (to the left when installed in the recommended orientation) as shown in Diagram 1.
2 Pull the cartridge away from the filter head (down when installed in the recommended orientation) as shown in Diagram 2.

- It is not unusual for a few drops of water to be present when the filter is removed.

3 Discard old filter.
4 Filter installation:

- Remove protective cap on spigot on head.

- Push the cartridge up towards filter head while rotating it in a clockwise direction (to the right when installed in the recommended orientation) as shown in Diagram 3.

5 Reset filter indicator icon on the display (this will remind you when the filter is due to be replaced again). Refer to page 29.
6 Dispense 10 qt (10 L) to flush the cartridge, removing trapped air and harmless carbon fines.
7 A few drips may appear out of the dispenser over the next few days as the remaining trapped air is cleared.

Line drawing of a hand holding a tool with an arrow indicating motion (no text or symbols)

Hand holding a cylindrical device with a downward arrow indicating motion or force (no text or symbols)

Hand holding a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram 2 Diagram 1 Diagram 3
Fig.27 Changing the water filter cartridge

To reset the filter indicator

Important!

We recommend the water filter is used from installation.

Do not reset monitor before filter is changed or filter monitoring will be inaccurate.

• Press and hold ⬤ and ▶ buttons for 4 seconds to reset the filter indicator.
  If present the ⚙ icon in the SCREEN will disappear when reset.

To disable the filter indicator

Note: if disabled, you will not be reminded to change your filter.

■ When no filter is to be fitted, you can disable the filter indicator.
- Press and hold 📋, and buttons for 4 seconds to turn this feature off/on.
- When activated or deactivated the ⚙ icon will flash and on or off will be displayed in the MEASURED FILL screen.
We recommend that you do not disable the filter indicator if you have a filter fitted to the connection.

Important!

To avoid serious illness or death, do not use the water filter where water is unsafe or of unknown quality without adequate disinfection before or after use of filter.
The water filter cartridge needs to be changed when the filter indicator icon flashes on the interface panel.
We recommend the water filter cartridge is replaced when the ⚙️ icon flashes. This will happen every 6 months or 740 gallons (2800 L).
If the water filtration system has been allowed to freeze, replace filter cartridge.
The rate of water flow through the water dispenser can slow down as the filter cartridge accumulates any sediment which may be present in the water supplied to your home. This varies depending upon your local water quality, which may require your filter cartridge to be changed more frequently.
In cases of excessively reduced filter life we recommend that you consult a local plumber or your water supplier for advice on suitable filtration requirements for the water supplied to your home.
Filter replacement is the consumer's responsibility and will not be covered by the warranty except in the case of faulty parts or materials within the filter cartridge.
If the water has not been dispensed for some time or water has an unpleasant taste or odour, flush system by dispensing 10qt (10 L) of water.
If unpleasant taste or odour persists, you may wish to fit a new filter cartridge.

Measured Fill Calibration

The accuracy of your Measured Fill function can be affected by variations in the incoming water pressure. The Measured Fill Calibration Mode allows you to fine-tune the amount of water dispensed from the preselected volumes on your cabinet.

The calibration mode is worked out as a percentage. You can measure the amount the refrigerator is under filling or over filling and increase or decrease the calibration to get the exact amount you want.

To assess whether the Measured Fill function is under or over filling:

■ Press the MEASURED FILL button until 1 qt (1 L) is displayed.
■ Dispense this amount into a measuring jug.
■ Estimate the amount of water that has been dispensed into the jug.
eg. 31 floz = under filling by 1 floz or 975 ml = under filling by 25 mls

To calculate the Calibration factor:

■ Transfer the difference into a percentage.
eg. 32/31 = 1.03 = 103% or 1000/975 = 1.03 = 103%

Enter the Calibration mode by pressing and holding the 📋 and ◀ buttons together for 4 seconds.

■ 100CAL will be displayed.

- The number displayed is a percentage. Adjust this accordingly using the ◀ and ▶buttons. eg. 100 CAL = 103 CAL

■ Press the MEASURED FILL button to confirm your selection.

Please note:

The Measured Fill function has an accuracy of +/-5% at the time of calibration.

The accuracy of your calibration will of course be subject to the accuracy of your measuring device and method.

Calibration quick reference guides

US

Actual amount of water received	Under filled	Difference from 32 floz	Adjust display to read (calibration factor)
Underfilling – you dispense 1 qt but the amount of water you receive is actually less than 1 qt
31 floz 1 floz 3%	103 CAL
30 floz 2 floz 7%	107 CAL
Overfilling – you dispense 1 qt but the amount of water you receive is actually more than 1 qt
33 floz 1 floz 3%	97 CAL
34 floz 2 floz 6%	94 CAL

Metric

Actual amount of water received	Under filled	Difference from 1 L	Adjust display to read (calibration factor)
Underfilling – you dispense 1 L but the amount of water you receive is actually less than 1 L
975 ml 25 ml	3% 103 CAL
950 ml 50 ml	5% 105 CAL
Overfilling – you dispense 1 L but the amount of water you receive is actually more than 1 L
1025 ml 25 ml	2% 98 CAL
1050 ml 50 ml	5% 95 CAL

Replacement of the interior light (Halogen light bulb)

Turn the power off at the wall socket before replacing the bulb. The light bulb is located on the top roof of the cabinet at the front.

■ Remove the lens cover using a small screwdriver. Insert the screwdriver in the front center of the lens cover and gently lever down. Pull out old bulb.
- Do not touch the new bulb with your hand. Leave it in the plastic bag whilst slotting into position.
■ Remove plastic bag when bulb is in position.
■ Replace lens cover.
■ Turn power on. Light bulb should now glow.

Note: The replacement halogen bulb must not exceed 12 Volt/10 Watt. Bulbs are available from your Fisher & Paykel Appliances Customer Care Center.

Illustration of two hands holding a pen and a magnified inset showing a small object (no text or symbols present)

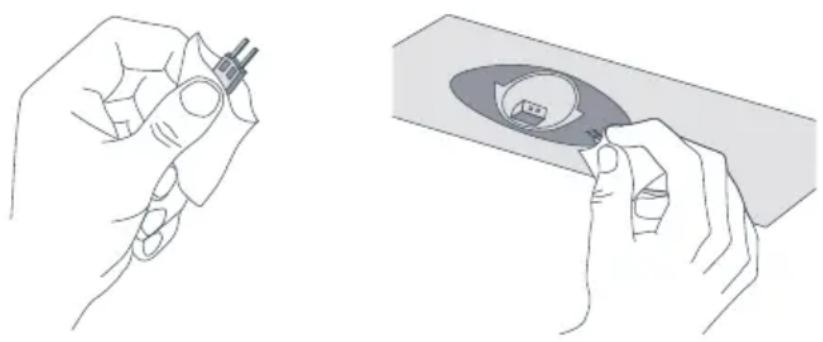

Fig.28 Halogen light replacement

Important!

Your refrigerator is designed to operate for many years without the need for service checks. However, if your refrigerator is malfunctioning, have it attended to by your Fisher & Paykel Appliances Authorised Service Center as soon as possible. All electrical repairs must be carried out by an adequately trained service technician or qualified electrician.

Cleaning and caring for your refrigerator

Exterior

Stainless exterior doors (Iridium or EZKleen finishes)

It is important when cleaning the exterior door surface of your refrigerator, to only use liquid dishwashing detergent dissolved in warm water.
■ Dry the door with a clean, lint free cloth.
The use of any abrasive or stainless steel cleaners and solvents will damage the door surface.

Water dispenser pad and interface

We have incorporated a Dispenser and Key Lock function in your refrigerator to make cleaning easier (refer to page 24). This will help you to avoid accidental water dispensing while you clean.
■ Clean the pad and interface panel with a soft damp cloth.

Other exterior surfaces

■ Clean all other exterior surfaces with warm water and detergent.
If necessary, clean the magnetic door gasket and the center door gaskets with an old toothbrush, warm water and liquid dishwashing detergent.

Water evaporator tray

The water evaporator tray is found above the compressor at the back of the refrigerator or freezer. The tray may require infrequent cleaning.
■ Carefully move the refrigerator or freezer out from the wall.
■ Switch off the appliance.
We do not recommend that you remove the evaporator tray. If cleaning is required, excess water can be soaked up from the evaporator tray using a sponge. Wipe out with warm water and detergent or disinfectant.
■ Reassemble taking care not to over-tighten the fasteners.
■ Switch on the appliance.

Line drawing of a refrigerator with doors and front door, emitting radiating lines (no text or symbols)

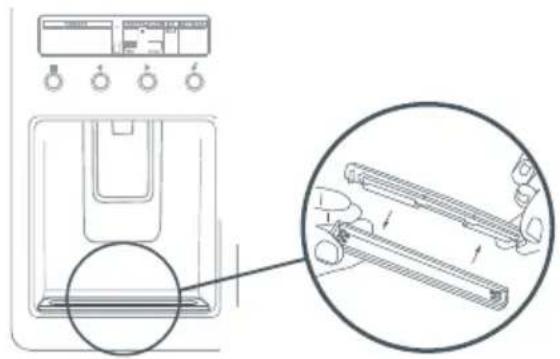

Drip Tray

■ To clean, take the tray out of the dispenser panel and pull the two halves of the tray apart.
■ Clean in warm water with a mild detergent. Dry the tray and clip back together.
■ Reinsert the tray back into the dispenser panel.

Diagram showing a washing machine with a magnified view of its internal components (no text or symbols present)

Interior

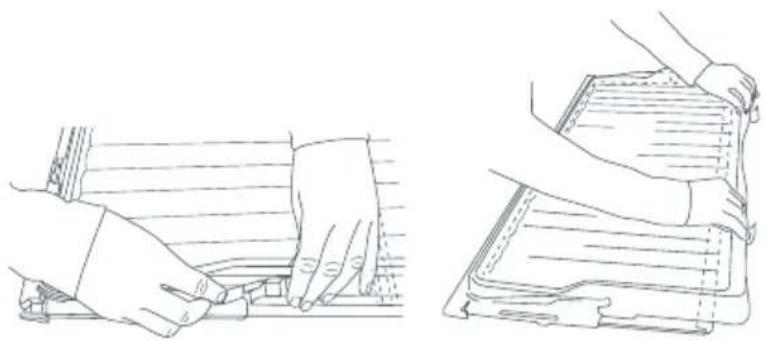

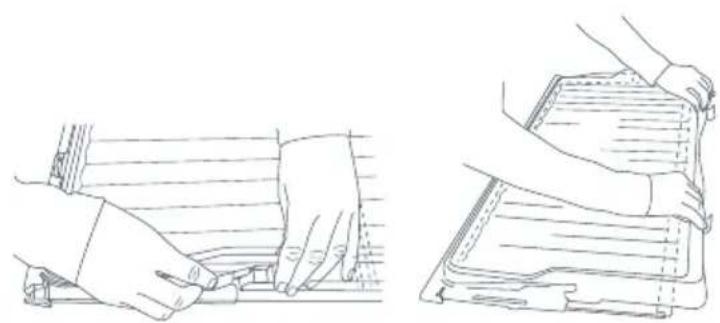

It is important to keep the interior of the refrigerator and freezer clean to help prevent food from becoming contaminated during storage.
The amount and types of food stored determines how often cleaning should be carried out (ideally once every 1 to 2 weeks) in the refrigerator.
■ Remove the shelves from cabinet and door. Wash shelves and storage bins in warm water and detergent; rinse in clean water and dry before replacing.
■ Wipe over the interior surfaces with warm water and detergent or baking soda dissolved in warm water (add 1 teaspoon of baking soda to each 12 qt (500 ml) of water). Rinse with clean water.
- To help remove "old stale refrigerator" smells add a few drops of vanilla essence or vinegar to the water before cleaning.
- Clean exterior surfaces with warm water and detergent. Use a toothbrush for the magnetic door gasket.
- Do not use harsh, abrasive cloths or cleaners or highly perfumed, strong smelling cleaners or solvents on any part of the refrigerator or freezer.

Glass shelves

Clean with warm water and detergent or a glass cleaner. If cleaning the shelves without removing from the cabinet, use only warm water and detergent as a glass cleaner can damage the plastic components of your refrigerator.

Bottle rack

- Clean with warm water and detergent. The use of abrasive cleaners and solvents may cause damage.

Automatic ice dispenser

We do not recommend you clean the ice maker componentry, but it is important to clean the bins occasionally.
■ The storage bin should be cleaned regularly and the old ice in the bottom of the bin discarded.
■ Wash bin in lukewarm water, dry thoroughly and replace.
- When replacing the bin ensure that the scoop is on the right hand side, (E522B only) and at the front on RF210A.

Important!

Many commercially available cleaning products contain solvents that may attack the plastic components of your freezer and cause them to crack. It is important to use only warm water and a small amount of liquid dishwashing detergent on any plastic components inside and outside your freezer. Avoid using anti-bacterial cleaning products on either the interior or exterior of the cabinet as they may cause rusting of metal components and cracking of plastic components.

Cleaning and caring for your refrigerator

Humidity Control System

Important!

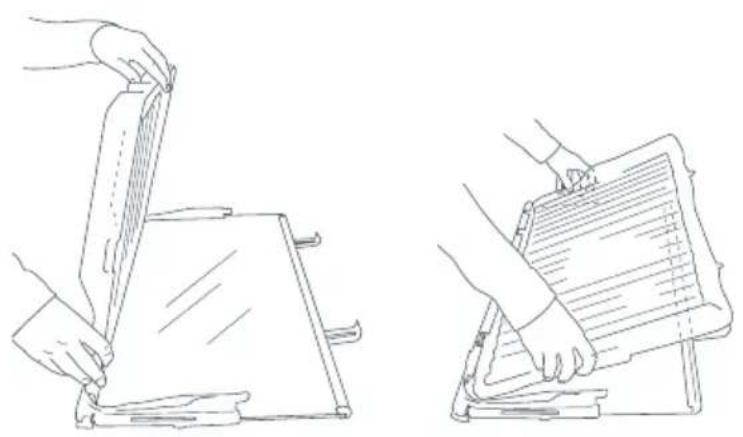

When cleaning the shelf above the vegetable bins, we recommend that you do not disassemble the Humidity Control System from the shelf.

In the event that the plastic lid and humidity slides become separated from the glass shelf, follow these instructions to reassemble.

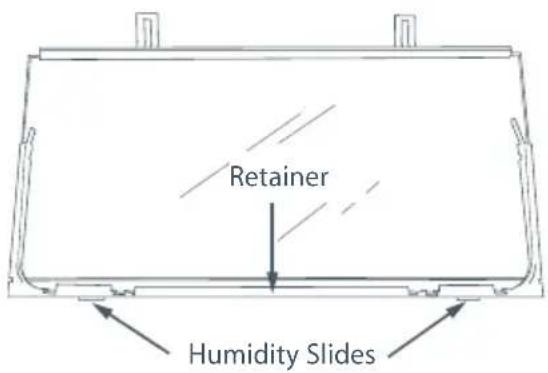

Retainer Humidity Slides

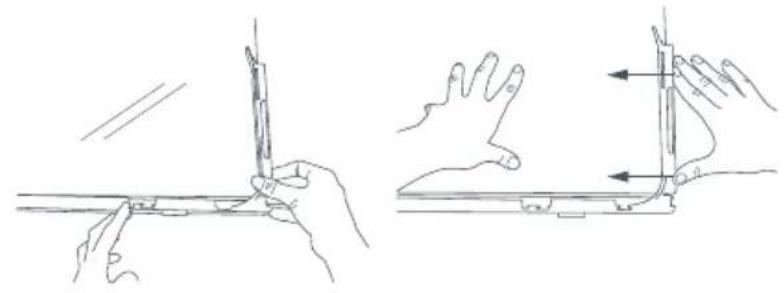

1 Turn shelf upside down

2 To attach humidity slides onto shelf front corners, fit bottom clips into shelf front trim. Next, slide sideways towards shelf until arm clips onto glass.

3 To attach humidity control lid – with text facing you, align lid with front of shelf. Hold lid vertically and fit front end into retainer on shelf. Ensure lid fits into retainer as well as underneath humidity slides.

4 At the sides of the shelf, adjust humidity slide tabs so that the plastic lid is between the shelf and the tabs.

5 If clips on back of shelf are present, fasten lid with rear clips. Ensure that the cover is fully secure at front and back of shelf.

Line drawings showing hand positioning and movement of a tool or device (no text or symbols)

Line drawings of two hand-drawn diagrams showing a document being inserted into a clipboard, with no text or symbols present.

Line drawings of two hands performing a task on a document, no text or symbols present

Fig.29 Humidity Control System cleaning

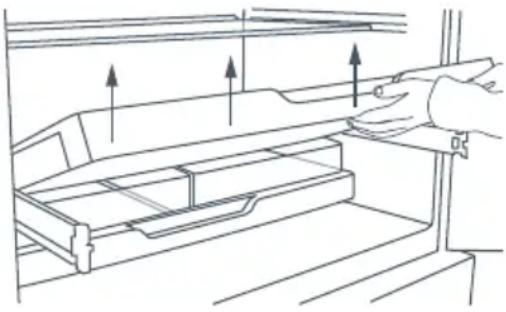

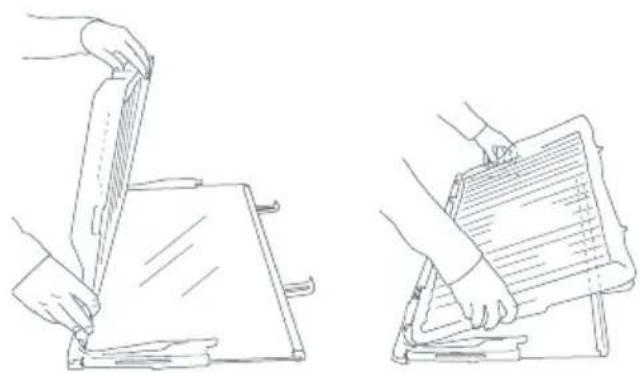

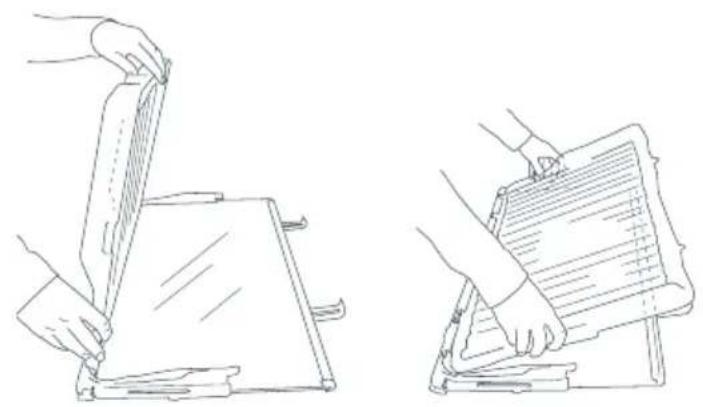

To remove trays or fixed bins

■ For ease of removal, empty food from tray/bin first.
■ Hold the center front of the tray/bin handle.
■ Lift vertically to unclip from the runners and pull tray/bin towards you to remove.
■ Push both runners back into refrigerator.

Line drawing of a hand opening a mechanical component with arrows indicating direction (no text or symbols)

Fig.30 Tray removal

To replace trays or fixed bins:

- With the runners pushed back into the refrigerator, place the tray/bin on top of the runners. Push the tray/bin back slowly until you feel it clip back onto the runners.

Important!

■ Ensure that trays and bins are securely clipped onto the runners before use.
Bin and tray runners are pre-lubricated, and will not need to be re-lubricated during their life. Do not attempt to clean grease from the runners, as this will affect their ability to function. Do not immerse runners in water.

Permanently fixed bins and trays (model RF201A only)

The freezer bins and trays in this model are permanently fixed. They cannot be removed from the freezer compartment. To clean simply wipe with a soft, damp cloth.

On vacation/holiday

■ Switch the ice maker to off on the interface panel (refer to page 19).
■ Shut off the water supply to the refrigerator.
- On return turn on the water supply to the refrigerator.
- Dispense 10 qt (10 L) of water and discard to ensure the tank is refilled with fresh water.
■ Turn on the ice maker (refer to page 19).
■ Throw away the first bin of ice cubes.

Normal refrigerator sounds

Active Smart ^™ refrigerators, with their excellent energy ratings and cooling performance, can produce sounds somewhat different to your old refrigerator.

Normal operational sounds include:

Fan air flow sound. Active Smart™ refrigerators have fans which change speed depending on demand. During cooling periods, such as after frequent door openings, fans circulate the cold air in the refrigerator and freezer compartments producing some air flow sound. This is quite normal.
- Cracking or popping which may sound like ice coming off the evaporator. This occurs when the defrost function is operating.
- Running water sound. This is the liquid refrigerant in the system and can be heard as a boiling or gurgling noise.
An audible hissing sound after closing the freezer door. This is due to the pressure difference between the warm air that has entered the cabinet and suddenly cooled, and the outside air pressure.

■ Other strange sounds may be heard for the following reasons:

- Cabinet not level

- Floor uneven or weak

- Bottles or jars rattling on shelves

If this is your first refrigerator with an ice maker, you will hear occasional sounds that may be unfamiliar. They are normal ice making sounds and are not cause for concern.

■ The following sounds are normal with the operation of an ice maker:

- Motor operation (low humming).

- Running water as the ice maker and/or water tank fills.

– Water valve opening and closing (hissing sound).

- Ice being loosened from the ice moulding tray (cracking).

- Ice dropping into bin (clunking).

Red meat

• Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.
  ■ Store cooked and raw meat on separate plates. This will prevent any juices lost from the raw meat from contaminating the cooked product.
  ■ Delicatessen meats should be used within the recommended storage time.

Poultry

■ Fresh whole birds should be rinsed inside and out with cold running water. Dry and place on a plate. Cover loosely with plastic wrap or foil.
■ Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result.
■ Cool and refrigerate cooked poultry quickly. Remove stuffing from poultry and store separately.

Fish and seafood

■ Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil.
If storing overnight or longer, take particular care to select very fresh fish. Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.
- Keep shellfish chilled at all times. Use within 1 – 2 days.

Precooked foods and leftovers

These should be stored in suitable covered containers so that the food will not dry out.
- Keep for only 1 – 2 days.
■ Reheat leftovers only once and until steaming hot.

Fruit and vegetable bins

Although most fruit and vegetables store best at low temperatures, take care not to store the following at temperatures of less than 47^ F ( 7^ C) for long periods: citrus fruit, tropical fruit, tomatoes, cucumbers.
■ Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.
- Do not refrigerate avocados (until they are ripe), bananas, mangoes or pepinos. If possible store fruit and vegetables separately, i.e. fruit in one bin and vegetables in the other.
■ Each fruit and vegetable bin has a humidity control slide that can be adjusted depending on what is stored in the bins. For more information on using the Humidity Control refer to page 26.

Illustration of a piece of meat on a plate (no text or symbols)

Line drawing of a lemon with sliced citrus slices and herbs (no text or symbols)

Line drawing of a fish surrounded by small fish icons (no text or symbols)

Simple line drawing of a sliced pie with visible segments (no text or symbols)

Illustration of a pile of vegetables with stems and leaves (no text or symbols)

Storing food in your freezer

The use of temperatures of 0^ F ( -18^ C) or colder to store food means that the food can be kept for longer periods than when refrigeration temperatures are used. This is because the growth of bacteria, moulds and yeasts are stopped, and chemical and physical reactions are severely restricted at very low temperatures.

Frozen food care

For best results:

• Choose only high quality foods that freeze well.
• Store at 0°F (-18°C) or colder. Take care to maintain this low storage temperature, eg. try to avoid opening the freezer door unnecessarily. If your ice cream is soft you are running your freezer too warm.

Line drawing of two stacked containers with scattered cubes below (no text or symbols)

Leave space at the top of containers, glass jars or plastic bags containing liquids or semi-solid foods. These expand as they freeze. Usually 1" (20 – 50 mm) head space is recommended. Seal. Ideally, remove all the air from the package after food is frozen.

- Packages or containers of solid foods should have the air removed from them and be sealed tightly before freezing.

- Use the Freezer Chill function when freezing fresh food. This helps to speed up the freezing process, giving optimum freezing results. It is recommended that the function is activated approximately 2 hours before required. For more information refer to page 22.

- Freeze immediately and as quickly as possible. Freeze only small quantities of food at any one time. For best results we recommend that only 2.2 lb (1 kg) of food be frozen per 0.9 cu.ft (25 L) of freezer storage volume at any one time. (About 7 lb (3 kg) in small freezers and 9 lb (4 kg) in larger freezers). For faster freezing in Active Smart™ models, we recommend that fresh food is placed at the top of the freezer compartment close to the air vent.

- Do not pile frozen food around the fan cover. It can prevent adequate air circulation.

Thaw foods preferably in a refrigerator, or using a microwave oven or multifunction oven.

- Keep a constant turnover of food. Use older items of food first. Do not exceed recommended storage times.

■ Use good quality freezer proof packaging to maintain food quality.

If food is only covered in plastic film place inside a freezer-proof plastic bag.

Recommended freezer storage times

These times should not be exceeded.

	Months	1 Bacon, casseroles, milk
		2 Bread, ice-cream, sausages, pies – (meat and fruit),prepared shellfish, oily fish
		3 Non oily fish, shellfish, pizza, scones and muffins
		4 Ham, cakes, biscuits, beef and lamb chops,poultry pieces
		6 Butter, vegetables (blanched), eggs whole and yolks,cooked crayfish, minced meat (raw), pork (raw)
		12 Fruit (dry or in syrup), egg whites, beef (raw), wholechicken, lamb (raw), fruit cakes

Meat, poultry and game

• Do not try to freeze more than 2.2 lb (1 kg) meat per 0.9 cu.ft (25 L) of freezer storage volume at any one time. Meat must be frozen quickly in order to maintain its texture.
  ■ Do not stuff poultry before freezing.
• Red meat can be cooked from frozen, or from the partly or completely thawed states. Remember to allow extra cooking time if cooking from frozen.
  ■ Always thaw poultry completely before cooking.

Illustration of two elongated, irregular objects resembling food items or biological samples (no text or symbols)

Fish

• Fish is best frozen commercially. If however you do want to freeze fish at home, make sure the fish is very fresh and of high quality.
• Clean, scale and preferably leave whole. All fish should be wrapped in two layers of packaging as depending on the type of fish, odors and flavors can be readily transferred either to or from it. Seal well.
  ■ For best results, cook from either the frozen or partly thawed state.

Simple line drawing of a fish with floating cubes (no text or symbols)

Vegetables

• Most vegetables freeze well, although 'salad' vegetables lose their crispness. Other vegetables, eg. celery, onion and tomatoes, should only be used in cooked dished as they soften on freezing.
  ■ Freeze only high quality, mature, ready-to-eat vegetables.
  ■ Sort and discard any that are damaged.
  It is necessary to blanch most raw vegetables prior to freezing.
  ■ Blanching involves a short cooking period during which vegetable enzymes are destroyed. If these enzymes are not destroyed they cause undesirable physical and chemical changes during freezer storage.
• Vegetables can be blanched in boiling water, steam or microwave oven. If using boiling water, boil vegetables for 2 – 4 minutes and cool quickly.
  In general frozen vegetables are best cooked from their frozen state.

Illustration of fresh vegetables including carrots, tomatoes, and a roll of milk (no text or symbols)

Prepared and cooked foods

■ Most cooked foods can be frozen but it is not recommended to freeze the following:

Cooked egg white, custards, cream fillings and milk puddings, gelatin or jelly-like dishes, mayonnaise and similar salad dressings, meringue toppings. These tend to separate on thawing.

Simple line drawing of a sliced pie with visible segments and fill (no text or symbols)

Fruit

• Choose high quality, mature, and ready to eat fruit. Preferably select varieties recommended for freezing.
  ■ Avoid unripe and over-ripe fruit.
  The way fruit is packed depends on how it is to be used. Fruits packed in syrup are ideal for desserts, whereas fruits packed without sugar are better used for cooking. Most fruits can be stored for 8 – 12 months.

If there is a problem with your appliance, please check the following points before contacting your local Fisher & Paykel Appliances Authorised Service Center Dealer or Customer Care Center.

Problem Possible causes What to do
Appliance does not operate.	No electricity at power outlet. Check that the plug is correctly connected and power switched on.Check another appliance at the same outlet.Check house fuse.
Light not working.	Blown light bulb(s). Change light bulb(s) (refer to page 31).
	Refrigerator not working. Check refrigerator is turned on at wall.If problem continues refer to page 46.
Light and display not working.	Product in Sabbath Mode. Refer to Sabbath Mode page 24.
Motor operates for long periods.	Hot weather.Frequent door lid openings.Large amount of food recently added.	Minimize door openings to allow temperature to stabilise.
	Temperature control set too low.	See Temperature control section (page 23).
	Doors not sealing properly. Check that cabinet is level and gasket seals are clean.
Storage compartments too warm.	Temperature setting not correct. See Temperature control section (page 23).
	Frequent door openings.Large amount of food recently added.	Minimize door openings to allow temperature to stabilise.
Food freezing in the refrigerator.	Temperature setting not correct. See Temperature control section (page 23).
	Food placed directly in front of air outlets.	Move chill sensitive foods away from the center back of the shelves.
Unfamiliar noises.	Cabinet not stable or level.Freezer is defrosting.	See Installation section (pages 12 – 13) or refer to Sounds (page 36).
Water in the vegetable bins.	Condensation is formed by the water produced by fruit and vegetables.	A small amount of condensation is beneficial for fruit and vegetable storage.If there is too much water, store fruit and vegetables loosely in plastic bags.Wipe out water with a cloth.Set humidity slide to low humidity setting.
Sides of cabinet are warm.	This is normal.
Warm area on central door seal.	This is normal.
Condensation on outside of refrigerator/freezer.	Not unusual during periods of high humidity.	Wipe dry.
Condensation inside fresh food compartment.	Frequent or long door openings.	Minimize door openings.
	Door gasket leaking. Check that gasket is sitting flat and sealing tightly.
	Not unusual during periods of high humidity.	Wipe dry.
Ice buildup inside freezer compartment.	Freezer door not closing tightly.	Move items in freezer so door can close tightly.Check and clean door gasket seal.
Taste or odor in ice cubes.	Transfer of odor/taste from strong smelling foods.	Wrap or cover strong smelling foods.
Door handles out of alignment.	With time and usage, movement may occur.	See Installation instructions – Stability instructions (pages 12 – 13).
Tray/bin does not slide in and out evenly.	Packaging trapped. Check to ensure no food or packaging is trapped behind the tray/bin.
	Runners not extending fully. Holding onto sides of tray/bin, extend the runners fully by using a firm pull – this will reset the runner.
Ice maker makes unfamiliar sounds or seems too loud.	Normal ice maker operation. Refer to refrigerator sounds (refer to page 36).
Automatic ice maker does not work.	Ice maker has not been switched on.	Switch on ice maker (refer to page 19).
	Bin is in the wrong way or no bin at all.	Place bin so scoop is on the right side. Ice bin sits directly under ice maker on top left side of freezer.
	Water supply turned off or not connected.	Connect water supply.
	Freezer compartment not working.	Contact Customer Care.
	Water pressure too low. Check water pressure.
	Water line kinked/squashed. Check water line for kinks/squashing.
	Filter clogged. Water filter may need replacing.
Ice cubes have odor/taste.	Unsealed packages may be transmitting odor/taste.	Old cubes need to be discarded. Ensure food packaging is sealed.
	Interior of freezer needs cleaning.	Ice storage bin needs to be emptied and washed. Clean refrigerator (refer to pages 33 – 35).
	Poor taste from incoming water.	Filter may need changing. A new filter may need to be installed. Force 2 – 3 ice tray flips (refer to page 19)
Slow ice cube freezing.	Door may have been left ajar. Close door.
	Freezer compartment too warm. Turn temperature to a colder setting (refer to page 23).
Warm spot on central door seal.	You may feel a warm spot at times on the central seal between the two refrigerator doors.	This is perfectly normal and is part of the normal refrigerator operation.
Wet ice/ice clumping.	Low water pressure. Check water pressure.
	Filter blocked. Replace filter (refer to pages 28 – 29).
	Long freezer door openings. High ambient temperature. Ice bin left out of freezer compartment a long length of time. Ice will stick together over time.	Gently tap ice with scoop to unstick or, if large clumps occur, empty ice bin and make new ice.
Water has poor taste/odor.	Refrigerator not used for an extended period.	Dispense 10 qt (10 L) water so fresh water supply is replenished.
Water dispenser does not work and/or icon flashing.	Water supply turned off or not connected.	Turn water on.Press dispenser for 1 minute to remove trapped air from water line and to fill the water system.
	Supply line may be blocked.On first installation there may be air in water system.	Check supply for kinks or leaks.To remove air, run a liter or a quart of water through the dispenser.
	Filter may be blocked and need replacing.	Replace filter (see back of this booklet for Customer Care contact details).
	Dispenser lock activated.	Hold down the 📋 and 📄 button for 2 seconds.
	Water frozen in tank. Increase temperature to a warmer setting in fresh food compartment and freezer.
Water in first glass is warm.	Water dispenser not used for extended period.	Discard first glass of water dispensed.
	Tank capacity used recently. Allow water time to cool.
Filter warning light 🎨 is flashing.	Filter needs replacing. Replace filter as soon as possible (refer to pages 28 – 29).
Measured Fill amount of water is inaccurate.	Measured Fill needs recalibration.	Recalibrate (refer to page 30).
Drips overflow drip-shelf.	Air trapped in tank. Flush 3 qt (3 L)	water through dispenser, stopping intermittently.
	New filter installed. Flush 3 qt (3 L)	water through filter and then 3 qt (3 L) through dispenser.
Water flow rate has slowed down.	Filter cartridge is restricted. Replace water filter as soon as possible (refer to pages 28-29).

When you purchase any new Fisher & Paykel whiteware product for personal or consumer use you automatically receive a one year limited warranty covering parts and labor for servicing within the 48 mainland United States, Hawaii, Washington DC and Canada. In Alaska the limited warranty is the same except that you must pay to ship the product to the service shop or the service technician's travel to your home. Products for use in Canada must be purchased through the Canadian distribution channel to ensure regulatory compliance.

If the product is installed in a motor vehicle, boat or similar mobile facility, you receive the same one year limited warranty, but you must bring the vehicle, boat or mobile facility containing the product to the service shop at your expense or pay the service technician's travel to the location of the product.

You receive an additional four year Limited Warranty (for a total of five years) covering parts and labor for sealed refrigeration system (compressor, evaporator, condenser, filter dryer, and connecting tubing) within the 48 mainland United States, Hawaii, Washington D.C. and Canada. In Alaska the Limited Warranty for the sealed refrigeration system is the same except that you must pay to ship the product to the service shop or the service technician's travel to your home.

Fisher & Paykel undertakes to:

Repair without cost to the owner either for material or labor any part of the product, the serial number of which appears on the product, which is found to be defective. In Alaska, you must pay to ship the product to the service shop or for the service technician's travel to your home. If the product is installed in a motor vehicle, boat or similar mobile facility, you must bring it to the service shop at your expense or pay for the service technician's travel to the location of the product. If we are unable to repair a defective part of the product after a reasonable number of attempts, at our option we may replace the part or the product, or we may provide you a full refund of the purchase price of the product (not including installation or other charges).

This warranty extends to the original purchaser and any succeeding owner of the product for products purchased for ordinary single-family home use.

All service under this limited warranty shall be provided by Fisher & Paykel or its Authorized Service Agent during normal business hours.

How long does this limited warranty last?

Our liability under this limited warranty expires ONE YEAR from the date of purchase of the product by the first consumer.

Our liability under any implied warranties, including the implied warranty of merchantability (an unwritten warranty that the product is fit for ordinary use) also expires ONE YEAR (or such longer period as required by applicable law) from the date of purchase of the product by the first consumer. Some States do not allow limitations on how long an implied warranty lasts, so this limit on implied warranties may not apply to you.

This warranty does not cover:

A Service calls that are not related to any defect in the product. The cost of a service call will be charged if the problem is not found to be a defect of the product. For example:

1. Correct faulty installation of the product.
2. Instruct you how to use the product.
3. Replace house fuses, reset circuit breakers, correct house wiring or plumbing, or replace light bulbs.
4. Correct fault(s) caused by the user.
5. Change the set-up of the product.
6. Unauthorized modifications of the product.
7. Noise or vibration that is considered normal, for example, drain/fan sounds, regeneration noises or user warning beeps.
8. Correcting damage caused by pests, for example, rats, cockroaches etc.

B Defects caused by factors other than:

1. Normal domestic use or
2. Use in accordance with the product's User Guide.

C Defects to the product caused by accident, neglect, misuse, fire, flood or Act of God.

D The cost of repairs carried out by non-authorized repairers or the cost of correcting such unauthorized repairs.

E Travel fees and associated charges incurred when the product is installed in a location with limited or restricted access. (eg. airplane flights, ferry charges, isolated geographic areas).

F Normal recommended maintenance as set forth in the product's User Guide.

If you have an installation problem contact your dealer or installer. You are responsible for providing adequate electrical, exhausting and other connection facilities.

We are not responsible for consequential or incidental damages (the cost of repairing or replacing other property damaged if the product is defective or any of your expenses caused if the product is defective). Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

How to get service

Please read your User Guide. If you then have any questions about operating the product, need the name of your local Fisher & Paykel Authorized Service Agent, or believe the product is defective and wish service under this limited warranty, please contact your dealer or call us at:

USA

TOLL FREE 1.888.9.FNP.USA (1.888.936.7872)

or contact us through our web site: www.fisherpaykel.com

Canada

TOLL FREE 1.888.9.FNP.USA (1.888.936.7872)

or contact us through our web site: www.fisherpaykel.ca

You may be required to provide reasonable proof of the date of purchase of the product before the product will be serviced under this limited warranty.

Commercial use

If you are using the product in a commercial setting (any use other than a single family dwelling), we agree to repair or replace, without cost to you for parts only, any defective parts, the serial number of which appears on the product. Our liability for these repairs expires ONE YEAR from the date of original purchase.

At our option we may replace the part or the product, or we may provide you a full refund of the purchase price of the product (not including installation or other charges). All service under this limited warranty shall be provided by Fisher & Paykel or its Authorized Service Agent during normal business hours.

No other warranties

This limited warranty is the complete and exclusive agreement between you and Fisher & Paykel regarding any defect in the product. None of our employees (or our Authorized Service Agents) are authorized to make any addition or modification to this limited warranty.

Warrantor: Fisher & Paykel Appliances, Inc.

If you need further help concerning this limited warranty, please call us at above number, or write to:

Fisher & Paykel Appliances, Inc.

5900 Skylab Road

Huntington Beach

CA 92647

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Introducción 48

Line drawings of two different refrigerator units, one with front door and side door, the other with front door and side door (no text or symbols)

Pure elliptical line drawing without any text, numbers, or symbols

1

2

3

4

5

Simple line drawing of a cylindrical container with inlet and outlet labels (no text or symbols beyond labels)

6

Diagram of a water purifier with inlet and outlet ports (no text or labels)

Line drawing of a faucet connected to a water dispenser with tubing (no text or symbols)

Line drawing of a mechanical assembly with a valve and belt (no text or symbols)

Diagram of a hand holding a tool interacting with a container with internal compartments (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand holding a small electronic component (no text or symbols)

Diagrama 7 Diagrama 10

Diagram of a hand holding a tool interacting with a container, showing fluid flow and movement arrows (no text or symbols)

Simple line drawing of a cylindrical object with a rectangular top and a curved cutout on the side (no text or symbols)

Illustration of a hand holding a tool with a circular frame (no text or symbols)

Diagrama 11

Technical line drawing of a water pump connected to a gas outlet, showing internal components and wiring (no text or labels)

A N l N l N M

B I —J— —J— M I C

G J L M H/I

A N M N N N

B J M C J a b c

D M F K K

G L L M l v₁₁

Line drawing of a refrigerator with door, front panel, and side legs (no text or symbols)

Line drawing of a refrigerator with door, front panel, and side panel (no text or symbols)

Line drawing of a hand holding a glass in a control panel with digital display (no text or symbols)

Line drawing of a hand pressing down on a refrigerator panel (no text or symbols)

Line drawing of a hand pressing down on a control panel with three rotary switches (no text or symbols)

Line drawing of a hand using a tool to clean or wash a small bowl into a container (no text or symbols)

E522B RF201A

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Diagram showing finger positioning with labeled fingers and a finger pointing to the right palm

Hand-drawn diagram showing finger pressing a control panel with labeled buttons and display screen

Line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

Diagram of a refrigerator with labeled control panel and zoomed-in view showing interior space

Estantes de vidrio

Line drawing of a hand holding a wrist with a circular object on the wrist (no text or symbols)

Hand holding a cylindrical device with a downward arrow indicating force or motion (no text or symbols)

Illustration of a hand holding a cylindrical device with directional arrows indicating motion (no text or symbols)

Line drawing of a hand holding a small electronic device (no text or symbols)

Illustration of a hand holding a circular object with a small inset image, no text or symbols present

Line drawing of a refrigerator with heat lines radiating from the door (no text or symbols)

Diagram of a washing machine with a magnified inset showing the blade assembly (no text or symbols present)

Interior

Line drawings showing hand positioning and movement of a device (no text or symbols)

Line drawings of two hand-drawn diagrams showing a document being inserted into a holder, with no text or symbols present.

Line drawings of two hands holding a document or notebook, no text or symbols present

Line drawing of a hand holding a tray with arrows indicating movement or force (no text or symbols)

Fisher & Paykel Appliances, Inc

5900 Skylab Road

Huntington Beach

CA 92647

Line drawings of two different refrigerator units, one front and one side, with no text or symbols present.

Pure elliptical contour lines without any text, numbers, or symbols

1

2

3

4

5

Simple line drawing of a cylindrical container with inlet and outlet labels (no text or symbols beyond labels)

6

Diagram of a water purifier with labeled components and directional arrow

Line drawing of a faucet connected to a water dispenser with tubing (no text or symbols)

Simple line drawing of a cylindrical object with a rectangular top and side slot (no text or symbols)

Schéma 5
Fig.7 Ruban double face

INSTRUCTIONS

Diagram of a hand using a tool to press or install a component inside a container (no text or symbols visible)

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Schéma 7 Schéma 10

Diagram of a hand holding a tool interacting with a container, showing fluid flow and mechanical components (no text or symbols)

Line drawing of a hand holding a small mechanical component, enclosed in a circle (no text or symbols)

Schéma 11

Line drawing of a water tap connected to a gas washing bottle and tubing (no text or symbols)

Technical line drawing of a mechanical component with internal wiring and housing (no text or symbols)

A N I N I N M

B I —U— —U— M I C

D J K M 1 E/F

G J L M H/I

A N M N I I N

D M F K K

G L L M l a / a

3. Ventilation et installation

Line drawing of a refrigerator with door, front panel, and side legs (no text or symbols)

Line drawing of a refrigerator with door, front panel, and side panel (no text or symbols)

Line drawing of a hand holding a glass container inside a control panel with multiple switches (no text or symbols)

Line drawing of a hand pressing down on a refrigerator control panel (no text or symbols)

Hand pressing a button on a digital appliance panel (no text or symbols visible)

Line drawing of a hand using a tool to clean or wash a plastic container (no text or symbols)

E522B RF201A

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Fonction Bottle Chill (suite)

Important!

Diagram showing finger positioning with labeled finger positions and a pointer indicating movement direction

Hand-drawn diagram showing finger pressing a control panel with labeled buttons and indicators

Fig.23 Mode Sabbat

Réglages

En mode Sabbat :

Line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

Fig.26 Tiroir de rangement mince

Alarmes de porte

Diagram of a refrigerator with labeled parts and magnified view showing the front panel and side panel.

Tablettes en verre

Line drawing of a hand holding a wrist with a circular object on the wrist (no text or symbols)

Line drawing of a hand holding a cylindrical device with an arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a cylindrical device with an arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a small electronic component (no text or symbols)

Hand holding a circular object with a small inset image, no visible text or symbols

Line drawing of a refrigerator with an inset showing its interior components and a close-up of its door (no text or symbols present)

Intérieur

Line drawings showing hand positioning and movement of a device with fingers, no text or symbols present

Line drawings of two hand-drawn diagrams showing a document being inserted into a holder, with no text or symbols present.

Line drawings of two hands operating a flatboard and a closed lid (no text or symbols)

Line drawing of a hand holding a tool inside a mechanical device (no text or symbols)

Fisher & Paykel Appliances, Inc

5900 Skylab Road

Huntington Beach

CA 92647

State of California Department of Health Services Water Treatment Device Certificate Number

06 - 1806

Date Issued: July 18, 2006

Trademark/Model Designation	Replacement Elements
Fisher & Paykel 836860	836848
Manufacturer: Cuno Incorporated
The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants:
Microbiological Contaminants and Turbidity	Inorganic/Radiological Contaminants
Cysts	Asbestos
Turbidity	Lead
	Mercury
Organic Contaminants
Atrazine
Benzene
Carbofuran
Lindane
p-dichlorobenzene
Toxaphene

Rated Service Capacity:750 gal
Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Conditions of Certification:

Rated Service Flow: 0.78 gpm

Performance Data Sheet For Fisher & Paykel Filter System Model: 836860

Replacement Cartridge: 836848
This system has been tested according to NSF/ANSI 42 and 53 for the reduction of the substances listed below. The concentration of the substances in water
entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI 42 & 53.
Note that while the testing was performed under standard laboratory conditions, actual performance may vary.
System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dichlorobenzene, Toxaphene and Turbidity; against Standard NSF/ANSI 42 for the reduction of Chlorine Taste and Odor and Nominal Particulate Class I.
To a capacity of 2,838 liters (750 gallons)

Standard 53: Health Effects
Substance	USEPA MCL	Influent Challenge concentration (mg/L)	Influent Average	Effluent		% Reduction		Min. Required Reduction
				Average	Maximum	Average	Maximum
Turbidity	1 NTU**	11±1 NTU**	10.7 NTU**	0.31 NTU**	0.49 NTU**	97.09%	95.20%	0.5 NTU**
Cysts	99.95% reduction	Minimum 50,000 #L	166500 #L	<1 #L	<1 #L	<99.99%	<99.99%	>99.95%
Asbestos	99% reduction	10^7 to 10^8 fibers/L; fibers greater than 10 um in length	155 MF/L	<1 MF/L	<1 MF/L	<99.99%	<99.99%	>99%
Lead @ pH 6.5	0.015 mg/L	0.15mg/L +10%	0.153 mg/L	<0.001 mg/L	<0.001 mg/L	99.35%	99.29%	0.010 mg/L
Lead @ pH 8.5	0.015 mg/L	0.15mg/L +10%	0.150 mg/L	<0.001 mg/L	<0.001 mg/L	99.33%	99.29%	0.010 mg/L
Mercury @ pH 6.5	0.002 mg/L	0.006mg/L ±10%	0.006 mg/L	0.0003 mg/L	0.0005 mg/L	95.70%	90.91%	0.002 mg/L
Mercury @ pH 8.5	0.002 mg/L	0.006mg/L ±10%	0.006 mg/L	0.0008 mg/L	0.0015 mg/L	86.22%	75.31%	0.002 mg/L
Atrazine	0.003 mg/L	0.009mg/L ±10%	0.009 mg/L	<0.002 mg/L	<0.002 mg/L	76.99%	75.31%	0.003 mg/L
Benzene	0.005 mg/L	0.015mg/L ±10%	0.014 mg/L	0.0006 mg/L	0.0011 mg/L	95.71%	92.14%	0.005 mg/L
Carbofuran	0.04 mg/L	0.08mg/L ±10%	0.081 mg/L	<0.001 mg/L	<0.001 mg/L	98.74%	98.46%	0.04 mg/L
p-dichlorobenzene	0.075 mg/L	0.225mg/L ±10%	0.208 mg/L	<0.0005 mg/L	<0.0005 mg/L	99.76%	99.74%	0.075 mg/L
Lindane	0.0002 mg/L	0.002mg/L +10%	0.002 mg/L	0.000025 mg/L	0.00007 mg/L	98.72%	96.50%	0.0002 mg/L
Toxaphene	0.003 mg/L	0.015±10%	0.015 mg/L	<0.001 mg/L	<0.001 mg/L	92.97%	91.67%	0.003 mg/L

Standard 42: Aesthetic Effects

Substance	USEPA MCL	Influent Challenge concentration (mg/L)	Effluent Average	Effluent		% Reduction		Min. Required Reduction
				Average	Maximum	Average	Maximum
Chlorine Taste & Odor	~	2.0mg/L +10%	1.88 mg/L	0.051366364 mg/L	0.06 mg/L	97.26%	96.84%	>50%
Nominal Particulate*	~	at least10,000 particales/mL	5,700,000 #/ml	30,583 #/ml	69,000 #/ml	99.95%	98.94%	>85%

* Measurement in Particles/ml. Particles used were 0.5 - 1 microns.

IMPORTANT: Change the filter cartridge at least every 6 months.

CAUTION: To reduce the risks associated with water leakage, which, if not avoided, may result in property damage - check with your plumbing professional to verify that water pressure is less than 827 kPa (120 psi).

For estimated cost of replacement element, please call 1-888-936-7872 or contact your local appliance distributor or dealer.

Fisher&Paykel

Manufactured by : CUNO Incorporated, a 3M Company

1000 Apollo Road

Eagan, MN 55121

Important: Do not use with water

that is microbiologically unsafe or of unknown quality without adequate

disinfection before or after the

system. Systems certified for cyst reduction may be used on disinfected water may contain filterable cysts.

Operation Specifications
Water pressure	172-827 kPa (25-120psi)
Water temperature	0.6-38°C (33-100°F)
Service flow	2.9 lpm (.78 gpm)
Filter capacity	2,838 liters (750gallons)

Systems must be installed and operated in accordance with manufacturer's recommended procedures and guidelines.

Follow any and all local plumbing codes and requirements. Some local codes may require the use of a licensed plumber or a certified installer when disrupting a potable water line.

Important: Failure to follow instructions may result in avoidance of warranty.

NSF is a registered trademark of National Sanitation Foundation.

INSTR7069 0706

Copyright © Fisher & Paykel 2008. All rights reserved.

The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Customer Care Center to ensure this booklet correctly describes the product currently available.

www.fisherpaykel.com www.fisherpaykel.ca

US CA

Ice & Water refrigerator

Installation instructions and user guide

Published: 07/2008

Part No. 819448
