USER MANUAL PSW110 AudioSource

Exterior view of two black audio/video sound speakers with speaker dividers and control knobs (no visible text or symbols)

FEATURES:

Front panel volume control

Front panel 40Hz-200Hz variable crossover control

Front panel status LED

Front firing ports

Speaker level input

Signal sensing "Power On"

180° Phase switch

Removable grill

PSW110 / 112

Home Audio Powered Subwoofer

Congratulations on your purchase of the AudioSource® PSW110/112. Please take a few moments to read this entire manual, and be sure to retain this document for future reference. Please read and observe all safety instructions detailed on page 2.

NOTE: if any part of this product is damaged or missing, please call your dealer or AudioSource® directly at 1.877.715.5439 or 503.914.4688.

Please read your warranty and retain your receipt and original carton for possible future use.

For more information about AudioSource® electronics, speakers and accessories please visit www.audiosource.net

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN WARNING: SHOCK HAZARD-DO NOT OPEN. AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

NOT SUITABLE FOR IN-WALL MOUNTING

EXPLANATION OF SAFETY SYMBOLS

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the products’ enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

IMPORTANT SAFETY INSTRUCTIONS

• WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL NOT BE PLACED ON APPARATUS.
• WARNING: TO PREVENT FIRE OF SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
• WARNING: THE MAINS PLUG IS USED AS DISCONNECT DEVICE. THE DISCONNECT DEVICE SHALL REMAIN READILY AVAILABLE.

• WARNING: ONLY USE ATTACHMENTS OR ACCESSORIES SPECIFIED OR PROVIDED BY THE MANUFACTURER.

• Read these instructions.

• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc. Install in accordance with the manufacturer's instruction.
• Do not install near heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. No open flame sources, such as lighted candles, should be placed on the apparatus.

• Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point of exit from the apparatus.

• Unplug the apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• The apparatus should be connected to a mains socket outlet with a protective earthing connection.
• There are two different types of mains fuse for different input voltage rating. Please check the marking on the rear enclosure for rating and type of mains fuse provided with the apparatus. Please ask local service personnel for help to replace the fuse before connecting the apparatus to a mains socket outlet with another voltage rating.

AudioSource PSW110 Volume Power Crossover Protect Min Max 40Hz 200Hz 1 2 3

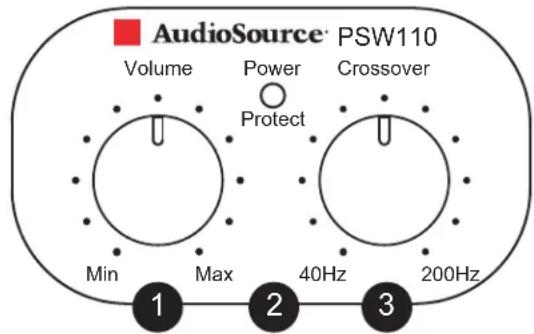

Figure 1. Front Panel

AudioSource® PSW110 125W 10" Powered Subwoofer 4 Mode Phase Line Auto On Normal 180° 0° R Input Speaker Level Input R+ L L L 6 7 9 CAUTION TURSDAT THE RING OF ELECTRIC SHOWN, DO NOT REMOVE UNDER PULSE NO.2A REMAINABLE NAME WIRE SPEE SERVIAL TO QALIFID STAFFY PERMANS. CAUTION ON OFF 115V- 60Hz 200W FUSE:T2.5AL 250V 230V- 50Hz 200W FUSE:T1.25AL 250V NOT SUITABLE FOR IN-WALL MOUNTING 8 10 Power ON OFF

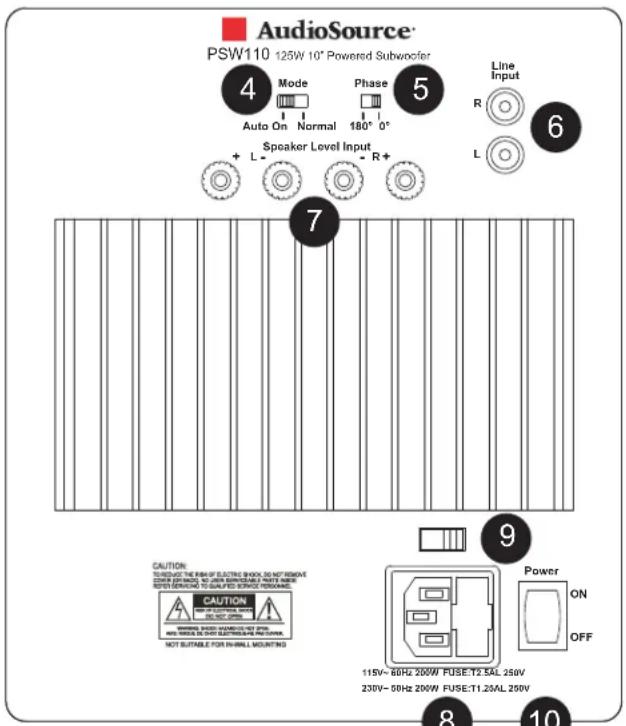

Figure 2. Rear Panel PSW110

REAR PANEL CONTROLS (Figures 2-3)

4. Power Mode

Sets the power-on/off option of the PSW110/112. Set it to Normal for manual control using switch 10. Set switch to Auto-On for automatic power-on when signal is present; after 10 minutes with no signal, unit will enter standby mode. For Auto-On the power switch is left in "ON" position.

5. Phase Control

Normally set to 0^ . In rare instances, due to your unique sound system or the size of your room, the output may be out of phase. If the sound is hollow or the volume knob has little effect, set to 180^ to compensate for these factors.

6. Line Level Input

Connect to the line level, subwoofer, or LFE output of your receiver, pre-amp, or power amp. Do not use if Speaker Level Inputs are connected. For single mono input: plug into either R or L terminal, or use a y-adaptor.

7. Speaker Level Input

Use when line level outputs are unavailable from your receiver, pre-amp or power amp. Your existing stereo speakers can share these terminals, allowing you to add bass to any stereo or home theater system. Always maintain speaker polarity by connecting positive (+) and negative (-) terminals on this unit with corresponding terminals on your existing speakers and source.

Do not use if Line Level Inputs are connected.

FRONT PANEL CONTROLS (Figure 1)

1. Volume Control

Adjusts output volume.

2. Power/Protect LED indicator

Illuminates green indicating the unit is turned on while switch10 is in "Normal" position, or when receiving signal in "Auto-On" mode. Illuminates red during standby/protect mode

3. Variable Crossover

Sets crossover frequency between 40Hz and 200Hz. For stereo music or home theater, set the frequency to a level that sounds pleasing to your ear and the overall reproduction of your audio. If using LFE signal, set crossover to 200Hz.

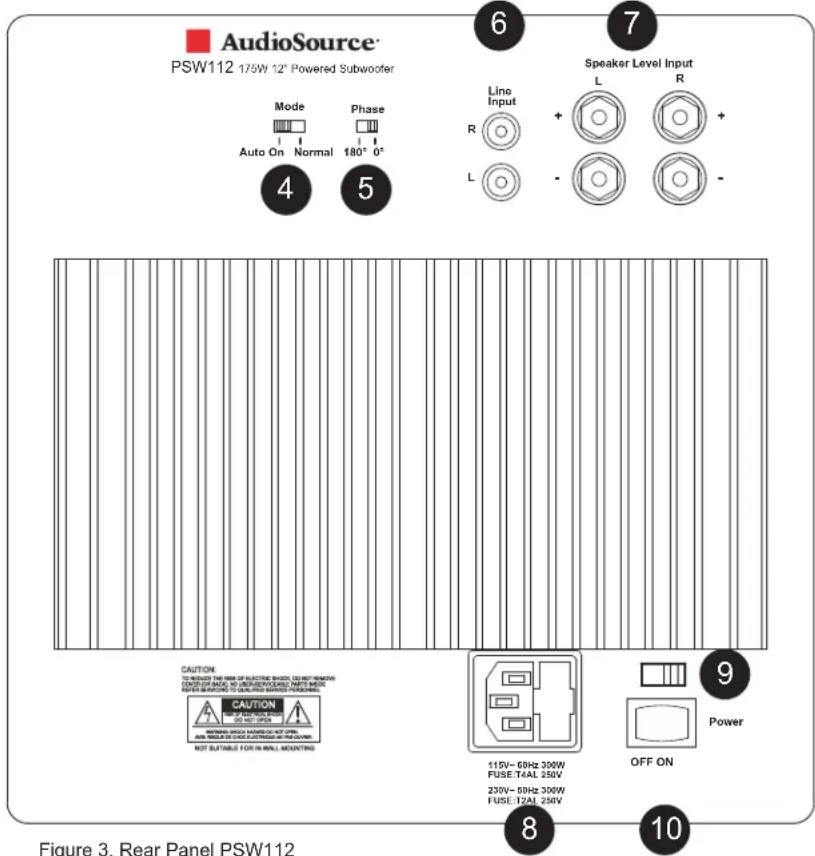

AudioSource® PSW112 175W 12" Powered Subwoofer Mode Phase Auto On Normal 180° 0° 4 5 Line Input R + L R L - Speaker Level Input CAUTION TO REVEE THE USE OF ELECTRIC BLOOD, DO NOT REMOING CONTROL ON BACK NO OR/OR/REVEING PARTS MODE BEET BEACH TO QUALIFY BLOOD FLOWING CAUTION WARNING ON BACK NO NOT REMOING AND BEACH TO COLD ON BLOOD FLOWING NOT BUTABLE FOR IN WALL MOUNTING 115V~50Hz 300W FUSE:14AL 250V 230V~50Hz 300W FUSE:12AL 250V OFF ON 9 Power Figure 3. Rear Panel PSW112 8 10

8. Mains Power Inlet & Fuse Holder

Accepts IEC type line cord. A fuse located in the integrated holder provides safety from fault conditions: replace fuse with one of same type and rating only.

9. Mains Voltage Selector

Voltage selection switch is preset to 115V (USA). For use in areas which require 230V contact your dealer. Fuse must be of type and rating marked on amplifier for use at local mains voltage.

10. Power Switch

Turns unit on and off in Normal power mode. Leave set to "ON" when using Auto-On power mode.

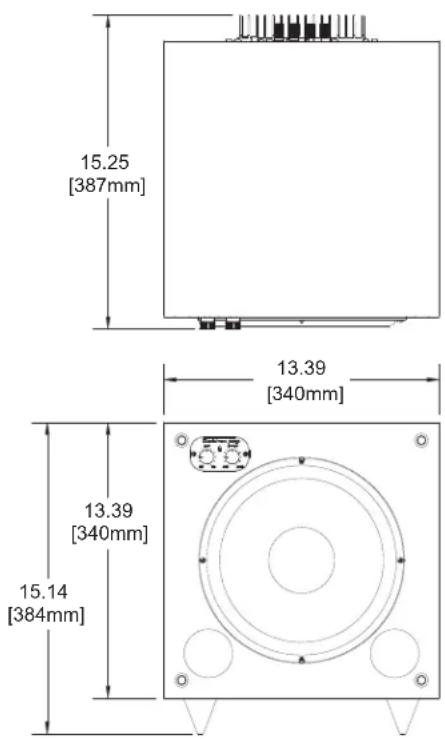

PLACEMENT

This unit features removable feet, a front firing woofer and ports, and front panel controls for ease of use in a cabinet. The bass output of this unit is omnidirectional so this unit may be placed anywhere in the listening environment. Walls or corners will help reflect the bass for fuller sound. During use unit will vibrate: care should be taken not to place any liquids or heavy items such as drinks or houseplants on top as they may fall and damage your house or this subwoofer.

Output: 125W@<1% THD

(Continuous operation at 1/8 rated power)

Frequency Response: 30Hz to 200Hz (-3dB ref. 0dB)

Signal to Noise Ratio: 100dB A

Sensitivity: Variable, 100mV to 0.8V for rated

power at 4 ohms

AC Power Consumption: 200W maximum

Net Weight: 29.17lbs / 13.23kgs

Gross Weight: 36.38lbs / 16.5kgs

Limited Warranty

AudioSource® warrants its audio products against defects in materials and workmanship for a limited period of time. For a period of two years from date of original purchase, we will repair or replace the product, at our option, without charge for parts and labor. Customer must pay all parts and labor charges after the limited warranty period expires. The limited warranty period for factory refurbished products expires after ninety (90) days from date of original purchase.

This limited warranty applies only to purchases from authorized AudioSource® electronics retailers. This limited warranty is extended only to the original purchaser and is valid only to consumers in the United States.

Consumers are required to provide a copy of the original sales invoice from an authorized AudioSource® dealer when making a claim against this limited warranty. This limited warranty only covers failures due to defects in materials or workmanship that occur during normal use. It does not cover failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, modification, service by anyone other than AudioSource®, or damage that is attributable to Acts of God. It does not

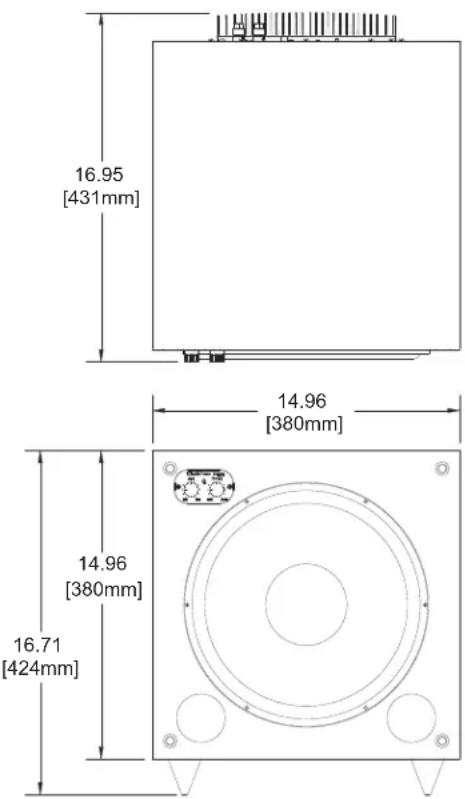

PSW112 SPECIFICATIONS

Output: 175W@<1% THD

(Continuous operation at 1/8 rated power)

Frequency Response: 30Hz to 200Hz (-3dB ref. 0dB)

Signal to Noise Ratio: 100dB A

Sensitivity: Variable, 100mV to 0.8V for rated power at 4 ohms

AC Power Consumption: 300W maximum

Net Weight: 36.88lbs / 16.73kgs

Gross Weight: 44.09lbs / 20kgs

cover costs of transportation to AudioSource® or damage in transit. The customer should return his defective product, freight prepaid and insured, to AudioSource® only after receiving a Return Authorization.

This warranty will become void if the serial number identification has been wholly or partially removed, altered or erased. Repair or replacement under the terms of this warranty does not extend the terms of this warranty. Should a product prove to be defective in workmanship or material, the consumer's sole remedies will be repair or replacement as provided under the terms of this warranty. Under no circumstances shall AudioSource® be liable for loss or damage, direct, consequential or incidental, arising out of the use of or inability to use the product. There are no express warranties other than described above.

Technical Support

If any part of this product is damaged or missing, please call your dealer or AudioSource® directly at toll free 1.877.715.5439 or locally 503.914.4688.
