USER MANUAL BDH2000PL03QV BLACK & DECKER

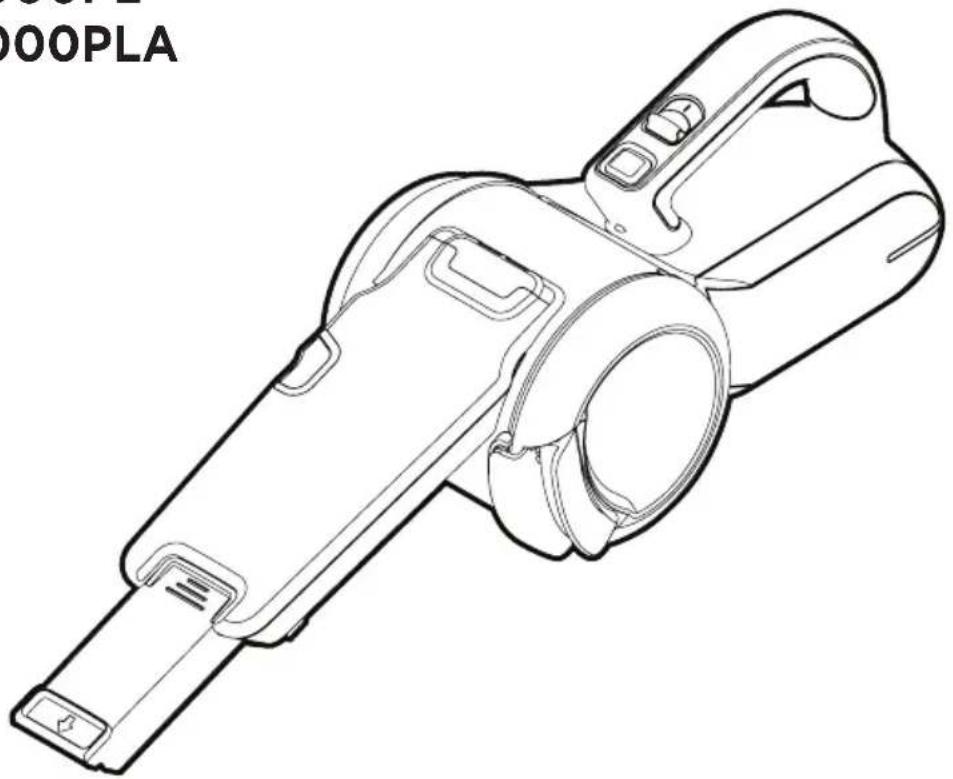

Line drawing of a handheld vacuum cleaner device (no text or symbols)

Thank you for choosing BLACK+DECKER!

PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.

If you have a question or experience a problem with your BLACK+DECKER purchase, go to http://www.blackanddecker.com/instantanswers

If you can't find the answer or do not have access to the Internet, call

1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent.

Please have the catalog number available when you call.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

VEA EL ESPANOL EN LA CONTRAPORTADA.

It is important for you to read and understand this manual.

The information it contains relates to protecting YOUR SAFETY and PREVENTING

PROBLEMS. The symbols below are used to help you recognize this information.

⚠️ DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

⚠️ CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliances, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

WARNING: Some household dust contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm such as asbestos and lead in lead based paint.

WARNING: To reduce the risk of fire, electrical shock or injury:

• Close supervision is necessary when any appliance is used by or near children. Do not allow to be used as a toy.
• Shock Hazard. To protect against risk of electrical shock, do not put unit or charging base in water or other liquid.
• Do not use dry hand vacs to pick up liquids, toxic substances, flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Do not use wet/dry hand vacs to pick up toxic substances, flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Do not operate in the presence of explosives and/or flammable fumes or liquids.
• Shock Hazard. Do not operate any appliance with a damaged cord or charger or after the appliance malfunctions, is left outdoors, dropped into water or is damaged in any manner. Return the appliance to any authorized service facility.
• Do not use dry hand vacs outdoors or on wet surfaces.
• Do not abuse the cord. Never carry the charger or base by the cord or yank to disconnect from an outlet; instead grasp the charger and pull to disconnect. Keep cord away from heated surfaces. Do not pull cord around sharp edges or corners.
• Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces. The unit should be placed or mounted away from sinks and hot surfaces.
• Do not use an extension cord. Plug the charger directly into an electrical outlet.
• Use the charger only in a standard electrical outlet (120V/60Hz).
• Do not attempt to use the charger with any other product; do not attempt to charge this product with any other charger. Use only the charger supplied by the manufacturer to recharge.
• Keep hair, loose clothing, and all parts of body away from openings and moving parts.
• Do not insert accessories when unit is running.
• Shock Hazard. Do not handle plug or appliance with wet hands.
• Do not put any object into unit openings. Do not use with any openings blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Fire Hazard. Do not vacuum burning or smoking materials, such as lit cigarette butts, matches or hot ashes.
• Do not charge the unit outdoors
• Do not use on or near hot surfaces.
• Use extra caution when cleaning on stairs.
• This appliance is intended for household use only and not for commercial or industrial use.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Unplug the charger from outlet before any routine cleaning or maintenance.
• This product includes rechargeable Lithium Ion batteries. Do not incinerate batteries as they will explode at high temperatures.

- If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte for Lithium Ion batteries is composed of a mixture of liquid organic carbonates and lithium salts.

WARNING:

Do not look into the air vents when the unit is switched on, as sometimes there is a possibility of small debris being discharged from the air vents, especially after cleaning / replacement of the filters as debris inside the unit can be disturbed.

- The charger supplied with this product is intended to be plugged in such that it is correctly orientated in a vertical or floor mount position.

SAFETY WARNINGS AND INSTRUCTIONS: BATTERIES

• Do not disassemble or open, drop (mechanical abuse), crush, bend or deform, puncture, or shred.
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, or expose to fire, excessive heat including soldering irons, or put in microwave oven.
• Only use the battery / tool with a charging system specified by the manufacturer/supplier.
• Do not short-circuit a battery or allow metallic or conductive objects to contact both battery terminals simultaneously.
• Dispose of used batteries promptly according to the manufacturer/supplier's instructions.
• Improper battery use may result in a fire, explosion, or other hazard.
• Battery / tool usage by children should be supervised.

SAFETY WARNINGS AND INSTRUCTIONS: CHARGING

1. This manual contains important safety and operating instructions.
2. Before using battery charger, read all instructions and cautionary warnings on battery charger and product using battery. ⚠ CAUTION: To reduce the risk of injury, use this charger only with this product. Batteries in other products may burst causing personal injury or damage.
3. Do not expose charger to rain or snow.
4. Use of an attachment not recommended or sold by BLACK+DECKER may result in a risk of fire, electric shock, or injury to persons.
5. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger.
6. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
7. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire, electric shock or electrocution.
8. Use only the supplied charger when charging your tool. The use of any other charger could damage the tool or create a hazardous condition.
9. Use only one charger when charging.
10. Do not attempt to open the charger. There are no customer serviceable parts inside. Return to any authorized BLACK+DECKER service center.
11. DO NOT incinerate the tool or batteries even if they are severely damaged or completely worn out. The batteries can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs are burned.
12. Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.
13. If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for three minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.

SAVE THESE INSTRUCTIONS

SYMBOLS

- The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz......hertz

min......minutes

or DC.....direct current

Class I Construction (grounded)

☐ ....Class II Construction ../min or rpm (double insulated) per minute

Wh......Watt Hours

A ...... amperes

W..... watts

\~or AC...... alternating current

n_0 no load speed

earthing terminal

⚠️ ...... safety alert symbol

revolutions or reciprocation

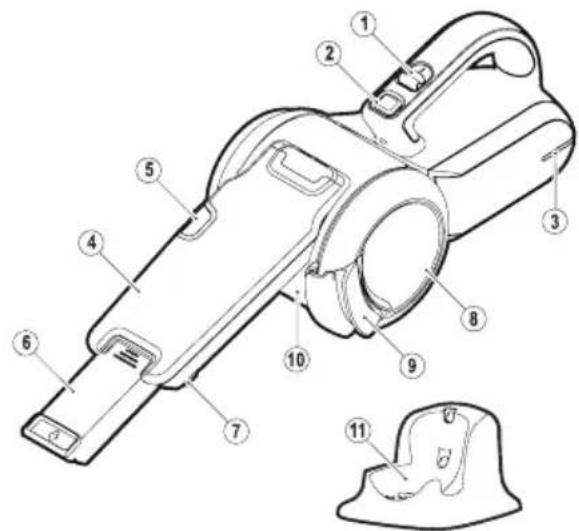

PRODUCT FEATURES

1. On/off switch
2. Pivot lock button
3. Charging indicator
4. Nozzle
5. Bowl release button
6. Crevice tool
7. Brush tool
8. Dust bowl door
9. Dust bowl door release
10. Removable dust bowl
11. Charging base

ASSEMBLY

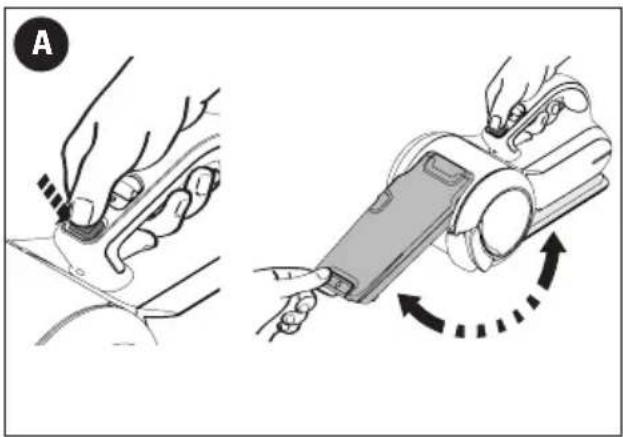

ADJUSTING THE NOZZLE (FIG. A - C)

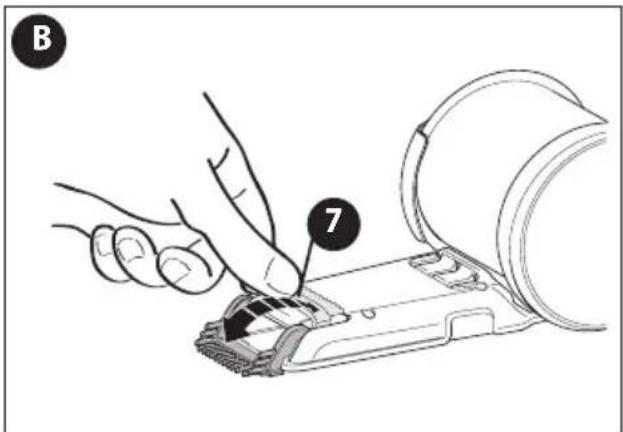

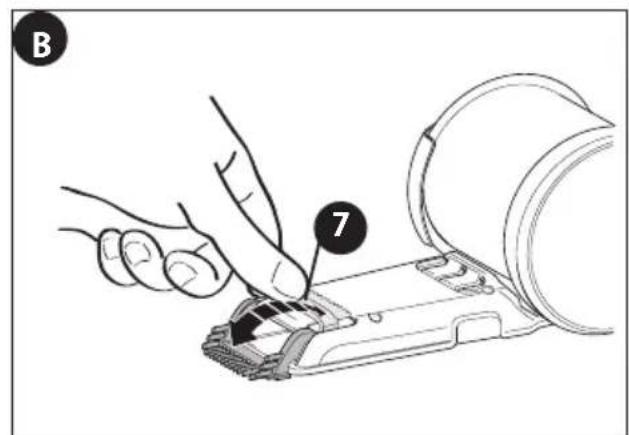

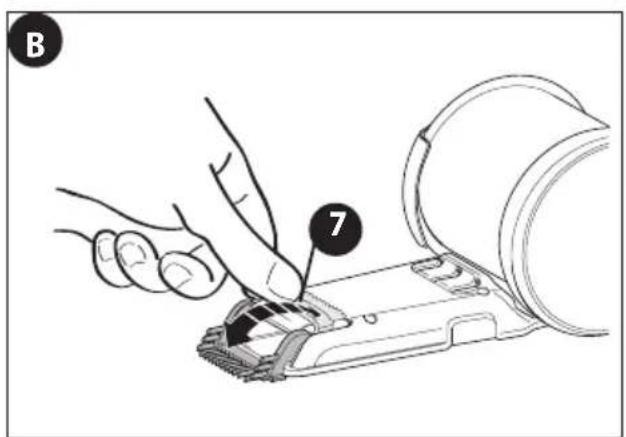

The nozzle (4) has a brush (7) that can be folded forward for dusting and upholstery cleaning.

• The nozzle (4) is stored under the appliance.
- Press the pivot lock button (2) and rotate the nozzle (4) to the required position.
- Release the pivot lock button (2) to lock the nozzle in position

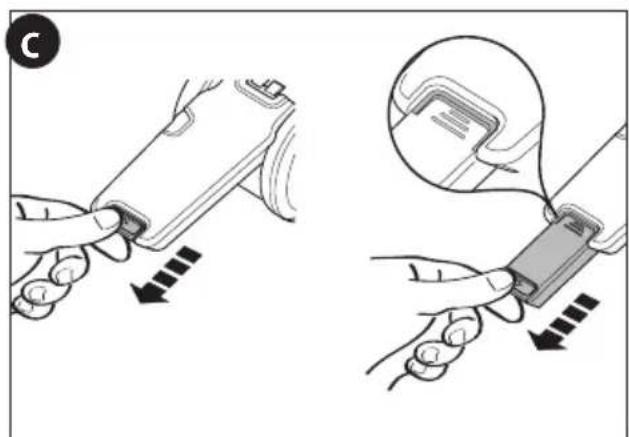

- The nozzle can be extended by pulling the crevice tool (6) until it locks into position.
- The crevice tool can be retracted by pressing the raised button on the crevice tool and pushing the crevice tool back into the nozzle.
- The nozzle should be returned to the storage position under the appliance after use and while charging the appliance.

USE

• Before first use, the battery must be charged for at least 4 hours.
• Plug the appliance into the charger whenever power gets low.

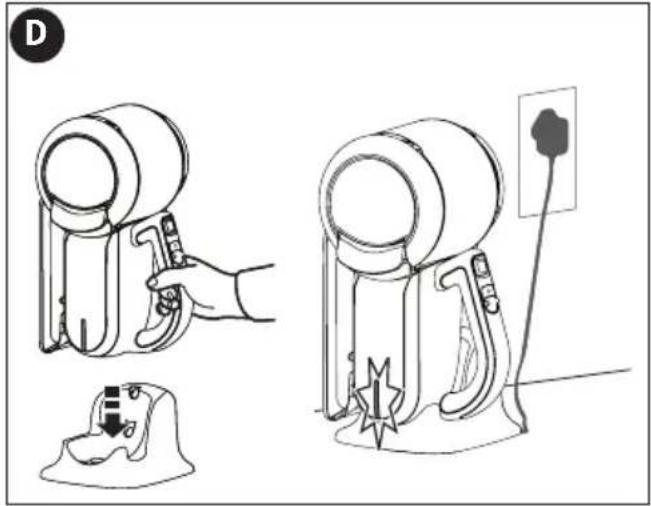

CHARGING THE BATTERY (FIG. D)

WARNING:

WARNING: Charge only at ambient temperatures between 50°F (10°C) and 104°F (40°C). The charger supplied with this product is intended to be plugged in such that it is correctly oriented in a vertical or floor mount position.

TO CHARGE THE APPLIANCE:

• Make sure the appliance is switched off. The battery will not be charged with the on/off On/Off switch (1) in the On position.

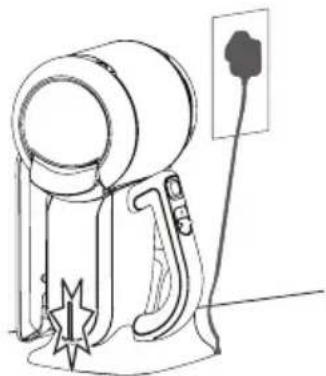

• Plug the charging base (11) into a standard 120 Volt 60 Hz electrical outlet.

Technical diagram of a hand-operated vacuum cleaner with numbered parts for identification

Illustration showing two-step robotic manipulation: hand tool pressing on car, and handheld device with rotation arrow (no text or symbols)

B 7

Diagram illustrating two steps of inserting a device into a cable, with arrows indicating direction and magnified detail.

• Lower the appliance onto the charging base. The blue LED (3) in the base of the appliance will illuminate to indicate that it is charging.
• When charging is complete, the LED will turn off.
• The charger may become warm during charging. This is normal and does not indicate a problem.
  While it is safe to leave the appliance connected to the charger indefinitely, to reduce power consumption, we recommend unplugging the charger after 4 hours.

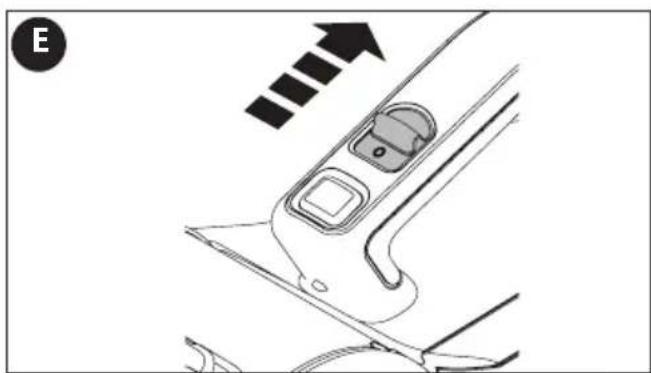

SWITCHING ON AND OFF (FIG. E)

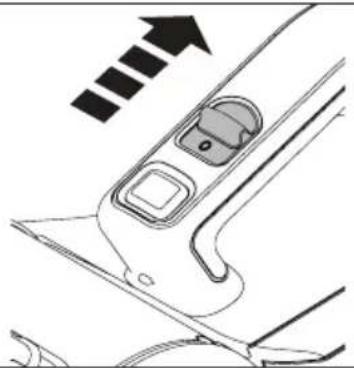

• To switch the appliance on, slide the on/off switch (1) forward to position I.
• To switch the appliance off, slide the on/off switch (1) back to position 0.

OPTIMIZING THE SUCTION FORCE

Rotating the bowl agitates the filter to remove dirt; however, in order to keep the suction force optimized, the dust container and filters must be cleaned regularly during use.

CLEANING THE FILTERS

(FIG. F - I)

WARNING: Projectile/Respiratory

Hazard: Never use the appliance without the filters. Optimum dust collection will only be achieved with clean filters.

CAUTION: Do not turn appliance on when dust container is removed.

Both the plastic pre-filter (12) and the pleated filter (13) are re-usable and should be cleaned regularly.

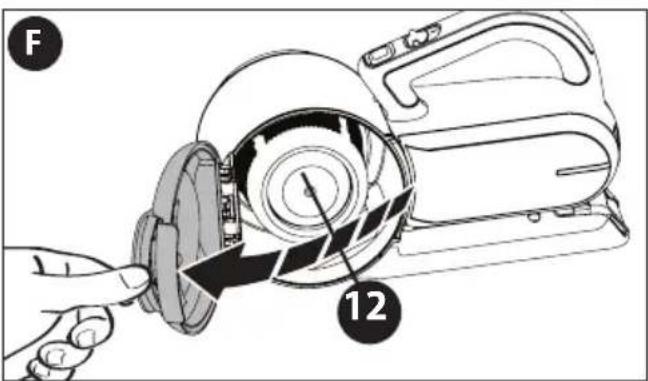

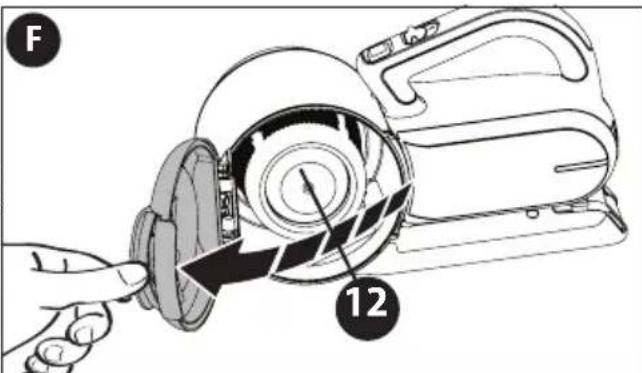

• Pull the door latch (9), open the transparent door (8) as shown in figure F and empty contents into a waste basket.

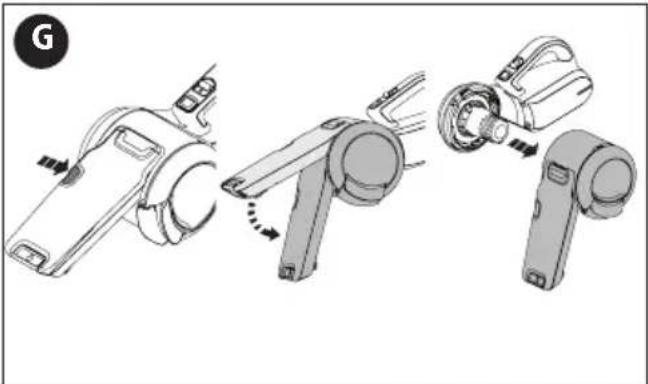

• Push and hold the release bowl button (5) on the nozzle.
• Rotate the nozzle toward the bottom of the appliance as shown in figure G.
• Pull the dust container to the side, and away from the base of the appliance.

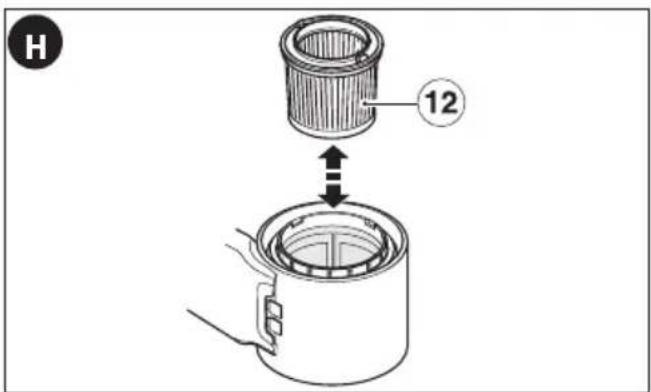

• Remove the pleated filter from the pre-filter by pulling firmly as shown in figure H.
• Tap the filters vigorously to remove loose dust.

Diagram showing two types of hair blower tools with a hand operating the tool, including a close-up and a plug inserted into a socket.

Diagram of a car interior showing a door, seat, and directional arrow (no text or symbols)

F 12

Diagram showing three-step assembly of a handheld device with mechanical components (no text or symbols)

H 12

• If necessary, wash the filter (13) in warm, soapy water as shown in figure I.
• Make sure that the filter is dry before refitting it to the appliance.

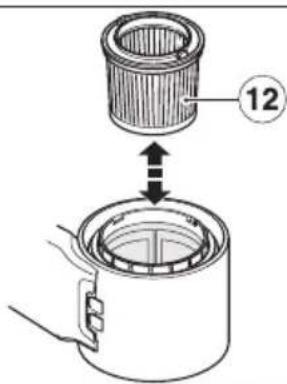

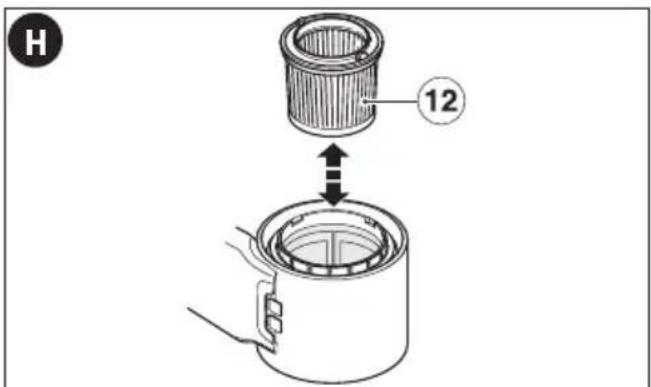

• Refit the pleated filter into the plastic pre-filter.
• Close the transparent door and make sure it clicks into place.

TO REPLACE THE DUST CONTAINER

- With the filters installed slide the container back onto the base and rotate the handle toward the front of the appliance until an audible click is heard. Ensure that the container is fully fastened back onto the base.

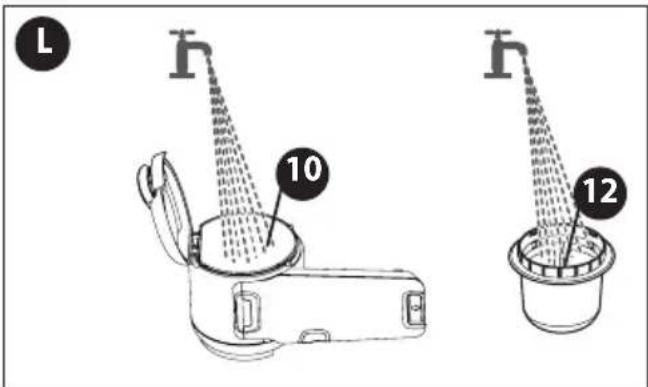

CLEANING THE DUST CONTAINER (FIG. J - L)

WARNING:

Projectile/Respiratory Hazard:

Never use the appliance without the filters. Optimum dust collection will only be achieved with clean filters.

CAUTION:

Do not turn appliance on

when dust container is removed.

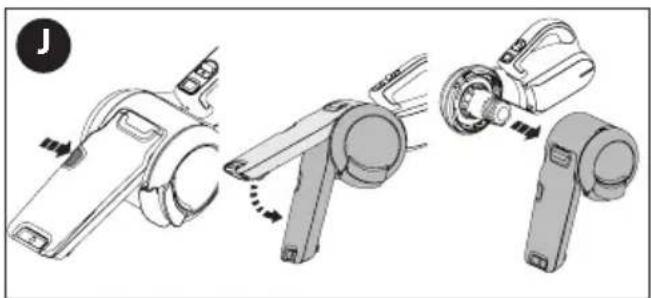

• Push and hold the release bowl button (5) on the nozzle.
• Rotate the nozzle toward the bottom of the appliance as shown in figure J.
• Pull the dust container to the side, and away from the base of the appliance.
• Pull the door latch (9) and open the transparent door (8).

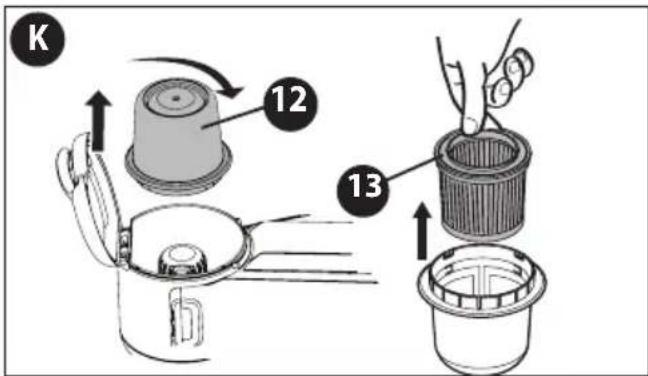

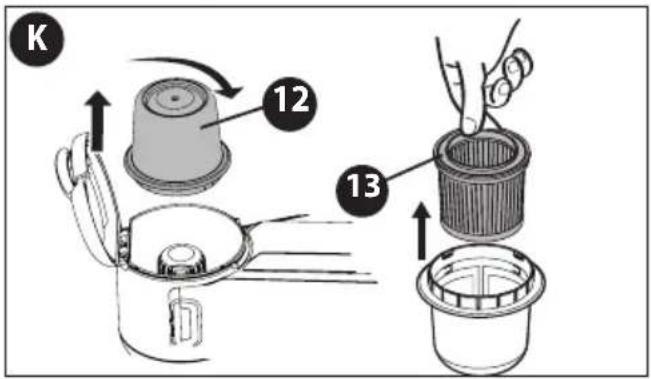

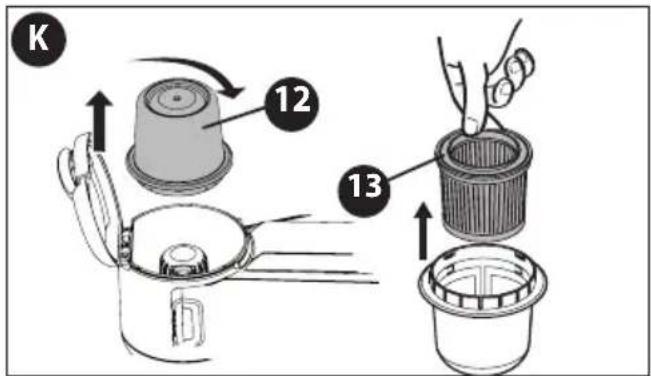

• Remove the pre-filter (12) and filter (13) from the appliance by twisting the filter to the right and pulling it from the appliance as shown in figure K.

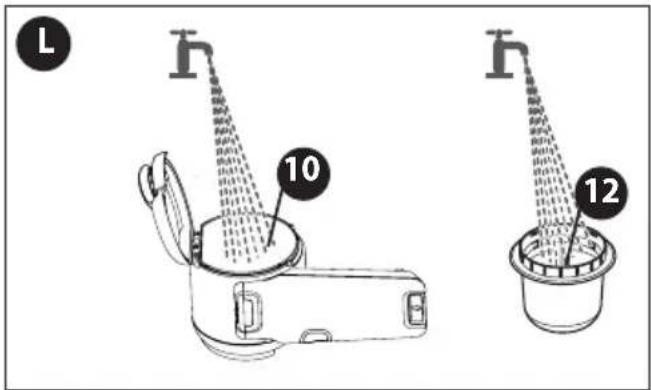

• Once filters are removed, wipe the dust container with a damp cloth, or rinse with warm soapy water as shown in figure L and allow to dry.

TO REPLACE THE DUST CONTAINER

- With the filters installed, slide the container back onto the base and rotate the handle toward the front of the appliance until an audible click is heard. Ensure that the container is fully fastened back onto the base.

REPLACING THE FILTER

The filter should be replaced every 6 to 9 months and whenever worn or damaged. A replacement filter is available from your BLACK+DECKER dealer (cat. no. PVF110):

• Remove the old filter as described above.
  • Fit the new filter as described above.

MAINTENANCE

Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse the main body of the appliance into a liquid.

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service personnel, always using identical replacementparts.

I h 13

Three-step diagram showing a hand tool interacting with a device, no text or symbols present

K 12 13

L 10 12

Troubleshooting

Problem	Possible Cause	Possible Solution
• Unit will not start.	• Battery not charged. • Check battery charging requirements.
• Battery will not charge.	• Charger not plugged in. • Plug charger into a working outlet.
		Charging	Notes"	Refer	to
		•	Check	current
plugging in a lamp or other appliance.
	• Surrounding air temperature too hot or too cold.	• Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.
		• Move charger and tool to a surrounding air temperature of above 40 degrees F(4.5°C) or below 105 degrees F (+40.5°C).

For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK+DECKER help line at 1-800-544-6986.

ACCESSORIES

Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

WARNING: The use of any accessory not recommended for use with this tool could be rdous.

BATTERY REMOVAL AND DISPOSAL

This product uses Lithium Ion rechargeable and recyclable batteries. When the batteries no longer hold a charge, they should be removed from the Vac and recycled. They must not be incinerated or composted. The batteries can be taken for disposal to a BLACK+DECKER, Company-Owned or Authorized Service Center. If you bring the batteries to a BLACK+DECKER Company-Owned or Authorized Service Center, the Center will arrange to recycle old batteries. Or, contact your local municipality for proper disposal instructions in your city/town.

To remove the battery pack for disposal:

1.) First, before attempting to disassemble the product, turn it on and leave it on until the motor completely stops insuring a complete discharge of the batteries.
2.) Remove nozzle.
3.) Using a phillips screwdriver, remove the two exposed screws near the front of handle securing the battery housing.
4.) Lift the housing cover away from the assembly, exposing the batteries.
5.) Lift out the battery assembly and detach the lead connection.
6.) Dispose of batteries as per recommended guidelines.

The RBRC ^® Seal

The RBRC ^® (Rechargeable Battery Recycling Corporation)

Seal on the nickel cadmium, nickel metal hydride or lithium-ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by BLACK+DECKER. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle® program provides an environmentally conscious alternative.

Call 2 Recycle, Inc., in cooperation with BLACK+DECKER and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized BLACK+DECKER service center for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC ^® is a registered trademark of Call 2 Recycle, Inc.

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003.

SERVICE INFORMATION

All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location, call: 1-800-544-6986 or visit www.blackanddecker.com

TWO-YEAR LIMITED WARRANTY

BLACK+DECKERwarrants this product to be free from defects in material or workmanship for a period of two 2 years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than BLACK+DECKER and its Authorized Service Centers. A defective product meeting the guarantee conditions set forth herein will be replaced or repaired at no charge:

Take or send the product (prepaid) to a BLACK+DECKER owned or authorized Service Center for repair or replacement at BLACK+DECKER's option. Proof of purchase may be required. BLACK+DECKER owned and authorized service centers are listed online at www.blackanddecker.com.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other warranties, express or implied, are hereby disclaimed.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

Imported by Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286

BlackandDecker.com 1-800-544-6986

BLACK+ DECKER

ASPIRATEUR PORTATIF SANS FIL

MODE D'EMPLOI

N° DE CATALOGUE

BDH2000PL

BDH2000PLA

Line drawing of a handheld vacuum cleaner device (no text or symbols)

CARACTÉRISTIQUES DU PRODUIT

Technical diagram of a vacuum cleaner with numbered parts for identification

Assemblage

Illustration showing two-step robotic arm manipulation: hand pressing a button on a device, then moving a device with directional arrows indicating motion (no text or symbols)

B 7

Diagram illustrating a medical procedure for inserting a device into a device, with labeled steps and directional arrows.

Line drawings of two types of hair blower devices with different lighting and mounting features (no text or symbols)

Diagram of a car interior showing a handle, seat, and directional arrow (no text or symbols)

F 12

Three-step diagram of a handheld device with mechanical components, showing assembly and disassembly (no text or symbols)

H 12

Three-step diagram showing mechanical assembly steps: press, angle, and housing (no text or symbols)

K 12 13

L 10 12

Dépannage

Line drawing of a 2000 PLA vacuum cleaner device (no text or symbols on the diagram itself)

......terminal a tierra

......simbolo de alerta

Wh......Watt Horas

Technical diagram of a hand-operated device with numbered parts for identification

Illustration showing two-step robotic manipulation: hand pressing a button on a device, then moving a device with rotation arrows (no text or symbols)

B 7

Uso

Diagram illustrating two-step medical procedure for inserting a device, showing hand placement and insertion steps with arrows.

CARGA DE LA BATERÍA (FIG. D)

ADVERTENCIA:

Line drawing of a hand holding a cylindrical device next to a base mount (no text or symbols)

Line drawing of a portable hair dryer with a plug and spout (no text or symbols)

Diagram of a car interior showing a door and seat, with an arrow indicating direction (no text or symbols)

F 12

Three-step diagram showing a device being adjusted, with no visible text or symbols

12

PARA REINSTALAR EL DEPÓSITO PARA POLVO

Three-step diagram showing a device being assembled, with no visible text or symbols

K 12 13

L 10 12

Date of purchase · Fecha de compra Invoice No. · No. de factura

C.P.05120, Mexico, D.F.

Tel: [phone]

Col. Fracc. Universidad

Chihuahua, Chihuahua

Tel. [phone]

Fernando González Armenta

Bolivia No. 605

Col. Felipe Carrillo Puerto

Cd. Madero, Tamaulipas

Tel. [phone]

Copyright © 2017 Black & Decker

FORM NO. N535676

MAY 2017
