USER MANUAL PT47WX53 PANASONIC

ENVIRONMENTAL NOTICE: Read these instructions completely before operating television. Contents are subject to change without notice or obligation. Copyright 2003 by Matsushita Electric Corporation of America. All rights reserved. Unauthorized copying and distribution is a violation of law. Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under USP4638258, 4482866, 5510752 and 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc. High Definition Sound

WARNING: To reduce the risk of electric shock do not remove cover or back. No

user-serviceable parts inside. Refer servicing to qualified service personnel.The exclamation point within atriangle is intended to tell theuser that important operatingand servicing instructions are inthe papers with the appliance.The lightning flash with arrowhead within a triangle isintended to tell the user thatparts inside the product are arisk of electric shock to persons.

RISK OF ELECTRIC SHOCK

WARNING: To reduce the risk of fire or electric shock, do not expose this

apparatus to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus. The Energy Star label, a symbol for energy efficiency, was created by the U.S. Environmental Protection Agency (EPA) and the U.S. Department of Energy (DOE) to help customers identify products that can save them money and protect the environment by saving energy. Energy Star compliant products generally consume less energy than similar standard products. The Class II insulation symbol (square within a square) indicates that this product has been evaluated and tested to comply with Class II insulation requirements.IMPORTANT INFORMATION 1 l Important Information Information Regarding Convergence In the projection television, the image is formed by projecting 3 different color images (red, green and blue) onto the projection screen. Convergence refers to the alignment of red, green and blue images on the projection screen. When these images are properly aligned (converged), you see a sharp and vibrant color image. Sometimes, the three images may require alignment. This is due to the effect of earth’s magnetic field on the projection tubes. Normally, adjustment is not necessary after the initial alignment at the center of the screen. It is possible to correct the color fringing on other areas of the screen by using the buttons on the remote control and by following the on-screen instructions in the set-up menu. Please converge the images before using the television for the first time. The following diagram shows examples of a misaligned image and a properly aligned image. Please refer to pages 26 and 27 for detailed procedure on how to adjust convergence. Notes:

• Make sure that the set is on for at least 20 minutes before adjusting convergence as described on pages 26 and 27.

• Convergence adjustment is independent for each format (480i, 1080i or zoom). Setting in one format does not affect the other. Important Information Regarding The Use Of Video Games, Computers, Or Other Fixed Image Displays. FCC INFORMATION This equipment has been tested and found to comply with the limit for a Class B Digital Device in accordance with the specifications in Part 15 of the FCC Rules. The limits are designed to provide reasonable protection against radio and television interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception (which you can determine by turning the equipment off and on), try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Misconverged image Properly aligned image

WARNING: The marking or retained image on the

picture tube resulting from viewing fixed image is not an operating defect and as such is not covered by Warranty. The projection television is designed to display constantly moving images on the screen. Continuous viewing of stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), non- expanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an image), stock market report bars (ticker running at the bottom of the screen), video game patterns, fixed scoreboards, bright station logos, on-line (Internet) or repetitive computer style patterns should be limited. The extended use of fixed image program material can cause a permanent picture tube damage, shown as a “shadow image” viewable on normal programs. This type of irreversible picture tube deterioration can be limited by performing the following steps:

• Limit the display of fixed image program material to no more than 15% of total viewing time per week.

• Turn the power off when not in use.2 l

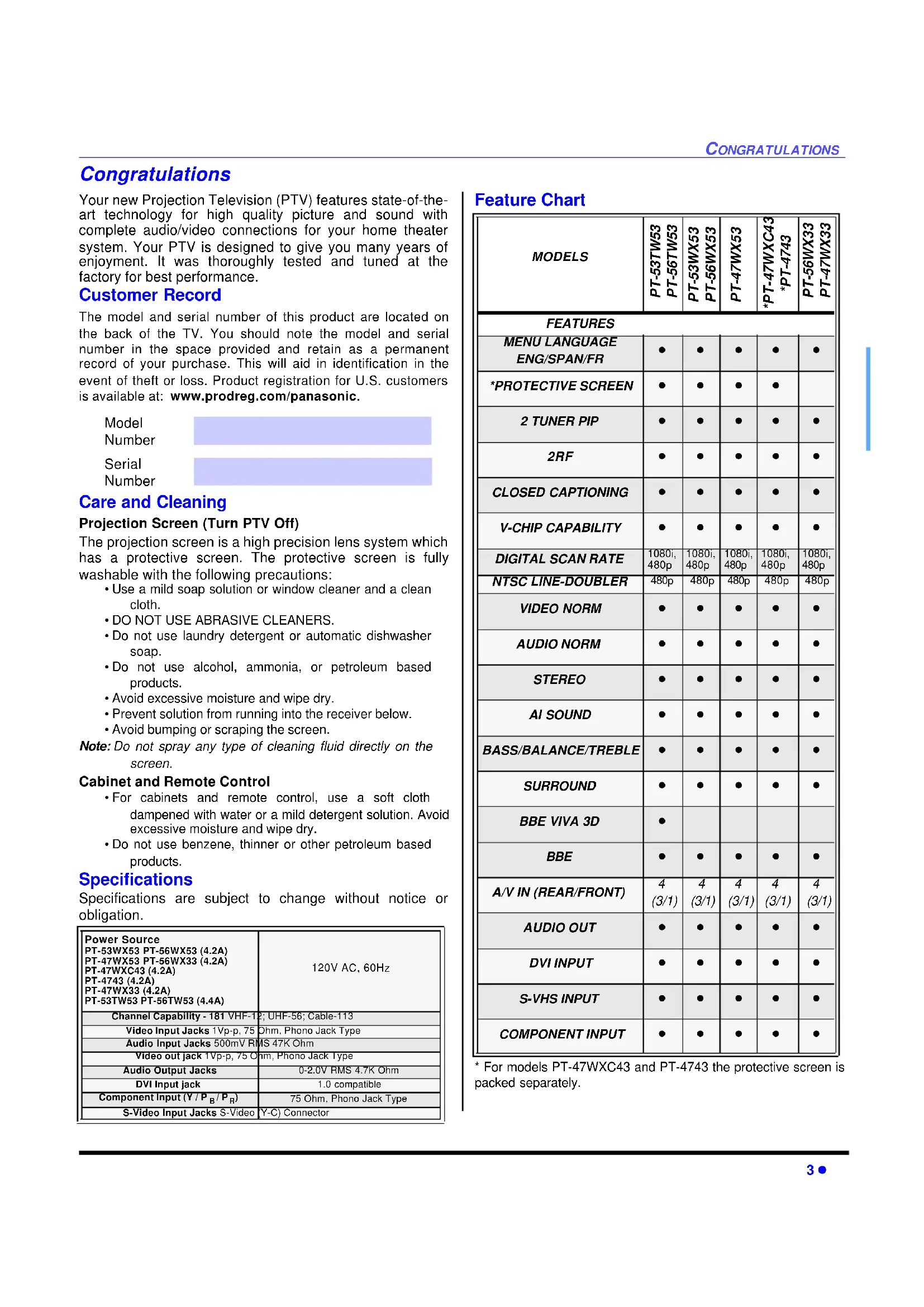

• Use a mild soap solution or window cleaner and a clean cloth.

• Do not use alcohol, ammonia, or petroleum based products.

• Avoid excessive moisture and wipe dry.

• Prevent solution from running into the receiver below.

• Avoid bumping or scraping the screen. Note: Do not spray any type of cleaning fluid directly on the screen. Cabinet and Remote Control

• For cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive moisture and wipe dry.

• Do not use benzene, thinner or other petroleum based products. Specifications Specifications are subject to change without notice or obligation. Feature Chart

• • • • •4 l INSTALLATION Installation Television Location This unit can be used as part of an entertainment center. Consult your dealer for available options.

• Avoid excessive sunlight or bright lights, including reflections.

• Keep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.

• Fluorescent lighting may reduce remote control transmitting range.

• Keep away from magnetic equipment, including motors, fans and external speakers. Optional Cable Connections Shielded audio and video cables should be used between components. For best results:

• Use 75-ohm coaxial shielded cables.

• Use appropriate input and output connectors, that match your component connectors.

• Avoid long cables to minimize interference. AC Power Supply Cord CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT, OR PINCHED, PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS. Cable / Antenna Connection For proper reception, either a cable or antenna connection is required. Cable Connection Connect the cable supplied by your local cablecompany to ANT1 connection on back of television. Select ANT1 and Cable mode in SET UP menu. Note: A cable converter box may be required for proper reception. Check with your local cable company for compatibility requirements. Antenna Connection For proper reception of VHF/UHF channels, an external antenna is required. For best reception an outdoor antenna is recommended.

• Connect home antenna to ANT1 connection on back of television. Select ANT1 and TV mode in the SET UP menu. Note: Cable Mode is preset at the factory. Antenna users must change to TV Mode and ANT 1 in the Set Upmenu. Auto Set Up Menu For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed, follow the menus and procedures for setting up the features. IDIOMA/LANGUE To change menu language to ENGLISH, SPANISH or FRENCH. Procedure

• Press VOL u to select English, Spanish or French. MODE To select TV (antenna) or CABLE mode depending on the signal source. Procedure

• Press VOL u to select TV or CABLE. AUTO PROGRAM To automatically program all channels with a signal. Procedure

• Press VOL u to start Auto Programming. CONVERGENCE To adjust the center convergence, if needed. Procedure

• Press VOL u to display center Convergence adjustment menu.

• Refer to page 27 for setting Convergence, if needed. Polarized plug75 Ohm VHF/UHFon back of TVIncoming Cable fromCable CompanyIncoming Cable fromHome AntennaOPTIONAL EQUIPMENT CONNECTIONS 5 l Optional Equipment Connections Note: The remote control must be programmed with supplied codes to operate the optional equipment. VCR Connection Follow this diagram when connecting your television to a VCR only. Viewing a television program Procedure

• Select ANT1 in the SET UP menu.

• Tune the television to the program you want to view. Viewing a video Procedure r Option A

• Tune the television to Channel 3 or 4, depending on your VCR.

• Begin the video. Recording a television program Procedure r Option A (Recording and viewing the same program)

• Select ANT2 in the SET UP menu.

• Tune the television to Channel 3 or 4, depending on your VCR.

• Using the VCR, tune to the television program you want to record.

• Begin recording. r Option B (Recording one program while viewing another program)

• Using the VCR, tune to the television program you want to record.

• Press the TV/VIDEO button on the remote control to switch back to TV mode.

• Tune the television to the program you want to view. Cable Box Connection Follow this diagram when connecting your television to a cable box only. Viewing a premium (scrambled) cable channel Procedure

• Select ANT2 in the SET UP menu.

• Tune the television to Channel 3.

• Using the cable box, tune to the premium cable channel you want to view. Note: To use special features such as Favorite Channels and Channel Captions ANT1 must be selected in the SET UP menu. VCR and Cable Box Connection Follow this diagram when connecting your television to both a VCR and a cable box. Viewing a premium (scrambled) cable channel Procedure

• Select ANT2 in the SET UP menu.

• Tune the television to Channel 3.

• Using the cable box, tune to the premium cable channel you want to view. Note: To use special features such as Favorite Channels and Channel Captions ANT1 must be selected in the SET UP menu.6 l

OPTIONAL EQUIPMENT CONNECTIONS

Optional Equipment Connections (cont.) VCR and Cable Box Connection (Cont.) Recording a premium (scrambled) cable channel Procedure

• Tune the VCR to Channel 3 or 4, depending on the switch setting on the back of VCR.

• Using your cable box, tune to the premium cable channel you want to record.

• Begin recording. r To view a different channel while recording:

• Select ANT1 in the SET UP menu.

• Press the TV/VIDEO button on the remote control to TV mode.

• Tune the television to a program (except another premium cable channel). Amplifier Connection (TO AUDIO AMP) To listen through a separate stereo system, connect an external audio amplifier TO AUDIO AMP outputs on back of television. Note: TO AUDIO AMP terminals cannot be connected directly to externalspeakers. Audio Adjustments

• Select SPEAKERS ON located in the onscreen AUDIO menu.

• Set amplifier volume to minimum.

• Adjust television volume to desired level.

• Adjust amplifier volume to match the television.

• Select SPEAKERS OFF & VARIABLE AUDIO OUT from AUDIO menu.

• Volume, mute, bass, treble and balance are now controlled through the television. Note: Select SPEAKERS OFF & FIXED AUDIO OUT to control audio functions through the external amplifier. Digital TV - Set-Top Box (DTV-STB) or DVD Connection This television is capable of displaying 1080i and 480p DTV signals when connected to a DTV tuner set-top-box (STB). In order to view DTV programming, the STV must be connected to the component video inputs (Y,PB,PR) of the television. A DTV signal must be available in your area. Select the output of the STB to either 1080i or 480p. This television also utilizes a progressive scan doubler, which de-interlaces the NTSC signal and progressively scans the image. This allows you to sit close to the TV and not see the thin black horizontal lines (venetian blind effect) associated with interlaced TV pictures. Use this diagram to connect the DTV-STB or DVD player to the back of your projection television. Note: There are two set of three video iacks, Y, P

Separate component color inputs provide luminance and color separation. Use the L (left) and R (right) audio inputs. Front Control Panel The front control panel can be used to access menus and switch video mode when the remote control is not available. A second VCR, Camcorder, a video disc player, video game equipment or DSS equipment can also be connected to the video inputs. See the optional equipment manual for details. Procedure

• Connect equipment to front Audio/Video input jacks.

• Press TV/VIDEO button to select VIDEO 4 input mode.

• Operate optional equipment as instructed in equipment manual. The ON/OFF indicator LED (red) will be lit when set is on. Video 4 location for PT-53/56TW53OPTIONAL EQUIPMENT CONNECTIONS 7 l Optional Equipment Connections (cont.) DVI (Digital Visual Interface) input connection The DVI/HDCP

input on your PTV can accommodate copy protected digital programming. The DVI/HDCP input terminal complies with the EIA-861Profiles

standard and is not intended for use with personal computers. The DVI/ HDCP input can be connected to an EIA/CEA 861 compliant consumer electronic device, such as a set top box or DVD player equipped with a DVI output connection

The DVI/HDCP input is designed for best performance with HDTV signals, such as 1080i. The DVI/HDCP input will also accept and display 480i and 480p picture signals. Notes:

2. EIA/CEA-861 Profiles compliance covers profiles for

transmission of uncompressed digital video including high bandwidth digital content protection.

3. Consult your consumer electronics dealer for availability

details. Follow the diagram below to connect the PTV to a set top box or a DVD player. Procedure

• Press TV/VIDEO button on the remote control to select DIGITAL-IN input.

• Connect the DVI output from the set top box or a DVD player to the DIGITAL IN input on the back of the PTV.

• Connect the Audio Out signal from the set top box or DVD player to the L and R Audio inputs associated with the DIGITAL IN input. Special Remote Buttons ASPECT Button The ASPECT button on the remote control lets you choose one of four display modes, depending on the formats of the received signal and your preferences.. BBE Button Press this button to turn BBE VIVA 3D (available on PT-53TW53 and PT-56TW53 only) or BBE sound feature On or Off. SAP Button Press this button to let you cycle through different audio modes. If you are receiving a stereo program and you press this button, you can cycle between STEREO and MONO. Customer Options depending on Component Input Signal INPUT SIGNAL

ASPECT BUTTON OPTIONS 1080i 16:9 only No options 480p (16:9) Default to 16:9 4:3, Full or Zoom (see below) 480p (4:3) Default to FULL mode. Note: Will stretch picture horizontally.. 4:3, Full or Zoom (see below) 480i Default to JUST mode 4:3, Full, Just or Zoom (see below) This will display a 4:3 picture at its standard 4:3 size with gray side bars. (Not recommended for viewing 4:3 pictures as it may create a permanent image on screen if displayed for a prolonged period of time.) This will expand the 4:3 picture uniformly (width and height) to full screen width and then reposition the picture vertically. (Recommended for letterbox pictures.) This will show picture at full screen size. (Recommended for anamorphic pictures.) This will stretch the right and left edges of a 4:3 picture to fill the screen, The center of the screen will have aspect correction appliled. The size of the picture will depend on the original signal. (Recommended for regular TV viewing.) Note: If menu is displayed while in Zoom mode, the aspect will change to Full to display complete menu.8 l

PICTURE IN PICTURE AND SPLIT OPERATION

Picture In Picture and Split Operation Note: The shapes of PIP and SPLIT function buttons may vary depending on the remote control. PIP Operation This television includes a two-tuner Picture In Picture (PIP) feature. This allows you to watch two (2) live broadcasts at the same time with or without an external video source such as a VCR, cable box, etc. Procedure

• Connect incoming cable to ANT 1 input on back of TV.

• Press to display PIP frame.

• Select channels for the PIP frame by pressing

• Select channels for the Main picture by pressing or use the remote control numeric keypad.

• Press to switch the PIP and MAIN PICTURE source.

• Press to view picture source status.

• Press to cancel PIP frame. Split Operation This feature lets you watch two different channels side by side with or without an external video source. Procedure

• Press to display Split screen.

• Select channels for the Split by pressing .

• Select channels for the Main picture by pressing or use the remote control numeric keypad.

• Press to switch the SPLIT SCREEN and MAIN PICTURE source.

• Press to view picture source status.

• Press to cancel Split screen. PIP and Split Operation With a Cable Box To view premium (scrambled) cable channels through your cable box in the Main Picture: Note: Use this procedure if you want to watch premium cable channels in the Main Picture while viewing a television program or video in the PIP or Split frame. Procedure

• Select ANT 2 in the SET UP menu.

• Tune TV to Channel 3.

• Press or on the remote control to display the PIP or Split frame. Note: Audio is from the Main Picture only.

• Verify the Cable box is ON.

• Choose channels for the Main Picture by tuning the cable box.

• Choose channels for the PIP frame by pressing

Note: Swap is not available when using the cable box to tune channels. If your cable box has video output, it can be connected to the TV to allow you to use all PIP functions. See the equipment manual for more information. PIP and Split Operational Buttons TV/VIDEO Button Press when PIP or Split frame is displayed to select desired input mode. Search Button (PIP and Split) This feature lets you scan through all available channels. Procedure

SWAP RECALL PIP Note: Audio is from Main Picture only. Main Picture PIP Frame SPLIT PIP CH

SPLITPICTURE IN PICTURE AND SPLIT OPERATION

• Press again to stop search feature. PIP or Split frame channel will be the last active search frame.

• Press or to cancel PIP or Split frame Move Button (PIP only) This feature is used to move PIP frame to one of four corners. Procedure

• Press to display PIP frame.

• Press to position PIP frame to desired corner.

• Press to cancel PIP frame. PIP MIN and PIP MAX Buttons While PIP frame is displayed, press PIP MIN or PIP MAX button to vary the size of PIP frame. Procedure

• Press to display PIP frame.

• Press or to size PIP frame.

• Press to cancel PIP frame. Freeze Button (PIP and Split) This feature is used to stop action in PIP or Split frame. Procedure

• Press or to display PIP or Split frame

• Press to stop PIP or Split frame action.

• Press again to continue action.

• Press or to cancel PIP frame. Main Picture Freeze Feature This feature is used to stop action of the Main Picture and display it on a Split or PIP freeze frame. Procedure

• To stop action for Main picture, press while PIP or Split frame is not displayed.

• Main Picture freeze will be displayed in a PIP or Split frame, depending on the selection in the Freeze menu located in Picture Other ADJ. section (refer to page 21).

• Press again to cancel Main Picture freeze frame. Note: While Main Picture freeze frame is displayed, only MOVE button is active for PIP, all other PIP and Split buttons have no effect (see chart ). PIP, Split and Freeze Mode Buttons Operational chart This chart indicates the buttons that are operational with PIP, Split or Main Picture Freeze mode. SEARCH OPEN/CLOSE

Search Frames Main Picture PIP MOVE PIP PIP Frame Main Picture PIP PIP MIN PIP MAX PIP Main Picture MAX MIN PIP SPLIT REMOTE BUTTONS

MAIN PICTURE FREEZE MODE PIP MIN Size Smaller No Effect No Effect PIP MAX Size Larger No Effect No Effect FREEZE Freeze PIP frame Freeze Split Frame Display or Delete PIP CH Change Channel Change Channnel No Effect SEARCH Displays Search Frame Displays Search frame No Effect PIP Displays PIP Frame Displays PIP frame No Effect SPLIT Displays Split Frame Displays Split frame No Effect MOVE Move PIP Frame No Effect Move PIP Frame SWAP Swap with Main Picture Swap with Main Picture No Effect FREEZE TV/VCR FREEZE TV/VCR PIP SPLIT Main Picture Main Picture PIP freeze frame Note: Audio is from Main Picture only. Split freeze frame FREEZE TV/VCR FREEZE TV/VCR10 l REMOTE CONTROL OPERATION (MODELS PT-47WXC43 AND PT-47WX33) Remote Control Operation (models PT-47WXC43 and PT-47WX33) Press to turn ON and OFF.POWER MUTE Press to mute sound. Press to display andcancel CC (Closed Caption). SAP Press to access audio modes (Stereo, SAP or Mono)TV/VIDEO Press to select TV or input modes.Press to select remote operation.

ACTIONPress to access menus.Press to select next or previous channel and navigate in menus.

Press to adjust TV sound and navigate in menus. VOL VOL SEARCHGUIDESEARCH - Press for PIP or SPLIT search.GUIDE - DBS functions button EXIT DBS functions button.*PIP MIN REW

R-TUNEPress to switch to previously viewed channel or input modes. Battery Installation Use two AA batteries: Remove battery cover by pushing in and up neararrow. Install batteries matching (+) and (-) polarity signs. Replace the battery cover. Note: Incorrect installation can cause battery leakage and corrosion that will damage the Remote Control Precautions

• Replace batteries in pairs.

• Do not mix battery types (zinc carbon with alkaline).

• Do not recharge, heat, short-circuit, disassemble, or burn batteries. ASPECT PROG ASPECT - Select picture size (ratio) to match programming format.PROG - Press to enter minor number in a compound number.RECALLPress to display time, channel, sleep timer, and other options. BBE MENU BBE - Press to turn on or off.MENU- Press to access DBS or DVD menus. EUR7613Z40REMOTE CONTROL OPERATION (MODELS PT-47WXC43 AND PT-47WX33) 11 l Operating Components with Remote Control Note: Refer to page 12 for programming Remote Control procedure. Operating a VCR Program the remote control to use with VCR. Operating a CABLE BOX Program the remote control to use with Cable Box. Operating a DBS Program the remote control to use with DBS. Operating a DVD Program the remote control to use with DVD

Turn on/off Select TV Input mode for VCR Change Channels up/down

Rewind the Tape REW Pause PAUSE Change to TV or VCR Mode TV/VCR On screen VCR Display RECALL

Turn on/off Next/Previous Chapter DVD Display RECALL Skip Search Reverse REW Skip Search Fast Forward

u12 l REMOTE CONTROL OPERATION (MODELS PT-47WXC43 AND PT-47WX33) Programming The Remote The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or without a code for the component. Note: Determine the manufacturer of the component and look in the table for the code. Procedure

• Confirm that the external component is plugged and operating.

• Turn the component off.

• Press and together, for at least 5 seconds.

• Press the Remote Control to test the component. If the procedure was successful, the component will turnon. Note: If the component does not operate with the Remote Control, repeat the procedure using another code. (Some brands have multiple codes). If an incorrect code is entered, or if the procedure takes longer than 30 seconds, the programming will fail. Programming Without A Code This procedure searches all codes and is called the “sequence method.”

• Confirm that the external component is plugged in and on.

• Turn the component off.

• Press and together, for at least 5 seconds.

• Press appropriate component button on the Remote Control.

• Press VOL u to move forward to the next code. Press t VOL to move backward.

• Press the Remote Control to test the component. If the procedure was successful, the component will turn on. Note: Repeat the above steps until the component code is found. It may take many attempts before the correct code isfound.

• After the code is found, press to store the code. Component Codes The Universal Remote Control is capable of operating many component brands after entering a code. Some components may not operate because the codes are not available due to limited memory. The Universal Remote Control does not control all features found in each model. Device Operates Default TV TV (Panasonic Only) Panasonic Code DBS/CBL DBS STB & CBL STB (Preset) Panasonic DBS Code VCR VCR (Preset) Panasonic Code DVD DVD (Preset) Panasonic Code ACTION POWERPOWER ACTION POWERPOWER ACTION Write the code numbers from tables in this space. This will serve as a reference if you need to program your Remote Control.

ACTIONPress to access menus.Press to select next or previous channel and navigate in menus.

R-TUNEPress to switch to previously viewed channel or input modes. Battery Installation Use two AA batteries: Remove battery cover by pushing in and up neararrow. Install batteries matching (+) and (-) polarity signs. Replace the battery cover. Note: Incorrect installation can cause battery leakage and corrosion that will damage the Remote Control Precautions

• Replace batteries in pairs.

• Do not mix battery types (zinc carbon with alkaline).

• Do not recharge, heat, short-circuit, disassemble, or burn batteries. PROG Press to enter minor number in a compound number.RECALL Press to display time, channel, sleep timer, and other options. EXIT DBS functions button. PAGE DBS page up/down and DVD skip -/+buttons. LIGHT Press to illuminate remote buttons.ASPECT Select picture size (ratio) to match programming format. EUR7603Z90

BBE MENU BBE - Press to turn on or off.MENU - Press to access DBS or DVD menus.REMOTE CONTROL OPERATION (MODELS PT-47/53/56WX53, PT-56WX33, PT-53/56TW53 AND PT- 15 l Operating Components with Remote Control Note: Refer to page 17 for programming Remote Control procedure. Operating a VCR Program the remote control to use with VCR. Operating a CABLE BOX Program the remote control to use with Cable Box. Operating a DBS Program the remote control to use with DBS. Operating a DVD Program the remote control to use with DVD.

Turn on/off Select TV Input mode for VCR Change Channels up/down PIP CH VCR CH Record REC Play PLAY Stop STOP Fast Forward

Rewind the Tape REW Pause PAUSE Change to TV or VCR Mode TV/VCR On screen VCR Display RECALL

Turn on/off Next/Previous Chapter DVD Display RECALL Skip Search Reverse REW Skip Search Fast Forward

u16 l REMOTE CONTROL OPERATION (MODELS PT-47/53/56WX53, PT-56WX33, PT-53/56TW53 AND PT- Operating a DTV Set Top Box Program the remote control to use with DTV. Operating a Cassette Deck To operate a cassette deck, the remoted control must be in AUX mode and be programmed with the appropriate code for your equipment. Operating a Receiver Program the remoted to operate audio receiver. Operating a PVR (Personal Video Recorder) Program the remote control to use with a PVR.

Turn on/off Audio Mute RCVR. VOl Up Down Tuner Pre-set stations Up/ Down POWER

EXITREMOTE CONTROL OPERATION (MODELS PT-47/53/56WX53, PT-56WX33, PT-53/56TW53 AND PT- 17 l Programming the Remote The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component function buttons for VCR, DVD, AUX, RCVR, TV, DTV CABLE or DBS. Follow the procedures for programming your Remote Control with or without a code for the component. Note: Determine the manufacturer of the component and look in the table for the code. Programming with a Code Procedure

• Confirm that the external component is plugged in and operating.

• Turn the component off.

• Press and together, for at least 5 seconds.

• Press appropriate component button on the Remote Control VCR, DVD (CD), AUX (VCR2 or TAPE), RCVR, DTV, CABLE or DBS.

• Enter the 3-digit component code using the Remote Control numeric keypad (0 - 9 buttons).

• Press the Remote Control to test the component. If the procedure was successful, the component will turnon. Note: If the component does not operate with the Remote Control, repeat the procedure using another code. (Some brands have multiple codes). If an incorrect code is entered, or if the procedure takes longer than 30 seconds, the programming will fail. Programming without a Code This procedure searches all codes and is called the “sequence method.” Procedure

• Confirm that the external component is plugged in and on.

• Turn the component off.

• Press and together, for at least 5 seconds.

• Press appropriate component button on the Remote Control.

• Press VOLu to move forward to the next code. Presst VOL to move backward.

• Press the Remote Control to test the component. If the procedure was successful, the component will turn on. Note: Repeat the above steps until the component code is found. it may take many attempts before the correct code is found. Component Codes The Universal Remote Control is capable of operating many component brands after entering a code. Some components may not operate because the codes are not available due to limited memory. The Universal Remote Control does not control all the features found in each model. Default Modes for Remote Control Device Operates Default TV TV (Panasonic Only) Panasonic TV Code DTV-STB DTV (Panasonic Only) Panasonic DTV Code CABLE CABLE (Preset) Panasonic CABLE Code DBS DBS (Preset) Panasonic DBS Code VCR VCR (Preset0 Panasonic VCR Codes DVD/CD DVD and CD (Preset) Panasonic DVD Codes AUX Personal Video Recorders, Tape and VCR2 Panasonic Personal Video Recorder Code RCVR Audio receiver (Preset) Panasonic RCVR code ACTION POWERPOWER Write the code numbers from tables in this space. This will serve as a reference if you need to program your Remote Control. VCR DVD DVD (CD)

Basic Menu Navigation Press Press Press Press to select OTHER ADJ. to display the Main Menu. to choose the desired icon. sub Menu Field Press Press to exit Main Menu. NORMAL PICTURE Press to enter the sub- menu field. Press to select desired sub-menu. to select or adjust desired sub-menu. BRIGHTNESS 32 IIIIIIIIII---------- Note: For sub -menu with OTHER ADJ. Press to enter sub sub-menu field. Press to select desired sub sub-menu. Press to select or adjust desired sub sub- menu. Note: To EXIT menus. repeatedly until Main Menu Icon is highlighted. Main Menu Icon sub sub- Menu FieldICON MENUS OPERATION 21 l Icon Menus Operation PICTURE Note: While sub-menu features are highlighted, press VOL u to adjust or activate. r PIC MODE - Lets you choose one of three pre-set Picture Modes that best suits the program you are viewing. Selecting this feature will also affect Color Temperature setting.

• VIVID - This is the default mode, It provides enhanced picture contrast and sharpness for viewing in a well-lit room.

• STANDARD - Recommended for normal viewing conditions with subdued room lighting.

• CINEMA - Select this mode for watching movies in a darkened room. It provides a soft, film-like picture. Note: Each mode has its own picture settings (Color, Tint, Brightness, Picture and Sharpness). r COLOR - Adjusts desired color intensity. r TINT - Adjusts natural flesh tones. r BRIGHTNESS - Adjusts dark areas of picture. r PICTURE - Adjusts white areas of picture. r SHARPNESS - Adjusts clarity of outline detail. r NORMAL - Reset adjustments to factory default settings. r OTHER ADJ. Highlight OTHER ADJ. and press VOL u to display the sub sub-menu. Note: While sub sub-menu features are highlighted, press VOL u to select or activate.

• COLOR TEMP (temperature) - To increase or decrease WARM (red) and COOL (blue) colors to suit personal preferences.

• NATURAL COLOR - To increase the color reproduction range with natural color gradation and highly delicate hues.

• VIDEO NR - Reduces noise in the channel, commonly called snow.

• 3D Y/C FILTER - Minimizes noise and cross color in the picture.

• COLOR MATRIX - Available only with 480p signal. Select HD or SD to automatically adjust color parameters for HD (high definition) and SD (standard definition). This feature is not selectable when viewing regular TV (NTSC) program. Note: When viewing a non-standard DTV signal format, you can change color parameters manually for the best picture quality.

• VM (VELOCITY MODULATION)-To increase picture sharpness and provides crisp white to black transitions

• FREEZE - This feature is used to freeze main picture and display it in a PIP or SPLIT frame, when the FREEZE button on the remote control is pressed. Press FREEZE again to delete frame. SWAP, SIZE, SEARCH, PIP MIN and PIP MAX buttons are not functional in this mode. AUDIO Note: While sub-menu features are highlighted, press VOL u to adjust or activate. r MODE - Select STEREO, SAP (Second Audio Program) or MONO. (Use MONO when stereo signal is weak). r BASS - Increase or decrease the bass response. r TREBLE - Increase or decrease the treble response. r BALANCE - Emphasize the left/right speaker volume. r NORMAL - Reset BASS, TREBLE and BALANCE adjustments to factory default settings. r OTHER ADJ. Note: While sub sub-menu features are highlighted, press VOL u to adjust or activate.

• AI SOUND - Equalize overall volume levels across all channels. (AI sound is not available in VIDEO mode).

- Sound technology enhances speech intelligibility and restores the dynamic range of musical passages to provide outstanding natural sound.

• BBE VIVA 3D - BBE VIVA provides a musically accurate natural 3D image with hi-fi sound. The clarity of the sound is improved by BBE while the width, depth and height of the sound image are expanded by BBE's proprietary 3D sound processing. BBE VIVA is compatible with all TV programs including news, music, dramas, movies and sports as well as electronic games. BBE VIVA enhances the surround sound effect, while maintaining the clarity of dialogue. Note: BBE VIVA 3D is only used in models PT-53TW53 and PT-56TW53.22 l

• SPEAKERS - This feature is used when connecting to an external amplifier.

• ON - TV speakers operate normally.

• OFF & Variable Audio Out - TV speakers off - audio adjustable by television.

• OFF & Fixed Audio Out - TV speakers off - audio adjustable by the external amplifier only. CHANNELS r CHANNEL SCAN - Select FAV or ALL. Note: Use remote numeric keypad to select desired FAV channels. r FAVORITES - To enter up to 16 favorite channels. Use remote control numeric keypad to select desired channels. r OTHER ADJ. Highlight OTHER ADJ. and press VOL u to display the sub sub-menu.

• PRESET CAPTION - To enter channel numbers for popular TV stations. Procedure

• Press CH q to select desired preset caption.

• Then use the remote numeric keypad to select desired channel (refer to your local TV guide). Note: To delete a channel, press t VOL while channel number is highlighted.

• MANUAL CAPTION - To enter numbers and captions manually. Note: Use the remote numeric keypad to select desired channel (refer to your local TV guide).

• Press t VOL or VOL u to select desired preset input label (see chart below). TIMER Note: Use CH p or CH q to highlight and use t VOL or VOL u to select. r SLEEP - Select to turn PTV off in 30, 60, or 90 minutes. Select NO to turn sleep timer off. r TIMER 1 and TIMER 2 - Select one or both timers to turn the PTV on and off at selected times, on selected channel, and on selected days. Notes:

• The television automatically turns OFF after 90 minutes when turned ON by the TIMER. If the OFF time is selected or if a key is pressed, the automatic OFF after 90 minutes will becancelled.

• The TIMER is active when the television is OFF or ON. The television will switch to the selected channel at the selected time set in the TIMER. r CLOCK SET - Set the time of the day and the day of the week.

VCR Select when VCR is connected to video input. DVD Select when DVD is connected to video input. SKIP Select to skip unused video input when pressing TV/VIDEO button. CABLE Select when CABLE box is connected to video input. DBS Select when DBS is connected to video input. DTV STB Select when digital TV set-top-box is connected to video input. PVR(Personal Video Recorder) Select when a personal video recorder is connected to video input. GAME Select when Video GAME is connected to video input. AUX Select when other components are connected. _____ Select to delete input label.ICON MENUS OPERATION 23 l LOCK r ENTER CODE - Use the remote numeric keypad to enter a four-digit secret code (Use a code that is easy to remember and record it in a safe place). r LOCK SET - To prevent video games, VCR tapes and all channels and video modes from being viewed. Notes:

• If you do not remember your code, LOCK will unlock in 12, 24, or 48 hours, depending on the current set-up. Be cautious when selecting ALWAYS. If ALWAYS is selected and you forget your secret code, the TV must be serviced by a qualified technician to clear the LOCK set-up.

• If you select CHANGE CODE, and you change your code from the one used in the LOCK menu, your new code becomes the controlling code. Procedure

• Press VOL u to select.

• OFF - Turns Lock function off.

• GAME - Lock CH 3, 4 and Video inputs.

• CHANNEL - Lock up to four channels.

• ALL - Locks all channels and video inputs.

• Press then CH q to highlight HOW LONG?.

• Press VOL u to select 12 Hours, 24 Hours, 48 Hours or ALWAYS. Note: If GAME, CHANNEL or ALL is selected, and if a blocked channel or video input is selected, the message LOCKED displays in the upper left corner of the TV screen. r V-CHIP SET - V-Chip technology allows parents to use the PTV rating codes to block programs that they feel are inappropriate for their children to watch. PIP will also be blocked automatically. Procedure

• Press CH q to highlight Enter Code

• Use the numeric keypad to enter your four digit code. (Use a code that is easy to remember and record it in a safe place.)

• Press CH q to highlight V-CHIP SET.

• Press t VOL or VOL u to select desired mode, U.S. TV Programs, U.S. Movies, Canadian English or Canadian French mode.

• Press CH q to highlight SETTING.

• Press t VOL or VOL u to display desired rating chart U.S. TV Programs, U.S. Movies, Canadian English or Canadian French.

• Press VOL u to select ON or OFF.

• Press CH q to select VIEW NR PROGRAMS? for U.S. TV Programs and U.S. Movies or VIEW E PROGRAMS for Canadian English and Canadian French.

• Press VOL u to select YES or NO. U.S TV Programs This TV model features the “V-Chip technology” which allows you to use U.S. TV PROGRAMS Guide ratings to block various types of TV programs. PIP will also be blocked automatically. Note: Selecting “Yes”, NR programs will be received. Selecting “NO”, NR programs will be blocked (See Customer Caution below). Procedure

• Press CH q to select SETTING.

• Press VOL u to select BASIC or DETAILED. BASIC - Allows you to select only general ratings such as TV-Y, TV-PG, etc. DETAILED - Allows you to select both general ratings and content such as V, L, etc.

• Press CH q or CH p to move between different ratings.

• Use t VOL or VOL u to select ratings you want to block (RED) and unblock (GREEN).

• Press to return to V-CHIP SET.

• Press CH q to select HOW LONG?.

• Press t VOL or VOL u to select 12, 24, 48 hours or ALWAYS.

• Press to return to Main Menu, then press CH p to exit. ACTION ACTION ACTION24 l

ICON MENUS OPERATION

LOCK (cont.) U.S TV Programs (cont.) U.S. TV Programs Rating Chart Description U.S. Movies This TV model features the “V-Chip technology” which allows you to use Motion Picture Ratings when viewing movies or video tapes. This innovation allows parents to block various types of movies and video tapes at their discretion. PIP will also be blocked automatically. Note: Some movies are not rated for a variety of reasons. Old movies and foreign films are usually not rated. Procedure

• Press CH q or CH p to move between different ratings.

• Use t VOL or VOL u to select ratings you want to block (RED) and unblock (GREEN).

• Press to return to V-CHIP SET.

• Press CH q to select HOW LONG?.

• Press t VOL or VOL u to select 12, 24, 48 hours or ALWAYS.

• Press to return to Main Menu, then press CH p to exit. U.S. Movies Rating Chart Description Canadian English The V-CHIP used in this TV model allows you to block various types of movies and television programs based on the two rating systems used in Canada. PIP will also be blocked automatically. Customer Caution The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and none) per FCC Rules Section 15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:”

• Emergency Bulletins (Such as EAS messages, weather warnings and others)

• Locally originated programming

• Public Service Announcements

• Weather NR Not Rated. SEE CUSTOMER CAUTION above. TV-Y All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages 2-6. TV-Y7 Directed to older children. Themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of 7. TV-G General audience. It contains little or no violence, no strong language, and little or no sexual dialogue or situations. TV-PG Parental guidance suggested. The program may contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations. TV-14 Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence. TV-MA Mature audiences only. This program may contain mature themes, profane language, graphic violence, and explicit sexual content.

CONTAINS NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS . Movie has not been rated or rating does not apply. G GENERAL AUDIENCES. All ages admitted.

PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children. PG-13 PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under

25 l LOCK (cont.) Canadian English (cont.) Note: E (Exempt) programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming. Procedure

• Press CH q or CH p to move between different ratings.

• Use t VOL or VOL u to select ratings you want to block (RED) and unblock (GREEN).

• Press twice to return to V-CHIP SET.

• Press CH q to select HOW LONG?.

• Press t VOL or VOL u to select 12, 24, 48 hours or ALWAYS.

• Press to return to Main Menu, then press CH p to exit. Canadian English Rating Description Canadian French The V-CHIP used in this TV model also lets you block or unblock Canadian French programs according to various ratings categories. PIP will also be blocked automatically. Note: E (Exempt) programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming. Procedure

• Press CH q or CH p to move between different ratings.

• Use t VOL or VOL u to select ratings you want to block (RED) and unblock (GREEN).

• Press twice to return to V-CHIP SET.

• Press CH q to select HOW LONG?.

• Press t VOL or VOL u to select 12, 24, 48 hours or ALWAYS.

• Press to return to Main Menu, then press CH p to exit. Canadian French Rating Description

Exempt - Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.

Programming intended for children under age

8. No offensive language, nudity or sexual

content. C8+ Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.

General programming, suitable for all audiences.

Parental Guidance suggested. Some material may not be suitable for children. 14+ Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens. 18 ADULTS ONLY ACTION ACTION E Exempt - Exempt programming.

General - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal or is depicted appropriately. 8 ans + 8+ General - Not recommended for young children. Programming intended for a broad audience but contains light or occasional violence. Adult supervision recommended. 13 ans + Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or more sufficiently violent scenes to affect them. Adult supervision strongly suggested. 16 ans + Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or intense violence. 18 ans + Programming restricted to adults. Contains constant violence or scenes of extreme violence. ACTION ACTION26 l

ICON MENUS OPERATION

LOCK (cont.) Main and Split Blocking Message If V-Chip is enabled and the program exceeds the rating limit set by you, the blocking message will appear and the audio will be muted. Enter your four-digit secret code if you wish to continue viewing the program. After entering your code, all locks and rating blocks are disabled until the PTV is turned off or until all settings are off. Note: If you enter your four-digit secret code to override rating blocks, you must reset all rating blocks by either reprogramming or turning the PTV off. PIP Blocking Message PIP function is available when V-chip feature is activated. If the program being viewed in PIP exceeds the set rating limit, PIP will disappear and a blocking message will appear on screen. Note: If the V-chip feature is activated while PIP is on, PIP will immediately disappear. Enable PIP functions by setting V-CHIP ratings to OFF. SET UP r While the desired sub menu is highlighted, press VOL u to select or activate feature. r IDIOMA/LANGUE - Select to change menu language to ENGLISH, ESPAÑOL (Spanish) or FRANÇAIS (French). r ANTENNA - To select either ANT1 or ANT2. r ON MUTE - Activates the onscreen Closed Caption feature when the MUTE button on the remote control is pressed. To deactivate press MUTE button again. r MODE - This television contains a built-in decoder that displays (Closed Captioned) text across the screen (white or colored letters on black background). It allows the viewer to read the dialogue of a television program or other information. The program viewed must include Closed Captioning for the feature to work. Activate the onscreen Closed Caption feature by selecting one of the following modes Note: Closed Captioning does not function when the Picture Aspect ratio is set to zoom, To properly display Closed Caption, choose an aspect ratio other than Zoom.

• OFF - When Closed Caption is not desired.

• C1 - For video related information to be displayed, up to 4 lines onscreen at a time. (It does not block relevant parts of the picture). Text may be in any language.

• C2 to C4 - For other modes of video related information.

• T1 to T4 - For program guide and other information to be displayed, when available. (Blocks a large portion of the picture on the television screen). Note: C1 mode is recommended for viewing Closed Caption. r CONVERGE Note: Only use the remote control buttons while adjusting convergence. The front control panel navigation and Action buttons have no effect. Note: Convergence seldom needs adjusting except after moving the PTV or to make minor adjustments. Procedure

• Press VOL u to enter converge sub-menu field.

• Press CH p or CH q to select:

• CONVERGENCE ADJ. - Select to correct minor convergence problem. Note: After selecting, press VOL u to continue CONVERGENCE ADJ.

• RESET TO DEFAULT - Select to set convergence to factory default setting. Main Picture Split Picture

27 l SET UP (cont.) r CONVERGE (cont.) Note: After selecting, press VOL u to activate RESET TO DEFAULT feature. When using this feature in Zoom mode, the effect can only be verified when you exit all menus and display normal picture. CONVERGENCE ADJ. Procedure

• After pressing VOL u the align Green to Center screen will be displayed.

• Then use the navigation buttons on the remote control to align the horizontal and vertical green lines on screen, with the cabinet reference marks on top center and left center of cabinet, as shown below.

• Press to display red center correction screen.

• Use the navigation buttons on the remote control to align the red cross with the white cross pattern at the center of the screen. Note: To prevent picture tube damage do not leave test pattern on for an extended period of time.

• Then press “0” on the remote control keypad to display the BLUE center correction screen, repeat procedure for adjusting blue. If needed press “0” again to return to RED correction screen. Note: An adjusted cross pattern appears white with a minimum of color protrusion.

NINE POINT CONVERGENCE CORRECTION

Note: Remote Control must be in TV mode. Procedure

• Press to display red correction screen.

• Press the 1 through 9 keypad buttons on the remote control to select the desired convergence position.

• Use the navigation buttons to align the RED cross with the white cross pattern. Note: An adjusted cross pattern appears white with a minimum of color protrusion.

• Press “0” on the remote control keypad to display the BLUE correction screen, then repeat procedure.

• AUTO PROGRAM - To automatically program all channels with a signal.

• MANUAL PROGRAM - To manually add or delete channels.

• AUTO POWER ON - Select SET to power up the TV at the same time as the Cable box or other components or select OFF.

• CHAN BANNER - Select ON to display onscreen banner when changing channels.

• IMAGE SHIFT - Selecting ON is recommended for this feature to prevent image retention on screen. Reference Marks Front of cabinet ACTION Press “0” ACTION Press “0” ACTION28 l TROUBLESHOOTING CHART Troubleshooting Chart Before calling for service, determine the symptoms and follow suggested solutions. AUDIO VIDEO Solutions Noisy Audio Snowy Video Adjust Antenna Location and Connection Noisy Audio Multiple Image / Color shift in picture Adjust Antenna Location and Connection Check Antenna Lead-in Wire Adjust Convergence (refer to page 27) Noisy Audio Interference Move television from Electrical Appliances, Lights, Vehicles and Medical Equipment No Audio Normal Video Increase Volume Check Mute Check television SPEAKERS on/off Change Channel Noisy Audio No Video with Snow Set TV or Cable Mode Properly Check Antenna Cables No Audio No Video / No PIP Check Power Cord is Plugged into Active OutletAdjust Brightness and Audio ControlsChange ChannelCheck Cable ConnectionsProgram the Remote Control AgainCheck Second Video Source OperationMake sure that a PC is not connected to DVI (DIGITAL-IN) input. Normal Audio Picture shifts slightly (horizontally or vertically) when turned on, changing channels or within a duration of two (2) hours of viewing. This is a normal condition to prevent image burn-in. This feature can be turned off. However, turning off this feature may result in image retention on screen. (refer pg. 27) Normal Audio No Color Adjust Color Settings Change Channel Wrong Audio Normal Video Check Audio Is Set To Stereo or Mono, Not SAP Normal Audio Black Box on Screen Change CC (Closed Captioning) from Text Mode Normal Audio Normal Video Replace Remote Control Batteries Intermittent Remote Control Operation ?INDEX 29 l Numerics 3D Y/C Filter 21

Cable / Antenna Connection 4 Cable Box Connection 5 Cable Connection 4 Canadian English 24 Canadian English Rating Description 25 Canadian French 25 Canadian French Rating Description 25 Care and Cleaning 3 Chan Banner 27 Channel Scan 22 Channels 22 Clock Set 22 Codes For Cable Box 13, 18 Codes For Cassette Decks 19 Codes For CD Player 19 Codes For DBS 13, 18 Codes For DVD 13, 18 Codes For Personal Video Recorders 19 Codes For Receivers 19 Codes For VCR 13, 18 Color 21 Color Matrix 21 Color Temp 21 Component Codes 12, 17, 18, 19 Congratulations 3 Converge 26 Convergence 4 Convergence Adj. 27 Customer Record 3

Operating a Cable Box 11, 15 Operating a Cassette Deck 16 Operating a DBS 11, 15 Operating a DTV 16 Operating a DVD 11, 15 Operating a PVR 16 Operating a Receiver 16 Operating a VCR 11, 15 Operating Components with Remote Control 11, 15 Optional Cable Connections 4 Optional Equipment Connections 5 Other Adj. 21 Nine Point Covergence Correction 27

Picture 21 Picture In Picture and Split Operation 8 PIP and Split Operation With a Cable Box 8 PIP and Split Operational Buttons 8 PIP Blocking Message 26 PIP MIN and PIP MAX Buttons 9 PIP Operation 8 PIP, Split and Freeze Mode Buttons Operational chart 9 Programming The Remote 12, 17 Projection Screen 3

U.S TV Programs 23 U.S. Movies 24 U.S. Movies Rating Chart Description 24 U.S. TV Programs Rating Chart Description 24

OPEN/CLOSEPOWERVOL VOL

AUX (VCR2) AUX (TAPE) RECEPTOR

MATSUSHITA ELECTRIC CORPORATION OF AMERICA MATSUSHITA ELECTRIC OF PUERTO RICO, One Panasonic Way INC., Ave. 65 de Infanteria, Km. 9.5 Secaucus, New Jersey 07094 San Gabriel Industrial Park Carolina, Puerto Rico 00985 Panasonic Video Projection System Limited Warranty Limited Warranty Coverage If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the warran- tor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("warranty period"), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor. During the "Labor" warranty period there will be no charge for labor. During the "Parts" warranty period, there will be no charge for parts. You must carry-in your product or arrange for in-home service during the warranty period. If non-rechargeable batteries are included, they are not warranted. This warranty only applies to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold "as is". A pur- chase receipt or other proof of the original purchase date is required for warranty service. Carry-in or In-Home Service For In-Home or Carry-In Service in the United States call 1-888-VIEW-PTV (1-888-843-9788). For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910. In-Home service requires clear, complete and easy access to the product by the authorized servicer and does not include removal or re-installation of an installed product. It is possible that certain in- home repairs will not be completed in-home, but will require that the product, or parts of the product, be removed for shop diagnosis and/or repair and then returned.

TV CATEGORY ALL PARTS LABOR SERVICE

ALL Projection TV 1 (ONE) YEAR 1 (ONE) YEAR IN-HOME OR CARRY-IN Limited Warranty continued on next pageLIMITED WARRANTY (FOR MODELS SOLD IN USA ONLY) Limited Warranty continued from previous page Limited Warranty Limits And Exclusions This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the picture tube resulting from viewing fixed images (including, among other things, letterbox pictures on standard 4:3 screen TV’s, or non-expanded standard 4:3 pictures on wide screen TV’s, or onscreen data in a stationary and fixed location). The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or fail- ures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God. THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRAN- TIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limita- tions on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have others rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warran- tor's Consumer Affairs Department at the addresses listed for the warrantor. PARTS AND SERVICE (INCLUDING COST OF AN IN-HOME SERVICE CALL, WHERE APPLICABLE) WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.CUSTOMER SERVICES DIRECTORY (FOR MODELS SOLD IN USA ONLY) Service in Puerto Rico Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory Servicenter: Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985 Phone (787) 750-4300 Fax (787) 768-2910 For Product Information, Operating Assistance, Literature Request, Dealer Locations, and all Customer Service inquiries please contact: 1-888-VIEW-PTV (1-888-843-9788, Monday-Friday 9am - 9pm; Saturday-Sunday 10 am - 7pm, EST. Web Site: http://www.panasonic.com You can purchase parts, accessories or locate your nearest servicenter by visiting our Web Site. Accessory Purchases: 1-800-332-5368 (Customer Orders Only) Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032 (6 am to 5 pm Monday - Friday; 6 am to 10:30 am Saturday; PST) (Visa, MasterCard, Discover Card, American Express, Check)LIMITED WARRANTY (FOR MODELS SOLD IN CANADA ONLY) Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT - LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase. In-home Service will be carried out only to locations accessible by roads and within 50 Km of an authorized Panasonic service facility.

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty. This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed. THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, EXCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES. In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. WARRANTY SERVICE For product operation and information assistance, please contact your Dealer or our Customer Care Centre at: Telephone #: (905) 624-5505 Fax #: (905) 238-2360 Web: www.panasonic.ca For product repairs, please contact one of the following:

• Your Dealer who will inform you of an authorized Servicentre nearest you.

• Our Customer Care Centre at (905) 624-5505 or www.panasonic.ca

• A Panasonic Factory Servicentre listed below: IF YOU SHIP THE PRODUCT TO A SERVICENTRE Carefully pack and send prepaid, adequately insured and preferably in the original carton. Include details of the defect claimed, and proof of date of original purchase. TELEVISION: 21” and under Carry-in Service only One (1) year, parts (including Picture Tube) and labour 22” and over In-home Service One (1) year, parts (including Picture Tube) and labour Richmond, British Columbia Panasonic Canada Inc. 12111 Riverside Way Richmond, BC V6W 1K8 Tel: (604) 278-4211 Fax: (604) 278-5627 Calgary, Alberta Panasonic Canada Inc. 6835-8
