USER MANUAL NX58K3310SB SAMSUNG

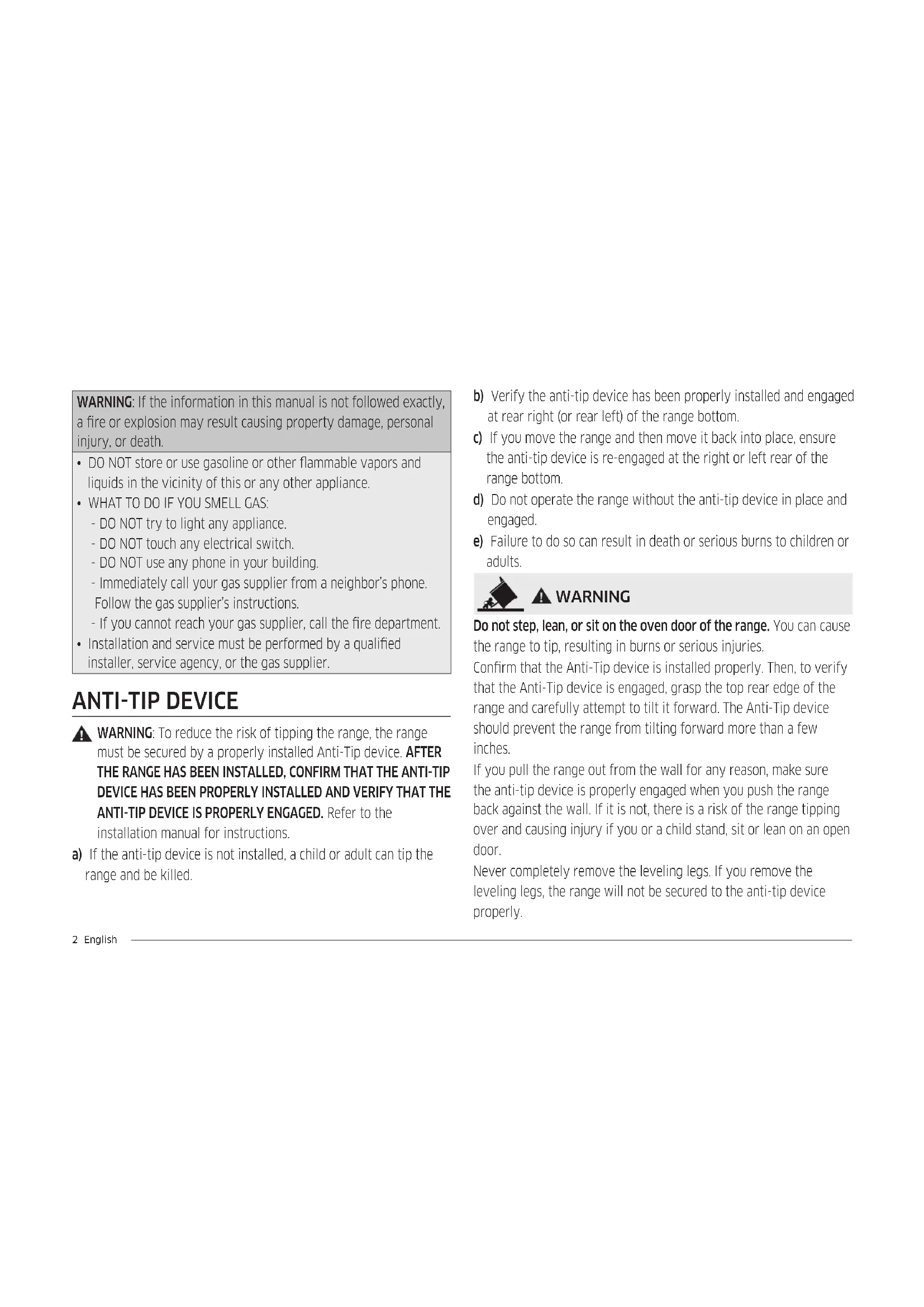

WARNING: If the information in this manual is not followed exactly,

a re or explosion may result causing property damage, personal injury, or death.

• DO NOT store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS: - DO NOT try to light any appliance. - DO NOT touch any electrical switch. - DO NOT use any phone in your building. - Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. - If you cannot reach your gas supplier, call the re department.

• Installation and service must be performed by a qualied installer, service agency, or the gas supplier. ANTITIP DEVICE

WARNING: To reduce the risk of tipping the range, the range

must be secured by a properly installed Anti-Tip device. AFTER THE RANGE HAS BEEN INSTALLED, CONFIRM THAT THE ANTI-TIP DEVICE HAS BEEN PROPERLY INSTALLED AND VERIFY THAT THE ANTI-TIP DEVICE IS PROPERLY ENGAGED. Refer to the installation manual for instructions. a) If the anti-tip device is not installed, a child or adult can tip the range and be killed. b) Verify the anti-tip device has been properly installed and engaged at rear right (or rear left) of the range bottom. c) If you move the range and then move it back into place, ensure the anti-tip device is re-engaged at the right or left rear of the range bottom. d) Do not operate the range without the anti-tip device in place and engaged. e) Failure to do so can result in death or serious burns to children or adults. WARNING Do not step, lean, or sit on the oven door of the range. You can cause the range to tip, resulting in burns or serious injuries. Conrm that the Anti-Tip device is installed properly. Then, to verify that the Anti-Tip device is engaged, grasp the top rear edge of the range and carefully attempt to tilt it forward. The Anti-Tip device should prevent the range from tilting forward more than a few inches. If you pull the range out from the wall for any reason, make sure the anti-tip device is properly engaged when you push the range back against the wall. If it is not, there is a risk of the range tipping over and causing injury if you or a child stand, sit or lean on an open door. Never completely remove the leveling legs. If you remove the leveling legs, the range will not be secured to the anti-tip device properly.English 3 Contents Contents Important safety information 4 Read all instructions before using this appliance 4 Symbols used in this manual 4 State of California Proposition 65 Warning (US only) 4 Commonwealth of massachusetts 4 General safety 4 Fire safety 5 Gas safety 5 Electrical and grounding safety 6 Installation safety 6 Location safety 7 Cooktop safety 7 Oven safety 9 Storage drawer safety 9 Overview 10 Layout 10 What’s included 10 Control panel 11 Clock 11 Kitchen timer 11 Gas range 12 General cooktop instructions 12 Oven vent/cooling vent 12 Cookware 12 Gas burners 13 Ignition 14 Gas oven 14 General oven instructions 14 Cooking mode 15 Baking 15 Broiling 15 Using the oven racks 16 Cooking options 17 Non-Cooking functions 19 Maintenance 20 Cleaning 20 Replacement 23 Reinstallation 23 Troubleshooting 24 Checkpoints 24 Information codes 28 Warranty 284 English Important safety information Important safety informationImportant safety information Read all instructions before using this appliance

• All electrical and gas equipment with moving parts can be dangerous. Please read the important safety instructions for this appliance in this manual. The instructions must be followed to minimize the risk of injury, death, or property damage.

• Save this manual. Please Do Not Discard. Symbols used in this manual WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in electric shock, personal injury, or property damage. NOTE Useful tips and instructions. These warning icons and symbols are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference. State of California Proposition 65 Warning (US only)

WARNING : This product contains chemicals known to the State of California to

cause cancer and birth defects or other reproductive harm. Gas appliances can cause low-level exposure to Proposition 65 listed substances, including but not limited to, benzene, carbon monoxide, formaldehyde and soot, substances resulting from the incomplete combustion of natural gas or LP fuels. Commonwealth of Massachusetts

• This product must be installed by a licensed plumber or gas tter qualied or licensed by the State of Massachusetts. When using ball-type gas shut-off valves, you must use the T-handle type. Multiple exible gas lines must not be connected in series. General safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• Do not touch any part of the range, including but not limited to, oven burners, surface burners, or interior surfaces during or immediately after cooking.

• Know the location of the gas shut-off valve and how to shut it off.

• Make sure the anti-tip device is properly installed on the range. See the installation instructions for more information.

• Do not let children near the range. Do not let children go into the range or onto the range. Do not let children play with the range or any part(s) of the range. Do not leave children unattended in an area where the range is in use. For children’s safety, we recommend utilizing the control/door lockout feature.

• Remove all packaging materials from the range before operating to prevent ignition of these materials. Keep all packaging materials out of children’s reach. Properly dispose the packaging materials after the range is unpacked.

• Do not store any object of interest to children on the cooktop or backguard of the range. Children climbing on the range to reach items could be killed or seriously injured.

• Do not operate the range if the range or any part of the range is damaged, malfunctioning, or missing parts.

• Do not use the range as a space heater. Use the range for cooking only.

• Do not use oven cleaners or oven liners in or around any part of the oven.

• Use only dry pot holders. Pot holders with moisture in them can release steam and cause burns if they come in contact with hot surfaces. Keep pot holders away from open ames when lifting cookware. Never use a towel or bulky cloth in place of a pot holder.

• Do not use the range to heat unopened food containers.

• Do not strike the oven glass.English 5 Important safety information

• Do not heat unopened food containers. The buildup of pressure may cause the containers to burst and result in injury.

• NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the oven. Do not use the oven for storage. Paper and other ammable items stored in the oven can ignite.

• Do not leave items such as paper, cooking utensils or food in the oven when not in use. Items stored in an oven can ignite.

• Do not put any combustible material or items around the range. Gas safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions. If you smell gas:

• Close the valve and do not use the range.

• Do not light a match, candle, or cigarette.

• Do not turn on any gas or electric appliances.

• Do not touch any electrical switches or plug a power cord into an outlet.

• Do not use any phone in your building.

• Evacuate the room, building, or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department. Checking for gas leaks

• Leak testing of the appliance must be conducted according to the manufacturer’s instructions. Do not use a ame to check for gas leaks. Use a brush to spread a soapy water mixture around the area you are checking. If there is a gas leak, you will see small bubbles in the soapy water mixture at the leak point.

• When disposing of the range, cut off the power cord and remove the door to prevent children and animals from getting trapped.

• Unplug or disconnect power before servicing.

• Make sure all meat and poultry is cooked thoroughly. Meat should always be cooked to an internal temperature of 160 °F (71 °C). Poultry should always be cooked to an internal temperature of 180 °F (82 °C).

• Do not make any attempt to operate the electric ignition oven during an electrical power failure.

• Keep the appliance area clear and free of combustible materials, gasoline, and other ammable vapors and liquids.

• Teach children not to touch or play with the controls or any part of the range. We recommend you utilize the control / door lockout feature to reduce the risk of misuse by children. Fire safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• Do not store, place, or use ammable or combustible materials such as paper, plastic, pot holders, linens, curtains, gasoline or other ammable vapors or liquids near the range.

• Do not wear loose tting or hanging garments while using the range.

• To avoid grease buildup, regularly clean the vents.

• Do not let pot holders or other ammable materials touch a heating element. Do not use a towel or other bulky cloths in place of a pot holder.

• Do not use water on a grease re. To put out a grease re, turn off the heat source and smother the re with a tight-tting lid or use a multipurpose dry chemical or foam-type re extinguisher.

• If a grease re should occur in the oven, turn off the oven by pressing the OFF/ CLEAR button. Keep the oven door closed until the re goes out. If necessary, use a multipurpose dry chemical or foam-type re extinguisher.6 English Important safety information Important safety information Installation safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• Have your range installed and properly grounded by a qualied installer, in accordance with the installation instructions. Any adjustment and service should be performed only by qualied gas range installers or service technicians.

• Do not attempt to service, modify, or replace your range or any part of your range unless it is specically recommended in this manual. All other service should be referred to a qualied technician.

• Always use new exible connectors when installing a gas appliance. Do not use old exible connectors.

• Make sure the anti-tip device is properly installed on the range. See the installation instructions for more information.

• Due to the size and weight of the range, have two or more people move the range.

• Remove all tape and packaging materials.

• Remove all accessories from the cooktop, oven, and/or lower drawer. Grates and griddles are heavy. Use caution when handling them.

• Make sure no parts came loose during shipping. Do not install in an area exposed to dripping water or outside weather conditions.

• Make sure your range is correctly installed and adjusted by a qualied service technician or installer for the type of gas (natural or LP) you will use. For your range to utilize LP gas, the installer must replace the 5 surface burner orices and 2 oven orices with the provided LP orice set, and reverse the GPR adapter. These adjustments must be made by a qualied service technician in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. The qualied agency performing this work assumes the gas conversion responsibility. Electrical and grounding safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• Plug the range into a grounded 3-prong outlet.

• Do not remove the ground prong.

• Do not use an adapter or an extension cord.

• Do not use a damaged power plug, power cord, or loose power outlet.

• Do not modify the power plug, power cord, or power outlet in any way.

• Do not put a fuse in a neutral or ground circuit.

• Use a dedicated 120-volt, 60-Hz, 20-amp, AC electrical circuit with a time-delay fuse or circuit breaker for this range. Do not plug more than one appliance into this circuit.

• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

• This range must be Earth grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path for the electric current. This range is equipped with a cord having a grounding plug. The plug must be rmly plugged into an outlet that is properly installed and grounded in accordance with the local codes and ordinances. If you are unsure whether your electrical outlet is properly grounded, have it checked by a licensed electrician.

• The range is supplied with a 3-pronged grounded plug. This cord must be plugged into a mating, grounded 3-prong outlet that meets all local codes and ordinances. If codes permit the use of a separate ground wire, we recommend that a qualied electrician determine the proper path for this ground wire.

• Electrical service to the range must conform to local codes. Barring local codes, it should meet the latest ANSI/NFPA No. 70 – Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 – Latest Revisions.

• It is the personal responsibility of the range owner to provide the correct electrical service for this range.English 7 Important safety information

• Cabinet storage above the surface of the range should be avoided. If cabinet storage above the range is necessary: allow a minimum clearance of 40 inches (102 cm) between the cooking surface and the bottom of cabinets; or install a range hood that projects horizontally a minimum of 5 inches (12.7 cm) beyond the bottom of the cabinets.

• Locate the range out of kitchen trafc paths and drafty locations to prevent poor air circulation.

• If the range is located near a window, NEVER hang long curtains or paper blinds on that window. They could blow over the surface burners and ignite, causing a re hazard. Cooktop safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• Make sure all burners are off when not using the range.

• Do not use aluminium foil to line the grates or any part of the cooktop. This can cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a re hazard.

• Do not leave burners unattended on medium or high heat settings.

• Before igniting the burners, make sure all burner caps are properly in place and all burners are level.

• Always use the LITE position when igniting the burners and make sure the burners have ignited. If ignition fails, turn the knob to OFF and wait until the gas has dissipated.

• When you set a burner to simmer, do not turn the knob quickly. Make sure the ame stays on.

• Do not place any objects other than cookware on the cooktop.

• This cooktop is designed for use with a wok or wok ring attachment.

• To ame food, you must have a ventilation hood. When you ame food, the hood must be on.

• Before removing or changing cookware, turn off the burners.

• Installation of this range must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest edition. In Canada, installation must conform with the current Natural Gas Installation Code, CAN/CGA-B149.1, or the current Propane Installation Code, CAN/CGA-B149.2, and with local codes where applicable. This range has been design-certied by ETL according to ANSI Z21.1, latest edition, and Canadian Gas Association according to CAN/CGA-1.1, latest edition. Location safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• This range is for indoor, household use only. Do not install the range in areas exposed to the weather and/or water.

• Do not install the range in a place which is exposed to a strong draft.

• Select a level, well-constructed oor that can support the range’s weight. Synthetic ooring, such as linoleum, must withstand 180 °F (82 °C) temperatures without shrinking, warping, or discoloring. Do not install the range directly over interior kitchen carpeting unless a sheet of ¼ inch plywood or a similar insulator is placed between the range and carpeting.

• Select a location where a grounded, 3-prong outlet is easily accessible.

• If the range is located near a window, do not hang long curtains or paper blinds on that window.

• For the range to ventilate properly, make sure the range’s vents are not blocked, and that there is enough clearance at the top, back, sides, and underneath the range. The vents allow the necessary exhaust for the range to operate properly with correct combustion.

• Make sure the wall coverings around the range can withstand heat up to 200 °F (93 °C) generated by the range.8 English Important safety information Important safety information

• Place pots in the center of the grate. Do not place a pot larger than 9" in diameter on the rear burners. If you place an oversized pot in the wrong position, it might disrupt necessary air circulation and make the ame on the burner sputter and burn inefciently.

• Do not wear loose or hanging garments when using the range. They could ignite and burn you if they touch a surface burner.

• Never leave plastic items on the cooktop. Hot air from the vent can melt or ignite plastic items or cause a build up of dangerous pressure in closed plastic containers.

• Do not place portable appliances, or any other object other than cookware on the cooktop. Damage or re could occur if the cooktop is hot.

• Always make sure foods being fried are thawed and dry. Moisture of any kind can cause hot fat to bubble up and over the sides of the pan.

• Always make sure the controls are OFF and the grates are cool before you remove them to prevent any possibility of being burned.

• Do not put any combustible material or items around the range.

• Take care that your hands do not touch the burners when they are on. Turn off the burners when you change a pan or pot.

• To warm liquid such as sauces, stir it while warming.

• Remove food and cookware immediately after cooking.

• Before removing any parts of the burner for cleaning, make sure the range is off and completely cool.

• After cleaning the burner spreader, make sure it is completely dry before re- assembling.

• Make sure the spark mark on the dual burner spreader is placed beside the electrode when it is assembled.

• To avoid carbon monoxide poisoning, do not pour water into the cooktop well while cleaning.

• Select cookware that is designed for range top cooking. Use cookware that is large enough to cover the burner grates. Adjust the burner ames so that the ames do not extend beyond the bottom of the cookware.

• To avoid cookware discoloration, deformity, and/or carbon monoxide poisoning, do not use cookware that is substantially larger than the grate.

• Make sure cookware handles are turned to the side or rear of the cooktop, but not over other surface burners.

• Stand away from the range while frying.

• Always heat frying oils slowly, and watch as they heat. If you are frying foods at high heat, carefully watch during the cooking process. If you are going to use a combination of fats or oils when frying, mix them together before heating.

• Use a deep-fryer thermometer whenever possible. This prevents overheating the fryer beyond the smoking point.

• Use a minimum amount of oil when shallow pan-frying or deep-frying. Avoid cooking unthawed food or food with excessive amounts of ice.

• Before moving cookware full of fats or oils, make sure it has completely cooled.

• To prevent delayed eruptive boiling, always allow heated liquids to stand at least 20 seconds after you have turned off the burner so that the temperature in the liquid can stabilize. In the event of scalding, follow these rst aid instructions:

1. Immerse the scalded area in cool or lukewarm water for at least 10 minutes.

2. Do not apply any creams, oils, or lotions.

3. Cover with a clean, dry cloth.English 9

Important safety information Storage drawer safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• Do not use the drawer for non-cooking purposes such as drying clothes or storage. Use the drawer for cooking purposes only.

• Do not touch the interior drawer surface or heating element. These surfaces may be hot and could burn you.

• To avoid steam burns, use caution when opening the drawer.

• Do not use aluminium foil to line the drawer.

• Do not leave containers of fat drippings in or near the drawer. Oven safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, observe the following precautions.

• Do not use the oven for non-cooking purposes such as drying clothes or storage. Use the oven for cooking only.

• Make sure the inner portion of the split oven- rack is in the proper position within the outer rack.

• Make sure the oven racks are placed on the same level on each side.

• Do not damage, move, or clean the door gasket.

• Do not spray water on the oven glass while the oven is on or just after you have turned it off.

• Do not use aluminium foil or foil liners anywhere in the oven. Do not use aluminium foil or similar material to cover any holes or passages in the oven bottom or to cover an oven rack. This can cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a re hazard.

• Stand away from the oven when opening the oven door.

• Keep the oven free from grease buildup.

• When repositioning the oven racks, make sure the oven is completely cool.

• Only use cookware that is recommended for use in gas ovens.

• To avoid damaging the burner control knobs, always bake and/or broil with the oven door closed.

• Do not broil meat too close to the burner ame. Trim excess fat from meat before cooking.

• When using cooking or roasting bags in the oven, follow the manufacturer’s directions.

• NEVER cover any slots, holes, or passages in the oven bottom or cover an entire rack with material such as aluminum foil. Doing so blocks air ow through the oven and may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a re hazard.10 English Overview Overview What’s included Surface burner grates (3) * Surface burners and caps (5) * Flat rack (2) * NOTE If you need an accessory marked with an * (asterisk), please contact the Samsung Call Center at 1-800-726-7864 or visit our on-line parts web site at www. samsungparts.com. Overview Layout

01 Display 02 Surface burner knobs (5 pcs) 03 Surface burners 04 Oven Vent 05 Removable oven door 06 Storage drawer 07 Oven light * 08 Oven rack system 09 Broil oven burner 10 Bake oven burner NOTE If you need a part marked with a "*", you can buy it from the Samsung Contact Center (1-800-726-7864).English 11 Overview Clock You must set the clock correctly to ensure the automatic features work properly. Only a 12-hour clock is available on this model.

To set the clock time

the settings. NOTE You can set/change the clock or the kitchen timer before you start a cooking mode or while most cooking modes are operating. However, you cannot set or change the time if a time based function is operating (Time Bake, for example) or the Sabbath option is enabled. Kitchen timer The kitchen timer gives you an extra timer you can use to time cooking tasks such a boiling eggs. It does not, however, start or stop any cooking operation. You can set the timer from 1 minute to 9 hours and 59 minutes.

Once Twice Hours/Minutes Turn off or Cancel the timer

2. Press the arrow buttons to enter the

amount of time you want in minutes or hours and minutes.

3. Press the Timer On/Off button to start

01 Display: Shows the time of day, oven temperature, whether the oven is in the bake or broil mode, and displays the time set for the timer or for automatic oven operations. 02 Bake: Bake food using the oven burner. 03 Broil: Broil food using the upper oven burner only. 04 (Up): Set the cooking temperature and time. 05 (Down): Set the cooking temperature and time. 06 START/SET (Lock): Start a function or set the time. Lock the control panel to prevent accidents. 07 OFF/CLEAR: Cancel the current operation but not the timer. 08 Keep Warm: Keep cooked food warm at lower temperatures. 09 Timer On/Off: Activate or deactivate the timer. 10 Cooking Time: Set the cooking time. 11 Delay Start: Set the oven to start at a certain time. 12 Clock: Set the clock time. 13 Oven Light: Turn on/Turn off the oven light. NOTES

• The Door Lock function is not available on this model. Only the Control Lock function is provided.

• To change the cooking temperature rapidly 10 degrees at a time, press and hold the up or down arrow button.12 English Gas range Gas range Cookware Requirements

• Well-balanced with the handle weighing less than the main portion of the pot or pan. Material characteristics

• Aluminum: An excellent heat conductor. Some types of food may cause the aluminum to darken. However, anodized aluminum cookware resists staining and pitting.

• Copper: An excellent heat conductor but discolors easily.

• Stainless steel: A slow heat conductor with uneven cooking performance but is durable, easy to clean, and resists staining.

• Cast-Iron: A poor conductor but retains heat very well.

• Enamelware: Heating characteristics depend on the base material.

• Glass: A slow heat conductor. Use only glass cookware that is specied for range top cooking or oven use. Gas range General cooktop instructions STEP 1 Put all ingredients into a cooking container (pan, pot, etc). STEP 2 Place the container on a surface burner. STEP 3 Ignite the surface burner. Oven vent/cooling vent The oven vent is located under the oven Control panel. Proper air circulation prevents oven burner combustion problems and ensures good performance.

• Do not block the vent or the area around the vent.

• Use caution when placing items near the vent. Hot steam can cause them to overheat or melt.English 13 Gas range Gas burners

Each burner has a corresponding knob that lets you to set the ame level from LO to HI. In addition, each burner knob has a LITE setting. Turning a knob to LITE ignites the corresponding burner. The burner indicators are located above each knob, showing which burner the knob controls. Each burner is designed for specic cooking purposes. See the table below. Position Purpose Food type Characteristics Right Front (RF) 17,000 BTU Power heating Boiling food Maximum output Right Rear (RR) 5,000 BTU Low simmering Chocolate, casseroles, sauces Delicate food that requires low heat for a long time Center (C) 9,500 BTU Grilling/Griddling Pancakes, hamburgers, fried eggs, hot sandwiches General-purpose cooking Left Front (LF) 15,000 BTU Quick heating General General-purpose cooking Left Rear (LR) 9,500 BTU General heating/ Low simmering General food, casseroles, tomato sauce* General-purpose cooking

• Tomato sauce needs to be stirred while it is simmering. Size limitations CAUTION

• Do not place a small pan or pot with a bottom diameter of about 6 inches or less on the center grate. This cookware may tip over. Use the rear burners for this small- sized cookware.

• Always make sure cookware handles are turned to the side or rear of the cooktop and not over other surface burners. This will minimize the chance of burns, spillovers, and the ignition of ammable materials that can be caused if pots or pans are bumped accidently.

• When using glass cookware, make sure it is designed for top-of-range cooking.

• Never leave plastic items on the cooktop. Hot air from the vent can melt or ignite plastic items or cause a building up of dangerous pressure in closed plastic containers.

• Make sure you hold the handle of a wok or a small one-handled pot while cooking.14 English Gas oven Gas range Gas oven General oven instructions STEP 1 Put all ingredients in a heat-safe container. STEP 2 Select a cooking mode, and then start preheating. STEP 3 Place the container on a rack. STEP 4 Close the door and start cooking. Ignition

Make sure all surface burners are properly installed. To light a burner:

1. Push in the control knob, and then turn

it to the LITE position. You will hear a "clicking" sound indicating the electronic ignition system is working properly.

2. After the surface burner lights, turn

the control knob to shift it out of the LITE position and turn off the electronic ignition system.

3. Turn the control knob to adjust the ame

level. Manual ignition If there is a power failure, you can ignite the burner manually. Use caution when doing this.

1. Hold a long gas grill lighter to the surface burner you want to light.

2. Push in the control knob for that burner, and then turn it to the LITE position.

Turn on the grill lighter to ignite the burner.

3. After the burner is lit, turn the control knob to adjust the ame level.

Flame level The ames on the burners should always stay under the cookware, and should not extend beyond the cookware bottom at any time. WARNING

• Flames larger than the cookware bottom may result in a re or physical injury.

• When you set a burner to simmer, do not turn the burner knob quickly. Watch the ame to make sure it stays on.

• After turning on a surface burner, check to make sure that the burner has ignited. Adjust the level of the ame by turning the burner knob.

• Always turn off the surface burner controls before removing cookware. All surface burner controls should be turned OFF when you are not cooking.

• Always turn the burners off before you go to sleep or go out.

• If you smell gas, turn off the gas to the range and call a qualied service technician. NEVER use an open ame to locate a leak.English 15 Gas oven Broiling Broiling uses the oven broil burner at the top of the oven to cook and brown food. Meat or sh must be put on a broiling grid in a broiling pan. Preheating for 5 minutes before broiling is recommended.

2. Press the Broil button once for HI temperature broiling or twice for LO.

3. Press the START/SET button to start the broiler.

4. Let the oven pre-heat for 5 minutes.

5. Place the pan on the desired rack, and then close the oven door.

6. When one side of the food is browned, turn it over, close the oven door, and

start cooking the other side.

7. When cooking is complete, press the OFF/CLEAR button.

NOTE For a detailed broil rack guide, see page 16. Temperature Limitations by Mode Feature Min Max Bake 175 ˚F (80 ˚C) 550 ˚F (285 ˚C) Broil LO HI Keep Warm - 3 hours Cooking mode

• Make sure to close the door before you start cooking.

• If you leave the door open for 20-30 seconds while the oven is in the baking or broiling modes, the oven burner shuts off. To restart the burner, close the door. Baking

You can set the oven to any temperature from 175 °F to 550 °F.

3. Press the START/SET button.

• The oven preheats until it reaches the temperature you set.

• When preheating is complete, place the food in the oven, and then close the door.

4. When cooking is complete, press the OFF/CLEAR button, and then take out the

• To change the temperature during cooking, repeat steps 1 through 3 above.

• When pre-heating is complete, the oven beeps 6 times.

• To change the cooking temperature rapidly 10 degrees at a time, press and hold the up or down arrow button.16 English Gas oven Gas oven Inserting and removing an oven rack To insert an oven rack

1. Place the rear end of the rack on a rack

2. Slide the rack into the rack guide while

holding the front end of the rack. To remove an oven rack

1. Pull out the rack until it stops.

2. Pull up the front end of the rack and

remove it from the rack guide. Rack and Pan Placement Single Oven Rack

Multiple Oven Rack Centering the baking pans in the oven as much as possible will produce better results. When baking with more than one pan, place the pans so each has at least 1˝ to 1½˝ of air space around it. When baking on a single oven rack, place the rack in position 3 or 4. When baking on two racks place the oven racks in positions 3 and 5 for the best results. Using the oven racks Your gas oven range comes with 3 racks and 7 rack positions. The rack positions are delineated by rack guides which support the racks. Each rack guide has a stop that prevents racks from loosening during the oven’s operation. Each rack has stoppers that need to be placed correctly on the rack guides. The stoppers prevent the racks from accidently coming out of the oven completely when you pull the racks out.

Type of food Rack position Broiling hamburgers 6 Broiling meats or small cuts of poultry, sh 6-4 Bundt cakes, pound cakes, frozen pies, casseroles 4 or 3 Fresh pizza, angel food cakes, small roasts

Turkey, large roasts, hams 1 CAUTION

• Do not cover an oven rack with aluminum foil. This will hamper heat circulation, resulting in poor baking.

• Do not place aluminum foil on the oven bottom. The aluminum can melt and damage the oven.

• Arrange the oven racks only when the oven is cool.

• When placing an oven rack in the topmost rack position (position 7), make sure the rack is situated stably on the embossed stop. NOTE This table is for reference only.English 17 Gas oven Delay Start The Delay Start function lets you use the kitchen timer to automatically start and stop another cooking program. Delay Start can be set before other cooking operations for up to 12 hours.

1. Place the container with the food on a rack, and then close the door.

5. Set the cooking time between 1 minute and 9 hours and 59 minutes (9:59)

11. The oven starts cooking at the set time, and turns off automatically when it

completes cooking. NOTES

• To change the starting time, press the Delay Start button, enter a new starting time, and then press the START/SET button.

• To change the programmed cooking time, press the Cooking Time button, enter a different time, and then press the START/SET button. Cooking options CAUTION Food that can easily spoil, such as milk, eggs, sh, poultry, and meat, should be chilled in a refrigerator before they are placed in the oven. Even when chilled, they should not stand for more than 1 hour before cooking begins and should be removed promptly when cooking is completed. Timed Cook Timed cooking sets the oven to cook foods at a set temperature for a set length of time. The oven automatically turns off when it nishes.

4. Set the cooking time between 1 minute and 9 hours and 59 minutes (9:59)

preheating. The temperature will increase until it reaches the temperature you set.

6. When preheating is complete, put the container with the food on a rack, and

then close the door. The oven starts cooking for the amount of time you set.

7. When the cooking time has elapsed, the oven will automatically shut off and

then beep. NOTE To change the programmed cooking time, press the Cooking Time button, and then enter a different time. Then, press the START/SET button.18 English Gas oven Gas oven The Sabbath Option

• The oven temperature can be set higher or lower after you have set this option.

• The display doesn’t change and no beep sounds when you change the temperature.

• Once the oven is properly set for baking with the Sabbath option active, the oven will remain continuously on until the Sabbath feature is cancelled. This will override the factory preset 12 hour energy saving feature.

• If the oven light is needed during the Sabbath, press OVEN LIGHT before activating the Sabbath feature. Once the oven light is turned on and the Sabbath option is active, the oven light will remain on until the Sabbath option is turned off.

• If you want the oven light off, be sure to turn it off before activating the Sabbath feature.

temperature reaches 175 °F.

4. Press the Bake and (Up) buttons simultaneously for 3 seconds to display

"SAb". Once "SAb" appears, the oven control no longer beeps or displays any further changes. Keep Warm Keep cooked food warm at a low temperature up to 3 hours.

1. Place the container with the food on a rack, and then close the door.

• You can cancel warming at any time by pressing the OFF/CLEAR button.

• To set the warming function during a timed cooking, press the Keep Warm button in timed cooking mode. When the timed cooking is complete, the oven will lower the temperature to the warming default, and keep that temperature until the warming mode ends or is canceled. Oven Light Press the Oven Light button to turn the oven light on and off.English 19 Gas oven Non-Cooking functions Temperature adjust The oven temperature has been calibrated at the factory. When rst using the oven, follow the recommended recipe times and temperatures. If it appears that the oven is too hot or too cool, you can recalibrate the oven temperature. Before recalibrating, test a recipe by using a temperature setting that is higher or lower than recommended. The baking results should help you decide how much of an adjustment is needed. The oven temperature can be adjusted by ±35 °F (±19 °C).

1. Press the Broil button and (Up)

button simultaneously for 3 seconds.

2. Press the Broil button to select a

changes. NOTE This adjustment does not affect the broiling temperature, and is retained in memory after a power failure. Sound Mute/unmute the oven.

1. Press the Broil button and (Down)

button simultaneously for 3 seconds.

2. Press the arrow buttons to select

• You can change the oven temperature once baking starts, but the display will not change or beep. After changing the temperature, it takes 15 seconds before the oven recognizes the change.

• You can turn off the oven at any time by pressing OFF/CLEAR. However, this doesn’t deactivate the Sabbath option.

• To deactivate the Sabbath option, hold down Bake and (Up) simultaneously for 3 seconds.

• You can set the cooking time before activating the Sabbath option.

• After a power failure, the oven will not resume operation automatically. "SAb" will appear in the control panel, but the oven will not go back on. Food can be safely removed from the oven, but you should not turn off the Sabbath option and turn the oven back on until after the Sabbath/Holidays.

• After the Sabbath observance, turn off the Sabbath option by pressing and holding Bake and (Up) simultaneously for at least 3 seconds. CAUTION

• Do not attempt to activate any other functions except for Bake when the Sabbath option is on. Only the following buttons will function properly: the Arrow buttons, Bake, Oven START/SET, and Oven OFF/CLEAR.

• Do not open the oven door or change the oven temperature for about 30 minutes after you have started the Sabbath option. Let the oven reach the set temperature. The oven fan operates only when the oven temperature increases.20 English Maintenance Maintenance Racks To keep the racks clean, remove them from the cavity, and soak them in lukewarm soapy water. Then, scour impurities off the racks using a plastic scouring pad. If the racks do not slide in and out smoothly after you have cleaned them, rub the side rail guides with wax paper or a cloth containing a few drops of cooking oil. This will help the racks glide more easily on their tracks. NOTES

• Do not use a dishwasher to clean the racks.

• If a rack does not slide in and out smoothly, apply a few drops of cooking oil to the oven rack guides.

• If a rack becomes too difcult to slide in or out, lubricate the rack.

• To purchase the graphite lubricant, contact us at 1-800-SAMSUNG (726-7864).

• For online shopping, visit http://www.samsungparts.com/Default.aspx and search for part DG81-01629A. Maintenance Cleaning Control panel First, lock the control panel to prevent accidental operations and/or product tipping.

1. Press and hold the START/SET button for 3 seconds to lock the control panel.

2. Clean the control panel using a soft cloth dampened with plain water, warm

soapy water, or glass cleaner. Do not spray cleansers directly onto the control panel.

3. When done, press and hold the START/SET button again for 3 seconds.

• Make sure the control panel turns off and all surfaces of the gas oven are cool before cleaning. Otherwise, you can get burned.

• If the gas oven has been moved away from the wall, make sure the anti-tip device is reinstalled properly when the gas oven has been put into place again. Otherwise, the gas oven may tip over, causing physical injuries.

• Do not use steel-wool or abrasive cleansers of any kind. These can scratch or damage the surface. Stainless steel surface

1. Remove any spills, spots, and grease stains using a soft, wet cloth.

2. Apply an approved stainless steel cleanser to a cloth or paper towel.

3. Clean one small area at a time, rubbing with the grain of the stainless steel if

4. When done, dry the surface using a soft, dry cloth.

5. Repeat steps 2 through 4 as many times as necessary.

• Do not use a steel-wool pad or abrasive cleanser on stainless steel surfaces. It will scratch the surface.

• Do not spray any type of cleanser into the manifold holes. The ignition system is located in those holes and must be kept free of moisture.English 21 Maintenance Surface burners Burner controls Make sure all surface burner knobs are in the OFF position.

1. Pull the knobs off the control valve

2. Clean the knobs in warm, soapy water.

Then, rinse and dry them thoroughly.

3. Clean the stainless steel surfaces using

stainless steel cleaner.

4. Push the knobs back onto the control

valve stems. CAUTION

• Do not clean the control knobs in a dish washer.

• Do not spray cleansers directly onto the control panel. Moisture entering the electric circuits may cause electric shock or product damage. Cooktop surface The porcelain-enameled cooktop surface needs to be kept clean. We recommend that you remove food spills immediately after they take place.

1. Turn off all surface burners.

2. Wait until all burner grates cool down,

and then remove them.

3. Clean the cooktop surface using a soft

cloth. If food spills run into gaps of the burner components, remove the burner cap and the head, and then wipe up the spills.

4. When you are done cleaning, reinsert

the burner components, and then put the burner grates back into position. Door Do not remove the inner gasket of the oven door for cleaning. Inner side

• Inner surface: Clean the inner side of the door manually using a soapy plastic scouring pad, and then wipe with a dry cloth. Take care not to get the gasket wet or allow moisture into the door. Outer side

• Outer surface: Follow the cleaning instructions for the stainless steel surface in the previous section.

• Outer glass: Clean the outer glass using a glass cleanser or soapy water. Rinse and dry thoroughly. Take care not to get the gasket wet or allow moisture into the door.

• Do not let moisture or water enter the burner, electrical controls, or switches.22 English Maintenance Maintenance CAUTION

• The starter electrodes are not removable. Do not attempt to remove them by force.

• Make sure all burner components (heads and caps) are reinstalled properly. They are stable and rest at when installed properly.

• To avoid chipping, do not bang grates and caps against each other or against hard surfaces such as cast iron cookware. CAUTION

• Do not use a steel-wool pad or abrasive cleaner, which can scratch or damage the enamel surface.

• Do not remove the cooktop surface to clean it. The gas lines leading to the burner manifolds can be damaged, resulting in a re or system failure. Burner grates and components Turn off all surface burners and make sure they have all cooled down.

2. Remove the burner caps from the

3. Remove the burner heads from the

valve manifolds to reveal the starter electrodes.

4. Clean all removable grates and burner

components in warm, soapy water. Do not use steel-wool pads or abrasive cleaners.

5. Rinse and dry the grates and burner

components thoroughly.

6. Return the burner heads to their

positions on top of the manifold valves. Make sure a starter electrode is inserted through the hole in each burner head.

7. Return the burner caps to their positions

on top of burner heads. To ensure proper and safe operation, make sure the burner caps lie at on top of the burner heads.

8. Reinstall the burner grates in their

respective positions.

9. Turn on each burner and check if it

operates properly. After verifying that a burner operates normally, turn it off.English 23 Maintenance Reinstallation Oven door To remove the oven door

1. Turn off the oven.

2. Fully open the oven door.

3. Pull the hinge locks away from the oven

body and down toward the door frame into the unlocked position.

4. Close the door to 5 degrees from

vertical. This is the removal position.

5. While holding both sides of the oven

door tightly, lift it up and out until the hinge arms come clear of the slots at the bottom of the oven door.

6. Place the door in a safe location.

• The door is very heavy. Be careful when removing and lifting the door. Do not lift the door by the handle.

• Take care when moving the oven door. Improper handling could result in physical injury.

• To prevent electric shock, make sure the oven is turned off before removing the oven door. Replacement Oven light The oven light is a standard 40-watt appliance bulb. It comes on when you open the oven door.

1. Turn off the oven.

2. Make sure the oven and oven light are

3. Open the door, and remove the glass

cover by turning it counterclockwise.

4. Remove the oven light from the socket

by turning it counterclockwise.

5. Insert a new 40-watt appliance bulb into

the socket, and then turn it clockwise to tighten.

6. Reinsert the glass cover, and then turn it

clockwise to tighten. CAUTION To prevent electric shock, make sure the gas oven is turned off and cool before replacing the oven light. NOTE Remove the racks if they prevent you from accessing the oven light.24 English Troubleshooting Maintenance Troubleshooting If you encounter a problem with the range, check the tables starting below, and then try the suggested actions. Checkpoints Gas safety Problem Possible cause Action You smell gas. The surface burner knob is not in the OFF position and the burner is not lit. Turn the burner knob to OFF. There is a gas leak. Clear the room, building, or area of all occupants. Immediately call your gas supplier from a neighbor’s phone. Do not call from your phone. It is electrical and could cause a spark that could ignite the gas. Follow the gas supplier’s instructions. If you cannot reach your gas supplier, call the re department. To re-install the oven door

1. Firmly grasp both sides of the door at

2. With the door set at the same angle as

the removal position (about 5 degrees from vertical), slide the hinge arms into the hinge slots at the bottom of the door.

3. Open the door fully. If you cannot open

the door fully, the hinge arms are not properly in the hinge slots.

4. Lock the hinge arms by pushing them

up against the front frame of the oven.

5. Close the door, and make sure it opens

and closes normally. Storage drawer

1. Pull out the drawer and remove any

2. While supporting the drawer, pull it out

until the top of the drawer sides come out of the two nylon drawer guides. Then, lift to remove the drawer.

3. Clean the drawer with warm, soapy

water. Rinse and dry thoroughly.

4. Place the top of both drawer sides in

the openings on the two nylon drawer guides and push in enough to support the drawer.

5. Replace any stored content, and then

push in the drawer while slightly lifting the front to close it.English 25 Troubleshooting Problem Possible cause Action Very large or yellow surface burner ames. The wrong burner orice is installed. Check the burner orice size and contact your installer if you have the wrong orice (LP gas instead of natural gas or natural gas instead of LP gas). The surface burners light but oven burners do not light. The oven door lock is turned on. The display will show the Lock icon. Hold the oven door open and press the START/SET button for 3 seconds. The oven will beep and the Lock icon will turn off. The Gas Pressure Regulator shut off switch is in the off position. Call a qualied service technician. Oven Problem Possible cause Action The oven control beeps and displays an information code. There may be a malfunction. See the "Information codes" chart on page 28. Press the OFF/CLEAR button and restart the oven. If the problem persists, disconnect all power to the range for at least 30 seconds, and then reconnect the power. If this does not solve the problem, call for service. Very large or yellow oven burner ames. The oven burner air adjustment shutters need to be adjusted. Call for a qualied service technician. The gas supply is not properly connected or turned on. See the Installation Instructions that came with your range. Surface burner Problem Possible cause Action All burners do not light. The power cord is not plugged into the electrical outlet. Make sure the electrical plug is plugged into a live, properly grounded outlet. A fuse in your home may be blown or a circuit breaker may have tripped. Replace the fuse or reset the circuit breaker. The gas supply is not properly connected or turned on. See the Installation Instructions that came with your range. A surface burners do not light. The control knob is not set properly. Push in the control knob and turn it to the LITE position. The burner caps are not in place. The burner base is misaligned. Clean the electrodes. Put the burner cap on the burner head. Align the burner base. A surface burner clicks during operation. The control knob has been left in the LITE position. After the burner lights, turn the control knob to a desired setting. If the burner still clicks, contact a service technician. The burners do not burn evenly. The surface burner components and caps are not assembled correctly and level. See page 21. The surface burners are dirty. Clean the surface burner components. (See page 21.)26 English Troubleshooting Troubleshooting Problem Possible cause Action The oven light (lamp) will not turn on. The oven door lock is turned on. The display will show the Lock icon. Hold the oven door open and press the START/SET button for 3 seconds. The oven will beep and the Lock icon will turn off. The Sabbath function has been activated. SAb and the time of day will show in the display. All other controls and signals will be deactivated. To cancel the Sabbath function and reactivate the controls and signals, hold down Bake and (Up) simultaneously for 3 seconds. A loose or burned-out bulb. See page 23. The switch operating the oven light needs to be replaced. Call for a qualied service technician. The oven smokes excessively during broiling. Meat or food was not properly prepared before broiling. Cut away excess fat and/or fatty edges that may curl. Improperly positioned top oven rack. See the broiling guide on page 16. The controls are not being set properly. See page 15. Greasy buildup on oven surfaces. Regular cleaning is necessary when broiling frequently. Crackling or popping sound. This is normal. This is the sound of the metal heating and cooling during any cooking or cleaning function. Problem Possible cause Action The oven temperature is too hot or cold. The oven thermostat needs adjustment. See page 19. The oven burner will not shut off. The oven door lock is turned on. The display will show the Lock icon. Hold the oven door open and press the START/SET button for 3 seconds. The oven will beep and the Lock icon will turn off. The Sabbath function has been activated. SAb and the time of day will show in the display. All other controls and signals will be deactivated. To turn off the oven only, press the OFF/ CLEAR button. To cancel the Sabbath function and reactivate the controls and signals, hold down Bake and (Up) simultaneously for 3 seconds.English 27 Troubleshooting Problem Possible cause Action The display goes blank. The electrical outlet Ground Fault Interrupter (GFI or GFCI) has been tripped and needs to be reset. Your digital control has been damaged. Replace the fuse or reset the circuit breaker. Food does not bake or roast properly in the oven. The wrong cooking mode is selected. See page 15. The oven racks have not been positioned properly for the foods being cooked. See page 16. Incorrect cookware or cookware of improper size is being used. See page 12. The oven thermostat needs adjustment. See page 19. There is aluminum foil on the racks and/or oven bottom. Remove the foil. The clock or timers are not set correctly. See page 11. Food does not broil properly in the oven. The oven controls are not set properly. See page 15. The oven door was not closed during broiling. See page 15. The rack has not been properly positioned. See the broiling guide page on 16. Problem Possible cause Action Steam or smoke is coming from under the control panel. This is normal. The oven vent is located there. More steam is visible when using the convection functions or when baking or roasting multiple items at the same time. Burning or oily odor coming from the vent. This is normal for a new oven and will disappear within 1/2 hour of the rst bake cycle. To speed the process, remove all food from the oven, and then set it to Bake at 550 °F for a minimum of 1 hour. Strong odor. This is temporary. The insulation around the inside of the oven emits an odor the rst few times the oven is used. The oven racks are difcult to slide. This is normal. Apply a small amount of vegetable oil to a paper towel and wipe the edges of the oven racks with the paper towel. Others Problem Possible cause Action The product is not level. The appliance has been installed improperly. The leveling leg(s) is (are) damaged or uneven. Make sure the oor is level, strong, and stable. If the oor sags or slopes, contact a carpenter. Check and level the range. (See the Installation Instructions.) The kitchen cabinets are not properly aligned and make the range appear to be not level. Ensure that cabinets are square and provide sufcient room for installation.28 English Warranty Troubleshooting Warranty PLEASE DO NOT DISCARD.

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA or CANADA INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) Year Parts and Labor This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States or Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG- authorized service center, and any unauthorized service will void this warranty. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Samsung will provide in-home service during the one (1) year warranty period at no charge subject to availability within the contiguous United States or Canada. In-home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, Samsung may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specied above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. Information codes Code symbol Meaning Solution Check the oven sensor.

1. Press the OFF/CLEAR button, and

then restart the oven.

2. If the problem persists, disconnect

all power to the range for at least 30 seconds, and then then reconnect the power. Oven overheating. Check the PBA NTC Sensor. Check the PBA NTC Sensor. Check the PCB signals. Check the contol panel pads ** If these solutions do not solve the problem, contact a local Samsung service center 1-800-SAMSUNG (1-800-726-7864).English 29 Warranty This limited warranty shall not cover cases of incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or xing installation errors. Furthermore, damage to the cooktop caused by the use of cleaners other than the recommended cleaners and pads and damage to the cooktop caused by hardened spills of sugary materials or melted plastic that are not cleaned according to the directions in the use and care guide are not covered. SAMSUNG does not warrant uninterrupted or error-free operation of the product. EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES OR CONDITIONS ON THIS PRODUCT EITHER EXPRESS OR IMPLIED AND SAMSUNG DISCLAIMS ALL WARRANTIES AND CONDITIONS INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY, INFRINGEMENT, OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER GENERAL, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE, AND STATES YOUR EXCLUSIVE REMEDY. Some states or provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state or province to province. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgeeld Park, NJ 07660 1-800-SAMSUNG (726-7864) and www.samsung.com/us/support Samsung Electronics Canada Inc. 2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada 1-800-SAMSUNG (726-7864) and www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) Registration Please register your product online at www.samsung.com/register. Questions For questions about features, operation/performance, parts, accessories, or service, call 1-800-726-7864, or visit our Web site at www.samsung.com/us/support, www.samsung.com/ca/support (English), or www.samsung.com/ca_fr/ support (French). Model # Serial # Please attach your receipt (or a copy) to this manual. You may need it, along with your model and serial number, when calling for assistance.30 English MemoEnglish 31 MemoPlease be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT U.S.A Consumer Electronics 1-800-SAMSUNG (726-7864) www.samsung.com/us/support CANADA 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) DG68-00773A-03 Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows
