USER MANUAL NX58J7750SG SAMSUNG

WARNING: If the information in this manual is not followed exactly,

a re or explosion may result causing property damage, personal injury, or death.

• DO NOT store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS: - DO NOT try to light any appliance. - DO NOT touch any electrical switch. - DO NOT use any phone in your building. - Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. - If you cannot reach your gas supplier, call the re department.

• Installation and service must be performed by a qualied installer, service agency, or the gas supplier. ANTI-TIP DEVICE WARNING ALL RANGES CAN TIP, RESULTING IN PERSONAL INJURY. TIPPING RANGES CAN CAUSE BURNS FROM SPILLS, PERSONAL INJURY, AND/OR DEATH. INSTALL AND CHECK THE ANTI-TIP BRACKET USING THE

INSTRUCTIONS AND TEMPLATE SUPPLIED WITH THE

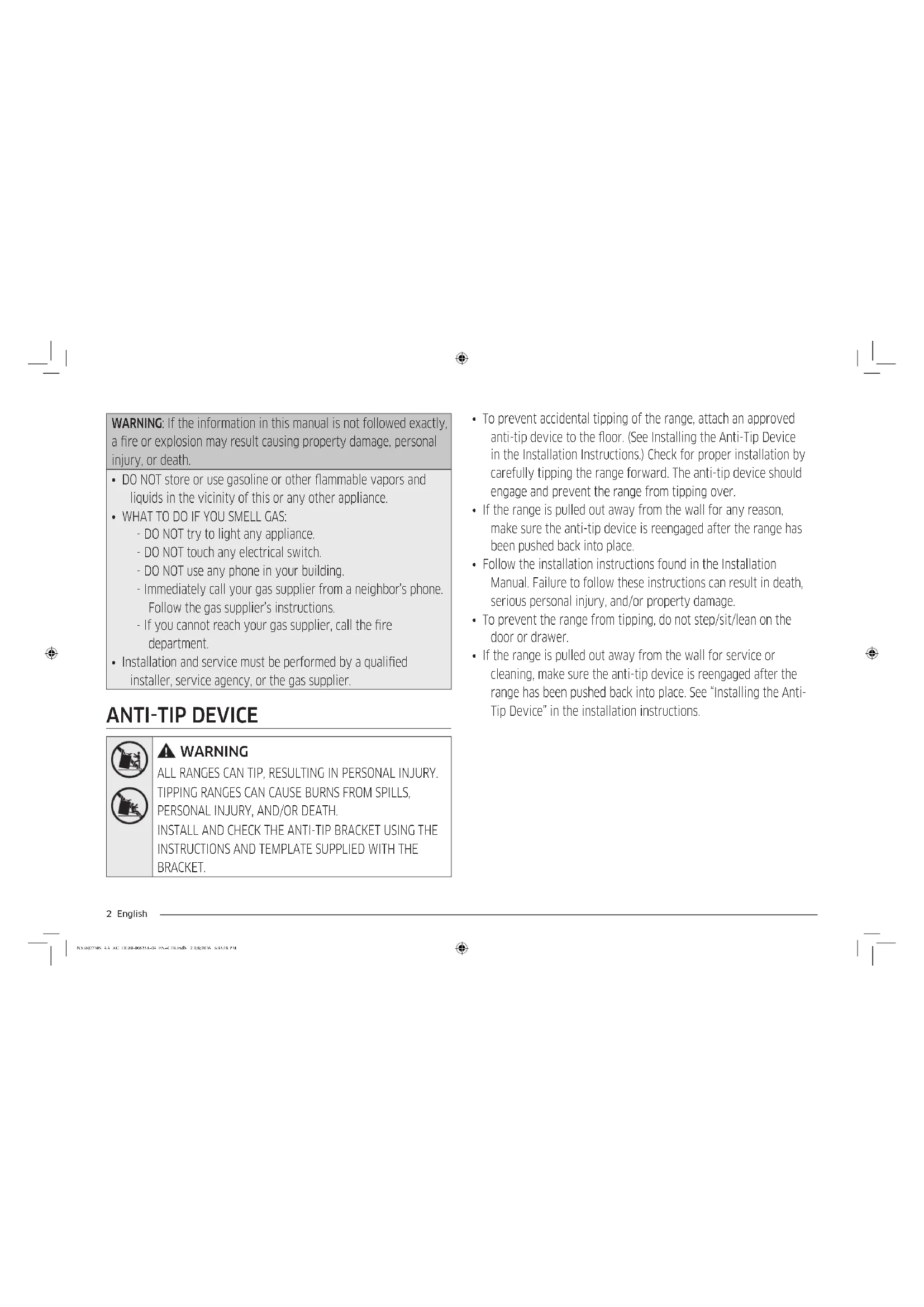

• To prevent accidental tipping of the range, attach an approved anti-tip device to the oor. (See Installing the Anti-Tip Device in the Installation Instructions.) Check for proper installation by carefully tipping the range forward. The anti-tip device should engage and prevent the range from tipping over.

• If the range is pulled out away from the wall for any reason, make sure the anti-tip device is reengaged after the range has been pushed back into place.

• Follow the installation instructions found in the Installation Manual. Failure to follow these instructions can result in death, serious personal injury, and/or property damage.

• To prevent the range from tipping, do not step/sit/lean on the door or drawer.

• If the range is pulled out away from the wall for service or cleaning, make sure the anti-tip device is reengaged after the range has been pushed back into place. See “Installing the Anti- Tip Device” in the installation instructions. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 2 3/8/2016 5:33:18 PMEnglish 3 Contents Contents Key features 4 Bigger is better 4 A cooktop with 5 burners 4 Enhanced convenience with easy maintenance 4 Important safety information 4 Read all instructions before using this appliance 4 Symbols used in this manual 4 State of California Proposition 65 Warning (US only) 4 Commonwealth of Massachusetts 4 General safety 5 Fire safety 5 Gas safety 6 Electrical and grounding safety 6 Installation safety 7 Location safety 7 Cooktop safety 8 Oven safety 9 Storage drawer safety 9 Self-cleaning oven safety 10 Overview 10 Layout 10 What’s included 11 Control panel 11 Clock 12 Kitchen timer 12 Oven vent/cooling vent 12 Gas range 13 Cookware 13 Wok grate 14 Griddle 14 Gas burners 15 Ignition 15 Gas oven 16 Single mode 16 Twin mode 16 Cooking mode 17 Broiling 19 Recipe guide 20 Temperature setting guides 21 Using the oven racks 22 Using the gliding rack 24 Cooking options 25 Slow cook, dehydrate, proong 31 Non-Cooking Functions 32 Maintenance 34 Cleaning 34 Replacement 39 Reinstallation 39 Troubleshooting 41 Checkpoints 41 Information codes 45 Warranty 46 NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 3 3/8/2016 5:33:18 PM4 English Key features Key featuresKey features Bigger is better With a capacity of 5.8 cubic feet, this Samsung gas oven range offers more space than many other leading brands in the United States and Canadian markets. The enhanced capacity means a better cooking experience. A cooktop with 5 burners Power burners, simmer burners, as well as a center oval burner provide exible cooktop heat for a variety of cookware. The center oval burner delivers heat evenly over a large area, and provides the optimum temperatures for griddle cooking. Enhanced convenience with easy maintenance The Samsung gas oven range combines all the benets of 3 separate home appliances - gas range, gas oven, and storage drawer - to maximize your convenience with its careful, stylish design. Important safety information READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

• All electrical and gas equipment with moving parts can be dangerous. Please read the important safety instructions for this appliance in this manual. The instructions must be followed to minimize the risk of injury, death, or property damage.

• Save this manual. Please Do Not Discard.

SYMBOLS USED IN THIS MANUAL

WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in electric shock, personal injury, or property damage. NOTE Useful tips and instructions. These warning icons and symbols are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference. STATE OF CALIFORNIA PROPOSITION 65 WARNING (US ONLY)

WARNING : This product contains chemicals known to the State of California to

cause cancer and birth defects or other reproductive harm. Gas appliances can cause low-level exposure to Proposition 65 listed substances, including but not limited to, benzene, carbon monoxide, formaldehyde and soot, substances resulting from the incomplete combustion of natural gas or LP fuels.

COMMONWEALTH OF MASSACHUSETTS

• This product must be installed by a licensed plumber or gas tter qualied or licensed by the State of Massachusetts. When using ball-type gas shut-off valves, you must use the T-handle type. Multiple exible gas lines must not be connected in series. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 4 3/8/2016 5:33:18 PMEnglish 5 Important safety information

• When disposing of the range, cut off the power cord and remove the door to prevent children and animals from getting trapped.

• Unplug or disconnect power before servicing.

• Make sure all meat and poultry is cooked thoroughly. Meat should always be cooked to an internal temperature of 160 °F (71 °C). Poultry should always be cooked to an internal temperature of 180 °F (82 °C).

• Do not make any attempt to operate the electric ignition oven during an electrical power failure.

• Keep the appliance area clear and free of combustible materials, gasoline, and other ammable vapors and liquids.

• Teach children not to touch or play with the controls or any part of the range. We recommend you utilize the control / door lockout feature to reduce the risk of miss-use by children. FIRE SAFETY WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, obey the following precautions.

• Do not store, place, or use ammable or combustible materials such as paper, plastic, pot holders, linens, curtains, gasoline or other ammable vapors or liquids near the range.

• Do not wear loose tting or hanging garments while using the range.

• To avoid grease buildup, regularly clean the vents.

• Do not let pot holders or other ammable materials touch a heating element. Do not use a towel or other bulky cloths in place of a pot holder.

• Do not use water on a grease re. To put out a grease re, turn off the heat source and smother the re with a tight-tting lid or use a multipurpose dry chemical or foam-type re extinguisher.

• If a grease re should occur in the oven, turn off the oven by pressing the OFF/CLEAR button. Keep the oven door closed until the re goes out. If necessary, use a multipurpose dry chemical or foam-type re extinguisher. GENERAL SAFETY WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, obey the following precautions.

• Do not touch any part of the range, including but not limited to, oven burners, surface burners, or interior surfaces during or immediately after cooking.

• Know the location of the gas shut-off valve and how to shut it off.

• Make sure the anti-tip device is properly installed on the range. See the installation instructions for more information.

• Do not let children near the range. Do not let children go into the range or onto the range. Do not let children play with the range or any part(s) of the range. Do not leave children unattended in an area where the range is in use. For children’s safety, we recommend utilizing the control/door lockout feature.

• Remove all packaging materials from the range before operating to prevent ignition of these materials. Keep all packaging materials out of children’s reach. Properly dispose the packaging materials after the range is unpacked.

• Do not store any object of interest to children on the cooktop or backguard of the range. Children climbing on the range to reach items could be killed or seriously injured.

• Do not operate the range if the range or any part of the range is damaged, malfunctioning, or missing parts.

• Do not use the range as a space heater. Use the range for cooking only.

• Do not use oven cleaners or oven liners in or around any part of the oven.

• Use only dry pot holders. Pot holders with moisture in them can release steam and cause burns if they come in contact with hot surfaces. Keep pot holders away from open ames when lifting cookware. Never use a towel or bulky cloth in place of a pot holder.

• Do not use the range to heat unopened food containers.

WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, obey the following precautions.

• Plug into a grounded 3-prong outlet.

• Do not remove the ground prong.

• Do not use an adapter or an extension cord.

• Do not use a damaged power plug, power cord, or loose power outlet.

• Do not modify the power plug, power cord, or power outlet in any way.

• Do not put a fuse in a neutral or ground circuit.

• Use a dedicated 120-volt, 60-Hz, 20-amp, AC, fused electrical circuit for this range. A time-delay fuse or circuit breaker is recommended. Do not plug more than one appliance into this circuit.

• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

• This range must be Earth grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path for the electric current. This range is equipped with a cord having a grounding plug. The plug must be rmly plugged into an outlet that is properly installed and grounded in accordance with the local codes and ordinances. If you are unsure whether your electrical outlet is properly grounded, have it checked by a licensed electrician.

• The range is supplied with a 3-pronged grounded plug. This cord must be plugged into a mating, grounded 3-prong outlet that meets all local codes and ordinances. If codes permit the use of a separate ground wire, we recommend that a qualied electrician determine the proper path for this ground wire.

• Electrical service to the range must conform to local codes. Barring local codes, it should meet the latest ANSI/NFPA No. 70 – Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 – Latest Revisions.

• It is the personal responsibility of the range owner to provide the correct electrical service for this range.

• Do not heat unopened food containers. The buildup of pressure may cause the containers to burst and result in injury.

• NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the oven. Do not use the oven for storage. Paper and other ammable items stored in the oven can ignite.

• Do not leave items such as paper, cooking utensils or food in the oven when not in use. Items stored in an oven can ignite.

• Do not put any combustible material or items around the range. GAS SAFETY WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, obey the following precautions. If you smell gas:

• Close the valve and do not use the range.

• Do not light a match, candle, or cigarette.

• Do not turn on any gas or electric appliances.

• Do not touch any electrical switches or plug a power cord into an outlet.

• Do not use any phone in your building.

• Evacuate the room, building, or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department. Checking for gas leaks

• Leak testing of the appliance shall be conducted according to the manufacturer’s instructions. Do not use a ame to check for gas leaks. Use a brush to spread a soapy water mixture around the area you are checking. If there is a gas leak, you will see small bubbles in the soapy water mixture at the leak point. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 6 3/8/2016 5:33:19 PMEnglish 7 Important safety information

• Installation of this range must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest edition. In Canada, installation must conform with the current Natural Gas Installation Code, CAN/CGA-B149.1, or the current Propane Installation Code, CAN/CGA-B149.2, and with local codes where applicable. This range has been design-certied by ETL according to ANSI Z21.1, latest edition, and Canadian Gas Association according to CAN/CGA-1.1, latest edition. LOCATION SAFETY WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, obey the following precautions.

• This range is for indoor, household use only. Do not install the range in areas exposed to the weather and/or water.

• Do not install the range in a place which is exposed to a strong draft.

• Select a level, well-constructed oor that can support the range’s weight. Synthetic ooring, such as linoleum, must withstand 180 °F (82 °C) temperatures without shrinking, warping, or discoloring. Do not install the range directly over interior kitchen carpeting unless a sheet of ¼ inch plywood or a similar insulator is placed between the range and carpeting.

• Select a location where a grounded, 3- prong outlet is easily accessible.

• If the range is located near a window, do not hang long curtains or paper blinds on that window.

• For the range to ventilate properly, make sure the range’s vents are not blocked, and that there is enough clearance at the top, back, sides, and underneath the range. The vents allow the necessary exhaust for the range to operate properly with correct combustion. INSTALLATION SAFETY WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, obey the following precautions.

• Have your range installed and properly grounded by a qualied installer, in accordance with the installation instructions. Any adjustment and service should be performed only by qualied gas range installers or service technicians.

• Do not attempt to service, modify, or replace your range or any part of your range unless it is specically recommended in this manual. All other service should be referred to a qualied technician.

• Always use new exible connectors when installing a gas appliance. Do not use old exible connectors.

• Make sure the anti-tip device is properly installed on the range. See the installation instructions for more information.

• Due to the size and weight of the range, have two or more people move the range.

• Remove all tape and packaging materials.

• Remove all accessories from the cooktop, oven, and/or lower drawer. Grates and griddles are heavy. Use caution when handling them.

• Make sure no parts came loose during shipping. Do not install in an area exposed to dripping water or outside weather conditions.

• Make sure your range is correctly installed and adjusted by a qualied service technician or installer for the type of gas (natural or LP) you will use. For your range to utilize LP gas, the installer must replace the 5 surface burner orices and 2 oven orices with the provided LP orice set, and reverse the GPR adapter. These adjustments must be made by a qualied service technician in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. The qualied agency performing this work assumes the gas conversion responsibility. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 7 3/8/2016 5:33:20 PM8 English Important safety information Important safety information

• This cooktop is designed to cook with a wok or wok ring attachment. To ame food, you must have a ventilation hood. When you ame food, the hood must be on.

• Before removing or changing cookware, turn off the burners.

• Remove food and cookware immediately after cooking.

• Before removing any parts of the burner for cleaning, make sure the range is off and completely cool.

• After cleaning the burner spreader, make sure it is completely dry before re- assembling.

• Make sure the spark mark on the dual burner spreader is placed beside the electrode when it is assembled.

• To avoid carbon monoxide poisoning, do not pour water into the cooktop well while cleaning.

• Select cookware that is designed for range top cooking. Use cookware that is large enough to cover the burner grates. Adjust the burner ames so that the ames do not extend beyond the bottom of the cookware.

• To avoid cookware discoloration, deformity, and/or carbon monoxide poisoning, do not use cookware that is substantially larger than the grate.

• Make sure cookware handles are turned to the side or rear of the cooktop, but not over other surface burners.

• Stand away from the range while frying.

• Always heat frying oils slowly, and watch as they heat. If you are frying foods at high heat, carefully watch during the cooking process. If you are going to use a combination of fats or oils when frying, mix them together before heating.

• Use a deep-fryer thermometer whenever possible. This prevents overheating the fryer beyond the smoking point.

• Use a minimum amount of oil when shallow pan-frying or deep-frying. Avoid cooking unthawed food or food with excessive amounts of ice.

• Before moving cookware full of fats or oils, make sure it has completely cooled.

• To prevent delayed eruptive boiling, always allow heated liquids to stand at least 20 seconds after you have turned off the burner so that the temperature in the liquid can stabilize. In the event of scalding, follow these rst aid instructions:

1. Immerse the scalded area in cool or lukewarm water for at least 10 minutes.

2. Do not apply any creams, oils, or lotions.

3. Cover with a clean, dry cloth.

• Make sure the wall coverings around the range can withstand heat up to 200 °F (93 °C) generated by the range.

• Cabinet storage above the surface of the range should be avoided. If cabinet storage above the range is necessary: allow a minimum clearance of 40 inches (102 cm) between the cooking surface and the bottom of cabinets; or install a range hood that projects horizontally a minimum of 5 inches (12.7 cm) beyond the bottom of the cabinets.

• Locate the range out of kitchen trafc paths and drafty locations to prevent poor air circulation.

• If the range is located near a window, NEVER hang long curtains or paper blinds on that window. They could blow over the surface burners and ignite, causing a re hazard. COOKTOP SAFETY WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, obey the following precautions.

• Make sure all burners are off when not in use.

• Do not use aluminium foil to line the grates or any part of the cooktop. It may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a re hazard.

• Do not leave burners unattended on medium or high heat settings.

• Before igniting, make sure all burner caps are properly in place and all burners are level.

• Always use the LITE position when igniting the burners and make sure the burners have ignited. If ignition fails, turn the knob to OFF and wait until the gas has dissipated.

• When you set a burner to simmer, do not turn the knob quickly. Make sure the ame stays on.

• Do not place any objects other than cookware on the cooktop. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 8 3/8/2016 5:33:20 PMEnglish 9 Important safety information

• Do not spray water on the oven glass while the oven is on or just after you have turned it off.

• Do not use aluminium foil or foil liners anywhere in the oven. Do not use aluminium foil or similar material to cover any holes or passages in the oven bottom or to cover an oven rack. It may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a re hazard.

• Stand away from the oven when opening the oven door.

• Keep the oven free from grease buildup.

• When repositioning the oven racks, make sure the oven is completely cool.

• Only use cookware that is recommended for use in gas ovens.

• To avoid damaging the burner control knobs, always bake and/or broil with the oven door closed.

• Do not broil meat too close to the burner ame. Trim excess fat from meat before cooking.

• When using cooking or roasting bags in the oven, follow the manufacturer’s directions.

• NEVER cover any slots, holes, or passages in the oven bottom or cover an entire rack with material such as aluminum foil. Doing so blocks air ow through the oven and may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a re hazard.

STORAGE DRAWER SAFETY

WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, obey the following precautions.

• Do not use the drawer for non-cooking purposes such as drying clothes or storage. Use the drawer for cooking purposes only.

• Do not touch the interior drawer surface or heating element. These surfaces may be hot and could burn you.

• To avoid steam burns, use caution when opening the drawer.

• Do not use aluminium foil to line the drawer.

• Place pots in the center of the grate. Do not place a pot larger than 9” in diameter on the rear burners. If you place an oversized pot in the wrong position, it might disrupt necessary air circulation and make the ame on the burner sputter and burn inefciently.

• Do not wear loose or hanging garments when using the range. They could ignite and burn you if they touch a surface burner.

• Never leave plastic items on the cooktop. Hot air from the vent can melt or ignite plastic items or cause a building up of dangerous pressure in closed plastic containers.

• Do not place portable appliances, or any other object other than cookware on the cooktop. Damage or re could occur if the cooktop is hot.

• Always make sure foods being fried are thawed and dried. Moisture of any kind can cause hot fat to bubble up and over the sides of the pan.

• Always make sure the controls are OFF and the grates are cool before you remove them to prevent any possibility of burning.

• Do not put any combustible material or items around the range.

• Take care that your hands do not touch the burners when they are on. Turn off the burners when you change a pan or pot.

• To warm liquid such as sauces, stir it while warming. OVEN SAFETY WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, obey the following precautions.

• Do not use the oven for non-cooking purposes such as drying clothes or storage. Use the oven for cooking only.

• Make sure the inner portion of the split oven-rack is in the proper position within the outer rack.

• Make sure the oven racks are placed on the same level on each side.

01 Display 02 Surface burner knobs (5 pcs) 03 Surface burners 04 Oven vent 05 Removable oven door 06 Storage drawer 07 Oven lights * (2 locations) 08 Convection fan/ Convection heater 09 Oven rack system 10 Bake oven burner 11 Broil oven burner NOTE If you need a part marked with a “*”, you can buy it from the Samsung Contact Center (1-800-726-7864).

• Do not use the drawer in the oven. Do not put the drawer in the oven during a self-cleaning cycle.

• Do not leave containers of fat drippings in or near the drawer. Self-cleaning oven safety WARNING To reduce the risk of re, electric shock, personal injuries, and/or death, obey the following precautions.

• The self-cleaning feature operates the oven at temperatures high enough to burn away food soils in the oven. The range is extremely hot during a self-cleaning cycle. Do not touch any surfaces of the range during a self-cleaning cycle.

• Keep children away from the oven during a self-cleaning cycle.

• Before starting a self-cleaning cycle, remove all racks, cookware, and utensils from the oven. Only porcelain-coated oven racks may be left in the oven.

• Before starting a self-cleaning cycle, wipe grease and food soils from the oven.

• Do not put the lower drawer into the oven cavity when you run a self- cleaning cycle.

• When opening the door after a self-cleaning cycle, stand away from the oven.

• If the self-cleaning cycle malfunctions, turn off the oven, disconnect the power supply, and contact a qualied service technician. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 10 3/8/2016 5:33:21 PMEnglish 11 Overview Control panel

01 Display: Shows the time of day, oven temperature, whether the oven is in the bake, broil or self-cleaning mode, and the time set for the timer or automatic oven operations.

• : When you use the self-cleaning feature, this icon appears in the display.

• : When the oven is pre-heating, this icon appears in the display. 02 Bake: Activate convection baking for the Upper Oven in Twin mode or the entire oven in Single mode. 03 Roast: Activate convection roasting. 04 Broil: Broil food using the upper oven burner only. 05 Bake: Activate convection baking for the Lower Oven in Twin mode or the entire oven in Single mode. 06 Bake: Bake food using the lower oven burner. 07 START/SET: Start a function or set the time. 08 OFF/CLEAR (Lock): Cancel the current operation but not the timer. Lock the control panel and the door to prevent accidents. 09 Timer1 On/Off: Activate or deactivate the timer. (Single/Upper in Twin mode) 10 Cooking Time: Set the cooking time. (Single/Upper in Twin mode) 11 Delay Start: Set the oven to start at a certain time. (Single/Upper in Twin mode) 12 Oven Light: Turn on/Turn off the oven light. (Upper) 13 Keep Warm: Keep cooked food warm at lower temperatures. What’s included Surface burner grates (3) * Surface burners and caps (5) * Smart divider (1) * Flat rack (2) * Gliding rack (1) * Griddle (1) * Wok grate (1) * NOTE If you need an accessory marked with a *, you can buy it from the Samsung Contact Center (1-800-726-7864). NOTE If you need an accessory marked with an * (asterisk), please contact the Samsung Call Center using the phone number listed on the last page of this manual or visit our on-line parts web site at www.samsungparts.com. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 11 3/8/2016 5:33:22 PM12 English Overview Overview NOTE You can set/change the clock or the kitchen timer before you start a cooking mode or while most cooking modes are operating. However, you cannot set or change the time if a time based function is operating (Time Bake, for example) or the Sabbath option is enabled. Kitchen timer The kitchen timer gives you an extra timer you can use to time cooking tasks such a boiling eggs. It does not, however, start or stop any cooking operation. You can set the timer from 1 minute to 9 hours and 99 minutes.

Once Twice Hours/Minutes Turn off or Cancel the timer

2. Press the number pads to enter the

amounts of time you want in minutes or hours and minutes.

3. Press the Timer On/Off pad to start the

timer. Oven vent/cooling vent The oven vent is located under the oven Control panel. Proper air circulation prevents oven burner combustion problems and ensures good performance.

• Do not block the vent or its surroundings with objects.

• Use caution when placing items near the vent. Hot steam can cause them to overheat or melt. 14 Favorite Cook: Activates the Favorite cook feature. This feature lets you preprogram up to three frequently used cooking cycles so they can be set and started with the touch of a pad 15 Self Clean: Burn off food residues using very high temperatures. 16 Numbers: Use to set the times, temperature, or presets. 17 Clock: Set the clock time. 18 Timer2 On/Off: Activate or deactivate the timer. (Single/Lower in Twin mode) 19 Cooking Time: Set the cooking time. (Single/Lower in Twin mode) 20 Delay Start: Set the oven to start at a certain time. (Single/Lower in Twin mode) 21 Slow Cook: Activates Slow Cook which cooks food slowly at lower temperatures. 22 Dehydrate: Activates the Dehydrate function. 23 Bread Proof: Activates the Bread proof function. 24 Oven Light: Turn on/Turn off the oven light. (Lower) Clock You must set the clock correctly to ensure the automatic features work properly. This product supports two time formats: 12-hour (default) and 24-hour.

To set the clock time

3. Press the START/SET pad to conrm the

1. Press and hold the Broil and 4 pads for

2. Press the 0 Pad to toggle between the

12-hour and 24-hour display setting

3. Press the START/SET pad to change the

• Well-balanced with the handle weighing less than the main portion of the pot or pan. Material characteristics

• Aluminum: An excellent heat conductor. Some types of food may cause the aluminum to darken. However, anodized aluminum cookware resists staining and pitting.

• Copper: An excellent heat conductor but discolors easily.

• Stainless steel: A slow heat conductor with uneven cooking performance but is durable, easy to clean, and resists staining.

• Cast-Iron: A poor conductor but retains heat very well.

• Enamelware: Heating characteristics depend on the base material.

• Glass: A slow heat conductor. Use only glass cookware that is specied for top-of- range cooking or oven use. Size limitations CAUTION Do not place a small pan or pot with a bottom diameter of about 6 inches or less on the center grate. This cookware may tip over. Use the rear burners for this small- sized cookware.

• Always make sure cookware handles are turned to the side or rear of the cooktop, but not over other surface burners. This will minimize the chance of burns, spillovers, and the ignition of ammable materials that can be caused if pots or pans are bumped accidently.

• When using glass cookware, make sure it is designed for top-of-range cooking.

• Never leave plastic items on the cooktop. Hot air from the vent can melt or ignite plastic items or cause a building up of dangerous pressure in closed plastic containers.

• Make sure you hold the handle of a wok or a small one-handled pot while cooking. Gas range STEP 1 Put all ingredients into a cooking container (pan, pot, etc). STEP 2 Place the container on a surface burner. STEP 3 Ignite the surface burner. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 13 3/8/2016 5:33:24 PM14 English Gas range Gas range Griddle The removable coated griddle provides an extra cooking surface. This is useful especially when cooking meats, pancakes, or other foods requiring a large cooking space. The griddle can be used only with the center burner on the center grate. Use caution when putting the griddle on the center grate. In most cases, you should preheat the griddle before cooking. See the table below. Type of Food Preheating Time Preheat Condition Cook Condition Pancakes 5 min. 5 (MED-HI) 4 (MED) Hamburgers 5 min. 7 (HI) 5 (MED-HI) Fried Eggs 5 min. 7 (HI) 5 (MED-LO) Bacon - - 4 (MED) Breakfast Sausages 5 min. 7 (HI) 5 (MED) Grilled Cheese Sandwich 4 min. 7 (HI) 6 (MED-HI) CAUTION

• Do not remove the griddle until the cooktop grates, surfaces, and griddle itself cool down.

• If you leave the griddle on the cooktop, it may become very hot when you use the cooktop or oven. Use oven gloves when placing or removing the griddle.

• Do not overheat the griddle. This can damage the coating of the griddle.

• Do not use metal utensils that can damage the griddle surface.

• Do not use the griddle for other purposes like a cutting board or storage.

• Do not cook excessively greasy foods. The grease may spill over. NOTE

• You may need to adjust heat settings for the griddle over time. Wok grate Woks are often used for stir frying, pan frying, deep frying, and poaching. The provided wok grate supports 12” to 14” woks.

1. Turn off all burners, and wait until the

grates completely cool down.

2. Place the wok grate on either side

3. Put a wok on the wok grate. Make sure

the wok settles on the wok grate.

4. Turn on the burner, and adjust the

ame level as appropriate. CAUTION

• Do not remove the wok grate until the cooktop grates, surfaces, and wok grate completely cool down.

• When using the cooktop or oven, the wok grate on the cooktop may become very hot. Use oven gloves when placing or removing the wok grate.

• Do not use utensils with a at bottom or with a diameter less than the wok ring diameter. The utensil may tip over.

• Do not use an oversized utensil. The burner ames may spread out, causing damage nearby.

• Do not use the wok grate and the griddle at the same time.

• This cooktop is not designed to ame foods or cook with a wok or wok ring attachment. If foods are amed, they should only be amed under a ventilation hood that is on. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 14 3/8/2016 5:33:25 PMEnglish 15 Gas range Ignition

Make sure all surface burners are properly installed. To light a burner:

1. Push in the control knob, and then turn

it to the LITE position. You will hear a “clicking” sound indicating the electronic ignition system is working properly.

2. After the surface burner lights, turn

the control knob to shift it out of the LITE position and turn off the electronic ignition system.

3. Turn the control knob to adjust the

ame level. Manual ignition If there is a power failure, you can ignite the burner manually. Use caution when doing this.

1. Hold a long gas grill lighter to the surface burner you want to light.

2. Push in the control knob for that burner, and then turn it to the LITE position.

Turn on the grill lighter to ignite the burner.

3. After the burner is lit, turn the control knob to adjust the ame level.

Flame level The ames on the burners should always stay under the cookware, and should not extend beyond the cookware bottom at any time. WARNING

• Flames larger than the cookware bottom may result in a re or physical injury.

• When you set a burner to simmer, do not turn the burner knob quickly. Watch the ame to make sure it stays on.

• After turning on a surface burner, check to make sure that the burner has ignited. Adjust the level of the ame by turning the burner knob.

• Always turn off the surface burner controls before removing cookware. All surface burner controls should be turned OFF when you are not cooking.

• Always turn the burners off before you go to sleep or go out.

• If you smell gas, turn off the gas to the range and call a qualied service technician. NEVER use an open ame to locate a leak.

• The griddle may discolor over time as it becomes seasoned with use.

• Do not let rust remain on the griddle. If rust appears on the griddle, remove it as soon as possible. Gas burners

Each burner has a corresponding knob that lets you to set the ame level from LO to HI. In addition, each burner knob has a LITE setting. Turning a knob to LITE ignites the corresponding burner. The burner indicators are located above each knob, showing which burner the knob controls. Each burner is designed for specic cooking purposes. See the table below. Position Purpose Food type Characteristics Right Front (RF) 18,000 BTU Power heating Boiling food Maximum output Right Rear (RR) 5,000 BTU Low simmering Chocolate, casseroles, sauces Delicate food that requires low heat for a long time Center (C) 9,500 BTU Grilling/Griddling Pancakes, hamburgers, fried eggs, hot sandwiches General-purpose cooking Left Front (LF) 15,000 BTU Quick heating General General-purpose cooking Left Rear (LR) 9,500 BTU General heating/ Low simmering General food, casseroles, Tomato Sauce* General-purpose cooking

• Tomato sauce needs to be stirred while it is simmering. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 15 3/8/2016 5:33:25 PM16 English Gas oven Gas oven Twin mode STEP 1 Put all ingredients in a heat-safe container. STEP 2 Insert the Smart divider into 4th rack position. STEP 3 Push the Smart divider in until the range beeps. CAUTION When the Smart divider is properly inserted, the “-” icon appears. STEP 4 Select a cooking mode, and then start preheating. Gas oven Single mode STEP 1 Put all ingredients in a heat-safe container. STEP 2 Select a cooking mode, and then start preheating. STEP 3 Place the container on a rack. STEP 4 Close the door and start cooking. NOTE The cooling fan automatically runs for a certain amount of time after cooking is complete. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 16 3/8/2016 5:33:26 PMEnglish 17 Gas oven CAUTION Range displays “-dc-”

• Check the Smart divider to see if it is installed correctly.

• Do not insert/remove the Smart divider during cooking. Cooking mode

• Make sure to close the door before you start cooking.

• If you leave the door open for 20-30 seconds while the oven is in convection baking/roasting, baking, broiling, Easy Cook, or Favorite Cook modes, the oven burner shuts off. To restart the burner, close the door. Baking and roasting (Single mode)

You can set the oven to any temperature from 175 °F to 550 °F.

3. Press the START/SET button.

• The oven preheats until it reaches the temperature you set.

• When preheating is complete, place the food in the oven, and then close the door.

4. When cooking is complete, press the OFF/CLEAR button, and then take out the

food NOTE To change the temperature during cooking, repeat steps 1 through 3 above. STEP 5 Arrange food containers on the racks. STEP 6 Close the door and start cooking. NOTE

• To use Twin mode operation, insert the Smart divider.

• The cooling fan automatically runs for a certain amount of time after cooking is complete.

• When you are not using the Smart divider, store it at room temperature.

• Handle the Smart divider with both hands.

• Use oven gloves when inserting or removing the Smart divider.

• Do not put food containers directly on the Smart divider for cooking purposes.

• Please note the time for the upper and lower ovens to preheat were different. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 17 3/8/2016 5:33:27 PM18 English Gas oven Gas oven Baking and Roasting (Twin mode lower)

1. Insert the Smart divider into the cavity.

2. Press the Bake or Bake pad on the right side of the Control Panel.

3. If necessary, use the number pad to change the default temperature (350 °F).

You can set the oven to any temperature from 175 °F to 480 °F.

4. Press the START/SET button.

• The oven preheats until it reaches the temperature you set.

• When preheating is complete, place the food in the oven, and then close the door.

5. When cooking is complete, press the OFF/CLEAR pad.

NOTE Your oven has different temperature setting ranges when you use the upper oven and lower oven simultaneously. See “Temperature setting guides” on page 21 for details. Baking and Roasting (Twin mode upper)

1. Insert the Smart divider into the cavity.

2. Press the Bake or Roast pad on the left side of the Control Panel.

3. If necessary, use the number pad to change the default temperature (350 °F).

You can set the oven to any temperature from 175 °F to 480 °F.

4. Press the START/SET button.

• The oven preheats until it reaches the temperature you set.

• When preheating is complete, place the food in the oven, and then close the door.

5. When cooking is complete, press the OFF/CLEAR pad.

NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 18 3/8/2016 5:33:27 PMEnglish 19 Gas oven CAUTION Precautions in using only the upper oven:

• You must preheat the oven. If not, the food may be overcooked or burnt on the surface and undercooked inside.

• To change the temperature during cooking, rst remove the food and change the temperature. Then, put the food back inside the oven. Otherwise, the food may be burnt by the broil burner while preheating.

• Do not bake food over 50 mm in height.

• The cooking time may be longer than with single-oven cooking. Broiling Broiling uses the oven broil burner at the top of the oven to cook and brown food. Meat or sh must be put on a broiling grid in a broiling pan. Preheating for 5 minutes before broiling is recommended. Broiling (Single mode)

2. Press the Broil pad once for high temperature broiling or twice for low.

3. Press the START/SET pad to start the broiler.

4. Let the oven pre-heat for 5 minutes.

5. Place the pan on the desired rack, and then close the oven door.

6. When one side of the food is browned, turn it over, close the oven door, and

start cooking the other side.

7. When cooking is complete, press the OFF/CLEAR pad.

Convection cooking The convection fan at the back of the oven circulates hot air evenly throughout the oven cavities so that food is evenly cooked and browned in less time than with regular heat. NOTE When using convection cooking, always pre-heat the oven for the best results. Convection baking • Ideal for foods being cooked using multiple racks.

• Good for large quantities of food.

• Provides the best performance for cookies, biscuits, brownies, cupcakes, cream puffs, sweet rolls, angel food cake, and bread.

• Cookies bake best when cooked on at cookie sheets.

• When convection baking using a single rack, place the rack in rack position 3 or 4. (In Twin mode, position A or 1)

• When convection baking using two racks, place the racks in positions 3 and 5 (Cakes, Cookies). When convection baking using three racks, place the racks in positons 2, 4, and 6.

• The oven automatically adjusts the temperature for convection baking. Convection roasting • Good for larger, tender cuts of meat, uncovered.

• For best performance, place a broiler pan and grid under the meat or poultry. The pan catches grease spills and the grid prevents grease spatters.

• Heated air circulates over, under, and around the food. Meat and poultry are browned on all sides as if they were cooked on a rotisserie. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 19 3/8/2016 5:33:27 PM20 English Gas oven Gas oven Recipe guide Broiling guide For detailed instructions, see pages 19 and 20. NOTE

• This is for reference only.

• Preheating for 5 minutes before broiling is recommended.

• The size, weight, thickness, starting temperature, and your doneness preference will affect broiling times.

1. Insert the Smart divider into the cavity.

2. Put food on a broiling grid in a broiling pan.

3. Press the Broil pad once for high temperature broiling or twice for low.

4. Press the START/SET pad to start the broiler.

5. Let the oven pre-heat for 5 minutes.

6. Place the pan on the desired rack, and then close the oven door.

7. When one side of the food is browned, turn it over, close the oven door, and

start cooking the other side.

8. When cooking is complete, press the OFF/CLEAR pad.

• Use the low temperature setting for poultry or thick cuts of meat to prevent overbroiling.

• In general, to prevent overbroiling, press the Broil button to switch from High to Low.

• Use caution when you open the oven door to turn over the food. The air escaping from the oven will be very hot.

• Your oven has different temperature setting ranges when you use the upper oven and lower oven simultaneously. See “Temperature setting guides” on page 21 for details. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 20 3/8/2016 5:33:28 PMEnglish 21 Gas oven Lower Oven Upper Oven Available Setting Function and Temp. Mode Set Temp. Broil Bake & Roast LO HI Min Max Bake 480 ˚F O O 400 ˚F 480 ˚F 450 ˚F O O 350 ˚F 480 ˚F 350 ˚F O X 275 ˚F 450 ˚F 325 ˚F O X 275 ˚F 400 ˚F 250 ˚F X X 225 ˚F 300 ˚F 175 ˚F X X 175 ˚F 200 ˚F Bake 480 ˚F O O 400 ˚F 480 ˚F 450 ˚F O O 350 ˚F 480 ˚F 350 ˚F O X 275 ˚F 450 ˚F 325 ˚F O X 275 ˚F 400 ˚F 250 ˚F X X 225 ˚F 300 ˚F 175 ˚F X X 175 ˚F 200 ˚F Food Doneness Size Thickness Broil setting Rack position Cooking time Single Upper 1st side 2nd side Fish llets Well done - ¼-½" HI 5 A 5:00- 6:00 3:00- 4:00 Ham slices (precooked) - - ½" HI 4 A 6:00- 9:00 5:00- 6:00 CAUTION Make sure to close the door after turning over the food. Temperature setting guides Twin Mode Temperature setting ranges Your oven has different temperature setting ranges when you use the upper oven and lower oven simultaneously. The range for each oven changes, depending on the function and temperature setting of the other oven. See the tables below and on the next page for details. (O - Available, X - Not available) Upper Oven Lower Oven Available Setting Function and Temp. Mode Set Temp. Bake Bake Min Max Min Max Broil HI 400 ˚F 480 ˚F 400 ˚F 480 ˚F LO 325 ˚F 480 ˚F 325 ˚F 480 ˚F Bake Roast 480 ˚F 400 ˚F 480 ˚F 400 ˚F 480 ˚F 450 ˚F 350 ˚F 480 ˚F 350 ˚F 480 ˚F 300 ˚F 250 ˚F 375 ˚F 250 ˚F 375 ˚F 250 ˚F 225 ˚F 300 ˚F 225 ˚F 300 ˚F 175 ˚F 175 ˚F 200 ˚F 175 ˚F 200 ˚F NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 21 3/8/2016 5:33:28 PM22 English Gas oven Gas oven Using the oven racks Single Mode - One Oven Cavity Your gas oven range comes with 3 racks and 7 rack positions. The rack positions are delineated by rack guides which support the racks. Each rack guide has a stop that prevents racks from loosening during the oven’s operation. Each rack has stoppers that need to be placed correctly on the rack guides. The stoppers prevent the racks from accidently coming out of the oven completely when you pull the racks out.

Type of food Rack position Broiling hamburgers 6 Broiling meats or small cuts of poultry, sh 6-4 Bundt cakes, Pound cakes, Frozen pies, casseroles 4 or 3 Fresh Pizza, Angel food cakes, Small roasts

Turkey, Large roasts, Hams

• Do not cover an oven rack with aluminum foil. This will hamper heat circulation, resulting in poor baking.

• Do not place aluminum foil on the oven bottom. The aluminum can melt and damage the oven.

• Arrange the oven racks only when the oven is cool.

• When placing an oven rack in the topmost rack position (position 7), make sure the rack is situated stably on the embossed stop.

• When you use the gliding rack and a at rack, always place the gliding rack below the at rack. NOTE This table is for reference only. Temperature Limitations by Mode Feature Single Mode Twin Mode Min Max Min Max Bake 175˚F (79˚C) 550˚F (288˚C) 175˚F (79˚C) 480˚F (249˚C) Broil LO HI LO HI Bake 175˚F (79˚C) 550˚F (288˚C) 175˚F (79˚C) 480˚F (249˚C) Roast 175˚F (79˚C) 550˚F (288˚C) 175˚F (79˚C) 480˚F (249˚C) Self-Clean 2 hours 4 hours - Keep Warm - 3 hours - For Bake or Roast, use Auto Conversion to set the minimum temperature to 200 °F (95 °C) if necessary. See “Auto Conversion” on page 33 for details. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 22 3/8/2016 5:33:28 PMEnglish 23 Gas oven

• We recommend cooking pizza and pies using the 2nd rack position in Single mode or the 2nd rack position of the lower oven in Twin mode for crispy bottoms. Multi-rack Baking

• When baking cakes or cookies on two racks in Single mode, place the racks in positions 3 and 5 for the best performance.

• When using 4 pans on two racks: Place two pans in the rear of the upper rack, and the other two in the front of the lower rack.

• When baking multiple items on one rack, maintain a 1” to 1.5” (2.5 cm to

3.8 cm) space between items.

• When baking cookies on multiple racks, place the oven racks in positions 3 and

Twin Mode - Two Oven Cavities In Twin mode, the Smart Divider separates the oven into an upper oven and lower oven. The upper oven and lower oven each has 3 rack positions.

• The upper oven has 3 rack positions (A, B, C)

• The lower oven has 3 racks positions (1, 2, 3) Type of food Rack position Upper Lower Frozen Pies - 1 Angle Food Cakes - 1 Bundt or pound cakes - 1 Mufns, Brownies, Cookies, Cup cakes, Layer cakes, Pies, Biscuits A 1 Casseroles - 1 Small roasts, Hams A 1 Small chickens, Turkey pieces, Meduim roasts

CAUTION Precautions in using only the upper oven:

• You must preheat the oven. If not, the food may be overcooked or burnt on the surface and undercooked inside.

• To change the temperature during cooking, rst remove the food and change the temperature. Then, put the food back inside the oven. Otherwise, the food may be burnt by the broil burner while preheating.

• In Convection baking mode, do not bake food over 50 mm in height.

• The cooking time may be longer than with single-oven cooking. NOTE

• This table is for reference only.

• When using the upper oven mode, always pre-heat before cooking items such as pizza. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 23 3/8/2016 5:33:29 PM24 English Gas oven Gas oven Using the gliding rack The fully extendable Gliding Rack makes food preparation easier, especially when preparing heavier dishes. The Gliding Rack has 2 glide tracks that allow you to extend the rack well out of the oven without touching the sides of the oven walls. Installing the Gliding rack

• With the Gliding Rack in the “Closed” position and the oven off, carefully insert the Gliding Rack between the guides untill the rack reaches the back.

• When using the Gliding Rack in the oven, be sure to pull on the handle of the rack only to slide the gliding portion of the rack in and out. If you grasp the frame while using the rack, you will pull the entire Gliding Rack out towards you. Inserting and removing an oven rack To insert an oven rack

1. Place the rear end of the rack on a rack

2. Slide the rack into the rack guide while

holding the front end of the rack. To remove an oven rack

1. Pull out the rack until it stops.

2. Pull up the front end of the rack and

remove it from the rack guide. Rack and Pan Placement Single Oven Rack

Multiple Oven Rack Centering the baking pans in the oven as much as possible will produce better results. If baking with more than one pan, place the pans so each has at least 1˝ to 1½˝ of air space around it. If baking on two racks in Single mode, place the oven racks in positions 3 and 5 for the best results. When baking in Single mode on a single oven rack, place the rack in position 3 or 4.

• When you use the Gliding Rack, place the Gliding Rack below the at rack. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 24 3/8/2016 5:33:30 PMEnglish 25 Gas oven Cooking options CAUTION Food that can easily spoil, such as milk, eggs, sh, poultry, and meat, should be chilled in a refrigerator before they are placed in the oven. Even when chilled, they should not stand for more than 1 hour before cooking begins and should be removed promptly when cooking is completed. Timed Cook (Single mode) Timed cooking instructs the oven to cook foods at a set temperature for a set length of time. The oven automatically turns off when it nishes. Mode: Bake / Bake / Roast / Slow Cook / Dehydrate

1. Press the button corresponding to a desired cooking mode such as Bake on

the left or right side of the panel.

4. Set the cooking time between 1 minute and 9 hours and 99 minutes (9:99)

will automatically light and start preheating. The temperature will increase until it reaches the temperature you set.

6. When preheating is complete, put the container with the food on a rack, and

then close the door. The oven starts cooking for the amount of time you set.

7. When the cooking time has elapsed, the oven will automatically shut off and

then beep. Removing the Gliding rack

• With the Gliding Rack in the “Closed” position and the oven off and cool, grasp the rack and frame and pull both towards you to remove. CAUTION

• Do not install the Gliding Rack directly above a at rack.

• You will not be able to install it properly and the rack could fall.

• Remove the Gliding rack before starting a Self-cleaning cycle. NOTE You can install the Gliding Rack in any rack position except the highest (level 7) and lowest (level 1) rack positions in the oven. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 25 3/8/2016 5:33:30 PM26 English Gas oven Gas oven Timed Cook (Lower oven mode)

1. Insert the Smart divider into the cavity.

2. Press the button corresponding to a desired cooking mode such as Bake on

the right side of the panel.

3. If necessary, change the temperature using the number pad.

4. Press the Cooking Time button on the right side of the panel.

5. Set the cooking time between 1 minute and 9 hours and 99 minutes (9:99)

using the number pad.

6. Press the START/SET button on the right side of the panel. The oven will

automatically light and start preheating. The temperature will increase until it reaches the temperature you set.

7. When preheating is complete, put the container with the food on a rack, and

then close the door. The oven starts cooking for the amount of time you set.

8. When the cooking time has elapsed, the oven will automatically shut off and

then beep. NOTE To change the programmed cooking time, press the Cooking Time button and enter a different time. Then, press the START/SET button. Timed Cook (Upper oven mode)

1. Insert the Smart divider into the cavity.

2. Press the button corresponding to a desired cooking mode such as Bake on

the left side of the panel.

3. If necessary, change the temperature using the number pad.

4. Press the Cooking Time button on the left side of the panel.

5. Set the cooking time between 1 minute and 9 hours and 99 minutes (9:99)

using the number pad.

6. Press the START/SET button on the left side of the panel. The oven will

automatically light and start preheating. The temperature will increase until it reaches the temperature you set.

7. When preheating is complete, put the container with the food on a rack, and

then close the door. The oven starts cooking for the amount of time you set.

8. When the cooking time has elapsed, the oven will automatically shut off and

1. Insert the Smart divider into the cavity. Place the container with the food on a

rack in the upper oven, and then close the door.

2. Press the button corresponding to a desired cooking mode such as Bake on

the left side of the panel.

3. If necessary, change the temperature using the number pad.

4. Press the Cooking Time button on the left side of the panel.

5. Set the cooking time between 1 minute and 9 hours and 99 minutes (9:99)

using the number pad.

6. Press the Delay Start button on the left side of the panel.

9. The oven starts cooking at the set time, and turns off automatically when it

completes cooking. Delay Start (Single mode) The Delay Start function lets you use the kitchen timer to automatically start and stop another cooking program. Delay Start can be set before other cooking operations for up to 12 hours. Mode: Bake / Bake / Roast / Slow Cook / Dehydrate / Self-clean

1. Place the container with the food on a rack, and then close the door.

2. Press the button corresponding to a desired cooking mode such as Bake on

the left or right side of the panel.

5. Set the cooking time between 1 minute and 9 hours and 99 minutes (9:99)

using the number pad.

6. Press the Delay Start button on the left or right side of the panel.

9. The oven starts cooking at the set time, and turns off automatically when it

completes cooking. NOTE

• To change the starting time, press the Delay Start button, and enter a new starting time. Then, press the START/SET button.

• To change the programmed cooking time, press the Cooking Time button and enter a different time. Then, press the START/SET button. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 27 3/8/2016 5:33:31 PM28 English Gas oven Gas oven Keep Warm (Single mode only) Keep cooked food warm at a low temperature up to 3 hours.

1. Place the container with the food on a rack, and then close the door.

• You can cancel warming at any time by pressing the OFF/CLEAR button.

• To set the warming function during a timed cooking, press the Keep Warm button in timed cooking mode. When the timed cooking is complete, the oven will lower the temperature to the warming default, and keep that temperature until the warming nishes or is canceled.

• Use this function only for Single mode, because your oven can’t keep a low temperature of this function during twin mode cooking. The Sabbath Option (Single mode only)

(For use on the Jewish Sabbath & Holidays) Use this option only for baking on the Jewish Sabbath & Holidays. For more information, visit the website at http://www.star-k.org Delay Start (Lower mode)

1. Insert the Smart divider into the cavity. Place the container with the food on a

rack in the lower oven, and then close the door.

2. Press the button corresponding to a desired cooking mode such as Bake on

the right side of the panel.

3. If necessary, change the temperature using the number pad.

4. Press the Cooking Time button on the right side of the panel.

5. Set the cooking time between 1 minute and 9 hours and 99 minutes (9:99)

using the number pad.

6. Press the Delay Start button on the right side of the panel.

7. Set the starting time using the number pad.

8. Press the START/SET button on the right side of the panel.

9. The oven starts cooking at the set time, and turns off automatically when it

completes cooking. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 28 3/8/2016 5:33:31 PMEnglish 29 Gas oven NOTE

• You can change the oven temperature once baking starts, but the display will not change or beep. After changing the temperature, it takes 15 seconds before the oven recognizes the change.

• You can turn off the oven at any time by pressing OFF/CLEAR. However, this doesn’t deactivate the Sabbath option.

• To deactivate the Sabbath option, hold down Bake and Number 1 simultaneously for 3 seconds.

• You can set the cooking time before activating the Sabbath option.

• After a power failure, the oven will not resume operation automatically. “SAb” will appear in the control panel, but the oven will not go back on. Food can be safely removed from the oven, but you should not turn off the Sabbath option and turn the oven back on until after the Sabbath/Holidays.

• After the Sabbath observance, turn off the Sabbath option by pressing and holding Bake and Number 1 simultaneously for at least 3 seconds. CAUTION

• Do not attempt to activate any other functions except for Bake when the Sabbath option is on. Only the following buttons will function properly: Number Pad, Bake, Oven Start/Set, and Oven Off.

• Do not open the oven door or change the oven temperature for about 30 minutes after you have started the Sabbath option. Let the oven reach the set temperature. The oven fan operates only when the oven temperature increases. With the Sabbath option

• The oven temperature can be set higher or lower after you have set this option.

• The display doesn’t change and no beep sounds when you change the temperature.

• Once the oven is properly set for baking with the Sabbath option active, the oven will remain continuously on until the Sabbath feature is cancelled. This will override the factory preset 12 hour energy saving feature.

• If the oven light is needed during the Sabbath, press OVEN LIGHT before activating the Sabbath feature. Once the oven light is turned on and the Sabbath option is active, the oven light will remain on until the Sabbath option is turned off.

• If you want the oven light off, be sure to turn it off before activating the Sabbath feature.

temperature reaches 175 °F.

4. Press the Bake and Number 1 buttons simultaneously for 3 seconds to display

“SAb”. Once “SAb” appears, the oven control no longer beeps or displays any further changes. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 29 3/8/2016 5:33:32 PM30 English Gas oven Gas oven Favorite Cook (Twin mode) Create a favorite cooking recipe with 3 different personalized settings. You need to choose the upper oven or lower oven when you save your favorite cooking recipe. This is available only with baking, convection baking, or convection roasting. To set or change a favorite cook mode

1. Insert the Smart divider into the cavity.

2. Press the button corresponding to a desired cooking mode such as Bake on

either side of the panel. NOTE Once you have selected an oven to use (for example, Lower) and consequently a side of the panel to use (for example, right), you must push the buttons on that side of the panel for the remaining steps in this procedure, except when you enter the temperature and cooking time.

4. Press the Cooking Time button either side of the panel.

5. Enter a desired cooking time using the number pad.

6. Press Favorite Cook button on either side of the panel.

Twin Mode Once Twice Three times Recipe 1 Recipe 2 Recipe 3 Default settings Upper Upper Upper Cakes Meats Chicken Bake 325 °F Roast 325 °F Roast 375 °F

7. Press the START/SET button on either side of the panel to save the changes.

Favorite Cook (Single mode) Create a favorite cooking recipe with 3 different personalized settings. This is available only with baking, convection baking, or convection roasting. To set or change a favorite cook mode

1. Press the button corresponding to a desired cooking mode such as Bake on

either side of the panel.

3. Press the Cooking Time button on either side of the panel.

4. Enter a desired cooking time using the number pad.

5. Press the Favorite Cook button either side of the panel.

Single Mode Once Twice Three times Recipe 1 Recipe 2 Recipe 3 Default settings Cakes Meats Chicken Bake 325 °F Roast 350 °F Roast 375 °F

6. Press the START/SET button on either side of the panel to save the changes.

To use or recall a favorite cook mode

number of times that corresponds to where the recipe setting is stored.

3. When the cooking is complete, press

the OFF/CLEAR button, and take out the food. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 30 3/8/2016 5:33:32 PMEnglish 31 Gas oven Slow cook, dehydrate, proong Slow cook (Single mode only) The Slow cook feature cooks food slowly at lower oven temperatures. The extended cooking times allow better distribution of avors in many recipes. This feature is ideal for roasting beef, pork & poultry. Slow cooking meats may result on the exterior of meats becoming dark but nor burnt. This is normal.

1. Press Slow Cook once for HI or twice for LO.

NOTE Use only 1 rack and place the rack in position 1 or 2 for the best results. Preheating the oven is not necessary. Dehydrate (Single mode only) Dehydrate dries food or removes moisture from food via heat circulation. After drying the food, keep it in a cool and dry place. For fruit, adding lemon or pineapple juice or sprinkling sugar on the fruit helps the fruit retain sweetness.

To use or recall a favorite cook mode

number of times that corresponds to where the recipe setting is stored.

3. When the cooking is complete, press

the OFF/CLEAR button, and take out the food. NOTE

• If you use the upper oven and lower oven simultaneously, Favorite Cook can save the settings for only one.

• If you press the Favorite Cook button before Twin mode cooking, the saved cavity is shown on the display. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 31 3/8/2016 5:33:33 PM32 English Gas oven Gas oven Non-Cooking Functions Temperature adjust The oven temperature has been calibrated at the factory. When rst using the oven, follow the recommended recipe times and temperatures. If it appears that the oven is too hot or too cool, you can recalibrate the oven temperature. Before recalibrating, test a recipe by using a temperature setting that is higher or lower than recommended. The baking results should help you decide how much of an adjustment is needed. The oven temperature can be adjusted by ±35 °F (±19 °C).

1. Press the Broil button and 1 on the

number pad simultaneously for 3 seconds.

2. Press the Broil button to select a

changes. NOTE This adjustment does not affect the broiling or the self-cleaning temperature, and is retained in memory after a power failure. Temp. Unit (°F / °C) Change the temperature format of the oven to Fahrenheit or Centigrade. The default is Fahrenheit.

1. Press the Broil button and 2 on the

number pad simultaneously for 3 seconds.

2. Press 0 on the number pad to select

• Drying time depends on the amount of moisture inside of the food, the size of the food, and the humidity in the air.

• Preheating the oven is not necessary. Bread Proof (Single mode only) The Bread Proof function automatically provides the optimum temperature for the bread proof process, and therefore does not have a temperature adjustment. If you press Bread Proof when the oven temperature is above 100 ˚F, Hot will appear in the display. Because this function produces the best results when started while the oven is cool, we recommend that you wait until the oven has cooled down and Hot disappears from the display.

3. Press OFF/CLEAR at any time to turn off the Bread Proof function.

NOTE Use rack position 3 for bread proong. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 32 3/8/2016 5:33:33 PMEnglish 33 Gas oven Demo mode This is used by retailers for display purposes only. In this mode, the heating element does not operate.

1. Press the Broil button and 7 on the

number pad simultaneously for 3 seconds.

2. Press 0 on the number pad to select Off

changes. Oven light Turns the oven light on and off. Press the Oven Light button to turn the oven light on and off. Oven lock Lock the control panel and the door to prevent accidental operations and/or product tipping. Press and hold the OFF/CLEAR button for 3 seconds to lock or unlock both the control panel and the door. When the Oven Lock is on, the oven panel does not operate and the oven door is locked and cannot be opened. Auto Conversion Auto Conversion automatically converts regular baking temperatures to convection baking temperatures. For example, if you enter a regular recipe temperature of 350 °F and press START/SET, the oven displays the converted temperature of 325 °F.

1. Press the Broil button and 3 on the

number pad simultaneously for 3 seconds.

2. Press 0 on the number pad to select Off

changes. Energy saving This will automatically turn off the oven 12 hours after baking starts or 3 hours after broiling starts.

1. Press the Broil button and 5 on the

number pad simultaneously for 3 seconds.

2. Press 0 on the number pad to select Off

1. Press the Broil button and 6 on the

number pad simultaneously for 3 seconds.

2. Press 0 on the number pad to select

changes. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 33 3/8/2016 5:33:34 PM34 English Maintenance Maintenance Racks To keep the racks clean, remove them from the cavity, and soak them in lukewarm soapy water. Then, scour impurities off of the racks using a plastic scouring pad. If the racks do not slide in and out smoothly after you have cleaned them, rub the side rail guides with wax paper or a cloth containing a few drops of cooking oil. This will help the racks glide more easily on their tracks. Gliding rack

1. Remove the gliding rack from the oven.

2. Fully extend the gliding rack on a table.

It is a good idea to put newspaper beneath the rack for later cleanup.

3. If the sliding tracks are soiled, remove

dirt and grime using a paper towel. Reapply the graphite lubricant according to the instructions below: To apply the graphite lubricant

1. Shake the graphite lubricant before

2. Apply 4 drops of lubricant to the

inner side of the left sliding track, and 4 drops to the outer side of the left sliding track.

3. Repeat step 2 above on the right sliding

track. Maintenance Cleaning Control panel First, lock the control panel and the door to prevent accidental operations and/or product tipping.

1. Press and hold the OFF/CLEAR button for 3 seconds to lock both the control

2. Clean the control panel using a soft cloth dampened with plain water, warm

soapy water, or glass cleaner. Do not spray cleansers directly onto the control panel.

3. When done, press and hold the OFF/CLEAR button again for 3 seconds.

• Make sure the control panel turns off and all surfaces of the gas oven are cool before cleaning. Otherwise, you can get burned.

• If the gas oven has been moved away from the wall, make sure the anti-tip device is reinstalled properly when the gas oven has been put into place again. Otherwise, the gas oven may tip over, causing physical injuries.

• Do not use steel-wool or abrasive cleansers of any kind. These can scratch or damage the surface. Stainless steel surface

1. Remove any spills, spots, and grease stains using a soft, wet cloth.

2. Apply an approved stainless steel cleanser to a cloth or paper towel.

3. Clean one small area at a time, rubbing with the grain of the stainless steel if

4. When done, dry the surface using a soft, dry cloth.

5. Repeat steps 2 through 4 as many times as necessary.

• Do not use a steel-wool pad or abrasive cleanser on stainless steel surfaces. It will scratch the surface.

• Do not spray any type of cleanser into the manifold holes. The ignition system is located in those holes and must be kept free of moisture. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 34 3/8/2016 5:33:35 PMEnglish 35 Maintenance Door Do not remove the inner gasket of the oven door for cleaning. Inner side

• Inner surface: Clean the inner side of the door manually using a soapy plastic scouring pad, and then wipe with a dry cloth. Take care not to get the gasket wet or allow moisture into the door.

• Inner glass: The inner glass is cleaned automatically during the self-cleaning cycle. Outer side

• Outer surface: Follow the cleaning instructions for the stainless steel surface in the previous section.

• Outer glass: Clean the outer glass using a glass cleanser or soapy water. Rinse and dry thoroughly. Take care not to get the gasket wet or allow moisture into the door.

4. Extend and collapse the gliding rack

several times to distribute the lubricant NOTE

• Do not use a dishwasher to clean the racks.

• If a rack does not slide in and out smoothly, apply a few drops of cooking oil to the oven rack guides.

• If a rack becomes too difcult to slide in or out, lubricate the rack.

• To purchase the graphite lubricant, contact us at 1-800-SAMSUNG (726-7864).

• For online shopping, visit http://www.samsungparts.com/Default.aspx and search for part DG81-01629A. CAUTION

• Do not leave racks in the oven during the self-cleaning cycle. The extreme heat generated in this cycle can permanently peel off the rack coating and make it difcult to remove the rack.

• Do not spray cooking oil or lubricant directly onto the gliding rack. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 35 3/8/2016 5:33:36 PM36 English Maintenance Maintenance CAUTION

• Do not use a steel-wool pad or abrasive cleaner, which can scratch or damage the enamel surface.

• Do not remove the cooktop surface to clean it. The gas lines leading to the burner manifolds can be damaged, resulting in a re or system failure. Burner grates and components Turn off all surface burners, and make sure they are all cooled down.

2. Remove the burner caps from the

3. Remove the burner heads from the

valve manifolds to reveal the starter electrodes.

4. Clean all removable grates and burner

components in warm, soapy water. Do not use steel-wool pads or abrasive cleaners.

5. Rinse and dry grates and burner

components thoroughly. Surface burners Burner controls Make sure all surface burner knobs are in the OFF position.

1. Pull out the knobs from the control

valve stems as shown.

2. Clean the knobs in warm, soapy water.

Then, rinse and dry them thoroughly.

3. Clean the stainless steel surfaces using

stainless steel cleaner.

4. Reinsert the knobs into the control

valve stems. CAUTION

• Do not clean the control knobs in a dish washer.

• Do not spray cleansers directly onto the control panel. Moisture entering the electric circuits may cause electric shock or product damage. Cooktop surface The porcelain-enameled cooktop surface needs to be kept clean. It is advisable to remove food spills immediately after they take place.

1. Turn off all surface burners.

2. Wait until all burner grates cool down,

and then remove them.

3. Clean the cooktop surface using a soft

cloth. If food spills run into gaps of the burner components, remove the burner cap and the head, and wipe out the spills.

4. When cleaning is nished, reinsert the

burner components, and put the burner grates into position. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 36 3/8/2016 5:33:37 PMEnglish 37 Maintenance Self-cleaning (Single mode only) This self-cleaning oven uses high temperatures (well above cooking temperatures) to burn off leftover grease and residue completely or reduce them to a nely powdered ash that you can wipe away with a damp cloth. CAUTION

• Do not leave small children unattended near the gas oven during the self- cleaning cycle. The outside surfaces of the gas oven can get extremely hot.

• Some birds are extremely sensitive to fumes from a self-cleaning gas oven. Relocate birds to a well-ventilated room away from the gas oven.

• Do not line the oven, oven racks, or oven bottom with aluminum foil. Doing so will result in poor heat distribution, produce poor baking results, and cause permanent damage to the oven interior. The aluminum foil will melt onto and adhere to the interior oven surfaces.

• Do not force the oven door open during the self-cleaning cycle. This will damage the automatic door-locking system. The door automatically locks when the self-cleaning cycle is started and stays locked until the cycle is cancelled and the oven temperature is below 392 °F.

• Use caution when opening the oven door after the self-cleaning cycle. The gas oven will still be VERY HOT and hot air and steam might escape when the door is open.

• Wipe off any excess spillage before using the self-cleaning operation.

• Do not use oven cleaners. Commercial oven cleaners or oven liners should NEVER be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven during a self-cleaning operation.

6. Return the burner heads to their

positions on top of the manifold valves. Make sure a starter electrode is inserted through the hole in each burner head.

7. Return the burner caps to their

positions on top of burner heads. To ensure proper and safe operation, make sure the burner caps lie at on top of the burner heads.

8. Reinstall the burner grates in their

respective positions.

9. Turn on each burner and check if it

operates properly. After verifying that a burner operates normally, turn it off. NOTE

• Check the right position of the Double ring burner.

• The precise simmer burner(RR) cap and the inner Double ring burner (RF) cap are interchangeable. CAUTION

• The starter electrodes are not removable. Do not attempt to remove them by force.

• Make sure all burner components (heads and caps) are reinstalled properly. They are stable and rest at when installed properly.

• To avoid chipping, do not bang grates and caps against each other or hard surfaces such as cast iron cookware. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 37 3/8/2016 5:33:38 PM38 English Maintenance Maintenance To delay starting the self-cleaning cycle

1. Repeat steps 1 and 2 on the previous page.

2. Press the Delay Start button. The oven door locks.

3. Set the time you want the oven to start self-cleaning using the number pad.

4. Press the START/SET button. The oven will start self-cleaning at your specied

time. To cancel the self-cleaning cycle You may nd it necessary to stop or interrupt a self-cleaning cycle due to smoke in the oven. To turn off the self-cleaning cycle, press the OFF/CLEAR button. The cycle turns off, but the door remains locked and the Lock icon blinks until the oven temperature falls below 392 °F (200 °C). After self-cleaning

• The door stays locked until the internal oven temperature falls below 392 °F.

• When the oven has cooled down, wipe the oven surfaces with a cloth to remove ash residue.

• Stubborn stains can be removed using a steel-wool pad. Lime deposits can be removed using a vinegar-soaking cloth.

• If you are not satised with the cleaning results, repeat the cycle. “HOT” appears on the display until the oven cools down. Wait until the message disappears, and start a new cycle.

• The cooling fan automatically runs for certain amount of time after self- cleaning. CAUTION Do not attempt to open the oven door immediately after the self-cleaning cycle is complete. The oven is still very hot when the door unlocks. Escaping hot air and/or steam could burn you. To perform the self-cleaning cycle Make sure the door lock is released. Remove all racks from the oven cavity.

1. Make sure the oven door is unlocked and closed completely.

2. Press the Self Clean button, and then select the cleaning time. See the table

below. Once Twice Three times 2-hour cycle 3-hour cycle 4-hour cycle

3. Press the START/SET button. The oven door is locked and the oven begins to

4. When the cycle is complete, the oven beeps 6 times. The door will remain

locked and the Lock icon will blink until the oven temperature falls below 392 °F (200 °C).

5. When the Lock icon changes to an open lock, you can open the oven door. The

Lock icon changes to an open lock when the oven temperature drops below 392 °F (200 °C).

6. Press the OFF/CLEAR button to display the time of the day.

CAUTION Do not use the surface burners while the gas oven is performing a self-cleaning cycle. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 38 3/8/2016 5:33:38 PMEnglish 39 Maintenance Reinstallation Oven door To remove the oven door

1. Turn off the oven.

2. Fully open the oven door.

3. Pull the hinge locks away from the

oven body and down toward the door frame into the unlocked position.

4. Close the door to 5 degrees from

vertical. This is the removal position.

5. While holding both sides of the oven

door tightly, lift it up and out until the hinge arms come clear of the slots at the bottom of the oven door.

6. Place the door in a safe location.

• The door is very heavy. Be careful when removing and lifting the door. Do not lift the door by the handle.

• Take care when moving the oven door. Improper handling could result in physical injury.

• To prevent electric shock, make sure the oven is turned off before removing the oven door. Replacement Oven light The oven light is a standard 40-watt appliance bulb. It comes on when you open the oven door.

1. Turn off the oven.

2. Make sure the oven and oven light are

3. Open the door, and remove the glass

cover by turning it counterclockwise.

4. Remove the oven light from the socket

by turning it counterclockwise.

5. Insert a new 40-watt appliance bulb

into the socket, and then turn it clockwise to tighten.

6. Reinsert the glass cover, and then turn

it clockwise to tighten. CAUTION To prevent electric shock, make sure the gas oven is turned off and cool before replacing the oven light. NOTE

• The oven light does not operate during the self-cleaning cycle.

• Remove the racks if they prevent you from accessing the oven light. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 39 3/8/2016 5:33:39 PM40 English Maintenance Maintenance

4. Put the drawer in the roller guides on

either side, and then snap the clips into place. To re-install the oven door

1. Firmly grasp both sides of the door at

2. With the door set at the same angle as

the removal position (about 5 degrees from vertical), slide the hinge arms into the hinge slots at the bottom of the door.

3. Open the door fully. If you cannot open

the door fully, the hinge arms are not properly in the hinge slots.

4. Lock the hinge arms by pushing them

up against the front frame of the oven.

5. Close the door, and make sure it opens

and closes normally. Storage drawer

1. Slide open the drawer until it stops.

2. Locate the roller guide clips on either

side. Using both hands, pull down the left clip while lifting the right clip, and then remove the drawer.

3. Clean the drawer in warm, soapy water

using a cloth or soft brush. Then, rinse and dry it thoroughly. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 40 3/8/2016 5:33:40 PMEnglish 41 Troubleshooting Problem Possible cause Action Surface burners do not light. The control knob is not set properly. Push in the control knob and turn it to the LITE position. The burner caps are not in place. The burner base is misaligned. Clean the electrodes. Put the burner cap on the burner head. Align the burner base. Surface burner clicks during operation. The control knob has been left in the LITE position. After the burner lights, turn the control knob to a desired setting. If the burner still clicks, contact a service technician. The burners do not burn evenly. Surface burner components and caps are not assembled correctly and level. See 36. Surface burners are dirty. Clean surface burner components. (See 36.) Very large or yellow surface burner ames. Wrong orice is assembled. Check the burner orice size and contact your installer if you have the wrong orice (LP gas instead of natural gas or natural gas instead of LP gas). Surface burners light but oven burners do not light. The oven door lock is turned on. The display will show the Lock icon. Hold the oven door open and press the START/SET button for 3 seconds. The oven will beep and the Lock icon will turn off. Gas Pressure Regulator shut off switch is in the ‘off position. Call a qualied service technician. Troubleshooting If you encounter a problem with the gas oven, rst check the table below and try the suggestions. Checkpoints Gas safety Problem Possible cause Action You smell gas. There is a gas leak. The surface burner knob is not in the OFF position and the burner is not lit. Clear the room, building, or area of all occupants. Immediately call your gas supplier from a neighbor’s phone. Do not call from your phone. It is electrical and could cause a spark that could ignite the gas. Follow the gas supplier’s instructions. If you cannot reach your gas supplier, call the re department. Surface burner Problem Possible cause Action All burners do not light. The power cord is not plugged into the electrical outlet. Make sure the electrical plug is plugged into a live, properly grounded outlet. A fuse in your home may be blown or the circuit breaker tripped. Replace the fuse or reset the circuit breaker. The gas supply is not properly connected or turned on. See the Installation Instructions that came with your range. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 41 3/8/2016 5:33:40 PM42 English Troubleshooting Troubleshooting Problem Possible cause Action Oven light (lamp) will not turn on. The oven door lock is turned on. The display will show the Lock icon. Hold the oven door open and press the START/SET button for 3 seconds. The oven will beep and the Lock icon will turn off. The Sabbath function has been activated. SAb and the time of day will show in the display. All other controls and signals will be deactivated. To cancel the Sabbath function and reactivate the light switch and other controls, press and hold the Bake and Touch to Wake-Up buttons simultaneously for 3 seconds. Loose or burned-out bulb. See 39. The switch operating the oven light needs to be replaced. Call for a qualied service technician. Oven smokes excessively during broiling. Meat or food not properly prepared before broiling. Cut away excess fat and/or fatty edges that may curl. Improperly positioned top oven rack. See broiling guide on 20. Controls are not being set properly. See 19. Greasy buildup on oven surfaces. Regular cleaning is necessary when broiling frequently. Oven Problem Possible cause Action The oven control beeps and displays an information code. You have a function information code. See the “Information codes” chart on 45. Press the OFF/CLEAR button and restart the oven. If the problem persists, disconnect all power to the range for at least 30 seconds and then reconnect the power. If this does not solve the problem, call for service. Very large or yellow oven burner ames. The oven burner air adjustment shutters need to be adjusted. Call for a qualied service technician. Gas supply is not properly connected or turned on. See the Installation Instructions that came with your range. Oven temperature is too hot or cold. Oven thermostat needs adjustment. See 32. Oven burner will not shut off. The oven door lock is turned on. The display will show the Lock icon. Hold the oven door open and press the START/SET button for 3 seconds. The oven will beep and the Lock icon will turn off. The Sabbath function has been activated. SAb and the time of day will show in the display. All other controls and signals will be deactivated. To turn off the oven only, press the OFF/ CLEAR button. To cancel the Sabbath function and reactivate the controls and signals, press and hold the Bake and Touch to Wake-Up buttons simultaneously for 3 seconds. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 42 3/8/2016 5:33:40 PMEnglish 43 Troubleshooting Problem Possible cause Action Excessive smoking during a self-cleaning cycle. This is the rst time the oven has been cleaned. This is normal. The oven will always smoke more the rst time it is cleaned. Wipe up all excessive soil before starting the self-cleaning cycle. If smoke persists, press the OFF/ CLEAR button. Open the windows to clear the smoke from the room. After the oven has cooled and unlocked, wipe up excessive soil and reset the oven for self-cleaning. Oven door will not open after a self-cleaning cycle. This is normal. The oven door will stay locked until the oven temperature drops below 392 °F. Oven not clean after a self- cleaning cycle. A ne dust or ash is normal. This can be wiped clean with a damp cloth. Set the self-cleaning cycle for a longer cleaning time. The cycle was not long enough to burn off the dirt buildup. Extremely dirty ovens require hand- cleaning of excessive spillovers and food buildup before starting a self-cleaning cycle. Multiple self- cleaning cycles may be necessary to completely clean the oven. Steam or smoke coming from under the control panel. This is normal. The oven vent is located there. More steam is visible when using the convection functions or when baking or roasting multiple items at the same time. Problem Possible cause Action Cooking is nished, but the cooling fan is still running. the fan automatically runs for a certain amount of time to ventilate inside the oven. This is not a product malfunction, so there is no need to worry. Oven will not self-clean. The oven door lock is turned on. The display will show the Lock icon. Hold the oven door open and press the START/SET button for 3 seconds. The oven will beep and the Lock icon will turn off. The Smart Divider is installed in the oven. Self-clean will not operate with the Smart Divider installed. Remove it from the oven. The oven is too hot. Let the oven cool down and reset the controls. The self-clean cycle will not lock the oven door if the oven temperature is too hot. The door must lock before the self-clean cycle can start. The self-cleaning oven controls are not properly set. Reset the self-cleaning oven controls. (See 37.) Crackling or popping sound. This is normal. This is the sound of the metal heating and cooling during any cooking or cleaning function. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 43 3/8/2016 5:33:40 PM44 English Troubleshooting Troubleshooting Others Problem Possible cause Action The product is not level. The appliance has been installed improperly. The leveling leg(s) is (are) damaged or uneven. Make sure the oor is level, strong, and stable. If the oor sags or slopes, contact a carpenter. Check and level the range. (See the Installation Instructions.) The kitchen cabinets are not properly aligned and make the range appear to be not level. Ensure that cabinets are square and provide sufcient room for installation. Display goes blank. The electrical outlet Ground Fault Interrupter (GFI or GFCI) has been tripped and needs to be reset. Your digital control has been damaged. Replace fuse or reset circuit breaker. Problem Possible cause Action Burning or oily odor coming from the vent. This is normal for a new oven and will disappear within 1/2 hour of the rst bake cycle. To speed the process, set a self- cleaning cycle for a minimum of 3 hours. (See 38.) Strong odor. This is temporary. The insulation around the inside of the oven emits an odor the rst few times the oven is used. Oven racks are difcult to slide. This is normal. Apply a small amount of vegetable oil to a paper towel and wipe the edges of the oven racks with the paper towel. Racks become dull and hard to slide if they are left in the oven during a self-clean cycle. Fan noise. This is normal. The convection fan runs until the function is over or the door is opened. Convection fan is not working. This is normal. The fan starts automatically when the oven reaches the preheat temperature. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 44 3/8/2016 5:33:40 PMEnglish 45 Troubleshooting Information codes Code symbol Meaning Solution Check the oven sensor.

1. Press the OFF/CLEAR button and

2. If the problem persists,

disconnect all power to the oven range for at least 30 seconds and then reconnect the power. Oven overheating. Check the cooling system. Check the door lock. Check the PCB signals. Check the contol panel pads Check the divider switch.

1. If the Divider is in the oven, make

sure it is pushed in all the way.

2. If the Divider is not in the oven,

see if something is pressing against the divider switch in the back of the oven.

3. If the Divider is all the way in or

there is nothing pressing against the Divider switch, press the OFF/CLEAR button and restart the oven. If the problem persists, disconnect all power to the oven range for at least 30 seconds, and then reconnect the power. ** If these solutions do not solve the problem, contact a local Samsung service center 1-800-SAMSUNG (1-800-726-7864). Problem Possible cause Action Food does not bake or roast properly in the oven. The wrong cooking mode is selected. See 17. The oven racks have not been positioned properly for the foods being cooked. See 22. Incorrect cookware or cookware of improper size is being used. See 13. The oven thermostat needs adjustment. See 32. There is aluminum foil on racks and/or oven bottom. Remove foil. The clock or timers are not set correctly. See 12. Food does not broil properly in the oven. Oven controls not set properly. See 19. Oven door was not closed during broiling. See 17. The rack has not been properly positioned. See broiling guide on 20. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 45 3/8/2016 5:33:41 PM46 English Warranty Warranty This limited warranty shall not cover cases of incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or xing installation errors. Furthermore, damage to the cooktop caused by the use of cleaners other than the recommended cleaners and pads and damage to the cooktop caused by hardened spills of sugary materials or melted plastic that are not cleaned according to the directions in the use and care guide are not covered. SAMSUNG does not warrant uninterrupted or error-free operation of the product. EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES OR CONDITIONS ON THIS PRODUCT EITHER EXPRESS OR IMPLIED AND SAMSUNG DISCLAIMS ALL WARRANTIES AND CONDITIONS INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY, INFRINGEMENT, OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER GENERAL, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE, AND STATES YOUR EXCLUSIVE REMEDY. Some states or provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. Warranty PLEASE DO NOT DISCARD.

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA or CANADA INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) Year Parts and Labor This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States or Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG- authorized service center, and any unauthorized service will void this warranty. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Samsung will provide in-home service during the one (1) year warranty period at no charge subject to availability within the contiguous United States or Canada. In-home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, Samsung may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specied above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 46 3/8/2016 5:33:41 PMEnglish 47 Warranty This warranty gives you specic legal rights, and you may also have other rights which vary from state to state or province to province. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgeeld Park, NJ 07660 1-800-SAMSUNG (726-7864) and www.samsung.com/us/support Samsung Electronics Canada Inc. 2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada 1-800-SAMSUNG (726-7864) and www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) Registration Please register your product online at www.samsung.com/register. Questions For questions about features, operation/performance, parts, accessories, or service, call 1-800-726-7864, or visit our Web site at www.samsung.com/us/support, www.samsung.com/ca/support (English), www.samsung.com/ca_fr/ support (French). Model # Serial # Please attach your receipt (or a copy) to this manual. You may need it, along with your model and serial number, when calling for assistance. NX58J7750S_AA_AC_DG68-00623A-04_EN+CFR.indb 47 3/8/2016 5:33:41 PMPlease be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT U.S.A Consumer Electronics 1-800-SAMSUNG (726-7864) www.samsung.com/us/support CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) DG68-00623A-04 Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows

SÉCURITÉ LIÉE AU GAZ

SÉCURITÉ LIÉE AU FOUR
