| Product type | Active subwoofer with built-in amplifier |
| Brand | Paradigm |
| Model | Cinema SUB |
| Design | Single driver, bass-reflex, high-velocity low-turbulence port |
| Woofer | 210 mm (8 in) reinforced polymer composite cone, 38 mm (1-1/2 in) voice coil |
| Amplifier | 300 watts dynamic peak, 100 watts RMS sustained |
| Low frequency extension | 32 Hz (DIN) |
| Crossover frequency | Variable from 35 Hz to 150 Hz, bypass option |
| Phase alignment | 0° or 180° |
| Line level input | Two RCA (L/R-Mono) for line out or Sub/LFE |
| Input impedance | 10 kΩ |
| Dimensions (H x W x D) | 34.2 cm x 32.2 cm x 32.2 cm (13-7/16 in x 12-11/16 in x 12-11/16 in) |
| Weight (unpacked, with feet) | 9.7 kg (21.4 lb) |
| Finish | Black gloss |
| Power consumption | AC mains power (not specified but standard compatible) |
| Control functions | Auto power/standby, level, crossover frequency, phase (0°/180°) |
| Maintenance and cleaning | Clean with a dry cloth only. Do not use solvents. |
| Safety | Do not expose to rain or moisture. Unplug during storms. Polarized plug. |
| Spare parts and repairability | Contact an authorized Paradigm dealer for repair. 3-year warranty for amplifier, 5-year for speakers. |
Frequently Asked Questions - Cinema SUB Paradigm
User questions about Cinema SUB Paradigm
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Subwoofer in PDF format for free! Find your manual Cinema SUB - Paradigm and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Cinema SUB by Paradigm.
USER MANUAL Cinema SUB Paradigm
In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive effective August 13, 2005, we would like to notify you that our speakers may contain regulated materials which, upon disposal, require special reuse and recycling processing. For this reason Paradigm Electronics Inc. (the manufacturer of Paradigm speakers and Anthem electronic products) has arranged with its distributors in European Union member nations to collect and recycle this product at no cost to you. To find your local distributor please contact the dealer from whom you purchased this product or go to our website at www.paradigm.com.
Please note that only the product falls under the WEEE directive. When disposing of packaging and other shipping material we encourage you to recycle through the normal channels.
Paradigm Electronics Inc. 205 Annagem Blvd., Mississauga, ON Canada L5T 2V1 052511
Thank you for choosing the compact Cinema Sub and congratulations. You are about to hear the difference this sonically accurate subwoofer will make in your music and home theater system. It is the product of countless hours of comprehensive research and development and will reward you with exceptional sound for many years.
To ensure proper installation please read this manual and follow all instructions. If you have further questions contact your Authorized Paradigm Dealer or visit the Q&A page on our website at www.paradigm.com
TABLE OF CONTENTS
Safety Precautions 3
Important Safety Instructions 4
Your New Subwoofer 5
Attaching the Feet and the Logo 6
Subwoofer Placement 7
Subwoofer Connection 7
Setting Subwoofer Controls 8
Troubleshooting Guide 9
Technical Specifications 10
Limited Warranty 11
SAFETY PRECAUTIONS
READ THIS SECTION CAREFULLY BEFORE PROCEEDING!
WARNING
RISK OF ELECTRIC SHOCK DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWPOINT WITHIN AN EQUILATERAL TRIANGLE WURNS OF THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE warns USERS OF THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE, AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE THE FUSE ONLY WITH THE SAME AMPERAGE AND VOLTAGE TYPE. REFER REPLACEMENT TO QUALIFIED SERVICE PERSONNEL.
WARNING: UNIT MAY BECOME HOT. ALWAYS PROVIDE ADEQUATE VENTILATION TO ALLOW FOR COOLING. DO NOT PLACE NEAR A HEAT SOURCE, OR IN SPACES THAT CAN RESTRICT VENTILATION.
IMPORTANT SAFETY INSTRUCTIONS
I. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry a cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination, to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Use the mains plug to disconnect the apparatus from the mains or "TO COMPLETELY DISCONNECT THIS APPARATUS FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE."
16. "WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC - SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE"
17. "DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND ENSURE THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, ARE PLACED ON THE EQUIPMENT."
18. "THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE."
YOUR NEW SUBWOOFER
You are about to experience the accurate deep bass performance of our CinemaSub. This subwoofer offers high output with low distortion, deep bass extension and superb definition. To achieve optimal bass performance for music and home theater, please read through the information that follows.
Input Facilities
Low-Level Input
Allows connection from the Sub/LFE Output of an AV receiver, processor or other suitable low-level source.
Control Facilities
Auto On/Standby
Subwoofer will turn on when it receives an input signal. If no signal is sensed for a period of time, the subwoofer will automatically switch to Standby.
Subwoofer Level
Balances the subwoofer output level to your speaker system's output.
Subwoofer Cut-Off Frequency
Controls the subwoofer's upper-frequency cut-off to match the low-frequency characteristics of your speakers.
Subwoofer Phase Switch
Changes the phase of the subwoofer by 180^ relative to your speakers.
ATTACHING THE FEET AND THE LOGO
NOTE: As a guide for attaching feet follow the template included with your subwoofer.
- Decide whether you want subwoofer to sit cloth side up or gloss side up. This decision is important, once you have attached feet the installation is permanent.
- Align template with edges of subwoofer. NOTE: On cloth side, the two edges are beveled so template will not lie perfectly flush. Don't sweat this!
- Attaching Feet On Gloss Side:
Before removing backing do a preliminary placement, positioning the first foot exactly as shown on the template. Once you are comfortable, remove backing and attach foot. Attach remaining feet using the same procedure.

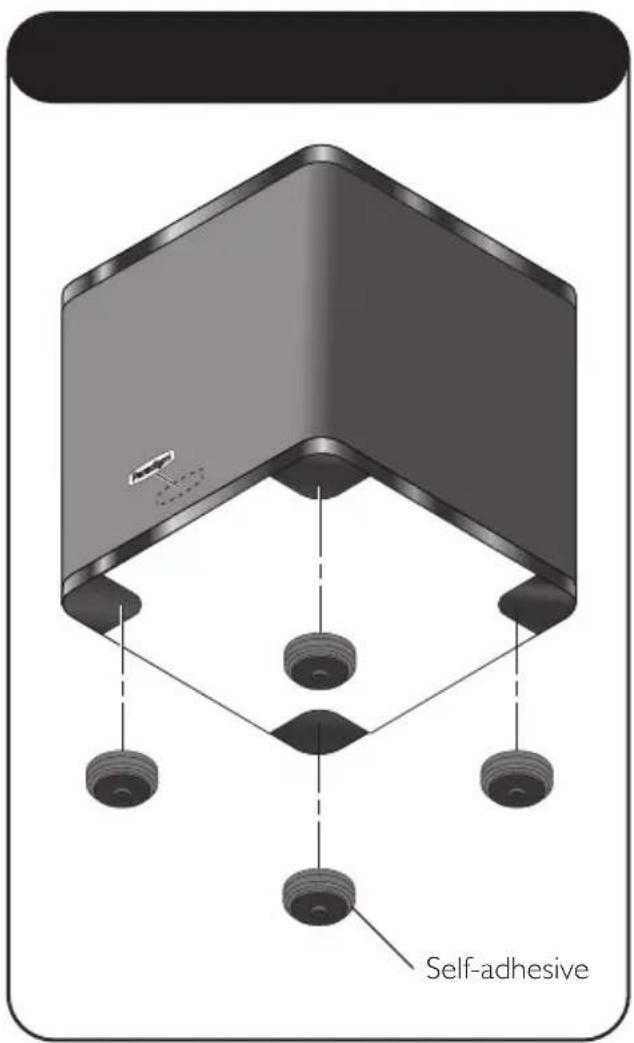

Attaching Feet on Cloth Side:
Feel through cloth for screw hole underneath. Position foot over hole and screw in. Attach remaining feet following the same procedure.
- Paradigm logo: remove backing and carefully position as shown.

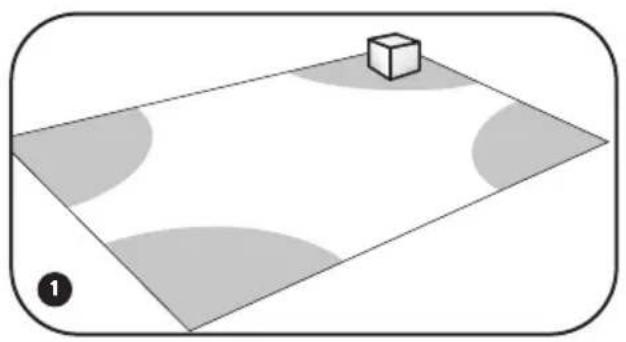

SUBWOOFER PLACEMENT
We recommend positioning your subwoofer close to the wall, between the front speakers. Corner placement (1) provides the most bass, but sometimes at the expense of accuracy. A subwoofer placed near a wall (2) usually provides a good balance of quantity and accuracy. Ensure that the power cord is accessible.
SUBWOOFER CONNECTION
SAFETY PRECAUTION: Before proceeding with this section be sure to read and follow all safety precaution instruction notices at the beginning of this manual.
Turn all components OFF before connecting the subwoofer.
Ensure subwoofer is installed in a location where any rear amplifier parts (panels, heatsinks, etc.) cannot be accidentally touched.
We recommend the use of high-quality cables and connectors when hooking up your subwoofer (see your Dealer).
Low-Level Input
(For use with a receiver, processor or control unit with a Sub-Out/LFE-Out jack.)
Using an RCA-to-RCA interconnect cable connect the subwoofer using the Right (Mono) input as shown.
SETTING SUBWOOFER CONTROLS
When setting up your subwoofer and fine tuning it to compliment your system, use music and video soundtracks that you know well. They should contain selections with extended bass that is continuous and repetitive. Set any tone or equalizer controls on your receiver or preamplifier to flat (zero) and switch any loudness controls off.
Room acoustics vary. Experiment with subwoofer placement to find the best position. Certain subwoofer positions may cause some bass frequency cancellation—when your speakers and subwoofer are “out-of-phase” they work against each other through the crossover region and bass is reduced. If bass sounds “weak” or “dislocated,” change the phase according to the instructions in point 4, below. When adjusting your subwoofer, remember that bass should not be overbearing—the subwoofer should not draw attention to itself—but it shouldn’t be “thin” or difficult to hear, either. Use the following set-up tips to fine-tune subwoofer bass in your listening room:
I. Turn the Subwoofer Cut-Off Frequency Control to the middle of the "Normal" range.
2. Slowly rotate the Subwoofer Level Control until you match the subwoofer output level with the level of your speakers. Bass should be clearly audible but not intrusive.
3. If the sound is too "thin" set the Subwoofer Cut-Off Frequency Control higher than the "Normal" range; if the sound becomes "boom" set the Subwoofer Cut-Off Frequency Control lower than the normal range.
4. If the bass sounds weak or "dislocated" you may have a phase alignment problem. Your CinemSub has a Phase Switch which is normally set to the 0^ position. Switch it to the 180^ position—this will switch the phase of the subwoofer by 180^ relative to your speakers. Listen to determine if you hear more bass. If you don't hear more bass, return the Phase Switch to its original position and then experiment with subwoofer placement to find an area of the room where there is less bass cancellation.
TROUBLESHOOTING GUIDE
| PROBLEM | SOLUTION |
| No Sound | ·Make sure receiver, preamp or amplifier is plugged in and turned on. Check power outlet at the wall is working. ·Are headphones plugged in, or is the system on Mute? ·Re-check all connections. |
| No Sound from One or More Speakers | ·Check your balance control or VC-150VolumeControl (if using). ·Check that all power cords are properly plugged in and functioning ·Swap a non-working speaker with one that works to determine if the problem is with the speaker or something else (i.e. wiring, amplifier). |
| Lack of Bass or Dislocated Image | ·One or more speakers may be connected out of phase (their polarity is reversed). ·Re-check to ensure that each speaker's cable is connected with correct polarity: red (+) to red (+) and black (-) to black (-). |
TECHNICAL SPECIFICATIONS
| Cinema™ Sub | |
| Design | Single driver, bass reflex, high-velocity low-turbulence resistive port, built-in amplifier |
| Amplifier: High-current, Discrete Output | 300 watts Dynamic Peak; 100 watts RMS Sustained |
| Amplifier Features | Auto-On / Standby, soft clipping |
| Bass Driver | 210-mm (8 in) reinforced polymer-composite cone, 38-mm (1-1/2 in) voice-coil |
| Low-Frequency Extension* | 32 Hz (DIN) |
| Subwoofer Cut-Off Frequency | Variable 35 Hz - 150 Hz; Bypass option |
| Sub / Sat Phase Alignment Switch | 0° or 180° |
| Line-Level Input | Two RCA (L/R-Mono) for L/R lineage or Sub-Out/LFE-Out of receiver/processor or other line-level source |
| Line-Level Input Sensitivity | 130 mV |
| Line-Level Input Impedance | 10k ohms |
| Dimensions (h x w x d) (gloss side up, height includes feet) | 34.2 cm x 32.2 cm x 32.2 cm 13-7/16 in x 12-11/16 in x 12-11/16 |
| Weight (unpacked) | 9.7 kg / 21.4 lb |
| Finish | Black Gloss |
- DIN 45 500 Indicates -3 dB in a typical listening room.
With typical program source, provided the amplifier clips no more than 10% of the time.
LIMITED WARRANTY
For the Paradigm subwoofer covered in this manual all parts including the amplifier are warranted to be and remain free of manufacturing and/or material defects for a period of three (3) years.
Within the time periods specified, repair, replacement or adjustment of parts for manufacturing and/or material defects will be free of charge to the original owner.
Thermal Or Mechanical Abuse/Misuse Is Not Covered Under Warranty.
Limitations:
- Warranty begins on date of original retail purchase from an Authorized Paradigm ^ Dealer only. It is not transferable;
- Warranty applies to product in normal home use only. If product is subjected to any of the conditions outlined in the next section, warranty is void;
- Warranty does not apply if the product is used in professional or commercial applications.
Warranty is Void if:
The product has been abused (intentionally or accidentally);
- The product has been used in conjunction with unsuitable or faulty equipment;
- The product has been subjected to damaging signals, derangement in transport, mechanical damage or any abnormal conditions;
- The product (including cabinet) has been tampered with or damaged by an unauthorized service facility;
The serial number has been removed or defaced.
Owner Responsibilities:
- Provide normal/reasonable operating care and maintenance;
- Provide or pay for transportation charges for product to service facility;
- Provide proof of purchase (your sales receipt given at time of purchase from your Authorized Paradigm® Dealer must be retained for proof-of-purchase date).
Should servicing be required, contact your nearest Authorized Paradigm® Dealer, Paradigm Electronics Inc. or Import Distributor (outside the U.S. and Canada) to arrange, bring in or ship prepaid, any defective unit. Visit our website, www.paradigm.com for more information.
Paradigm Electronics Inc. reserves the right to improve the design of any product without assuming any obligation to modify any product previously manufactured.
This warranty is in lieu of all other warranties expressed or implied, of merchantability, fitness for any particular purpose and may not be extended or enlarged by anyone. In no event shall Paradigm Electronics Inc., their agents or representatives be responsible for any incidental or consequential damages. Some jurisdictions do not allow limitation of incidental or consequential damages, so this exclusion may not apply to you.
Retain this manual and your sales receipt for proof of warranty term and proof of purchase..
Paradigm
MODE D'EMPLOI
CAISSON DE SOUS GRAVES CONSOMME MOINS,05 WATS EN MODE VEILLE.
DIRECTIVES EUROPEENNES SUR LE RECYCLAGE ET LE TRAITEMENT DES DECHETS
Spcifications techniques 10
Garantie limitée 11
MESURES DE SECURITE
LIRE ATTENTIVEMENT CETTE SECTION AVANT DE POURSUIV
AVERTISSEMENT
RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR.
AVERTISSEMENT : POUR MINIMISER LE RISQUE DE CHOC ÉLECTRIQUE, NE PAS OTER LE CAPOT (OU LE PANNEAU ARRIÈRE). IL N'Y A À L'INTÉRIEUR AUCUN COMPOSANT REPARABLE PAR L'UTILISATEUR. CONFIER TOUTE INTERVENTION À UN PERSONNEL QUALIFIÉ.
L'ÉCLAIR AVEC UNE POINTE EN FORME DE FLÈCHE DANS UN TRIANGLE ÉQUILATERAL AVERTIT L'UTILISATEUR D'UNE « TENSION DANGEREUSE » NON ISOLEEE À L'INTÉRIEUR DU PRODUIT QUI PEUT ÉTRÉ D'UNE FORCE SUFFISANTE POUR CONSTITUER UN RISQUE DE DECHARGE ÉLECTRIQUE.
LE POINT D'EXCLAMATION DANS UN TRIANGLE ÉQUILATÉRAL AVERTIT L'UTILISATEUR DE LA PRESENCE DE DIRECTIVES IMPORTANTES EN LIEN AVEC LE FONCTIONNEMENT ET LA MAINTENANCE (SERVICE) DANS LES DOCUMENTS QUI ACCOMPAGNENT LE PRODUIT.
AVERTISSEMENT : POUR DIMINUER LES RISQUES D'INCENDIE OU DE CHOC ÉLECTRIQUE, N'EXPOSEZ PAS CET APPAREIL À LA PLUIE OU À L'HUMIDITE; LES OBJECTS REMPLIS DE LIQUIDE, TELS QUE LES VASES, NE DOIVENT PAS ÉTRE PLACES SUR L'APPAREIL.
MISE EN GARDE: POUR ÉVITER UN CHOC ÉLECTRIQUE, PLACER LA BROCHE LARGE DE LA FICHE EN CORRESPONDANCE AVEC L'ALVÉOLE LARGE, ET INSÉRER COMPLÉTEMENT LA FICHE.
MISE EN GARDE : POUR MAINTENIR UNE PROTECTION CONTINUE CONTRE LES RISQUES D'INCENDIE, REMPLACER LE FUSIBLE UNIQUEMENT PAR UN FUSIBLE DE MÉMES CARACTERISTIQUES (INTENSITÉ ET TENSION). CONFIER LE REMPLACEMENT À UN PERSONNEL QUALIFIÉ.
AVERTISSEMENT : LA TEMPERATURE DE L'APPAREIL PEUT AUGMENTER. VEILLER À TOUJOURS MENAGER UNE VENTILATION ADEQUATE PERMETTANT LE REFROIDISSEMENT. NE PAS PLACER L'APPAREIL À PROXIMATE D'UNE SOURCE DE CHALEUR, OU DANS UN ESPACE OÜ LA VENTILATION EST RESTREINTE.
