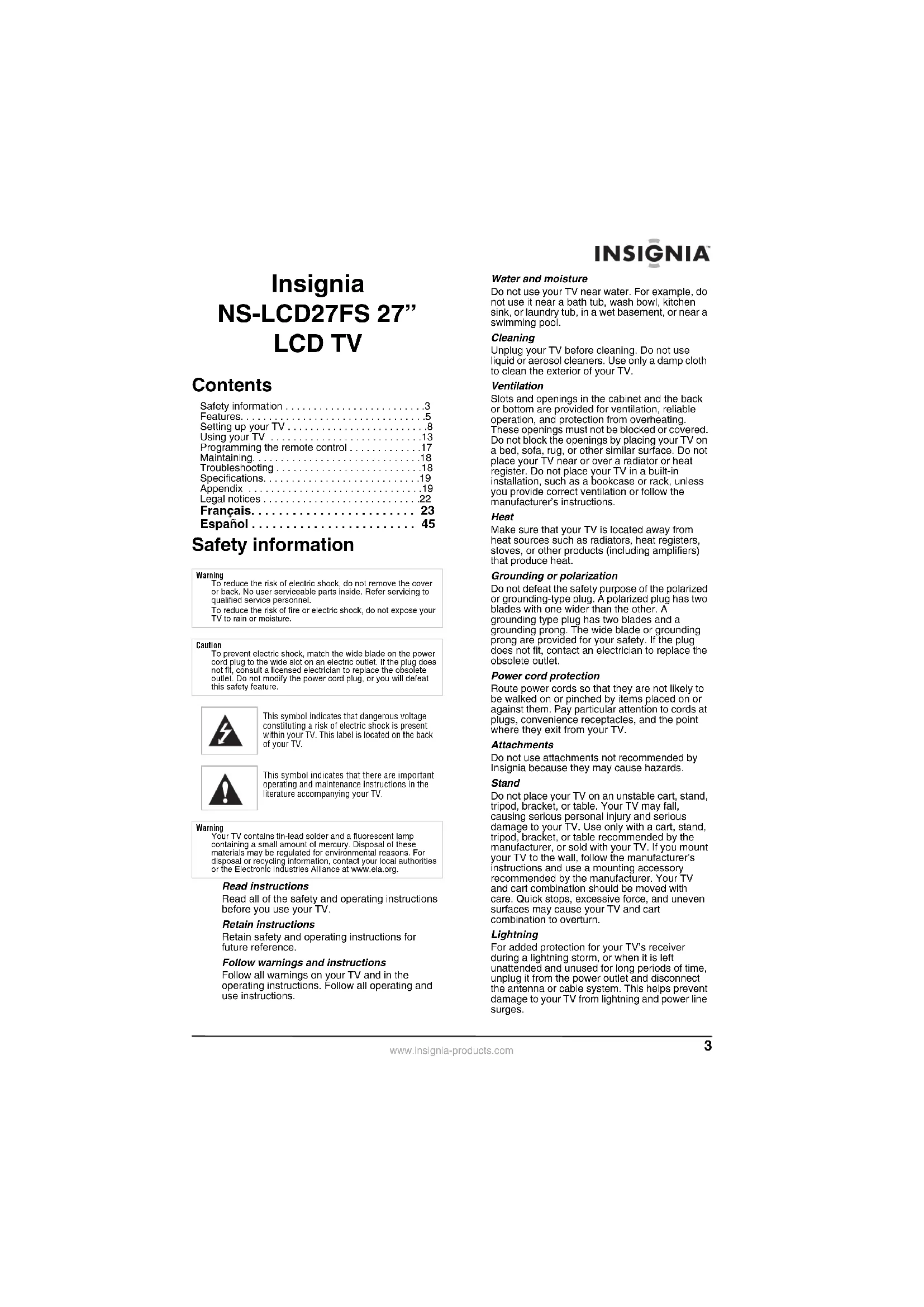

Insignia NS-LCD27FS 27" LCD TV

Contents

Safety information	.3
Features	.5
Setting up your TV	.8
Using your TV	.13
Programming the remote control	.17
Maintaining	.18
Troubleshooting	.18
Specifications	.19
Appendix	.19
Legal notices	.22
Français	.23
Espanol	.45

Safety information

Warning

To reduce the risk of electric shock, do not remove the cover or back. No user serviceable parts inside. Refer servicing to qualified service personnel. To reduce the risk of fire or electric shock, do not expose your TV to rain or moisture.

Caution

To prevent electric shock, match the wide blade on the power cord plug to the wide slot on an electric outlet. If the plug does not fit, consult a licensed electrician to replace the obsolete outlet. Do not modify the power cord plug, or you will defeat this safety feature.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your TV. This label is located on the back of your TV.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your TV.

Warning

Your TV contains tin-lead solder and a fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated for environmental reasons. For disposal or recycling information, contact your local authorities or the Electronic Industries Alliance at www.eia.org.

Read instructions

Read all of the safety and operating instructions before you use your TV.

Retain instructions

• Retain safety and operating instructions for future reference.

Follow warnings and instructions

Follow all warnings on your TV and in the operating instructions. Follow all operating and use instructions.

INSIGNIA

Water and moisture

Do not use your TV near water. For example, do not use it near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

Cleaning

Unplug your TV before cleaning. Do not use liquid or aerosol cleaners. Use only a damp cloth to clean the exterior of your TV.

Ventilation

Slots and openings in the cabinet and the back or bottom are provided for ventilation, reliable operation, and protection from overheating. These openings must not be blocked or covered. Do not block the openings by placing your TV on a bed, sofa, rug, or other similar surface. Do not place your TV near or over a radiator or heat register. Do not place your TV in a built-in installation, such as a bookcase or rack, unless you provide correct ventilation or follow the manufacturer's instructions.

Heat

Make sure that your TV is located away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Grounding or polarization

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a grounding prong. The wide blade or grounding prong are provided for your safety. If the plug does not fit, contact an electrician to replace the obsolete outlet.

Power cord protection

Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from your TV.

Attachments

Do not use attachments not recommended by Insignia because they may cause hazards.

Stand

Do not place your TV on an unstable cart, stand, tripod, bracket, or table. Your TV may fall, causing serious personal injury and serious damage to your TV. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with your TV. If you mount your TV to the wall, follow the manufacturer's instructions and use a mounting accessory recommended by the manufacturer. Your TV and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause your TV and cart combination to overturn.

Lightning

For added protection for your TV's receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplig it from the power outlet and disconnect the antenna or cable system. This helps prevent damage to your TV from lightning and power line surges.

INSIGNIA

Servicing

Do not attempt to service your TV yourself because opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Replacement parts

When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

Overloading

Do not overload power outlets and extension cords because this can result in a risk of fire or electric shock.

Object and liquid entry

Never push objects of any kind into your TV through openings because objects may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on your TV.

Damage requiring service

Unplug this TV from the power outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or p damaged or frayed.
  If liquid has been spilled or objects have fallen into your TV.
  If your TV has been exposed to rain or water.
  If your TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions because incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore your TV to its normal operation.
• If your TV has been dropped or damaged in any way.
• When your TV exhibits a distinct change in performance.

Replacement parts

When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

Safety check

After completing any service or repair to this TV, ask the service technician to perform routine safety checks to determine that your TV combo is in correct operating condition.

Power source

Operated your TV only from the type of power source indicated on the marking label. If you are not sure of the type power supplied to your home, consult your TV dealer or local power company.

Lightning

For added protection for your TV's receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect the antenna or cable system. This helps prevent damage to your TV from lightning and power line surges.

Screen protection

Your TV's screen is made of glass. Do not drop your TV or hit the glass screen. If the screen breaks, be careful of broken glass.

Pixel defect

Your TV's screen is designed to display finely detailed pictures. Occasionally, a few non-active pixels may appear on the screen as fixed points of blue, green, or red. This is not a defect and does not affect your TV's performance.

Outdoor antenna grounding

If an outside antenna or cable system is connected to your TV, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

1 Electric service equipment
2 Power service grounding electrode system
3 Ground clamps
4 Grounding conductors
5 Antenna discharge unit
6 Grounding clamp
7 Antenna lead-in wire

Note to CATV system installer

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for correct grounding and in particular, specifies that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as practical.

Features

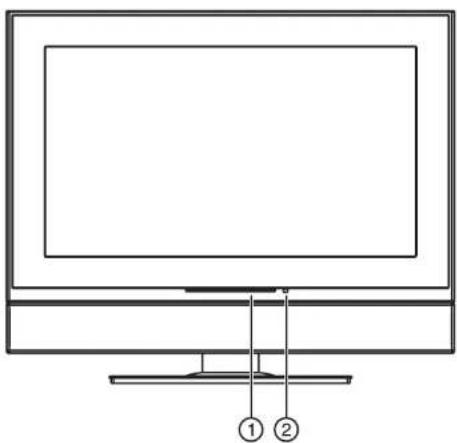

Front

	Control Description
1 Power Indicator Lights when your TV is turned on.
2 Remote sensor Receives signals from the remote control.

Top

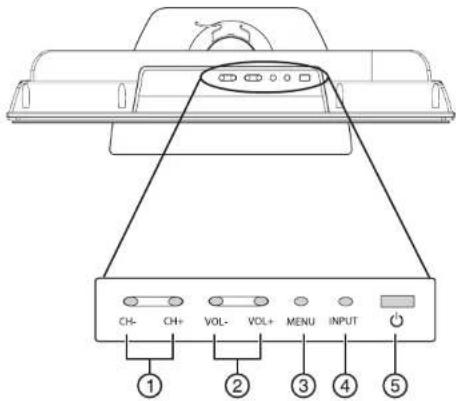

Control Description

1 CH+/CH- Press to change the channel.
	In the on-screen menu system, press to select menus and options.
2 VOL+/VOL- Press to increase or decrease the volume. In the on-screen menu system, press to adjust a setting or change a value.
3 MENU Press to open the on-screen menu system.
4 INPUT Press to select the video input.
5 Power Press to turn your TV on or off.

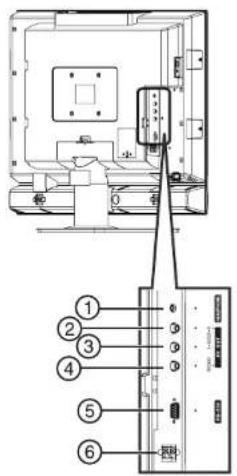

Back jacks

1 HEADPHONE

2 AV OUT R AUDIO

3 AV OUT L AUDIO

4 AV OUT VIDEO

5 RS232 control interface

6 Speaker output jacks

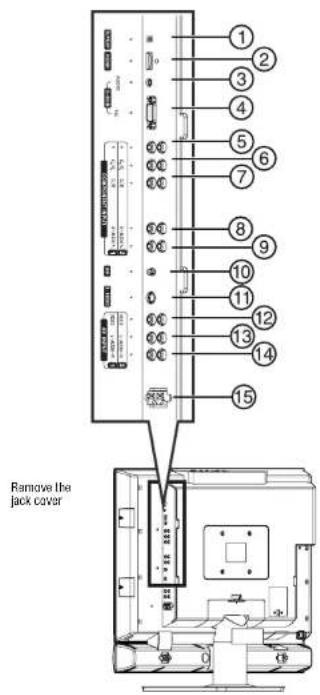

	Jack
1	S / P D I F
2	H D M I
3	D+SUB AUDIO input
4	D+SUB PIC (video) input
5	COMPONENT INPUT Y
6	COMPONENT INPUT Cb/Pb
7	COMPONENT INPUT Cr/Pr
8	COMPONENT INPUT R AUDIO
9	COMPONENT INPUT L AUDIO
10	RF (antenna Input)
11	S-VIDEO
12	AV INPUT VIDEO
13	AV INPUT L AUDIO
14	AV INPUT R AUDIO
15	Speaker output jacks

Remote control

Note

This remote control is a universal remote control. If it does not seem to work with your TV, press the TV button.

Note

For instructions on programming the remote control, see "Programming the remote control" on page 17.

Note

The remote control buttons labeled A, B, C, D, and E do not have any functions for this TV. They may, however, be used with other devices when this remote is used as a universal remote control. The exact function depends on the specific device being controlled.

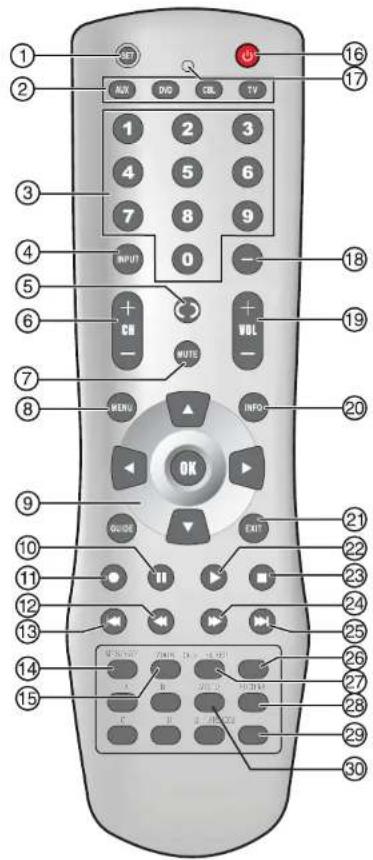

	Button Description
1 SET Press to program the remote control. For more Information, see "Programming the remote control" on page 17.

Button Description

2 Device	buttons TV-Press to	select the TV.
		DVD-Press to select a connected DVD player.
		CBL-Press to select cable or satellite TV.
		AUX-Press to select a device assigned to this button.
3 Number	buttons Press to enter channel numbers.	In the on-screen menu system, press to enter your parental controls password.
4 INPUT	Press to select the video input.
5 Press to last viewed		channel.
6+CH-	Press to change TV channels.
7 MUTE	Press to mute the sound.
8 MENU	Press to open the on-screen menu system.
9	OK	Press the arrows to move down, up, left, or right in the on-screen menu system.
		Press the OK button to confirm changes or to toggle options on and off In the on-screen menu system.
10	II	When playing a DVD, press to freeze the screen image. Press again to unfreeze the image.
11	●	Press to start a recording on a connected device, such as a VCR.
12	▲	Press to fast-reverse on a DVD or CD if a DVD or CD player is connected.
13	▲	Press to skip the previous chapter on a DVD or previous track on a CD if a DVD or CD player is connected.
14	MTS/SAP	Press to select one of the preset audio modes. You can select MONO, STEREO, or SAP.
15	ZOOM	Press to select the aspect ratio.
16	◎	Press to turn on your TV or put it into Standby mode.
17	LED Lights when you are programming the remote control. For more Information, see "Programming the remote control" on page 17.
18	—	Press to select a sub-channel. For more information, see "Selecting a digital sub-channel" on page 14.
19	+ VOL-	Press to adjust the volume.
20	INFO	Press to display status information.
21	EXIT	Press to close the on-screen menu system.
22	▲	Press to start DVD or CD playback if a DVD or CD player is connected.
23	■	Press to stop DVD or CD playback if a DVD or CD player is connected.

	Button Description
24 Press to fast forward on a DVD or CD if a DVD or CD player is connected.
25	Press to skip the next chapter on a DVD or next track on a CD if a DVD or CD player is connected.
26 SLEEP Press to set the sleep timer. For more information, see "Settling the sleep timer" on page 15.
27 CCD Press to turn closed captions on and off. For more information, see "Viewing closed captions" on page 15.
28 PICTURE Press to select the picture mode.
29 FREEZE Press to freeze the video image. Press again to unfreeze the image. Do not freeze the video image for long periods of time. You may damage the TV screen.
30 AUDIO Press to select the sound mode.

Using the remote control

To use the remote control:

• Point the remote control towards the remote sensor on the front of your TV.

The following illustration shows the remote control range.

Notes

• Do not expose the remote control to shock or liquids.
• Do not use the remote control in an area with high humidity.
• Do not place the remote control in direct sunlight.
• Do not place objects, such as furniture, between the remote control and the remote sensor.
• The remote control may not work if direct sunlight or bright light shines on the remote sensor. Either move your TV or change the angle at which you use the remote control.

Setting up your TV

Installing remote control batteries

To install the remote control batteries:

1 Remove the battery cover.

2 Insert two AA batteries into the battery compartment. Make sure that you match the + and - symbols on the batteries with the + and - symbols in the battery compartment.

3 Replace the cover.

Noles

• Do not mix batteries of different types.
• Do not mix old and new batteries.
• Remove batteries when the charge is depleted.
• Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.
• If the remote control is not going to be used for an extended period of time, remove the batteries.

Connecting your TV to an electrical outlet

To connect your TV to an electrical outlet:

• Plug the power cord into an electrical

outlet.

Notes

Make sure that you use the correct type of power. See the
label on your TV.
- If you do not intend to use your TV for an extended period of time, unplug the power cord from the electrical outlet.

Connecting speakers

To connect speakers to your TV:

1 Unplig the TV power cord and all devices connected to your TV.
2 Place your TV, face down, on a soft surface so that you do not damage the screen.

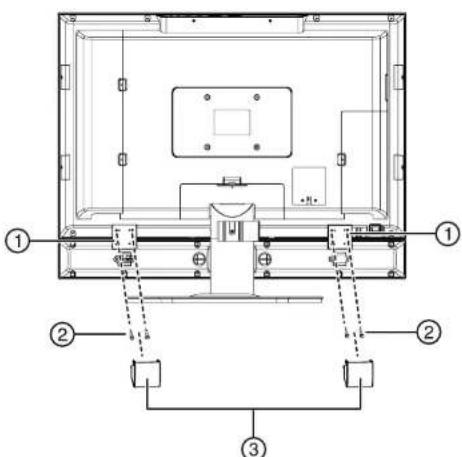

3 Attach each speaker and fixed board (1) to the back of your TV with the supplied screws (2), then tighten the screws.

4 Snap the covers (3) over the speakers.
5 Connect the speakers to the speaker jacks on the back of your TV. Make sure that you connect the black part of the speaker wire to the -jack and the red part of the speaker wire to the +jack on the back of your TV.

Note

The location of the speaker jacks on your TV may vary from the illustration.

Connecting an outside antenna

Antenna cables come in two types: 75 ohm and 300 ohm.

75 ohm cable

300-pmcable

If your antenna cable has a 75 ohm connector, connect the cable to the coaxial jack on the back of your TV. If your antenna cable has a 300 ohm connector, connect the cable to a 300-75 ohm adapter (not included), connect the adapter to a 75 ohm cable, then connect the other end of the 75 ohm connector to the coaxial jack on the back of your TV.

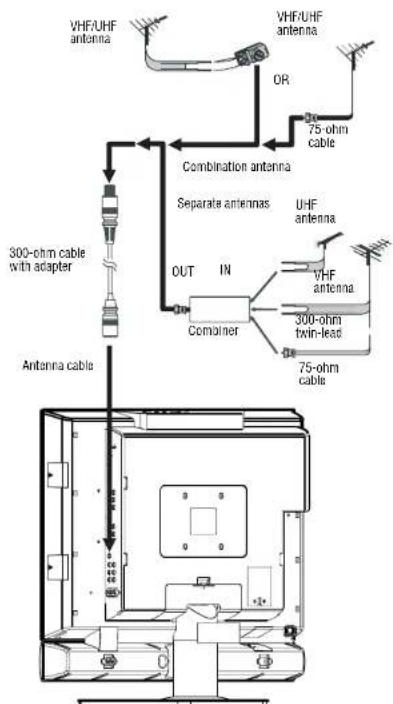

Use the following illustration to connect an outside antenna.

Connecting cable TV

Your TV has a 75 ohm jack for connecting cable TV.

Some cable TV providers scramble the signals for "premium" (pay) channels. To view these channels you need a converter/describler box.

If you do not have a converter/descrambler box, you can connect your cable TV directly to your
TV. If you have a converter/descrambler box, you can connect your cable TV using an RF switch (not supplied). For more information about connecting a converter/descramble box, contact your cable TV provider.

To connect cable TV without a converter/descrambler box:

1 Connect one end of a 75 ohm cable to the coaxial jack on the back of your TV.
2 Connect the other end of the cable to the cable TV wall outlet.

INSIGNIA

Insignia NS-LCD27FS 27" LCD TV

To connect cable TV with a converter/descrambler box:

• Use the following illustration to connect a converter/descrambler box. (The RF switch and the signal splitter are not provided.) Set the RF switch to the A position to watch unscrambled channels using your TV remote control. Set the RF switch to the B position to watch scrambled channels using the converter/descrambler controls.

Connecting a sound system

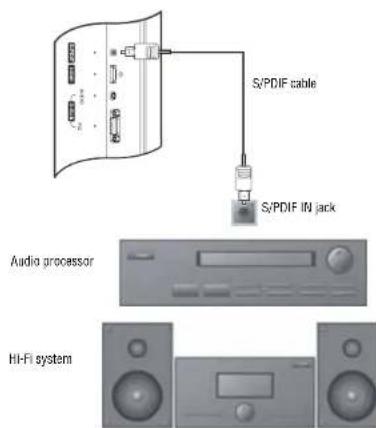

Use the following illustration to connect an audio processor or Hi-Fi system.

Warning Make sure that you turn off and unplug your TV before installing devices.

Note For home theater systems, use an S/PDIF cable to achieve full sound capabilities.

Connecting a VCR

You can connect a VCR with a standard audio/video cable or with a S-Video cable. The S-Video cable does not carry sound. If you use an S-Video cable, you need to use an audio cable to connect sound.

Note For better video, use the S-Video jack if your VCR has an S-Video connection.

Warning Make sure that you turn off and unplug your TV before installing devices. Use the following illustration to connect a VCR.

To play the VCR:

1 Turn on your TV.
2 Press the INPUT button one or more times to select Composite1 (or S-Video if you connected the VCR to the S0-Video Jack).
3 Turn on your VCR.
4 Insert a videotape, then press the PLAY button.

Connecting a VCR (for recording)

Make sure that you turn off and unplug your TV before installing devices.

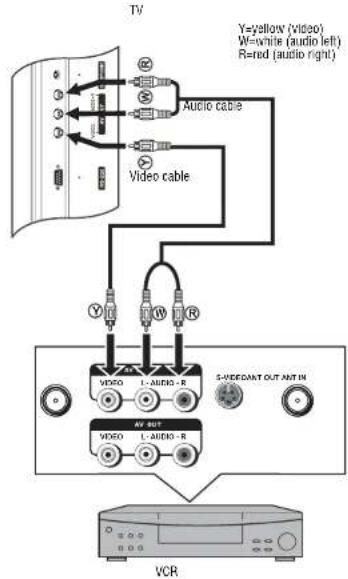

Use the following illustration to connect a VCR for recording TV programs.

Warning

To record a program:

1 Turn on your TV.
2 Select a program you want to record.
3 Turn on the VCR.
4 Insert a videotape, then press the record button on the VCR.

Connecting an amplifier

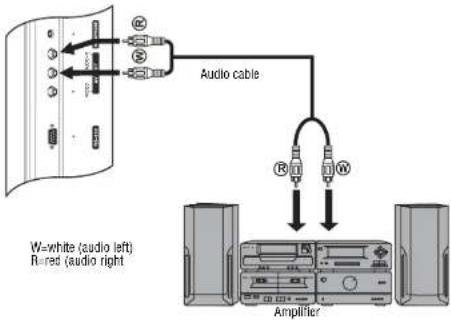

Use the following illustration to connect an external amplifier.

TV

Warning

Connecting a camcorder

Make sure that you turn off and unplug your TV before installing devices.

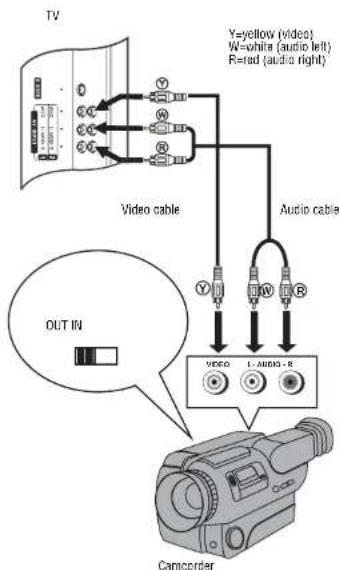

Use the following illustration to connect a camcorder to your TV.

To connect a camcorder:

1 Plug the audio/video cable into the AUDIO L, AUDIO R, and VIDEO jacks ont the back of your TV.
2 Plug the other end of the audio/video cable into the audio and video out jacks on the camcorder.

To playback from the camcorder:

1 Turn on your TV.
2 Press the INPUT button one or more times to select Composite2.
3 Turn on the camcorder, then set it to output mode. See your camcorder documentation for more information.
4 Insert a tape into the camcorder, then press the Play button.

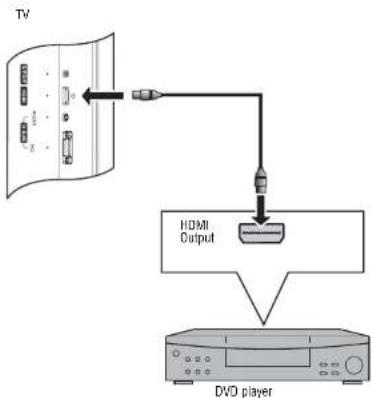

Connecting a DVD player

Warning

Make sure that you turn off and unplug your TV before installing devices.

Use the following illustration to connect a DVD player to your TV.

To connect a DVD player:

• Plug the HDMI cable into the HDMI jack on the back of your TV and to the HDMI out jack on the back of the DVD player.

Note

If the DVD player has DVI output only, use a DVI to HDMI adapter cable (not supplied) to connect the DVD player to the HDMI jack on the back of your TV. Then connect the audio cable to the D-SUB AUDIO IN jack on the back of your TV.

To play a DVD:

1 Turn on your TV.
2.2 Press the INPUT button one or more times to select HDMI.
3 Turn on the DVD player.
4 Insert a DVD, then press the Play button.

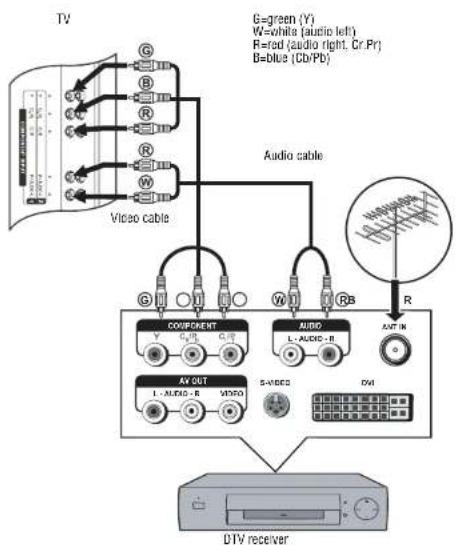

Connecting a DTV receiver

Warning

Make sure that you turn off and unplug your TV before installing devices.

To watch your DTV:

1 Turn on your TV.
2 Press the INPUT button one or more times to select Component1.
3 Turn on your DTV receiver.

Connecting a computer

Warning

Make sure that you turn off and unplug your TV before installing devices.

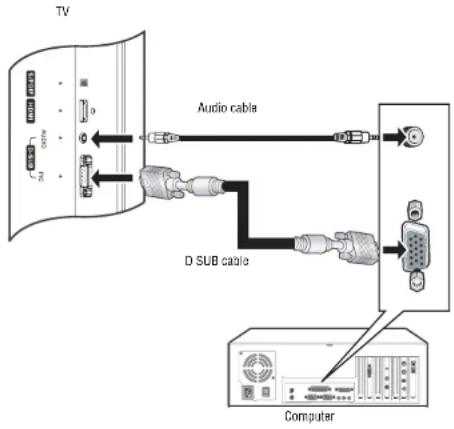

Use the following illustration to connect a computer to your TV.

To watch TV on your computer monitor:

1 Turn on your TV.
2 Press the INPUT button one or more times to select VGA.
3 Turn on your computer, then set up your computer for external VGA input. See your computer documentation for more information.

Using your TV

Turning your TV on and off

To turn on your TV:

1 Make sure that the power cord is connected to your TV and an electrical outlet.
2 Press the button to turn on your TV.
3 Press the button again to turn off your TV.

Selecting the TV source

To select the TV source:
1 Press the MENU button.
2 Press the or button one or more times to highlight Setup, then press the OK or button to open the Setup menu.
3 Press the button one or more times to highlight Tuning Band, then press the OK or > button to access the tuning band options.

4 Select Air for an outside antenna. Select Cable, Cable HRC, Cable IRC, or Cable Auto for cable TV. We recommend that you select Cable Auto for cable TV. For more information about cable TV selections, contact your cable TV provider.
5 Press the EXIT button to close the on-screen menu system.

Setting up the channel list

After you select your TV source (antenna or cable), you need to set up the channel list. When you set up your channel list, your TV searches for all available channels in your area and stores a list of the channels. When your press the CH-or ^+ button, your TV skips the channels that do not have a signal.

Automatically setting up channels

To automatically set up the channel list:

1 Press the MENU button.
2 Press the button one or more times to highlight Setup, then press the OK or button to open the Setup menu.
3 Press the or button one or more times to highlight Auto Ch Search.
4 Press the OK or button to start the search.

Note

You can press the Exit button to stop the search.

Manually adding or deleting channels from the channel list

After you create a channel list using the Auto Ch Search option, you can manually add or delete channels from the channel list.

To add or delete channels:

1 Press the MENU button.
2 Press the button one or more times to highlight Setup, then press the OK or button to open the Setup menu.
3 Press the button one or more times to highlight Manual Ch Set, then press the OK or button to access the Manual Ch Set options.
4 Press the button to select a channel, then press the OK button to add or delete a channel.
5 Press the EXIT button to close the menu.

Changing channels

To change channels:

• Press the CH - or + button on the remote control to go to the next lower or higher channel.

Or

Press the number buttons to select a channel. For example, if you want channel 83, press 8, then press 3.

Or, press the button to go to the last viewed channel.

INSIGNIA

Insignia NS-LCD27FS 27" LCD TV

Selecting a digital sub-channel

Most digital TV channels have more than one channel. The main channel carries the signal for the main TV program. The sub-channels carry signals for additional or alternate programming, such as a radio or news broadcast.

For example, if the main channel number is 8, the sub-channel number might be 8-1, 8-2, and 8-3.

To select a sub-channel:

1 Press the number buttons for the main channel, for example 8.
2 Press the - button, the press the sub-channel button, for example 1.

Adjusting the volume

To adjust the volume:

• Press the VOL - or + button to decrease or increase the volume.
• Press the MUTE button to turn off the sound. Press the MUTE button again to turn the sound back on.

Displaying status information

To display status information:

• Press the INFO button. Your TV displays status information, such as the channel number or signal source.

Selecting the video input source

To select the video input source:

• Press the INPUT button one or more times to select the video source. You can select:

TV-TV signal
- Composite1-AV INPUT1 jacks
- Composite2-AV INPUT2 jacks
- Component1-COMPONENT INPUT1 - jacks

• Component2-COMPONENT INPUT2
  • jacks

VGA-D-SUB jack (computer)
HDMI-HDMI jack
S-Video-S-Video jack

Checking the DTV signal strength

To check the DTV signal strength:

1 Press the MENU button.
2 Press the button one or more times to highlight Setup, the press the OK or button to open the Setup menu.
3 Press the button one or more times to highlight DTV Signal, then press the OK or button. Your TV shows the DTV signal strength.

Adding a channel label

To add a label to a channel:

1 Press the MENU button.
2 Press the button one or more times to highlight Setup, then press the OK or button to open the Setup menu.

3 Press the button one or more times to highlight Channel Labels, then press the OK or button to open the Channel Labels Menu.
4 Press the button to move the highlight or cursor. Press the button to toggle between NTSC or ATSC or to select a channel number or character.
5 Press the OK button to return to the previous menu or press the EXIT button to close the menu system.

Freezing the picture

You can freeze (still) the screen image.

Warning

^a Protect your TV,do not freeze the screen image for long periods of time.

To freeze or unfreeze the picture:

• Press the FREEZE button.

Setting the clock

You can automatically set the clock from a digital channel signal. Your TV searches for a digital channel that has time information encoded. If the clock is not correct after you automatically set it, you can manually set the clock.

Automatically setting the clock

To automatically set the clock:

1 Press the MENU button
2 Press the button one or more times to highlight Feature, then press the OK or button to open the Feature menu.
3 Press the button one or more times to highlight Time Set, then press the OK or button to open the Time Set menu.
4 Press the button one or more times to highlight Time Set Mode, then press the OK or button to select Auto.
5 Press the button one or more times to highlight Time Zone, then press the OK or button to select a time zone: Pacific, Alaska, Hawaii, Eastern, Central, or Mountain.
6 Press the EXIT button to close the on-screen menu system.

Manually setting the clock

To manually set the clock:

1 Press the MENU button.
2 Press the button one or more times to highlight Feature, then press the OK or button to open the Feature menu.
3 Press the button one or more times to highlight Time Set, then press the OK or button to open the Time Set menu.
4 Press the button one or more times to highlight Time Set Mode, then press the OK or button to select Manual.
5 Press the or button to select Year, Date, or Time, then press the OK, , or button to set the year, date, or time.
6 Press the EXIT button to close the on-screen menu system.

Setting the sleep timer

The sleep timer lets you select the amount of time before your TV turns off automatically.

To set the sleep timer:

1 Press the MENU button.
2 Press the button one or more times to highlight Feature, then press the OK or button to open the Feature menu.
3 Press the button one or more times to highlight Sleep Timer, then press OK or button to select the amount of time. To turn off the timer, select Off.

Note

You can also press the SLEEP button to set the sleep timer.

Viewing closed captions

You can view closed captions in two modes: CAPTION and TEXT. Each mode has four channels. CAPTION mode shows dialogue and commentaries for TV programs while providing a clear picture of the program. TEXT mode shows information not related to the program, such as TV program schedules and weather forecasts. In TEXT mode, part of picture may be covered by the text.

Note

For digital broadcast systems, you can press the CCD button on the remote control to select the closed caption mode.

To view closed captions:

• Press the CCD button one or more times to select a closed caption mode. You can select:

CC1
CC2
CC3
CC4

• TEXT 1

T E X T 2
T
T
·Off

Setting parental controls

Your TV has a V-chip that lets you control the type of programs your children can watch. Parental controls include two ratings: MPAA (based on age) and TV Parental Guidelines (based on content and age). A TV program may have an MPAA or TV Parental Guidelines rating, so you should set controls for both ratings. Before you can select ratings, you need to set up a parental controls password.

To set up a password:

1 Press the MENU button.
2 Press the button one or more times to highlight Feature, then press the OK or button to open the Feature menu.
3 Press the button one or more times to highlight Parental Control, then press the OK or button to open the Parental Control menu.

4 Press the button one or more times to highlight Password Change, the press the OK or button to access the Password Change option.
5 Press the number buttons to enter the old password. If you have not set a password, enter 0000.
6 Press the number buttons to enter a new password, then enter the new password again to confirm.

Caution

Write down your password and save it for future use.

Note

If you forget your password, enter 1397 for the old password, then enter a new password.

MPAA ratings

Rating Description
NONE Not rated.
G General audiences.
PG Parental guidance suggested. Some material may not be suitable for children.
PG-13 Parental guidance strongly suggested. Some material may not be suitable for children under 13 years of age
R -Restricted. Not suitable for children under 17 years of age unless accompanied by a parent or guardian.
NC-17 Not suitable for children under 17 years of age.
X	A d u

TV Parental Guidelines ratings

Rating Description
NONE Not rated.
TV-Y All children.
TV-Y7 Children over seven years of age.
TV-G	General audiences.
TV-PG	Parental guidance suggested.
TV-14 Parents strongly cautioned.
TV-MA	Mature audiences only

Some of the age based TV Parental Guidelines ratings also have content based ratings.

Rating Description
FV	Fantasy violence.
L	Adult language.
S	Sexual situations
V	Violence.
D Sexually suggestive dialog.

INSIGNIA

To set the ratings:

1 Press the MENU button.
2 Press the button one or more times to highlight Feature, then press the OK or button to open the Feature menu.
3 Press the button one or more times to highlight Parental Control, then press the OK or button to open the Parental Control menu.
4 Press the button one or more times to highlight Parental Control Set, then press the OK or button to access the rating feature.
5 Enter the password.
6 Press the button to select a rating, then press the OK button to block or unblock the rating. When you block a rating, that rating and all higher ratings are blocked.

Using the on-screen menu system

Your TV has an on-screen menu system that lets you adjust TV settings, such as video and audio settings.

To use the on-screen menu system:

1 Press the MENU button.
2 Press the button one or more times to select a menu.
3 Press the button to navigate to an option or adjust an option.
4 Press the OK or button to confirm an adjustment, open a sub-menu, or toggle a setting.
5 Press the MENU button to return to a previous menu or press the EXIT button to close the on-screen menu system.

On-screen menus

On-screen menu	Options
Video Note: Options may vary in different modes.	Picture Mode-Selects the picture mode: User, Nature, Soft, or Bright. You can also press the PICTURE button to select the picture mode. Contrast-Increases the picture level to adjust the white areas of the picture. Decreases the picture level to adjust the black areas of the picture. Brightness-Increases the brightness to add more light to dark areas of the picture. Decreases the brightness to add more dark to light areas of the picture. Color-Adjusts the overall color of the picture. Sharpness-Increases the sharpness level to show cleaner and clearer images. Decreases the level to show a smoother picture. Aspect Ratio-Selects the screen aspect ratio: Wide, Cinema, Normal, or Zoom. You can also press the ZOOM button to select the aspect ratio. Advanced Video Menu-Provides access to advanced features: • Noise Reduction-Reduces picture noise (snow). • Tint-Increases the color level to add more green to skin tones. Decreases the color level to add more purple to skin tones. • Color Temperature-Selects one of three automatic color adjustments: Cool for more blue, Warm for more red, and Normal. • 3D Y/C-Turns the 3D comb filter on or off. VGA Set/Component Sel-If your TV is connected to a computer or to component video, adjusts the following options: • H-Pos-Adjusts the horizontal position of the image. • V-Pos-Adjusts the vertical position of the image. • Clock-Adjusts the sample frequency. • Phase-Improves the focus of a stable image. • Setting-Resetsv VGA mode to the factory defaults.
Audio Note: Options may vary in different modes.	Sound Mode-Selects the sound mode: User, News, Music, or Movie. You can also press the AUDIO button to select the sound mode. Bass-Adjusts the low sounds (bass). Treble-Adjusts the high sounds (treble). Balance-Adjusts the right and left speaker volumes. Earphone Vol-Adjust the earphone volume. Digital Audio Output-Selects the audio mode for the S/PDIF jack. • RAW: AC-3 in and AC-3 out. PCM in PCM out. • PCM: AC-3 In PCM out. PCM In PCM out. MTS-Selects the multi-channel TV sound (MTS): Mono, Stereo, or SAP (second audio program). You can also press the MTS/SAP button to select the MTS mode. Audio Language-Selects an alternate language if the program has more than one language.
Setup Tuning Band	-Selects the TV signal source. For more information, see "Selecting the TV source" on page 13. DTV Signal-Displays the digital TV signal strength. For more information, see "Checking the DTV signal strength" on page 14. Auto Ch Search-Automatically sets up a list of the channels available in your area. For more information, see "Automatically setting up channels" on page 13. Manual Ch Set-Lets add or delete channels from the channel list. For more information, see "Manually adding or deleting channels from the channel list" on page 13. Channel Labels-Lets you add a label to a channel. For more information, see "Adding a channel label" on page 14.
Feature Source-Selects the video source. You can select: • TV • Composite 1 • Composite 2 • Component1 • Component2 • VGA • HDM • S-VIDe o You can also press the INPUT button to select the video source. Time Set-Sets the clock. For more information, see "Setting the clock" on page 14. Sleep Timer-Sets the sleep timer. For more information, see "Settling the sleep timer" on page 15. Parental Control-Access V-chip controls. For more information, see "Settling parental controls" on page 15. Closed Caption Options-Customizes closed captions for digital broadcasting systems. You can adjust Size, Font, Text Color, Text Opacity, Background Color, Background Opacity, Edge Effect, and Edge Color. CC when Mute-When this option is turned on, your TV automatically displays closed captions when the volume is muted. Menu Language-Select the language for the on-screen menu system. You can select English, French, or Spanish.

Programming the remote control

Programming a device connected to your TV

The remote control can control four devices, such as a VCR, DVD player, cable or satellite receiver, amplifier or tuner, or similar device.

To program the remote control:

1 Find the code for the device you want to program. See "Appendix" on page 19. If there is more than one code listed for a device, write down all the codes.
2 Turn on the device you want to program, and load media if required, for example a DVD.
3 Press a device key on the remote control, for example, DVD, CBL, or AUX.

4 Press and hold the SET button on the remote control until the LED blinks twice, then release the button.
5 Enter the first five-digit code for your device. The LED blinks once as each digit is entered. If the code is correct, the LED blinks twice.

Note

If the LED does not blink twice, repeat steps 3 through 5 using a different code.

6 Aim the remote at the device, then press the button. The device should turn off.

Note

If the device does not turn off, repeat steps 4 through 6 using a different code. If you cannot find a code that works, see "Searching for a code" on page 17.

7 Repeat steps 1 through 6 to program additional devices.
8 Press the SET button to save the code and exit.

Searching for a code

To search for a code:

1 Press a device key.
2 Press and hold the SET button until the LED blinks twice, the release the button.

3 Enter 991, then the device group number (0=cable, 1=TV, 2=VCR, 3=audio). The LED blinks twice.

4 Aim the remote control at the device, then press the button. If the device responds, go to step 7.
5 If the device does not respond, press the CH+ button. Your remote control will try the next code. Keep pressing the CH+ button until the device responds. You can press the CH- button to try a previous code.
6 To search for a code for another device, repeat steps 1 through 5.
7 Press the SET button to save the code and exit.

Checking the code

If you programmed a device by searching for a code, you may want to know what four-digit code the remote is using.

To check the code:

1 Press the device button on the remote control.
2 Press and hold the SET button until the LED blinks twice, then release the button.
3 Enter 990. The LED blinks twice.
4 Press 1 and count the LED blinks. This is the first digit of the code. For example, if the LED blinks twice, the first digit is 2. If the LED does not blink, the first digit is 0.
5 Repeat step 4 using 2 for the second digit, 3 for the third digit, 4 for the fourth digit, and 5 for the fifth digit.
6 Press the SET button to exit.

INSIGNIA

Programming the volume lock

The remote control comes preset to let you control the volume of each connected device. You can change the volume lock so that one device's volume controls volume in all modes. After you lock the volume control, you can unlock the volume control for a specific device so you can control the volume for that device independently.

To lock the volume control:

1 Press and hold the SET button until the LED blinks twice, then release the button.
2 Enter 993, then press the device button for the device you want to control the volume. The LED blinks twice. When you press the VOL+, VOL-, or MUTE button on the remote control, the device you selected controls the volume regardless of which device you are using.

To unlock the volume control:

1 Press and hold the SET button until the LED blinks twice, then release the button.
2 Enter 993, then press VOL+ button. The LED blinks four times. The volume control is unlocked.

To unlock a single device's volume control: 1 Press the device key.

2 Press and hold the SET button until the LED blinks twice, then release the button.
3 Enter 993, then press VOL- button. The LED blinks four times. The volume control for the device you selected is unlocked.

Troubleshooting the remote control

Symptom Possible solution
LED does not blink when a button is pressed	Replace the batteries.
LED blinks when a button is pressed, but device does not respond	Make sure that you are at less than 15 feet (4.6 meters) from the device and that you point the remote control at the remote sensor on the device.
LED blinks one long blink	You pressed an incorrect button. Start the procedure over again.
Remote control does not control a device or only controls some features of the device	Make sure that the device has a remote sensor, then try another code.
No volume on a device See "Programming the volume lock" on page 18.

Maintaining

• Do not use your TV in areas that are too hot or too cold because the cabinet may warp or the screen may malfunction.

Storage temperatures are 32 to 122^ (0° to 50^ ).
- Working temperatures are 41^ to 104^ ( 5^ to 40^ ).

• Do not place your TV in direct sunlight or near a heat source.

Cleaning your TV

Clean the screen and cabinet with a soft, lint-free cloth. If the screen or cabinet is especially dirty, moisten a soft, lint-free cloth in a weak detergent solution, squeeze the excess moisture from the cloth, then wipe the screen or cabinet with the cloth. Use a clean cloth to dry the screen or cabinet.

Caution

Avoid volatile substances, such as insect sprays, solvents, and thinners.

Do not leave your TV in contact with items made from rubber or PVC for long periods.

They may damage your TV.

Caution

Do not let liquids drip into the cabinet.

Troubleshooting

Warning

Do not try to repair your TV yourself. Refer all service to a qualified service technician.

Symptom Possible solution
No power • Make sure that the power cord is connected to your TV and an electrical outlet. • Unplug the power cord, wait 60 seconds, then plug the cord back in and turn on your TV.
No picture • Make sure that the video cables are connected securely to the back of your TV. • Adjust the contrast and brightness. • Make sure that the correct video mode is selected. • Make sure that the incoming signal is compatible.
Good picture but no sound	• Increase the volume. • Make sure that the sound is not muted. • Make sure that the correct audio mode is selected.
Good sound but poor color	• Adjust the contrast, color, and brightness settings.
Poor picture • Make sure that the room is not too bright. Light reflecting off the screen can make the picture difficult to see. • If an S-VHS camera or a camcorder is connected while another connected device is turned on, the picture may be poor. Turn off one or more devices.
Symptom	Possible solution
Horizontal dotted line • Your TV may be too close to another electrical device, such as a hair dryer or neon light. Turn off the device or move your TV.
Remote control does not work	• Press the TV button. • Replace the batteries. Make sure that the + and - symbols on the batteries align with the + and - symbols in the battery compartment. • Clean the remote sensor on the front of your TV. • Bright or fluorescent lighting may interfere with the remote control signal. Turn off the light or move your TV.
Snowy picture or noise • Make sure that the A/V cables are connected correctly and securely.
VGA picture is not stable or synchronized	• Make sure that you have selected the correct VGA mode on your computer.
No output from one of the speakers	• Adjust the balance in the Sound menu.
Control buttons do not work	• Unplug the power cord, wait few seconds, then plug the cord back in and turn on your TV.
Some parts of the screen do not light up	• The plasma screen is manufactured using a high level of precision technology. Sometimes parts of the screen may be missing picture elements or have luminous spots. This is not a malfunction.
After images appear • Do not display a still image, such as a logo, game, computer image, for an extended period of time. This can cause a permanent after image to be burned into the screen. This type of damage is not covered by your warranty.
TV makes snapping sounds	• Snapping sounds occur when your TV's cabinet expands or contracts from variation in temperature. This is not a malfunction.

Specifications

• Design and specifications are subject to
  change without notice.
  Weight and dimensions listed are

Oximate.

Power supply AC 100-240 V 50/60 Hz
Power consumption	140 W
Screen 27-inch
Channel coverage VHF: 2-13
	UHF: 14-69
	CATV: 1-125
	CADTV: 1-135
	DTV: 2-69
Weight 41.9 lbs. (19 kg)
Dimensions	2.7, 5.6 × 22.91 × 9.06 inches
W × H × D	(70.0 × 58.2 × 23.0 cm)

Temperature	Storage temperatures are 32° to 122°F (0° to 50°C). Working temperatures are 41° to 104°F (5° to 40°C).
TV system	NTSC-M, ATSC
Accessories	User guideRemote control

Appendix

VCR codes

ABS	21972
Admiral	20048, 20209
Aiko	20278
Alwa	20037, 20479
Alienware 21972
America Action	20278
American High	20035
Amoisonic	20479
Anam	20162, 20037, 20240, 20278
Anam National	20162
Asha	20240
Audiovox	20037, 20278
Beaumark	20240
Bell & Howell	20104
Broksonic	20184, 20121, 20209, 20002,20479
Calix	20037
Canon	20035
Carver	20081
CCE	20072, 20278
Changhong	20048, 20081
Citizen	20037, 20278
Colt	20072
Craig	20037, 20047, 20240, 20072
Curtis Mathes	20060, 20035, 20162
Cybernex	20240
CyberPower	21972
Daewoo	20045, 20104, 20278
Dell	21972
Denon	20042
DirecTV	20739
Durabrand	20039, 20038
Electrohome	20037
Electrophonic	20037
Emerex	20032
Emerson	20035, 20037, 20184, 20240,20045, 20121, 20043, 20209, 20002, 20278, 20479
Fisher	20047, 20104
Fuji	20035, 20033
Fujitsu	20045
Gateway	21972
GE	20060, 20035, 20240
General	20045
Go Video 20432
GoldStar 20037, 20209, 20038, 20225
Haojie 20240
Harman/Kardon 20081, 20038
Harwood 20072
Hewlett Packard 21972
HI-Q 20047
Hitachi 20037, 20042, 20055
Howard Computers	21972
HP 21972
Hughes Network Systems	20042, 20739
iBUYPOWER 21972
JVC 20045, 20067
KEC 20037, 20278
Kenwood 20067, 20038
KLH 20072
Kodak 20035, 20037
Kolin 20043 LG 20037, 20045, 20042, 20209,20038
Loglk	20072
LXI	20037
Magnavox	20035, 20039, 20081
Magnin	20240
Marantz	20035, 20081
Marta	20037
Matsushita	20035, 20162
Media Center PC	21972
MEI	20035
Memorex 20035, 20162, 20037, 20048,20039, 20047, 20240, 20104, 20209, 20479
MGA 20240, 20043
MGN Technology	20240
Microsoft	21972
Mind 21972
Minolta	20042
Mitsubishi	20067, 20043
Motorola 20035, 20048
MTC 20240
Multitech	20072
NEC 20035, 20037, 20048, 20104,20067, 20038
Newave	20037
Nikko	20037
Noblex	20240
Northgate	21972
Olympus	20035
Optimus	21062, 20162, 20037, 20048,20104, 20432
Orion	20184, 20209, 20002, 20479
Panasonic	21062, 20035, 20162, 20616,20225
Penney	20035, 20037, 20240, 20042,20038
Pentax	20042

Philco 20035, 20479
Phillips	20035, 20081, 20739, 20618
Pilot 20037
Pioneer	20042, 20067
Polk Audio	20081
Profitronic	20240
Proscan	20060
Protec	20072
Pulsar	20039
Qisheng	20060
Quasar	20035, 20162
Radix	20037
Randex	20037
RCA	20060, 20035, 20240, 20042,20880
Realistic	20035, 20037, 20048, 20047,20104
ReplayTV 20616
Runco	20039
Sampo	20037, 20048
Samsung	20240, 20045, 20432
Sanky	20048, 20039
Sansui	20067, 20209, 20479
Sanyo 20047, 20240, 20104
Scott	20184, 20045, 20121, 20043
Sears	20035, 20037, 20047, 20042,20104
Sharp	20048, 20209
Shintom	20072
Shogun	20240
Singer	20072
Sonic Blue	20616
Sony 20035, 20032, 20033, 20636,21972
STS 20042
Sylvania	20035, 20081, 20043
Systemax	21972
Tagar Systems	21972
Tashiko	20037
Tatung	20045, 20067
Technics 20035, 20162
Teco 20035, 20037, 20048, 20038
Teknika	20035, 20037
Tivo 20636, 20618,	21503, 20739
TMK	20240
Toshiba	20045, 20042, 20067, 20043,21503, 21008, 21972
Tatevision	20037, 20240
Touch	21972
Unitech	20240
Vector	20045
Vector Research	20038
Victor	20067
Video Concepts	20045
Videomagic	20037
Videosonic	20240

Digital video disc codes

Viewsonic 21972
Wards 20060, 20035, 20048, 20047,20081, 20240, 20042, 20072
White	20209, 20072
Westinghouse
XR-1000 20035, 20072
Yamaha 20038
Zenith 20039, 20033, 20209, 20479
ZT Group 21972

Aiwa 20641, 21912
Akai 20770
Allegro 20869
Apex Digital 20672, 20717, 20797, 21061,20796, 21056, 21937, 20794, 21020, 21915
Blapunkt 20717
Blue Parade 20571
Broksonic 20695
Changhong 20627, 21061
CineVision 20869
Coby 21086
Curtis Mathes	21087
CyberHome	21024, 21023, 21129, 20816, 21117
Daewoo	20833, 21172, 20869
Denon 20490
DVD2000	20521
Emerson 20591, 20675
Enterprise 20591
Fisher	21919
Funai	20675
Gateway	21158, 21073
GE	20522, 20717
Go Video	20744, 20833, 21099, 20783,21075, 20869, 21730
Greenhill	20717
Harman/Kardon	20582, 20702
Hitachi	20573, 20664, 21919
Hiteker 20672
Initial	20717
Integra 20627, 21924
JBL	20702
JVC	20558, 20623, 20867
Kenwood 20490, 20534
KLH 20717, 21020, 21149
Koss 20651, 21980
Lasonic	20798
LG	20591, 20869, 20801
Liquid Video	21980
Lite-On	21158, 21058
Loewe 20511
Magnavox	20503, 20539, 21976, 21914, 20675
Marantz	20539

Memorex 20695
Microsoft	20522
Mintek	20717
Mitsubishi	21521, 20521
Nesa	20717
Norcent 21003
Onkyo	20503, 20627, 21924, 20792
Oritron 20651, 21980
Panasonic	20490, 21762, 21990
Philips	20503, 20539, 20646, 21914
Pioneer	20525, 20571
Polaroid	21086, 21061
Polk Audio	20539
Portland	20770
Proscan	20522
Qwestar	20651
RCA	20522, 20571, 20717, 20822
Rio	20869
Rotel	20623
Sampo 20752, 20698
Samsung 20490, 20573, 21932, 21075, 20820
Sansui	20695
Sanyo	20695
Sharp	20630, 20752
Sharper Image	21117
Sherwood 20770
Shinco	20717
Shinsonic 20533
Sonic Blue	20869, 21099
Sony 20533, 20864, 21033, 21904, 21903
SVA 20717
Sylvania	20675
Symphonic	20675
Teac	20717, 21984, 20809
Technics	20490
Theta Digital	20571
Toshiba	20503, 20695
Urban Concepts	20503
Xbox 20522
Yamaha 20490, 20539, 20545
Zenith	20503, 20591, 20869

Cable converter codes

ABC 000003, 000008, 00014
Americast 00899
Bell & Howell 00014
Bell South 00899
Clearmaster 00883
ClearMax 00883
Coolmax 00883
Daeryung 01877, 00877, 00477, 00008
Digi 00637
Director 00476
Dumont 00637
Gehua 00476
General Instrument	00476, 00810, 00276, 00003,00014
GoldStar 00144
Hamlin 00009, 00273
Hitachi 00014
Jerrold	00476, 00810, 00276, 00003,00012, 00014
KNC 00008
LG	00144
Memorex	00000
Motorola	00476, 00810, 00276, 01254,01376
MultiVision	00012
Pace	01877, 00237
Panasonic	00000, 00008, 00107
Panther	00637
Paragon	00000
Phillips 00317, 01305
Pioneer	01877, 00877, 00144, 00533
Pulsar 00000
Quasar 00000
RadioShack	00883
Regal	00279, 00273
Runco	00000
Samsung	00000, 00144
Scientific Atlanta	01877, 00877, 00477, 00008
Sony	01006
Starcom	00003, 00014
Supercable	00276
Supermax 00883
Tocom	00012
Torx 00003
Toshiba	00000
Trans PX	00276
Tristar	00883
TS	00003
V2	00883
Viewmaster	00883

Vision	00883
Vortex View 00883
Zenith	00000, 00525, 00899

Legal notices

FCC statement

Radio-TV interference

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1 Reorient or relocate the receiving antenna.
2 Increase the separation between the equipment and receiver.
3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4 Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the owner's manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

Copyright

© 2006 Insignia. Insignia and the Insignia logo are trademarks of Best Buy Enterprise Services, Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. Specifications and features are subject to change without notice or obligation.

Commande Description

Configuration Tuning

•	T	E	X	T	1
•	T	E	X	T	2
•	T	E	X	T	3
•	T	E	X	T	4

• Off (Desactivado)

Distributed by Insignia™ Products

7601 Penn Avenue South,

Richfield, MN USA 55423-3645

www.Insignia-Products.com

© 2005 Insignia™ Products

All rights reserved. All other products and brand names are trademarks of their respective owners.
