USER MANUAL NSLCD32FS INSIGNIA

Insignia NS-LCD32FS 32” LCD TV

Contents

Safety information 3

Features. 5

Setting up your TV 7

Using your TV 12

Programming the remote control 18

Maintaining. 19

Troubleshooting 19

Specifications. 20

Appendix 20

Legal notices 25

Warranty. 27

Francais. 29

Espanol 81

Safety information

Warning

To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified service personnel.

To reduce the risk of fire or electric shock, do not expose your TV to rain or moisture.

Caution

To prevent electric shock, match the wide blade on the power cord plug to the wide slot on an electric outlet. If the plug does not fit, consult a licensed electrician to replace the obsolete outlet. Do not modify the power cord plug, or you will defeat this safety feature.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your TV. This label is located on the back of your TV.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your TV.

Warning

Your TV contains tin-lead solder and a fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated for environmental reasons. For disposal or recycling information, contact your local authorities or the Electronic Industries Alliance at www.eia.org.

Read instructions

Read all of the safety and operating instructions before you use your TV.

Retain instructions

Retain safety and operating instructions for future reference.

Follow warnings and instructions

Follow all warnings on your TV and in the operating instructions. Follow all operating and use instructions.

Water and moisture

Do not use your TV near water. For example, do not use it near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

Cleaning

Unplug your TV before cleaning. Do not use liquid or aerosol cleaners. Use only a damp cloth to clean the exterior of your TV.

Ventilation

Slots and openings in the cabinet and the back or bottom are provided for ventilation, reliable operation, and protection from overheating. These openings must not be blocked or covered. Do not block the openings by placing your TV on a bed, sofa, rug, or other similar surface. Do not place your TV near or over a radiator or heat register. Do not place your TV in a built-in installation, such as a bookcase or rack, unless you provide correct ventilation or follow the manufacturer's instructions.

Heat

Make sure that your TV is located away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Grounding or polarization

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a grounding prong. The wide blade or grounding prong are provided for your safety. If the plug does not fit, contact an electrician to replace the obsolete outlet.

Power cord protection

Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from your TV.

Attachments

Do not use attachments not recommended by Insignia because they may cause hazards.

Stand

Do not place your TV on an unstable cart, stand, tripod, bracket, or table. Your TV may fall, causing serious personal injury and serious damage to your TV. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with your TV. If you mount your TV to the wall, follow the manufacturer's instructions and use a mounting accessory recommended by the manufacturer. Your TV and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause your TV and cart combination to overturn.

Lightning

For added protection for your TV's receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect the antenna or cable system. This helps prevent damage to your TV from lightning and power line surges.

Servicing

Do not attempt to service your TV yourself because opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Replacement parts

When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

Overloading

Do not overload power outlets and extension cords because this can result in a risk of fire or electric shock.

Object and liquid entry

Never push objects of any kind into your TV through openings because objects may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on your TV.

Damage requiring service

Unplug this TV from the power outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged or frayed.
  If liquid has been spilled or objects have fallen into your TV.
  If your TV has been exposed to rain or water.
• If your TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions because incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore your TV to its normal operation.
  If your TV has been dropped or damaged in any way.
• When your TV exhibits a distinct change in performance.

Replacement parts

When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

Safety check

After completing any service or repair to this TV, ask the service technician to perform routine safety checks to determine that your TV is in correct operating condition.

Power source

Operate your TV only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your TV dealer or local power company.

Screen protection

Your TV's screen is made of glass. Do not drop your TV or hit the glass screen. If the screen breaks, be careful of broken glass.

Pixel defect

Your TV's screen is designed to display finely detailed pictures. Occasionally, a few non-active pixels may appear on the screen as fixed points of blue, green, or red. This is not a defect and does not affect your TV's performance.

Outdoor antenna grounding

If an outside antenna or cable system is connected to your TV, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

1 Electric service equipment
2 Power service grounding electrode system
3 Ground clamps
4 Grounding conductors
5 Antenna discharge unit
6 Grounding clamp
7 Antenna lead-in wire

Note to CATV system installer

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for correct grounding and in particular, specifies that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as practical.

Features

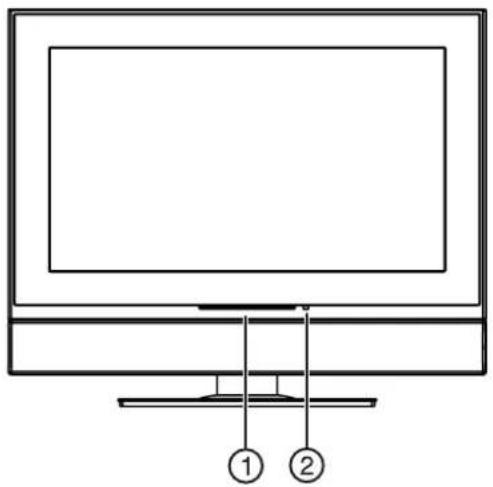

Front

Control Description

1 Power indicator Lights when your TV is turned on.
2 Remote sensor Receives signals from the remote control.

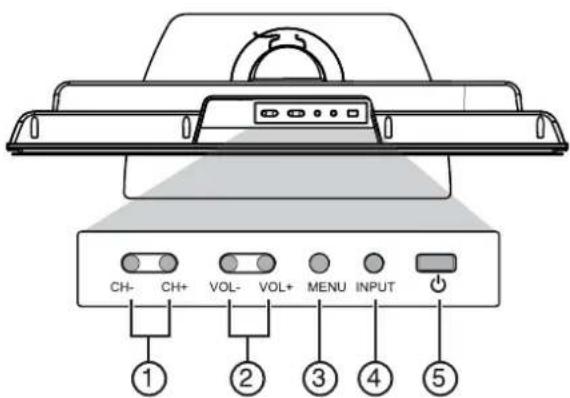

Top

Control Description

1 CH+/CH- Press to change the channel.
	In the on-screen menu, press to select menus and options.
2 VOL+/VOL- Press to increase or decrease the volume.
	In the on-screen menu, press to adjust a setting or change a value.
3 MENU Press to open the on-screen menu.
4 INPUT Press to select the video input.
5 Power Press to turn your TV on or off.

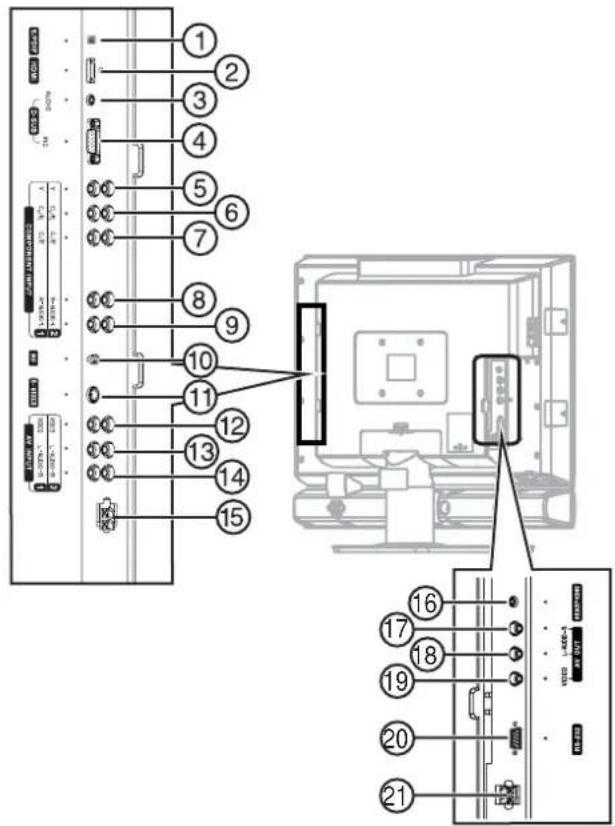

Back

#	J	a	c	k
1	S/PDIF digital audio output (optical)
2	HDMI input
3	D-SUB AUDIO input
4	D-SUB PIC (video) input
5	COMPONENT INPUT Y
6	COMPONENT INPUT Cb/Pb
7	COMPONENT INPUT Cr/Pr
8	COMPONENT INPUT R AUDIO
9	COMPONENT INPUT L AUDIO
10	RF (antenna input)
11	S-VIDEO input
12	AV INPUT VIDEO
13	AV INPUT L AUDIO
14	AV INPUT R AUDIO
15	Right speaker terminal
16	Headphone jack
17	AV OUT R AUDIO
18	AV OUT L AUDIO
19	AV OUT VIDEO
20	RS-232 control interface
21	Left speaker terminal

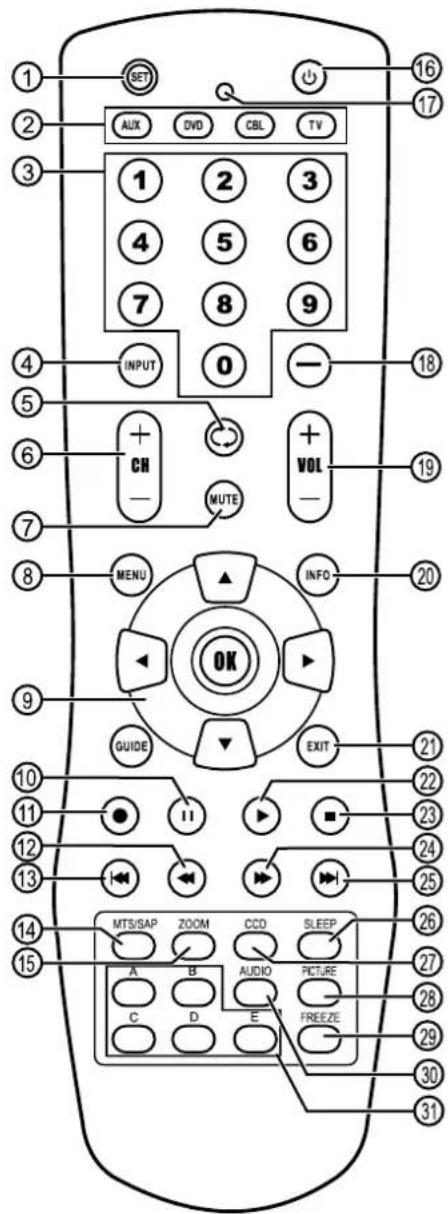

Remote control

Note

For instructions on programming the remote control, see "Programming the remote control" on page 18.

# Button Description
1 SET Press to program	the remote control. For more information, see “Programming the remote control” on page 18.
2 [Device buttons] TV-Press to select the TV.	DVD-Press to select a connected DVD player. CBL-Press to select cable or satellite TV. AUX-Press to select a device assigned to this button.
3 [Number buttons] Press to enter channel numbers.	In the on-screen menu, press to enter your parental control's password.

# Button Description
4 INPUT Press to select the video input.
5 Press to go to last viewed channel.
6 + CH - Press to change TV channels.
7 MUTE Press to mute the sound.
8 MENU Press to open the on-screen menu.
9	OK	Press the arrows to move down, up, left, or right in the on-screen menu. Press the OK button to confirm changes or to toggle options on and off in the on-screen menu.
10	II	Press to pause a video tape or DVD. Press again to resume playback.*
11	●	Press to start recording a video tape or DVD.*
12	←	Press to fast-reverse a DVD or video tape.*
13	←	Press to skip to the previous chapter on a DVD.*
14	MTS/SAP	Press to select one of the preset audio modes. You can select MONO, STEREO, or SAP.
15	ZOOM Press to select the aspect ratio.
16	[Power]	Press to turn on your TV or put it into Standby mode.
17	[LED]	Lights when you are programming the remote control. For more information, see "Programming the remote control" on page 18.
18	-	Press to select a sub-channel. For more information, see "Selecting a digital sub-channel" on page 13.
19	+ VOL-	Press to adjust the volume.
20	INFO	Press to display status information.
21	EXIT	Press to close the on-screen menu.
22		Press to start DVD or CD playback if a DVD or CD player is connected.*
23	■	Press to stop DVD or CD playback if a DVD or CD player is connected.*
24	▶	Press to fast-forward a video tape or DVD.*
25	▶	Press to skip to the next chapter of a DVD.*
26	SLEEP	Press to set the sleep timer. For more information, see "Setting the sleep timer" on page 15.
27	CCD	Press to turn closed captions on and off. For more information, see "Viewing closed captions" on page 15.
28	PICTURE	Press to select the picture mode.
29	FREEZE	Press to freeze the video image. Press again to unfreeze the image. Do not freeze the video image for long periods of time. You may damage the TV screen.

#Button Description
30 AUDIO Press to select the sound mode.
31 A, B, C, D, E These buttons do not have any function for this TV. They may, however, be used with other devices when this remote is used as a universal remote control. The exact function depends on the specific device being controlled.

• For the remote to control your VCR or DVD player, the remote control must be programmed to operate it. For more information, see "Programming the remote control" on page 18.

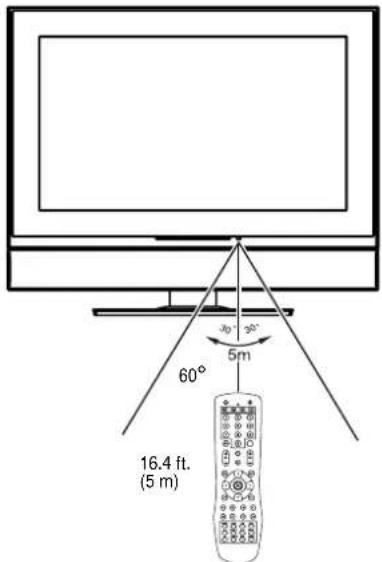

Using the remote control

To use the remote control:

• Point the remote control towards the remote sensor on the front of your TV.

Notes

• Do not expose the remote control to shock or liquids.
• Do not use the remote control in an area with high humidity.
• Do not place the remote control in direct sunlight.
• Do not place objects, such as furniture, between the remote control and the remote sensor.
• The remote control may not work if direct sunlight or bright light shines on the remote sensor. Either move your TV or change the angle at which you use the remote control.

Setting up your TV Installing remote control batteries

To install the remote control batteries:

1 Remove the battery cover.

2 Insert two AA batteries into the battery compartment. Make sure that you match the + and - symbols on the batteries with the + and - symbols in the battery compartment.

3 Replace the cover.

Notes

• Do not mix batteries of different types.
• Do not mix old and new batteries.
• Remove batteries when the charge is depleted.
• Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.
  If the remote control is not going to be used for an extended period of time, remove the batteries.

Connecting your TV to a power outlet

To connect your TV to a power outlet:

• Plug the power cord into a power outlet.

Notes

Make sure that you use the correct type of power. See the label on your TV.
If you do not intend to use your TV for an extended period of time, unplug the power cord from the power outlet.

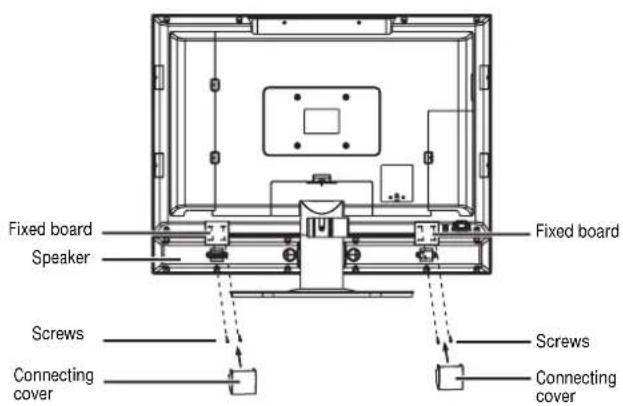

Attaching and connecting the speaker

To attach and connect the speaker to your TV:

1 Unplug the TV power cord and all devices connected to your TV.
2 Attach the speaker and fixed board to the TV with the screws (supplied) and tighten securely.
3 Install the two connecting covers on the fixed boards.
4 Connect the speakers to the speaker jacks on the sides of your TV. Make sure that you connect the speaker audio cables to the speaker output jacks matching the + and - polarity of the speakers by color.

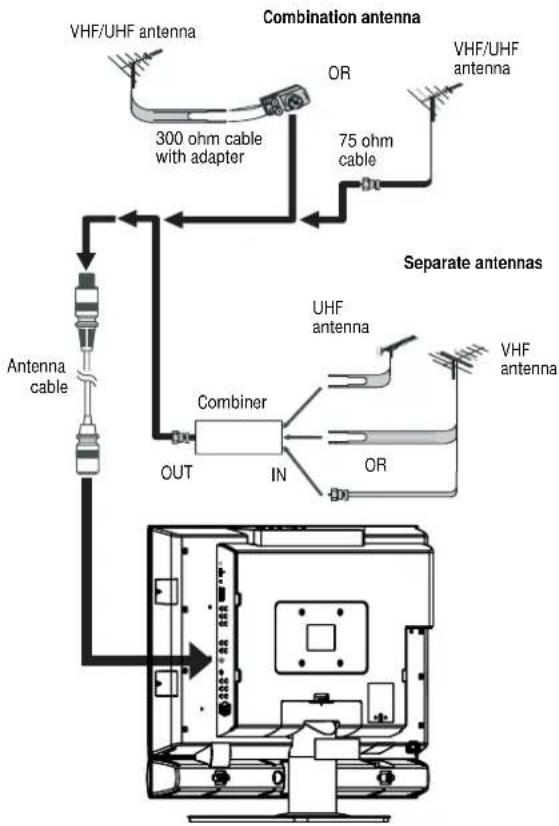

Connecting an outside antenna

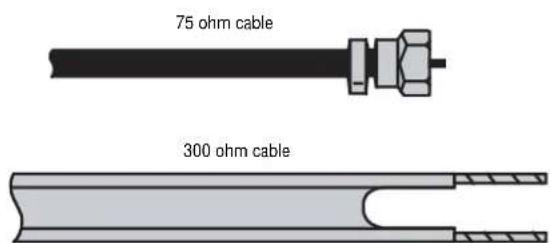

Antenna cables come in two types: 75 ohm and 300 ohm.

If your antenna cable has a 75 ohm connector, connect the cable to the coaxial jack on the back of your TV.
- If your antenna cable has a 300 ohm connector, connect the cable to a 300-75 ohm adapter (not included), connect the adapter to a 75 ohm cable, then connect the other end of the 75 ohm connector to the coaxial jack on the back of your TV.

Use the following illustration to connect an outside antenna:

Connecting cable TV

Your TV has a 75 ohm jack for connecting cable TV.

Some cable TV providers scramble the signals for "premium" (pay) channels. To view these channels, you need a converter/descrambler box.

If you do not have a converter/descrambler box, you can connect your cable TV directly to your TV. If you have a converter/descrambler box, you can connect your cable TV using an RF switch (not supplied). For more information about connecting a converter/descramble box, contact your cable TV provider.

To connect cable TV without a converter/descrambler box:

1 Connect one end of a 75 ohm cable to the coaxial jack on the back of your TV.
2 Connect the other end of the cable to the cable TV wall outlet.

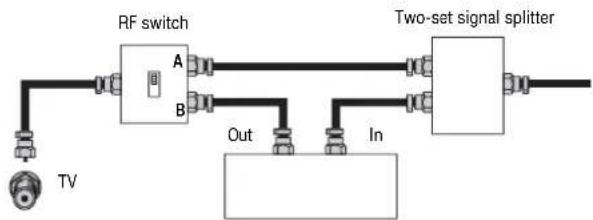

To connect cable TV with a converter/descrambler box:

• Use the following illustration to connect a converter/descrambler box. (The RF switch and the signal splitter are not provided.) Set the RF switch to the A position to watch unscrambled channels using your TV remote control. Set the RF switch to the B position to watch scrambled channels using the converter/descrambler controls.

Cable converter/descrambler box

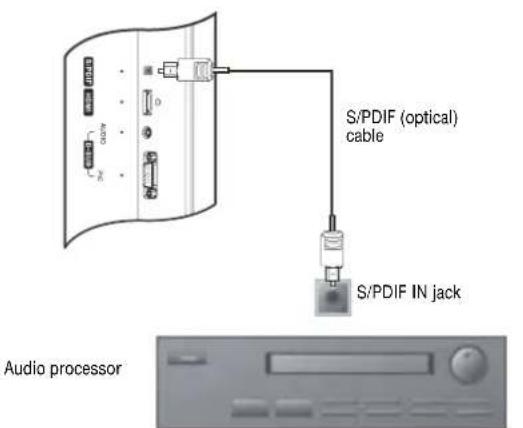

Connecting a sound system

To connect to a sound system:

1 Plug the S/PDIF optical cable into the S/PDIF jack on the back of your TV.
2 Plug the other end of the S/PDIF cable into the S/PDIF in jack on the sound system.

Warning

Make sure that you turn off and unplug your TV before installing devices.

Note

For home theater systems, use an S/PDIF (optical) cable to achieve full sound capabilities.

Stereo system

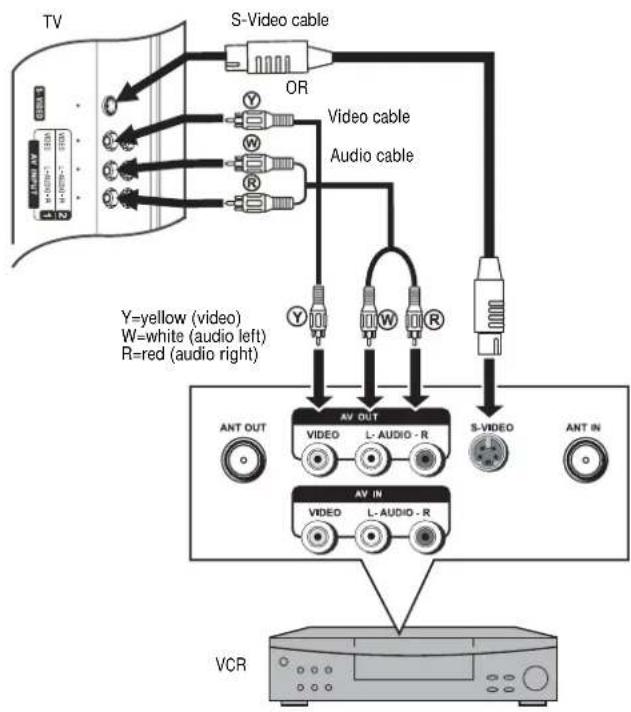

Connecting a VCR

You can connect a VCR with a standard audio/video cable or with a S-Video cable. The S-Video cable does not carry sound. If you use an S-Video cable, you need to use audio cables to connect the audio output.

Warning

Make sure that you turn off and unplug your TV before installing devices.

Note

For better video, use the S-Video jack if your VCR has an S-Video connection.

To connect a VCR and play a videotape:

1 Plug the audio/video cable into the AUDIO L, AUDIO R, and VIDEO in jacks on the back of your TV.
2 Plug the other end of the audio/video cable into the audio and video out jacks on the VCR.

-OR

Plug in the audio cables as described above, then plug one end of an S-Video cable into the S-Video jack on the back of your TV and the other end into the S-Video jack on the VCR.

3 Turn on your TV.
4 Press the INPUT button repeatedly to select Composite1 (or S-Video if you connected the VCR to the S-Video jack).
5 Turn on your VCR.
6 Insert a videotape, then press the PLAY button.

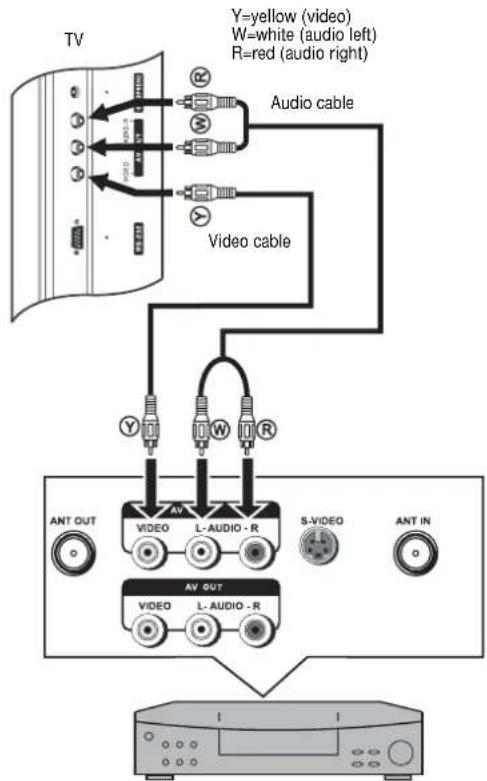

Connecting a VCR (for recording)

Warning

Make sure that you turn off and unplug your TV before installing devices.

To connect and record a program on a VCR:

1 Plug the audio/video cable into the AUDIO L, AUDIO R, and VIDEO jacks on the back of your TV.
2 Plug the other end of the audio/video cable into the audio and video in jacks on the VCR.
3 Turn on your TV.
4 Select a program you want to record.
5 Turn on the VCR.
6 Insert a videotape, then press the record button on the VCR.

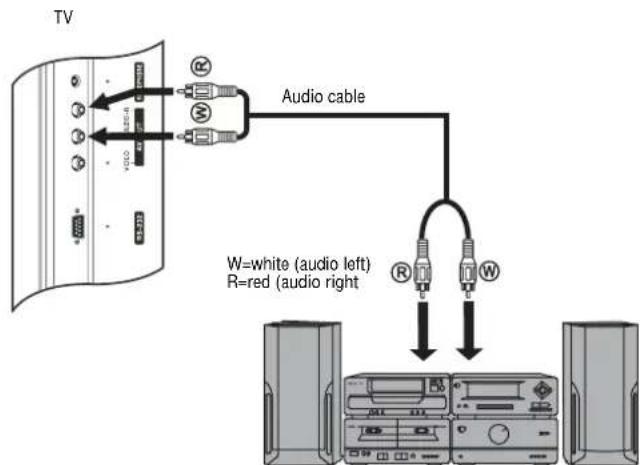

Connecting an amplifier

Warning

Make sure that you turn off and unplug your TV before installing devices.

To connect to an amplifier:

1 Plug the audio cables into the AUDIO L and AUDIO R jacks on the back of your TV.
2 Plug the other end of the audio cables into the audio and video in jacks on the amplifier.

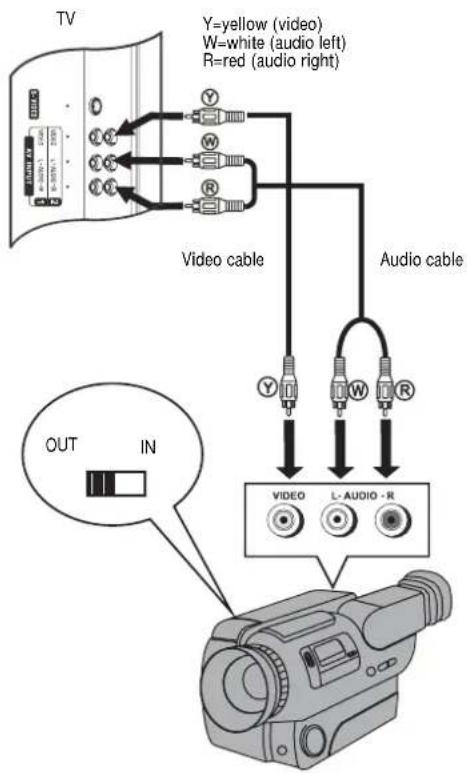

Connecting a camcorder

Warning

Make sure that you turn off and unplug your TV before installing devices.

To connect and play video from a camcorder:

1 Plug the audio/video cable into the AUDIO L, AUDIO R, and VIDEO jacks on the back of your TV.
2 Plug the other end of the audio/video cable into the audio and video out jacks on the camcorder.
3 Turn on your TV.
4 Press the INPUT button repeatedly to select Composite 2.
5 Turn on the camcorder, then set it to output mode. See your camcorder documentation for more information.
6 Insert a tape into the camcorder, then press the Play button on the camcorder.

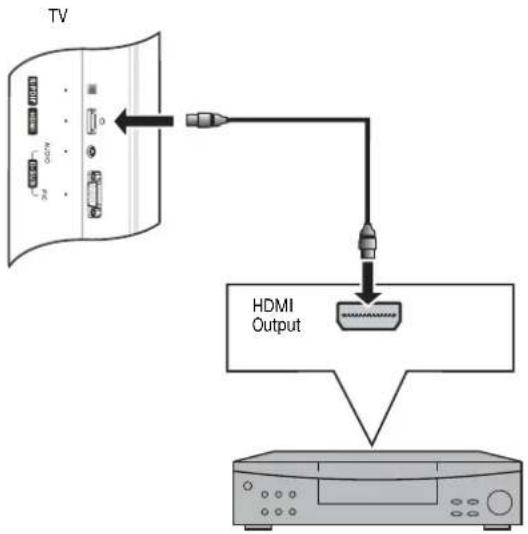

Connecting a DVD player

Warning

Make sure that you turn off and unplug your TV before installing devices.

To connect a DVD player and play a DVD:

1 Plug the HDMI cable into the HDMI jack on the back of your TV and to the HDMI Output jack on the back of the DVD player.
2 Turn on your TV.
3 Press the INPUT button repeatedly to select HDMI.
4 Turn on the DVD player.
5 Insert a DVD, then press the Play button on the DVD player.

Note

If the DVD player has DVI output only, use a DVI-to-HDMI adapter cable (not supplied) to connect the DVD player to the HDMI jack on the back of your TV. Then connect the audio cable to the D-SUB AUDIO IN jack on the back of your TV.

Connecting a DTV receiver

Warning

Make sure that you turn off and unplug your TV before installing devices.

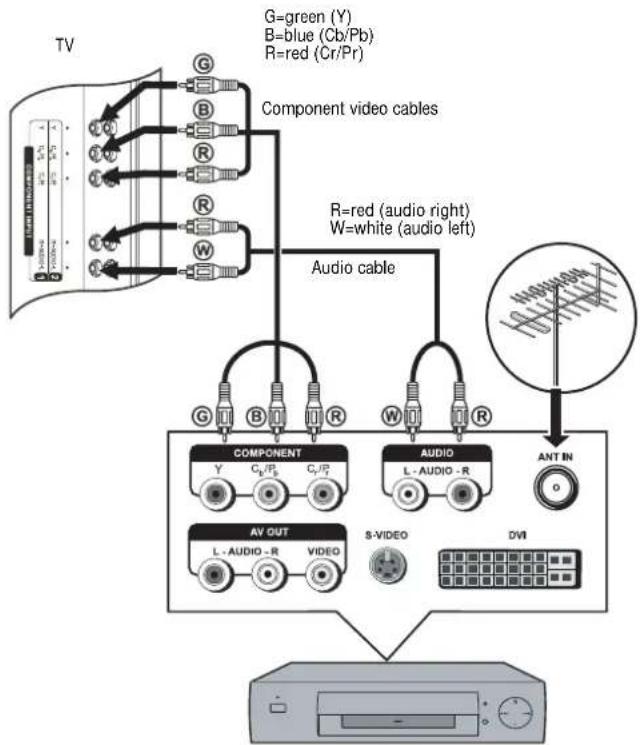

To connect a DTV receiver and watch DTV:

1 Plug the audio cables into the AUDIO L and AUDIO R jacks on the back of your TV.
2 Plug the other end of the audio cables into the audio out jacks on the DTV receiver.
3 Plug the component video cables into the Component in jacks on the back of your TV.
4 Plug the other end of the component video cables into the Component jacks on the DTV receiver.
5 Turn on your TV.
6 Press the INPUT button repeatedly to select Component1.
7 Turn on your DTV receiver.

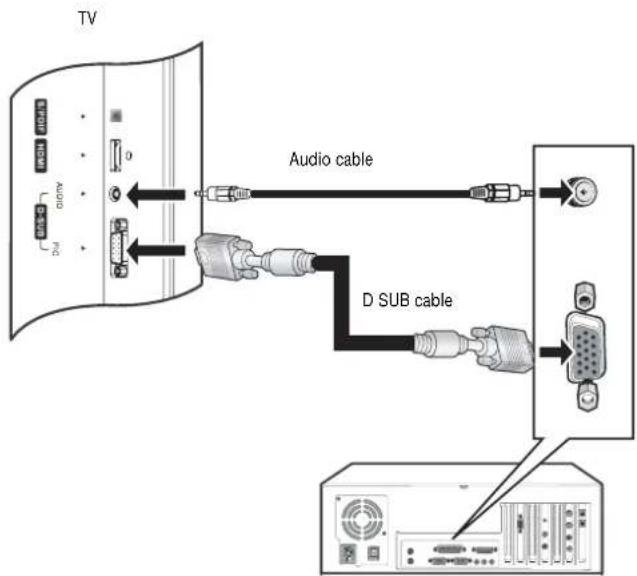

Connecting a computer

Warning

Make sure that you turn off and unplug your TV before installing devices.

To connect and watch video from a

computer:

1 Plug the audio cable into the D SUB audio input jack on the back of your TV.
2 Plug the other end of the audio cable into the audio out jacks on the computer.
3 Plug the D SUB cable into the PIC input jack on the back of your TV.
4 Plug the other end of the D SUB cable into D SUB jack on your computer.
5 Turn on your TV.
6 Press the INPUT button repeatedly to select VGA.
7 Turn on your computer, then set up your computer for external VGA input. See your computer documentation for more information.

Using your TV

Turning your TV on and off

To turn your TV on and off:

1 Make sure that the power cord is connected to your TV and a power outlet.
2 Press the button to turn on your TV.
3 Press the button again to turn off your TV.

Selecting the TV source

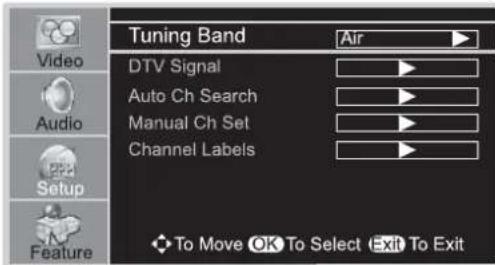

To select the TV source:

1 Press the MENU button.
2 Press the or button repeatedly to highlight Setup, then press the OK or button to open the Setup menu.

3 Press the or button repeatedly to highlight Tuning Band, then press the OK or button to access the tuning band options.

4 Select Air for an outside antenna, or select Cable, Cable HRC, Cable IRC, or Cable Auto for cable TV. We recommend that you select Cable Auto for cable TV. For more information about cable TV selections, contact your cable TV provider.

5 Press the EXIT button to close the on-screen menu.

Setting up the channel list

After you select your TV source (antenna or cable), you need to set up the channel list. When you set up your channel list, your TV searches for all available channels in your area and stores a list of the channels. When your press the CH - or + button, your TV skips the channels that do not have a signal.

Automatically setting up channels

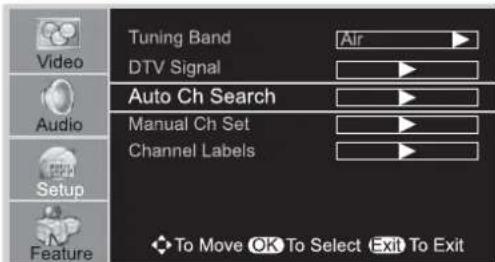

To automatically set up the channel list:

1 Press the MENU button.
2 Press the or button repeatedly to highlight Setup, then press the OK or button to open the Setup menu.
3 Press the button repeatedly to highlight Auto Ch Search.

4 Press the OK or button to start the search.

Note You can press the Exit button to stop the search.

Manually adding or deleting channels from the channel list

After you create a channel list using the Auto Ch Search option, you can manually add or delete channels from the channel list.

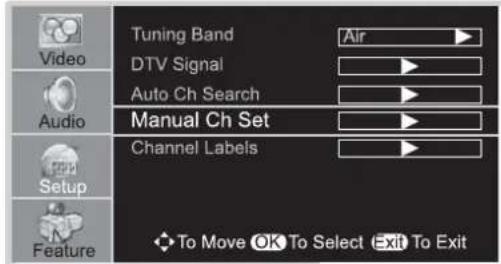

To add or delete channels:

1 Press the MENU button.

2 Press the button repeatedly to highlight Setup, then press the OK or button to open the Setup menu.

3 Press the or button repeatedly to highlight Manual Ch Set, then press the OK or button to access the Manual Ch Set options.

4 Press the button to select a channel, then press the OK button to add or delete a channel.
5 Press the EXIT button to close the menu.

Changing channels

To change channels:

• Press the CH - or + button on the remote control to go to the next lower or higher channel.

Or

Press the number buttons to select a channel (for example, if you want channel 83, press 8, then press 3).

Or

Press the button to go to the last viewed channel.

Selecting a digital sub-channel

Most digital TV channels have more than one channel. The main channel carries the signal for the main TV program. The sub-channels carry signals for additional or alternate programming, such as a radio or news broadcast.

For example, if the main channel number is 8, the sub-channel number might be 8-1, 8-2, or 8-3.

To select a sub-channel:

1 Press the number buttons for the main channel (for example 8).
2 Press the - button, then press the sub-channel button (for example 1).

Adjusting the volume

To adjust the volume:

• Press the VOL - or + button to decrease or increase the volume.
• Press the MUTE button to turn off the sound. Press the MUTE button again to turn the sound back on.

Displaying status information

To display status information:

• Press the INFO button. Your TV displays status information, such as the channel number or signal source.

Selecting the video input source

To select the video input source:

• Press the INPUT button repeatedly to select the video source. You can select:

TV-TV signal
- Composite1-AV INPUT1 jacks
- Composite2-AV INPUT2 jacks
- Component1-COMPONENT INPUT1 - jacks
- Component2-COMPONENT INPUT2 - jacks
VGA-D-SUB jack (computer)
HDMI-HDMI jack
S-Video-S-Video jack

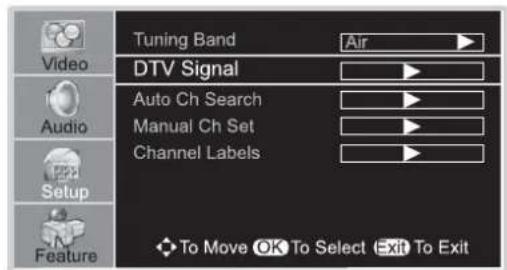

Checking the DTV signal strength

To check the DTV signal strength:

1 Press the MENU button.
2 Press the or button repeatedly to highlight Setup, the press the OK or button to open the Setup menu.
3 Press the or button repeatedly to highlight DTV Signal, then press the OK or button. Your TV displays the DTV signal strength.

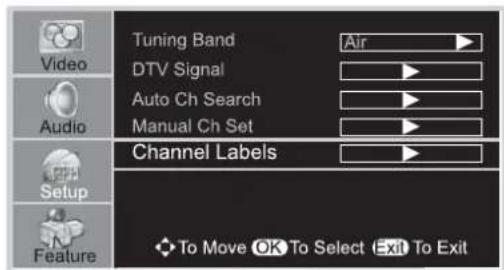

Adding a channel label

To add a label to a channel:

1 Press the MENU button.
2 Press the or button repeatedly to highlight Setup, then press the OK or button to open the Setup menu.
3 Press the or button repeatedly to highlight Channel Labels, then press the OK or button to open the Channel Labels menu.

4 Press the dr button to move the cursor. Press the or button to select a channel number or character.

5 Press the OK button to return to the previous menu, or press the EXIT button to close the menu system.

Freezing the picture

You can freeze (still) the screen image.

Caution

To protect your TV, do not freeze the screen image for long periods of time.

To freeze or unfreeze the picture:

• Press the FREEZE button.

Setting the clock

You can automatically set the clock from a digital channel signal. Your TV searches for a digital channel that has time information encoded. If the clock is not correct after you automatically set it, you can manually set the clock.

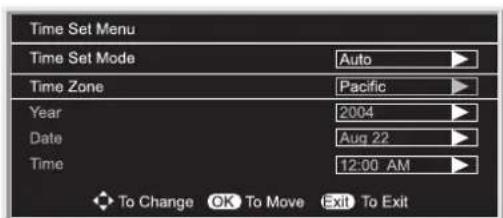

Automatically setting the clock

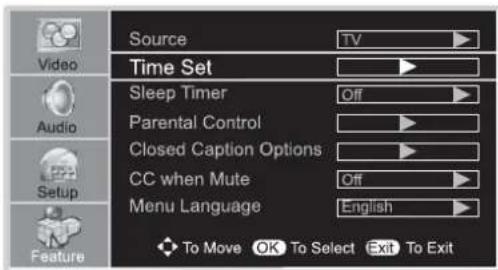

To automatically set the clock:

1 Press the MENU button.
2 Press the button repeatedly to highlight Feature, then press the OK or button to open the Feature menu.
3 Press the button repeatedly to highlight Time Set, then press the OK or button to open the Time Set menu.

4 Press the button repeatedly to highlight Time Set Mode, then press the OK or button to select Auto.

5 Press the or button repeatedly to highlight Time Zone, then press the OK or button to select a time zone: Pacific, Alaska, Hawaii, Eastern, Central, or Mountain.
6 Press the EXIT button to close the on-screen menu.

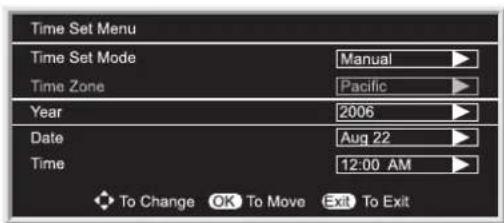

Manually setting the clock

To manually set the clock:

1 Press the MENU button.

2 Press the button repeatedly to highlight Feature, then press the OK or button to open the Feature menu.
3 Press the or button repeatedly to highlight Time Set, then press the OK or button to open the Time Set menu.
4 Press the or button repeatedly to highlight Time Set Mode, then press the OK or button to select Manual.

5 Press the or button to select Year, Date, or Time, then press the OK, , or button to set the year, date, or time.
6 Press the EXIT button to close the on-screen menu.

Setting the sleep timer

The sleep timer lets you select the amount of time before your TV turns off automatically.

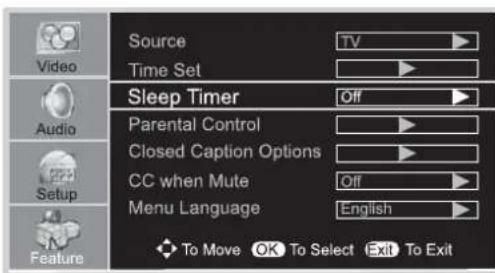

To set the sleep timer:

1 Press the MENU button.
2 Press the or button repeatedly to highlight Feature, then press the OK or button to open the Feature menu.

3 Press the or button repeatedly to highlight Sleep Timer, then press OK or button to select the amount of time. To turn off the timer, select Off.

Note

You can also press the SLEEP button to set the sleep timer.

Viewing closed captions

You can view closed captions in two modes: CAPTION and TEXT. Each mode has four channels. CAPTION mode shows dialogue and commentaries for TV programs while providing a clear picture of the program. TEXT mode shows information not related to the program, such as TV program schedules and weather forecasts. In TEXT mode, part of picture may be covered by the text.

Note

For digital broadcast systems, you can press the CCD button on the remote control to select the closed caption mode.

To customize digital closed captions, use the Closed Caption Options sub-menu in the Feature menu.

To view closed captions:

• Press the CCD button repeatedly to select a closed caption mode. You can select:

• CC1
  CC2
  CC3
  CC4

·TEXT1
·TEX2
· TEXT3
·TEX4
- Off

Setting parental controls

Your TV has a V-chip that lets you control the type of programs your children can watch. Parental controls include two ratings: MPAA (based on age) and TV Parental Guidelines (based on content and age). A TV program may have an MPAA or TV Parental Guidelines rating, so you should set controls for both ratings. Before you can select ratings, you need to set up a parental controls password.

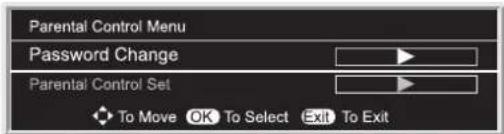

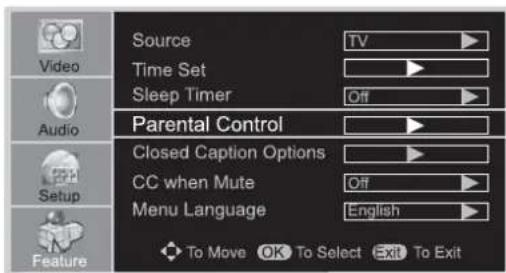

To set up a password:

1 Press the MENU button.
2 Press the or button repeatedly to highlight Feature, then press the OK or button to open the Feature menu.
3 Press the or button repeatedly to highlight Parental Control, then press the OK or button to open the Parental Control menu.

4 Press the or button repeatedly to highlight Password Change, the press the OK or button to access the Password Change option.

5 Press the number buttons to enter the old password. If you have not set a password, enter 0000.

6 Press the number buttons to enter a new password, then enter the new password again to confirm.

Caution Write down your password and save it for future use.

Note If you forget your password, enter 1397 for the old password, then enter a new password. This password always remains valid for resetting your password.

MPAA ratings

Rating Description

NONE Not rated.

G General audiences.

PG Parental guidance suggested. Some material may not be suitable for children.

PG-13 Parental guidance strongly suggested. Some material may not be suitable for children under 13 years of age.

R Restricted. Not suitable for children under 17 years of age unless accompanied by a parent or guardian.

NC-17 Not suitable for children under 17 years of age.

X Adults only.

TV Parental Guidelines ratings

Rating Description

NONE Not rated.

TV-Y All children.

TV-Y7 Children over seven years of age.

TV-G General audiences.

TV-PG Parental guidance suggested.

TV-14 Parents strongly cautioned.

TV-MA Mature audiences only.

Some of the age-based TV Parental Guidelines ratings also have content-based ratings.

Rating Description
FV	Fantasy violence.
L	Adult language.
S Sexual situations.
V Violence.
D Sexually suggestive dialog.

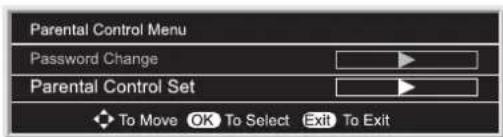

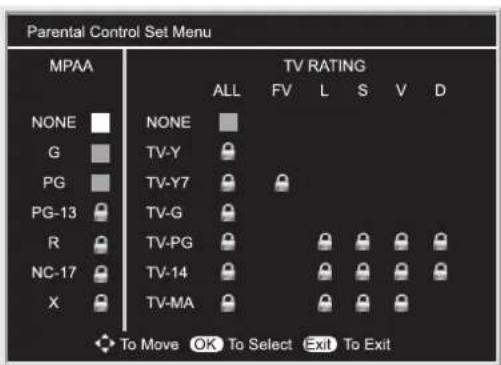

To set the ratings:

1 Press the MENU button.
2 Press the or button repeatedly to highlight Feature, then press the OK or button to open the Feature menu.
3 Press the button repeatedly to highlight Parental Control, then press the OK or button to open the Parental Control menu.
4 Press the or button repeatedly to highlight Parental Control Set, then press the OK or button to access the rating feature.

5 Enter the password.

Note For default passwords, see "To set up a password:" on page 15.

6 Press the button to select a rating, then press the OK button to block or unblock the rating.

When you block a rating, that rating and all higher ratings are blocked.

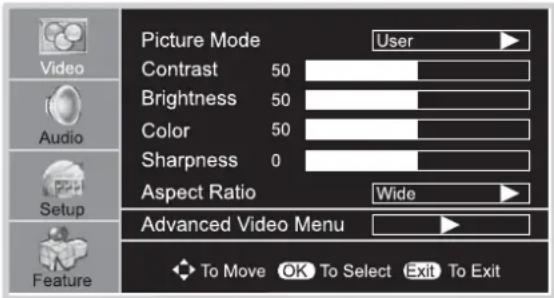

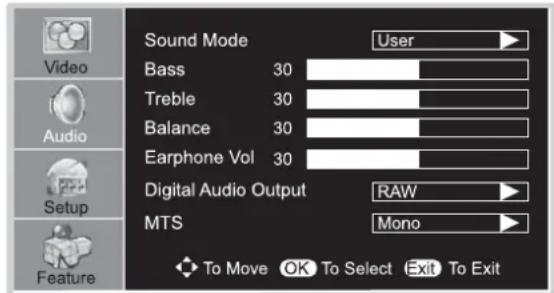

Using the on-screen menu

Your TV has an on-screen menu that lets you adjust TV settings, such as video and audio settings.

To use the on-screen menu:

1 Press the MENU button.
2 Press the or button repeatedly to select a menu.
3 Press the button to navigate to an option or adjust an option.

4 Press the OK or button to confirm an adjustment, open a sub-menu, or toggle a setting.
5 Press the MENU button to return to a previous menu or press the EXIT button to close the on-screen menu.

On-screen menus

On-screen menu	Options
Video (Options may vary in different modes.)	Picture Mode-Selects the picture mode: User, Nature, Soft, or Bright. You can also press the PICTURE button to select the picture mode. Contrast-Increases the picture level to adjust the white areas of the picture. Decreases the picture level to adjust the black areas of the picture. Brightness-Increases the brightness to add more light to dark areas of the picture. Decreases the brightness to add more dark to light areas of the picture. Color-Adjusts the overall color of the picture. Sharpness-Increases the sharpness level to show cleaner and clearer images. Decreases the level to show a smoother picture. Aspect Ratio-Selects the screen aspect ratio: Wide, Cinema, Normal, or Zoom. You can also press the ZOOM button to select the aspect ratio. Advanced Video Menu-Provides access to advanced features: ·Noise Reduction-Reduces picture noise (snow). ·Tint-Increases the color level to add more green to skin tones. Decreases the color level to add more purple to skin tones. ·Color Temperature-Selects one of three automatic color adjustments: Cool for more blue, Warm for more red, and Normal. ·3D Y/C-Turns the 3D comb filter on or off. VGA Set/Component Set-If your TV is connected to a computer or to component video, adjusts the following options: ·H-Pos-Adjusts the horizontal position of the image. ·V-Pos-Adjusts the vertical position of the image. ·Clock-Adjusts the sample frequency. ·Phase-Improves the focus of a stable image. ·Setting-Reset SCA mode to the factory defaults.
Audio (Options may vary in different modes.)	Sound Mode-Selects the sound mode: User, News, Music, or Movie. You can also press the AUDIO button to select the sound mode. Bass-Adjusts the low sounds (bass). Treble-Adjusts the high sounds (treble). Balance-Adjusts the right and left speaker volumes. Earphone Vol-Adjust the earphone volume. Digital Audio Output-Selects the audio mode for the S/PDIF jack. ·RAW: AC-3 in - AC-3 out/PCM in- PCM out. ·P C M ( Pulse Code Modulation): - PCM out/PCM in - PCM out. MTS-Selects the multi-channel TV sound (MTS): Mono, Stereo, or SAP (second audio program). You can also press the MTS/SAP button to select the MTS mode. Audio Language-Selects an alternate language if the program has more than one language.
Setup Tuning Band	Selects the TV signal source. For more information, see “Selecting the TV source” on page 12. DTV Signal-Displays the digital TV signal strength. For more information, see “Checking the DTV signal strength” on page 14. Auto Ch Search-Automatically sets up a list of the channels available in your area. For more information, see “Automatically setting up channels” on page 13. Manual Ch Set-Lets you add or delete channels from the channel list. For more information, see “Manually adding or deleting channels from the channel list” on page 13. Channel Labels-Lets you add a label to a channel. For more information, see “Adding a channel label” on page 14.
Feature Source-Selects the video source. You can select: • TV • Compo s i t e 1 • Compo s i t e 2 • Component1 • Component2 • VGA • H D M I • S - V i d e o You can also press the INPUT button to select the video source. Time Set-Sets the clock. For more information, see “Setting the clock” on page 14. Sleep Timer-Sets the sleep timer. For more information, see “Setting the sleep timer” on page 15. Parental Control-Accesses V-chip controls. For more information, see “Setting parental controls” on page 15. Closed Caption Options-Customizes closed captions for digital broadcasting systems. You can adjust Size, Font, Text Color, Text Opacity, Background Color, Background Opacity, Edge Effect, and Edge Color. CC when Mute-Automatically displays closed captions when the volume is muted. Menu Language-Selects the language for the on-screen menu. You can select English, French, or Spanish.

Programming the remote control

Programming a device connected to your TV

The remote control can control four devices, such as a VCR, DVD player, cable or satellite receiver, amplifier or tuner, or similar device.

To program the remote control:

1 Find the code for the device you want to program. See "Appendix" on page 20 for a list of codes. If there is more than one code listed for a device, write down all of the codes.
2 Turn on the device you want to program, and load media if required (for example, a DVD).
3 Press a device key on the remote control (for example, DVD, CBL, or AUX).
4 Press and hold the SET button on the remote control until the LED blinks twice, then release the button.

5 Enter the first five-digit code for your device. The LED blinks once as each digit is entered. If the code is correct, the LED blinks twice.

Note

If the LED does not blink twice, repeat Steps 3 through 5 using a different code.

6 Aim the remote at the device, then press the button. The device should turn off.

Note

If the device does not turn off, repeat Steps 4 through 6 using a different code. If you cannot find a code that works, see "Searching for a code" on page 18.

7 Repeat Steps 1 through 6 to program additional devices.

8 Press the SET button to save the code and exit.

Note

For future reference, write down each working code.

Searching for a code

To search for a code:

1 Press a device key.
2 Press and hold the SET button until the LED blinks twice, the release the button.
3 Enter 991, then the device group number (0=cable, 1=TV, 2=VCR, 3=audio). The LED blinks twice.
4 Aim the remote control at the device, then press the button. If the device responds, go to Step 7.
5 If the device does not respond, press the CH+ button. Your remote control will try the next code. Keep pressing the CH+ button until the device responds. You can press the CH- button to try a previous code.
6 To search for a code for another device, repeat Steps 1 through 5.
7 Press the SET button to save the code and exit.

Checking the code

If you programmed a device by searching for a code, you may want to know what four-digit code the remote is using.

To check the code:

1 Press the device button on the remote control.
2 Press and hold the SET button until the LED blinks twice, then release the button.
3 Enter 990. The LED blinks twice.
4 Press 1 and count the LED blinks. This is the first digit of the code (for example, if the LED blinks twice, the first digit is 2. If the LED does not blink, the first digit is 0).
5 Repeat Step 4 using 2 for the second digit, 3 for the third digit, 4 for the fourth digit, and 5 for the fifth digit.
6 Press the SET button to exit.

Programming the volume lock

The remote control comes preset to let you control the volume of each connected device. You can change the volume lock so that one device's volume controls the volume in all modes.

After you lock the volume control, you can unlock the volume control for a specific device so you can control the volume for that device independently.

To lock the volume control to one device:

1 Press and hold the SET button until the LED blinks twice, then release the button.
2 Enter 993, then press the device button for the device you want to control the volume. The LED blinks twice. When you press the VOL+, VOL-, or MUTE button on the remote control, the device you selected controls the volume regardless of which device you are using.

To unlock the volume control:

1 Press and hold the SET button until the LED blinks twice, then release the button.
2 Enter 993, then press the VOL+ button. The LED blinks four times. The volume control is unlocked.

To unlock a single device's volume control:

1 Press the device key.
2 Press and hold the SET button until the LED blinks twice, then release the button.
3 Enter 993, then press the VOL- button. The LED blinks four times. The volume control for the device you selected is unlocked.

Maintaining

• Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction.

Storage temperatures are 32^ to 122^ (0^ to 50^)
- Working temperatures are 41^ to 104^ (5^ to 40^)

• Do not place your TV in direct sunlight or near a heat source.

Cleaning your TV

Clean the screen and cabinet with a soft, lint-free cloth. If the screen or cabinet is especially dirty, moisten a soft, lint-free cloth in a weak detergent solution, squeeze the excess moisture from the cloth, then wipe the screen or cabinet with the cloth. Use a clean cloth to dry the screen or cabinet.

Caution

Avoid the following, because it may cause damage to your TV:
- Cleaning your TV with volatile substances, such as insect sprays, solvents, and thinkers.
- Leaving items made from rubber or PVC in contact with your TV for long periods.
- Letting liquids drip into the cabinet

Troubleshooting

Warning

Do not try to repair your TV yourself. Refer all service to a qualified service technician.

Symptom Possible solution
No power • Make sure that the power cord is connected to your TV and a power outlet. • Unplug the power cord, wait 60 seconds, then plug the cord back in and turn on your TV.
No picture • Make sure that the video cables are connected securely to the back of your TV. • Adjust the contrast and brightness. • Make sure that the correct video mode is selected. • Make sure that the incoming signal is compatible.
Good picture but no sound	• Increase the volume. • Make sure that the sound is not muted. • Make sure that the correct audio mode is selected.
Good sound but poor color	• Adjust the contrast, color, and brightness settings.
Poor picture • Make sure that the room is not too bright. Light reflecting off the screen can make the picture difficult to see. • If an S-VHS camera or a camcorder is connected while another connected device is turned on, the picture may be poor. Turn off one or more devices.
Horizontal dotted line • Your TV may be too close to another electrical device, such as a hair dryer or neon light. Turn off the device or move your TV.
Remote control does not work	• Press the TV button. • Replace the batteries. Make sure that the + and - symbols on the batteries align with the + and - symbols in the battery compartment. • Clean the remote sensor on the front of your TV. • Bright or fluorescent lighting may interfere with the remote control signal. Turn off the light or move your TV.
Snowy picture or noise • Make sure that the A/V cables are connected correctly and securely.
VGA picture is not stable or synchronized	• Make sure that you have selected the correct VGA mode on your computer.
No output from one of the speakers	• Adjust the balance in the Sound menu.
Control buttons do not work	• Unplug the power cord, wait few seconds, then plug the cord back in and turn on your TV.

Symptom Possible solution

After images appear • Do	not display a still image, such as a logo, game, or computer image, for an extended period of time. This can cause a permanent after image to be burned into the screen. This type of damage is not covered by your warranty.
TV makes snapping sounds	• Snapping sounds occur when your TV's cabinet expands or contracts from variations in temperature. This is not a malfunction.
Remote Control
LED does not blink when a button is pressed	Replace the batteries.
LED blinks when a button is pressed, but device does not respond	Make sure that you are no more than 15 feet (4.6 meters) from the device and that you point the remote control at the remote sensor on the device.
LED stays on You pressed	an incorrect button. Start the procedure over again.
Remote control does not control a device or only controls some features of the device	Make sure that the device has a remote sensor, then try another code.
No volume on a device See	“Programming the volume lock” on page 19.

Specifications

• Design and specifications are subject to change without notice.
• Weight and dimensions listed are approximate.

Power supply AC 100-240 V 50/60 Hz
Power consumption	200 W
Screen 32-inch
Channel coverage VHF: 2-13 UHF: 14-69 CATV: 1-125 CADTV: 1-135 DTV: 2-69
Weight 50.7 lbs. (23 kg)
Dimensions W × H × D	32.3 × 26.2 × 10 inches (820.4 × 665.5 × 254 mm)
Temperature Storage	-32° to 122°F (0° to 50°C). Working -41° to 104°F (5° to 40°C).
TV system NTSC-M, ATSC
Accessories User guide Remote control Batteries (2 AA)

Appendix

Audio amplifier codes

Bose 30674
GE	30078
JVC	30331
Marantz	30321
Nakamichi	30321
NEC	30264
Optimus	30395
Realistic	30395
Sansui	30321
Shure	30264
Sony	30689
Sounddesign	30078
Victor	30331
Wards	30078
Yamaha	30354, 30133

Audio amp/tuner codes

ADC	30531
Aiwa 31405, 31243, 30121
Anam	31609, 31074
Audiotronic	31189
Bose 31229
Capetronic	30531
Carver	31189
Coby	31263
Denon	31360, 31142, 30904
Fonmix	31360
Glory Horse 31263
Harman/Kardon	30110
Hitachi 31273
Inkel 30027
Integra 30135
JBL	30110
JVC	30074, 31263
Kenwood	31313, 31570, 30027
KLH	31428
Magnavox	31189, 31269, 30531
Marantz	31189, 31269, 30039
MCS 30039
Onkyo	30842, 30135
Optimus	31023, 30670, 30531, 31074
Panasonic	31518, 30039
Philips	31189, 31269
Pioneer	31023, 30150, 30014, 30630, 30531
Proscan	31254
Qisheng	31609
Quasar	30039
RadioShack 31263
RCA 31023, 31609, 31254, 30531, 31074
Sharper Image 31263
Silsonic 30176
Sony 31258, 31759
Soundesign 30670
Stereophonics 31023
Sunfire 31313
Teac 31074, 31267
Technics 31308, 31518, 30039
Thorens 31189
Victor 30074
Wards 30014
Yamaha 30176, 31276, 31176

Cable converter codes

ABC 00003, 00008, 00014
Americast 00899
Bell & Howell	00014
Bell South	00899
Clearmaster	00883
ClearMax	00883
Coolmax 00883
Daeryung	01877, 00877, 00477, 00008
Digi	00637
Director	00476
Dumont	00637
Gehua 00476
General Instrument	00476, 00810, 00276, 00003, 00014
GoldStar 00144
Hamlin	00009, 00273
Hitachi	00014
Jerrold	00476, 00810, 00276, 00003, 00012, 00014
KNC 00008
LG	00144
Memorex	00000
Motorola	00476, 00810, 00276, 01254, 01376
MultiVision	00012
Pace	01877, 00237
Panasonic	00000, 00008, 00107
Panther	00637
Paragon	00000
Philips	00317, 01305
Pioneer	01877, 00877, 00144, 00533
Pulsar	00000
Quasar	00000
RadioShack 00883
Regal	00279, 00273
Runco	00000

Samsung	00000, 00144
Scientific Atlanta	01877, 00877, 00477, 00008
Sony 01006
Starcom	00003, 00014
Supercable	00276
Supermax	00883
Tocom	00012
Torx 00003
Toshiba	00000
Trans PX	00276
Tristar	00883
TS	00003
V2	00883
Viewmaster	00883
Vision	00883
Vortex View 00883
Zenith	00000, 00525, 00899

CD player codes

Aiwa	30157
Burmester	30420
California Audio Labs	30029
Carver	30157, 30179
Denon	30873
DKK 30000
DMX Electronics	30157
Dynamic Bass	30179
Fisher	30179
Garrard	30420
Genexxa	30032
Harman/Kardon	30157, 30173
Hitachi	30032
Integra	30101
JVC	30072
Kenwood	30826, 30626, 30028, 30037, 30036, 30190
Krell	30157
Linn 30157
Magnavox	30157
Marantz	30626, 30029, 30157
MCS	30029
Miro	30000
Mission 30157
MTC	30420
NSM 30157
Onkyo	30868, 30101
Optimus	31063, 30000, 30032, 30037, 30420, 30179, 31075, 30145
Panasonic	30029
Parasound	30420
Philips	30626, 30157
Pioneer 31063, 31062, 30032
Polk Audio 30157
Proton 30157
QED 30157
Quad 30157
Quasar 30029
RadioShack 31075
RCA 31062, 30032, 30420, 30179, 30053
Realistic 30420, 30179
Rotel 30157, 30420
SAE 30157
Sansui 30157
Sanyo 30179
SAST 30157
Sharp 30861, 30037
Silsonic 30888, 30036
Sonic Frontiers	30157
Sony	30490, 30000, 30100
Soundesign 30145
TAG McLaren	30157
Tascam 30420
Teac	30420
Technics	30029
Victor 30072
Wards	30157, 30053
Yamaha 30888, 30036
Zonda 30157

DVD player codes

Aiwa	20641, 21912
Akai	20770
Allegro 20869
Apex Digital	20672, 20717, 20797, 21061, 20796, 21056, 21937, 20794, 21020, 21915
Blaupunkt	20717
Blue Parade	20571
Broksonic	20695
Changhong	20627, 21061
CineVision	20869
Coby	21086
Curtis Mathes	21087
CyberHome	21024, 21023, 21129, 20816, 21117
Daewoo	20833, 21172, 20869
Denon	20490
DVD2000	20521
Emerson	20591, 20675
Enterprise	20591
Fisher	21919
Funai 20675
Gateway 21158, 21073
GE	20522, 20717

Go Video	20744, 20833, 21099, 20783, 21075, 20869, 21730
Greenhill	20717
Harman/Kardon	20582, 20702
Hitachi	20573, 20664, 21919
Hiteker 20672
Initial 20717
Integra 20627, 21924
JBL	20702
JVC 20558, 20623,	20867
Kenwood	20490, 20534
KLH 20717, 21020,	21149
Koss	20651, 21980
Lasonic	20798
LG	20591, 20869, 20801
Liquid Video	21980
Lite-On	21158, 21058
Loewe	20511
Magnavox	20503, 20539, 21976, 21914, 20675
Marantz	20539
Memorex	20695
Microsoft	20522
Mintek 20717
Mitsubishi	21521, 20521
Nesa	20717
Norcent	21003
Onkyo	20503, 20627, 21924, 20792
Oritron 20651, 21980
Panasonic	20490, 21762, 21990
Philips 20503, 20539, 20646, 21914
Pioneer 20525, 20571
Polaroid	21086, 21061
Polk Audio	20539
Portland 20770
Proscan	20522
Qwestar	20651
RCA	20522, 20571, 20717, 20822
Rio	20869
Rotel 20623
Sampo 20752, 20698
Samsung	20490, 20573, 21932, 21075, 20820
Sansui 20695
Sanyo 20695
Sharp 20630, 20752
Sharper Image	21117
Sherwood	20770
Shinco	20717
Shinsonic	20533
Sonic Blue	20869, 21099
Sony	20533, 20864, 21033, 21904, 21903
SVA	20717
Sylvania	20675

Symphonic 20675
Teac 20717, 21984,	20809
Technics 20490
Theta Digital 20571
Toshiba 20503, 20695
Urban Concepts 20503
Xbox 20522
Yamaha 20490, 20539, 20545
Zenith	20503, 20591,

Sony 00639, 01640
Star Choice	00869
Tivo	01142, 01442
Toshiba 00749, 01749, 00790, 01285
Ultimate TV	01640, 01392
Uniden	00724, 00722
US Digital	01535
USDTV	01535
Voom	00869
Zenith	00856, 01856

Satellite receiver codes

AlphaStar 00772
Chaparral 00216
Crossdigital 01109
DirecTV 00392, 00566, 00639, 01142, 00247, 00749, 01749, 00724, 00819, 01856, 01076, 01109, 00099, 01392, 01640, 01442, 01414, 01108
Dish Network System	01005, 00775, 01505
Dishpro 01005, 00775, 01505
Echostar 01005, 00775, 01505
Expressvu	00775
GE	00566
General Instrument	00869
GOI	00775
Goodmans	01246
Hisense 01535
Hitachi	00819, 00222, 01250
HTS	00775
Hughes Network Systems	01142, 00749, 01749, 01442
I-Lo	01535
JVC	00775
LG	01414, 01226
Magnavox	00724, 00722
Memorex	00724
Mitsubishi	00749
Motorola	00869
NEC	01270
Next Level	00869
Panasonic	00247, 00701
Paysat	00724
Philips	01142, 00749, 01749, 00724, 01076, 00722, 00099, 01442
Proscan	00392, 00566
Proton	01535
RadioShack 00869
RCA	00392, 00566, 00855, 00143, 01392
Samsung	01276, 01109, 01108
Sanyo	01219
SKY	00856

VCR codes

ABS	21972
Admiral 20048, 20209
Aiko	20278
Aiwa	20037, 20479
Alienware 21972
America Action	20278
American High	20035
Amoisonic	20479
Anam	20162, 20037, 20240, 20278
Anam National	20162
Asha	20240
Audiovox	20037, 20278
Beaumark	20240
Bell & Howell	20104
Broksonic	20184, 20121, 20209, 20002, 20479
Calix	20037
Canon	20035
Carver	20081
CCE	20072, 20278
Changhong	20048, 20081
Citizen	20037, 20278
Colt	20072
Craig	20037, 20047, 20240, 20072
Curtis Mathes	20060, 20035, 20162
Cybernex	20240
CyberPower	21972
Daewoo	20045, 20104, 20278
Dell	21972
Denon	20042
DirecTV	20739
Durabrand	20039, 20038
Electrohome 20037
Electrophonic	20037
Emerex	20032
Emerson	20035, 20037, 20184, 20240, 20045, 20121, 20043, 20209, 20002, 20278, 20479
Fisher	20047, 20104
Fuji	20035, 20033
Fujitsu 20045
Gateway 21972
GE 20060, 20035, 20240
General 20045
Go Video 20432
GoldStar 20037, 20209, 20038, 20225
Haojie 20240
Harman/Kardon 20081, 20038
Harwood 20072
Hewlett Packard 21972
HI-Q 20047
Hitachi 20037, 20042, 20055
Howard Computers	21972
HP 21972
Hughes Network Systems	20042, 20739
iBUYPOWER 21972
JVC	20045, 20067
KEC	20037, 20278
Kenwood	20067, 20038
KLH	20072
Kodak 20035, 20037
Kolin	20043, 20037, 20045, 20042, 20209, 20038
Logik	20072
LXI	20037
Magnavox	20035, 20039, 20081
Magnin	20240
Marantz	20035, 20081
Marta	20037
Matsushita	20035, 20162
Media Center PC	21972
MEI	20035
Memorex	20035, 20162, 20037, 20048, 20039, 20047, 20240, 20104, 20209, 20479
MGA	20240, 20043
MGN Technology	20240
Microsoft	21972
Mind	21972
Minolta	20042
Mitsubishi	20067, 20043
Motorola 20035, 20048
MTC 20240
Multitech	20072
NEC	20035, 20037, 20048, 20104, 20067, 20038
Newave	20037
Nikko	20037
Noblex	20240
Northgate	21972
Olympus	20035
Optimus 21062, 20162, 20037, 20048, 20104, 20432

Orion	20184, 20209, 20002, 20479
Panasonic	21062, 20035, 20162, 20616, 20225
Penney	20035, 20037, 20240, 20042, 20038
Pentax 20042
Philco 20035, 20479
Philips	20035, 20081, 20739, 20618
Pilot 20037
Pioneer 20042, 20067
Polk Audio	20081
Profitronic	20240
Proscan	20060
Protec	20072
Pulsar	20039
Qisheng	20060
Quasar	20035, 20162
Radix	20037
Randex	20037
RCA	20060, 20035, 20240, 20042, 20880
Realistic	20035, 20037, 20048, 20047, 20104
ReplayTV	20616
Runco	20039
Sampo	20037, 20048
Samsung	20240, 20045, 20432
Sanky	20048, 20039
Sansui	20067, 20209, 20479
Sanyo 20047, 20240, 20104
Scott	20184, 20045, 20121, 20043
Sears	20035, 20037, 20047, 20042, 20104
Sharp	20048, 20209
Shintom	20072
Shogun	20240
Singer	20072
Sonic Blue	20616
Sony	20035, 20032, 20033, 20636, 21972
STS	20042
Sylvania	20035, 20081, 20043
Systemax	21972
Tagar Systems	21972
Tashiko 20037
Tatung	20045, 20067
Technics 20035, 20162
Teco 20035, 20037, 20048, 20038
Teknika	20035, 20037
Tivo	20636, 20618, 21503, 20739
TMK	20240
Toshiba	20045, 20042, 20067, 20043, 21503, 21008, 21972
Totevision	20037, 20240
Touch	21972
Unitech	20240
Vector	20045
Vector Research	20038
Victor 20067
Video Concepts 20045
Videomagic 20037
Videosonic 20240
Viewsonic 21972
Wards 20060, 20035, 20048, 20047, 20081, 20240, 20042, 20072
White Westinghouse	20209, 20072
XR-1000 20035, 20072
Yamaha 20038
Zenith 20039, 20033, 20209, 20479
ZT Group 21972

Legal notices

Copyright

© 2006 Insignia. Insignia and the Insignia logo are trademarks of Best Buy Enterprise Services, Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. Specifications and features are subject to change without notice or obligation.

Warranty

1-year limited warranty

Insignia Products ("Insignia") warrants to you, the original purchaser of this new 32" LDC TV ("Product"), that the Product shall be free of defects in the original manufacture of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period"). This Product must be purchased from an authorized dealer of Insignia brand products and packaged with this warranty statement. This warranty does not cover refurbished Product. If you notify Insignia during the Warranty Period of a defect covered by this warranty that requires service, terms of this warranty apply.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. The purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a retail store location, take your original receipt and the Product to the store you purchased it from. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from an online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

Where is the warranty valid?

This warranty is valid only to the original purchaser of the product in the United States and Canada.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction
• Installation
• Set up adjustments
  Cosmetic damage
• Damage due to acts of God, such as lightning strikes
• Accident
• M i s u s e
• A b u s e
• Negligence
• Commercial use
• Modification of any part of the Product, including the antenna

This warranty also does not cover:

• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by Insignia to service the Product
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been altered or removed

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTYES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTYES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTYES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTYES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Commande Description

Distributed by Insignia™ Products

7601 Penn Avenue South,

Richfield, MN USA 55423-3645

www.Insignia-Products.com

© 2005 Insignia™ Products

All rights reserved. All other products and brand names are trademarks of their respective owners.
