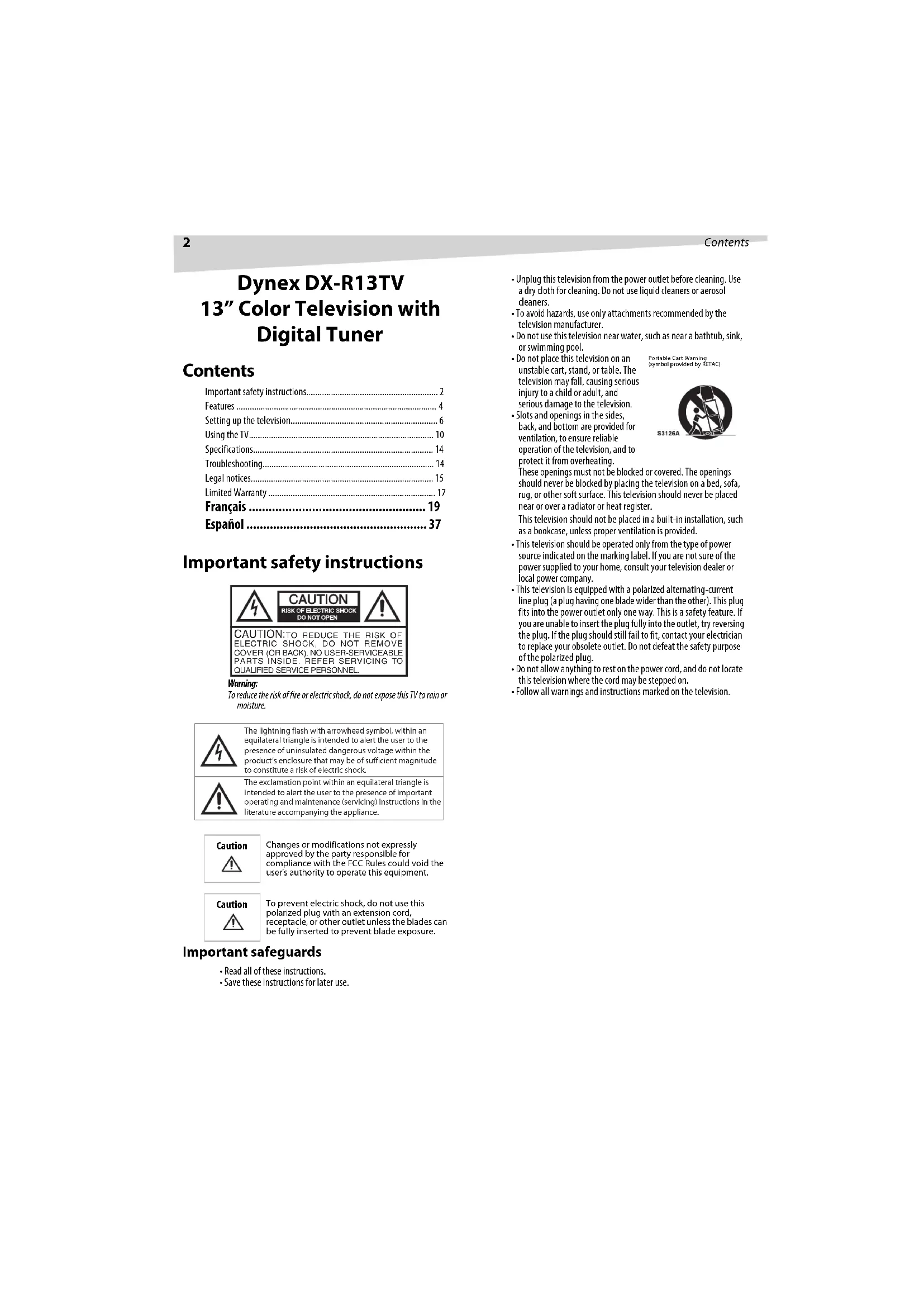

• USER GUIDE • GUIDE DE L’UTILISATEUR • GUÍA DEL USUARIO 13” Color Television with Digital Tuner Téléviseur Couleur de 13” po avec Syntoniseur Numérique Televisor a Color de 13” con Sintonizador Digital DX-R13TV2 Contents Dynex DX-R13TV 13” Color Television with Digital Tuner Contents Important safety instructions p. 2
• Features p. 4
• Setting up the television p. 6
• Using the TV p. 10
• Specifications p. 14
• Troubleshooting p. 14
• Legal notices p. 15
• Limited Warranty p. 17
• Français p. 19
• Español Important safety instructions p. 37

Warning:To reduce the risk of fire or electric shock, do not expose this TV to rain or moisture.

Important safeguards

• Read all of these instructions.• Save these instructions for later use.• Unplug this television from the power outlet before cleaning. Use a dry cloth for cleaning. Do not use liquid cleaners or aerosol cleaners.• To avoid hazards, use only attachments recommended by the television manufacturer.• Do not use this television near water, such as near a bathtub, sink, or swimming pool.• Do not place this television on an unstable cart, stand, or table. The television may fall, causing serious injury to a child or adult, and serious damage to the television.• Slots and openings in the sides, back, and bottom are provided for ventilation, to ensure reliable operation of the television, and to protect it from overheating.These openings must not be blocked or covered. The openings should never be blocked by placing the television on a bed, sofa, rug, or other soft surface. This television should never be placed near or over a radiator or heat register.This television should not be placed in a built-in installation, such as a bookcase, unless proper ventilation is provided.• This television should be operated only from the type of power source indicated on the marking label. If you are not sure of the power supplied to your home, consult your television dealer or local power company.• This television is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug fits into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.• Do not allow anything to rest on the power cord, and do not locate this television where the cord may be stepped on.• Follow all warnings and instructions marked on the television.CautionChanges or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.CautionTo prevent electric shock, do not use this polarized plug with an extension cord, receptacle, or other outlet unless the blades can be fully inserted to prevent blade exposure. CAUTION: TO REDUCE THE RISK OFELECTRICSHOCK, DO NOT REMOVECOVER(OR BACK). NO USER-SERVICEABLEPARTS INSIDE. REFER SERVICING QUALIFIED SERVICE PERSONNEL.The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within theproduct’s enclosure that may be of sufficient magnitudeto constitute a risk of electric shock.The exclamation point within an equilateral triangle is intended to alert the user to the presence of importantoperating and maintenance (servicing) instructions in theliterature accompanying the appliance.Portable Cart Warning(symbol provided by RETAC)Important safety instructions

• If an outside antenna or cable system is connected to the television, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/ NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

• Use No. 10 AWG (5.3 mm

) copper, No. 8 AWG (8.4 mm

) copper-clad steel or bronze wire, or larger, as a ground wire.

• Secure antenna lead-in and ground wires to house with stand-off insulators spaced from 4-6 feet (1.22 -1.83 m) apart.

• Mount antenna discharge unit as close as possible to where lead-in enters house.

• Use jumper wire not smaller than No. 6A WG (13.3 mm

• An outside antenna system should not be located in the vicinity of overhead power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

• For added protection for this television during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect it from the antenna or cable system. This prevents damage to the television due to lightning and power line surges.

• Do not overload wall outlets and extension cords, because overloading can cause a fire or electric shock.

• Never push objects of any kind into this television through slots in the case, as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television.

• Do not attempt to service this television yourself, because opening or removing covers may expose you to dangerous voltages or other hazards. Refer all servicing to qualified service technicians.

• Unplug this television from the wall outlet and refer servicing to qualified service technicians under the following conditions:

• When the power cord or plug is damaged or frayed.

• If liquid has been spilled into the television.

• If the television has been exposed to rain or water.

• If the television does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, because incorrect adjustment of other controls may result in damage and often requires extensive work by a qualified technician to restore normal operation.

• If the television has been dropped or the case has been damaged.

• When the television exhibits a distinct change in performance.

• When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

• Upon completion of any service or repairs to this television, ask the service technician to perform routine safety checks to determine that the television is safe to operate. Note to cable television system installer This reminder is provided to call the cable television system installer’s attention to Section 820 40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. Reference Grounding component 1 Electric service equipment 2 Power service grounding electrode system (NEC Art 250, Part H) 3Ground clamp 4 Grounding conductors (NEC

6Ground clamp 7 Antenna lead-in wire

• Integrated digital tuner—You can view digital broadcasting without using a Digital TV Set-Top Box.

• Closed caption decoder with full text mode—Displays text captions or full screen text on the screen for hearing impaired viewers.

• Picture adjustments using the remote control—The on-screen display allows precise remote control adjustment of brightness, contrast, color, tint, and sharpness.

• Programmable TV sleep timer—Operable from the remote control, the television can be programmed for up to 120 minutes to turn off automatically.

• V-Chip—The V-Chip function can read the rating of a television program or movie content if the program is encoded with this information. The V-chip allows you to set a restriction level.

• Memory back up—This system prevents loss of memorized channel selections when there is a power interruption to the TV.

• On-Screen 3-language display—You can select one of three languages—English, Spanish, or French—for on-screen programming.

• Manufactured under license from Dolby Laboratories. Box contents Verify that the box contains:

• User Guide If any components are missing, contact Dynex immediately. Keep the box and packing materials so that you can store or transport your television. Parts and functions Front Back Button Description1 EARPHONE Use this jack to plug in an earphone or mono headphones with a 1/8-inch miniplug for private listening.2 Remote sensor Receives signals from the remote control.3 Power Press to turn the television on or off.

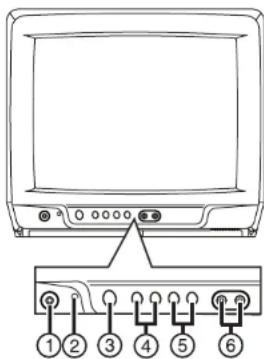

Press the VOL button to increase the volume level. Press the VOL button to decrease the volume level. Press the VOL button and the VOL button at the same time to display the menu screen functions, then press the VOL button or the VOL button to select functions on the menu screen.

Press the CH button to change to a higher numbered channel set into memory. Press the CH button to change to a lower numbered channel set into memory. Use to select the desired setting during menu operation.6 AUDIO/VIDEO In jacksUse to connect audio and video signal cables from an external source.RF IN (VHF/ UHF) jackFeatures

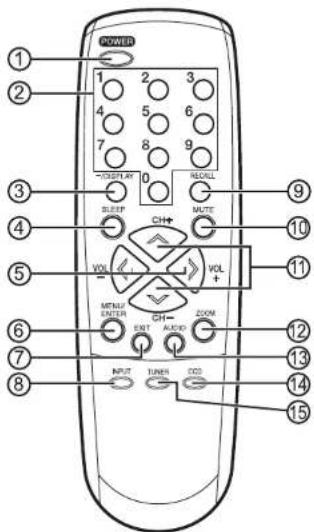

Remote control No. Button Description 1 POWER Press to turn the television on. Press again to turn the television off. 2Direct channel selection (0-9) Use to directly go to any channel. 3 -/DISPLAY When the television is receiving an analog signal, press this button to display the current information on-screen. When the television is receiving a digital signal, press this button once to display the digital information on-screen. Press this button a second time to display the analog information on-screen. To remove the display from the screen, press this button again. This button is also the - button used when selecting digital channels. 4 SLEEP To set the television to turn off after a preset amount of time, press the SLEEP button. The clock counts down ten minutes each time the button is pressed in the order of 120, 110, 100...20, 10, 0 (minutes). After the sleep time is programmed, the display disappears then reappears momentarily every ten minutes to remind you the sleep timer function is operating. To confirm the sleep time setting, press the SLEEP button once and the remaining time is momentarily displayed. To cancel sleep time, press the SLEEP button repeatedly until the display turns to 0. No. Button Description 5VOL + / - Press the + button to increase the volume level. Press the - button to decrease the volume level. Use these buttons to select the desired setting during the menu screen operation. 6 MENU/ENTER Press to display the menu screen function. Press to enter or select operations during operation of the menu screen. 7 EXIT Press to remove the menu screen. 8 INPUT Press this button to display the SOURCE SELECTION menu to select the video input source. 9 RECALL Press this button to go back to the previously viewed channel. Press this button again to return to the channel you were watching. 10 MUTE To turn off the sound, press this button once. The television is silenced and the symbol MUTE appears on the screen. The muting feature can be turned off by pressing the MUTE button again or one of the VOL + or - buttons. 11 CH + / - Press the CH + (up) button to change to a higher numbered channel set into memory. Press the CH - (down) button to change to a lower numbered channel set into memory. Use to select the desired setting during menu operation. 12 ZOOM Press this button to change the picture size. 13 AUDIO Press this button to select the desired sound. 14 CCD Press this button to display the CLOSED CAPTION menu. 15 TUNER Press this button to select the analog/digital mode.6 Setting up the television Setting up the television Connecting your television to AC power Use the AC polarized cord provided for operation on AC. Insert the AC plug into a standard 120V 60 Hz polarized AC outlet. Notes: Never connect the AC plug to other than the specified voltage (120V 60 Hz). Use the attached power cord only. If the polarized AC cord does not fit into a non-polarized AC outlet, do not file or cut the blade. It is your responsibility to have an electrician replace the obsolete outlet. If you cause a static discharge when touching the television and the television fails to work, unplug the television from the AC outlet, then plug it back in. The television should work normally. Installing batteries in the remote control Before using the remote control, you must install batteries. Use two AAA size batteries. The batteries may last about one year depending on how much the remote control is used. For best performance, we recommend the batteries should be replaced on a yearly basis, or when the remote operation becomes erratic. Do not mix old and new batteries or different types. To install batteries in the remote control: 1 Open the battery compartment cover. 2 Install two AAA batteries. 3 Replace the battery compartment cover. Battery precautions Follow these precautions when using batteries in this remote control:

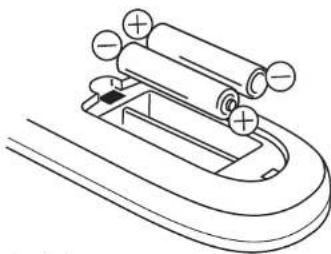

• Use only the size and type of batteries specified.

• Make sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may damage the device.

• Do not mix different types of batteries together (such as alkaline and carbon-zinc) or old batteries with fresh ones.

• If the remote is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries that are not intended to be recharged. These batteries can overheat and rupture (follow battery manufacturer's directions). Connecting to an antenna When shipped from the factory, the TV CABLE menu option is set to the CABLE (Cable Television) mode. If you are not using Cable TV, set this menu option to the TV position. If you are using an indoor or outdoor antenna, follow the instructions that correspond to your antenna system. If you are using a cable television service, see “Connecting to cable television” on page 7. Combination VHF/UHF antenna (single 75 ohm cable or 300 ohm twin-lead wire) Connecting a combination VHF/UHL antenna with a twin-lead wire: 1 Connect the 75 ohm cable from the combination VHF/UHF antenna to the RF IN jack. 2 If your combination VHF/UHF antenna has a 300 ohm twin-lead wire, you may need to use a 300-75 ohm matching transformer. AC outletWider hole and bladePolarized AC plug (one blade is wider than the other.)RF IN jackRF IN jack75 ohm coaxial cable300-75 ohm matching transformerSetting up the television

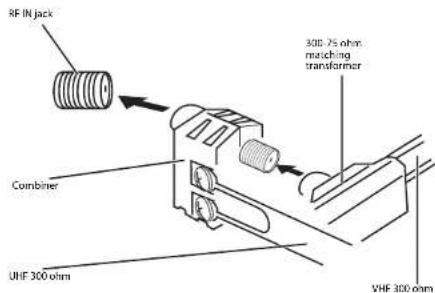

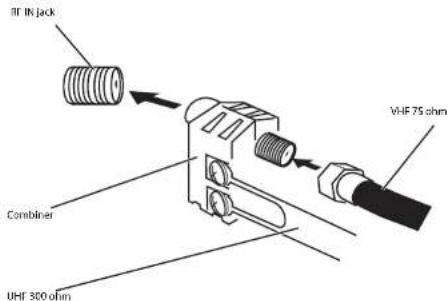

Combination VHF/UHF antenna (separate VHF and UHF 300 ohm twin-lead wires) Connecting a combination VHF/UHL antenna with separate wires: 1 Connect the UHF 300 ohm twin-lead wire to the combiner (not supplied). 2 Connect the VHF 300 ohm twin-lead wire to the 300-75 ohm matching transformer. 3 Attach the transformer to the combiner, then attach the combiner to the RF IN jack. Separate VHF/UHF antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires) Connecting separate VHF/UHL antennas: 1 Connect the VHF 75 ohm cable and UHF 300 ohm twin-lead wire to the combiner. 2 Attach the combiner to the RF IN jack. Connecting to cable television This television has an extended tuning range and can tune most cable channels without using a cable television converter box. Some cable television companies offer premium pay channels in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable television company. For subscribers to basic cable television service For basic cable service not requiring a converter/descrambler box, connect the 75 ohm coaxial cable directly to the RF IN jack on the back of the television. For subscribers to scrambled cable television service Connecting the TV to cable television: 1 If you subscribe to a cable television service which requires the use of a converter/descrambler box, connect the incoming 75 ohm coaxial cable to the converter/descrambler box. 2 Using another 75 ohm coaxial cable, connect the output jack of the converter/descrambler box to the RF IN jack on the television. Follow the connections shown above. 3 Set the television to the output channel of the converter/ descrambler box (usually channel 3 or 4) and use the converter/ descrambler box to select channels. For subscribers to unscrambled basic cable television service with scrambled premium channels If you subscribe to a cable television service in which basic channels are unscrambled and premium channels require the use of a converter/ descrambler box, you may wish to use a signal splitter and an A/B switch box (available from the cable television company or an electronics supply store). Follow the connections shown above. With the switch in the B position, you can directly tune any nonscrambled channels on your television. With the switch in the A position, tune your television to the output of the converter/descrambler box (usually channel 3 or 4) and use the converter/descrambler box to tune scrambled channels. RF IN jack 300-75 ohm matching transformer UHF 300 ohm VHF 300 ohm Combiner RF IN jack VHF 75 ohm UHF 300 ohm Combiner RF IN jack 75 ohm coaxial cable RF IN jack 75 ohm cable to TV Incoming 75 ohm cable TV cable Converter/Descrambler Incoming 75 ohm cable TV cable 75 ohm cable to TV RF IN jack Converter/ Descrambler Splitter A/B Switch8 Setting up the television Connecting to other equipment The exact arrangement you use to interconnect various video and audio components to the television is dependent on the model and features of each component. Check the owner's manual provided with each component for the location of video and audio inputs and outputs. The following connection diagrams are offered as suggestions. You may need to modify them to accommodate your particular assortment of components. The diagrams are intended to show component video and audio interconnections only. Selecting the video input source:

• Press INPUT to view a signal from another device connected to your television, such as a VCR or DVD player. AUX displays on the screen for four seconds after pressing INPUT. Connecting the television to a VCR Connecting the television to a camcorder To play back from a camcorder, connect the camcorder to the television as shown. Connecting the television to a video game console The television can also be used as a display device for many video games. However, due to the wide variety of signals generated by these devices and subsequent connection variations required, they have not all been included in the suggested connection diagrams. You will need to consult each component's owner's manual for additional information. Using the menu To access the menu using the TV buttons: Press both of the VOL and VOL buttons at the same time. The menu screen appears. To access the menu using the remote control: Press MENU/ENTER. The menu screen appears. To select a setting using the TV buttons: Use the CH and CH buttons and the VOL and VOL buttons. To select a setting using the remote control: Use the CH + and CH - buttons and the VOL + and VOL - buttons. Setting the language You can choose from three different languages (English, French, and Spanish) for the on-screen displays. You must select a language first, before setting other menu options. To select a menu language: 1 Press MENU/ENTER. The on-screen language selection screen appears. NOTE: If no buttons are pressed for more than 60 seconds, the menu screen returns to normal television operation automatically. 2 Press the CH + and CH - buttons to select LANGUAGE, then press the VOL + button. 3 Press the CH + and CH - buttons to select the desired language:

• French (FRANÇAIS), or

• Spanish (ESPAÑOL). 4 Press EXIT to return to the normal screen. Memorizing channels This television is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the television’s memory. To use this television with an antenna, set the TV CABLE menu option to the TV mode. When shipped from the factory, this menu option is in the CABLE mode. Selecting TV or cable To select TV or cable input: 1 Press MENU/ENTER. The menu screen appears. 2 Press the CH + and CH - buttons until the indicator next to CH SETUP flashes, then press the VOL + button. VIDEO IN AUDIO INAudio/ Video cord (not supplied)To Audio/ Video OUT Front of TV VCR To Audio/Video OUTFront of the TVAudio/Video cord (not supplied)VIDEO IN AUDIO INFront of the TVAudio/Video cord (not supplied)To Audio/Video OUTVIDEO IN AUDIO INSetting up the television

3 Press the CH + and CH - buttons until the indicator next to TV CABLE flashes. 4 Press the VOL + and VOL - buttons to select TV or CABLE.

• CABLE—Cable television channels 5 Press EXIT to return to the normal screen. Note: It may take a few seconds for a digital channel picture to appear on screen after being selected. Cable chart The following chart is typical of many cable system channel allocations. The number on the top is the number on the television. The number or letter on the bottom is the corresponding cable channel. Note: Contact your cable company to identify the type of cable system used in your area. Automatic memory tuning Memorizing channels is best accomplished during evening “primetime” hours, as more channels are broadcasting digital signals. Memorizing channels can only be accomplished while a station is broadcasting a digital signal to set the channel into memory. If you are not sure of the digital channels available in your area, visit www.antennaweb.org to find a list based on your address or zip code. To automatically memorize channels: 1 Press MENU/ENTER. The menu screen appears. 2 Press the CH + and CH - buttons until the indicator next to CH SETUP flashes, then press the VOL + button. 3 Press the CH + and CH - buttons until the indicator next to AUTO CH MEMORY flashes, then press the VOL + button. The television begins memorizing all of the channels available in your area. After completing analog tuning, digital tuning starts automatically. Depending on the reception condition, it may take from 15 to 30 minutes to complete memorizing digital cable channels. Depending on the condition of the reception, the BAR display may not advance for several minutes. Note: Some new channels may be added. You should complete the AUTO CH MEMORY procedure periodically. Adding and deleting channels To add or delete analog channels: 1 Press TUNER to select analog mode. 2 Press MENU/ENTER. The menu screen appears. 3 Press the CH + and CH - buttons until the indicator next to CH SETUP flashes, then press the VOL + button. 4 Press the CH + and CH - buttons until the indicator next to ADD/ DELETE flashes. 5 Select the desired channel to be memorized or deleted using the CH + and CH - buttons. Press the VOL + and VOL - buttons to select ADD or DELETE. 6 Repeat Step 5 for other channels you want to add or delete, then press MENU/ENTER. 7 Press EXIT to return to the normal screen. To add or delete digital channels: 1 Press TUNER to select the Digital mode. 2 Press MENU/ENTER. The menu screen appears. 3 Press the CH + and CH - buttons until the indicator next to DIGITAL SETUP flashes, then press the VOL + button. The DIGITAL SETUP menu appears. 4 Press the CH + and CH - buttons to select ADD/DELETE, then press the VOL + button. 5 Press the CH + and CH - buttons again to select ADD/DELETE, then press the VOL + button.10 Using the TV 6 Select the desired channel to be memorized or deleted using the CH + and CH - buttons. Press the VOL + and VOL - buttons to select ADD or DELETE. 7 Repeat Step 6 for other digital channels you want to add or delete, then press MENU/ENTER until the screen clears. To add a digital channel you are watching: 1 Press TUNER to select the Digital mode. Use the number buttons to directly select the digital channel you want to add. 2 Press MENU/ENTER. The menu screen appears. 3 Press the CH + and CH - buttons to select ADD/DELETE, then press the VOL + button. 4 Press the CH + or CH - button to select ADDING CHANNEL, then press the VOL + button. The channel is added. 5 Press MENU/ENTER repeatedly to return to the normal screen. 6 Repeat steps 1-5 for other channels you want to add directly. Using the TV Notes: If you select a channel with no broadcast signal, the sound is automatically muted. To use the television: 1 Press POWER to turn on the television. 2 Adjust the volume level by pressing VOL + or –. The volume level is indicated on the screen by green bars. As the volume level increases, so do the number of bars. If the volume decreases, the number of green bars also decreases. 3 Set the TV CABLE menu option to the appropriate position (see “Selecting TV or cable” on page 8). 4 Press the direct channel selection buttons to select the channel. Selecting analog channels When the TV CABLE menu option is the TV position, all channels can be instantly selected by using two buttons. For example, to select channel 2, press 0, then 2. If you press only 2, channel selection will be delayed for a few seconds. For channels 10 and above, press the two digits in order. When the TV CABLE menu option is the CABLE position, channels can be selected as follows: Selecting digital channels To select digital channels, press the channel number in order. When – is contained in the channel number, press the first three digits, then press –/DISPLAY, followed by the remaining three digits. Example, to select channel 015-001, press 0 1 5 – 0 0 1. Note the following:

• If a channel is selected with only audio content, “AUDIO ONLY” will be displayed on the screen.

• If a channel is selected with a weak digital signal, “DIGITAL CHANNEL SIGNAL STRENGTH IS LOW” will be displayed on the screen.

• If the digital channel has the same analog channel, you may be able to watch the same channel on analog.

• If a channel is selected to which you have not subscribed, “DIGITAL CHANNEL IS ENCRIPTED” will be displayed on the screen. Seeking channels To seek the next channel:

• Press and release the CH + and CH - buttons. The channel automatically stops at the next channel set into memory. For proper operation, before seeking channels, channels should be set into the memory. See “Memorizing channels” on page 8. Viewing information Note: The screen automatically returns to normal TV operation after 10 seconds. To view program information: 1 Press -/DISPLAY to display the current information on the screen. When the television receives a digital signal, the digital information appears:

• Broadcast program name

• V-Chip rating When the television receives an analog signal, –/DISPLAY shows only analog information. 2 Press –/DISPLAY again. The analog information appears.

• Channel number or video mode selected

• Picture size 3 Press –/DISPLAY again to clear the call display. Viewing the previous channel The RECALL button allows you to go back to the last channel viewed. Press RECALL again to return to the last channel you were watching. Muting the volume To mute the volume: 1 Press MUTE to turn off the sound. The television’s sound is silenced and MUTE appears on the screen. 2 Switch the sound back on by pressing MUTE again or by pressing the VOL + or VOL – button. Using sleep To set the sleep function: To set the television to turn off after a preset amount of time, press SLEEP on the remote control. The clock counts up down ten minutes each time the button is pressed in the order of 120, 110, 100...20, 10, 0 (minutes). After the sleep time is programmed, the display appears briefly every ten minutes to remind you that the sleep timer is operating. To confirm the sleep timer setting, press SLEEP and the remaining time is displayed for a few seconds. To cancel the sleep timer, press SLEEP repeatedly until the display turns to 0. Channels Press1-9 Press 0 twice, then 1-9 as needed. Example: to select channel 2, press 0 0 2.10-12 Press 0, then the remaining 2 digits. Example, to select channel 12, press 0 1 13-99 Press the 2 digits in order.Example, to select channel 36, press 3 6.100-125 Press the 3 digits in order. Example, to select channel 120, press 1 2 0.TV Cable VHF 2-13 VHF 2-13 UHF 14-69UHF 14-69CABLE TV 01-97 (5A)-(A-3)98-99 (A-2)-(A-1)14-22 (A)-(I)23-36 (J)-(W)37-65 (AA)-(FFF)66-125 (GGG)-(125)Using the TV

Setting the V-Chip An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures that you may choose to exclude. The restriction applies to TV rating and movie rating if this data is transmitted. You may set this restriction separately. To use the V-Chip function, you must set a password. Notes: The V-Chip function is activated only on programs and input sources that have the rating signal. It may take several minutes to complete the initial V-Chip setup. To avoid forgetting the password, write it down and keep it in a safe place. However, if you forget the password, --Set the volume to the minimum setting, then press the vo lume down button on the TV and the 0 button on the remote control at the same time. --Hold for more than two seconds, then reset the password

Setting a password To set a password: 1 Press MENU/ENTER. The menu screen appears. 2 Press the CH + and CH - buttons until the indicator next to V-CHIP SET flashes. then press the VOL + button. The PASSWORD screen appears.

3 Select and enter a password (4 digits) using the 0-9 number buttons, then press MENU/ENTER. 4 Enter the same password again to confirm, then press MENU/ ENTER to set the password. 5 Press EXIT to return to the normal screen. Setting the V-Chip The V-CHIP SET (DTV) can be selected only when the unit receives a digital broadcast using the new rating system. It may take several minutes for the initial V-Chip Set-up to complete. At this time, some stations are still developing this signal. In those cases the V-CHIP SET (DTV) will not function. To set the V-Chip: 1 Press MENU/ENTER. The menu screen appears. 2 Press the CH + and CH - buttons until the indicator next to V-CHIP SET flashes. then press the VOL + button. The PASSWORD screen appears.

• OFF—TV RATING is not set

• TV-PG—Parental guidance

• TV-14—14 years old and above

• TV-MA—17 years old and above When you select TV-Y7, TV-PG, TV-14, or TV-MA, press -/DISPLAY to further define the rating. Press the CH + and CH - buttons to select the desired rating you want. Press the VOL + and VOL - buttons to select the setting ON or OFF. 6 Press the CH + and CH - buttons to select MOVIE RATING, then press the VOL + button. The RATING menu appears. 7 Press the CH + and CH - buttons to select the rating, then press the VOL + and VOL - buttons to select ON or OFF for each rating.

• PG—Parental guidance

• PG-13—Parental guidance less than 13 years old

• R—Under 17 years old parental guidance suggested

• NC-17—17 years old and above

• X—Adult only 8 Press MENU/ENTER twice to return to the V-CHIP menu, then press the CH + and CH - buttons to select V-CHIP. 9 Press the CH + and CH - buttons to select ON. Your settings are now set into memory. 10 Press EXIT to return to the normal screen. Watching a protected show To watch a program that is blocked by the V-Chip: 1 After blocking a program using the V-Chip function, you cannot watch the blocked program based on the content of the show. When the program starts, the PASSWORD screen appear on the screen. 2 To release the V-Chip temporarily, enter the password.

• After you enter the password correctly, the protection is temporarily overridden. If the television is turned off, or if the channel is changed, the V-Chip restriction is reactivated.

• If you change the channel or turn off the TV after temporarily releasing the V-Chip function, the original setting resumes.

• If you return again to the blocked channel, you must re-enter your password to temporarily release your V-Chip function again. 3 If you are changing channels using a VCR, DVD/VCD, or a cable box while the TV remains on channel 3 or 4, the V-Chip operates differently. When you enter your password to temporarily release the block on any channel, you have completely disabled the V-Chip function for all stations. To reset the V-Chip. turn your TV off and back on.

• Some cable boxes are built with a delay feature, so in some cases it can take up to 10 seconds for a program to appear after the password has been input.

• It may take a few seconds for a digital channel picture to appear on screen after being selected. Changing the password To change the password: 1 Press MENU/ENTER. The menu screen appears. 2 Press the CH + and CH - buttons until the indicator next to V-CHIP SET flashes. then press the VOL + button. The PASSWORD screen appears. 3 Enter your 4-digit password using the 0-9 number buttons, then press MENU/ENTER. The V-CHIP menu appears. 4 Press the CH + and CH - buttons to select CHANGE PASSWORD, then press the VOL + button to display a blank password screen. 5 Enter a new password using the number buttons (0-9), then press MENU/ENTER. 6 Enter the same password again to confirm, then press MENU/ ENTER. 7 Press EXIT to return to the normal screen. Adjusting the picture Note: The CONTRAST default setting is set to maximum at the factory. To adjust the picture: 1 Press MENU/ENTER. The menu screen appears. 2 Press the CH + and CH - buttons until the indicator next to PICTURE flashes, then press the VOL + button. 3 Press the CH + and CH - buttons to select the item you want to adjust. 4 Press the VOL + and VOL - buttons to adjust the setting. 5 After modifying your desired setting, press EXIT to return to normal screen. Controlling closed captioning This television has the capability to decode and display closed captioned television programs. Closed captioning displays text on the screen for hearing-impaired viewers or translates and displays text in another language. Captions: This closed caption mode displays text on the screen in English or another language. Generally, closed captions in English are transmitted on C1 and closed captions in other languages are transmitted on C2. Text: The text closed caption mode usually fills ½ of the screen with a programming schedule or other information. Notes: If the program or video you select is not closed-captioned, no captions display on-screen. If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the closed caption feature to OFF. When selecting closed captions, the captioning delays about ten seconds. If no caption signal is received, no captions appear, but the television remains in the caption mode. Misspellings or unusual characters may occasionally appear during closed captioning. This is normal with closed captioning, especially with live programs. This is because during live programs, captions are also entered live. These transmissions do not allow time for editing. When captions are being displayed, on-screen displays, such as volume and mute, may be seen but may interfere with closed captions. Some cable television systems and copy protection systems may interfere with the closed captioned signal. If using an indoor antenna or if television reception is very poor, the closed caption decoder may not appear or may appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna. To turn on closed captions (analog mode): 1 Press TUNER to select the analog mode. 2 Press MENU/ENTER. The menu screen appears. 3 Press the CH + and CH - buttons until the indicator next to CLOSED CAPTION flashes, then press the VOL + button. The CLOSED CAPTION menu screen appears. Notes: Depending on the broadcast signal, some analog captions function with a digital broadcast signal. This screen can be displayed by pressing CCD. 4 Press the CH + and CH - buttons to select the desired closed caption mode, then press MENU/ENTER.

• To view captions, select C1 or C2. C1 displays translation of the primary language in your area. If the program or video you selected is not closed captioned, no captions will display on screen. Item < > BRIGHTNESS decrease increase CONTRAST decrease increase COLOR paler color brilliant color TINT reddish tint greenish tint SHARPNESS softer picture clearer pictureUsing the TV

• To view text, select T1 or T2. If text is not available in your viewing area, a black rectangle may appear on screen. If this happens, set the Closed Caption feature to OFF.

• To turn the closed caption feature off, select OFF. 5 Press EXIT to return to the normal screen. To turn on closed captions (digital mode): 1 Press TUNER to select the digital mode. 2 Press MENU/ENTER. The menu screen appears. 3 Press the CH + and CH - buttons to select DIGITAL SETUP, then press the VOL + button. The DIGITAL SETUP menu screen appears. 4 Press the CH + and CH - buttons to select CLOSED CAPTION, then press the VOL + button. 5 Press the CH + and CH - buttons to select ANALOG CAPTION or DIGITAL CAPTION, then press the VOL + button. 6 Press the CH + and CH - buttons to select the correct Closed Caption mode, then press MENU/ENTER. 7 Press MENU/ENTER repeatedly until the menu screen is cleared. Setting digital mode closed captioning You can display closed captioning with the AUTO settings designated by broadcasting stations or with custom settings. This feature is designed for digital captions only. To set closed captioning using the CC setting: 1 Press TUNER to select the digital mode. 2 Press MENU/ENTER. The menu screen appears. 3 Press the CH + and CH - buttons to select DIGITAL SETUP, then press the VOL + button. The DIGITAL SETUP menu appears. 4 Press the CH + and CH - buttons to select CLC SETTING, then press the VOL + button. 5 Press the CH + and CH - buttons to select the desired Closed Caption setting, then press MENU/ENTER.

• Custom 6 Press MENU/ENTER repeatedly until the menu screen is cleared. Adjusting digital mode closed captioning Closed captions are factory preset. However you can adjust them individually. This feature is designed to customize digital captions only. Note: Do not set the closed caption TEXT COLOR and BACKGROUND COLOR the same, or you will not be able to see the text. To adjust closed captioning: 1 Press TUNER to select the digital mode. 2 Press MENU/ENTER. The menu screen appears. 3 Press the CH + and CH - buttons to select DIGITAL SETUP, then press the VOL + button. The DIGITAL SETUP menu appears. 4 Press the CH + and CH - buttons to select CLC SETTING, then press the VOL + button. 5 Press the CH + and CH - buttons to select the desired setting, then press MENU/ENTER. You can select from among the following items and parameters.

• TEXT EDGE: NONE, RAISED, DEPRESSED, OUTLINE, LEFT

6 Press MENU/ENTER repeatedly until the menu screen is cleared. Selecting the audio language When two or more audio languages are included in a digital signal, you can select one of the audio languages. To select the audio language: 1 Press TUNER to select the Digital mode. 2 Press MENU/ENTER. The menu screen appears. 3 Press the CH + and CH - buttons until the indicator next to DIGITAL SETUP flashes, then press the VOL + button. The DIGITAL SETUP menu screen appears. 4 Press the CH + and CH - buttons to select AUDIO LANGUAGE, then press the VOL + button. The AUDIO LANGUAGE menu appears. 5 Press the CH + and CH - buttons or the number buttons 0 through 7 to select the desired language, then press MENU/ENTER. 6 Press MENU/ENTER repeatedly until the menu screen is cleared. Using the auto shut-off feature When the auto shut-off feature is on and a station being viewed stops broadcasting, the television will shut off automatically 15 minutes after broadcasting stops. To use the auto shut-off feature: 1 Press MENU/ENTER. The menu screen appears. 2 Press the CH + and CH - buttons until the indicator next to AUTO SHUT OFF flashes. then press the VOL + button. 3 Press the CH + and CH - buttons to select ON or OFF. 4 Press EXIT to return to the normal screen.14 Specifications Specifications Design and specifications are subject to change without notice. Troubleshooting Use the following checklist for troubleshooting when you have problems with your television. Consult your local dealer or service outlet if problems persist. Be sure all connections are properly made when using with other units. Power supply AC 120V, 60 Hz Power Consumption Operation 60 Watts Standby 3 Watts Chassis Construction Chassis IC solid state Weight 20.9 lbs. (9.5 kg) Width 14-1/4 inches (362 mm) Height 12-5/8 inches (320.5 mm) Depth 14-3/16 inches (360 mm) Inputs VIDEO 1 V (p-p)/75 ohms AUDIO 300 mV/47k ohms Output Audio power rating 1 Watt Other Antenna input VHF/UHF In 75 ohm coaxial Speaker 3 inches (76.2 mm), full range, 8 ohms Picture tube 13 inches (330.2 mm diagonal) Horizontal resolution 260 lines Receiving channels VHF 2-13 UHF 14-69 CABLE TV 01-97 (5A)-(A-3) 98-99 (A-2)-(A-1) 14-22 (A)-(I) 23-36 (J)-(W) 37-65 (AA)-(FFF) 66-125 (GGG)-(125) Remote control Infrared, direct access

Problem Solution Television does not operate.

• Make sure the power cord is plugged in.• Try another AC outlet.• Power is off. Check fuse or circuit breaker.• Unplug television for an hour, then plug it back in. Poor sound or no sound.
• Station or cable experiencing problems. Tune to another station.• Check sound adjustments (volume and mute).• Check for sources of possible interference. Poor picture or no picture.
• Station or cable experiencing problems. Tune to another station.• Make sure channels are set into memory.• Check antenna or cable connections. Adjust the antenna.• Check for sources of possible interference.• Check picture control adjustments. Poor reception on some channels.
• Station or cable experiencing problems. Tune to another station.• Make sure channels are set into memory.• Station is weak. Adjust the antenna to receive the desired station.• Check for sources of possible interference. Poor color or no color.
• Station or cable experiencing problems. Tune to another station.• Make sure channels are set into memory.• Check picture control adjustments.• Check antenna or cable connections. Adjust the antenna.• Check for sources of possible interference. Picture wobbles or drifts.
• Station or cable experiencing problems. Tune to another station.• Make sure channels are set into memory.• Cable company is scrambling signal.• Adjust antenna. Digital broadcasting screen problem.

• Check all cable connections.
• Set TV CABLE menu option to the CABLE mode.
• Station or cable system problems. Try another station. Horizontal or diagonal bars on screen.
• Check antenna connections.• Adjust or re-direct antenna.• Check for sources of possible interference. No reception above channel 13.

• Make sure the TV CABLE menu option is in the appropriate mode.• If using an antenna, check the UHF antenna connections. No remote operation.
• Batteries are weak, dead, or inserted incorrectly.• Remote is out of range. Move closer to television (within 15 feet).• Make sure the remote is aimed at the sensor.• Confirm there are no obstructions between the remote and the television.• Make sure the power cord is plugged in. Television shuts off.
• No broadcast on tuned station.• Sleep timer is set.• Power interrupted. Closed Caption is not activated.
• Television station experiencing problems or program is not closed captioned. Try another channel.• Check cable connection or VHF/UHF antenna. Reposition or rotate antenna.• Set closed caption decoder in the menu. Display is not shown in your language.
• Select correct language in the menu options.Legal notices
