USER MANUAL HRQ02WNAWW HAIER

1) Use this appliance only for its intended purpose as described in this use

2) This refrigerator must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the installation section.

3) Never unplug your refrigerator by pulling on the power cord. Always

grasp the plug firmly and pull straight out from the outlet.

4) Repair or replace immediately, all electric service cords that have become

frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or the connector end.

5) Unplug your refrigerator before cleaning or before making any repairs.

Note: If for any reason this product requires service, we strongly recommend that a certified technician performs the service.

6) If your old refrigerator is not being used, we recommend that you remove

the doors and leave the shelves in place. This will reduce the possibility of danger to children.

7) This refrigerator should not be recessed or built-in an enclosed cabinet. It

is designed for freestanding installation only.

8) Do not operate your refrigerator in the presence of explosive fumes.

SAVE THESE INSTRUCTIONS

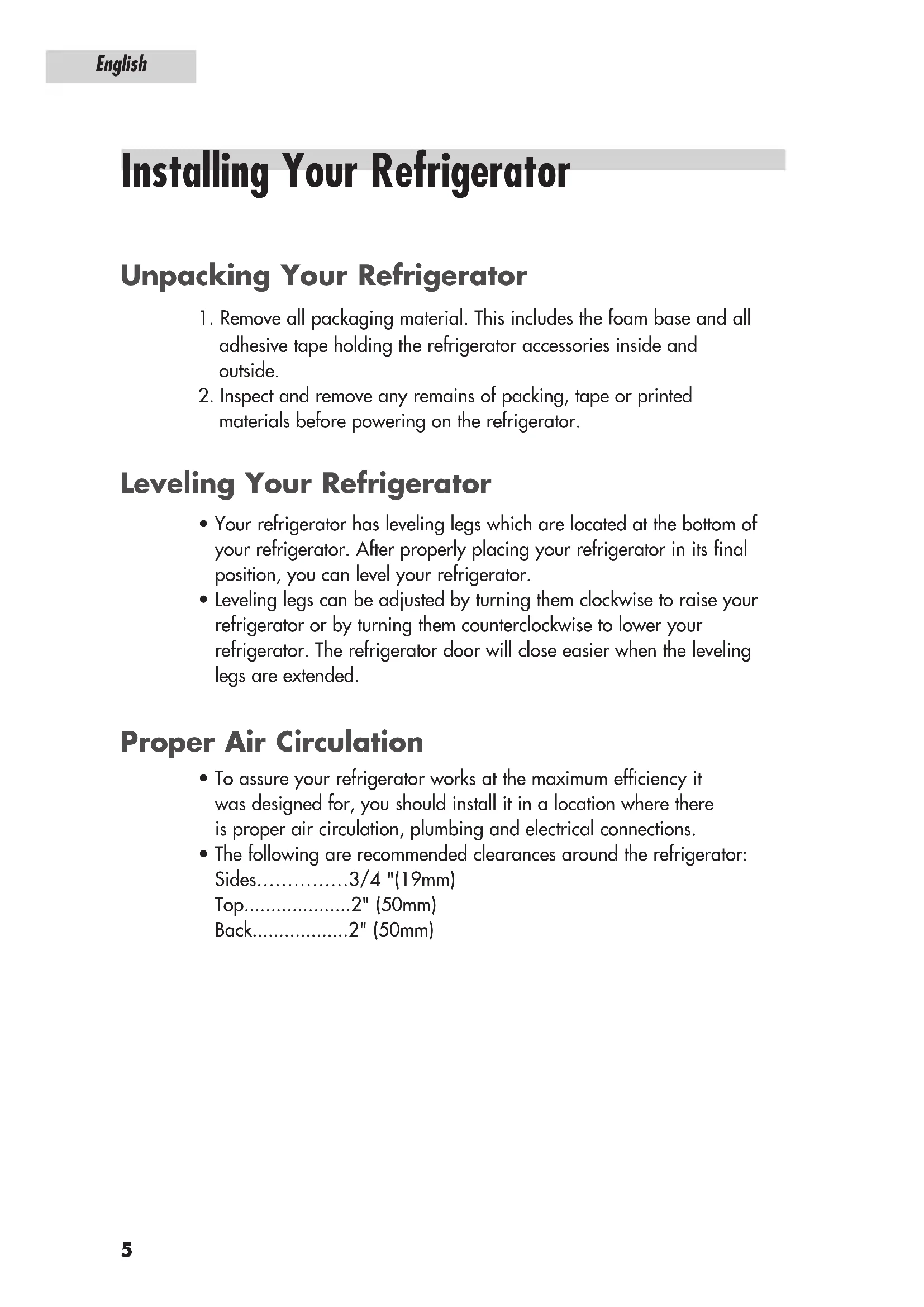

(HRQ02WNA)1. Remove all packaging material. This includes the foam base and all adhesive tape holding the refrigerator accessories inside and outside.

2. Inspect and remove any remains of packing, tape or printed

materials before powering on the refrigerator.

• Your refrigerator has leveling legs which are located at the bottom of your refrigerator. After properly placing your refrigerator in its final position, you can level your refrigerator.

• Leveling legs can be adjusted by turning them clockwise to raise your refrigerator or by turning them counterclockwise to lower your refrigerator. The refrigerator door will close easier when the leveling legs are extended.

• To assure your refrigerator works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation, plumbing and electrical connections.

• The following are recommended clearances around the refrigerator: Sides……………3/4 "(19mm) Top....................2" (50mm) Back..................2" (50mm) Installing Your Refrigerator Unpacking Your Refrigerator Proper Air Circulation Leveling Your Refrigerator

• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with proper grounding to power the refrigerator.

• Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two plug outlet. This is a dangerous practice since it provides no effective grounding for the refrigerator and may result in shock hazard.

• Do not install your refrigerator in any location not properly insulated or heated e.g. garage etc. Your refrigerator was not designed to operate in temperature settings below 55˚ Fahrenheit.

• Select a suitable location for the refrigerator on a hard even surface away from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc. Any floor unevenness should be corrected with the leveling legs located at the bottom. Install Limitations

• Avoid the use of an extension cord because of potential safety hazards under certain conditions. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance. Use of Extension Cords7

1. Remove hinge cover screw.

4. Adjust the door or put a spacer in between and then tighten the screws.

1. Remove the top hinge cover screw and then remove

the top hinge cover. (see fig. # 1)

2. Using a Phillips Head Screwdriver, loosen and remove the

screws holding the top hinge in place. (see fig. # 1)

3. Remove the top hinge and carefully lift off the door.

4. Remove the screw hole plug from the opposite side and

insert the plug in the screw hole openings of the just removed screws. (see fig. # 2)

5. Remove the door pin from the bracket of the lower

hinge by turning counter clockwise. Move the pin to the opposite hole and tighten. (see fig. # 3)

6. Loosen the screws holding the lower hinge bracket

and remove the hinge.(see fig. # 3)

7. Align the holes in the lower hinge bracket to the

corresponding holes in the opposite side of the cabinet. Insert and tighten the screws.(see fig. # 3)

8. Align the bottom hole on the left side of the door with the

pin of the lower hinge and slide into place. fig. # 2 screw hole plug9. Align the pin of the top hinge with top hole on the left side of the door and push into place. Replace the screws in the upper hinge bracket but do not tighten all the way. (see fig. # 2)

10. Make sure the door closes easily but forms a tight seal.

Adjust the door as needed. Once you are satisfied with the door alignment, completely tighten the upper door hinge screws.

11. Replace the hinge cover, insert the screw and

tighten completely. (see fig. # 2)

12. If the door does not close properly, refer to the

section titled “Door Alignment”. fig. # 3 English

1. Gently tilt the shelf up and slide forward until the shelf has been

2. To replace the shelf, gently slide the shelf back.

General Features Adjustable temperature dial: Your refrigerator will automatically maintain the temperature level you select. The temperature control dial has 7 settings plus off. 1 is the warmest. 7 is the coldest. Turning the dial to OFF stops cooling in the refrigerator. At first, set the dial to 4 and allow 24 hours to pass before adjusting the temperature to your needs. (Note: If the refrigerator has been placed in a horizontal or tilted position for any period of time wait 24 hours before plugging the unit in.) Refrigerator Interior Shelves (shelves will vary per model purchased) fig. # 4 English

1. Simply flip the shelf as shown in the diagram.

This is designed to give you extra storage for tall bottles. fig. # 5English

• Your refrigerator is equipped with a lock and key (located at the bottom center of the door) for optional security, should you choose. Simply close the refrigerator door, insert the key and turn. To open, insert the key and turn in the opposite direction. fig. # 6 lock and key Light

• To replace burnt-out bulbs, remove the temperature control knob by pulling it out (see fig. # 7a). Carefully pull the plastic light cover to the left and remove. Unscrew the bulb and replace it with a new one (use bulbs of 15 watts or less). To replace cover, insert the back slots into the casing (see fig. # 7b). Align the front and push the control knob back in.

• When storing fresh food, which is not prepackaged, be sure to wrap or store food in airtight and moisture proof material unless otherwise noted. This will ensure proper shelf life and prevent the transfer of odors and tastes.

• Wipe containers before storing to avoid needless spills.

• Eggs should be stored in an upright position in their original carton to maximize shelf life.

• Fruit should be washed and dried then stored in sealed plastic bags before storing in the refrigerator.

• Vegetables with skins should be stored in plastic bags or containers.

• Leafy vegetables should be washed and drained and then stored in plastic bags or containers.

• Hot food should be allowed to cool before storing in the refrigeration. This will prevent unnecessary energy use.

• Fresh seafood should be used the same day as purchased.

• When storing meats in the fresh food section, keep in the original packaging or rewrap as necessary. Follow the suggestions below for safe storage:

• Smoked/Cured Meats 7-10 Days

• All others 1-2 Days Food Storage Information

• Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating through the cooling coils.

• The thermostat control will click when it cycles on and off. Normal Operating Sounds You May Hear13 English

To avoid electric shock always unplug your refrigerator before cleaning. Ignoring this warning may result in death or injury. Caution: Before using cleaning products, always read and follow manufacturer’s instructions and warnings to avoid personal injury or product damage. General:

• Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your refrigerator.

• Rinse with clean warm water and dry with a soft cloth.

• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,concentrated detergents, solvents or metal scouring pads. SOME of these chemicals may dissolve, damage and/or discolor your refrigerator.

• Clean door gaskets every three months according to general instructions. Gaskets must be kept clean and pliable to assure a proper seal.

• Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and assure a good seal. Proper Refrigerator Care and Cleaning Cleaning and Maintenance Door Gaskets:• Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored, replug power cord to AC outlet. If outage is for a prolonged period, inspect and discard spoiled food from the refrigerator. Clean refrigerator before reusing.

• For long vacations or absences, empty food from refrigerator, move the temperature DIAL to the OFF position and clean the refrigerator and door gaskets according to "General cleaning" section. Prop doors open, so air can circulate inside.When moving always move the refrigerator vertically. Do not move with the unit lying down. Possible damage to the sealed system could occur. English

Power Interruptions Vacation and Moving Care15 English Refrigerator Does Not Operate

• Check if thermostat control is not in the “OFF” position.

• Check if refrigerator is plugged in.

• Check if there is power at the ac outlet, by checking the circuit breaker. Food temperature appears too warm

• Frequent door openings.

• Allow time for recently added warm food to reach fresh food temperature.

• Check gaskets for proper seal.

• Adjust temperature control to colder setting. Food temperature is too cold

• If temperature control setting is too cold, adjust to a warmer setting and allow several hours for temperature to adjust. Refrigerator runs too frequently

• This may be normal to maintain constant temperature during high temperature and humid days.

• Doors may have been opened frequently or for an extended period of time.

• Check gasket for proper seal.

• Check to see if doors are completely closed. Moisture build up on interior or exterior of the refrigerator:

• This is normal during high humidity periods.

• Prolonged or frequent door openings.

• Check door gaskets for proper seal. Refrigerator has an odor:

• Interior needs cleaning.

• Foods improperly wrapped or sealed are giving off odors. Refrigerator door does not shut properly:

• Level the refrigerator.

• Re-align refrigerator door.

• Check for blockages e.g. food containers, crisper cover, shelves, bins etc. TroubleShootingEnglish

Limited Warranty What is covered and for how long? This warranty covers all defects in workmanship or materials for a period of: 12 months labor (carry in only) 12 months parts 5 years sealed system The warranty commences on the date the item was purchased and the original purchase receipt must be presented to the authorized service center before warranty repairs are rendered. EXCEPTIONS: Commercial or Rental Use warranty 90 days labor (carry-in only) 90 days parts No other warranty applies What is covered.

1. The mechanical and electrical parts,

which serve as a functional, purpose of this appliance for a period of 12 months. This includes all parts except finish, and trim.

2. The components of the sealed system

e.g. hermetic compressor, condenser and evaporator from manufacturing defects for a period of 5 years from the date of purchase. Any damages to such components caused by mechanical abuse or improper handling or shipping will not be covered. What will be done?

1. We will repair or replace, at our

discretion any mechanical or electrical part which proves to be defective in normal usage during the warranty period so specified.

2. There will be no charge to the

purchaser for parts and labor on any covered items during the initial 12 month period. Beyond this period only parts are covered in the remaining warranty. Labor is not provided and must be paid by the customer.

3. Contact your nearest authorized

service center. For the name of the nearest service center please call 1-877-337-3639

THIS WARRANTY COVERS

APPLIANCES WITHIN THE

THE FOLLOWING: Damages from improper installation. Damages in shipping. Defects other than manufacturing. Damage from misuse, abuse, accident, alteration, lack of proper care and maintenance or incorrect current or voltage. Damage from other than household use. Damage from service by other than an authorized dealer or service center. Decorative trims or replaceable light bulbs. Transportation and shipping. Labor (after the initial 12 months).

PURPOSE The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental or consequential damages, so the above limitations may not apply to you. Some States do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary, from state to state. Haier America New York, NY 10018Français
