USER MANUAL LE29F2320 HAIER

CAUTION The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit. The symbol indicates that there are important operating and maintenance instructions in the literaturaccompanying this unit. To reduce the risk of fire or electric shock, do not expose this Television to rain or moisture.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this Television near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, install in

accordance with the instructions.

8) Do not install near any heat sources such as

radiations, heat registers, stoves, or other Television (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized

plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protected the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the Television.

11) Only use attachments/accessories specified by

12) Unplug this Television during lighting storms or

when unused for long periods of time.

13) Refer all servicing to qualified service personnel.

Servicing is required when the Television has been damaged in any way, such as; power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the Television, the Television has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) Mains plug is used as the disconnect device, the

disconnect device shall remain readily operable.

15) The ventilation should not be impeded by

covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.

16) No naked flame sources, such as lighted candles,

should be placed on the Television.

17) Attention should be drawn to the environmental

aspects of battery disposal.

18) The use of Television in moderate climate.

19) The Television shall not be exposed to dripping

or splashing and that no objects filled with liquids, such as vases, shall be placed on the Television. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

The excessive sound pressure from earphones and headphones can cause hearing loss.

Haier is committed to safely recycling electronic products and product materials. Please check for a local recycling location in the United States at: 1800RECYCLING.COM or call 1.800.RECYCLING.-3-

High voltages are used in the operation of this television receiver. Do not the cabinet. Refer servicing to qualified service personnel. open

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver. Do not block the ventilation holes on the back cover . Adequate ventilation is essential to prevent failure of electrical components. of the TV Do not trap the power supply cord under the television receiver s .' stand Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls. Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual and damage to the television may result if it falls. /or When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet. Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television. or near Dim:51 5*320 mm(不包 括底座） If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the life of your television, and can also be dangerous.-4- INTRODUCTION Main features Accessories Infrared Remote Control....................

■ Integrated ATSC TV tuner for HDTV broadcast reception ■ High brightness provides a vivid and brilliant picture ■ Deeper blacks and brighter whites with high contrast ■ Wide Screen aspect ratio (16:9) for a complete home theater experience ■ HDMI input for true digital connection ■ VGA port for connection to PC ■ Built-in stereo speaker system ■ Full-function Remote Control x 2 Resolution: TV System: Video Signal System: Receiving Channel: 16:9 PAL/NTSC Cable: 1-135 / Air: 2-69 (ATV&DTV) x 1 High-Definition Multimedia Interface (HDMI) Input Audio Input x 2 x 1 Horizontal definition (TV line) Composite Video Input >=350 Component (YPbPr) >=400 Video Input >=400 x 1 AC 100-240V 50/60Hz 2x8W ATSC Digital system and NTSC Analog system Headphone Output x 1 x 1 Coaxial Output Aspect Ratio: Viewing Picture Size (diagonal) Power supply Audio Output Power (THD 7%): Component (YPbPr) Input Composite Video Input Analog RGB (VGA) Input Power consumption HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. x 1 USB Input 1366 x 768 29 inches 42W-5- Base Stand Assembly Instruction

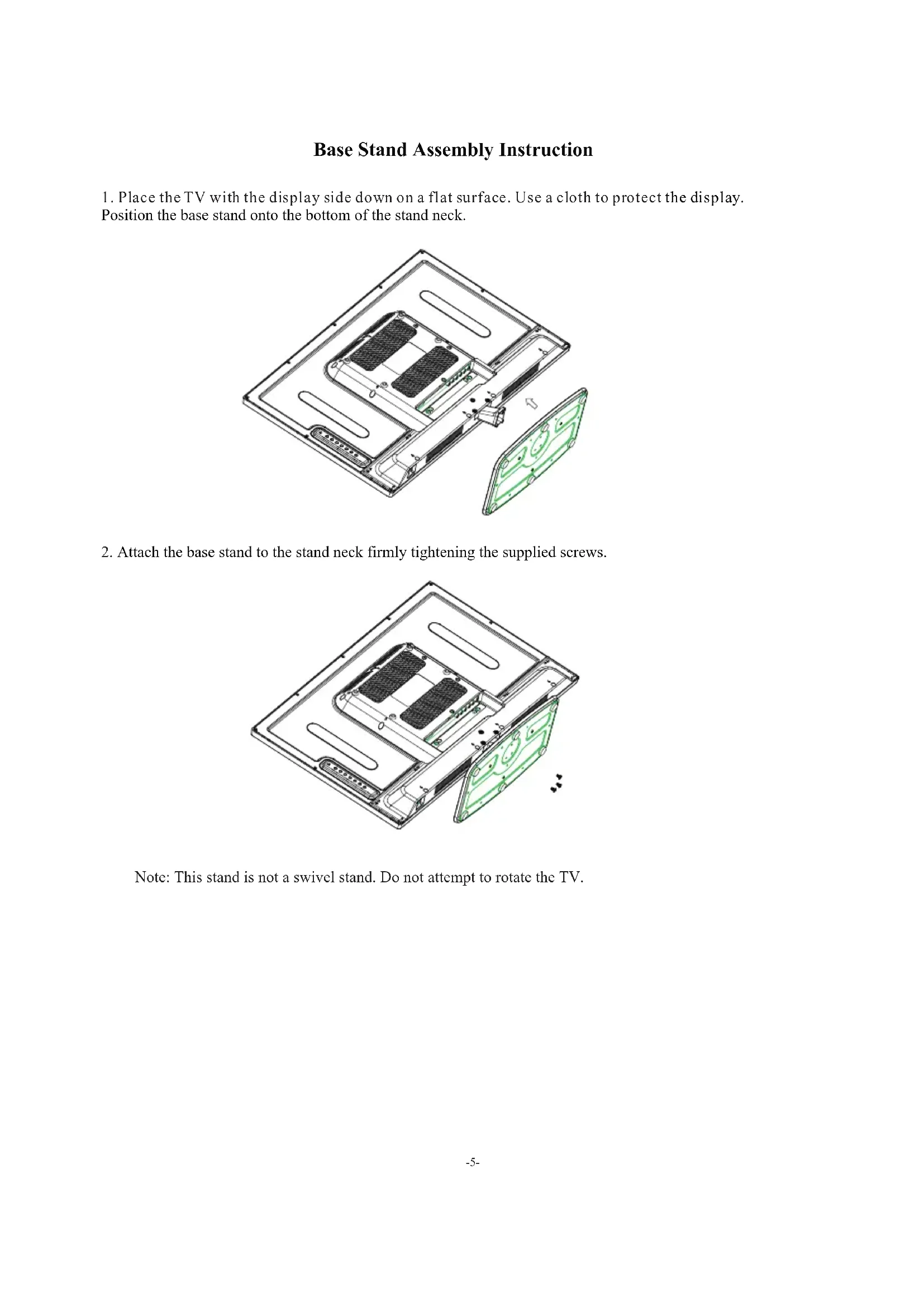

1. Place the TV with the display side down on a flat surface. Use a cloth to protect . the display

Position the base stand onto the bottom of the stand neck.

2. Attach the base stand to the stand neck firmly tightening the supplied screws.

Note: This stand is not a swivel stand. Do not attempt to rotate the TV.-6- INSTALLATION Front panel 1: Remote control sensor. 2: Indicator LED: BLUE POWER ON. RED STANDBY.

3. CH+/CH-: In TV mode, press "CH+" or "CH-" to

change the channel up and down. In MENU mode, press "CH+" or "CH-" to select items in standby mode, press "CH+" or "CH-" to turn on the TV.

4. VOL+/VOL-: Adjust sound level. In MENU mode,

press "VOL+ " or "VOL- " to adjust the item that you selected.

5. STANDBY: Press this button to turn the unit ON

from STANDBY mode. Press it again to turn the set back to STANDBY. Side panel REAR Connections SIDE Connections All the terminals are (from left to right): HDMI1, HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL, RF. Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be connected to the PC audio input.

HDMI1 HDMI2 USB VGA PC AUDIOHEADPHONECOAXIAL

R F All the terminals are (from left to right): POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUT Note: AV and component (YPbPr) share the R and L audio inputs. AC-INPUT100-240V~50/60HzVIDEO L R Y

STANDBY 5ANTENNA INSTALLATION Note: Aerial connections: IEC (female). Input impendance:75 unbalanced. STEPS:

Be sure both the TV and computer are powered off. 1.Connect a VGA and audio cable. 2.Connect the power cord. 3.Turn on the TV, switch to PC mode. 4.Turn on the PC.

AV EQUIPMENT There are two HDMI ports located on the back of your TV. You can connect a Blu-ray player, DVD player, or other video equipment through these ports. There is one component (Y, Pb, Pr) and one composite (AV) video input located on the back of your TV. You can connect a VCR, cable box, or other video equipment to these jacks. Please see the diagram below. You may also need to refer to the owner's manual of the device that you are trying to connect. HDMI The television's inputs can be connected to the following types of equipment: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc..... YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i. Yellow (video)White(audio L)Red(audio R or Pr)

1.Press to turn on and off the TV. 2.Press repeatedly to cycle through the available picture modes. 3.Press to change the aspect ratio. 4.Select a closed caption option. 5.Show the input source menu. 6.Press to open the on-screen menu. 7.Press CHANNEL or CHANNEL to go to the next or previous channel in the channel list. Press VOLUME+ or VOLUME- to increase or decrease the volume. 8.Exit On Screen Display. 9.USB:Press to launch the USB multimedia mode / Previous/Next / No Function ■Stop Play/Pause REPEAT. 10.Press to display the TV status information on the top of the TV screen.

12.Press to cycle through the different sound settings. 13.Press to display the sleep timer option. 14.Select MONO,STEREO,SAP in NTSC (analog TV) system. 15.Press to input a channel. 16.Press to select the digital sub-channels.For example,to enter “54-3”,press“54”,“●”, and then “3”. 17.Switches the TV sound on or off. 18.Press to confirm selections in an on-screen menu or to open a submenu. 19.Press to go to the last viewed channel. 20.Open the channel list in TV mode. 21.Open the favorite channel list in TV mode. Press to freeze the picture you are watching.-11- OPERATION MENUCC Mode CC OffBasic Selection CC1Advanced Selection ServicelOption

In this menu, you can adjust the picture options here, such as contrast, brightness, etc. Press to select, press ENTER to adjust.

When a PC is connected, you can adjust the PC advanced settings.

4) Phase: Fine tune the phase of the screen. Usually

you don't adjust this item.

5) Auto: Auto adjust to fit the screen.

Note: 1) If you want to adjust contrast, brightness, color, and sharpness, the picture mode must be set to personal.2) This will increase or decrease Warm (red) and Cool (blue) colors to suit your personal preference.Select Cool to give the white colors a blue tint, Normal to give the white colors a neutral tint, Warm to give the white colors a red tint.Standard mode is the default setting, if you select some other options, the power consumption may change.

In this menu, you can adjust the sound options here. Press to select, press ENTER to adjust. In this menu, you can adjust the sleep timer, time zone, etc. Press to select, press ENTER to adjust. Note:

1) Time zone, DST (Daylight Saving Time) and the

clock are available in ATSC mode only, and the Clock can't be adjusted.

In this menu, you can adjust the Menu language, Closed Caption, Restore Default etc. Press to select, press ENTER to adjust.

Audio language is available in ATSC/TVmode only. Auto volume is available only when the input signal volume is too large or there is distortion. MENU Advanced H-PosV-PosClockPhase Auto Color Temperature NormalAspect Ratio Fill Noise Reduction MiddlePicture Mode Standard

1) CC Mode: Switch the closed caption mode.

2) Advanced selection: only available in ATSC.

programs and reset all the settings to default value. Canada Canada Eng MENUOK Canada Fre And use the ENTER key to lock/unlock

Parental Controls Rating Content (Fantasy violence) (Violence) (Sexual situation) (Adult language) (Sexually suggestive dialog)Suggested age TV-Y (All children)TV-Y7(Direct to order children)TV-G(General audience) TV-PG(Parental Guidance suggested)TV-14(Parentsstrongly cautioned)TV-MA(Mature audience only)

2) MPAA: Switching the movie-rating control level;

N/A, G, PG, PG-13, R, NC-17, X. Rating Description Age G General audiences, All Ages admitted

Parental Guidance suggested. Some material may not be Suitable for children. PG-13 Parents strongly cautioned. Some material .may be Inappropriate for children under 13.

Restrict. Under 17 requires accompanying parent or adult guardian(age varies in some jurisdictions) No one 17 and under admitted. X is an older rating that is unified with NC-17 but may be encoded in the data of older movies.

1) Canada English: Switching the English rating control

In this menu, you can change the password and adjust the vchip settings. Enter the password, to enter the lock menu. The factory default password is 0000.

1) Old password: Input the old password.

2) New password: Input the new password.

3) Confirm password: Input the new password again.

When the System Lock option is ON, the options listed below can be adjusted.

Press ENTER to display the following screen.

1) TV: Press ENTER to display the following screen.

Press ENTER, to display the following screen. MPAA

Canada RRT Setting Change Password Off

D-13- Auto Scan Scan all channels MENU OK Digital channel onlyAnalog channel only Rating Description Age E Exempt: Includes news, sports, documents and other information programming: talk shows, music videos, and variety programming. C Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of securityand well-being. C8+ Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve conflict; nor encourage children to imitate dangerous acts which they may see on the screen . G General: Considered acceptable for all age groups, Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional. PG Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues. 14+ Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline But it must be integral to the devel opment of plot or character. Language usage could be profane and nudity , present within the context of theme. 18+ Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of secretary and nudity.

2) Canada French: Switching the French-rating control

level: E, G, 8ANS+, 13 ANS+, 16ANS+, 18ANS+. Rating Description Age E Exempt programming G General :All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner . 8ans+ General but inadvisable for young children :May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with paren. 13ans+ Over 13 years: Could contain scenes of frequent violent scenes and in tense violence. 16ans+ Over 16 years: Could contain frequent violent scenes and violence. 18ans+ Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

in ATSC digital TV mode, it can be adjusted

Press ENTER, the screen will be displayed as follow:

In this menu, you can adjust digital and analog TV Channels. Press to select, press ENTER to adjust.

Select Air TV signal and cable TV signal.

If it's the first time you use the TV, you should scan all the TV channels first. Press ENTER to confirm, to display the following screen. Press ENTER to select a scan type, you will see the message below which indicates that the auto search is in progress.

Press ENTER to choose/delete favorite channels.

Display DTV strength signal. It can't be selected or adjusted. Auto ScanFavoriteShow/HideDTV SignalAir/Cable Cable Channel

The LCD TV panel is built with very high precision technology giving you fine picture details in vibrant color. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, black or white. Please note this does not affect the performance of the product. Component (Y Pb Pr) connections microwave, electronic equipment, car/motorcycle, fluorescent lightWARRANTY -15--1-

HEADPHONE COAXIAL R F-8-

Canada RRT Setting Change Password Off

HEADPHONE COAXIAL R F-8-
